Acer Air Monitor Pro User manual

- 1 -
Air Monitor Pro
AMP220 User Guide
2018-10-v.1.0

- 2 -
Contents
First off…................................................................................................................................................................ 3
Package contents.............................................................................................................................................. 5
A tour of the device.......................................................................................................................................... 6
Product Appearance ............................................................................................................................... 6
Air Monitor Pro Display ......................................................................................................................... 8
Getting started................................................................................................................................................... 9
Install on a desktop holder................................................................................................................... 9
Install onto a wall mount holder......................................................................................................10
Download the Air Monitor Pro app from either the iOS App Store or the Google Play
store.............................................................................................................................................................11
Using Air Monitor Pro APP..........................................................................................................................12
Scan Bluetooth air quality broadcast .............................................................................................12
Setup Wi-Fi connection.......................................................................................................................13
Device List .................................................................................................................................................15
Individual Air Monitor Pro Page.......................................................................................................16
Using Map.................................................................................................................................................18
Understanding the breathing LED light.................................................................................................19
General safety information .........................................................................................................................20
Taking care of your device...........................................................................................................................21
Frequently Asked Questions（FAQs）...................................................................................................21
Specifications....................................................................................................................................................22
Power...........................................................................................................................................................22
Connectivity..............................................................................................................................................22
Sensors (Note: according to configuration of Air Monitor Pro)..........................................22
Operating Temperature .......................................................................................................................23
FCC Warning Statement................................................................................................................................24

- 3 -
First off…
Congratulations on your purchase of Acer Air Monitor Pro. It is a first, positive
step in helping you improve the air you breathe and your quality of life. This
simple device monitors the air quality within its immediate surroundings.
The Air Monitor Pro allows you to monitor critical indicators of indoor air quality.
These are:
The Air Monitor allows you to monitor six critical indicators of indoor air quality. These are:
Temperature - This metric directly relates to comfort and mood.
Humidity - Moisture leads to colds, flus, and risk of toxic mold formations.
VOCs - Volatile Organic Compounds are toxic chemicals that can cause skin and respiratory
irritation.
Particulates - PM2.5/PM10 (fine/coarse particulate matter) travels deep into our respiratory
system and can trigger asthma, allergies and other related health problems.
CO2 - Carbon dioxide content in the fresh air is typically measured around 400 PPM (Parts
Per Million), depending on the location. People in a high CO2 environment will feel drowsy,
dizzy, have headaches, and experience hearing and visual dysfunction. It may also cause
unresponsiveness and decision delay.
Formaldehyde – One of volatile organic matter indoor. From the toxicology research, it has
been confirmed as carcinogenic substances. Formaldehyde can stimulate human skin,
respiratory tract, central nervous system and cause other unhealthy effects.
CO - Carbon monoxide is toxicity to human body. People in a high CO environment
will feel dizziness, headache, dyspnea and may cause other poisoning
phenomenon.
O3– Oxygen is an irritant gas. It can stimulate the eyes and respiratory tract, and
may cause cough, chest discomfort and other symptoms.
Air Monitor Pro AMP220 series are configurable. You can choice sensor and
wireless configuration for your environmental applications. To verify your Air
Monitor model, please check the label located on the back of the Air Monitor. The
user manual is based on the latest Air Monitor firmware and App version; please
follow the user manual to operate it.

- 4 -
Through visual indicators on the device, as well as more detailed information on
the app, the Acer Air Monitor helps track and gives advice on how to improve the
air quality, your health, and the health of the ones you care about.

- 5 -
Package contents
Make sure the following items are in your package. If anything is missing, contact
your authorized dealer or distributor.
Air Monitor Pro USB Cable USB Power Adapter
Desktop Holder Quick Guide Warranty Card
Note: Actual items might differ from illustrations.

- 6 -
A tour of the device
Product Appearance
Item Description
1 Breathing LED light Lights up using different colors to show the
current air quality.
2 Display Show the air quality index and individual
concentrations.
3 Light Sensor Measure the ambient illumination.
4 Function button Tune On/Off the Breathing LED light. When the
LED light is off, the display will display indoor air
quality index only.

- 7 -
5 Wi-Fi Green LED Wi-Fi Status Red LED Green LED
Booting Flash Off
Wait for setup On Off
Connecting to
access point
Off Slow Flash
Connected to
access point
Off Fast Flash
Connected to cloud Off On
Resetting Flash Flash
6 Wi-Fi Red LED
7 Wi-Fi Reset Button To reset Wi-Fi configuration, please use an
unfolded paperclip to press and hold this button
until the Wi-Fi Red LED lights up.
8 Communication Ports Communication and I/O Ports：
1. NO2: Dry contact 2
2. NO1: Dry contact 2
3. A+: RS485 A+
4. B-: RS485 B-
5. GND: Ground
6. VCC +5V: +5V output
9 Micro-USB Connect to power adapter

- 8 -
Air Monitor Pro Display
The display by default show the value detected by each sensor sequentially. When you
press the function button, you can fix it on the Indoor Air Quality index (IAQ) screen.
When you press it, you can switch back to the carousel mode.
Item Description
1 Sensor Name
(Note: Air Monitor Pro has
different configuration of
sensors. Please check your
product configuration.)
IAQ: Indoor Air Quality
Temp: Celsius
Humi.: Relative Humidity
PM2.5: Particular Matter size < 2.5 µm
PM10: Particular Matter size < 10 µm
TVOC: Volatile Organic Compound
CO2: Carbon Dioxide
CO: Carbon Monoxide
HCHO: Formaldehyde
Ozone: O3
Illum.: Environment illumination
2 Real-time Measurement The latest measurement of sensor.
3 Version Air Quality and sensor version.
4 Wireless Status Show the exists of Wi-Fi and Bluetooth hardware
5 Unit The unit corresponding sensor
6 Warming Up If it shows a blue point, it means the
corresponding sensor is warming up.
7 Counter Counting timer in second from booting.

- 9 -
Getting started
Install on a desktop holder

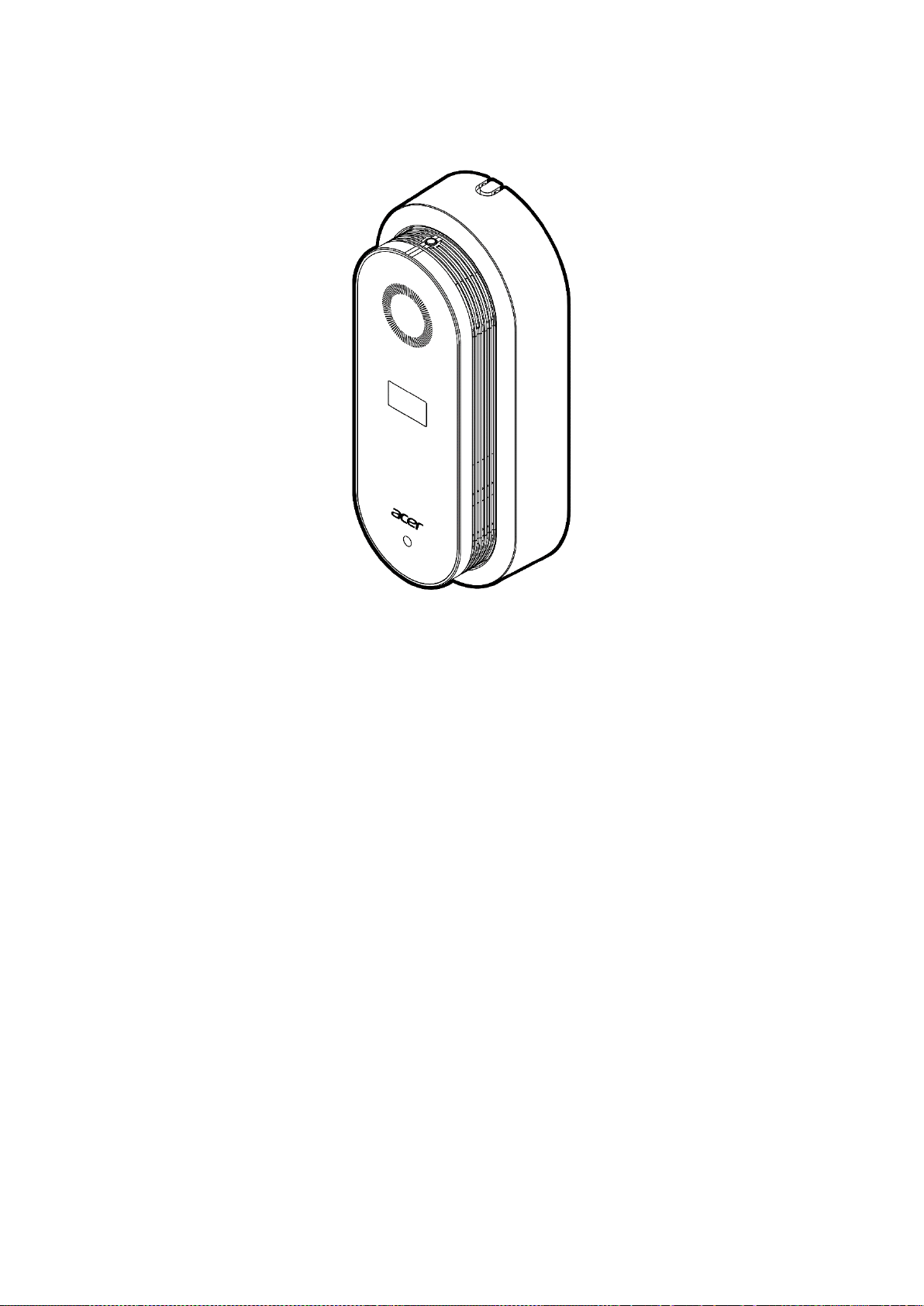

1. Attach the appropriate power adapter plug to the USB power adapter.
2. Gently insert and secure Air Monitor Pro along the two inner grain of the
desktop holder.

- 10 -
Install onto a wall mount holder
Note：Wall mount holder is optional.

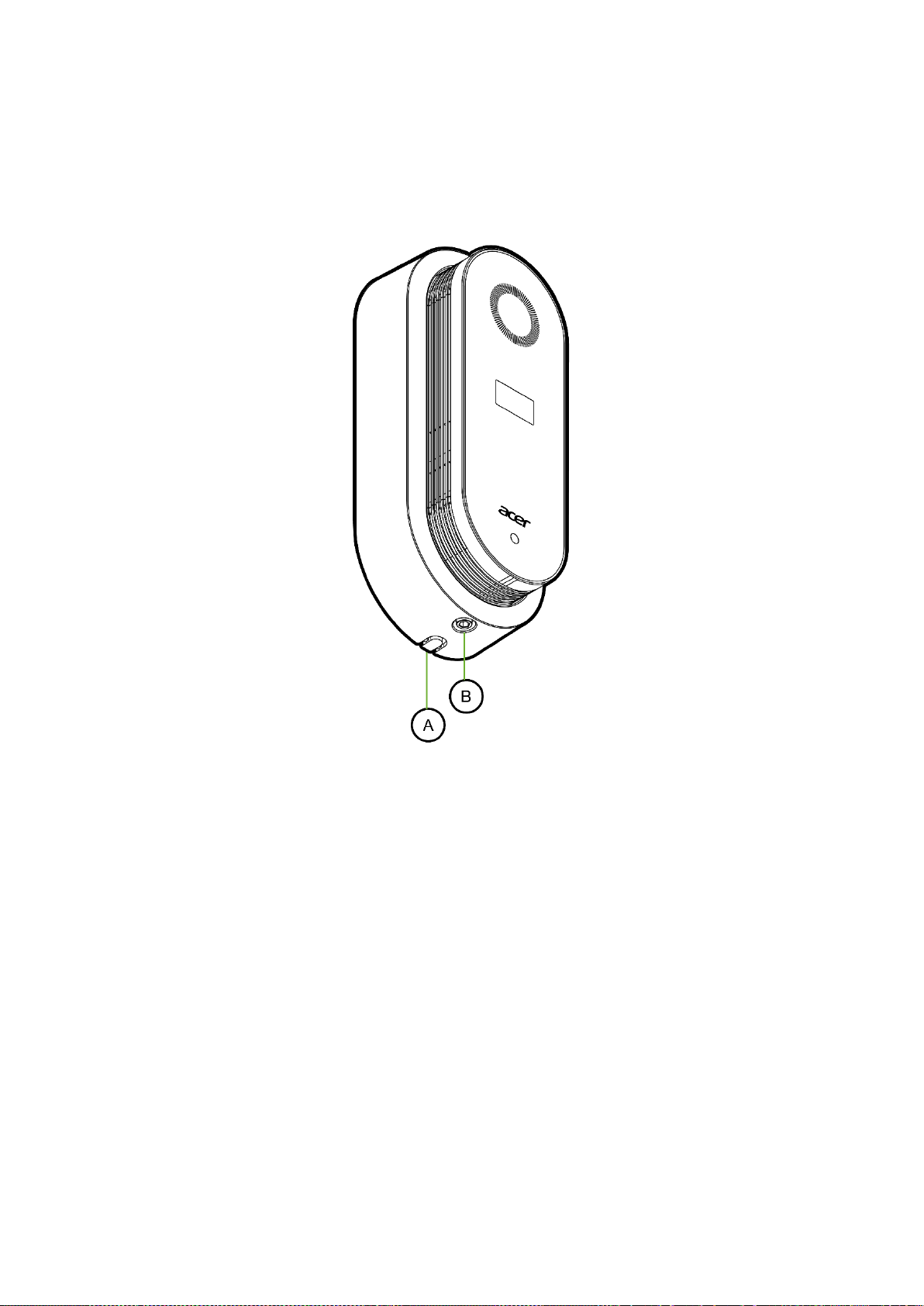

1. There are two outlet holes on the wall mount holder. You may remove the
piece of plastic (A) to open the hole accordingly.
2. The wall mount can be fixed to the wall. You may use attached screws to fix it.
3. Connect USB cable and Air Monitor Pro
4. Place Air Monitor Pro into the holder and secure it by Screw (B)
5. Plug to the USB power adapter
