Acer P244W User manual

- 1 -
Product Service Manual – P244W
Service Manual for acer:
P244W-1A2H
P/N: 9J.0LN16. xxx
Applicable for All Regions
Version: 001
Date:2008/07/14
Notice:
- For RO to input specific “Legal Requirement” in specific NS regarding to r
esponsibility and liability
statements.
First Edition (July, 2008)
© Copyright Acer Corporation 2008. All Right Reserved.

- 2 -
Content Index
Abbreviations & Acronyms ............................................................................... 3
1. About This Manual ......................................................................................... 3
1.1. Trademark ........................................................................................................ 3
2. Introduction .................................................................................................... 4
2.1. RoHS (2002/95/EC) Requirements ................................................................. 4
2.2. Safety Notice ................................................................................................... 4
2.3 .Compliance Statement.................................................................................... 4
2.4. General Descriptions ...................................................................................... 4
3. Product Overview........................................................................................... 5
3.1. Introduction ..................................................................................................... 5
3.2. Operational Specification............................................................................... 6
3.3. Operational & Functional Specification .......................................................11
3.4. LCD Characteristics...................................................................................... 14
3.5. User Controls ................................................................................................ 15
3.6. Mechanical Characteristics.......................................................................... 16
3.7. Pallet & Shipment.......................................................................................... 17
3.8. Certification ................................................................................................... 18
3.9. Packing .......................................................................................................... 19
4. Disassembly /Assembly .............................................................................. 20
4.1. Exploded View............................................................................................... 20
4.2. Disassembly /Assembly ............................................................................... 21
5. Level 1 Cosmetic / Appearance / Alignment Service ............................... 29
5.1 Alignment procedure (for function adjustment) .......................................... 29
5.2 Software / Firmware Upgrade Process......................................................... 32
5.3 EDID Upgrade Procedure .............................................................................. 37
5.4 OSD Operation Guide .................................................................................... 40
6. Level 2 Circuit Board and Standard Parts Replacement ......................... 49
6.1. Trouble Shooting Guide................................................................................ 49
6.2 Circuit Operation Theory ............................................................................... 55
6.3 Spare Parts List .............................................................................................. 59
Appendix 1 – Screw List / Torque................................................................... 60
Appendix 2 – Physical Dimension Front View and Side view..................... 62
Appendix 3 –Control Board ............................................................................ 64
Appendix 4 –Power Board .............................................................................. 65
Appendix 5 –LED Board .................................................................................. 67

- 3 -
Abbreviations & Acronyms
1. About This Manual
This manual contains information about maintenance and service of acer products.
Use this manual to perform diagnostics tests, troubleshoot problems, and align the
acer product.
1.1. Trademark
The following terms are trademarks of Acer Inc. :
Acer
Importance
Only trained service personnel who are familiar with this Acer Product
shall perform service or maintenance to it. Before performing any
maintenance or service, the engineer MUST read the “Safety Note”.

- 4 -
2. Introduction
This section contains general service information, please read through carefully. It should be
stored for easy access place for quick reference.
2.1. RoHS (2002/95/EC) Requirements
– Applied to all countries require RoHS.
The RoHS (Restriction of Hazardous Substance in Electrical and Electronic Equipment Directive)
is a legal requirement by EU (European Union) for the global electronics industry which sold in EU
and some counties also require this requirement. Any electrical and electronics products
launched in the market after June 2006 should meet this RoHS requirements. Products launched
in the market before June 2006 are not required to compliant with RoHS parts. If the original
parts are not RoHS complaints, the replacement parts can be non ROHS complaints, but if the
original parts are RoHS compliant, the replacement parts MUST be RoHS complaints.
If the product service or maintenance require replacing any parts, please confirming the RoHS
requirement before replace them.
2.2. Safety Notice
1. Make sure your working environment is dry and clean, and meets all government safety
requirements.
2. Ensure that other persons are safe while you are servicing the product.
DO NOT perform any action that may cause a hazard to the customer or make the product
unsafe.
3. Use proper safety devices to ensure your personal safety.
4. Always use approved tools and test equipment for servicing.
5. Never assume the product’s power is disconnected from the mains power supply. Check that
it is disconnected before opening the product’s cabinet.
6. Modules containing electrical components are sensitive to electrostatic discharge (ESD).
Follow ESD safety procedures while handling these parts.
7. Some products contain more than one battery. Do not disassemble any battery, or expose it to
high temperatures such as throwing into fire, or it may explode.
8. Refer to government requirements for battery recycling or disposal.
2.3 .Compliance Statement
Caution: This Optical Storage Product contains a Laser device. Refer to the product specifications
and your local Laser Safety Compliance Requirements.
2.4. General Descriptions
This Service Manual contains general information. There are 3 levels of service:
Level 1: Cosmetic / Appearance / Alignment Service
Level 2: Circuit Board or Standard Parts Replacement
Level 3: Component Repair to Circuit Boards

- 5 -
3. Product Overview
3.1. Introduction
1 1. Introduction
P244W is defined as our new 24’W model in ACER P series which will be the ACER project in
Qisda. P244W is defined as 24’W LCD Monitor supports 1920(H) x 1080(V) resolution with DPMS
(Display Power Management System) and ACER eColor function. There are triple input types, D-
sub, HDMI x 2. P244W adopts AUO panel, M240HW01V0. P244W has external docking that is
consigned by Acer and designed by DXP. External docking is included 3W+3W Dolby speaker,
USB hub.
The features summary is shown as below,
* All panel spec. in C201 definition depends on the variance of panel source.
* All spec. of monitor need to warm up at least 1hr.
* To test the “Contrast Ratio” and “Luminance” functions, the color status must be “User
preset” mode.
* 1. “Contrast Ratio”: Set “brightness” at 100, and “contrast” at 50.
* 2. “Luminance”: Set “brightness” at 100, and “contrast” at 100.
Feature items Specifications Remark
Panel supplier & module name AUO M240HW01V0 TN, Normally white
Screen diagonal 24W” 531.6 (H) x298.89(V)
Display Format 1920(H) x 1080 (V) Panel Display information
Pixel Pitch 276.75 um x 276.75um per one triad
Viewing Angle (@ Contrast Ratio >= 10) R/L:85/85 degrees (typ)
U/D: 80/80 degrees (typ)
Analog interface with Scaling supported Yes
With 15-pin D-sub
connector
HDMI interface with Scaling supported Yes For 1A2H model
Max resolution mode supported 1980 (H) x 1080 (V)@60Hz
Number of Display Colors supported 16.7 Millions RGB 6-bit +Hi-FRC
Contrast Ratio 1000:1 (typ.),600:1(min)
Test Condition: Set
Contrast at 50, Brightness
at 100, Color at User
preset
Luminance 300 cd/m2(typ.),240 cd/m2
(min)
Test Condition: Set
Contrast at 50, Brightness
at 100, Color at User
preset
AC power input Yes 90-264 Volts, 47-63 Hz.
DC power input (with AC power adapter) No
DPMS supported Yes <1W
LED indicator for power status showed Yes White/Amber
OSD for control & information supported Yes
Multi-language supported for OSD Yes EMEA
Non-EMEA
Buttons control supported Yes
6 buttons including 1
monitor power on/off
control button.

- 6 -
Flywheel control supported No
Scaling function supported Yes
Auto adjustment function supported Yes “Auto-Key” function
DDC function supported (EDID ver. 1.3) Yes DDC2B
DDC-CI support version 1.1 or later Yes DDC-CI
Audio speakers supported No
Audio Jack (input connector) supported No
Earphone Jack (Output connector)
supported Yes For HDMI Audio Output
Microphone function supported No
Mechanical Tilt base design Yes From -5 to +23 degree
VESA wall mounting design Yes
Mechanical Rotate design No
Mechanical Lift base design No
Kensington compatible lock design Yes
3.2. Operational Specification
3.2.1 Power supply
Item Condition Spec OK N.A Remark
Input Voltage range Universal input full
range 90~264VAC /47~63Hz
√
Input Current range 90 ~ 264VAC < 2.0 Arms √
Power Consumption Normal “On” operation
< 75 W √LED: Blue
DPMS DPMS “Sleep” state < 2 W √LED: Amber
DPMS DPMS “Off” state < 1 W √LED: OFF
Inrush Current 110 VAC
220 VAC
< 30 A (peak)
< 60 A (peak) √Cold-start
Earth Leakage Current 264 VAC/50Hz < 3.5 mA √
Hi-Pot
1. 1500VAC, 1 sec
2. Ground test: 30A,
1sec
Without damage
< 0.1 ohm √(on-line test) (in-lab test)
Power Line Transient IEC1000-4-4 1KV √
IEC1000-4-5 (Surge) Common: 2KV,
Differential: 1KV √
CCFL operation range 90 ~ 264VAC 3~8mA √Depends on panel
source
CCFL Frequency 90 ~ 264VAC 40KHz ~ 80KHz √Depends on panel
source
Power cord
Color: Black
Length: 1800 +/- 50
mm
√

- 7 -
3.2.2 Signal interface
Item Condition Spec OK N.A Remark
15-pin D-Sub
Color: Black
Length: 1800 +/- 30
mm
√
Signal Cable
24-pin DVI-D
Color: Black
Length: 1800 +/- 50
mm
√
15-pin D-sub connector See Note-1 √For 15-pin D-sub
24-pin DVI-D connector See Note-2 √For 24-pin DVI-D
Pin assignment
19-pin HDMI connector See Note-3 √For 19-pin HDMI
Signal type
Separate analog R/G/B
√For 15-pin D-sub
Level 700 mV (peak to peak)
√
Analog input
Impedance 75 Ohms +/- 1.5 Ohms
√
Signal type
Separate H/V-sync
Composite H/V-sync
(Positive/Negative)
√
For 15-pin D-sub
Level
Logic High: 2.4V ~
5.5V
Logic Low: 0V ~ 0.5V
(TTL level)
√
Refer to VESA
VSIS Standard
V1R1
Impedance Minimum 2.2KΩ(pull
down) √
10KΩfor
application
Sync input
Sync Pulse Width (SPW) 0.7µs < H-SPW
1H < V-SPW
√
Level 600mV for each
differential line
√
Impedance 50 Ohm TDR Scan
needed for DVI cable
and interface board
√
Digital input
Impedance 50 Ohm TDR Scan
needed for DVI cable
and interface board
√

- 8 -

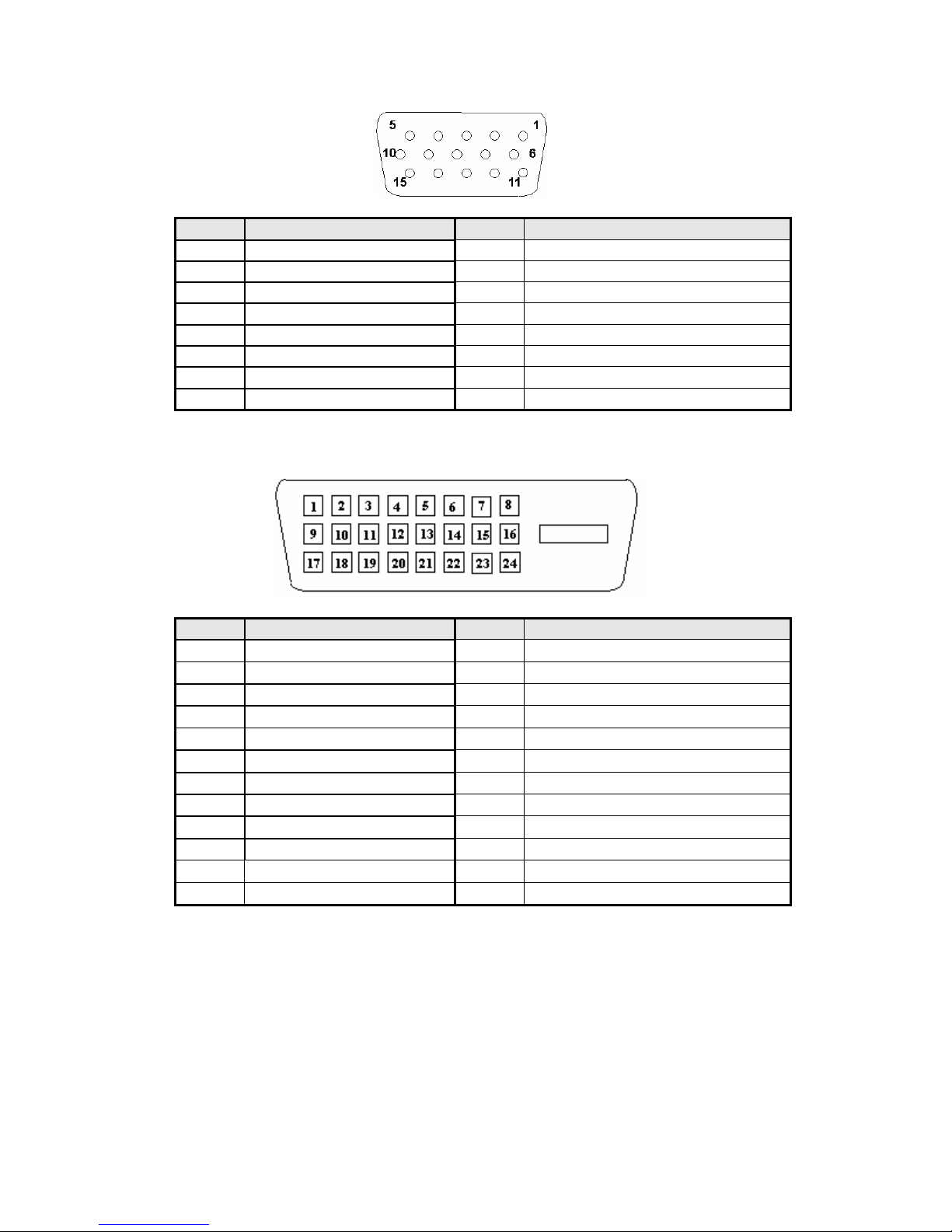

Note-1: The pin assignment of 15-pin D-sub connector is as below,
Pin Signal Assignment Pin Signal Assignment
1 Red video 9 PC5V (+5 volt power)
2 Green video 10 Sync Ground
3 Blue video 11 Ground
4 Ground 12 SDA
5 Cable Detected 13 H-Sync (or H+V)
6 Red Ground 14 V-sync
7 Green Ground 15 SCL
8 Blue Ground
Note-2: The pin assignment of 24-pin DVI-D connector is as below,
Pin Signal Assignment Pin Signal Assignment
1 TMDS RX2- 13 Floating
2 TMDS RX2+ 14 +5V Power
3 TMDS Ground 15 Ground
4 Floating 16 Hot Plug Detect
5 Floating 17 TMDS RX0-
6 DDC Clock 18 TMDS RX0+
7 DDC Data 19 TMDS Ground
8 Floating 20 Floating
9 TMDS RX1- 21 Floating
10 TMDS RX1+ 22 TMDS Ground
11 TMDS Ground 23 TMDS Clock+
12 Floating 24 TMDS Clock-

- 9 -
Note-3: The pin assignment of 19-pin HDMI connector is as below,
3.2.3 Video performance
Item Condition Spec OK N.A Remark
Max. support Pixel rate 173 MHz √
Both for analog and
digital inputs
Max. Resolution 1920 x 1080 √Both for analog and
digital inputs
Rise time + Fall time
< 5 ms
(50% of minimum pixel
clock period)
√
1920x1080 @ 60Hz
(max. support
timing)
Settling Time after
overshoot /undershoot
< 5% final full-scale
value √
Refer to VESA
VSIS Standard
V1R1
Overshoot/Undershoot
< 12% of step function
voltage level over the
full voltage range
√
Refer to VESA
VSIS Standard
V1R1

- 10 -
3.2.4 Scan range
Item Condition Spec OK N.A Remark
Horizontal 31-83 KHz √
Vertical 56-76 Hz √
3.2.5 Plug & Play DDC2B DDC-CI Support
Item Condition Spec OK N.A Remark
DDC channel type DDC2B √
EDID Version 1.3 √
Refer to S/W spec.
document to see
the detailed EDID
data definition.
DDC-CI Version 1.1 or Later √Refer to S/W spec
3.2.6 Support Timings
Mode Resolution
(active dot)
Resolution
(total dot)
Horizontal
Frequency
(KHz)
Vertical
Frequency
(Hz)
Nominal
Pixel
Clock
(MHz)
640x480@60Hz 800 x 525 31.469 59.941 25.175
640x480@72Hz 832 x 520 37.861 72.809 31.500
640x480@75Hz 840 x 500 37.500 75.000 31.500
MAC [email protected] 864x525 35 66.66 30.24
VESA 720x400@70Hz 900x449 31.469 70.087 28.322
800x600@56Hz 1024 x 625 35.156 56.250 36.000
800x600@60Hz 1056 x 628 37.879 60.317 40.000
800x600@72Hz 1040 x 666 48.077 72.188 50.000
SVGA
800x600@75Hz 1056x625 46.875 75.000 49.500
MAC [email protected] 1152x667 49.722 74.55 57.28
1024x768@60Hz 1344x806 48.363 60.004 65.000
1024x768@70Hz 1328x806 56.476 70.069 75.000
XGA
1024x768@75Hz 1312x800 60.023 75.029 78.750
MAC 1152x870@75Hz 1568x909 68.700 75.000 84.520
1152x864@75Hz 1600x900 67.5 75 108
VESA 1280x960@60Hz
1800x1000 60 60 108
1280x1024@60Hz 1688x1066 63.981 60.020 108.000
SXGA 1280x1024@75Hz
1688x1066 79.976 75.025 135.000
1280x720@60Hz 1650x750 44.955 59.940 74.176
1280x768@60Hz 1664x798 47.776 59.870 79.500
VESA
1280x768@60Hz 1696x805 60.289 74.893 102.250
1280x800@60Hz
1680x831 49.702 59.810 83.500
WXGA
1360x768@60Hz 1792x795 47.712 60.015 85.500
1440x900@60Hz 1904x931 55.935 59.887 106.500
WXGA+
1440x900@75Hz 1936x942 70.635 75.000 136.750
UXGA 1600X1200@60Hz 2160x1250 75.000 60.000 162.000
1680x1050@60Hz 2240*1089 65.290 59.954 146.250
WSXGA+
1680x1050@75Hz 2272*1099 82.306 74.892 187
UXGA 1600x1200@60Hz 2160x1250 75.000 60.000 162.000
1920x1080@60Hz 2576x1120 67.158 59.963 173.000

- 11 -
3.3. Operational & Functional Specification
3.3.1 Video performance
*All spec. of monitor need to warm up at least 1hr.
Item Condition Spec OK N.
A
Remark
Resolution
Any input resolution
modes which are under
1680x1050
1920x1080 √
Contrast ratio 600(min),1000(typ) √
Test Condition:
Set Contrast at
50, Brightness
at 100, Color at
User preset.
Brightness At R/G/B saturated
condition
300 cd/m2(typ.),240
cd/m2(min) √
Test Condition:
Set Contrast at
50, Brightness
at 100, Color at
User preset.
Response time Rising + Falling time On/off:5 ms
(typ.),10ms(max) √
Test
Equipment:
Westar TRD
100 or equal
level
equipment ;
At Contrast ratio = 10 R/L: 85/85 degrees (typ.)
80/80 degrees (min) √
Viewing angle
At Contrast ratio = 10 U/D: 80/80 degrees (typ.)
75/75 degrees(min) √
CIE coordinate of White (0.31, 0.33) +/- (0.03,
0.03) √
Display colors 16.7 Millions colors √6 bit+Hi-FRC
3.3.2 Brightness Adjustable Range
Item Condition Spec OK N.
A
Remark
Brightness adjustable
range
At default contrast level
(saturate point) & Full-
white color pattern
(Max. brightness value –
Min.
brightness
value)
≧100 cd/㎡
√
3.3.3 Acoustical Noise
Item Condition Spec OK N.
A
Remark
Acoustical Noise At 1 cm distance ≦28 dB/A √Refer to C326

- 12 -
3.3.4 Environment
Item Condition Spec OK N.
A
Remark
Operating 0 ~ +40 ℃√
Temperature Non-operating -20 ~ +60 ℃√
Operating 10 ~ 90% √Non-
condensing
Humidity
Non-operating 10 ~ 90% √Non-
condensing
Operating 0~3048m (10,000ft) √Without
packing
Altitude
Non-operating 0~12,192m (40,000ft) √With packing
3.3.5 Transportation
Item Condition Spec OK N.
A
Remark
(1) Vibration Package, Non-Operating
Test Specification:
1. Frequency Hertz 5 ~
250 HZ , PSD Level
0.0054 (G2/Hz)
2. Grms = 1.146
3. Sweep Time : 30
minutes per Axis
4. Axes : X,Y,Z
√
(2) Unpackaged Vibration
Unpackaged, Non-
Operating
Test Spectrum:
20 Hz 0.0185(g2/Hz)
200Hz 0.0185(g2/Hz)
Duration : 5 Minutes
Axis : 3 axis
( Horizontal and Vertical
axis ,Z axis)
(3) Drop Package, Non-Operating
76 cm Height (MP stage)
(1 corner, 3 edges, 6
faces)
√
(4) Shock Wooden package, Non-
Operating
1. Amplitude : Half sine-
wave 50G
2. Duration : 10 ms
3. Test Times : 1
4.Test Sides : All 6 Sides
√
3.3.6 Electrostatic Discharge Requirements
Item Condition Spec OK N.
A
Remark
Electrostatic Discharge IEC801-2 standard Contact: 8KV
Air: 15KV √

- 13 -
3.3.7 EMC
Item Condition Spec OK N.
A
Remark
Electric Band 1 < 10 V/m
Band 2 < 1 V/m √
TCO03
Magnetic Band 1 < 200nT
Band 2 < 25nT √
FCC part 15J class B
EMI
EN55022 class B
After Mass production
under 1dBuv for constant
measure. Besides DNSF
and VCCI class-
2 are
optional.
√
3.3.8 Reliability
Item Condition Spec OK N.
A
Remark
MTBF Prediction Refer to MIL-217F > 60,000 Hours √Excluding
CCFL
CCFL Life time At 25±2℃, under 7.0mA 40,000 Hours (min) √See Note-4
Note-4: CCFL lifetime is determined as the time at which brightness of lamp is 50%. The typical
lifetime of CCFL is on the condition at 7.0mA lamp current.
3.3.9 Audio performance
Item Condition Spec OK N.
A
Remark
Preamp + Power amp
(1)Output power 1 Wrms/CH @ 1KHz √
(2)THD (@ 1W) <1% √
(3)S/N ratio >40dB √
Speaker Driver
(1)Nominal impedance 4 ohm √
(2)Rated input power 1 W/CH √
(3)Frequency response 180~20KHz SPL-10dB √
(4)Outpu
t sound pressure
level
84 ± 3 dB (1W 0.5M) √
(5)Dimension of box 284x60x27mm2√
Audio Control
(1)Volume range 0 ~100 levels √
(2)Mute On/Off √

- 14 -
3.4. LCD Characteristics
3.4.1 The Physical definition & Technology summary of LCD panel
AUO M240UP01V.0
Item Condition Spec OK N.
A
Remark
LCD Panel Supplier AUO √
Panel type of Supplier M240HW01V.0 √
Screen Diagonal 609.7 mm (24.0”) √
Display area Unit=mm 531.36(H) x 298.89(V) √
Physical Size Unit=mm 556.0(H) x323.2(V) x 16.65(D) √
Weight Unit=gram 2860 (typ.) √
Technology TN type √
Pixel pitch Unit=um 276.75(H) x276.75(W) √Per one triad
Pixel arrangement R/G/B vertical stripe √
Display mode Normally White √
Support color 16.7Millions colors √6 bit + HiFRC
3.4.2 Optical characteristics of LCD panel
AUO M240HW01V.0
Item Unit Conditions Min. Typ. Max. Remark
[degre
e]
[degre
e]
Horizontal (Right)
CR = 10 (Left) 80
80
85
85
-
-
Viewing Angle [degre
e]
[degre
e]
Vertical (Up)
CR = 10 (Down) 75
75
80
80
-
-
Contrast ratio Normal Direction 600 1000
[msec] Rising Time - 3.4 7.4
[msec] Falling Time - 1.6 2.6
Response Time
[msec] Rising + Falling - 5 10
Red x 0.619 0.649 0.679
Red y 0.308 0.338 0.368
Green x 0.259 0.289 0.319
Green y 0.5793 0.609 0.639
Blue x 0.116 0.146 0.176
Color / Chromaticity
Coordinates (CIE)
Blue y 0.040 0.070 0.100
White x 0.283 0.313 0.343Color Coordinates (CIE)
White
White y 0.299 0.329 0.359
Luminance Uniformity [%] 9 points
measurement 75 80
White Luminance @ CCFL
7.0mA (center)
[cd/m2] 240 300 -
Crosstalk (in 75Hz) [%] 1.5
* The test methods for the above items’ definition, please refer to the relative panel specification.

- 15 -
3.5. User Controls
3.5.1 User’s hardware control definition
Item Condition Spec OK N.A Remark
Power button √
Auto button(Exit button) √
Right/Inc. button √
Left/Dec. button √
Menu button √
Mode button √
Input Select button √
E-Key button √
Mute button √
3.5.2 OSD control function definition
Item Condition Spec OK N.A Remark
Auto Adjust Auto-Geometry √
Brightness √
Contrast √
Horizontal Position √
Vertical Position √
Pixel Clock √
Phase √
Color
Cool(9300K)
Warm(6500K)
User: Separate R/G/B
adjustment
√
OSD Position OSD Horizontal position
OSD Vertical position √
OSD Time From 5 sec to 120 sec √
OSD Lock √
Language
EMEA/Non-EMEA
languages for Asia/Europe
Version
√
Recall Recall All √
Mode ACER Empower Mode √
Input Select D-sub
HDMI * 2 √
Sharpness √
Display Information For input timing √
Volume √
Mute √
Hot key for Auto √
Hot key for Contrast √
Hot key for Volume √
Hot key for Input Select √
Hot key for Mode √
The detailed firmware functions’ specification, please refer to C212 S/W spec. document.

- 16 -
3.6. Mechanical Characteristics
3.6.1 Dimension
Item Condition Spec OK N.A Remark
Bezel opening 533.36*300.89 mm √
Monitor without Stand W x H x D mm 568.5*357.4*62mm √
Monitor with Stand W x H x D mm 568.5*417.9*207.2 mm
√
Carton Box (outside) L x W x H mm 640*150*493mm √
Tilt and Swivel range Tilt: -5 ~ +15 degree
Swivel: 0 degree √
3.6.2 Weight
Item Condition Spec OK N.A Remark
Monitor (Net) 5.66Kg √
Monitor with packing
(Gross)
7.3Kg √
3.6.3 Plastic
Item Condition Spec OK N.A Remark
Flammability >ABS<,94-HB √
Heat deflection To ABS 65 ℃√
UV stability ABS Delta E < 8.0 √
Resin
1.BEZEL/BASE:PMMA+
ABS
2.
UC/CLMN-F/CLM-R ：
ABS
√
Texture Uc:AT-IM-D02;
Bezel: Polish #10000 √
Color BEZEL : DT02A;
UC: DB27A √
3.6.4 Carton
Item Condition Spec OK N.A Remark
Color Kraft √
Material A Flute √
Compression strength 200KGF √
Burst Strength 16 KGF/cm2√
Stacked quantity 4 Layers Vertical √

- 17 -
3.7. Pallet & Shipment
3.7.1 Container Specification
Stowing Type
ontainer
Quantity of products
(sets)
(Every container)
Quantity of Products
(sets)
(Every Pallet)
Quantity of pallet
(sets)
(Every Container)
20' 480 Pallet A: 48 Pallet A: 10
Pallet B: Pallet B:
40' 1056 Pallet A: 48 Pallet A: 22
With pallet
Pallet B: Pallet B:
20' X X
X X
40' X X
Without pallet
X X
3.7.2 Carton Specification
3.7.2.1 Product:
Net Weight (Kg) Gross Weight (Kg) Dimension w/o Base
W*H*D (mm)
Dimension w/ Base
W*H*D (mm)
5.66Kg 7.3Kg 568.5*357.4*62mm 568.5*417.9*207.2 mm
3.7.2.2Package:
Carton Interior Dimension (mm)
L*W*H
Carton External Dimension (mm)
L*W*H
630*140*468mm 640*150*493mm

- 18 -
3.8. Certification
Item Condition Spec OK N.A Remark
Green design API Doc. 715-C49 √ISO14000
Requirement
Blue Angel German Standard √
E-2000 Switzerland √
EPA USA Standard √
TCO’99 √
TCO’03 √
MPR2 √
Environment
Green Mark √
Microsoft Windows PC98/99 √
DPMS VESA √
DDC 2B Version 1.3 √
PC-Monitor
USB External √
UL (USA) UL60950 3rd edition √
CSA (Canada) CAN/CSA-C22.2 No.
60950 √
Nordic / D.N.S.F EN60950 √
FIMKO EN60950 √
CE Mark 73/23/EEC √
CB IEC60950 √
CB EN60950 √
TUV/GS EN60950 /
EK1-ITB 2000:2003 √
CCC (China) CB4943 √
GOST EN60950 √
TUV type-approved √
Safety
SASO IEC60950 √
CE Mark 89/336/EEC √
FCC (USA) FCC Part 15 B √
EN55022 Class B √
CISPR 22 Class B √
VCCI (Japan) VCCI Class B √
BSMI (Taiwan) CNS 13438 √
EMC
C-Tick (Australia) AS/ NZS CISPR22 √
DHHS (21 CFR) USA X- Ray Standard √
DNHW √
X- Ray Requirement
PTB German X- Ray
standard √
TUV / Ergo √
ISO 13406-2 √
Ergonomics
prEN50279 √

- 19 -
3.9. Packing

- 20 -
4. Disassembly /Assembly
4.1. Exploded View
