Acer XD1150 Series User manual

Manual for
Acer Projector XD1150/XD1150D/
XD1250/XD1250D series

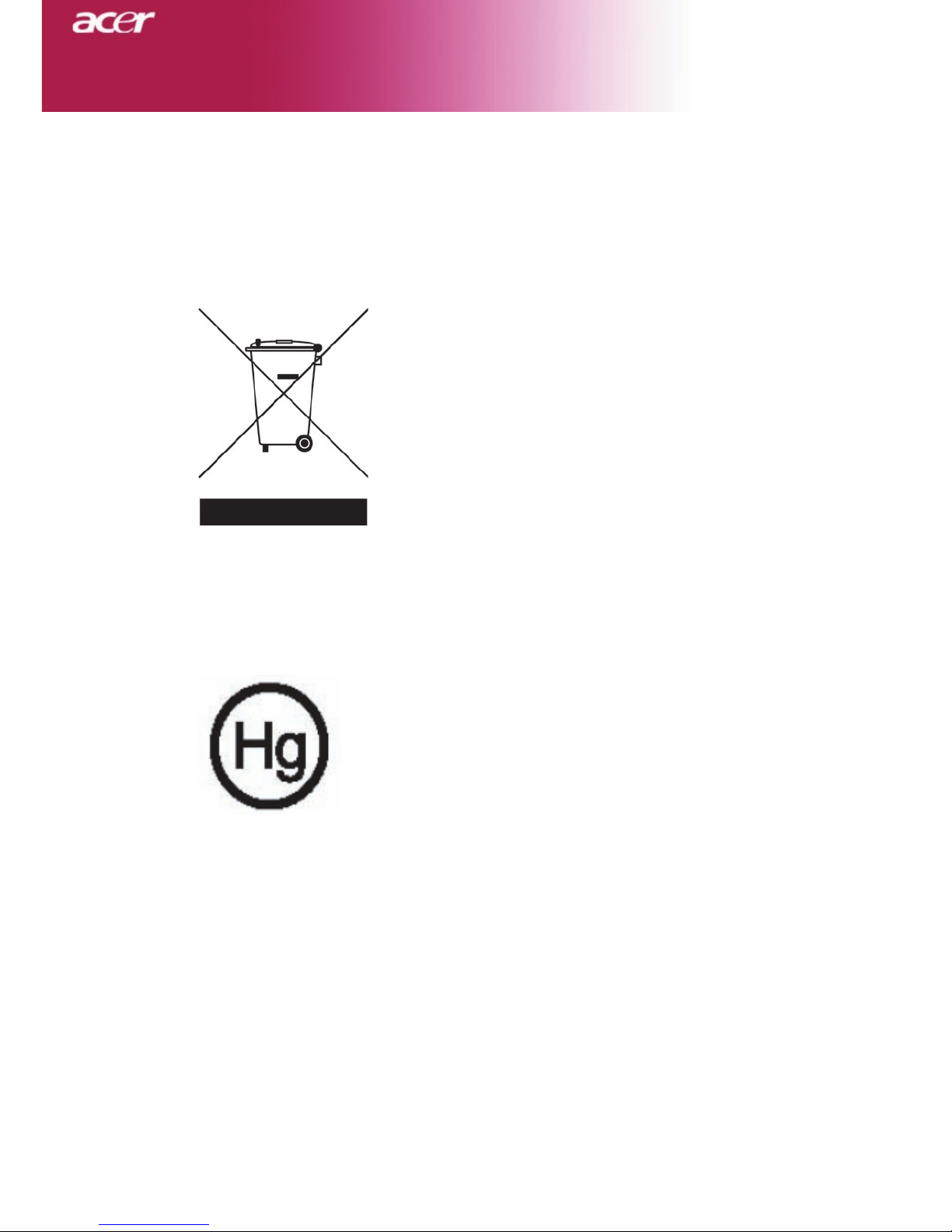

Disposal instructions
Do not throw this electronic device into the trash when discarding. To minimize
pollution and ensure utmost protection of the global environment, please re-
cycle it.
USA
For electronic products containing an LCD/CRT monitor or display, or a super
high pressure mercury lamp:
Lamp(s) inside this product contain mercury and must be recycled or disposed
of according to local, state or federal laws. For more information, contact the
Electronic Industries Alliance at www.eiae.org. For lamp-specifi c disposal infor-
mation, check www.lamprecycle.org.

1... English
Table of Contents
Table of Contents ......................................................................................... 1
Usage Notice ................................................................................................ 2
Precautions ..........................................................................................................2
Introduction .................................................................................................. 4
Product Features ..................................................................................................4
Package Overview ...............................................................................................5
Product Overview ................................................................................................6
Main Unit ........................................................................................................................6
Control Panel .................................................................................................................7
Connection Ports ...........................................................................................................8
Remote Control ..............................................................................................................9
Installation .................................................................................................. 10
Connecting the Projector ....................................................................................10
Powering On/Off the Projector ............................................................................11
Powering On the Projector ...........................................................................................11
Powering Off the projector ...........................................................................................12
Warning Indicator .........................................................................................................12
Adjusting the Projected Image ...........................................................................13
Adjusting the Projector Image Height ..........................................................................13
Adjusting the Projector Zoom / Focus ..........................................................................14
Adjusting Projected Image Size ...................................................................................14
User Controls ............................................................................................. 15
Control Panel & Remote Control ........................................................................15
On-Screen Display Menus .................................................................................19
How to operate ............................................................................................................19
Color (Computer/Video Mode) ....................................................................................20
Image (Computer/Video Mode) ....................................................................................22
Management (Computer/Video Mode) ........................................................................24
Audio (Computer/Video Mode) ...................................................................................31
Timer (Computer/Video Mode) ....................................................................................32
Language(Computer/Video Mode) ..............................................................................33
Appendices ................................................................................................ 34
Troubleshooting ..................................................................................................34
Replacing the lamp .............................................................................................38
Specifi cations .....................................................................................................39
Compatibility Modes ...........................................................................................40
Regulation & safety notices ....................................................................... 41

2
English ...
Usage Notice
Precautions
Follow all warnings, precautions and maintenance as recommended in
this user’s guide to maximize the life of your unit.
Warning- Do not look into the projector’s lens when the lamp
is on. The bright light may hurt your eyes.
Warning- To reduce the risk of fi re or electric shock, do not
expose this product to rain or moisture.
Warning- Please do not open or disassemble the product as
this may cause electric shock.
Warning- When changing the lamp, please allow unit to cool
down, and follow all changing instructions.
Warning- This product will detect the life of the lamp itself.
Please be sure to change the lamp when it shows
warning messages.
Warning- Reset the “Lamp Hour Reset” function from the On
Screen Display “Management” menu after replacing
the lamp module (refer to page 26)
Warning- When switching the projector off, please ensure the
projector completes its cooling cycle before
disconnecting power.
Warning- Turn on the projector fi rst and then the signal
sources.
Warning- Do not use lens cap when projector is in operation.
Warning- When the lamp reaches the end of its life, it will
burn out and may make a loud popping sound. If
this happens, the projector will not turn back on
until the lamp module has been replaced. To replace
the lamp, follow the procedures listed under “Re-
placing the Lamp”.

3... English
Usage Notice
Do:
 Turn off the product before cleaning.
 Use a soft cloth moistened with mild detergent to clean the
display housing.
 Disconnect the power plug from AC outlet if the product is not
being used for a long period of time.
Don’t:
 Block the slots and openings on the unit provided for
ventilation.
 Use abrasive cleaners, waxes or solvents to clean the unit.
 Use under the following conditions:
- In extremely hot, cold or humid environments.
- In areas susceptible to excessive dust and dirt.
- Near any appliance that generates a strong magnetic fi eld.
- Place in direct sunlight.

4
English ...
Introduction
Product Features
This product is an XGA(XD1250/XD1250D)/
SVGA(XD1150/XD1150D) single chip 0.55” DLP
®
projec-
tor. Outstanding features include:

True XGA, 1024 x 768 addressable pixels (for XD1250/
XD1250D)
True SVGA, 800 x 600 addressable pixels (for XD1150/
XD1150D)

Single chip DLP® technology

NTSC3.58/NTSC4.43/PAL/SECAM and HDTV compat-
ible (480i/p, 576i/p, 720p, 1080i)
 User friendly and powerful Acer Empowering key in-
cluding: Acer eView Management, Acer eTimer Manage-
ment and Acer eOpening Management.
 High-tech DVI connection for digital signal with HDCP
function and supports 480p, 576p, 720p and 1080i
(XD1150D/XD1250D)
 Full function remote control
 Advanced digital keystone correction and high quality
full screen image re-scaling
 User friendly control panel

SXGA+, SXGA compression and VGA, SVGA re-sizing
(for XD1250/XD1250D)
SXGA, XGA compression and VGA re-sizing (for
XD1150/XD1150D)

Mac compatible

5... English
Introduction
Package Overview
This projector comes with all the items shown below.
Check to make sure your unit is complete. Contact your
dealer immediately if anything is missing.
Power Cord 1.8m
VGA Cable 1.8m
Composite Video Cable
2.0m
Projector with lens cap
Remote Control
2 x Battery
Carrying Case
User’s Guide
Quick Start Card
U
SB
Cable 1.8m (*)
S-
Video
Cable 1.8m (*)
VGA to Component/
HDTV Adapter (*)
(*): for XD1150D,
XD1250D only.

6
English ...
Introduction
Two remote control
receiver provided at
front panel and front-top
cover.
Main Unit
Product Overview
1. Focus Ring
2. Zoom Ring
3. Remote Control Receivers
4. Zoom Lens
5. Elevator Foot
6. Elevator Button
7. Power Socket
8. Connection Ports
9. Control Panel
2
7
3
3
4 5
1
6
9
8

7... English
Introduction

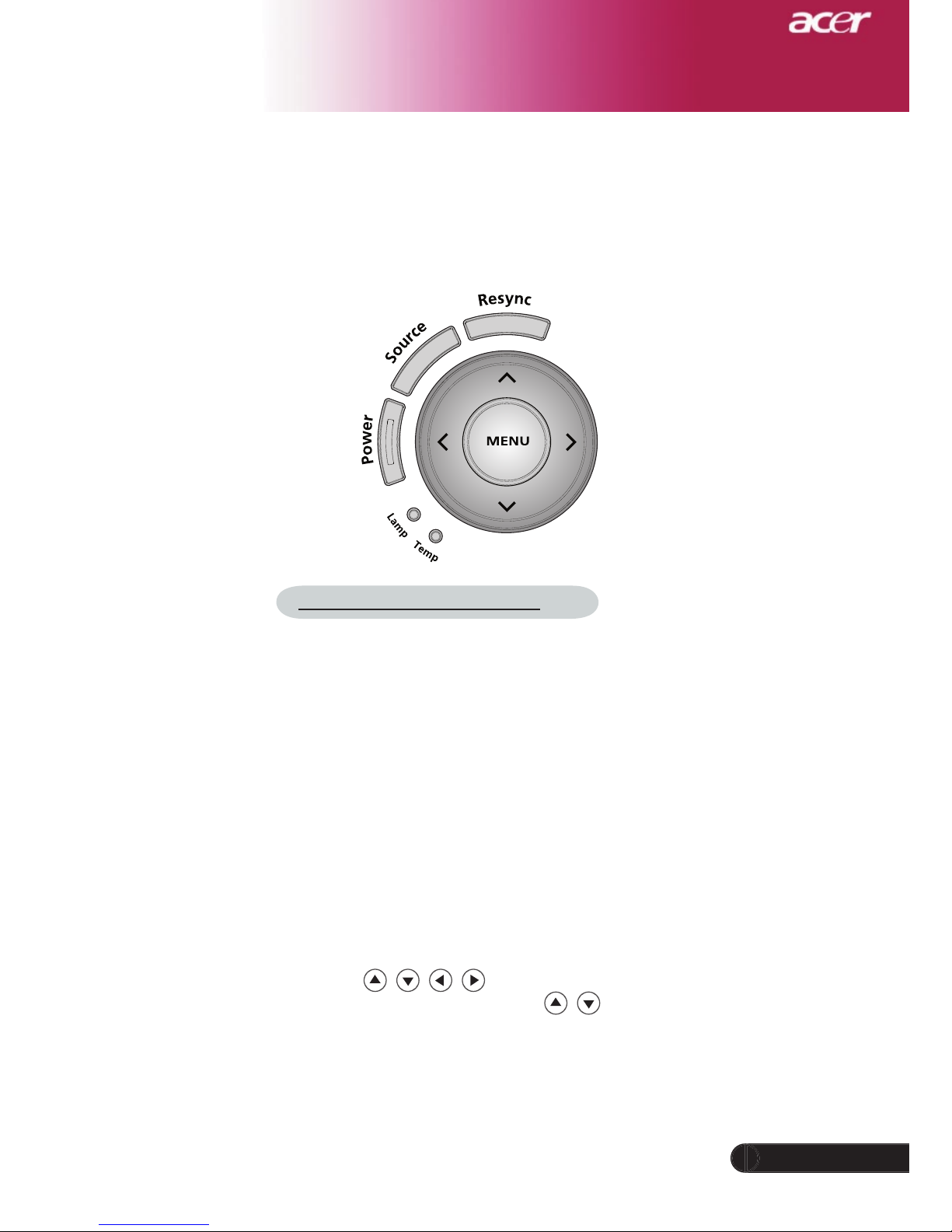

Control Panel
1. Temp Indicator LED
2. Lamp Indicator LED
3. Power and Indicator LED (Power LED)
4. Source
5. Resync
6. Menu
7. Four Directional Select Keys
5
1
3
2
4
6
7

8
English ...
Introduction
Connection Ports
1. DVI Input Connector (for Digital signal with HDCP function) (*)
2. VGA Input Connector (PC Analog Signal/HDTV/Component
Video)
3. Audio Input Connector (*)
4. S-Video Input Connector
5. Composite Video Input Connector
6. Monitor Loop-through Output Connector (VGA-Out) (*)
7. USB Connector
8. RS232 Connector (*)
9. KensingtonTM Lock Port
VGA IN S-VIDEO VIDEO USB
DVI AUDIO IN VGA OUT RS232
9
7
1 2 34 5 6 8
 (*): for XD1150D/
XD1250D only.

9... English
Introduction

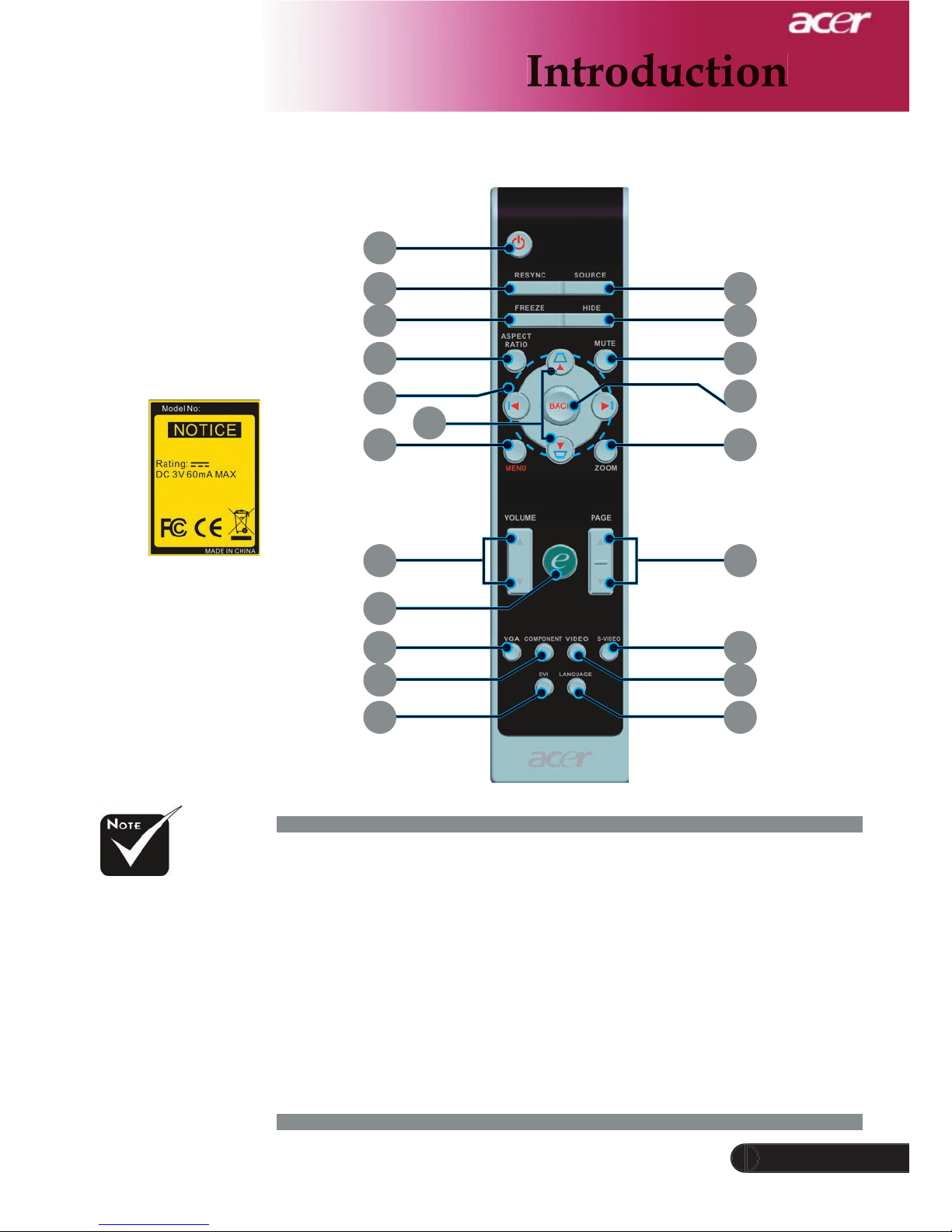

1. Power
2. Resync
3. Source
4. Freeze
5. Hide
6. Aspect Ratio
7. Mute (*)
8. Four Directional Select Keys
9. Back
10. Keystone +/-
11. Menu
12. Volume +/- (*)
13. Page Up/Page Down
Remote Control
14. Empowering Key
15. VGA
16. S-Video
17. Component Video
18. Composite Video
19. DVI (*)
20. Language
3
5
7
9
12
13
16
18
1
2
4
6
11
14
12
17
15
8
10
20 19
 (*): Do not support
function for XD1150/
XD1250.

Installation
10
English ...
Connecting the Projector
1. ....................................................................................................................Power Cord
2. ................................................................................ DVI Cable (Optional Accessory)
3. .....................................................................................................................VGA Cable
4. .......................................................... Audio Cable Jack/Jack (Optional Accessory)
5. ...............................................................................USB Cable (XD1150D/XD1250D)
6. .............................................................................RS232 Cable (Optional Accessory)
7.. ..................................................... 3 RCA Component Cable (Optional Accessory)
8. ................................VGA to Component/HDTV Adapter (XD1150D/XD1250D)
9. ........................................................................ S-Video Cable (XD1150D/XD1250D)
10. ............................................................................................. Composite Video Cable
 To ensure the projector works well with your computer, please
make sure the timing of the display mode is compatible with the
projector. Refer to the “Compatibility Modes” section on page 40.
Video Output
DVD Player, Settop
Box, HDTV receiver 4
23
RGB USB
5
S-Video Output
7
1
6
8
9
10

Installation
11 ... English
Powering On/Off the Projector
Power
Powering On the Projector
1. Remove the lens cap. 
2. Ensure that the power cord and signal cable are securely
connected. The Power LED will fl ash red.
3. Turn on the lamp by pressing “Power” button on the control
panel.  And the Power LED will turn blue.
4. Turn on your source (computer, notebook, video player
,etc.). The projector will detect your source automatically.
 If the screen displays “Lock” & “Source” icons, it means the pro-
jector locks on this source type and there is no such type of input
signal found.
 If the screen displays “No Signal”, please make sure the signal
cables are securely connected.
 If you connect multiple sources at the same time, using the
“Source” button on the remote control or control panel to switch.
2
Turn on the projec-
tor fi rst and then the
signal sources.
Lens Cap
1

Installation
12
English ...
Warning Indicator
 When the “LAMP” indicator lights solid red, the projector will
automatically shut itself down. Please contact your local reseller
or service center.
 When the “TEMP” indicator lights solid red for about 20 sec-
onds, it indicates the projector has been overheated. You will see
a message “Projector Overheated. Lamp will automatically turn
off soon.” on the on-screen display. The projector will automati-
cally shut itself down.
Under normal conditions, the projector can be switched on again
after it has cooled down. If the problem persists, you should con-
tact your local dealer or our service center.
 When the “TEMP” indicator fl ashes red for about 30 seconds,
you will see a message “Fan fail. Lamp will automatically turn off
soon.” on the on-screen display. Please contact your local dealer
or our service center.
Powering Off the Projector
1. Press the “Power” button to turn off the projector lamp, you will
see a message “Please press power button again to complete the
shutdown process. Warning: DO NOT unplug while the projec-
tor fan is still running.” displayed on the projector’s screen. Press
the “Power” button again to confirm, otherwise the message will
disappear after 5 seconds.
2. The cooling fans continue to operate for about 30 seconds for
cooling cycle and the Power LED will be quick red fl ash. When
the Power LED becomes slow flashing, the projector has entered
standby mode. If you wish to turn the projector back on, you
must wait until the projector has completed the cooling cycle and
has entered standby mode. Once in standby mode, simply press
“Power” button to restart the projector.
3. Disconnect the power cord from the electrical outlet and the pro-
jector.
4. Do not turn on the projector immediately following a power off
procedure.

Installation
13 ... English
Adjusting the Projected Image
Adjusting the Projector Image Height
The projector is equipped with an elevator foot for ad-
justing the image height.
To raise the image:
1. Press the elevator button .
2. Raise the image to the desired height angle  , then re-
lease the button to lock the elevator foot into position.
To lower the image:
1. Press the elevator button.
2. Lower the image, then release the button to lock the el-
evator foot into position.
Elevator Button
2
Elevator Foot
1

Installation
14
English ... This graph is for user’s reference only.
Scree
n
(Diagonal)
Max.
25.41
”(64.5cm)
76.23
”(193.6cm)
127.05
”(322.7cm)
177.87
”(451.8cm)
254.10
”(645.4cm)
30
4.93
”(774.5cm)
Min.
23.10
”(58.7cm)
69.33
”(176.1cm)
115.55
”(293.5cm)
161.7
8
”(410.9cm)
231.11
”(587.0cm)
277.33
”(704.4cm)
Screen size
Max.
(WxH)
20.33
”x 15.25”
51.6 x 38.7cm
60.9
8
” x 45.74”
154.9 x 116.2cm
101.64
” x 76.23”
258.2 x 193.6cm
142.
30
” x 106.72”
361.4 x 271.1cm
203.28
” x 152.46”
516.3 x 387.2cm
243.94
” x 182.96”
619.6 x 464.7cm
Min.
(WxH)
18.49
” x 13.87”
47.0 x 35.2cm
55
.46
” x 41.60”
140.9 x 105.7cm
92.4
4
” x 69.33”
234.8 x 176.1cm
129.
42
” x 97.07”
328.7 x 246.5cm
184.89
” x 138.67”
469.6 x 352.2cm
221.86
” x 166.40”
563.5 x 422.6cm
HD
Max.
2.29
” (5.8cm)
6.86
” (17.4cm)
11.4
3
” (29.0cm)
1
6.01
” (40.7cm)
22.87
” (58.1cm)
27.44
” (69.7cm)
Min.
2.08
” (5.3cm)
6.24
” 15.9cm)
10.40
” (26.4cm)
14.56
” (37.0cm)
20.80
” (52.8cm)
2
4.9
6
” (63.4cm)
Distance
3.28’ (1.0m) 9.84’ (3.0m) 16.40’ (5.0m) 22.97’ (7.0m) 32.81’ (10.0m) 39.37’ (12.0m)
Adjusting the Projector Zoom / Focus
You may turn the zoom ring to zoom in or out. To focus the
image, rotate the focus ring until the image is clear. The pro-
jector will focus at distances from 3.28 to 39.4 feet (1.0 to 12.0
meters).
Adjusting Projection Image Size
Focus Ring
Zoom Ring
69.33"
(176.1cm)
115.55"
(293.5cm)
161.78"
(410.9cm)
231.11"
(587.0cm)
277.33"
(704.4cm)
25.41" (64.5cm)
76.23"(193.6cm)
127.05"(322.7cm)
177.87"(451.8cm)
254.10"(645.4cm)
304.93"(774.5cm)
3.28'
39.37'
32.81'
22.97'
16.40'
9.84'
(1.0m)
(12.0m)
(10.0m)
(7.0m)
(5.0m)
(3.0m)
23.10"
(58.7cm)
Hd

User Controls
15 ... English
Control Panel & Remote Control
There are two ways for you to control the functions: Re-
mote Control and Control Panel.
Control Panel
Using the Control Panel
Power
 Refer to the “Power On/Off the Projector” section on pages 11-12.
Resync
 Automatically synchronizes the projector to the input source.
Menu
 Press “Menu” to launch the on screen display (OSD) menu or back
to previous step of OSD menu.
Source
 Press “Source” to choose RGB, Component-p, Component-i,
S-Video, Composite, Video and HDTV sources.
Four Directional Select Keys
 Use to select items or make adjustments to your se-
lection in OSD menu. Use for keystone correction to adjust
image distortion caused by tilting the projector (±16 degrees) while
OSD menu is turned off.

User Controls
16
English ...
Using the Remote Control
Power
 Refer to the “Power On/Off the Projector” section on pages
11-12
Resync
 Automatically synchronizes the projector to the input source.
Source
 Press “Source” to choose RGB, Component-p, Component-i,
S-Video, Composite Video and HDTV sources.
Freeze
 Press “Freeze” to pause the screen image.
Hide
 Momentarily turns off the video. Press “Hide” to hide image,
press again to restore display of the image.
Aspect Ratio
 Use this function to choose your desired aspect ratio. (Auto/
4:3/16:9/480p)
Mute
 Use this key to close the volume.
Four Directional Select Keys
 Use to select items or make adjustments to your
selection for the OSD menu operation.
Keystone
 Adjusts image distortion caused by tilting the projector (±16
degrees).
Menu (*)
 Press “Menu” to launch the on screen display menu
or back to
previous step of OSD menu.
Zoom
 Digital Zoom in/out.
Back
 Back to the previous step for the OSD menu operation.
Remote Control
(*): for XD1150D,
XD1250D only.

User Controls
17 ... English

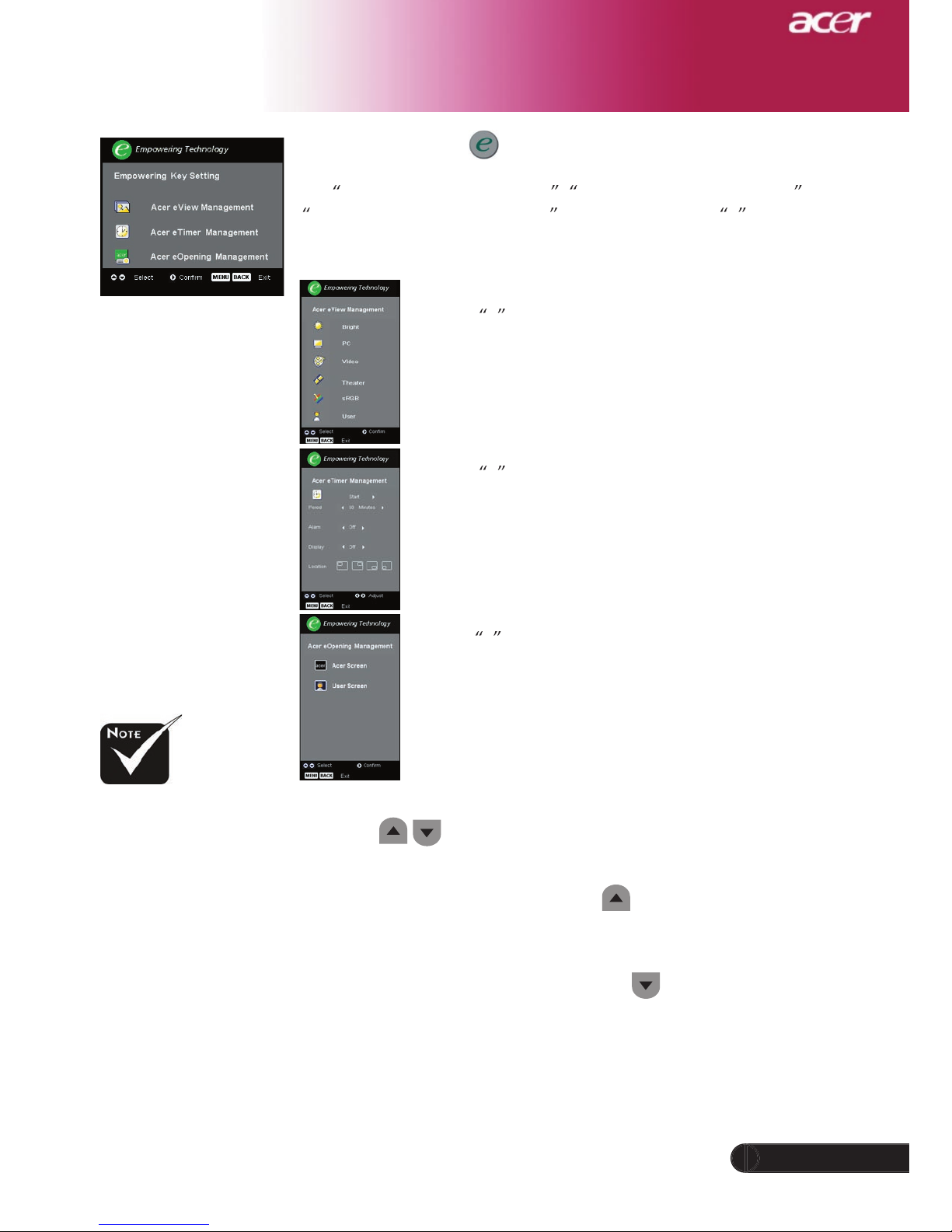

Empowering Key
Acer Empowering Key provides three Acer unique functions, they
are
“
Acer eView Management
”
,
“
Acer eTimer Management
”
and
“
Acer eOpening Management
”
respectively. Press
“
e
”
key for more
than one second to launch the on screen display main menu to
modify its function.
Acer eView Management
 Press
“
e
”
to launch “Acer eView Management”
submenu.
“Acer eView Management” is for display mode
selection. Please refer to On Screen Display Menus
section for more detail.
Acer eTimer Management
 Press
“
e
”
to launch “Acer eTimer Management”
submenu.
“Acer eTimer Management” provides the remind-
ing function for presentation time control. Please
refer to On Screen Display Menus section for more
detail.
Acer eOpening Management

Press
“
e
”
to launch “Acer eOpening Management”
submenu.
“Acer eOpening Management” allows user to
change the Startup screen to their personalized im-
age. Please refer to On Screen Display section for
details.
Volume (*)
 Increase/decrease the
v
olume.
Page Up (Computer mode only)
 Use this button to page up. This function is only available when
the projector is connected to a computer via an USB cable.
Page Down (Computer mode only)
 Use this
button
to page down. This function is only available
when the projector is connected to a computer via an USB cable.
(*): for XD1150D,
XD1250D only.

User Controls
18
English ...
VGA
 Press “VGA” to change source to VGA-In connector. This con-
nector supports Analog RGB, YPbPr (480p/576p/720p/1080i),
YCbCr (480i/576i) and RGBsync.
Component Video
 Press “Component” to change source to component Video
source. This source supports YPbPr (480p/576p/720p/1080i)
and YCbCr (480i/576i)
Composite Video
 Press “Video” to change source to Composite Video source.
S-Video
 Press “S-Video” to change source to S-Video source.
DVI (*)
 Press “DVI”
to change source to DVI connector. This connec-
tor supports Digital RGB, Analog RGB, YPbPr (480p/576p/
720p/1080i), YCbCr (480i/576i) and HDCP signal.
Language
 Choose the multi-lingual OSD menu.
(*): for XD1150D,
XD1250D only.
