PC 2120 All-in-One 12.1” TFT LCD Panel PC User’s Manual
C h a p t e r 1
Introduction
This chapter contains the general information and detailed
specifications of PC 2120 series. Chapter 1 includes the follo ing
sections:
z General Description
z System Specification
z Utilities Supported
z Dimensions
z I/O Outlets
1.1 General Description
The PC 2120 series super slim industrial panel PCs are mainly
designed for industrial automation and some space-constricted
embedded applications. For some space-concerned industries, a
traditional PC ith a separate main system, display monitor and
keyboard is simply not integrated enough.
Ruggedly designed, the PC 2120 series is 100% IBM PC/AT
compatible and it integrates super I/Os, 12.1” TFT touch screen,
Ethernet, and packs special industrial features like atchdog timer all
in a single system. The full PC functionality coupled ith its
industrial-grade construction easily tailors the system for any
embedded applications -- allo ing the system to endure continuous
operation in any hostile industrial environments here stability and
reliability is a must.
The PC 2120 series feature a versatile stand suited for a ide variety
of applications. With the pedestal kit assembled to the main unit, both
can transform into different positions such as desktop free standing,
30 ° table standing, panel mount and all mounting. Its cable
management device also trims the operation environment. The NEMA
4/12 ater/dust-proof front panel is specially designed for the
continuous operation in outdoor environments. Common applications
of these PANEL PCs include POS, POI terminals, Hospitality.
Introduction 1

PC 2120 All-in-One 12.1” TFT LCD Panel PC User’s Manual
Designed by the PC experts for PC professionals, the PC 2120 series
are virtually the ultimate one-step solution for your space-limited
applications.
1.2 Specifications
1.2.1 Core System for PC 2120 series system with
SBC85610VE
z CPU:
Soc et370 for Intel Celeron/Pentium III and VIA C3
processor
z System Chipset:
VIA VT8601T, VT82C686B with integrated real-time cloc
z BIOS:
Phoenix-Award B IOS, 4Mbit with RPL/PXE LAN B oot ROM
z System Memory:
Two 168-pin DIMM Soc et Maximum of 1GB SDRAM
z Watchdo Timer:
Generates a system reset or NMI by jumper selectable;
software programmable Time interval; 64 levels, 0.5~8 /
5~80 / 50~800 / 100~1600 seconds
1.2.2 System I/O outlet
z Standard I/O:
„

PC 2120 All-in-One 12.1” TFT LCD Panel PC User’s Manual
„ 4 x USB ports
„ 1 x LAN
„ 1 x dallas key(option
„ 2 x RJ-11 cash drawer ports (610e only
z Cash Drawer Port:
RJ-11 cash drawer x 2 (610e only)
z Ethernet:
„ Realtek 8139C PCI Bus 10/100M Base-T
„ Wake-On-LAN
„ RJ-45 interface equipped
z VGA/Flat Panel Controller:
„ VIA VT8601T chip with integrated Trident 2D/3D accelerator
„ 2/4/8 MB frame buffer sharing system memory
„ LCD/Simultaneous mode:
1024x768 @ 16bpp (60Hz
„ CRT mode:
1024x768 @ 16bpp (85Hz
1.2.3 Built-in Peripherals
z AT80W power supply(PW-080A-03Y)
z 3.5” Hard dis drive bay
z 3M 12.1” resistive 8-wire FG Touch Screen(R812.112)
with RS-232 (COM3)
z System cooling fan
z Dallas ey(opti on)
1.2.4 Net Wei ht
z PC 2120 series: 4.2 Kgs
Introduction 3

PC 2120 All-in-One 12.1” TFT LCD Panel PC User’s Manual
1.2.5 12.1" TFT LCD Specification
z Display area 245(H)x184(V)(12.1" diagonal)
z Resolution 1024×768 (XGA)
z Pixel pitch 0.240(H)x0.240(V)(TYP.)
z Contrast Ratio 200 (MIN.)
z Average Luminance 150cd/m²(TYP.)
z Viewing Angle θ L (40 )θ R (40)Φ H (10)Φ L (30)
1.2.6 Environmental
z Operatin Temperature Ran e: 0
o
C ~ 40
o
C
z Relative Humidity: 20 % ~ 85 %; non- condens ing
z EMC: FCC
z Safety: CE
1.2.7 Dimension (main body size)
z PC 2120 series: 360 x 277 x 81.2 mm (WxHxD)
NOTE1 For more detailed informa t ion on the system engine bo ard
used in your PANEL PC, refer to the system board Us er’s
Manual that came with the system packaging.
NOTE2 In order to avoid system over load, therefore a system
po er limitation list is necessary to limit po er load of
key parts and user’s devices. For more detailed
information on the Appendix B System Confi uration
Limitation Notice .
1.3 Utilities Supported
z Watchdog Utility
z Ethernet Utility
z VGA Drivers
z Touchscreen Utility(3M 8-wire)
4 Introduction

PC 2120 All-in-One 12.1” TFT LCD Panel PC User’s Manual

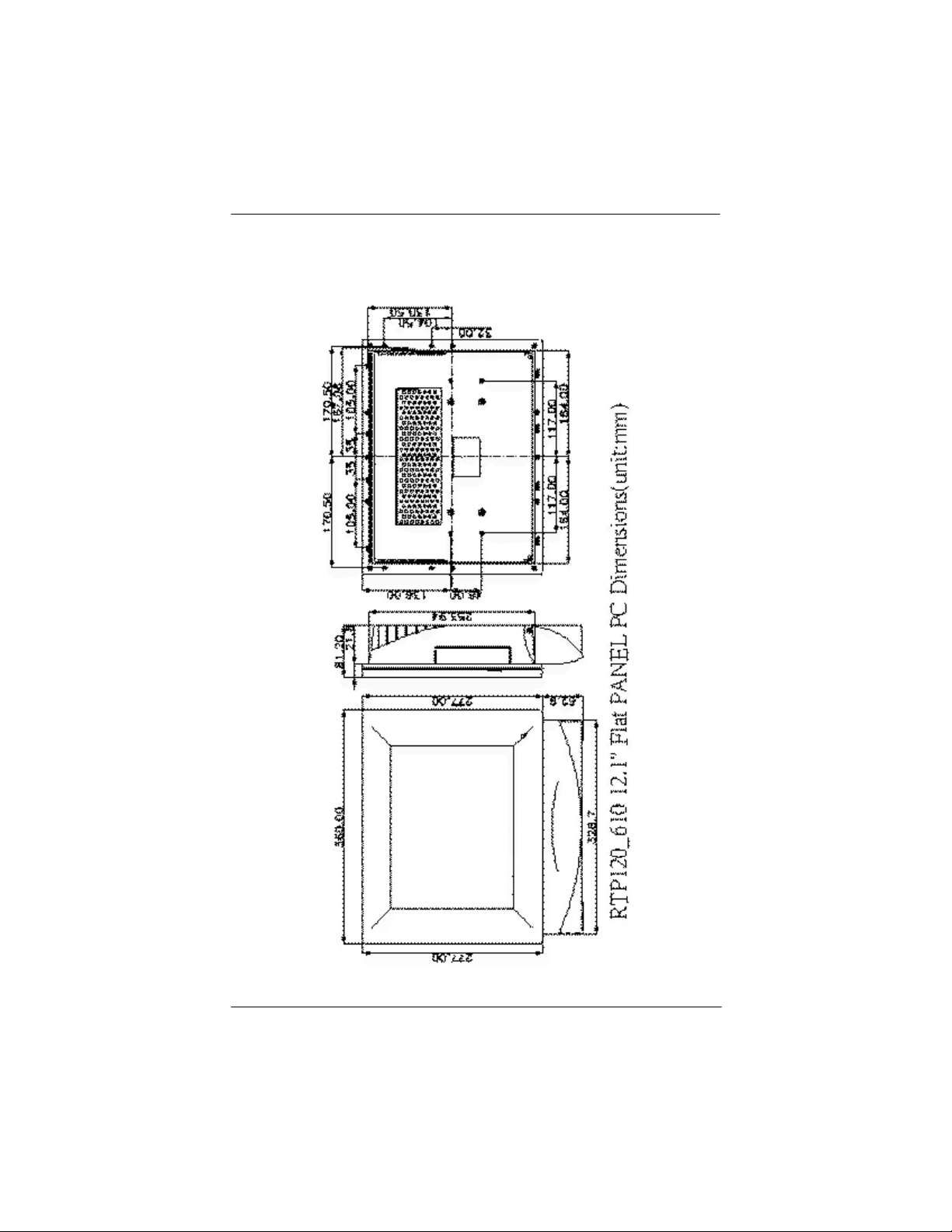

1.4 Dimensions
Introduction 5

PC 2120 All-in-One 12.1” TFT LCD Panel PC User’s Manual
1.5 I/O Outlets

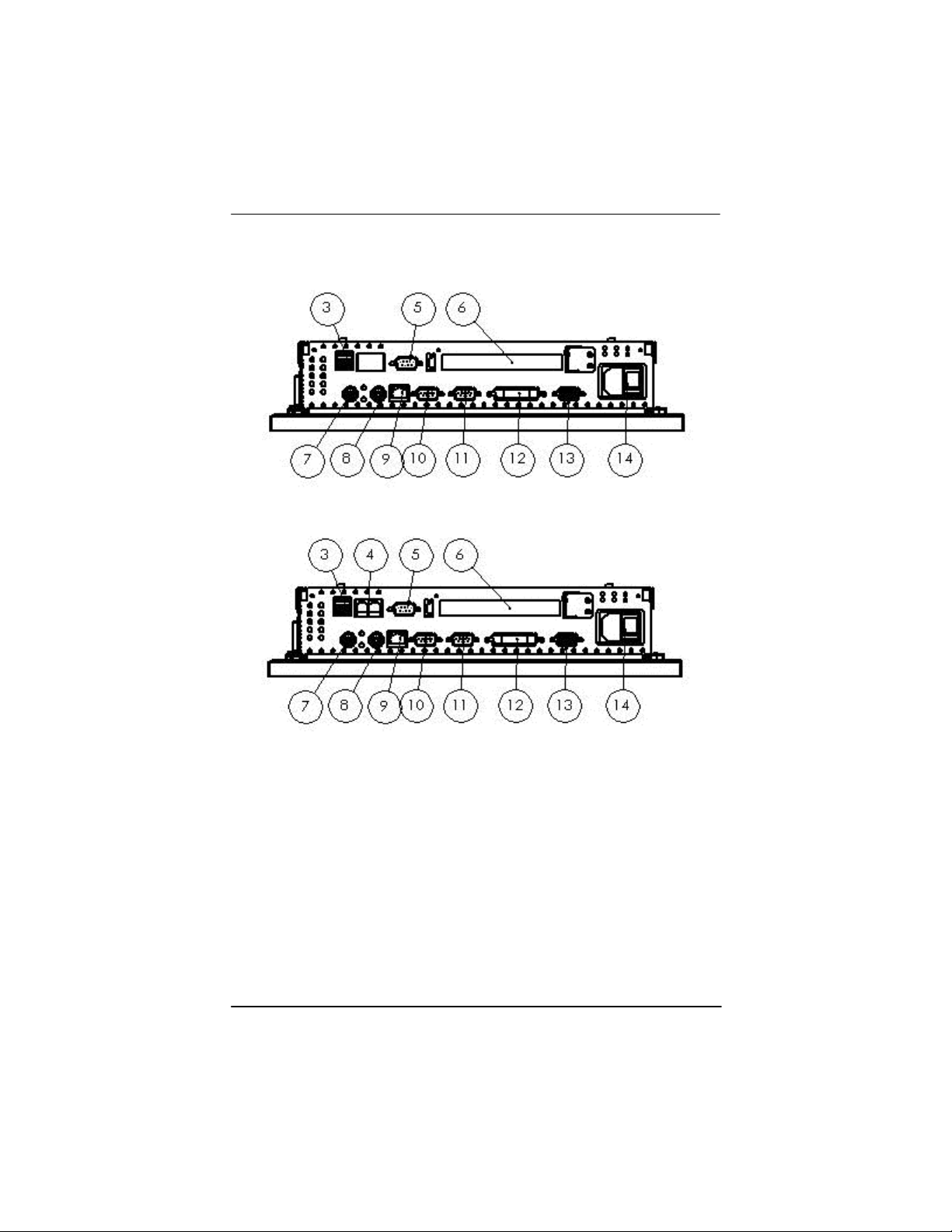

The follo ing figure sho s the I/O arrangement of the PC 2120 series.
PC 2120-610/ 610e Side View

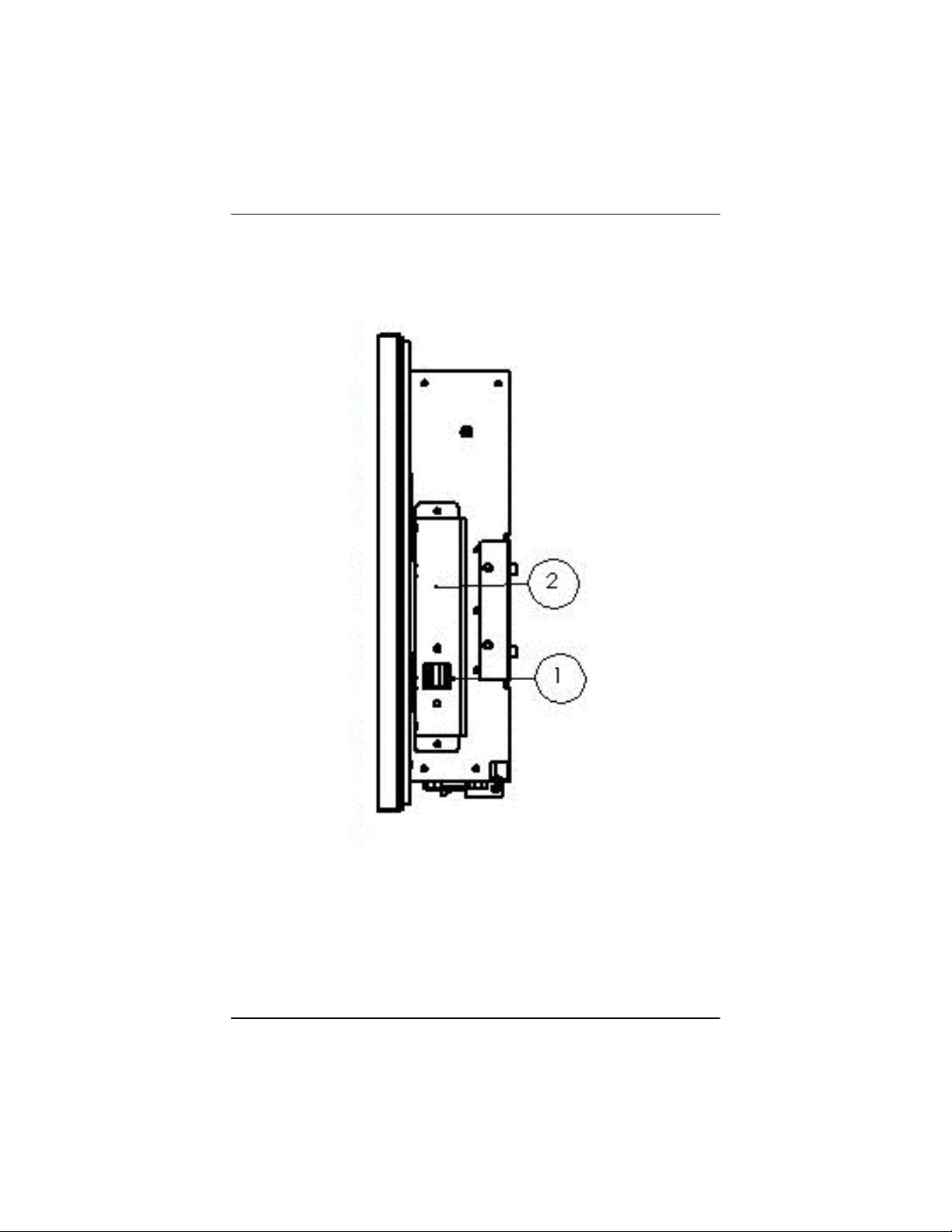

1 2XUSB ports 2 Dallas Key (option)
6 Introduction

PC 2120 All-in-One 12.1” TFT LCD Panel PC User’s Manual
PC 2120-610 Bottom View
PC 2120-610e Bottom View
3 2x USB ports 9 LAN port
4 2x cash drawer ports
(PC 2120-610e only)
10 C OM1 port
5 COM4 port 11 C OM2 port
6 PCI expansion slot
outlet
12 printer port
7 mouse 13 VGA port
8 eyboard 14 power switch ON/OFF
Introduction 7

PC 2120 All-in-One 12.1” TFT LCD Panel PC User’s Manual
This page does not contain any information.
8 Introduction

PC 2120 All-in-One 12.1” TFT LCD Panel PC User’s Manual
C h a p t e r 2
System Confi uration
This chapter details the system parts and components ith figures.
Sections include:
z System Major Parts
z Pedestal Versatility
z System Key Components
2.1 Pedestal Versatility
The PC 2120 series features a versatile stand designed for various
environmental applications. A complete set of pedestal is provided to
make up the various stands.
System Configuration 9

PC 2120 All-in-One 12.1” TFT LCD Panel PC User’s Manual
2.1.1 Desktop Standin

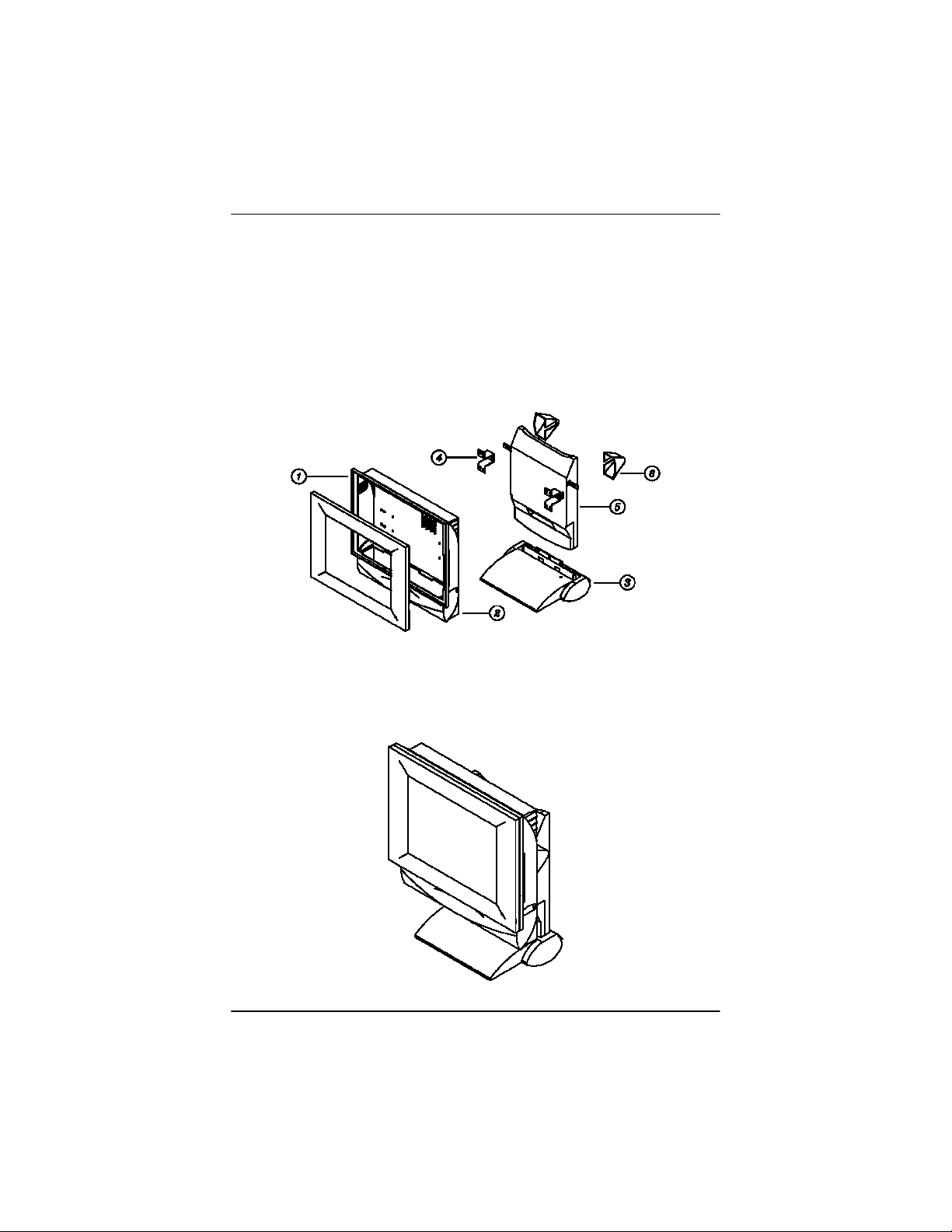

The standard kit that makes up a free-standing computer include:
1 System main body 4 Small bac metal
fixtures
2 Cable management
shroud
5 Main prop
3 Pedestal 6 Small hinge caps
By assembling these components to the main body of PC 2120 series,
the computer stands on the table as an independent unit. This
space-saving computer is commonly adapted for office automation,
video conference and hotel information counter. The unit after proper
assembly ould look as illustrated belo .
10 System Configuration

PC 2120 All-in-One 12.1” TFT LCD Panel PC User’s Manual
2.1.2 Vertical Wall Mountin

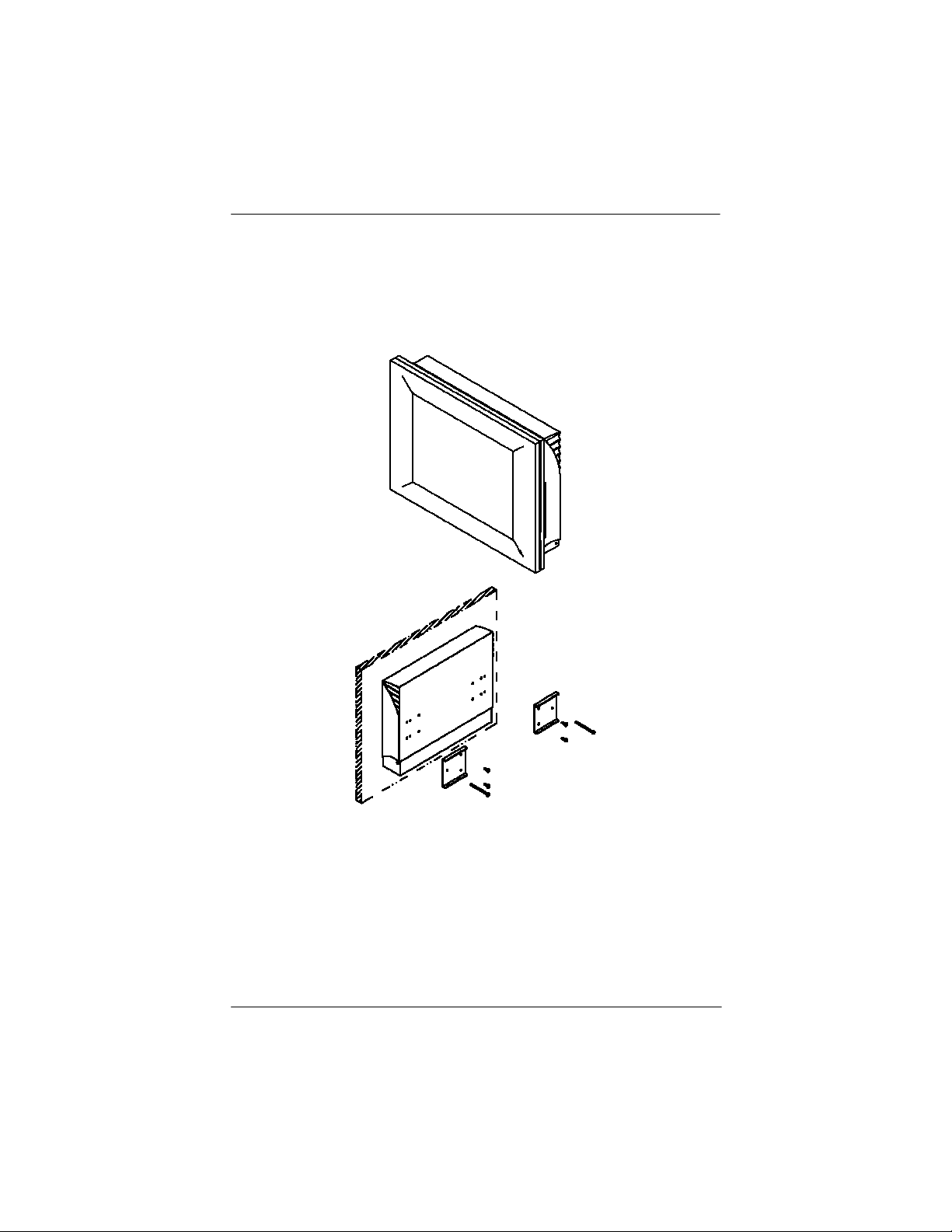

For panel mounting only a set of mounting kit is needed, there is no
pedestal kit or cable management shroud required. Please refer to the
follo ing figures.
System Configuration 11

PC 2120 All-in-One 12.1” TFT LCD Panel PC User’s Manual
2.1.3 Wall Mountin
The standard kit that makes up a all-mount unit includes:
1. System main body
2. Cable mana ement shroud
3. Small back metal fixtures
4. Main prop
5. Rubber slip:
The rubber slip has to be inserted to the top opening of
the main prop to ma e the whole unit loo complete and
integrated.
6. Small hin e caps
7. Metal mountin kit
During assembling, the main prop has to be rotated 90 ° and
scre ed to the system’s main body by the back metal fixture.
