ACME CA-RS16 User manual

CA-RS16
2018.09.19
审核
受控正本

A
1

A
2
1. Safety Instructions
WARNING
Please keep this User Manual for future consultation. If you sell the fixture to another
user, be sure that they also receive this instruction booklet.
Please unpack and check carefully there is no transportation damage before using the
fixture.
Please disconnect main power before servicing and maintenance.
The unit must be installed in a location with adequate ventilation, at least 50cm from
adjacent surfaces. Be sure that no ventilation slots are blocked.
The ambient temperature is Ta: 0℃-40℃. DO NOT operate it where above or below
the range of temperature.
DO NOT connect the device to any dimmer pack.
The housing must be replaced if they are visibly damaged.
Unit surface temperature may reach up to 85℃. Don’t touch the housing bare-hand
during its operation. Turn off the power and allow about 15 minutes for the unit to
cool down before replacing or serving.
There are no user serviceable parts inside the fixture. Do not open the housing or
attempt any repairs by yourself. In the unlikely event your fixture may require service,
please contact your nearest dealer.
In the event of serious operating problem, stop using the fixture immediately. Never
try to repair the fixture by yourself. Repairs carried out by unskilled people can lead to
damage or malfunction. Please contact the nearest authorized technical assistance
center. Always use the same type spare parts.
Installation:
The unit is fully operational in three different mounting positions, hanging
Please read the instruction carefully which includes important
information about the installation, usage and maintenance.

A
3
upside-down from a ceiling or set on a flat level surface. To avoid internal damage to
the unit, never mount the unit on its side as illustrated above. Be sure this fixture is
kept at least 0.5m away from any flammable materials (decoration etc.). Always use
and install the supplied safety cable as a safety measure to prevent accidental damage
and/or injury in the event the clamp fails.
2. Product characteristics
CA-RS16 is a RDM/DMX signal shunt amplifier, dedicated to RDM/DMX signal
amplification, divided into 6 output. Each input and output interface is electrically
isolated.
󲐀Receiving standard DMX-512 signal /RDM signal
󲐀It can effectively buffer, amplify and divide DMX/RDM signals.
󲐀1 way signal input, 1 signal direct output, 6 independent electrical isolation signal
distribution output.
󲐀3/5pin XLR
󲐀Input is electrically isolated from output and output to withstand voltage：＞ 1000V

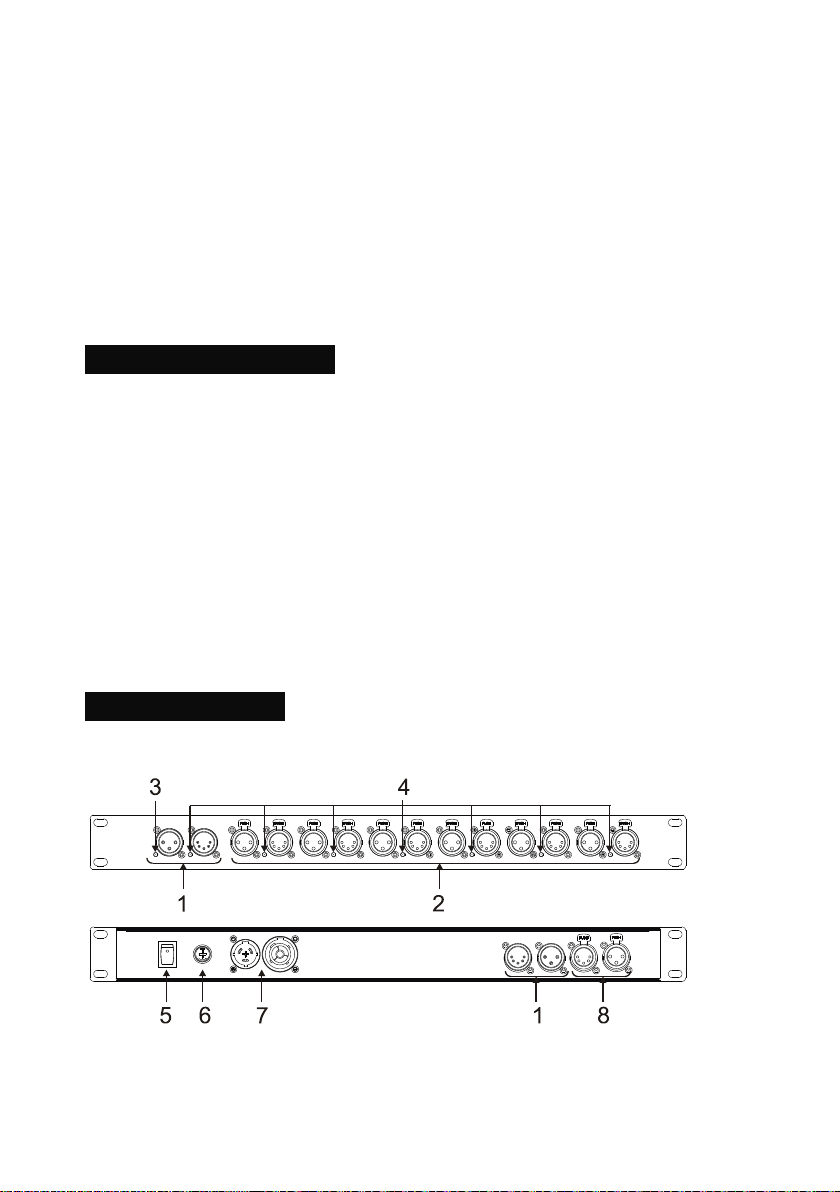

3. Front / rear panel
1 DMX input: 3/5pin XLR Line input DMX signal

A
4
2 DMX output: 3/5pin XLR Line output DMX signal
3 Power indicator lamp: Display power status
4 DMX indicator lamp: Display DMX status
5 switch:Turn on and off the device.
6 Fuse: T 1A
7 Power in/out: Connect the power and the next device.
8 DMX out: 3/5pin XLR Line through output DMX signal

A
5

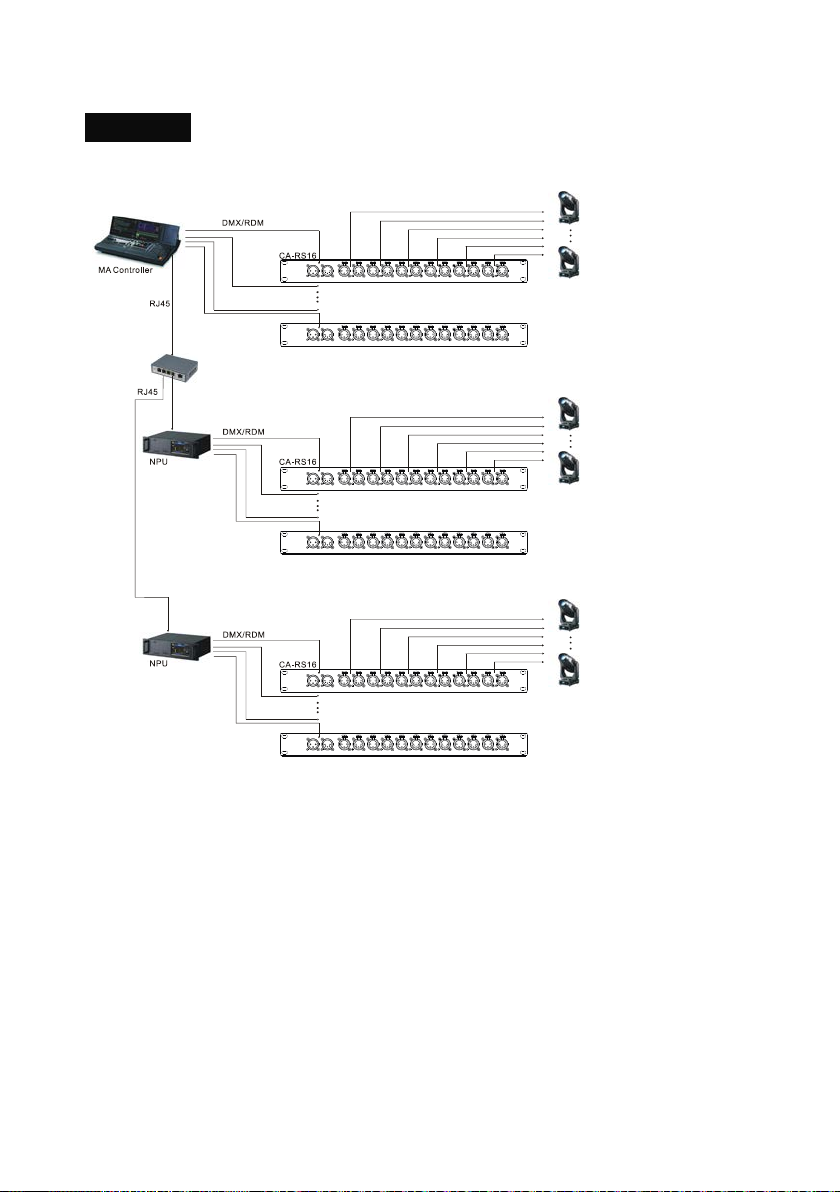

4. Connect

A
6
5. Technical Specifications
Power in: AC 100~240V 50/60Hz
Power consumption：5W

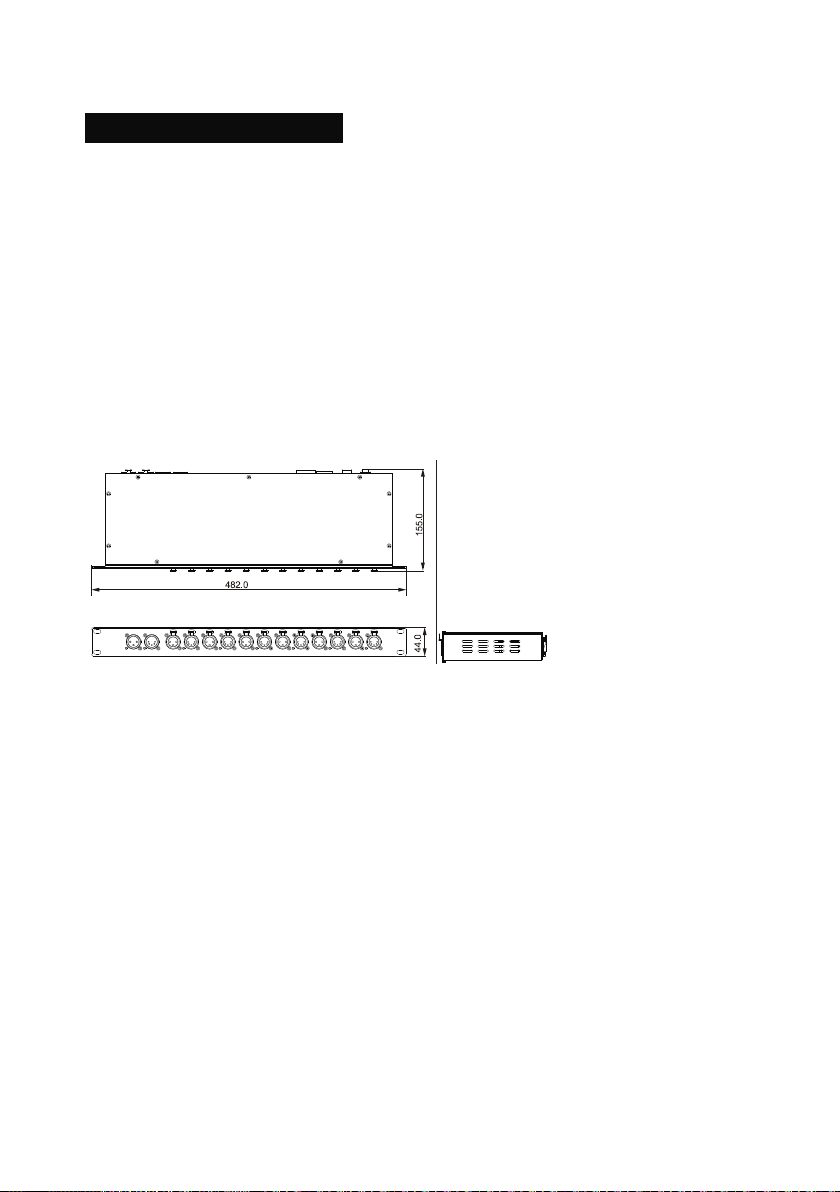

size: 482 x 155 x 44 mm
weight: 2.2 kg

A
7
