Acorn ARM Evaluation System User manual

user guide
ARM Evaluation System
Acorn OEM Products

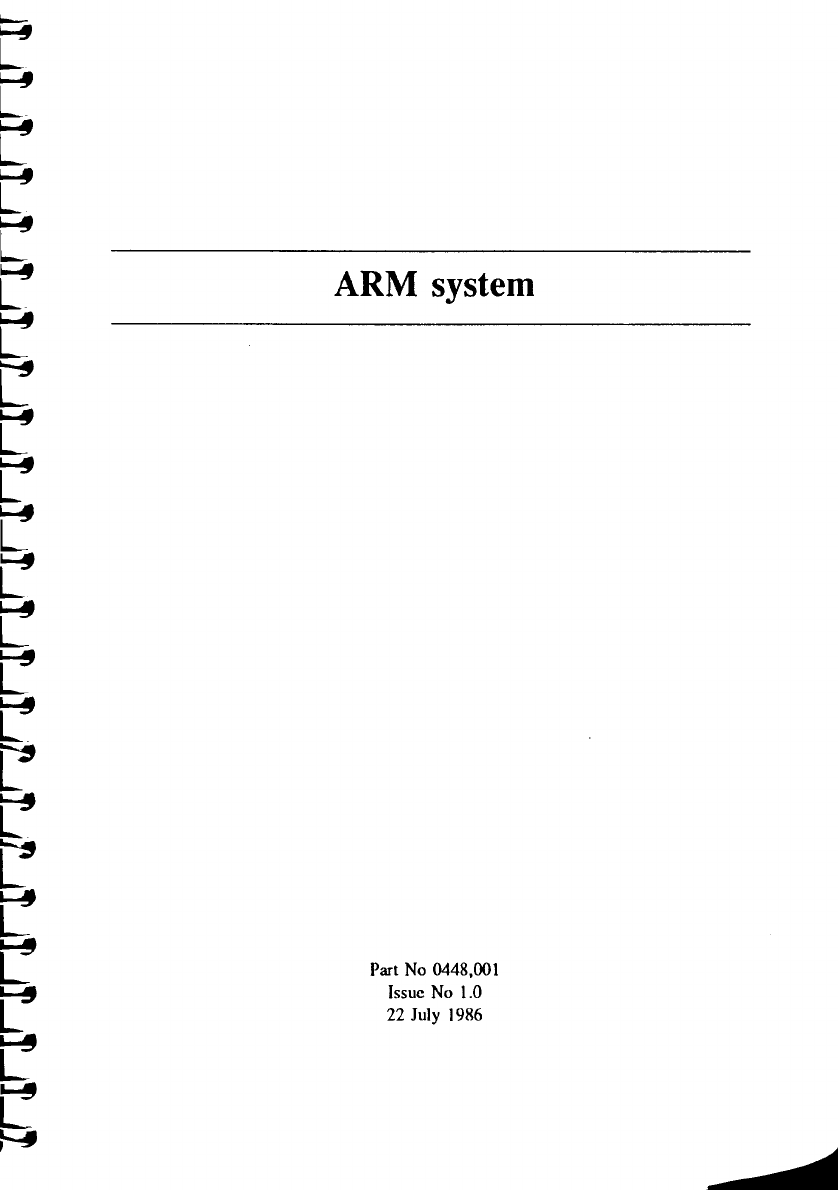

ARM system
Part No 0448,001
Issue No 1.0
22 July 1986

All maintenance and service on the product must be carried out by Acorn Computers.
Acorn Computers can accept no liability whatsoever for any loss, indirect or
consequential damages, even if Acorn has been advised of the possibility of such
damage or even if caused by service or maintenance by unauthorised personnel. This
manual is intended only to assist the reader in the use of the product, and therefore
Acorn Computers shall not be liable for any loss or damage whatsoever arising from
the use of any information or particulars in, or any error or omission in, this manual,
or any incorrect use of the product.
Econet® and The Tube® are registered trademarks of Acorn Computers Limited.
ISBN 1 85250 011
Published by:
Acorn Computers Limited, Fulbourn Road, Cherry Hinton, Cambridge CB1 4JN, UK
ARM system 
iii

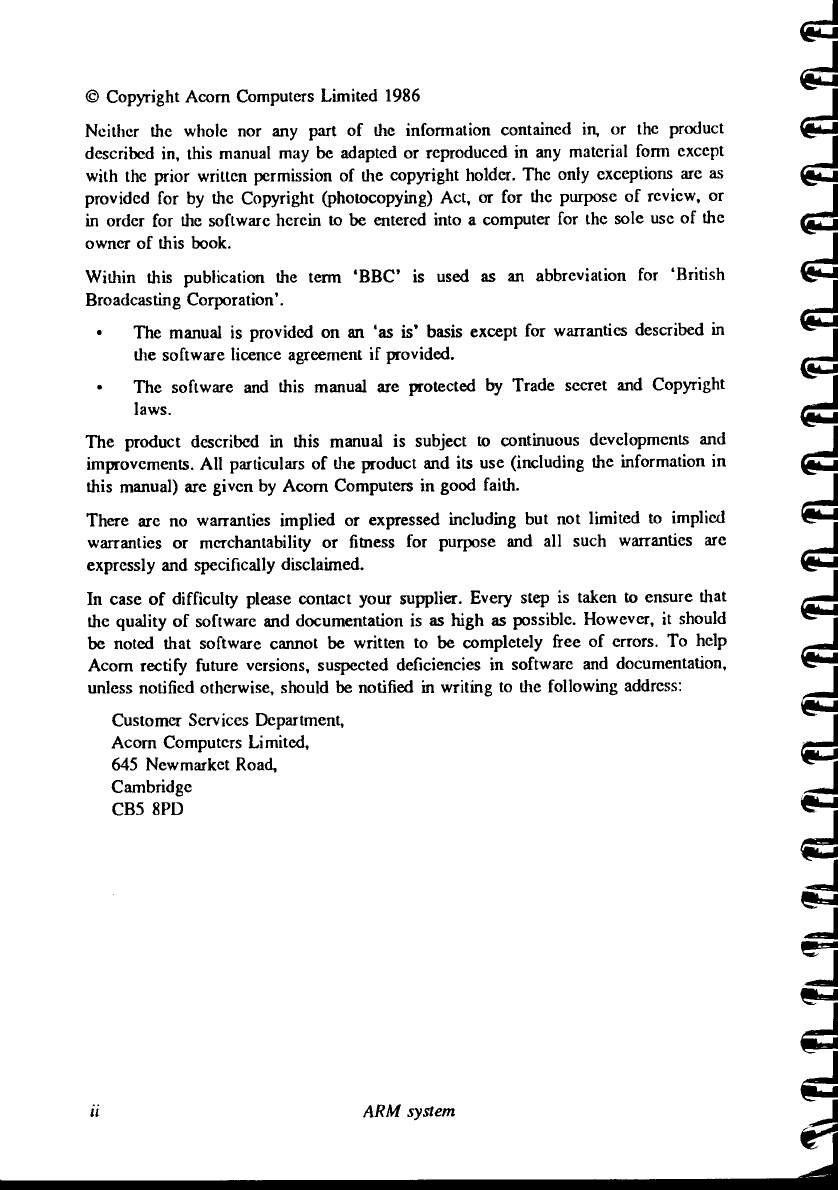

ID Copyright Acorn Computers Limited 1986
Neither the whole nor any part of the information contained in, or the product
described in, this manual may be adapted or reproduced in any material form except
with the prior written permission of the copyright holder. The only exceptions are as
provided for by the Copyright (photocopying) Act, or for the purpose of review, or
in order for the software herein to be entered into a computer for the sole use of the
owner of this book.
Within this publication the term 'BBC' is used as an abbreviation for 'British
Broadcasting Corporation'.
•
The manual is provided on an 'as is' basis except for warranties described in
the software licence agreement if provided.
•
The software and this manual are protected by Trade secret and Copyright
laws.
The product described in this manual is subject to continuous developments and
improvements. All particulars of the product and its use (including the information in
this manual) are given by Acorn Computers in good faith.
There are no warranties implied or expressed including but not limited to implied
warranties or merchantability or fitness for purpose and all such warranties are
expressly and specifically disclaimed.
In case of difficulty please contact your supplier. Every step is taken to ensure that
the quality of software and documentation is as high as possible. However, it should
be noted that software cannot be written to be completely free of errors. To help
Acorn rectify future versions, suspected deficiencies in software and documentation,
unless notified otherwise, should be notified in writing to the following address:
Customer Services Department,
Acorn Computers Limited,
645 Newmarket Road,
Cambridge
CB5 8PD
ii 
ARM
system

Important Information
Wiring the Mains Plug
WARNING: The ARM Evaluation System must be earthed.
The wires in the mains lead are coloured in accordance with the following code:
Green and yellow

Earth
Blue 
Neutral
Brown 
Live
As the colours of the wires may not correspond with the coloured markings
identifying the terminals in your plug, proceed as follows:
• The wire which is coloured
green and yellow must be connected to the
terminal in your plug which is marked by the letter E, or by the safety earth
symbol or which is identified by being coloured green, or green and yellow.
• The wire which is coloured blue
must be connected to the terminal which is
marked with the letter N, or coloured black.
• The wire which is coloured brown
must be connected to the terminal which is
marked with the letter L, or coloured red.
If the socket outlet available is not suitable for the plug supplied, the plug should be
cut off and the appropriate one fitted and wired as previously noted. The moulded
plug which was cut off should be disposed of as it would be a potential shock hazard
if it were to be plugged in with the cut off end of the mains cord exposed. The
moulded plug must be used with the fuse and fuse carrier firmly in place. The fuse
carrier is of the same basic colour (though not necessarily the same shade of that
colour) as the coloured insert in the base of the plug. Different manufacturers' plugs
and fuse carriers are not interchangeable. In the event of loss of the fuse carrier, the
moulded plug MUST NOT be used. Either replace the moulded plug with another
conventional plug (wired as previously described) or obtain a replacement fuse
carrier from an authorised Acorn dealer. In the event of the fuse blowing, it should
be replaced, after clearing any faults, with a 5 amp fuse that is ASIA approved to
BSI 1362.
Exposure
Like all electronic equipment, the ARM Evaluation System should not be exposed to
direct sunlight or moisture for long periods.
iv
 ARM system

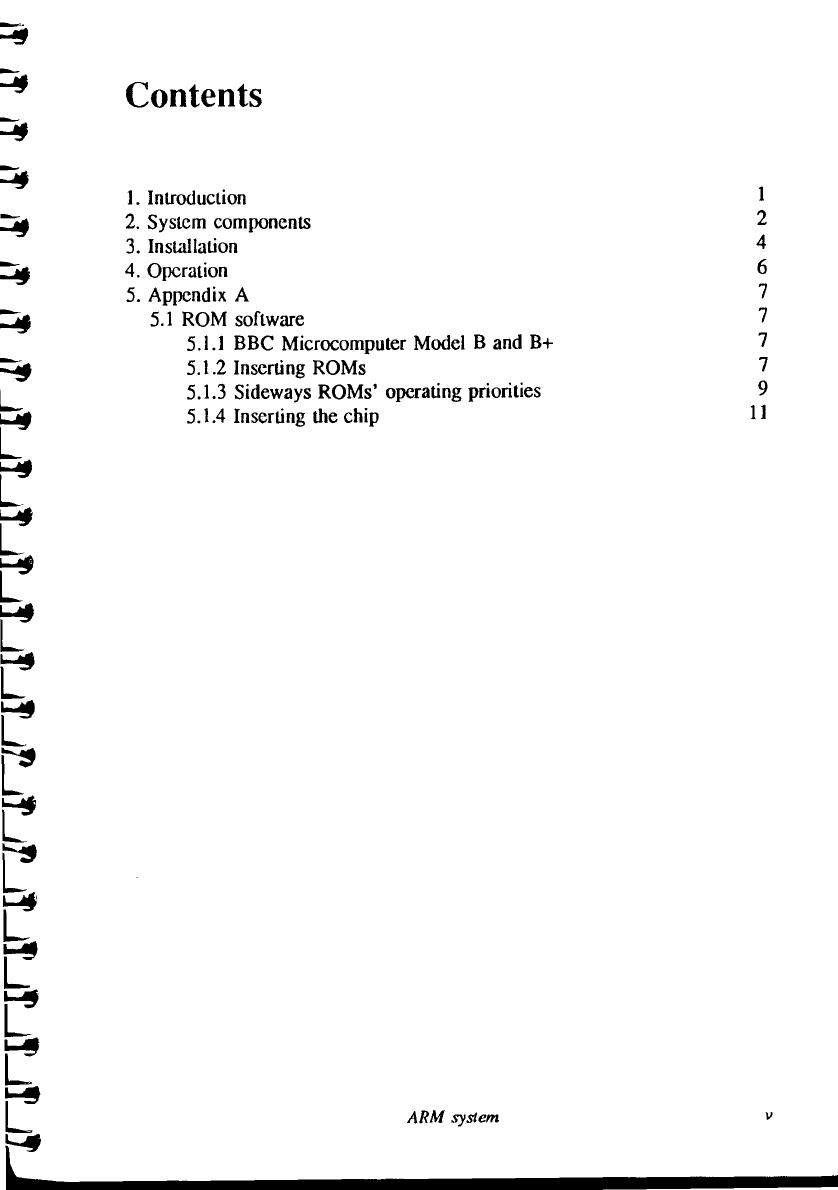

Contents
1. Introduction 
1
2. System components 
2
3.
Installation 
4
4. Operation 
6
5. Appendix A

7
5.1 ROM software 
7
5.1.1 BBC Microcomputer Model B and B+

7
5.1.2 Inserting ROMs

7

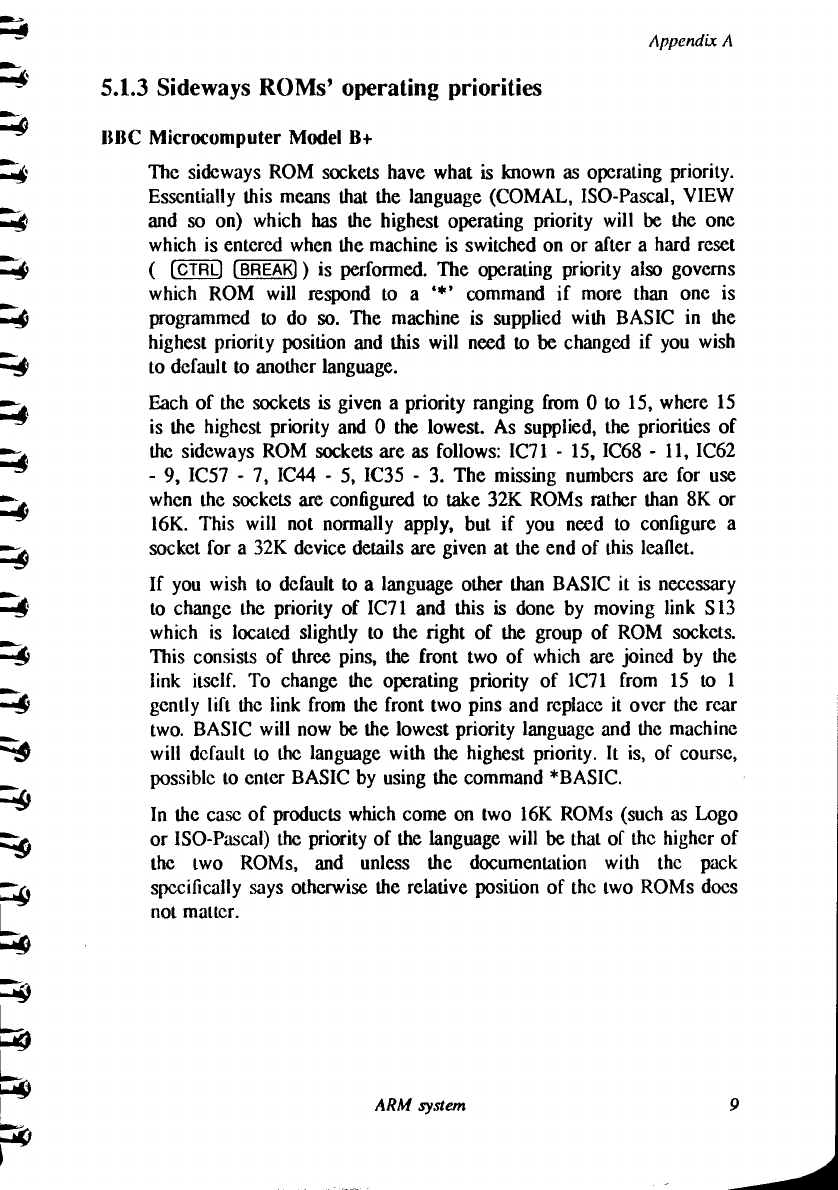

5.1.3 Sideways ROMs' operating priorities

9

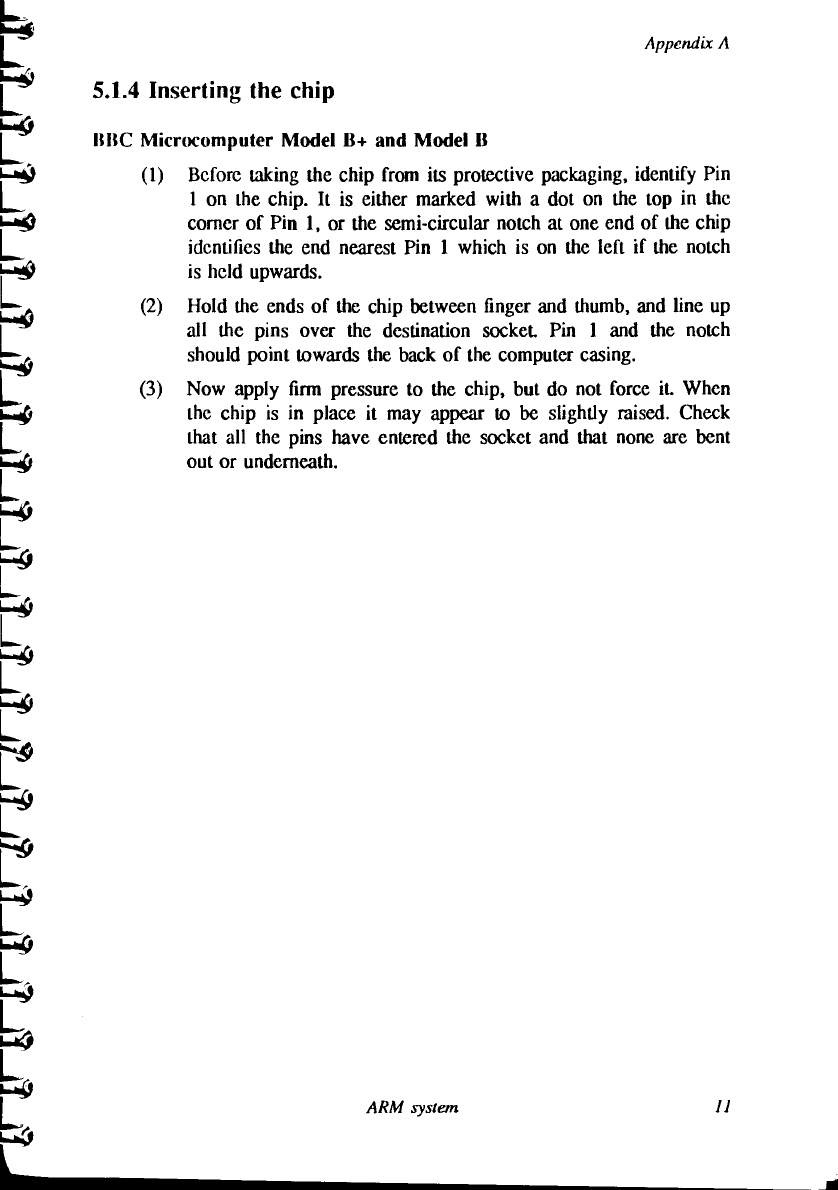

5.1.4 Inserting the chip

11
ARM
system

v

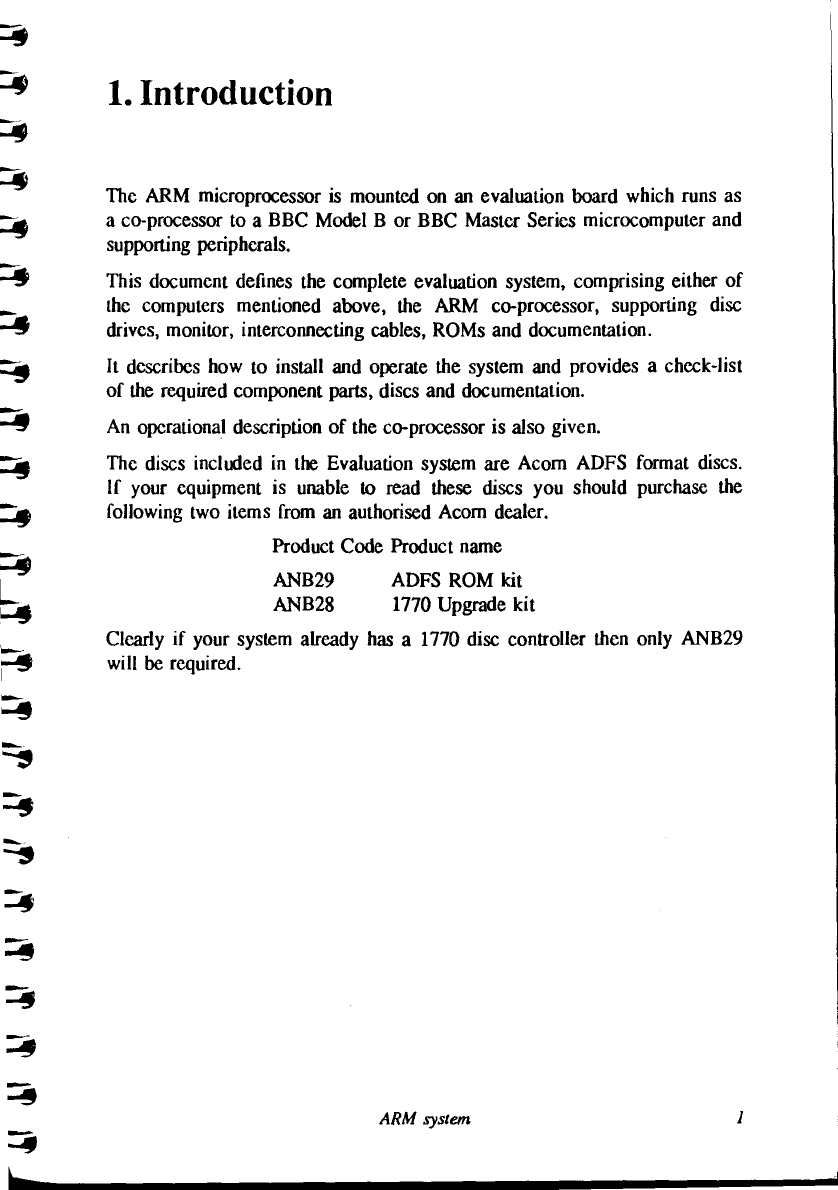

1. Introduction
The ARM microprocessor is mounted on an evaluation board which runs as
a co-processor to a BBC Model B or BBC Master Series microcomputer and
supporting peripherals.
This document defines the complete evaluation system, comprising either of
the computers mentioned above, the ARM co-processor, supporting disc
drives, monitor, interconnecting cables, ROMs and documentation.
It describes how to install and operate the system and provides a check-list
of the required component parts, discs and documentation.
An operational description of the co-processor is also given.
The discs included in the Evaluation system are Acorn ADFS format discs.
If your equipment is unable to read these discs you should purchase the
following two items from an authorised Acorn dealer.
Product Code Product name
ANB29  ADFS ROM kit
ANB28  1770 Upgrade kit
Clearly if your system already has a 1770 disc controller then only ANB29
will be required.
ARM system  1

2. System components
An evaluation system should be made up of the ARM Evaluation system
itself plus a number of other components. A complete system should be
made up of the following elements:
(1) A BBC Model B or BBC Master microcomputer computer
(2) ARM co-processor
(3) A monitor
(4) A twin, double density, double sided, 5.25 inch disc drive
(5)
A Winchester disc unit with a suggested minimum of 10 Mbytes
capacity
(6) Interconnecting cables:
The cable for the connection between the ARM co-processor and the
ACORN computer is supplied with the ARM co-processor. It is
captive at the ARM end with a connector at the other end for
attachment to the TUBE I/O socket on the ACORN computer
Otherwise, all the connections are made in the usual manner using the
standard cables supplied with each unit.
(7)
The software, all of which is supplied on 5.25 inch floppy discs, is as
follows:
•
ASSEMBLER
•
UTILITIES
•
TWIN
•
BBC BASIC
• LISP
• PROLOG
• FORTRAN
• C
2 
ARM system

System components

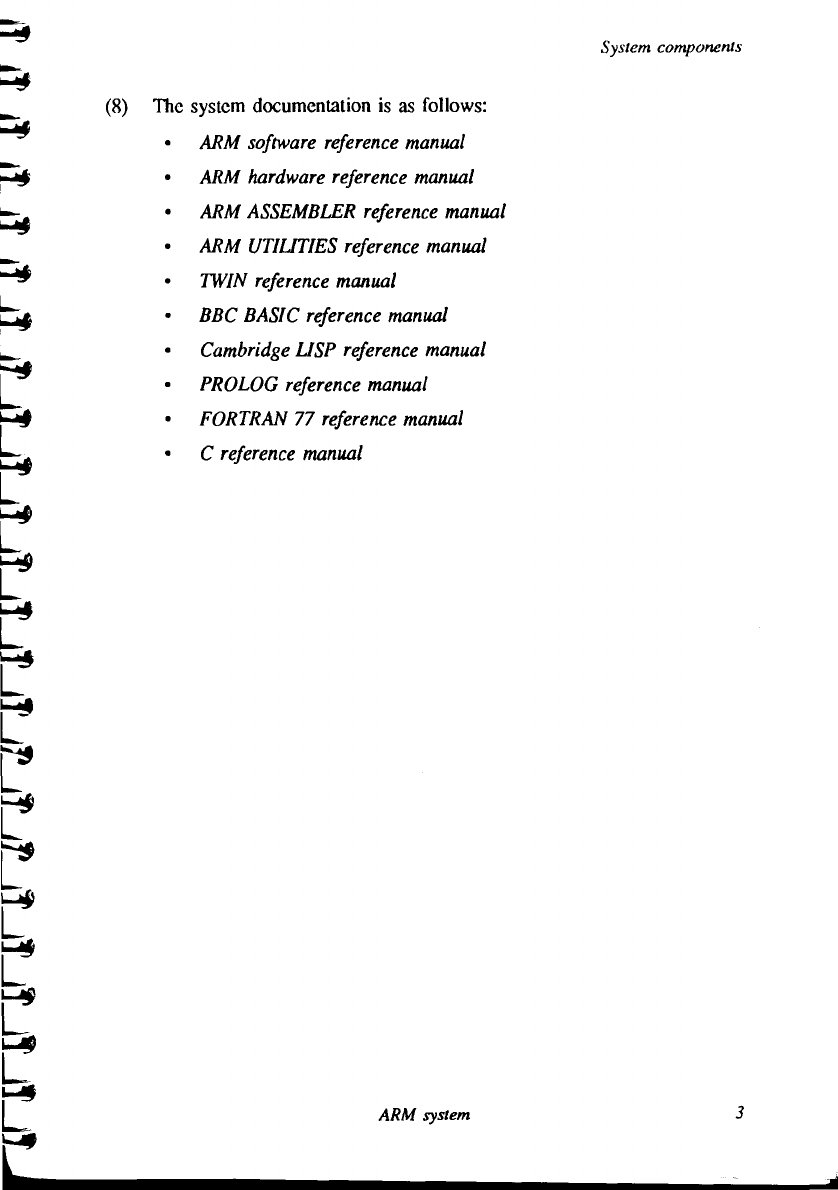

(8) The system documentation is as follows:
• ARM software reference manual
• ARM hardware reference manual
• ARM ASSEMBLER reference manual
• ARM UTILITIES reference manual
•
TWIN reference manual
• BBC BASIC reference manual
• Cambridge LISP reference manual
•
PROLOG reference manual
• FORTRAN 77 reference manual
• C reference manual
ARM
system

3

3. Installation

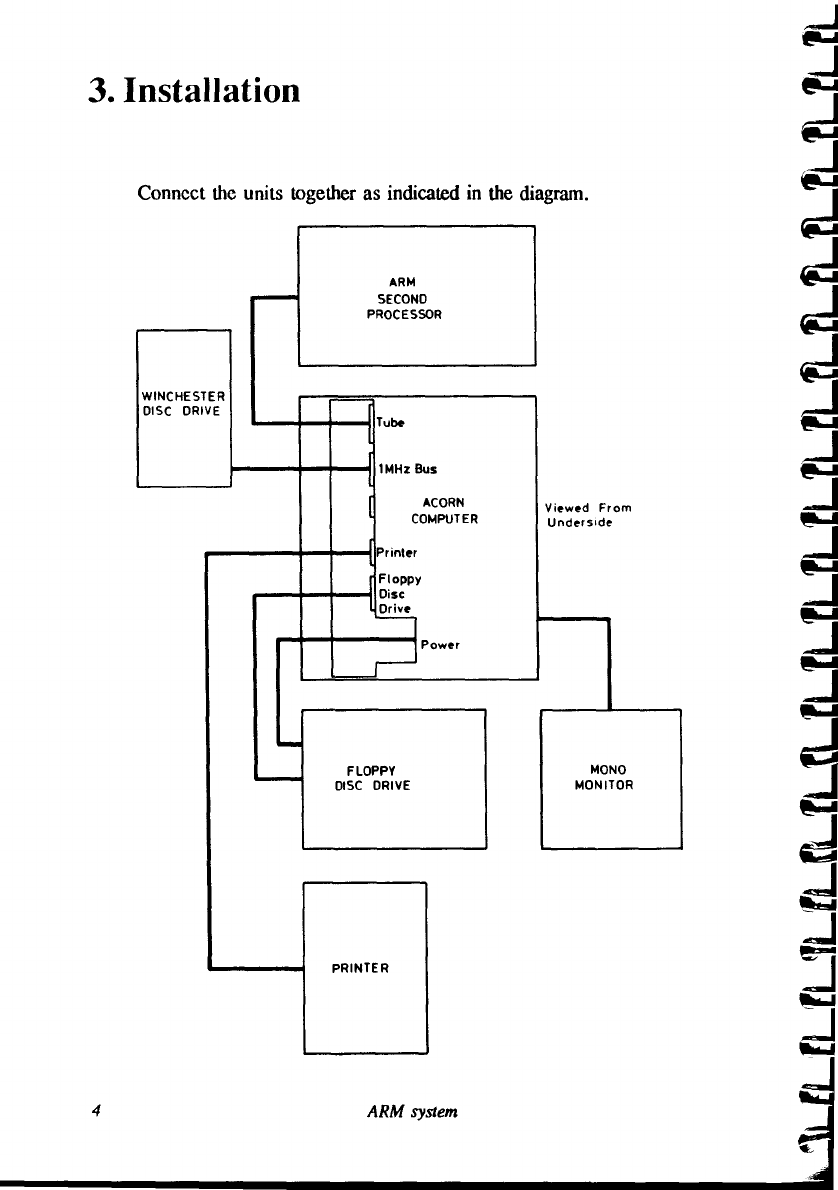

Connect the units together as indicated in the diagram.
4 
ARM system

Installation
The cable supplied with the co-processor is captive at the co-processor
end and has a 40-way IDC connector at the other end which plugs into
the interface, under the BBC Model B or BBC Master microcomputer,
marked TUBE. The co-processor has a separate mains lead for
connection to a 240 V 50 Hz mains supply.
The co-processor has a mains switch and fuseholder mounted on its
rear panel. The fuse rating is 1.6 A.
If the Micro to be used is other than a Master Series Micro then,
before the system can be used, the DNFS ROM included in the
hardware package may need to be fitted to your machine.
This will be the case if your machine does not have Econet software
fitted, or has not previously had a second processor used with it. For
instructions on how to fit ROM software to your machine see appendix
A of this manual.
ARM system  5

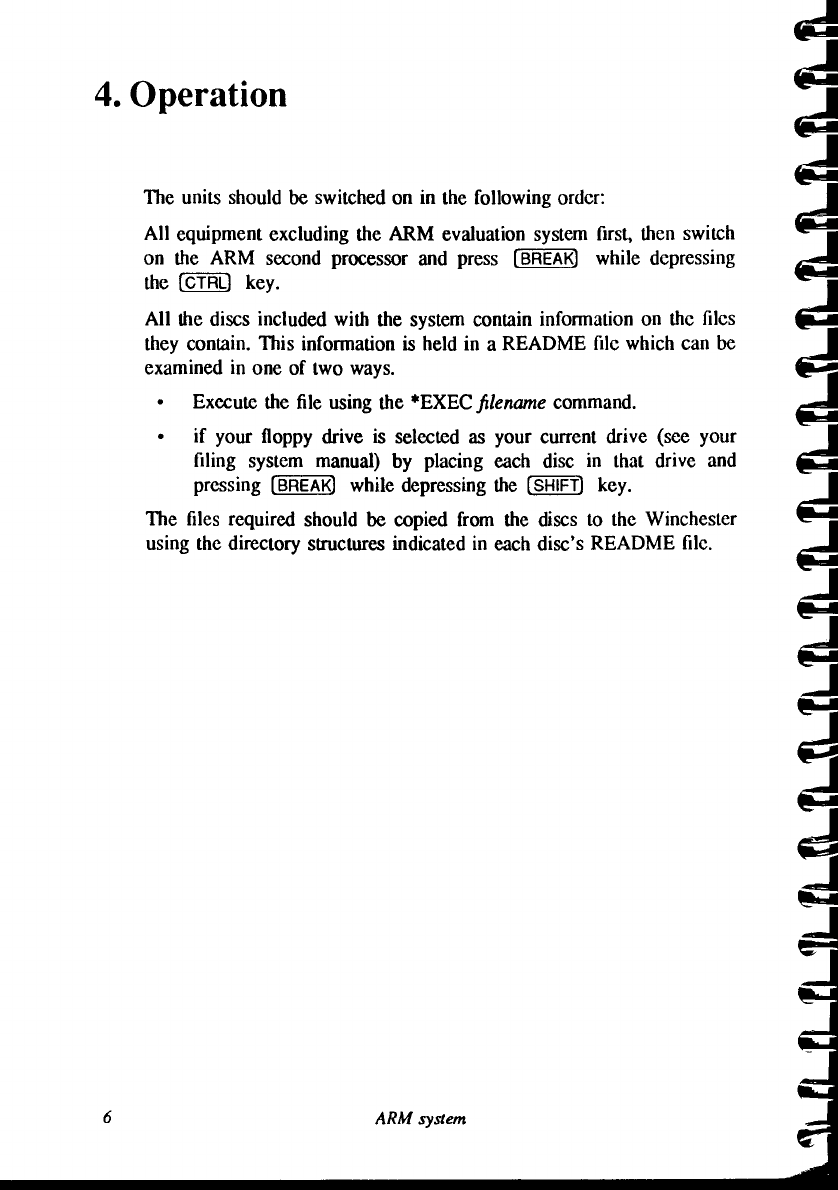

4. Operation
The units should be switched on in the following order:
All equipment excluding the ARM evaluation system first, then switch
on the ARM second processor and press
(BREAK)
while depressing
the
(CTRL)
key.
All the discs included with the system contain information on the files
they contain. This information is held in a README file which can be
examined in one of two ways.
•
Execute the file using the *EXEC
filename
command.
•
if your floppy drive is selected as your current drive (see your
filing system manual) by placing each disc in that drive and
pressing
(BREAK)
while depressing the
(SHIFT) key.
The files required should be copied from the discs to the Winchester
using the directory structures indicated in each disc's README file.
6 
ARM system

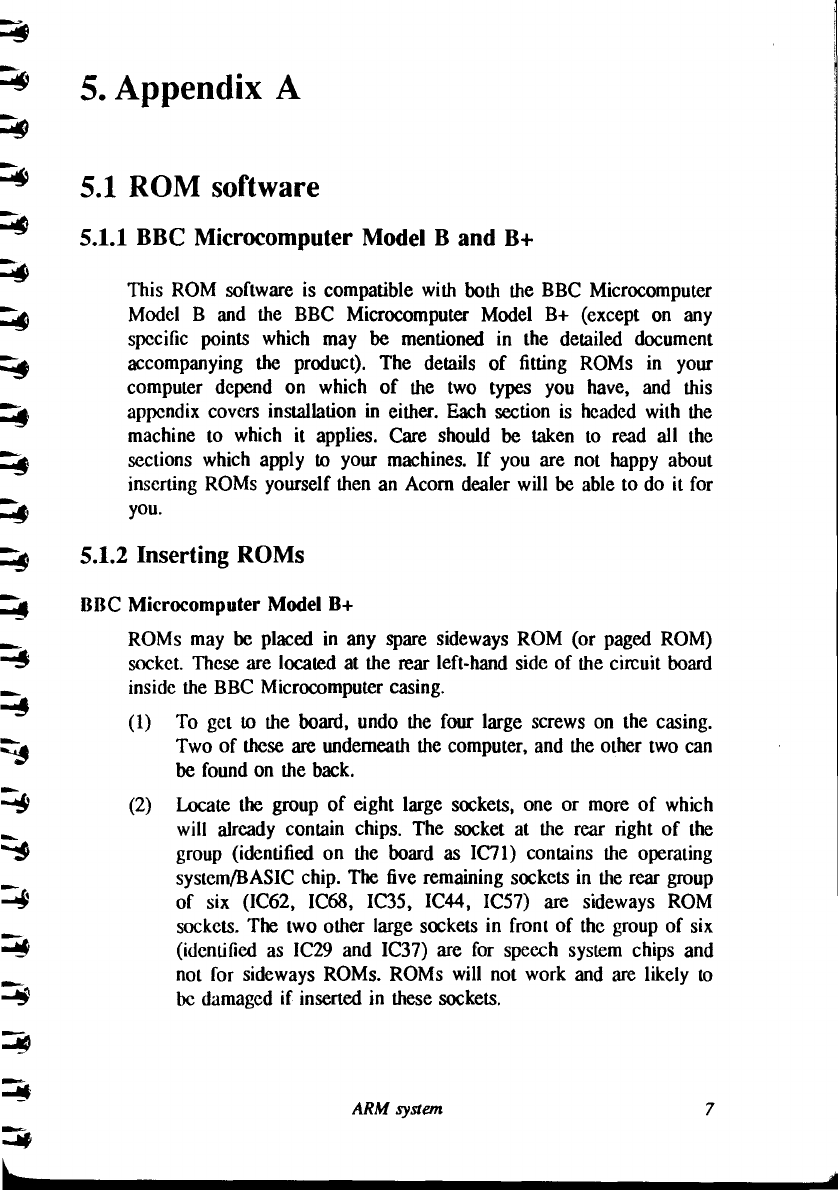

5. Appendix A
5.1 ROM software
5.1.1 BBC Microcomputer Model B and B+
This ROM software is compatible with both the BBC Microcomputer
Model B and the BBC Microcomputer Model B+ (except on any
specific points which may be mentioned in the detailed document
accompanying the product). The details of fitting ROMs in your
computer depend on which of the two types you have, and this
appendix covers installation in either. Each section is headed with the
machine to which it applies. Care should be taken to read all the
sections which apply to your machines. If you are not happy about
inserting ROMs yourself then an Acorn dealer will be able to do it for
you.
5.1.2 Inserting ROMs
BBC
Microcomputer Model B+
ROMs may be placed in any spare sideways ROM (or paged ROM)
socket. These are located at the rear left-hand side of the circuit board
inside the BBC Microcomputer casing.
(1) To get to the board, undo the four large screws on the casing.
Two of these are underneath the computer, and the other two can
be found on the back.
(2) Locate the group of eight large sockets, one or more of which
will already contain chips. The socket at the rear right of the
group (identified on the board as IC71) contains the operating
system/BASIC chip. The five remaining sockets in the rear group
of six (IC62, IC68, IC35, IC44, IC57) are sideways ROM
sockets. The two other large sockets in front of the group of six
(identified as IC29 and IC37) are for speech system chips and
not for sideways ROMs. ROMs will not work and are likely to
be damaged if inserted in these sockets.
ARM
system  7

Chapter 5
Read the section overleaf about the operating priority of the sideways
ROM sockets in the BBC Microcomputer Model B+, and then insert
the ROM as described in the section entitled 'Inserting the chip'
(below).

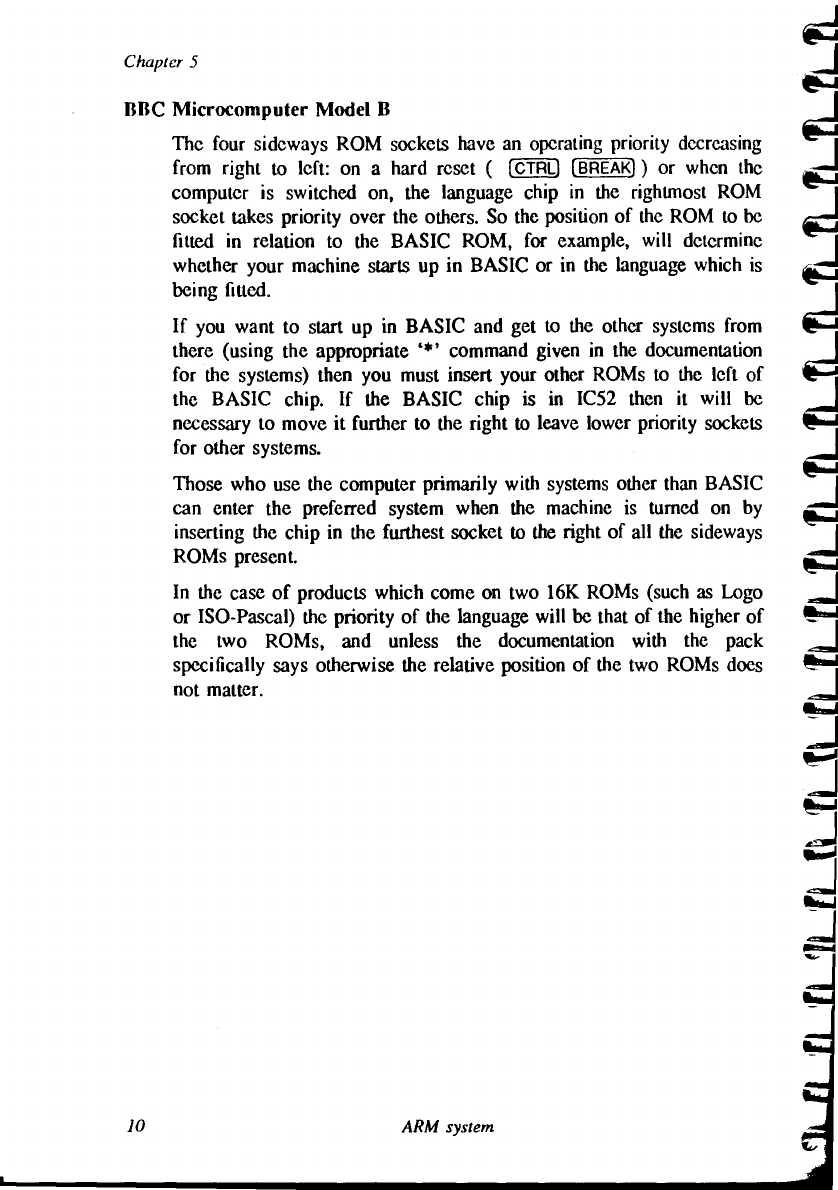

BBC Microcomputer Model B
ROMs may be
placed in any spare sideways ROM (or paged ROM)
socket. These are located on the front right-hand side of the circuit
board inside the BBC Microcomputer casing.
(1)
To get to the board, ensure that the computer is disconnected
from the mains supply and undo the four large screws normally
marked 'FIX'. Two of these are underneath the computer, and
the other two can be found on the back.
(2)
Once the top is removed, release the bolts holding down the
keyboard assembly. These are located on either side of the
keyboard. Most machines have two bolts, but some have three.
(3) Carefully displace the keyboard, rotating it clockwise through
about 20 degrees so that the front right-hand side of the circuit
board is accessible. There should be no need to remove the
multi-wire connector to the main board.
(4)
Locate the row of five large sockets, one or more of which will
already be occupied by chips. The four right-hand sockets
(identified on the board as IC52, 1C88, IC100, IC101) arc
sideways ROM sockets. The fifth from the right is the operating
system socket (IC51).
Read the section below about the operation priority of the sideways
ROM sockets in the BBC Microcomputer Model B, and then insert the
ROM as described in the section entitled 'Inserting the chip' (below).
8 
ARM system

Appendix A
5.1.3 Sideways ROMs' operating priorities
BBC Microcomputer Model B+
The sideways ROM sockets have what is known as operating priority.
Essentially this means that the language (COMAL, ISO-Pascal, VIEW
and so on) which has the highest operating priority will be the one
which is entered when the machine is switched on or after a hard reset
(
(CTRL) (BREAK)) is performed. The operating priority also governs
which ROM will respond to a command if more than one is
programmed to do so. The machine is supplied with BASIC in the
highest priority position and this will need to be changed if you wish
to default to another language.
Each of the sockets is given a priority ranging from 0 to 15, where 15
is the highest priority and 0 the lowest. As supplied, the priorities of
the sideways ROM sockets are as follows: IC71 - 15, IC68 - 11, IC62
- 9, IC57 - 7, IC44 - 5, IC35 - 3. The missing numbers are for use
when the sockets are configured to take 32K ROMs rather than 8K or
16K. This will not normally apply, but if you need to configure a
socket for a 32K device details are given at the end of this leaflet.
If you wish to default to a language other than BASIC it is necessary
to change the priority of IC71 and this is done by moving link S 13
which is located slightly to the right of the group of ROM sockets.
This consists of three pins, the front two of which are joined by the
link itself. To change the operating priority of 1C71 from 15 to 1
gently lift the link from the front two pins and replace it over the rear
two. BASIC will now be the lowest priority language and the machine
will default to the language with the highest priority. It is, of course,
possible to enter BASIC by using the command *BASIC.
In the case of products which come on two 16K ROMs (such as Logo
or ISO-Pascal) the priority of the language will be that of the higher of
the two ROMs, and unless the documentation with the pack
specifically says otherwise the relative position of the two ROMs does
not matter.
ARM system  9

Chapter 5
BBC Microcomputer Model B
The four sideways ROM sockets have an operating priority decreasing
from right to left: on a hard reset (
(CTRL) (BREAK) ) or when the
computer is switched on, the language chip in the rightmost ROM
socket takes priority over the others. So the position of the ROM to be
fitted in relation to the BASIC ROM, for example, will determine
whether your machine starts up in BASIC or in the language which is
being fitted.
If you want to start up in BASIC and get to the other systems from
there (using the appropriate '
4
" command given in the documentation
for the systems) then you must insert your other ROMs to the left of
the BASIC chip. If the BASIC chip is in IC52 then it will be
necessary to move it further to the right to leave lower priority sockets
for other systems.
Those who use the computer primarily with systems other than BASIC
can enter the preferred system when the machine is turned on by
inserting the chip in the furthest socket to the right of all the sideways
ROMs present.
In the case of products which come on two 16K ROMs (such as Logo
or ISO-Pascal) the priority of the language will be that of the higher of
the two ROMs, and unless the documentation with the pack
specifically says otherwise the relative position of the two ROMs does
not matter.
10

ARM
system

Appendix A
5.1.4 Inserting the chip
BBC Microcomputer Model B+ and Model B
(1) Before taking the chip from its protective packaging, identify Pin
1 on the chip. It is either marked with a dot on the top in the
corner of Pin 1, or the semi-circular notch at one end of the chip
identifies the end nearest Pin 1 which is on the left if the notch
is held upwards.
(2) Hold the ends of the chip between finger and thumb, and line up
all the pins over the destination socket. Pin 1 and the notch
should point towards the back of the computer casing.
(3)
Now apply firm pressure to the chip, but do not force it. When
the chip is in place it may appear to be slightly raised. Check
that all the pins have entered the socket and that none are bent
out or underneath.
ARM system 
11
