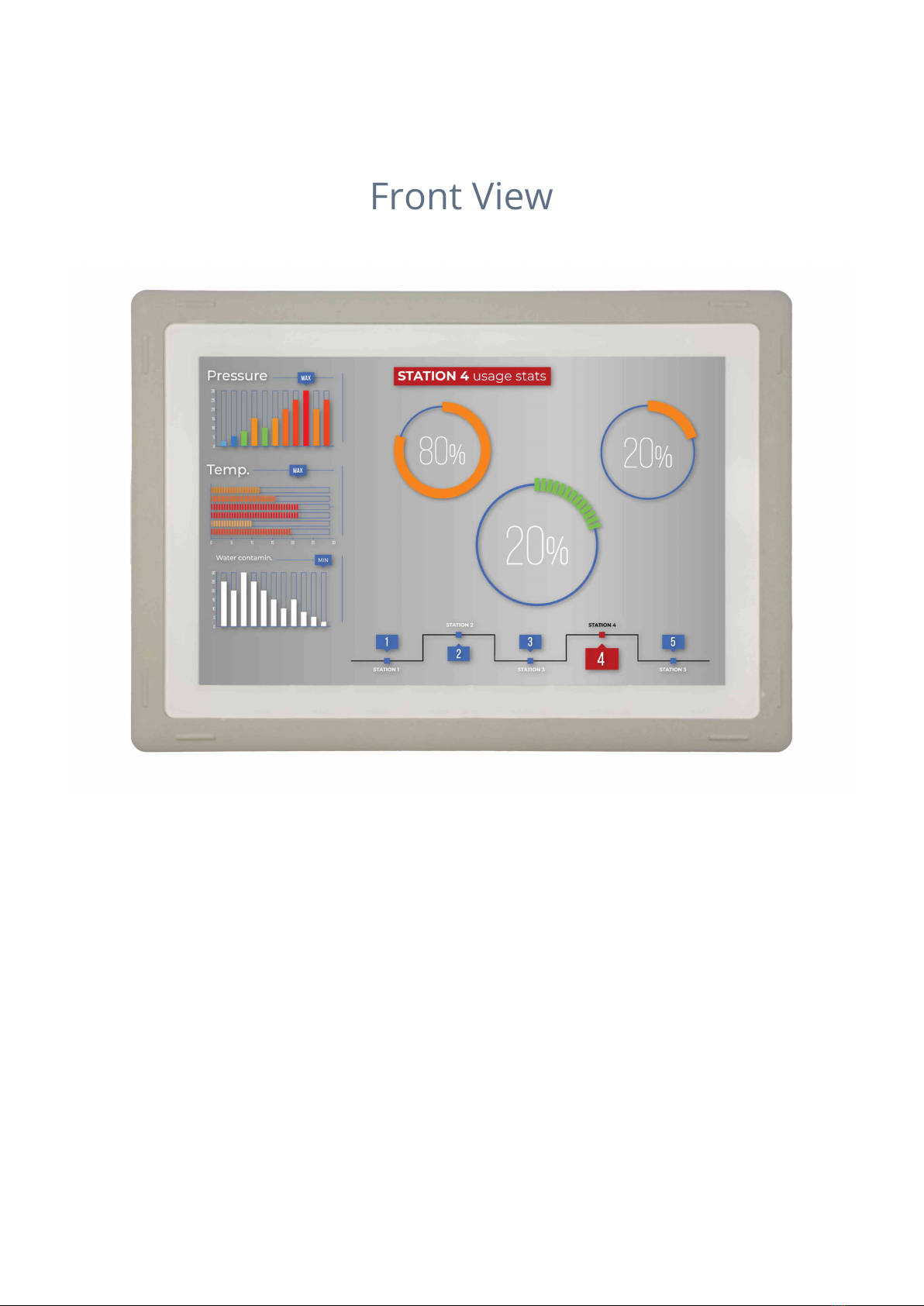

Front View
PPC-A72-101
Chipsee IPC Page 3 of 28

Rear View
PPC-A72-101
Chipsee IPC Page 4 of 28

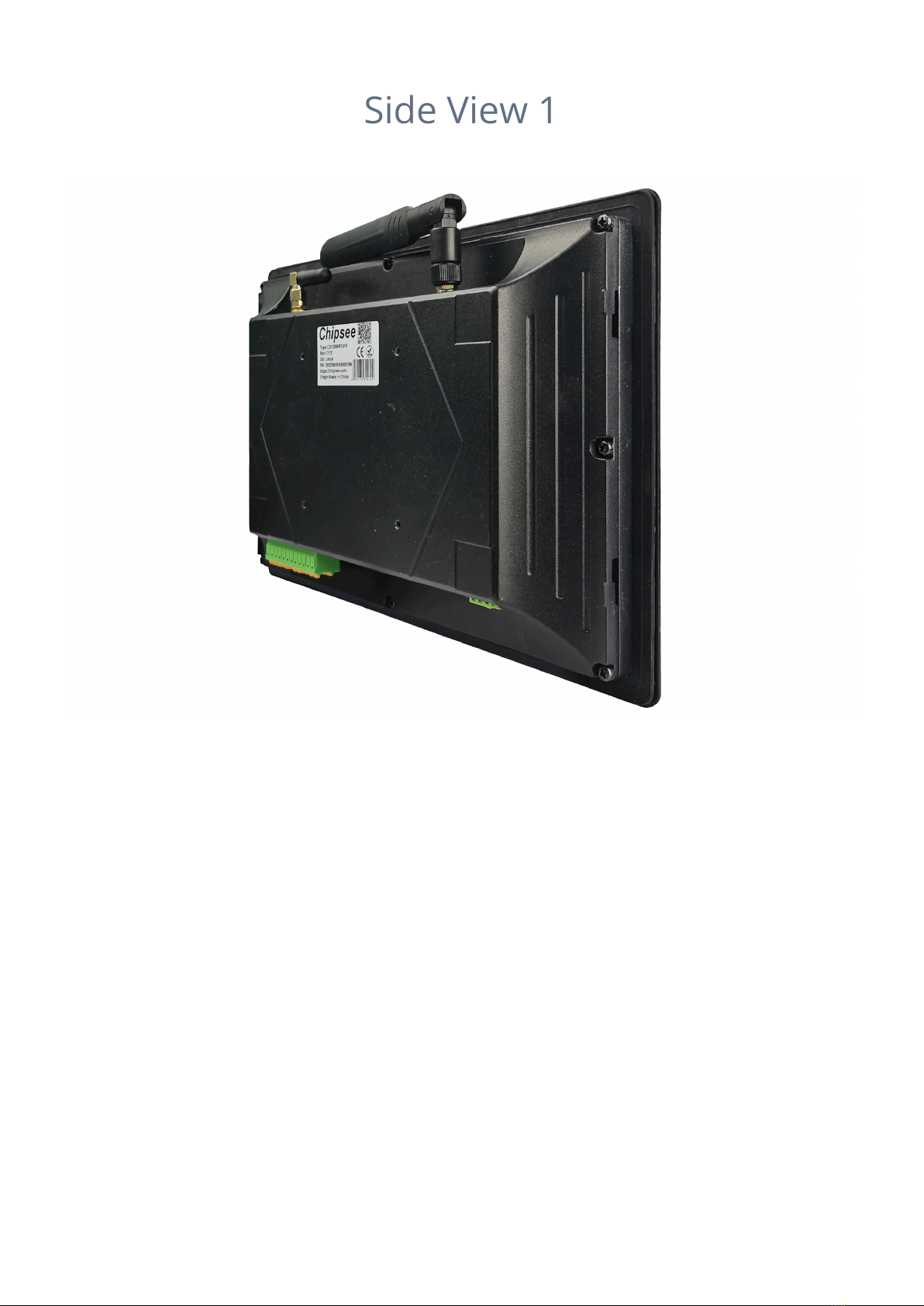

Side View 1
PPC-A72-101
Chipsee IPC Page 5 of 28

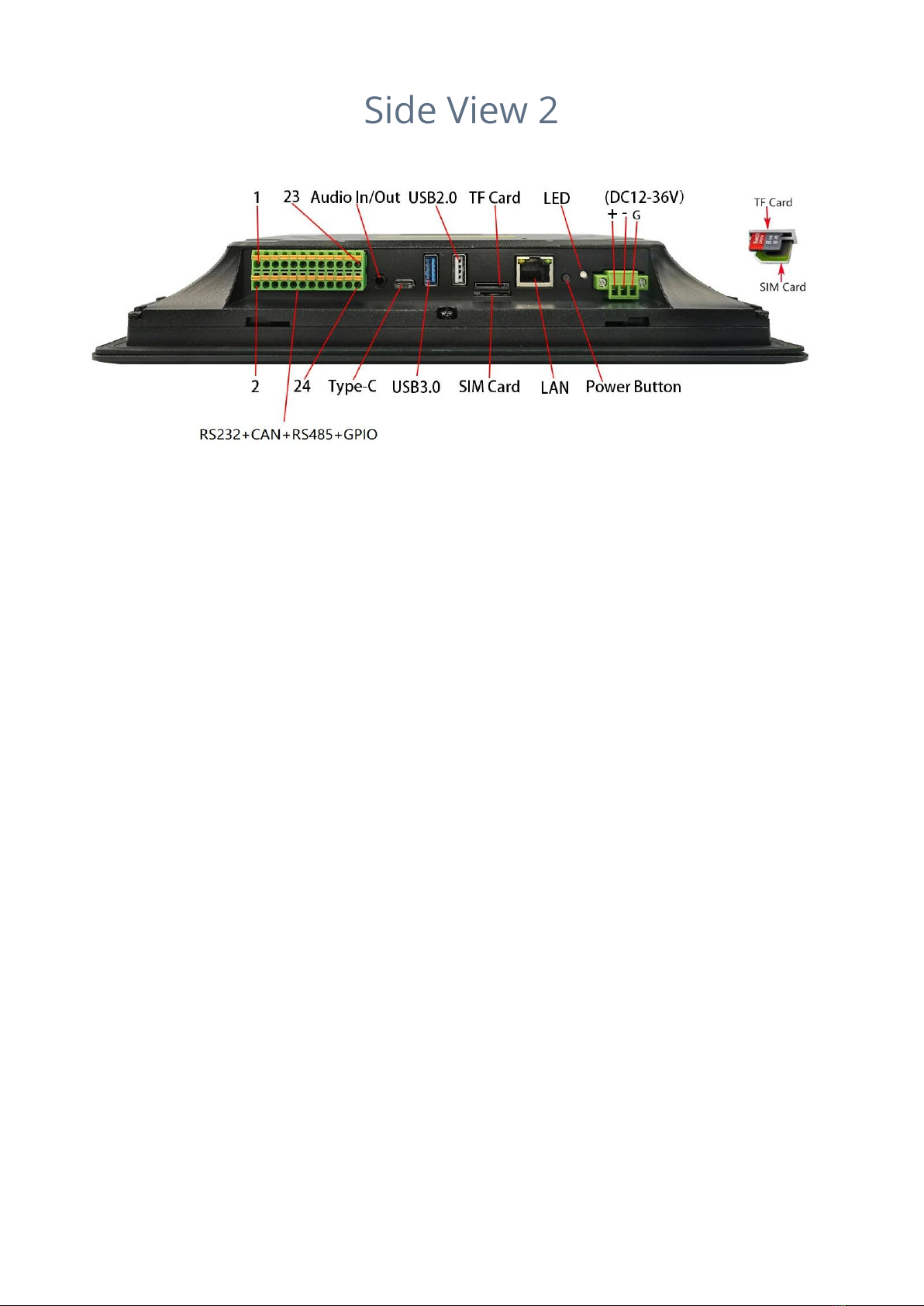

Side View 2
PPC-A72-101
Chipsee IPC Page 6 of 28

Product Overview
The Cortex -A72/53 series PPC-A72-101 (PN: CS12800R101P) is a high-quality industrial
panel PC. It features a 10.1” ten-point capacitive touch screen with a resolution of 1280 x
800 pixels and brightness of 400 cd/m .
Key Applications
Human Machine Interface HMI
Mobile Applications
Video Processing
Machine Learning
Video Gaming
Process Control
Process Monitoring
ATM…
It is available both as an embedded solution and as a device hosed in an aluminum casing
with bezels, thus facilitating dierent installation options:
Installation on an industrial cabinet
Integration with the existing equipment
The PPC-A72-101 Industrial Panel PC is based around the powerful CS-SOM-RK3399 System
on Module (SoM), powered by the Rockchip RK3399 low-power processor which integrates a
dual-core Cortex -A72 and a quad-core Cortex -A53 with a separate NEON coprocessor.
The RK3399 supports multi-format video decoders and has a high-performance dual-
channel external memory interface (DDR3/DDR3L/LPDDR3/LPDDR4) capable of sustaining
demanding memory bandwidths. It also provides a complete set of peripheral interfaces.
®
2
•
•
•
•
•
•
•
•
•
•
® ®
PPC-A72-101 Product Overview
Chipsee IPC Page 7 of 28

*
Ordering Options
Chipsee products can be customized during the ordering process. The product will be
shipped with the pre-installed factory defaults if no extra requirements are specied. The
table in the Hardware Features section provides information about the default options
bundled with the product.
Operating System
This product comes with a pre-installed OS of your choice. Please see the list below for the
supported OSes, which can be also obtained from the Software Documentation section,
along with the detailed installation instructions.
Buildroot Linux Qt5.14*
Android 7.1
Debian 10
(Formerly Chipsee Linux) Based on buildroot that has been integrated with:
Chipsee Hardware Test Application
An initialization script for GPIO/Buzzer/Audio
Multiple libraries, such as the libQt5Sql to develop Qt application with SQL
Various packages, such as the ntfs-3g to use NTFS le system
Note
You can order PPC-A72-101 from the ocial Chipsee Store or from your nearest distributor.

•
•
•
1.
2.
3.
4.
Warning
The Software Documentation section provides a detailed instruction on how to install dierent OSes on your own.
However, bear in mind that Chipsee can’t take the responsibility of inadequate installation procedure. If you “brick”
your device, please contact Chipsee Technical Support at [email protected] for further assistance

PPC-A72-101 Ordering Options
Chipsee IPC Page 8 of 28

Optional Features
The PPC-A72-101 Industrial Panel PC does not include 4G/LTE module by default. The
module is optional and can be selected at the Chipsee store during the ordering process.
Warning
Installation, repair, and maintenance tasks should be performed by trained personnel only.
Chipsee does not bear any responsibility for damage caused by inadequate handling of the product.

PPC-A72-101 Optional Features
Chipsee IPC Page 9 of 28

Hardware Features
The PPC-A72-101 Industrial Panel PC oers a broad range of performance and connectivity
options for scalable integration, providing expandability to meet future needs. Some of the
key features are listed in the table below.
PPC-A72-101
CPU Rockchip RK3399, Dual-core Cortex-A72 (1.8GHz), Quad-core Cortex-A53
(1.4GHz)
RAM 4GB DDR3
eMMC 16GB
Storage TF Card, Supports up to 128GB SDHC
Display 10.1” LCD, 1280 x 800, High Brightness: 400 cd/m
Touch 10-point capacitive touch screen
USB 1 x USB 2.0 HOST, 1 x USB 3.0 HOST, 1 x USB Type-C
LAN 1 x RJ45, GbE
Audio 3.5mm Audio In/Out Connector, 2W Internal Speaker
Buzzer Yes
RTC Yes
RS232 3 x RS232 (Optional 5 x RS232 at most, 1 debug port)1
RS485 2 x RS4851
GPIO 8 Channels
WiFi/BT Integrated WiFi/BT Module
4G/LTE Supported, Optional
Power Input From 12V to 36V
Current at 15V 700mA Max
Power Consumption 12W Typical
Working
Temperature From 0°C to +60°C
OS Android 7.1, Debian 10, Buildroot Linux Qt5.14
Dimensions PPC-A72-101 (PN: CS12800R101P): 275.5 x 193.5 x 46.0mm
Weight PPC-A72-101 (PN: CS12800R101P): 1600g
Mounting PPC-A72-101 (PN: CS12800R101P): Panel, VESA
Table 92 Key Features
2
PPC-A72-101 Hardware Features
Chipsee IPC Page 10 of 28

1(1,2)This product has 5 x UART channels in total. The default conguration is 3 x RS232 and 2 x RS485, including 1
debug port. UART can be swapped between RS232 and RS485 modes easily, so if you need a dierent RS232/
RS485 conguration, please get in touch with the Chipsee Technical Support at [email protected]
PPC-A72-101 Hardware Features
Chipsee IPC Page 11 of 28

Power Input
The PPC-A72-101 Industrial Panel PC can be powered by a wide range of input voltages:
From 12V to 36V DC. The power input connector is a 3-pin, 3.81mm terminal. The polarity
and the pinout is clearly marked on the housing of the product as shown on the gure
below.

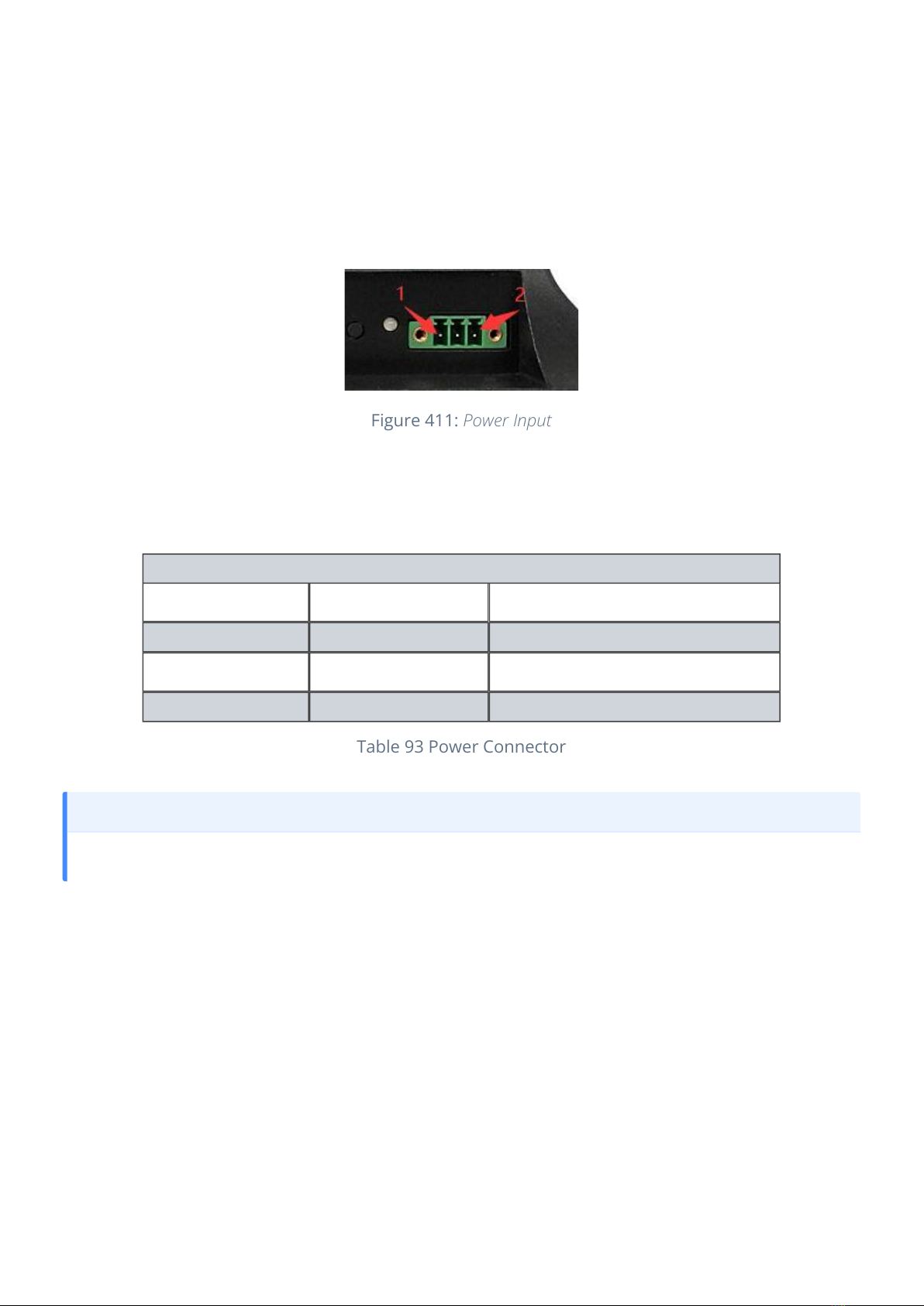

Figure 411: Power Input
Note that the “+” sign represents the positive power input, and it is printed both at the
casing and as a silk-screen on a PCB of the embedded version. The “-” terminal is shorted to
the ground.
Power Input Denition
Pin Number Denition Description
Pin 1 Positive Input DC Power Positive Terminal
Pin 2 Negative Input DC Power Negative Terminal
Pin 3 Ground Power System Ground
Table 93 Power Connector
Note
The system ground “G” is connected to power negative “-” on board.

PPC-A72-101 Power Input
Chipsee IPC Page 12 of 28

Touch Screen
The PPC-A72-101 Industrial Panel PC uses a 10-point capacitive touch screen.
Figure 412: Capacitive Touch Screen Connector
Attention
A capacitive touch screen is susceptible to power noise and Electromagnetic Radiation (EMR). It may cause LCD ripples
or even capacitive touch malfunction. If using a capacitive multi-touch test application, you might notice the touch
points oat erratically across the display. There are several solutions to this problem:
Use a high-quality Power Adapter Unit (PSU) with low EMR. You can also provide power from a battery.
Make sure that the PPC-A72-101 Power Input connector (pin 3) is properly connected to the Power System
Ground to provide sucient EMI shielding and eliminate the problem entirely.
Bad GND problem can also be conrmed by touching pin 3 of the Power Input connector with one hand while
operating the capacitive touch screen with the other hand. In this case, the operator’s body acts as the Power
System Ground.

1.
2.
3.
PPC-A72-101 Touch Screen
Chipsee IPC Page 13 of 28

Connectivity
There are many connectivity options available on the PPC-A72-101 industrial PC. It has 1 x
USB 2.0 HOST, 1 x USB 3.0 HOST, 1 x USB Type-C, 1 x network connector (RJ45) supporting
up to 1 Gbps, 8xGPIO and 5 x UART terminals (RS232/485).
RS232+RS485+CAN+GPIO Connector
The serial communication interfaces (RS485, RS232, and CAN) are routed to a 12-pin
3.81mm terminal, as illustrated on the gure below. Serial communication on both RS485
and RS232 interfaces can reach up to 115200 kbps.

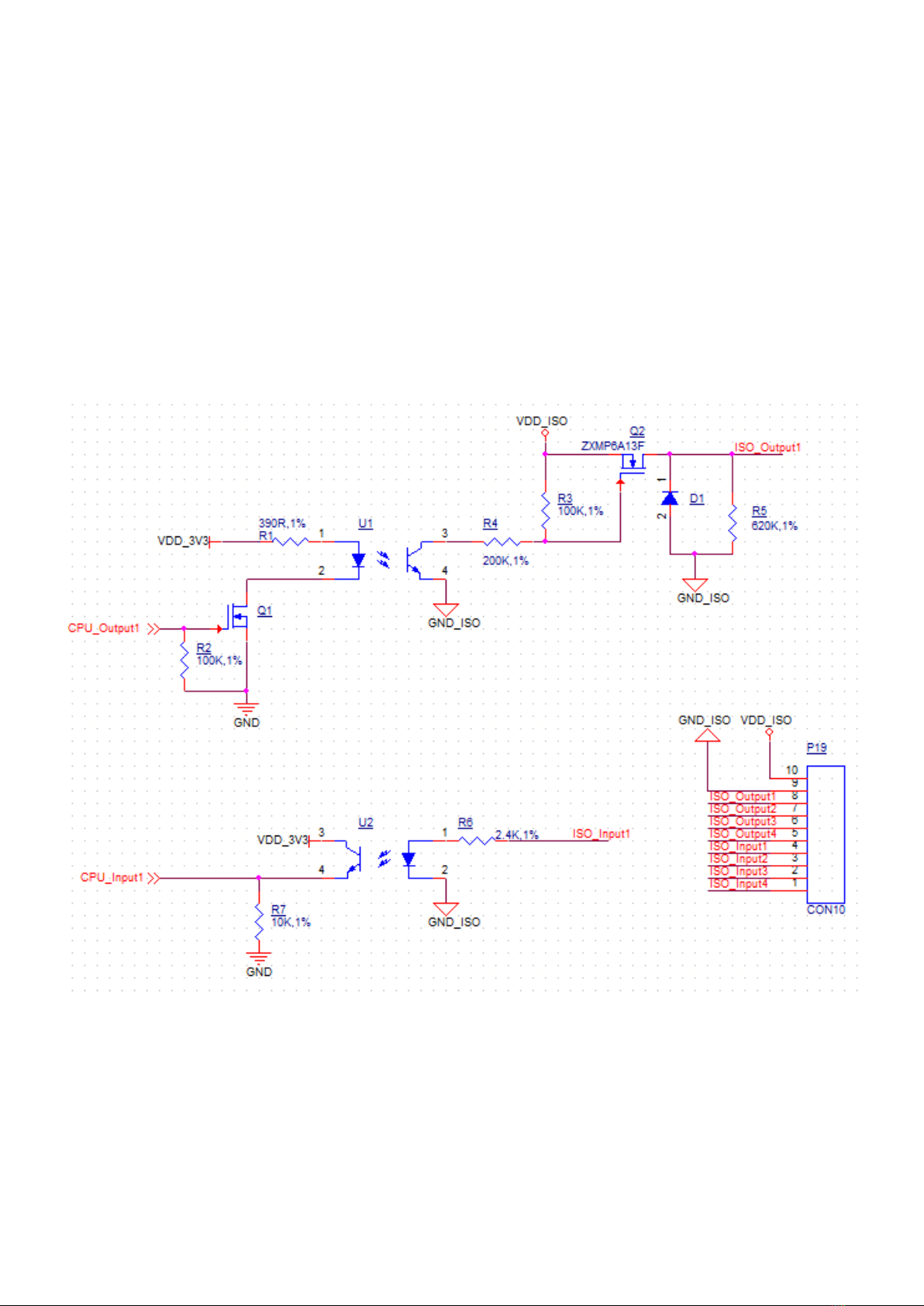

Isolated GPIO reduced schematic
PPC-A72-101 Connectivity
Chipsee IPC Page 14 of 28

The table below oers more detailed description of every pin and its denition:
RS232 / RS485 / CAN / GPIO Pin Denition:
Pin Number Denition Description
Pin 1 CAN1_H CAN H signal
Pin 2 CPU_RS232_2_RXD CPU UART2, CPU RS232 RXD signal
Pin 3 CAN1_L CAN L signal
Pin 4 CPU_RS232_2_TXD CPU UART2, CPU RS232 TXD signal
Pin 5 RS485_4- USB UART4, RS485 -(B) signal
Pin 6 IN4 Isolated Input 4
Pin 7 RS485_4+ USB UART4, RS485 +(A) signal
Pin 8 IN3 Isolated Input 3
Pin 9 RS485_3- USB UART3, RS485 -(B) signal
Pin 10 IN2 Isolated Input 2
Pin 11 RS485_3+ USB UART3, RS485 +(A) signal
Pin 12 IN1 Isolated Input 1
Pin 13 RS232_2_RXD USB UART2, RS232 RXD signal
Pin 14 OUT4 Isolated Output 4
Pin 15 RS232_2_TXD USB UART2, RS232 TXD signal
Pin 16 OUT3 Isolated Output 3
Pin 17 RS232_1_RXD USB UART1, RS232 RXD signal
Pin 18 OUT2 Isolated Output 2
Pin 19 RS232_1_TXD USB UART1, RS232 TXD signal
PPC-A72-101 RS232+RS485+CAN+GPIO Connector
Chipsee IPC Page 15 of 28

RS232 / RS485 / CAN / GPIO Pin Denition:
Pin 20 OUT1 Isolated Output 1
Pin 21 GND System Ground
Pin 22 GND_ISO Isolated Ground
Pin 23 VCC5V System 5V output, up to 1A
Pin 24 VDD_ISO Isolated Power Input,support 5V~24V
Table 94 Connectivity Section
Attention
The 120Ω match resistor for the RS485 and CAN bus is NOT mounted by default.
This products support change 2 x RS485 to 2 x RS232 and support up to 5 x RS232 (include one debug port).
The GPIO Connector is optional. You can Contact us if you need it.
The GPIO has been Opt-Isolated and it uses the 24V Logic by default. You can use an external isolated power
input but the power input range should be from 5V to 24V DC.
The 4 output channels can drive at most 500mA current on each channel.

•
•
•
•
•
PPC-A72-101 RS232+RS485+CAN+GPIO Connector
Chipsee IPC Page 16 of 28

USB Connectors
There are 2 x USB HOST connectors onboard which includes 1 x USB 2.0 HOST, 1 x USB 3.0
HOST, 1 x USB Type-C , as shown in the gures below.
Figure 413: USB 2.0 HOST Connectors (embedded/enclosed PC version)
Figure 414: USB 3.0 HOST Connectors (embedded/enclosed PC version)
Figure 415: USB Type-C Connector (embedded/enclosed PC version)
Warning
Be careful not to touch surrounding electronic components accidentally while plugging in USB devices into the
embedded IPC version.

PPC-A72-101 USB Connectors
Chipsee IPC Page 17 of 28

LAN Connectors
LAN (RJ45) connector provides Ethernet connectivity over standardized Ethernet cables as
shown the gure below. The integrated Ethernet interface supports up to 1 Gbps data
throughput.
Figure 416: RJ45 LAN Connector
Note
Use CAT5 or better cables to achieve full data throughput over maximum distance dened by the 1000BASE-T
standard (100m).

PPC-A72-101 LAN Connectors
Chipsee IPC Page 18 of 28

WiFi & BT Module
The PPC-A72-101 Industrial Panel PC is equipped with the popular Realtek RTL8723 WiFi/
BT module that supports BT/BLE 4.0 (with backward compatibility), as well as 802.11bgn 2.4
GHz Wireless LAN (WLAN).
Figure 417: RTL8273 WiFi/BT Module
The product includes an SMA connector for an external WiFi/BT antenna, as illustrated in
the gure below.
Figure 418: WiFi+BT Antenna
PPC-A72-101 WiFi & BT Module
Chipsee IPC Page 19 of 28

4G/LTE Module
The PPC-A72-101 Industrial Panel PC is equipped with a mini-PCIe connector that can
connect to a 4G/LTE module. The customer will also need a SIM Card Holder and a 4G/LTE
Antenna Connector to ensure 4G/LTE works on the PPC-A72-101. SIM card does NOT
support hot plug. Power o before inserting or removing SIM card.

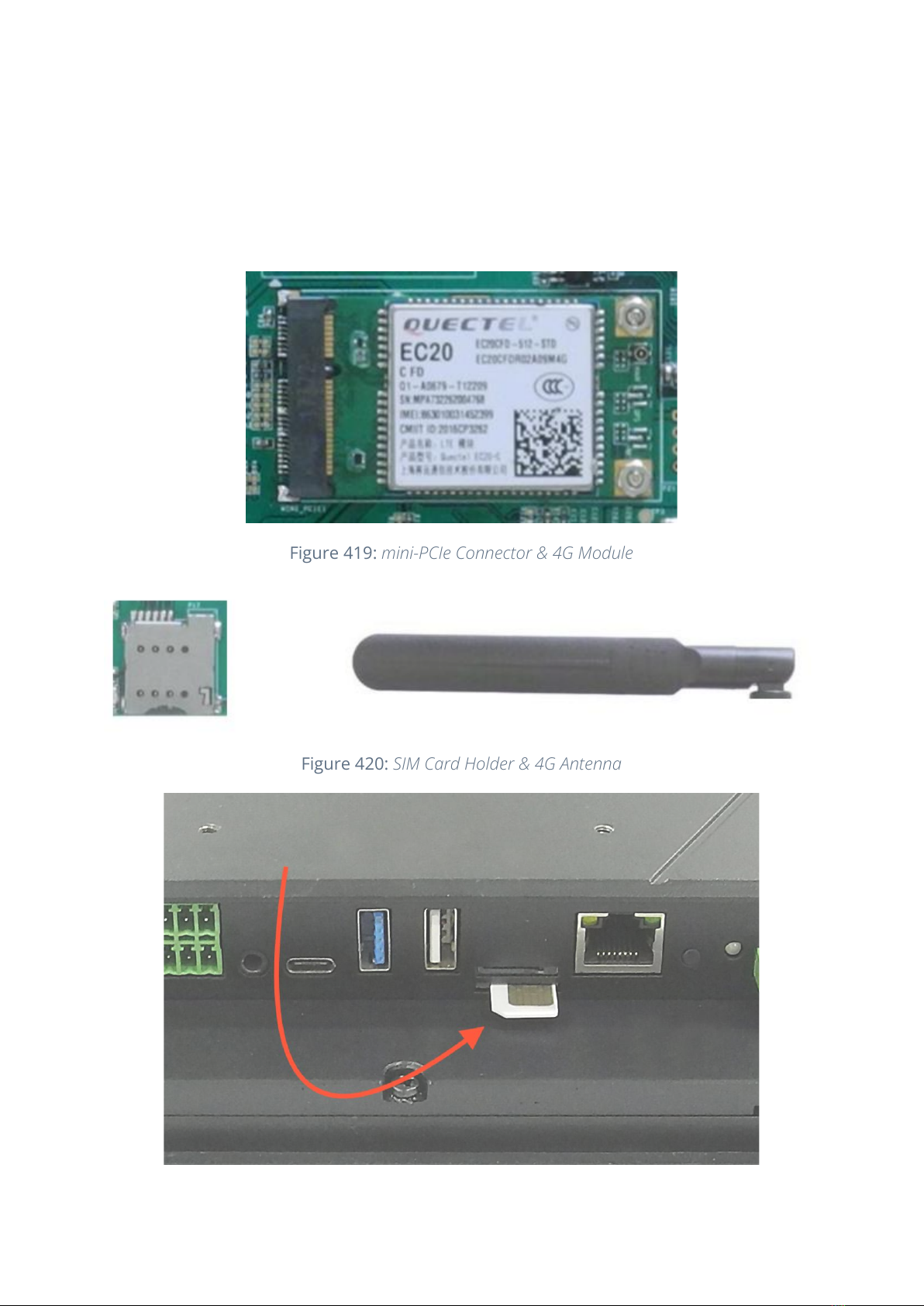

Figure 419: mini-PCIe Connector & 4G Module
Figure 420: SIM Card Holder & 4G Antenna
SIM Card Direction
PPC-A72-101 4G/LTE Module
Chipsee IPC Page 20 of 28
