Acorn Superglide 130 User manual

User Manual
PCB T700
Acorn Superglide 130
Straight Stairlift
38
73
108
143
DEUTSCH
Bedienungsanleitung
ESPAÑOL
Manual del Usario
ITALIANO
Manuale Utente
ENGLISH
User Manual 3
FRANÇAIS
Manuel d’utilisateur
9000_AC_TC_Combined_Multilingual 130 user manual_1220_WEB.pdf 19000_AC_TC_Combined_Multilingual 130 user manual_1220_WEB.pdf 1 2/10/2021 10:44:46 AM2/10/2021 10:44:46 AM

Acorn Stairlifts User Manual
ENGLISH
3
Thank you for choosing Acorn.
You can rest assured that your stairlift will provide many years of reliable service
and allow you to enjoy the full use of your home.
Your stairlift is covered by a manufacturer’s warranty for 12 months
that covers the cost of replacement parts.
Before using your stairlift, please read
through these instructions carefully.
The Stair lift owner is required to inspect the following functions every 2 months:
General operation of the Stair lift.
The operation of the safety sensors.
Rail and carriage are free of debris.
Once a year, it is mandatory to call your Acorn/authorized dealer to perform the
annual inspection, that includes all maintenance and safety inspections and
repairs where necessary. Regular maintenance is essential for keeping your stairlift
in proper operating condition.
We strongly recommend that you only use authorized engineers to perform
all required maintenance, service and repair work.
USA / CANADA ONLY
Some States require that permits are obtained prior to installation,
and that a licensed engineer completes the installation.
Check your local regulatory requirements
IMPORTANT
(QVXUHWKDWRQO\DQDXWKRUL]HGDQGTXDOL˩HG$FRUQWUDLQHGengineer installs and
services the stairlift. Under no circumstance should anyone other than an
engineer trained and authorized to install, adjust, service or modify any
mechanical or electrical device on this product.
Ensure the stairlift is only used in accordance with the user manual instruction.
Failure to follow these warnings may result in safety system compromises which
could result in serious injury or death. Acorn accepts no liability for property
damage, warranty claims or personal injury, including death, in this circumstance.
After installation reliable operation and continual safe operation requires regular
service and inspection. As the owner you are responsible for ensuring that regular
service and inspections occur in a timely manner.
MAINTENANCE
Acorn, in keeping with its policy of continual development, reserves the right to change
VSHFL˩FDWLRQZLWKRXWSULRUQRWLFH$OOPHDVXUHPHQWVDUHDSSUR[LPDWH$OOLPDJHVDUH
shown for illustrative purposes only. Product may vary slightly.
9000_AC_TC_Combined_Multilingual 130 user manual_1220_WEB.pdf 29000_AC_TC_Combined_Multilingual 130 user manual_1220_WEB.pdf 2 2/10/2021 10:44:54 AM2/10/2021 10:44:54 AM

Acorn Stairlifts User Manual
ENGLISH
4
IMPORTANT SAFETY NOTES
PLEASE READ THE FOLLOWING BEFORE USE
IMPORTANT!
Always wear the seatbelt,
ensure it is fastened securely
at all times during operation.
DANGER!
Do not allow children
to play with the stairlift.
Use by children should
always be supervised.
WARNING!
Ensure other members of your
household or visitors are aware that
the stairlift is installed. Make them
aware of any potential trip hazards
(rail, hinge, footplate).
DANGER!
Ensure that household pets
are out of harm’s way before
using the stairlift.
WARNING!
Do not transport food, animals,
laundry or any other items. Do
not use the stairlift for anything
other than its intended use.
WARNING!
Ensure that the stairway is not
being used by others and is
clear of articles or obstructions
before using the stairlift.
WARNING!
At the top of the stairs, always
ensure the seat is rotated and
locked in at a 45ʈor 90ʈangle when
mounting and dismounting.
WARNING!
To avoid injury do not make
contact with moving parts.
DANGER!
The stairlift is designed to carry
one person at a time. Never
attempt to carry more than
one person.
'R127H[FHHGSXEOLVKHG
weight capacity. Operating
DQ\OLIWLQJGHYLFHH[FHHGLQJ
weight capacity could result
in serious injury.
IMPORTANT!
To guard against
injury, important
safety precautions
should be observed.
IMPORTANT!
5HOD[DQGVLWZHOOEDFN
in the seat with your
arms on the armrests
and your feet well
back on the footrest.
9000_AC_TC_Combined_Multilingual 130 user manual_1220_WEB.pdf 39000_AC_TC_Combined_Multilingual 130 user manual_1220_WEB.pdf 3 2/10/2021 10:44:54 AM2/10/2021 10:44:54 AM

Acorn Stairlifts User Manual
ENGLISH
5
IMPORTANT SAFETY NOTES
PLEASE READ THE FOLLOWING BEFORE USE
WARNING!
Do not disconnect the power
supply. This will make the stairlift
batteries lose their charge, and the
stairlift will not operate.
WARNING!
The stairlift must not be used for
˩UH˩JKWLQJRUIRUHYDFXDWLRQ
GXULQJD˩UH
WARNING!
Ensure that the swivel seat
is in the locked position
before and during travel and before
JHWWLQJRQRUR˨WKHVWDLUOLIW
IMPORTANT!
Please ensure that you can
alert others in case you encounter
GL˫FXOWLHVZKHQXVLQJWKHVWDLUOLIW
DANGER!
Ensure that there are no articles
of your clothing (scarves, dressing
gowns, cardigans) that could
become trapped in the stairlift
mechanism, as this could result in
personal injury and/or damage to
the equipment. Always check that
your clothing is clear of the stairlift
and rail before operation.
CAUTION!
It is possible for small items to
be dropped onto the stairlift rail and
then slide down the rail and into the
stairlift mechanism. If you suspect
that any foreign object has become
trapped in the equipment, consult
your Acorn representative before
further use.
DANGER!
Always consult your Acorn
representative if the need
for an authorized engineer
should arise.
WARNING!
Do not operate the stairlift if under
WKHLQ˪XHQFHRIDOFRKRORUGUXJV
If unsure, ask your physician
for advice.
WARNING!
Do not use the stairlift if you
have not been given a
demonstration by the
installation engineer.
PLEASE KEEP THESE SAFETY NOTES TO HAND
FOR EASE OF REFERENCE
9000_AC_TC_Combined_Multilingual 130 user manual_1220_WEB.pdf 49000_AC_TC_Combined_Multilingual 130 user manual_1220_WEB.pdf 4 2/10/2021 10:44:55 AM2/10/2021 10:44:55 AM

Acorn Stairlifts User Manual
ENGLISH
6
YOUR STAIRLIFT
ENGLISH
1 3
4
2
6
5
7
8
109
11
12
9000_AC_TC_Combined_Multilingual 130 user manual_1220_WEB.pdf 59000_AC_TC_Combined_Multilingual 130 user manual_1220_WEB.pdf 5 2/10/2021 10:44:55 AM2/10/2021 10:44:55 AM

Acorn Stairlifts User Manual
ENGLISH
7
The Acorn Stairlift is an electrically powered stairlift designed for domestic
use. If used correctly, it will provide many years of safe, reliable service.
It is designed to carry one person weighing no more than
127kg (300lbs)* or 159kg (350lbs)* HD model
The Acorn Stairlift is powered by an internal battery pack that is charged
from the residential mains supply/wall outlet via a transformer that
reduces the voltage to a safe level. This means that there is no risk of
electric shock and also that the stairlift will continue to function even if
the mains electricity supply is interrupted.
YOUR STAIRLIFT
Folding armrest
Status display panel
Paddle control
Seat swivel lever
Key switch
Folding seat base
Safety sensor down
Footrest anti-slip surface
Folding footrest
Safety sensor up
Seat belt
Infra-red sensor
1
2
3
4
5
6
7
8
9
10
11
12
OEVOEVUHIHUHQFHDSSOLHVWRWKH86$&$1$'$FHUWL˩FDWLRQ21/<
9000_AC_TC_Combined_Multilingual 130 user manual_1220_WEB.pdf 69000_AC_TC_Combined_Multilingual 130 user manual_1220_WEB.pdf 6 2/10/2021 10:44:55 AM2/10/2021 10:44:55 AM

Acorn Stairlifts User Manual
ENGLISH
8
SEATBELT
Retract the seatbelt
and pull over lap
Push seatbelt into the
buckle until it clicks
IMPORTANT - Seatbelt must be
worn during operation
1
2
FOLDING ARMS,
SEAT & FOOTREST
Fold down the arms, seat
and footrest.
The downside arm of the seat
must be completely down for
the stairlift to operate.
The stairlift will still operate
with the remote control when
the arms, seat and footrest
are raised.
This is a quick start reference guide to help get you started using your
Acorn Superglide 130 straight stairlift.
It is important for your safety that you study this manual to
completely familiarize yourself with your stairlift.
QUICK USER GUIDE
1
2
POWER OPERATION
Insert and
turn key
clockwise
SWIVEL SEAT
At the top of the
stairs push down
on the lever to swivel
the seat 45° and 90°
WRH[LWWKHOLIW
The seat must be swivelled
back and locked into position
before operating the stairlift.
9000_AC_TC_Combined_Multilingual 130 user manual_1220_WEB.pdf 79000_AC_TC_Combined_Multilingual 130 user manual_1220_WEB.pdf 7 2/10/2021 10:44:55 AM2/10/2021 10:44:55 AM

Acorn Stairlifts User Manual
ENGLISH
9
1
2
QUICK USER GUIDE
2
1
2
REMOTE CONTROL
Aim the remote at the stairlift
in line with the rail.
Press the up arrow for
the lift to go up.
Press the
down arrow
for the lift to
go down.
HINGE OPERATION
Disembark/mount the
lift at the bottom of
the stairs.
Using the remote control,
move the lift up to an
intermediate charge
SRLQWLI˩WWHGRUWKHWRS
charge point
MANUAL HINGE:
Manually lift the hinge to
allow access through
the doorway that was
obstructed.
AUTO HINGE:
The hinge will fold
automatically to allow
access through the
doorway that
was obstructed.
1
2
ARM CONTROL
Press the switch towards
the stairs to go up
Press the switch away
from the
stairs to
go down
1
2
1
IMPORTANT - Do not disembark
Until the Stairlift has reached the
top or bottom of the Stairs
2
IMPORTANT - When operating the
Lift for others, make sure that the
user’s arms are kept inside the
armrests at all times and you keep
a clear line of sight with the Stairlift
9000_AC_TC_Combined_Multilingual 130 user manual_1220_WEB.pdf 89000_AC_TC_Combined_Multilingual 130 user manual_1220_WEB.pdf 8 2/10/2021 10:44:57 AM2/10/2021 10:44:57 AM

Acorn Stairlifts User Manual
ENGLISH
10
KEY SWITCH
STAIRLIFT OPERATION
BATTERY ISOLATION SWITCH
This battery isolation switch
can be found on the wall side
edge / rear of the carriage cover.
Important - The switch should
remain ON at all times. Failing
to do so will result in the
batteries losing their charge.
Please be aware this will not
be covered under the warranty
terms and conditions.
<RXZLOO˩QGWKHNH\VZLWFKRQ
the carriage cover.
)RUWKHXQLWWRRSHUDWHWKHNH\
must be inserted and turned
WRWKHULJKWFORFNZLVH
9000_AC_TC_Combined_Multilingual 130 user manual_1220_WEB.pdf 99000_AC_TC_Combined_Multilingual 130 user manual_1220_WEB.pdf 9 2/10/2021 10:44:57 AM2/10/2021 10:44:57 AM

Acorn Stairlifts User Manual
ENGLISH
11
STAIRLIFT OPERATION
The paddle control is located on the chair
arms. To operate the unit, the paddle
must be pressed and held in the direction
of travel.
There will be an audible beep to signal
that a command has been received.
The unit will only operate while the paddle
is being pressed, and will automatically
stop when the unit reaches the end of the
WUDFNRUWKHSDGGOHLVUHOHDVHG
PADDLE CONTROL
If a beep cannot be heard when the paddle is pressed,
check the display code and refer to the digital display codes
on pages 24-27.
7KHGLVSOD\SDQHOSRVLWLRQHGQHDUWKHNH\
switch, will indicate ‘A1’, or ‘C1, C2, C3, C4,
C5 or C6’ if the stairlift is on a charge point.
If the display is not indicating any of these
FRGHVSOHDVHFKHFNWKHDIGITAL DISPLAY
CODES on pages 24-27.
+RZHYHUZKHQWKHNH\LVWXUQHGWRWKH
left or withdrawn, the display panel will
show ‘E9’ and the stairlift will not run.
The key can also be removed to prevent
any unauthorized use.
7KLVZLOOQRWD˨HFWWKHFKDUJLQJ
9000_AC_TC_Combined_Multilingual 130 user manual_1220_WEB.pdf 109000_AC_TC_Combined_Multilingual 130 user manual_1220_WEB.pdf 10 2/10/2021 10:44:58 AM2/10/2021 10:44:58 AM

Acorn Stairlifts User Manual
ENGLISH
12
The unit may also be operated with
the remote control handset*.
There are two buttons on the
handset; RED and GREEN, or UP and
DOWN depending on the type of
handset you have been supplied.
Point the remote control
at the nearest sensor.
To send the unit UP
press and hold the RED
(OR UP) button.
To send it DOWN
press and hold the GREEN (OR
DOWN) button.
The unit will automatically stop
DWWKHHQGRIWKHWUDFNRULIWKHEXWWRQ
is released.
Always point the remote control
handset towards the infra-red sensor
on the stairlift carriage.
NOTE: The paddle control will
always override remote controls.
IMPORTANT- WHEN OPERATING THE
LIFT FOR OTHERS, MAKE SURE THAT
THE USER’S ARMS ARE KEPT INSIDE
THE ARMRESTS AT ALL TIMES AND
YOU KEEP A CLEAR LINE OF SIGHT
WITH THE STAIRLIFT
Occasional interference from outside sources may, in some
instances, cause the lift to stop. This is a normal feature,
designed to prevent accidental operation. The remote control
will require the button to be released and pressed again.
IT IS RECOMMENDED THAT THE BATTERY
IN THE REMOTE CONTROL
HANDSET IS REPLACED ANNUALLY
STAIRLIFT OPERATION
REMOTE CONTROLS
*Remote handset may vary from that shown
The infrared sensors for the remote
controls are located on the carriage.
The remote control needs to point
DWWKHVHWRZRUNH˫FLHQWO\WRRSHUDWH
the stairlift.
The top sensor
is located near
the digital
display.
The bottom
sensor is located
on the bottom
plate near the
rail.
9000_AC_TC_Combined_Multilingual 130 user manual_1220_WEB.pdf 119000_AC_TC_Combined_Multilingual 130 user manual_1220_WEB.pdf 11 2/10/2021 10:44:58 AM2/10/2021 10:44:58 AM

Acorn Stairlifts User Manual
ENGLISH
13
STAIRLIFT OPERATION
The unit will operate with the seat pad or footrest in the folded
SRVLWLRQ+RZHYHULWZLOOQRWZRUNLIWKHVHDWKDVEHHQWXUQHGWR
the 45º and 90º position, or the safety arm has been left up*.
This will be indicated by ‘E6’ on the display panel.
The downside arm of the seat must be completely down for the
stairlift to operate.
*Perch/Sit-Stand Models
MANUAL SWIVEL SEAT
Please ensure that the battery is connected correctly. If the battery is
connected wrong it could damage the remote and may require replacing.
9v PP3
BATTERY
Slide the battery cover
R˨WKHUHYHUVHRIWKH
remote control.
Remove the battery.
3OHDVHWDNHROGEDWWHULHVWRD
recycling centre or a collection
point at your local electrical store
RUVXSHUPDUNHW
Insert the new battery
EDVH˩UVWDQG
SXVKGRZQ˩UPO\
Slide the cover on.
HOW TO CHANGE THE REMOTE BATTERY
When the unit reaches the upper end
RIWKHWUDFNLWZLOOVWRSDXWRPDWLFDOO\
7KHVHDWPXVWQRZEHWXUQHGWRPDNH
JHWWLQJRQDQGR˨WKHVWDLUOLIWVDIH
9000_AC_TC_Combined_Multilingual 130 user manual_1220_WEB.pdf 129000_AC_TC_Combined_Multilingual 130 user manual_1220_WEB.pdf 12 2/10/2021 10:44:59 AM2/10/2021 10:44:59 AM

Acorn Stairlifts User Manual
ENGLISH
14
STAIRLIFT OPERATION
The unit should not be operated until the seat has been
URWDWHGEDFNDQGORFNHGWRWKHWUDYHOSRVLWLRQ)DLOXUHWRGRVR
will indicate ‘E6’ on the display panel. The unit will also fail to
operate if the down arm is in the folded position.
Safety Note: The footrest does not swivel, and
the seat only swivels at the top of the staircase.
To turn the seat, depress and hold down
the seat swivel lever at the side of the
seat pad. This will then allow the seat to
be rotated to face the staircase landing.
7KHVHDWZLOOORFNLQSRVLWLRQDW|
and 90º.
Make sure the seat is locked into
SRVLWLRQEHIRUHJHWWLQJRQRUR˨
the stairlift.
45ʈswivel is
used on a
narrow size
landing.
45ʈ
LANDING
90ʈswivel is
used on a
standard size
staircase landing.
90ʈ
LANDING
POWERED SWIVEL SEAT
PADDLE CONTROL OPERATION
When the unit reaches the upper end
RIWKHWUDFNLWZLOOVWRSDXWRPDWLFDOO\
After a short delay, the seat will start
swiveling and stop once the 90º
position has been reached.
It is important that the seatbelt is
undone ONLY when the seat has
fully swivelled and it is safe to
leave the stairlift.
9000_AC_TC_Combined_Multilingual 130 user manual_1220_WEB.pdf 139000_AC_TC_Combined_Multilingual 130 user manual_1220_WEB.pdf 13 2/10/2021 10:44:59 AM2/10/2021 10:44:59 AM

Acorn Stairlifts User Manual
ENGLISH
15
STAIRLIFT OPERATION
POWERED FOOTREST
,ID3RZHUHG)RRWUHVWLV˩WWHG
at the top or bottom of the
stairs, after the stairlift comes
to a stop, undo the seat belt
and leave the stairlift.
Using the buttons located
along both sides of the seat,
lower or raise the footrest as
required.
REMOTE CONTROL OPERATION
Using the remote control handset,
release and press again to start the seat
swivel operation.
The unit should not be operated until the
VHDWKDVEHHQURWDWHGEDFNWRWKHWUDYHO
position. Failure to do so will indicate ‘E6’
on the display panel.
The unit will also fail to operate if the
down arm is in the folded position.
SAFETY NOTE: The footrest does not swivel, and
the seat only swivels at the top of the staircase.
9000_AC_TC_Combined_Multilingual 130 user manual_1220_WEB.pdf 149000_AC_TC_Combined_Multilingual 130 user manual_1220_WEB.pdf 14 2/10/2021 10:44:59 AM2/10/2021 10:44:59 AM

Acorn Stairlifts User Manual
ENGLISH
16
STAIRLIFT OPERATION
HINGE SECTION
If a manual or automatic
folding hinge section
KDVEHHQ˩WWHGWKH
stairlift will have an
intermediate charging
point just above the
folding section of the rail.
MANUAL HINGE INSTALLATION
'LVHPEDUNWKHOLIWDWWKHERWWRPRIWKHVWDLUV7RSDUNWKHOLIWSUHVVWKH83GLUHFWLRQRQ
the remote controls until the lift beeps and stops on the intermediate charging point. You
can now fold the hinge section by hand.
To call the lift, unfold the hinge section by hand. Using the remote control,
call the lift down to its lower stopping position. You can now mount the lift at the
bottom of the stairs.
When not in use, it is vital
that the unit is left on its
intermediate charging
point where the unit will
recharge the batteries.
7KHOLIWZLOOPDNHDVLQJOH
‘beep’ and stop when the
charging point has been
reached.
AUTO HINGE INSTALLATION
'LVHPEDUNWKHOLIWDWWKHERWWRPRIWKHVWDLUV7RSDUNWKHOLIWSUHVVWKH83GLUHFWLRQRQ
the remote controls until the lift beeps and stops on the intermediate charging point. The
hinge will fold up automatically.
Using the remote control, call the lift down to its lower stopping position. The folding
hinge will lower automatically. You can now mount the lift at the bottom of the stairs.
9000_AC_TC_Combined_Multilingual 130 user manual_1220_WEB.pdf 159000_AC_TC_Combined_Multilingual 130 user manual_1220_WEB.pdf 15 2/10/2021 10:45:00 AM2/10/2021 10:45:00 AM

Acorn Stairlifts User Manual
ENGLISH
17
STAIRLIFT OPERATION
FOLDING SEAT/FOOTREST
The seat, arms and footrest can be folded up
when not in use to allow greater access on the
VWDLUZD\ H˫FLHQWO\ XVLQJ WKH VSDFH LQ \RXU
hallway. The lift can still be operated using the
remote control handset.
Note: The stairlift will not run if the downside arm
is folded upwards. The downside arm must be
completely down for the stairlift to operate. The
stairlift can still be called with the remote controls.
SEAT BELT
To fasten the seat belt, pull out the belt
DQGLQVHUWWKHFODVSLQWRWKHEXFNOH
$SRVLWLYHFOLFNVKRXOGEHKHDUG
LQGLFDWLQJWKDWWKHORFNKDVHQJDJHG
properly.
To release the seat belt, hold the belt
with one hand and press the release
EXWWRQRQWKHEXFNOH
The clasp will automatically release and
allow the belt to retract.
SEAT BELT MUST BE WORN AT ALL TIMES WHEN USING THE STAIRLIFT
It is important that the belt is held while it retracts, otherwise
it will retract too fast, resulting in the belt ‘whipping’ which
may cause injury.
9000_AC_TC_Combined_Multilingual 130 user manual_1220_WEB.pdf 169000_AC_TC_Combined_Multilingual 130 user manual_1220_WEB.pdf 16 2/10/2021 10:45:00 AM2/10/2021 10:45:00 AM

Acorn Stairlifts User Manual
ENGLISH
18
STAIRLIFT OPERATION
PARKING AND RECHARGING
When not in use, it is vital that the unit is left on a charge point. The location of this
ZLOOGHSHQGXSRQZKLFKW\SHRIWUDFNLV˩WWHG
2QDVWDQGDUGWUDFNWKHFRUUHFWSRVLWLRQVDUHDWWKHWRSRUERWWRPZKHUHWKHXQLW
stops automatically. At these positions, the unit receives a power supply from the
mains/transformer that allows the unit to recharge its internal batteries. The lift will
PDNHDVLQJOHɺEHHSɻWRLQGLFDWHWKDWDFKDUJHSRLQWKDVEHHQUHDFKHG
A DEDICATED POWER SOCKET MUST BE AVAILABLE FOR THE
STAIRLIFT. The mains electricity supply/transformer should be
left permanently connected and switched on.
It is imperative to ensure there is a continual supply of power to the stairlift.
The stairlift batteries can cover short term interruptions to the power supply, but
without a supply of power, will eventually become too low to be recharged.
If this happens, the batteries will have to be replaced by an engineer, which is not
covered by the manufacturer’s warranty and is a chargeable service.
Note: If there is a mains electrical supply failure, or if the supply to your stairlift
LVVZLWFKHGR˨LWZLOOFRQWLQXHWRZRUNIRUVHYHUDOMRXUQH\V+RZHYHUWKH
batteries will eventually lose their charge and the stairlift will not operate.
9000_AC_TC_Combined_Multilingual 130 user manual_1220_WEB.pdf 179000_AC_TC_Combined_Multilingual 130 user manual_1220_WEB.pdf 17 2/10/2021 10:45:00 AM2/10/2021 10:45:00 AM

Acorn Stairlifts User Manual
ENGLISH
19
SAFETY FEATURES
The stairlift comes with an array of safety features as standard; including:
If one or more of the safety devices are activated, an appropriate code will be
indicated on the display panel. These codes can be found in the DIGITAL DISPLAY
CODES on pages 24-27 together with the appropriate action required.
OVER SPEED GOVERNOR
7KHOLIWLV˩WWHGZLWKDVDIHW\GHYLFH26*
WKDWZLOOORFNWKHOLIWWRWKHUDLOLQWKHHYHQW
of a mechanical failure or excessive speed.
If the OSG operates spuriously due to
H[FHVVLYHVKRFNRUYLEUDWLRQLQGLFDWHGE\
‘F7’ on the display panel, it is possible to
UHVHWLWVHHSDJH
Carriage safety pads; upper and lower
Stops stairlift upon contacting an obstruction on the rail
Footrest safety edges; upper and lower
Stops stairlift upon contacting an obstruction on stairway
Swivel seat switch
Prevents the movement of the stairlift when the seat has been
swivelled to 45º and 90º
Final limit switch
Prevents the stairlift from travelling too far along the rail
Over speed governor and safety gear
Prevents uncontrolled descent
No-charge warning
Audible warning sound - alerts when the stairlift is not charging
Retractable Seat Belt
Must be worn at all times during operation
Downside Arm Interlock
The stairlift seat arms must be in the down position for the stairlift
to operate
9000_AC_TC_Combined_Multilingual 130 user manual_1220_WEB.pdf 189000_AC_TC_Combined_Multilingual 130 user manual_1220_WEB.pdf 18 2/10/2021 10:45:00 AM2/10/2021 10:45:00 AM

Acorn Stairlifts User Manual
ENGLISH
20
SAFETY FEATURES
7XUQR˨WKHEDWWHU\LVRODWLRQVZLWFK
5HPRYHWKHEODQNLQJFRYHUDQGLQVHUW
the hand winder onto the motor spindle.
Follow the instructions on the label inside
the top of the hand winder.
7XUQWKHKDQGZLQGHULQDFORFNZLVH
GLUHFWLRQVRWKHOLIWPRYHVXSWKHWUDFN
DSSUR[LPDWHO\RQHLQFKFP
2. Remove the hand winder and turn
on the battery isolation switch.
&KHFNWKHGLJLWDOGLVSOD\SDQHOKDV
changed from ‘F7’ to ‘A1’. If it still
displays ‘F7’ repeat the above steps.
4. Once ‘A1’ is displayed, run the lift up
until it stops automatically, and then
GRZQWRFKHFNDOORSHUDWLRQVDUH
running as they should. Replace the
EODQNLQJFRYHU
CAUTION! Never run the stairlift with the winding wheel in
place as it could result in serious injury or damage. Never
wind the stairlift counter-clockwise/anti-clockwise if the fault
code ‘F7’ shows, as this will result in damage to the OSG.
HAND WINDING
IF IN DOUBT, CONTACT YOUR AUTHORIZED
ACORN REPRESENTATIVE FOR FURTHER ADVICE
In an emergency, the stairlift may be hand wound to clear any obstruction.
If this symbol is displayed, DO NOT hand-wind the stairlift
in the down direction because this could damage it.
Always observe for possible obstructions.
If this symbol is displayed, follow the instructions below.
9000_AC_TC_Combined_Multilingual 130 user manual_1220_WEB.pdf 199000_AC_TC_Combined_Multilingual 130 user manual_1220_WEB.pdf 19 2/10/2021 10:45:00 AM2/10/2021 10:45:00 AM

Acorn Stairlifts User Manual
ENGLISH
21
CARE AND MAINTENANCE
REMOTE CONTROLS
As previously described on page 12, there may be occasions when the remote
control handsets* will lose programming due to outside interference. If this happens,
\RXFDQUHVHWWKHUHPRWHFRQWUROE\SDUNLQJWKHOLIWRQLWVFKDUJHSRLQW7KHQUHPRYH
WKHNH\IURPLWVORFDWLRQVRWKDWWKHGLJLWDOGLVSOD\LVVKRZLQJɺ(ɻ
Press the lower safety edge on the carriage and,
at the same time, press the DOWN button on the remote
control.
:KHQWKHNH\LVLQVHUWHGEDFNLQWRLWVORFDWLRQ
DQGWXUQULJKWFORFNZLVHWKHUHPRWHFRQWURO
handset will be correctly programmed.
The remote controls work by using an
infrared light source. This naturally
occurring light source can also be
emitted by certain types of low
energy bulbs. If it is found that such
a bulb is causing interference with
the remote controls, it is
recommended that it be changed
to a standard one.
IT IS RECOMMENDED THAT THE
REMOTE CONTROL BATTERIES
ARE REPLACED ANNUALLY.
RAILS
,WLVUHFRPPHQGHGWKDWWKHUDLOVKRXOGEHFOHDQHGRQDZHHNO\EDVLV7KLVVKRXOG
be done with a dry cloth, and you can use simple household polish. Under no
circumstances should you use a damp cloth with abrasive cleaner. Failure to
FOHDQWKHWUDFNRQDUHJXODUEDVLVZLOOOHDGWRDEXLOGXSRIGXVWRQWKHLQWHUQDOUROOHUV
RIWKHVWDLUOLIWZKLFKZLOOLQWXUQOHDYHEODFNPDUNVDQGLQVRPHLQVWDQFHVZLOOOHDYHD
UHVLGXHZKLFKFDQORRNVLPLODUWRPHWDOVKDYLQJV
,WLVDOVRUHFRPPHQGHGWKDWWKHVWHHOWRRWKHGUDFNPRXQWHGRQWKHUDLOLWVHOIVKRXOG
be vacuumed out on a regular basis.
*Remote handset may vary from that shown
IMPORTANT- WHEN OPERATING THE LIFT FOR OTHERS, MAKE
SURE THAT THE USER’S ARMS ARE KEPT INSIDE THE ARMRESTS AT ALL TIMES
AND YOU KEEP A CLEAR LINE OF SIGHT WITH THE STAIRLIFT
9000_AC_TC_Combined_Multilingual 130 user manual_1220_WEB.pdf 209000_AC_TC_Combined_Multilingual 130 user manual_1220_WEB.pdf 20 2/10/2021 10:45:01 AM2/10/2021 10:45:01 AM
Other manuals for Superglide 130
2
Table of contents
Popular Lifting System manuals by other brands

WITTUR
WITTUR servogearless WSG-S1.5 instruction manual

Joab
Joab Hookmaster manual

prime mover
prime mover smx45 Master service manual

Sinoboom
Sinoboom TB24E Plus Operation manual

Stratus
Stratus SAE-C10XE Installation, operation & maintenance instructions

OMA

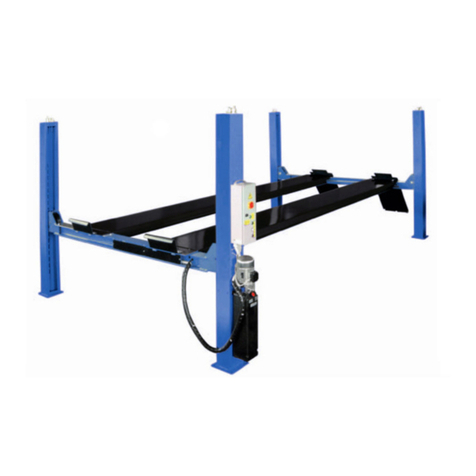

OMA 528C Instruction manual for using and maintaining
