ACS ACD5 Guide

Compressed Air Dryer 882.03168.00 2/13/2023 1
Compressed Air Dryer
Part Number: 882.03168.00
Effective: 02.13.2023
Bulletin Number: DRY1-600.00
OPERATION AND INSTRUCTION MANUAL
MODELS: ACD/SCD

Compressed Air Dryer 882.03168.00 2/13/2023 ii
Write Down Your Serial Numbers Here For Future Reference:
_________________________ _________________________
_________________________ _________________________
_________________________ _________________________
We are committed to product improvement.
Specifications, appearance, and dimensions described in this manual are subject to change without
notice.
DCN No. ____________
© Copyright 2023 All rights reserved.

Compressed Air Dryer 882.03168.00 2/13/2023 iii
Shipping Info
Inspecting Packaging and Equipment
Please inspect all packaging for any damage prior to unpacking. If you see any damage to
the packaging, please take pictures of the packaging prior to unpacking the equipment.
Once the pictures are taken of the packaging, take pictures of the equipment as well.
If the packaging is damaged, write Damaged Freight on the delivery receipt. If we find the
equipment is damaged, a claim can be filed.
Thoroughly check the equipment for any damage that might have occurred in transit, such
as broken or loose wiring and components, loose hardware and mounting screws, etc.
Please take pictures of the damage.
In the Event of Shipping Damage
According to the contract terms and conditions of the Carrier, the freight claims are filed by
the terms below.
If the order is prepaid, ACS Group is responsible for the freight payment. ACS will file the
claim with the truck line. We need pictures of the damaged freight and a copy of the
delivery receipt marked Damaged Freight. ACS must be notified within 24 hours of any
damage. The driver should give you a claim number before they leave your facility.
If the order is collect or third party billing to a customer’s account, the customer is
responsible to file the claim with the truck line. You will need pictures of the damaged
freight and a copy of the delivery receipt marked Damaged Freight to file the claim. The
driver should give you a claim number before they leave your facility.
Advise customer service regarding your wish for assistance and to obtain an RMA (Return
Material Authorization) number. If you need assistance, contact the shipping supervisor at
262-641-8600.
Hold the damaged goods and packing material for the examining agent’s inspection. Do not
return any goods before the transportation company’s inspection and authorization and,
you have received your RMA (Return Material Authorization) number from ACS.
A certified copy of our invoice is available upon request. The original Bill of Lading is
attached to our original invoice. If the shipment was prepaid and ACS is responsible for the
freight, we will submit the claim. You will need pictures of the freight, a copy of the delivery
receipt marked damaged freight and the claim number.

Compressed Air Dryer 882.03168.00 2/13/2023 iv
If the Shipment is Not Complete
Check the packing list as back-ordered items are noted on the packing list. You should have:
Machine
Bill of lading
Packing list
Operating and Installation manual
Electrical schematic and panel layout drawings
Re-inspect the container and packing material to see if you missed any smaller items during
unpacking.
If the Shipment is Not Correct
If the shipment is not what you ordered, contact the shipping department immediately.
Please call 262-641-8600. Have the order number and item number available.
Hold the items until you receive shipping instructions. Do not return any goods before
receiving your RMA (Return Material Authorization) number from ACS.
Returns
Do not return any goods before receiving your RMA (Return Material Authorization)
number and shipping instructions from ACS.

Compressed Air Dryer 882.03168.00 2/13/2023 v
Table of Contents
CHAPTER 1: SAFETY................................................................6
1-1 How to Use This Manual ........................................................................................................... 6
Safety Symbols Used in this Manual ................................................................................... 6
1-2 General Safety Regulations ....................................................................................................... 7
1-3 Responsibility ............................................................................................................................ 7
Safety Tags and Warning Labels......................................................................................... 6
1-4 Warnings and Precautions ...................................................................................................... 10
CHAPTER 2: FUNCTIONAL DESCRIPTION...........................12
2-1 Models Covered in This Manual.............................................................................................. 12
2-2 General Description................................................................................................................. 12
2-3 Typical Features and Components.......................................................................................... 12
2-4 Safety Features........................................................................................................................ 13
CHAPTER 3: INSTALLATION..................................................17
3-1 Uncrating the Equipment........................................................................................................ 17
3-2 Electrical Connections ................................................................ Error! Bookmark not defined.
3-3 Making Electrical Connections ................................................................................................ 18
3-4 Initial Start-up.......................................................................................................................... 19
CHAPTER 4: OPERATION.......................................................21
4-1 Start-up.................................................................................................................................... 21
4-2 Operation Procedures ................................................................ Error! Bookmark not defined.
4-3 Shut-down .................................................................................. Error! Bookmark not defined.
CHAPTER 5: MAINTENANCE..................................................23
5-1 Preventative Maintenance Schedule ...................................................................................... 23
5-2 Preventative Maintenance......................................................... Error! Bookmark not defined.
5-3 Corrective Maintenance............................................................. Error! Bookmark not defined.
CHAPTER 6: TROUBLESHOOTING........................................25
6-1 Introduction............................................................................................................................. 25
CHAPTER 7: APPENDIX..........................................................28
7-1 Customer Satisfaction Warranty Program .............................................................................. 28
7-2 Technical Specifications........................................................................................................... 30
7-3 Drawings and Diagrams........................................................................................................... 31
7-4 Spare Parts List ........................................................................................................................ 33
7-5 Technical Assistance.................................................................................................................. 3
Parts Department ............................................................................................................... 3
Service Department............................................................................................................. 3
Sales Department................................................................................................................ 3

Compressed Air Dryer 882.03168.00 2/13/2023 6
Chapter 1: Safety
1-1 How to Use This Manual
Use this manual as a guide and reference for installing, operating, and maintaining your
machine. The purpose is to assist you in applying efficient, proven techniques that enhance
equipment productivity.
This manual covers only light corrective maintenance. No other maintenance should be
undertaken without first contacting a service engineer.
The Functional Description section outlines models covered, standard features, and safety
features. Additional sections within the manual provide instructions for installation, pre-
operational procedures, operation, preventive maintenance, and corrective maintenance.
The Installation chapter includes required data for receiving, unpacking, inspecting, and setup
of the machine. We can also provide the assistance of a factory-trained technician to help train
your operator(s) for a nominal charge. This section includes instructions, checks, and
adjustments that should be followed before commencing with operation of the machine.
These instructions are intended to supplement standard shop procedures performed at shift,
daily, and weekly intervals.
The Operation chapter includes a description of electrical and mechanical controls, in addition
to information for operating the machine safely and efficiently.
The Maintenance chapter is intended to serve as a source of detailed assembly and disassembly
instructions for those areas of the equipment requiring service. Preventive maintenance sections
are included to ensure that your machine provides excellent, long service.
The Troubleshooting chapter serves as a guide for identification of most common problems.
Potential problems are listed, along with possible causes and related solutions.
The Appendix contains technical specifications, drawings, schematics, parts lists, and available
options. A spare parts list with part numbers specific to your machine is provided with your
shipping paperwork package. Refer to this section for a listing of spare parts for purchase.
Have your serial number and model number ready when ordering.
Safety Symbols Used in this Manual
The following safety alert symbols are used to alert you to potential personal injury hazards.
Obey all safety messages that follow these symbols to avoid possible injury or death.
DANGER indicates an imminently hazardous situation that, if not avoided,
will result in death or serious injury.
WARNING indicates a potentially hazardous situation or practice that, if
not avoided, could result in death or serious injury.
CAUTION! CAUTION indicates a potentially hazardous situation or practice that, if
not avoided, may result in minor or moderate injury or in property
damage.

Compressed Air Dryer 882.03168.00 2/13/2023 7
1-2 General Safety Regulations
These regulations should be read, understood and periodically reviewed by all personnel
involved in any way with this machine.
Never operate or remove any machine components that are secured by mechanical fasteners
unless the motor is electrically locked out and all moving parts are motionless.
Do not circumvent the safety interlocks.
Extreme care should be taken to see that all bolts are properly tightened at all times during the
operation of the machine.
Service personnel should observe PPE (Personal Protective Equipment) requirements for Arc
Flash per OSHA1910 and NEC70 standards.
1-3 Responsibility
These machines are constructed for maximum operator safety when used under standard
operating conditions and when recommended instructions are followed in the maintenance
and operation of the machine.
All personnel engaged in the use of the machine should become familiar with its operation as
described in this manual.
Proper operation of the machine promotes safety for the operator and all workers in its
vicinity.
Become familiar with materials, inspection, speed limitations, guard maintenance, and total
user responsibility while using or servicing the equipment.
Each individual must take responsibility for observing the prescribed safety rules as outlined.
All caution, warning and danger signs must be observed and obeyed. Any actual or potential
dangerous conditions must be reported to your immediate supervisor.

Compressed Air Dryer 882.03168.00 2/13/2023 8
Figure 1: Safety Tags and Warning Labels
Hazard Alert Symbol
Description/Explanation
Preventative Maintenance
High Voltage Hazard. The
electrical enclosure is supplied
with 3-phase electrical power.
Use caution when using or
maintaining this product.
Every six months inspect all electrical
connections for secure attachment.
For further information see the
Maintenance Chapter in this manual.
The unit can produce continuous
noise above 85 dBA and/or
produce projectiles under normal
operating conditions.
Always wear eye and ear protection
when the machine is in operation or
performing maintenance.

Compressed Air Dryer 882.03168.00 2/13/2023 9
Mandatory Symbol
Description/Explanation
Read operators Manual. This equipment must be operated
and maintained by properly trained personnel. The
information contained within this manual must be read and
understood prior to operating this equipment.
Lock Out. This equipment is operated with 3-phase electrical
power. Therefore, when performing any maintenance
operations, we recommend following the local standards for
performing a lock-out/tag-out procedure. Lock out power
whenever worked on to prevent electrical shock.
Safety Gloves Required. Wear gloves to prevent injury when
performing maintenance work to avoid serious injury.
Eye & Ear protection required. This unit may produce loud
and continuous noise and may produce projectiles.
Do not reach into unit. Reaching into a unit is prohibited
while the unit is in operation and may cause serious injury.
Do not step. Stepping on the unit is prohibited and may cause
serious injury.
Do not operate the unit without guards. Operating the unit
with guards removed is prohibited and may cause serious
injury.

Compressed Air Dryer 882.03168.00 2/13/2023 10
1-4 Warnings and Precautions
Our machines are designed to provide safe and reliable operation when installed and operated
within design specifications, and follow national and local safety codes.
To avoid possible personal injury or equipment damage when installing, operating, or
maintaining this machine, use good judgment and follow these safe practices:
LEARN AND OBEY your company’s safety policy regarding mechanical and electrical
equipment.
MOVING OR LIFTING THE MACHINE: Although our equipment is built and engineered
for great ruggedness in operation, care must be taken when moving the machine along
the floor or lifting it. Damage may occur to sheet metal covers, electrical cabinets, or
small brackets if pressure is applied to them when moving the machine. When lifting
the machine, be certain the total machine weight does not exceed the capability of the
lifting equipment.
EQUIPMENT LOCATION: Adequate area for routine maintenance should be provided in
order to open the machine for service. Proper service area clearances also should allow
people who are working on the machine to be clearly visible to others, thereby
reducing the potential safety hazards.
SAFE HOUSEKEEPING: The work area must be kept clean and uncluttered during
periods of operation or maintenance. No hand tools or other metal objects should be
left on or around the machine.
SAFETY GLASSES OR A FACE SHIELD MUST ALWAYS BE WORN
when servicing or operating the machine.
EAR PROTECTION: The Occupational Safety and Health Act of 1970 has established
guidelines for Permissible Noise Exposures (OSHA 1910.95) that should be followed.
CUT RESISTANT GLOVES MUST ALWAYS BE WORN when servicing or handling knives.
NEVER attempt to operate the machine unless it is fully assembled with all guards and
interlocks in place and functional.
OBSERVE all danger, warning, caution and safety labels on the equipment.
Upon completion of any machine maintenance, be certain ALL SAFETY GUARDS AND
COVERS are securely and properly fastened prior to resuming machine operation. All
fasteners must be in place and properly tightened. ANY SHORTCUTS MAY RESULT IN
INJURY TO PERSONNEL OR DAMAGE TO EQUIPMENT.
NEVER wear any loose fitting clothes, neckties, or dangling items such as earrings,
belts, or shoestrings. Jewelry, such as wristwatches, bracelets, or rings should NEVER
be worn. Long hair must be tied back or placed in a tight fitting hairnet. NEVER lean
against or rest hands or feet on the equipment when it is in operation or open for
maintenance. NEVER stand on the machine when it is in operation.

Compressed Air Dryer 882.03168.00 2/13/2023 11
ROTATION OF MOTORS: The correct rotating direction for the machine motor is clearly
marked on the machine. Always check for proper rotation of motors. Incorrect rotation
direction can cause severe damage.
ELECTRICAL GROUNDING: All electrical equipment on the machine must be grounded
in accordance to all local codes and Article 250 of the National Electric Code.
ALWAYS DISCONNECT AND LOCKOUT the main electrical power to the machine before
performing any service.
SAFETY INTERLOCKS MUST NOT BE BYPASSED. The mechanical and electrical safety
interlocks ensure the safety of personnel. They should never be tampered with or
removed for ANY reason. They should be checked frequently by a qualified mechanic
for proper operation.
NEVER modify the machine configuration or any individual component without written
notice from the factory.
We have long recognized the importance of safety and have designed and manufactured our
equipment with operator safety as a prime consideration. We expect you, as a user, to abide by
the foregoing recommendations in order to make operator safety a reality.

Compressed Air Dryer 882.03168.00 2/13/2023 12
Chapter 2: Functional Description
2-1 Models Covered in This Manual
This manual provides instructions for installing and operating your 5, 10 or 15 cfm
compressed air dryer
2-2 General Description
Mini compressed air dryers are designed to generate heated, dehumidified air at carefully
controlled temperatures for use in plastic drying systems. Drying systems are sized to meet
specific requirements stated by the purchaser at the time of purchase.
Moisture removal from hygroscopic (moisture attracting) plastic pellets is an essential step
in the manufacture of high-quality plastic products. This dehumidifying dryer is used to
generate very low dew point air, heated to a controlled temperature for drying plastic
pellets and regrind.
Many variables were considered in the selection of your drying system, including type of
materials, residence time, throughput of the extruder or injection molding machine. Should
your operating environment change, the manufacturer can advise you on necessary
equipment and process time and temperature modifications required for your system.
2-3 Typical Features and Components
•Electrical solenoid valve
•Compressed air filter, regulator, and gauge
•Drying temperature range of 120ºF to 400ºF
•Display of process temperature set point and actual settings
•Process thermocouple located in the process air stream just before the hopper inlet
•Nema 1 control enclosure:
a. Fusing
b. Power On light
c. IEC process heater contactor
d. Solid state relay
e. Alarm light
f. High temperature safety system
g. Airflow detection system

Compressed Air Dryer 882.03168.00 2/13/2023 13
2-4 Options
Options can tailor your dryer to meet the exact requirements of the drying task being
performed.
•Floor-mount configuration
•Membrane compressed air dryer for low dew point operation
•220/1/50 operation
•230/1/60 operation
2-5 Safety Features
This section includes information on safety devices and procedures that are inherent to the
10 cfm compressed air dryer. This manual is not intended to supersede or alter safety
standards established by the user of this equipment. Instead, the material contained in this
section is recommended to supplement these procedures in order to provide a safer
working environment.
Safety Circuit Standards
Safety circuits used in industrial systems protect the operator and maintenance personnel
from dangerous energy. They also provide a means of locking out or isolating the energy for
servicing equipment.
Various agencies have contributed to the establishment of safety standards that apply to
the design and manufacture of automated equipment. The Occupational Safety and Health
Administration (OSHA) and the Joint Industrial Council (JIC) are just a few of the
organizations that have joined with the plastics industry to develop safety standards.
Every effort has been made to incorporate these standards into the design of the dryer;
however, it is the responsibility of the personnel operating and maintaining the equipment
to familiarize themselves with the safety procedures and the proper use of any safety
devices.
High Temperature Safety System
A high temperature safety system will disable the dryer if the process temperature is too
hot. The high temperature safety is designed so that if it fails, the failure causes a “safe”
condition, and the dryer will not run. The compressed air continues flowing to cool down
the system.
Airflow monitoring Safety System
If the airflow source to the compressed air dryer is below 35 PSI, the unit will shut down and
not run. This is an indication that there is not enough pressure and flow for proper
operation of the unit.

Compressed Air Dryer 882.03168.00 2/13/2023 14
Line Cord Plug (115/1/60 units only)
The line cord plug allows the operator or maintenance personnel to unplug the dryer from
its power source and tag it out. This plug may be tagged with any number of approved
electrical lockout tags. These tags are available at most electrical supply stores. Always
disconnect power before servicing or moving this unit.
DANGER! At no time should anyone remove the lockout or reconnect the twist plug,
other than the person who installed the lockout or who unplugged the
twist plug.
2-6 Drying Hopper Air Trap
Refer to the drying hopper Operation and Installation manual for proper operation of the
drying hopper.

Compressed Air Dryer 882.03168.00 2/13/2023 15
2-7 Remote Membrane Dryer for Low-Dew point Operation
(Optional)
Membrane dryers take a small percentage of the dried gas and direct it back in a sweeping
pattern through the module shell. This provides a driving force to remove the moisture with
the minimum purge required.
The moisture vent membrane dryer consists of thousands of hollow-fiber membranes made
of tough temperature and pressure-resistant plastic. The inside surface of these hollow
fibers is coated with an ultra-thin layer of a second plastic that actually separates the water
vapor from the air. This second coating allows air to pass through it over 20,000 times easier
than it allows water to pass. As a result, moisture is expelled rapidly with very little air loss.
Two-stage drying provides the option of using the moisture vent directly at the point-of-use
in combination with refrigerated air dryer.
As a single stage unit, the dryer provides consistent performance from 60ºF to –20ºF outlet
dew point. When combined with a refrigerated air dryer, the moisture vent system will
suppress or reduce the inlet pressure dew point to below –40ºF with very low sweep
requirements.

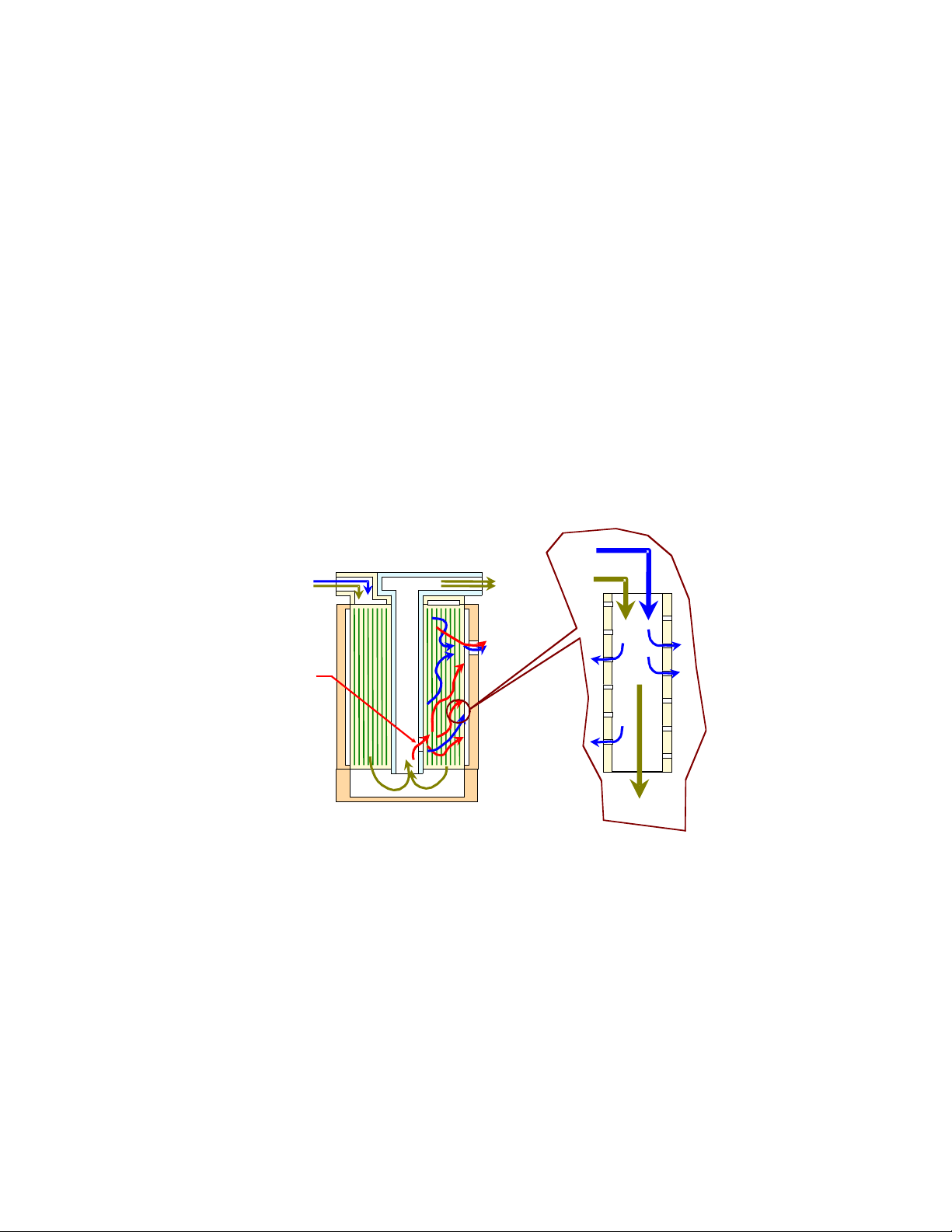

Figure 1: Remote-Mount Membrane Dryer Airflow Schematic
Water
Air
Purge
Dry Air
Humid Air
Dry Air

Compressed Air Dryer 882.03168.00 2/13/2023 16
2-8 Microprocessor Controls
The compressed air dryer uses a microprocessor-based PID temperature controller for
maintaining process air temperature. The controller is a modular, self-contained unit that
you can remove from the mounting housing. All parameters except for the process air set
point are factory set and adjusted. Normally, no field adjustment to the internal controls is
necessary.

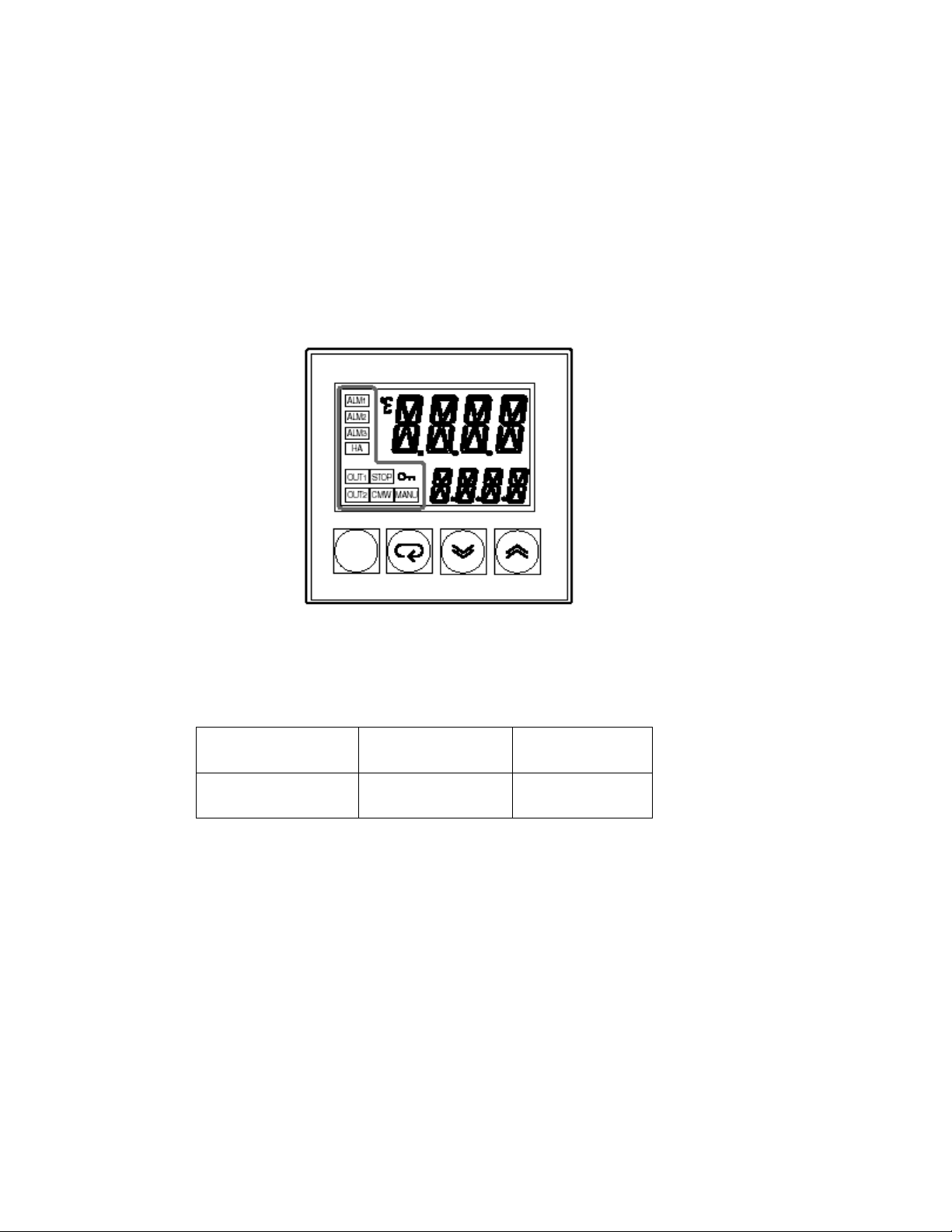

Figure 2: Microprocessor Controller (Example shown, actual controller may be different)
Consult the manual specific to your controller for operation and parameter instructions
Controller
Manual
Parameter List
Eurotherm 3216
682.93183.00
745.00273.00

Compressed Air Dryer 882.03168.00 2/13/2023 17
Chapter 3: Installation
3-1 Uncrating the Equipment
The compressed air dryer has a handle at the top of the cabinet to use for lifting. For
hopper-mount configurations, be sure to support the hopper when lifting and placing the
dryer. Use caution and observe safety rules when lifting and placing your dryer. Be sure it is
securely attached and additional bracing is used if necessary.
3-2 Connecting a Hopper-Mount Dryer to a Hopper
When mounting the dryer to an existing hopper, use the adapter and the self-tapping
screws that are provided with the unit to mount the dryer to the inlet of the hopper. The
adapter is pre-drilled with three holes that are used to mount it to the hopper.
Note: In some cases, depending on the drying hopper model, an adapter may not be
required. If an adapter is not required, attach the dryer to the hopper with the
clamps provided, and install the exhaust filter to the drying hopper
outlet/return line.
Use the following procedure to mount the dryer to a hopper using an adapter (See Figure 3):
1. Mark the holes in the inlet tube of the hopper for drilling.
2. Use a 9/64” drill bit to pre-drill for the #8-32 screws that are provided.
3. Spread silicone adhesive over the area where the adapter will mount to the hopper inlet
tubing.
4. Place the adapter onto the tubing and install the three screws to hold it in place. Allow
sufficient time for the silicone to cure before you operate the dryer.
5. Attach the dryer to the hopper with the clamps provided.
6. Install an exhaust filter to the drying hopper outlet/return line.

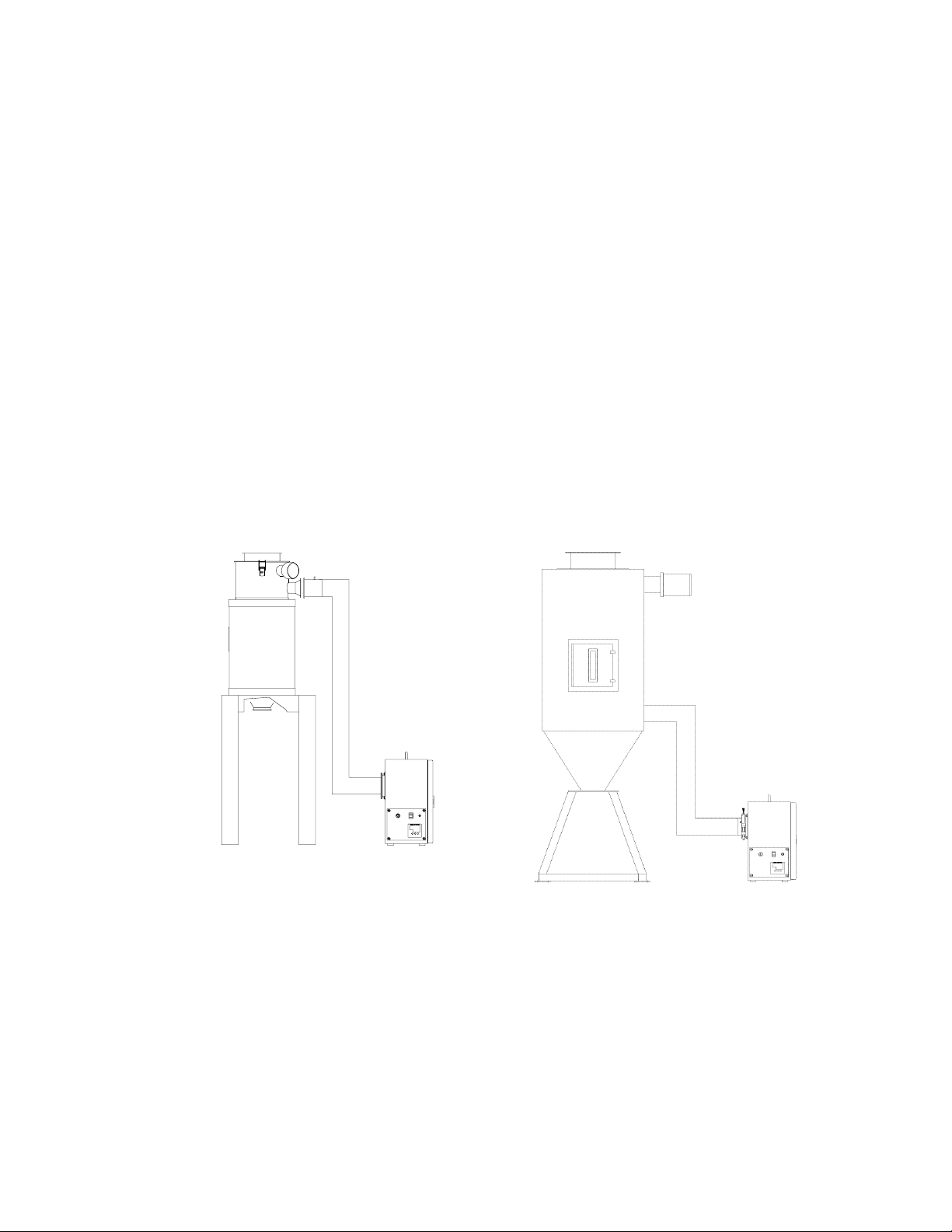

Figure 3: Typical Hopper-Mount Configuration

Compressed Air Dryer 882.03168.00 2/13/2023 18

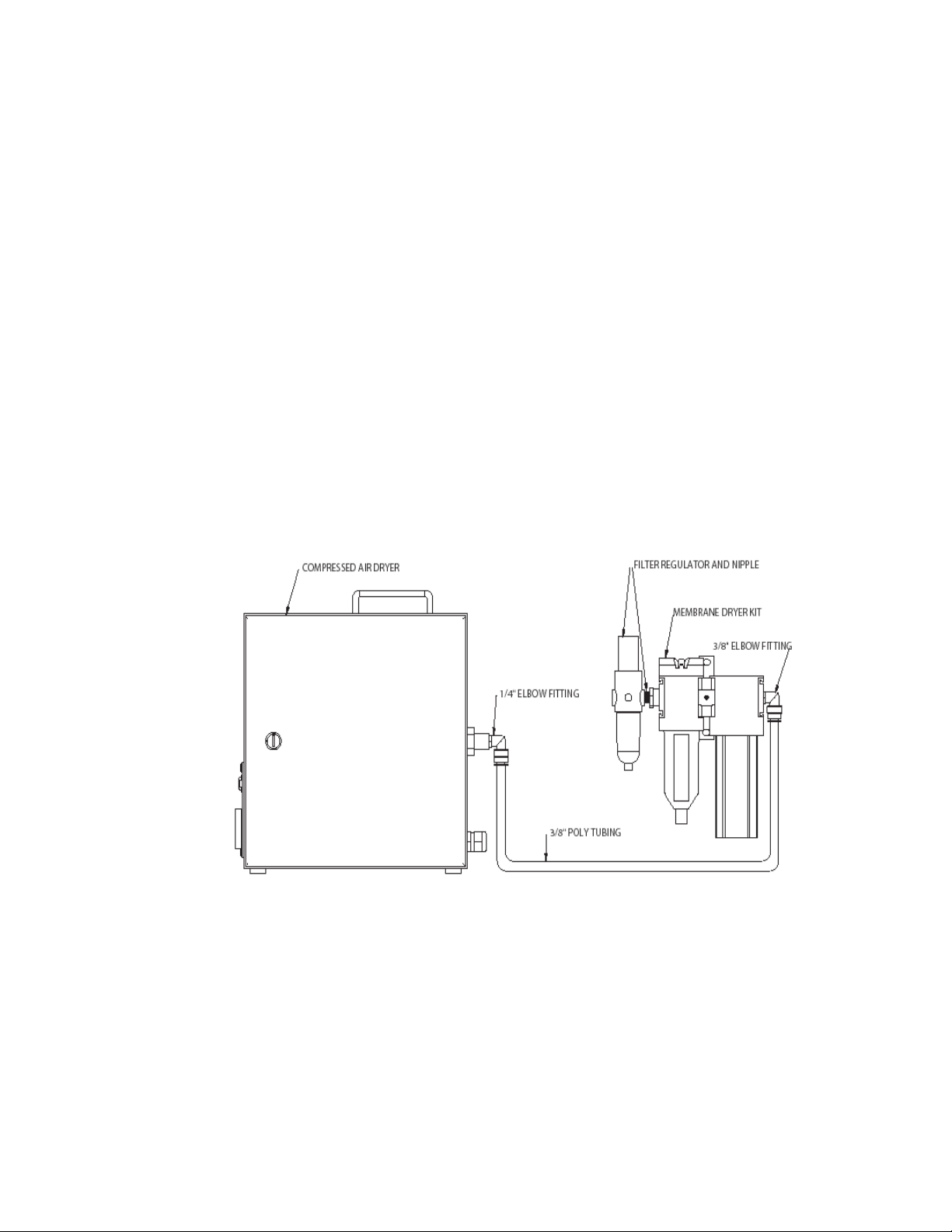

3-3 Connecting a Floor-Mount Dryer to a Hopper (Optional)
Use high-temperature flexible dryer hose or rigid tubing to connect the dryer to the drying
hopper. Keep the delivery hose to the drying hopper as short as possible to minimize heat
loss. We strongly recommend insulated hose for maximum energy savings. Make sure that
hoses are not kinked or collapsed.
Use the following procedure to connect a floor-mount dryer to a hopper:
0. Using the clamps provided, clamp a hose adaptor onto the dryer and the hopper.
(See Figure 4.)
Note: Depending on the drying hopper model, the clamp and hose adapter may
not be required. Connect the dryer hose with the hose clamp directly to the process
air inlet of the drying hopper.
1. Install an exhaust filter to the drying hopper outlet/return line.
2. Drying hopper air inlet and outlet locations vary, but always connect hoses so the
dry process air from the dryer enters the bottom of the drying hopper and flows out
the top.
Figure 4: Floor-Mount Configuration

Compressed Air Dryer 882.03168.00 2/13/2023 19
3-4 Making Electrical Connections
The serial tag lists voltage, phase, and amp draw information. Line voltage must be within
plus or minus ten percent of the voltage listed on the serial tag, or damage may occur.
Never supply any voltage other than what the dryer is configured for.
Fulfill all national, state, and local safety and electrical code requirements. A qualified
electrician should make all electrical connections.
Connect main power to the dryer. Install a fused disconnect with a lockout feature in the
power main leading to the dryer. The power drop must include a ground wire. Make sure all
electrical connections are tight.
Note: Due to variances in 220-240 V connections, customers must supply the plug for
these dryer models.
3-5 Making Compressed Air Connections
The compressed air supply must be regulated to 80 PSI (5.5 bars). Low air pressure will
create poor drying performance. If the pressure in the system drops below 35 PSI, the alarm
light will activate and the process heater and solenoid valve will shut off.
Note: For maximum drying efficiency, we recommend a refrigerated compressed air
connection. Not using refrigerated compressed air (to provide pre-conditioned
compressed air to this unit) will affect drying performance and material drying
capabilities.
To achieve the lowest possible dew points, an optional remote-mount membrane dryer
assembly is available. See Section Error! Reference source not found. on page Error!
Bookmark not defined. for more information about the remote-mount membrane dryer
assembly.
Connect a minimum of 3/8” (9 mm) air line to the top of the filter regulator. Compressed air
must be clean, dry, and free of oil. A shut-off is recommended for your in-plant air supply.
In-line filters can handle small amounts of moisture; in-line desiccant filters or packed beds
of granular absorbing polymer can remove oil mist and condensed oil.

Compressed Air Dryer 882.03168.00 2/13/2023 20
3-6 Installing the Remote-Mount Membrane Dryer (Optional)
The membrane drying kit can be mounted anywhere near the compressed air dryer. The kit
is pre-assembled with a bracket that can be mounted to any flat surface with two screws.
Use Figure 5 as a reference for this installation.
1. Remove the large particle filter, including the close nipple, from the inlet of the
compressed air dryer.
2. Attach the large particle filter (including the close nipple) to the membrane drying kit.
Note: The membrane drying kit must have the large particle and the coalescing
filters in place and functioning properly to ensure full drying capabilities of the
membrane. Both filters must be checked and cleaned regularly.
3. Attach the 1/4” NPT elbow to the inlet of the compressed air dryer.
4. Run the 3/8” hose between the outlet of the membrane drying kit and the inlet of
the compressed air dryer. Use thread sealant on all threaded connections.
Figure 5: Membrane Dryer Assembly
