Acson ACM 30D User manual

Technical Manual
CEILING EXPOSED
SPLIT SYSTEMS
ACM 30D/DR
ACM / A5CM 40D/DR
ACM / A5CM 50D/DR
ACM / A5CM 62C/CR

1. NOMENCLATURE ......................................................................................................... 1
- PRODUCT LINE UP
2. FEATURES .................................................................................................................... 7
3. APPLICATION INFORMATION ...................................................................................... 8
- OPERATING RANGE
- REFRIGERANT CIRCUIT DIAGRAM
- CONTROLLER
- INSTALLATION
4. SOUND DATA .............................................................................................................. 30
- NC CURVES
5. ENGINEERING AND PHYSICAL DATA ....................................................................... 34
- SPECIFICATIONS
6. PERFORMANCE DATA ............................................................................................... 66
- PERFORMANCE TABLES
7. DIMENSIONAL DATA................................................................................................... 90
8. ELECTRICAL DATA ..................................................................................................... 94
9. WIRING DIAGRAMS.................................................................................................. 102
10. SERVICING AND MAINTENANCE .......................................................................... 123
11. TROUBLESHOOTING ............................................................................................. 125
12. EXPLODED VIEW AND PART LIST ........................................................................ 130
TABLE OF CONTENTS

1. NOMENCLATURE
C AFA-
Model Type
R : Heatpump
Omitted if Cooling Only
Series
C : C Series
D : D Series
Capacity
40 : 40,000 Btu/h
Model Name
CM : Ceiling Exposed
Refrigerant
4 : R407C
5 : R410A
Omitted if R22
Brand
R :
A
cson
Electrical Characteristic
F : For Flare
Type of Connection
Product Specification Variation
AA : Revision
A
: 220
–
240V/1Ph/50Hz
K : 208 – 230V/1Ph/60Hz
CM 40 D R5R
INDOOR
1

OUTDOOR
2
O APCA-
Model Type
R : Heatpump
Omitted if Coolin
g
Onl
y
Series
C : C series / D : D Series
Capacity
20 : 20,000 Btu/h
Model Name
LC : Single Split Condensing Unit
Refrigerant
5 : R410A
Omitted if R22 Model
Brand
A
: Acson
Electrica
l
A
: 220-240V/1Ph/50Hz
Market Region
P : Matsushita Rotar
y
M : Mitsubishi Rotar
y
Compressor
Specifications Variation
O : Standard Unit
B : with Contactor
G : Low Ambient Unit
H : High Ambient Unit
Others
A
: First issue
C : Export with CE marking
E : Export without marking
U : ETL spec
LC 20 C R5A
T : Toshiba Rotary
I : Gold Fins
L : Long Piping Unit
S : With H/L Pressure Switch
X : Oxygen Unit

OUTDOOR
3
G EFA-
Model Type
R : Heatpump
Omitted if Cooling Only
Series
B : B Series
C : C Series
Capacity
30 : 30,000 Btu/h
Model Name
LC : Single Split Condensing Unit
Refrigerant
4 : R407C
Omitted if R22
Brand
A
: Acson
Electrical Characteristic
F : For Flare
Type of Connection
Product Specification Variation
A
: First issue
A
: 220
–
240V/1Ph/50Hz
F : 380 – 415V/3Ph/50Hz
K : 208 – 230V/1Ph/60Hz
LC 30 C R4A

ACM
A5CM
ACM

OUTDOOR UNIT

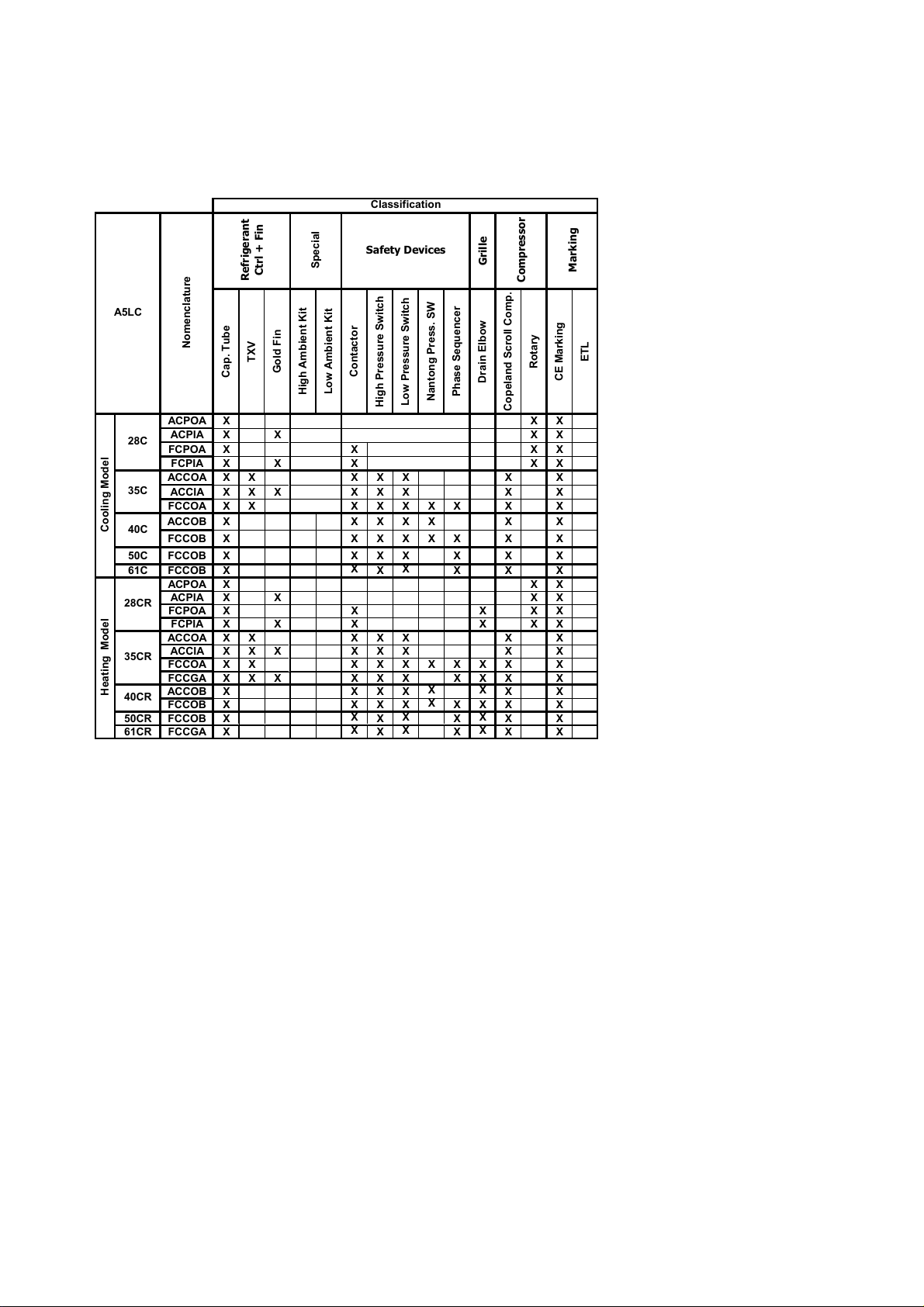

ALC-C SERIES PRODUCT LINE UP
5
Grille
Cap. Tube
TXV
Gold Fin
High Ambient Kit
Low Ambient Kit
Contactor
High Pressure Switch
Low Pressure Switch
Nantong Press. SW
Phase Sequencer
Drain Elbow
Copeland Scroll Comp.
Rotary
CE Marking
ETL
ACPOD XXX
ACPID XX XX
ACPOD XXX
ACPID XX XX
ACPOD XXX
ACPID XX XX
ACPOA XX
ACPIA XXX
AFGE XXXX X X
AFGF X X X X X X X
AFGG XXXXXXX
FFGE X X X X X X X
FFGG X XXXXXXX
AFGE XXXX X X
AFGG XXXXXXX
AFGE XXXX X X
AFGG XXXXXXX
FFGE X X X X X X X
FFGF XXXXXXXX
FFGG X XXXXXXX
FFGE X X X X X X X
FFGF XXXXXXXX
FFGG X XXXXXXX
FFFE X X X X X X X
FFFF XXXXXXXX
FFFG X X X X X X X X
ACPOD X X X
ACPID X X X X
ACPOD XXX
ACPID XX XX
ACPOD XXX
ACPID XX XX
ACPOA XXX
ACPIA XX XX
AFFBXX XXXXXX
AFFCXXXXXXXXX
AFFDXXX XXXXXX
FFFB XX XX XXXX X
FFFD X X X X X X X X X X
AFFB XX XX XX X
AFFD X X X X X X X X
AFFB XX XXXXXX
AFFD XXX XXXXXX
FFFB XX XX XXXX X
FFFC XXXXXXXXXX
FFFD XXX XXXXXXX
FFFB XX XX XXXX X
FFFC XXXXXXXXXX
FFFD XXX XXXXXXX
FFFB X XXXXXXX
FFFC X X XX XXXX X
FFFD X X XX XXXX X
Nomenclature
ALC
18C
20C
Safety Devices
Classification
Marking
Refrigerant
Ctrl + Fin
Compressor
Special
50C
60C
Cooling Model
35CR
18CR
30CR
28CR
20CR
25CR
30C
25C
28C
35C
40C
40CR
50CR
61CR
Heat Pump Model
MLC

OUTDOOR UNIT
A5LC-C SERIES PRODUCT LINE UP
6
Grille
Cap. Tube
TXV
Gold Fin
High Ambient Kit
Low Ambient Kit
Contactor
High Pressure Switch
Low Pressure Switch
Nantong Press. SW
Phase Sequencer
Drain Elbow
Copeland Scroll Comp.
Rotary
CE Marking
ETL
ACPOA X X X
ACPIA X X X X
FCPOA X X X X
FCPIA X X X X X
ACCOA X X X X X X X
ACCIAXXX XXX X X
FCCOAXX XXXXX X X
ACCOB X XXXX X X
FCCOB X XXXXX X X
50C FCCOB X XXX X X X
61C FCCOB X XXXXXX
ACPOA X X X
ACPI
A
XX XX
FCPOA X X X X X
FCPI
A
XX X XXX
ACCOA X X X X X X X
ACCI
A
XXX XXX X X
FCCO
A
XX XXXXXXX X
FCCG
A
XXX XXX XXX X
ACCOB X X X X XX XX
FCCOB X X X X XXXX X
50CR FCCOB X XXXXXXX
61CR FCCG
A
XXXXXXXX
Cooling Model
28C
35C
Heating Model
28CR
35CR
40C
40CR
Nomenclature
A5LC
Classification
Marking
Refrigerant
Ctrl + Fin
Special
Compressor
Safety Devices
M5LC

2. FEATURES
ULTRA SLIM NEW STYLISH DESIGN PROFILE
This unit is contemporary in design and match even the most up to date interior decor. The slim, round
profile and compact design of this unit adds a touch of elegance to every decor. No indoor connection pipe
and hanger bracket are visible.
CEILING AND FLOOR CONVERTIBLE WITH SPACE SAVING INSTALLATION
This unit is designed for ceiling exposed type and floor exposed type with a very economical and space
saving installation. No need renovation to wall or ceiling for ceiling exposed and no foundation work is
required for floor exposed installation. This easy to install and ready to operate unit ensure rapid and low
installation cost.
STRONG AND ROBUST
The unit is built from strong casing material and robust parts to ensure long lasting reliable service. The
drain pan is made from the POLYSTYRENE with a plastic coating on the surface to ensure no leaking and
no condensation occur.
FRIENDLY SERVICEABILITY
The air filter, electrical parts, fan and fan motor assembly can all be inspected and replace from bottom of
the unit by simply removing the newly designed press in, pull out air intake grille. The POLYSTYRENE drain
pan and the heat exchanger coils can remove from the unit easily by remove the bottom panel.
MICROCOMPUTER REMOTE CONTROLLER
The incorporated microprocessor give more accurate control and with the following extra features:
• Fan motor speed can be set at high/medium/low and automatic.
• Timer on/off - the unit can be pre-set to on and off automatically.
• Electronic thermostat - room temperature is precisely controlled resulting in energy saving and increase
comfort.
• Sleep mode automatically increase set temperature since room temperature is lower at night thus
achieving healthy sleep.
WIRELESS REMOTE CONTROLLER
The compact wireless remote controller makes it possible to operate the air conditioner anywhere within the
room.
AUTO OR MANUAL CONTROL ON VERTICAL AIRFLOW DIRECTION
With auto control, the louver will automatically swing up and down to create an excellent air distribution. You
can select your desired horizontal air flow direction by adjusting the vertical grille.
7

3. APPLICATION INFORMATION

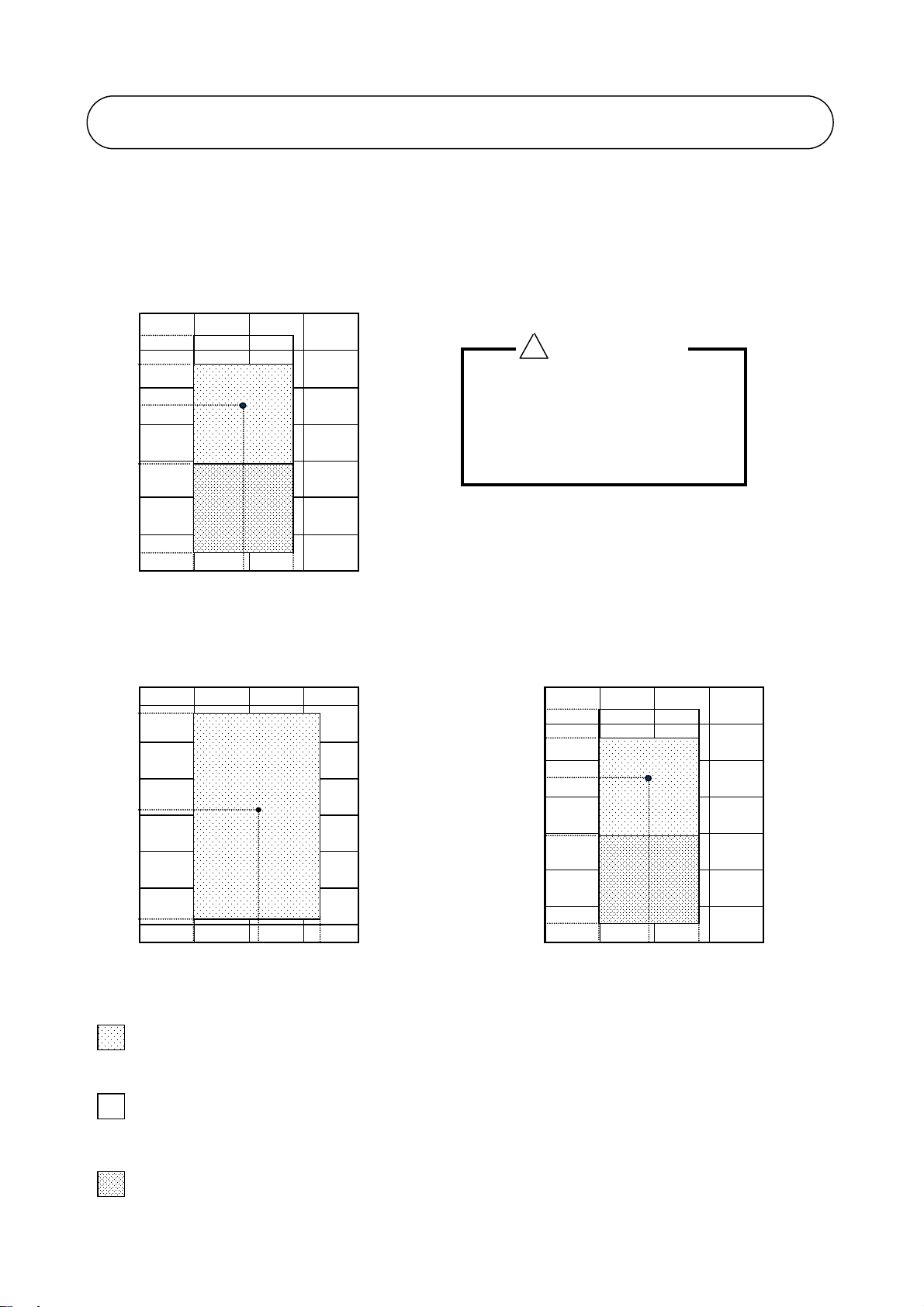

OPERATING RANGE
Ensure the operating temperature is in allowable range.
Cooling only
!Caution :
The use of your air conditioner
outside the range of working
temperature and humidity can
result in serious failure
.
Heat pump
Heating Cooling
Note :
Standard operating range.
With High ambient unit. (Optional item)
Please refer to local dealer for unit of this specification.
With Low ambient kit. (Optional item)
Please refer to local dealer for unit of this specification.
8
Outdoor temp. (°CDB)
Indoor temp. (°CWB)
-5
19
35
15
46
24
52
Standard
point
High ambient
unit
Low ambient kit
Indoor temp. (°CDB)
Outdoor temp. (°CDB)
Indoor temp. (°CWB)
Outdoor temp. (°CWB)
-9
15 21
6
27
18
-5
19
35
15
46
24
52 High ambient
unit
Low ambient kit
Standard
point
Standard
point

MODEL : ACM 30D – ALC 28C
MODEL : ACM 30D – ALC 30D
ACM 40D – ALC 35 / 40D
ACM 50D – ALC 50D
ACM 62C – ALC 61D
10

11
MODEL :A5CM 40D – A5LC 35 / 40D
A5CM 50D – A5LC 50D
A5CM 62C – A5LC 61D

12
MODEL :ACM 30DR - ALC 28CR
MODEL :ACM 30DR - ALC 30DR
ACM 40DR - ALC 40DR
ACM 50DR - ALC 50DR

13
MODEL : A5CM 40DR – A5LC 35 / 40DR
A5CM 50DR – A5LC 50DR
A5CM 62CR – A5LC 61DR
MODEL : ACM 62CR – ALC 61DR

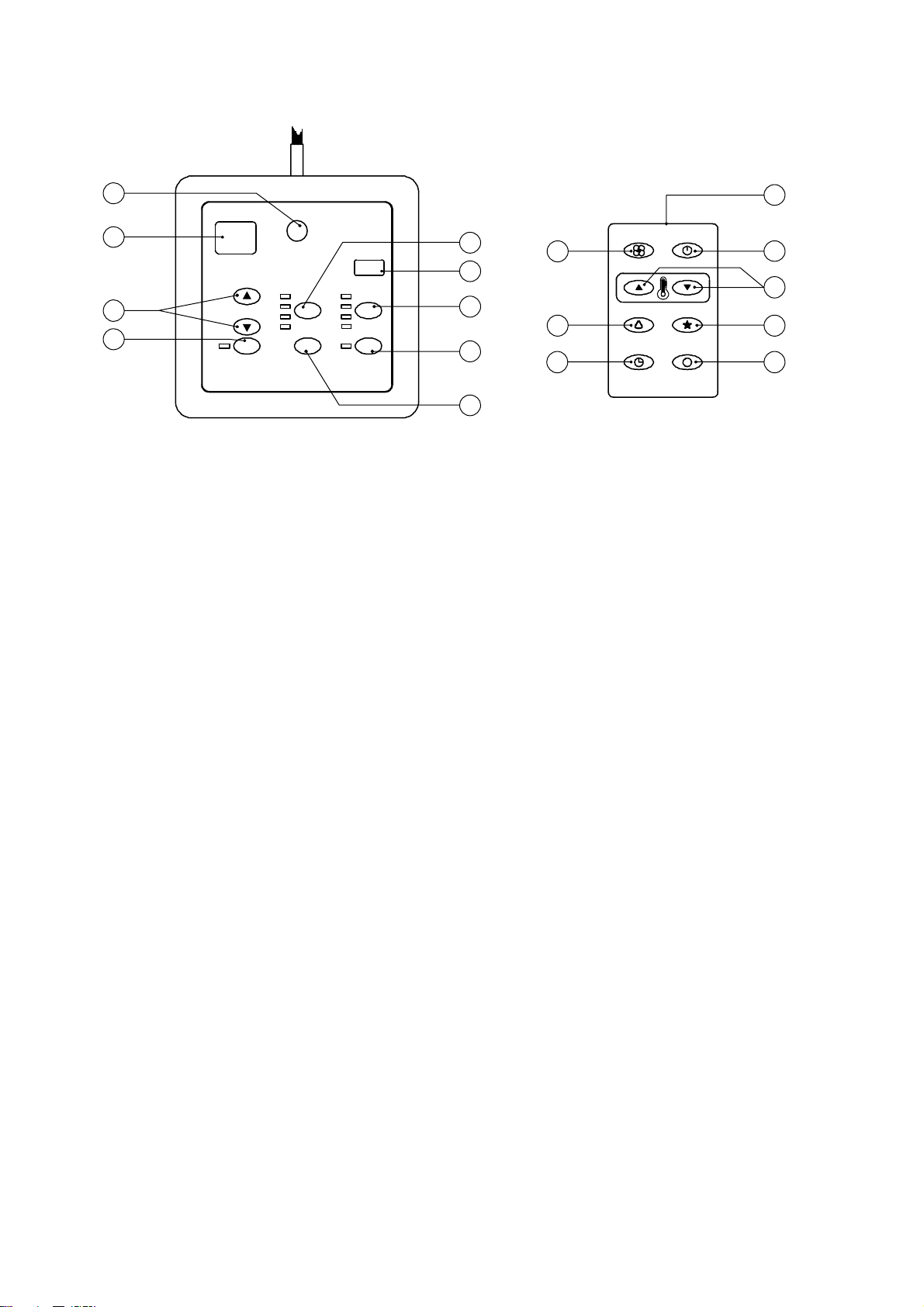

G8 Remote Controller
14
1. TRANSMISSION SOURCE
• The source where the signal will be transmitted. • Set the desired off time by pressing the SET button
2. SIGNAL TRANSMISSION INDICATION continuosly.
•Blink to confirm the last setting has been send to • Press the CLR button to cancel the off timer
the unit. setting.
3. ON/OFF BUTTON 9. AUTOMATIC AIR SWING (OPTIONAL)
•Press once to start the air conditioner. • Press the SWING button to activate the automatic
•Press again to stop the unit. air swing function.
4. TEMPERATURE SETTING • To distribute the air to a specific direction, press
•To set the desired room temperature, press the the SWING button and wait until the louver move to
button to increase or decrease the set temperature. the desired direction and press the button once
•The temperature setting range is from 16°C to again.
30°C (Optional setting 18°C to 30°C). 10. SLEEP MODE SETTING
•Press both buttons simultaneously to toggle the • Press the button to activate sleep mode. This
temperature setting between °C and °F. function is available under COOL, HEAT & AUTO
5. OPERATION MODE mode.
•Press the MODE button to select the type of • When it is activated in COOL mode, the set
operating mode. temperature will be increased 0.5°C after 0 mins,
•For cooling only unit, the available modes are : 1°C after 1 hour and 2°C after 2 hours.
COOL, DRY & FAN. • When it is activated in HEAT mode, the set
•For heat pump unit, the available modes are : temperature will be descreased 1 °C after 30 mins,
AUTO, COOL, DRY, FAN & HEAT. 2°C after 1 hour and 3°C after 2 hours.
6. FAN SPEED SELECTION 11. CLOCK TIME SETTING
•Press the button until the desired fan speed is • Press button + or - to increase or decrease the
achieved. clock time.
7. ON TIMER SETTING
•Press the SET button will activate the on timer
function.
•Set the desired on time by pressing the SET button
continuously. If the timer is set to 7.30am, the air
conditioner will turn on at 7.30am sharp.
•Press the CLR button to cancel the on timer
setting.
8. OFF TIMER SETTING
•Press the SET button will activate the off timer
function.
1
2
4
65
12 3
8
7
910
11

COOL
DRY
HEATMED
HIGH
AUTO
MODE
TEMP
SENSOR
ON/OFF
SLEEP
LOW
TIMER
8
2
5
9
3
6
4
1
FAN
FAN ON/OFF
T
EMP
SLEEP
TIMER MODE
7
1
2
3
4
5
6
10
7
SWING
SWING
FAN
SLM AC-5300 (OPTIONAL)
1. “ON/OFF” SWITCH 6. “SLEEP” MODE
• Press to start the air conditioner unit. • Press button to activate the sleep
• Press again to stop the unit. function can only be activated under
“cool” or heating mode operation.
2. TEMPERATURE SETTING activated under “cool” mode operation, the
• Set the desired room temperature. set temperature will increase 0.5°C after 30
• Press button to increase or decrease the minutes, 1°C after 1 hour and 2°C after 2
set temperature. Setting range are between hours. If it is actiaved under “HEAT” mode
16°C to 30°C (60°F to 80°F). operation, the set temperature will be
descreased 0.5°C after 30 minutes, 1°C
3. OPERATION MODES after 1 hour and 2°C after 2 hours.
• Press the “mode” button for select the type
of operating mode. 7. AIR SWING
- Cooling Only : • Press button to activate the automatic air
COOL, DRY, FAN swing function.
- Heat Pump :
AUTO, COOL, DRY, HEAT, FAN 8. SENSOR
(AUTO mode is represented by both • Infra red sensor to receive signals from
COOL and HEAT LED light on) wireless controller.
4. FAN SPEED SELECTION. 9. LED DISPLAY
• Press the button until the desired fan speed • To display the set temperature (in °C) and
is achieved. timer delay setting (in hours).
5. TIMER. 10. TRANSMISSION SOURCE
• Press the set button to select the switch • To transmit signals to the air conditioner.
timer of the air conditioner unit (the setting
range is between 1 to 10 hours).
15

OPERATING STATE AND FAULT TABLE
WIRELESS REMOTE CONTROLLER - HANDSET
COOLING: LED INDICATOR LIGHT DISPLAY HEATPUMP : LED INDICATOR LIGHT DISPLAY
COOL DRY FAN COOL DRY FAN HEAT
Self Diagnosis Table
WIRED REMOTE CONTROL - SLM
COOLING / HEATPUMP MODEL
16
COOL DRY FAN HEAT
Operation / Faulty Indication
{Cool M od e
{Dry Mode
{Fan Mode
{Heat Mode
{
◑ Auto Mode - Cool
◑
{Auto Mode - Heat
◑
Compressor Overload
◑ ◑ Gas Leak
◑ Outdoor Coil Sensor Open / Short
◑ ◑ Indoor Coil Sensor Open / Short
◑ Room Sensor Open / Short
Error Code at 7 Segment Display Operation / Faulty Indication
Blink E1 Room sensor open / short
Blink E2 Indoor coil sensor open
Blink E3 Outdoor coil sensor open
Blink E4 Compressor overload /
Indoor Coil Sensor S hort /
Outdoor Coil Sensor Short
Blink E5 Gas leak
Blink Heat LED Outdoor defrost (for Heatpump only)
{ON {/ zON or OFF ◑ BLINKING

PHSAE SEQUENCER
The unit with Scroll Compressor can only rotate in one direction. For this reason, a protective device (phase
sequencer) is fitted to prevent incorrect wiring of the electrical phases. When the three phases are not
connected correctly, the phase sequencer operates, and the unit will not start. This devise is located in the
control box of the outdoor unit.
The following table shows the LED indicator light for phase sequencer under normal operation and fault conditions.
LED_P
(Red)
LED_R
(Yellow)
LED_S
(Yellow)
LED_T
(Yellow)
Normal Operation On - - -
Reverse Phase Blink Blink Blink Blink
S & T Phase Missing Blink - Blink Blink
T Phase Missing Blink - - Blink
S Phase Missing Blink - Blink -
R Phase Missing - - - -
Overload Blink - - -
Sensor Missing Blink On On On
Notes: 1. “-” means LED off.
2. When R phase missing, no LED or buzzer will indicate the error, but relay 71 (Common) and 81 (NO)
will cut off.
3. The unit will check the discharge sensor availability only during power up.
4. All errors can only recover through manually reset.
17

INSTALLATION
Sharp edges and coil surfaces are potential injury hazard. Avoid from contact with them.
(1) INSTALLATION OF OUTDOOR UNIT
PRELIMINARY SITE SURVEY
•Electrical supply and installation is to conform to local authority’s (e.g. National Electrical Board) codes and
regulations.
•Voltage supply fluctuation must not exceed ± 10% of rated voltage. Electricity supply lines must be independent of
welding transformer which can cause high supply fluctuations.
•Ensure that the location is convenient for wiring, piping and drainage
STANDARD MOUNTING
Ensure that the overhead supports are strong enough to hold the weight of the unit. Position the hanger rods (wall
mounting bracket for floor standing), and check for its alignment with the unit as shown in Figure A. Also, check that
the hangers are secured and the base of the fan coil unit is leveled in both horizontal directions, taking into account
the gradient for drainage flow as recommended in Figure B.
! Caution
18
All Dimension in mm

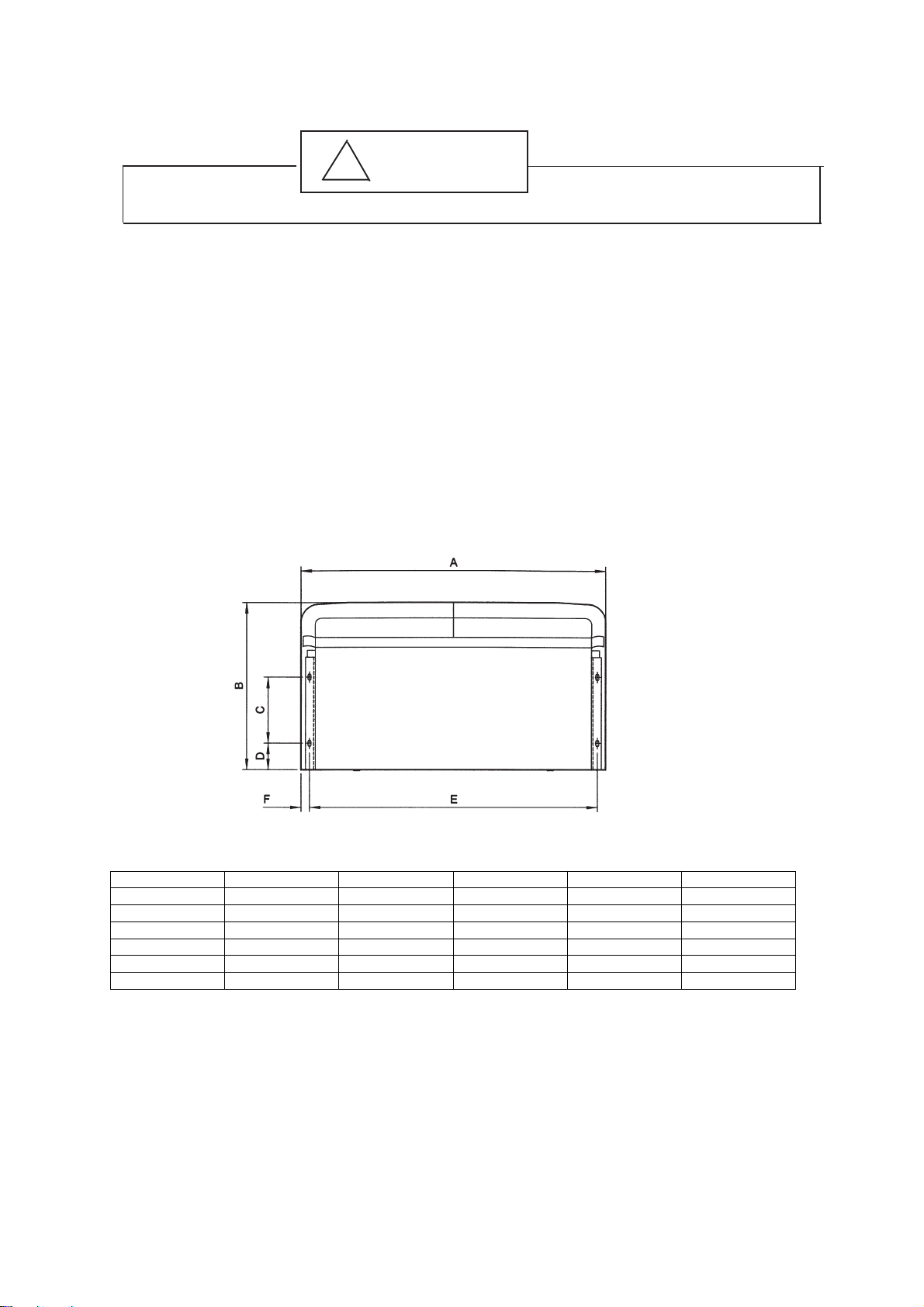

Model ACM 20D/DR ACM 25D/DR ACM 30D/DR ACM 40D/DR ACM 50D/DR
A 1214 1214 1214 1714 1714
B 666 666 666 666 666
C 273 273 273 273 273
D 130 130 130 130 130
E 1136 1136 1136 1636 1636
F 39 39 39 39 39

Please ensure that the following steps are taken :
•Check the gradient for drainage flow as recommended in Figure B.
•Provide clearance for easy servicing and optimal air flow as shown in Figure C.
•The indoor unit must be installed such that there is no short circuit of the cool discharge air with the
warm return air.
•Do not install the indoor unit where there is direct sunlight shining on the unit. The location should be
suitable for piping and drainage installation. The unit must be a large distance away from the door.
SEMI-ENCLOSED MOUNTING
• In case the unit is to be half recessed into false ceiling, please check the unit is well align.
ACM-D
ACM-D ACM 62C
Figure B
19
