ACTi B41 User manual

Zoom Bullet Series
Hardware Manual
B41, B44, B45, B46, B47, B49, B410
I44, I45, I47
2015/05/18

www.acti.com
Hardware Manual
2
Table of Contents
Precautions.............................................................4
Safety Instructions .................................................................................... 6
Introduction.............................................................7
The List of Models ..................................................................................... 7
Package Contents...................................................................................... 8
Physical Description ............................................................................... 10
Mounting Options.................................................................................... 12
Installation Procedures........................................13
Step 1: Prepare for Installation............................................................... 13
Step 2: Attach the Sunshield .................................................................. 14
Step 3: Install the Camera....................................................................... 15
Step 4: Waterproof and Connect the Network Cable............................ 15
Step 5: Connect to Network.................................................................... 16
Step 6: Access Camera Live View.......................................................... 16
Step 7: Adjust the Viewing Angle........................................................... 17
Waterproof Solution Using the “Pigtail”.............18
How to Use the Female Cable Gland...................................................... 19
How to Use the Female Conduit Gland.................................................. 22
Waterproof Solution Using the Camera
Connectors............................................................26
How to Use the Male Cable Gland (Optional)........................................ 28
How to Use the Male Conduit Gland ...................................................... 32
Other Connections................................................36
Connecting a Power Adapter (Optional)................................................ 36

www.acti.com
Hardware Manual
3
Connecting DI/DO and Audio Devices (Optional) ................................. 38
How to Connect DI/DO Devices............................................................ 38
How to Connect Audio Devices............................................................. 41
Other Adjustments and Accessories ..................42
How to Remove the “Pigtail” .................................................................. 42
How to Insert a Memory Card................................................................. 45
How to Insert the Memory Card............................................................ 45
How to Remove the Memory Card........................................................ 45
Accessing the Camera .........................................46
Configure the IP Addresses.................................................................... 46
Access the Camera.................................................................................. 50

www.acti.com
Hardware Manual
4
Precautions
Read these instructions
Read all the safety and operating instructions before using this product.
Heed all warnings
Adhere to all the warnings on the product and in the instruction manual. Failure to follow the
safety instructions given may directly endanger people, cause damage to the system or to other
equipment.
Servicing
Do not attempt to service this product yourself as opening or removing covers may expose you to
dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
Trademarks
ACTi andACTi logo are registered trademarks of ACTi Corporation. All other names and products
used in this manual are registered trademarks of their respective companies.
Liability
Every reasonable care has been taken during the writing of this manual. Please inform your local
office if you find any inaccuracies or omissions. ACTi will not be held responsible for any
typographical or technical errors and reserves the right to make changes to the product and
manuals without prior notice.

www.acti.com
Hardware Manual
5
Federal Communications Commission Statement
This equipment has been tested and found to comply with the limits for a class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications to the equipment that are not expressly approved by the
responsible party for compliance could void the user’s authority to operate the equipment.
European Community Compliance Statement
This product has been tested and found to comply with the limits for Class B
Information Technology Equipment according to European Standard EN 55022
and EN 55024. In a domestic environment, this product may cause radio interference in which
cause the user may be required to take adequate measures.

www.acti.com
Hardware Manual
6
Safety Instructions
Cleaning
Disconnect this product from the power supply before cleaning.
Accessories and Repair Parts
Use only the accessories and repair parts recommended by the manufacturer.
Water and Moisture
Install other devices (such as PoE injector, alarm, etc.) that will be used with the camera in a dry
place protected from weather.
Servicing
Do not attempt to service this product yourself. Refer all servicing to qualified service personnel.
Damage Requiring service
Disconnect this product from the power supply immediately and refer servicing to qualified
service personnel under the following conditions.
1) When the power-supply cord or plug is damaged
2) If liquid has been spilled, or objects have fallen into the product.
3) If the inner parts of product have been directly exposed to rain or water.
4) If the product does not operate normally by following the operating instructions in this manual.
Adjust only those controls that are covered by the instruction manual, as improper adjustment
of other controls may result in damage, and will often require extensive work by a qualified
technician to restore the product to its normal operation.
Safety Check
Upon completion of any service or repairs to this product, ask the service technician to perform
safety checks to determine if the product is in proper operating condition.

www.acti.com
Hardware Manual
7
Introduction
The List of Models
This hardware manual contains the following models:
B41
5MP Zoom Bullet with D/N, Adaptive IR, Basic WDR, 12x Zoom lens
B44
1.3MP Zoom Bullet with D/N, Adaptive IR, Basic WDR, SLLS, 10x Zoom
lens
B45
2MP Zoom Bullet with D/N, Adaptive IR, Basic WDR, SLLS, 10x Zoom
lens
B46
5MP Zoom Bullet with D/N, Adaptive IR, Basic WDR, 10x Zoom lens
B47
3MP Zoom Bullet with D/N, Adaptive IR, Superior WDR, 12x Zoom lens
B49
3MP Zoom Bullet with D/N, Adaptive IR, Superior WDR, 10x Zoom lens
B410
10MP Zoom Bullet with D/N, Adaptive IR, Basic WDR, 10x Zoom lens
I44
1MP Zoom Bullet with D/N, Adaptive IR, Extreme WDR, ELLS, 30x Zoom
lens
I45
2MP Zoom Bullet with D/N, Adaptive IR, Extreme WDR, ELLS, 30x Zoom
lens
I47
4MP Zoom Bullet with D/N, Adaptive IR, Advanced WDR, SLLS, 30x
Zoom lens
From the installation perspective these models are very similar; therefore you can use one
manual for all of them.

www.acti.com
Hardware Manual
8
Package Contents
Camera
Sunshield
Sunshield Screws
Hexagon Screwdriver
Camera Base Wrench
Bracket Wrench
Female Conduit Gland
Female Cable Gland
Washer
Male Conduit Gland
Male Cable Gland
(Optional)
Drill Template Sticker
Drill Template

www.acti.com
Hardware Manual
9
Terminal Block
(for Power)
Terminal Block
(for Audio and DI/DO)
Quick Installation Guide
Warranty Card
NOTE: The pictures are for reference only. Actual items may slightly vary.

www.acti.com
Hardware Manual
10
Physical Description
Exterior View
Connectors View
NOTE: The connectors are hidden under the housing cover.

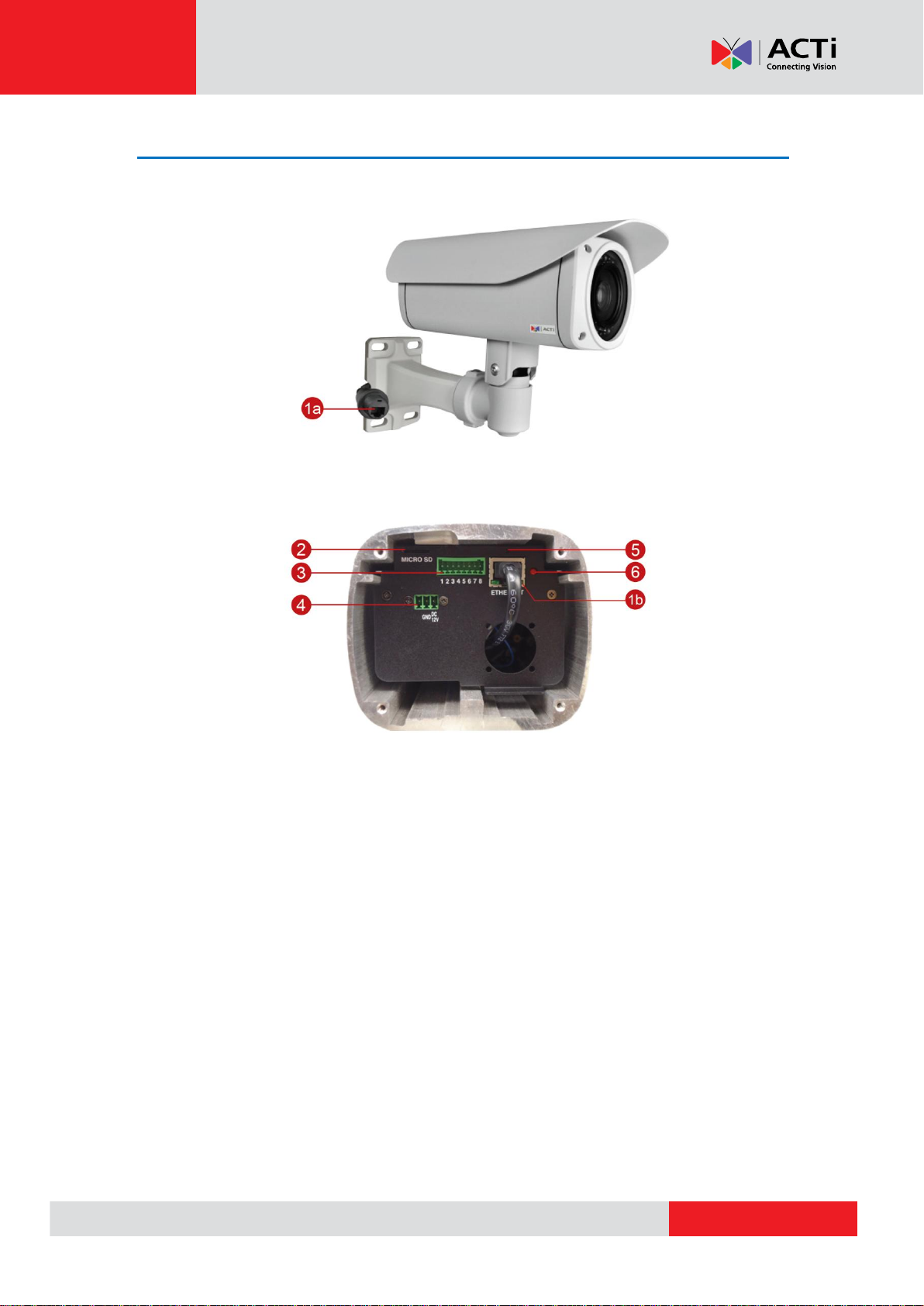

1) Ethernet Ports
The Ethernet port (1a) of the cable-out or “pigtail” connects to a network using an Ethernet
cable.
The Ethernet port (1b) on the housing connects the cable-out or “pigtail” to the camera.
NOTE: It is possible to replace the “pigtail” with a standard Ethernet cable by disconnecting
the pigtail and connecting the preferred cable to this port.
2) Memory Card Slot
Insert a memory card into this slot for local recording purposes. See How to Insert a
Memory Card on page 45for more information.
NOTE: Supports microSDHC and microSDXC cards.

www.acti.com
Hardware Manual
11
3) Digital Input / Output (DI/DO) and Audio Input / Output
This connector connects to digital input or output devices, such as an alarm trigger, panic
button, etc., as well as audio input and output devices, such as microphones and speakers.
Digital Input (DI) and Digital Output (DO) devices are used in applications like motion
detection, event triggering, alarm notifications, etc. See Connecting DI/DO and Audio
Devices (Optional) on page 38 for information.
4) DC 12V Power Input
In case the camera is connected to a non-PoE (Power over Ethernet) switch, use this
connector to connect the camera to an external power adapter (not included). See
Connecting a Power Adapter (Optional) on page 36 for more information.
5) Reset Button
The purpose of reset button is to restore the factory default settings of the camera, including
the administrator’s password.
The reset button can be used for following purposes:
The administrator’s password has been forgotten and therefore the camera cannot be
accessed.
In case of IP address, mask, or allow/deny filter related issues, resulting with inability to
modify these settings.
In case of connectivity issues or abnormal video quality.
How to do the reset properly?
Press and hold the reset button for 5 seconds or until the power LED lights up.
6) Power LED
The Power LED lights red when the camera is powered on and goes off once the camera
boot-up process is complete.
NOTE: For typical use, the power LED is hidden inside the housing and cannot be seen.
However, knowing how the power LED works is essential when troubleshooting or doing a
reset.

www.acti.com
Hardware Manual
12
Mounting Options
There are several mounting options that you can use to install the camera. Select the most
suitable solution for your installation environment.
Mount Types
Accessories
Wall Mount
Suitable when mounting the camera directly on walls using the integrated
bracket. See Installation Procedures on page 13.
Gang Box
Converter
Suitable for locations which require the use of gang boxes. The Gang Box
Converter is attached to the gang box while the camera with its bundled
bracket is installed on the Gang Box Converter. All cables are hidden inside
the gang box.
PMAX-0806
Ceiling Mount
Suitable when mounting the camera on the ceiling. The integrated bracket
must be removed from the camera first.
PMAX-1300
Vertical Pole
Mount
Suitable when mounting the camera on vertical poles.
PMAX-0504
NOTE:
For more information about the mounting solutions and accessories, please check the
Mounting Accessory Selector in our website (http://www.acti.com/mountingselector).
The above mounting accessories are not included in the package. Contact your sales
agents to purchase.

www.acti.com
Hardware Manual
13
Installation Procedures
This section describes the procedures in installing the camera on the wall using the integrated
bracket.
IMPORTANT! Before installation, make sure the wall can bear more than the weight of the
camera and its bracket.
NOTE: The following procedures and pictures are based on the cable going along the wall; same
procedures apply when the cable will pass through the wall, unless otherwise specified.
Step 1: Prepare for Installation
1. Depending on the wall material, purchase applicable screws and screws plugs (as needed)
that can hold the camera and bracket weight on the wall.
2. Attach the supplied drill template sticker on the wall.
3. Determine how the cable will be routed: pass through the wall or along the wall.
If the cable will pass through the wall, drill the cable hole and the four (4) screw
holes on the wall.
If the cable will be routed along the wall, just drill the four (4) screw holes on the
wall.
4. Detach the drill template sticker from the wall and insert the plastic plugs into the screw
holes.
Cable hole

www.acti.com
Hardware Manual
14

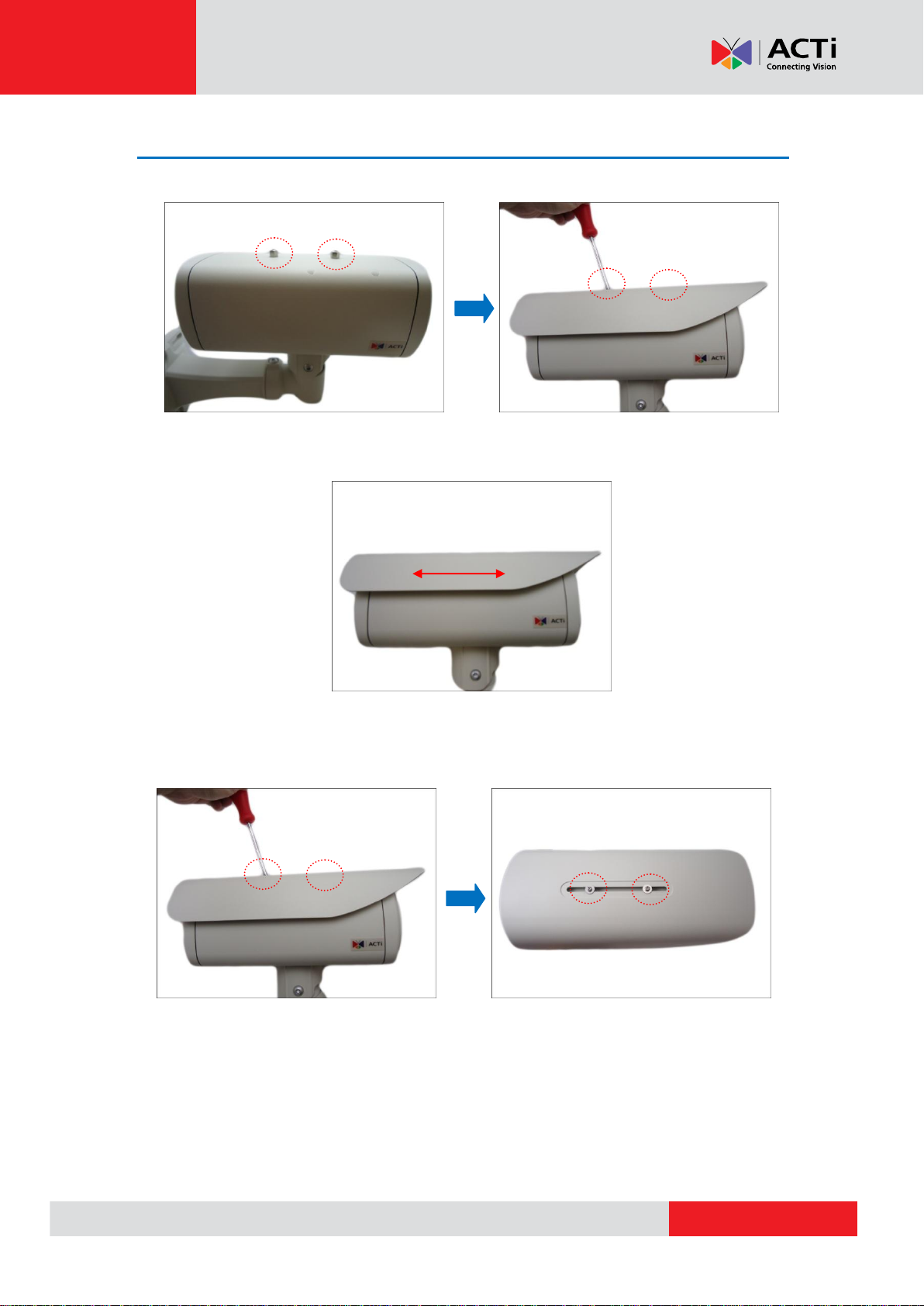

Step 2: Attach the Sunshield
1. Loosely secure the supplied screws to attach the sunshield.
2. Slide to adjust the sunshield to cover the lens as far as possible.
NOTE: The sunshield may have to be adjusted later based on the camera live view.
3. Tighten the screws to secure the sunshield.

www.acti.com
Hardware Manual
15
Step 3: Install the Camera
1. If the “pigtail” will pass through the wall, follow Waterproof Solution Using the “Pigtail”
on page 18 first and then route the cable through the wall.
If the “pigtail” will go along the wall, route the cable through one of the cable gaps on the
bracket.
2. Install the camera to the wall using four (4) screws applicable for the wall material (purchased
separately).
NOTE: Make sure the wall can bear more than the weight of the camera with bracket.
Step 4: Waterproof and Connect the Network Cable
See Waterproof Solution Using the “Pigtail” on page 18.

www.acti.com
Hardware Manual
16
Step 5: Connect to Network
Connect the other end of the network cable to a switch or injector. Then, connect the switch or
injector to a network or PC and a power source. See Power-over-Ethernet (PoE) example
connection diagram below.
Network
AC Power
Source
PoE Injector /
PoE Switch
Power Cable
Ethernet Cable
Ethernet Cable
(Data + Power)
Ethernet Cable
(Data)
Camera
In case of using a non-PoE switch, power up the camera using a power adapter (not supplied).
As needed, power up the other connected devices.
Step 6: Access Camera Live View
See Accessing the Camera on page 46 for more information on how to access the camera live
view.

www.acti.com
Hardware Manual
17
Step 7: Adjust the Viewing Angle
Based on the camera live view, adjust the camera viewing angle. Do the following:
Using the bundled bracket wrench, do the following:
1. Loosen the tilt adjustment screws, adjust the camera tilt, and then tighten back the screws to
fix the tilt position.
2. Loosen the pan adjustment screw, move the pan direction, and then tighten back the screw
to fix the pan position.
Pan Adjustment Screw
Tilt Adjustment
Screw

www.acti.com
Hardware Manual
18
Waterproof Solution Using the “Pigtail”
The camera and the pre-installed network cable, “pigtail”, are resistant to salt, water, weak acid,
alcohol, oil, grease and other common solvents. However, users must ensure that the cable
connection and the network side cable itself are also protected from different environmental
factors.
When using a Power-over-Ethernet (PoE) switch or injector, connecting the network cable
through the “pigtail” is recommended. In this case, there are two waterproofing methods.
Bundled Accessory
Description
Female Cable Gland
Use this solution when connecting an Exterior-grade
Ethernet cable between the camera and a
Power-over-Ethernet (PoE) switch or injector. See How
to Use the Female Cable Gland on page 19.
Female Conduit Gland
Use this solution when connecting a standard indoor
Ethernet cable between the camera and a
Power-over-Ethernet (PoE) switch / injector. A flexible
conduit (trade size 1/2”) is required to house the Ethernet
cable. See How to Use the Female Conduit Gland on
page 22.
NOTE: The flex conduit is not included in the package
and must be purchased separately.
If other devices, such as a power adapter, digital or audio input or output devices will be
connected to the camera, or in some cases, users may require the use of specific cables with
customized length, use the back connectors of the camera to connect the cables. See
Waterproof Solution Using the Camera Connectors on page 26 for cabling information.

www.acti.com
Hardware Manual
19
How to Use the Female Cable Gland
This section describes how to waterproof the cable-out or “pigtail” of the camera using the
bundled female cable gland. An exterior-grade Ethernet cable is required. The camera may or
may not have to be installed first before doing the cable connections (see related installation
procedures for details).

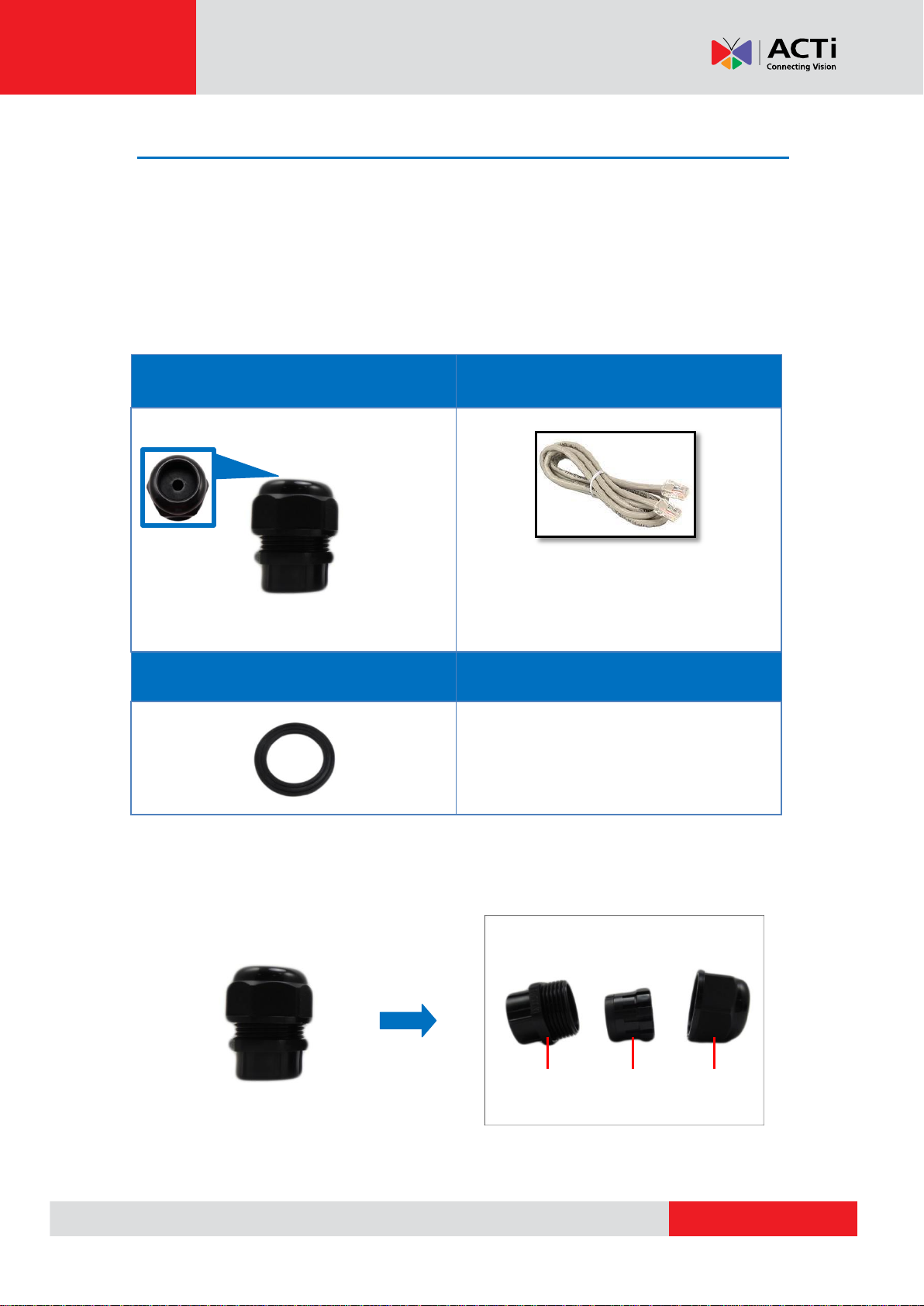

Before connection, prepare the following materials:
Female Cable Gland
(included in the camera package)
Exterior-Grade Ethernet Cable
(not included in the package)
NOTE: Exterior-grade cables are
already waterproof. Not included in
the package.
Washer
(included in the camera package)
Perform the following to waterproof the “pigtail” using the female cable gland:
1. Disassemble the female cable gland as shown below:
Cable Gland
Sealing
Insert
Clamping
Nut

www.acti.com
Hardware Manual
20
2. Insert the clamping nut into the Ethernet cable.
3. Insert the sealing insert with claw.
4. Insert the gland body into the Ethernet cable.
5. On the “pigtail” side, insert the washer into the “pigtail”.
