ACTi TCM-7811 User manual
TCM-7811
H.264 Megapixel IP IR D/N CCD Vandal Proof
Outdoor PoE Fixed Dome
(DC 12V / PoE)
Ver. 2012/6/25
www.acti.com
TCM-7811 Hardware User’s Manual
2
Table of Contents
0. Precautions 3
1. Introduction 4
Package Contents ........................................................................... 4
Features and Benefits ..................................................................... 5
Safety Instructions .......................................................................... 7
Physical description ........................................................................ 9
2. Installation Procedure 15
Connect the IP Outdoor Rugged Dome........................................ 15
1) Remove the cover............................................................... 15
2) Select cable entrance......................................................... 15
3) Connect cables to connectors ............................................ 15
Mount the IP Outdoor Fixed Dome (Surface)............................... 16
Mount the IP Outdoor Fixed Dome (Flush) .................................. 18
Mount the IP Indoor Fixed Dome (Wall) ...................................... 19
How to Do the Waterproof Installation ....................................... 20
Product Specification.................................................................... 23
3. Accessing Camera 24
If you have DHCP server / router .................................................. 24
If you do
NOT
have DHCP server / router ..................................... 24
www.acti.com
TCM-7811 Hardware User’s Manual
3
0. Precautions
Read these instructions
You should read all the safety and operating instructions before using this product.
Heed all warnings
You must adhere to all the warnings on the product and in the instruction manual. Failure to follow
the safety instruction given may directly endanger people, cause damage to the system or to other
equipment.
Servicing
Do not attempt to service this video device yourself as opening or removing covers may expose
you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
Trademarks
All names used in this manual are probably registered trademarks of respective companies.
Liability
Every reasonable care has been taken during the writing of this manual. Please inform your local
office if you find any inaccuracies or omissions. We cannot be held responsible for any
typographical or technical errors and reserve the right to make changes to the product and
manuals without prior notice.
FCC/CE Regulation
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the users will be required to correct the interference at their own
expense.
www.acti.com
TCM-7811 Hardware User’s Manual
4
1. Introduction
Package Contents
TCM-7811
Product CD Terminal Blocks for Power, DI/O & Audio
Warranty Card Accessories
Drill Template
www.acti.com
TCM-7811 Hardware User’s Manual
5
Features and Benefits
This is a cutting-edge digital video surveillance camera. It can compress and transmit real time
images with outstanding image quality (15 FPS @ SXGA, 1280x960) through a standard TCP/IP
network. This camera is your best choice to build an intelligent IP surveillance system.
H.264/MPEG-4/MJPEG Triple Codec Dual Streaming
This device supports 3 compression formats, H.264, MPEG-4 and MJPEG. It brings superior image
quality at 15 frames per second up to a resolution of SXGA (1280 x 960) pixels, and offers up to 30
frames per second in HD720 (1280x720) / VGA (640 x 480) / QVGA and QQVGA.
Rugged Vandal-Proof Construction withstands all kinds of abuse.
Special engineering polymer clear dome shell protects against brute force impact. It is extremely
durable against any tampering intruder. IP66 construction isolates electronics against the elements.
Rain, sleet or snow, nothing goes through.Temperature control ensures cold-start capability for use
in the worst of weathers.
Built-in Hardware Motion Detection
No more external motion sensors are required. You may assign up to 3 video motion detection
areas. By tuning the object size and sensitivity, it will reliably detect objects passing though in view.
Hardware motion detection also offers better sensitivity and faster response time than software
motion detection.
Powerful Bundled Surveillance Software
To extend the capabilities of the IP Camera, a powerful surveillance program is included in the
package for free. Users can easily use an existing PC as a digital video recorder. Scheduled
recording and manual recording keep every important video recorded in the local hard disk.
Reliable and accurate motion detection with instant warning enables immediate response in every
condition. Quick and simple search and playback function lets you easily find the images and video
you want.
Software Development Kit Support
This IP Camera can be integrated or controlled by applications from third party software developers.
Software developers can save considerable efforts by using our Streaming Library or ActiveX
control. Please contact us for details on integration support.
www.acti.com
TCM-7811 Hardware User’s Manual
6
Digital Time Code Embedded
The “Digital Time Code Embedded”function records video time in the video stream. Therefore,
each image frame is marked with its original recording time. It is very useful when users want to
find the video at an exact time or between a certain time intervals.
www.acti.com
TCM-7811 Hardware User’s Manual
7
Safety Instructions
Don’t use the power supply with other voltages
This device is likely to be damaged or damage other equipments / personnel, if you use a power
supply with different voltage than the one included with this device. All warranty of this product will
be voided in the situations above.
Cleaning
Disconnect this video product from the power supply before cleaning.
Attachments
Do not use attachments not recommended by the video product manufacturer as they may cause
hazards.
Water and Moisture
Do not use this video product near water, for example, near a bathtub, washbowl, kitchen sink, or
laundry tub, in a wet basement, or near a swimming pool and the like.
Don’t use accessories not recommended by the manufacturer
Only install this device and the power supply in a dry place protected from weather
Servicing
Do not attempt to service this video product yourself as opening or removing covers may expose
you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
Damage Requiring service
Disconnect this video product from the power supply immediately and refer servicing to qualified
service personnel under the following conditions.
1) When the power-supply cord or plug is damaged
2) If liquid has been spilled, or objects have fallen into the video product.
3) If the video product has been directly exposed to rain or water.
4) If the video product does not operate normally by following the operating Instructions in this
manual. Adjust only those controls that are covered by the instruction manual, as an improper
adjustment of other controls may result in damage, and will often require extensive work by a
qualified technician to restore the video product to its normal operation.
www.acti.com
TCM-7811 Hardware User’s Manual
8
Safety Check
Upon completion of any service or repairs to this video product, ask the service technician to
perform safety checks to determine if the video product is in proper operating condition.
www.acti.com
TCM-7811 Hardware User’s Manual
9
Physical description
1) LED Indicators
There are four Red LED lights numbered from 1 to 4.
LED 1 indicates Boot Up status. It will briefly turn on and off during system boot up, and will stay
continuously on after camera system completes boot up.
LED 2 indicates Power status. It will stay on as long as power is connected to the camera.
LED 3 indicates Heater status. It will light up when camera detects low temperature and activates
the internal heater.
LED 4 indicates Fan status. It will light up when Fan is operational. Fan will operate in high
temperature to cool the device, and in low temperature to spread the heat from heater through the
device.

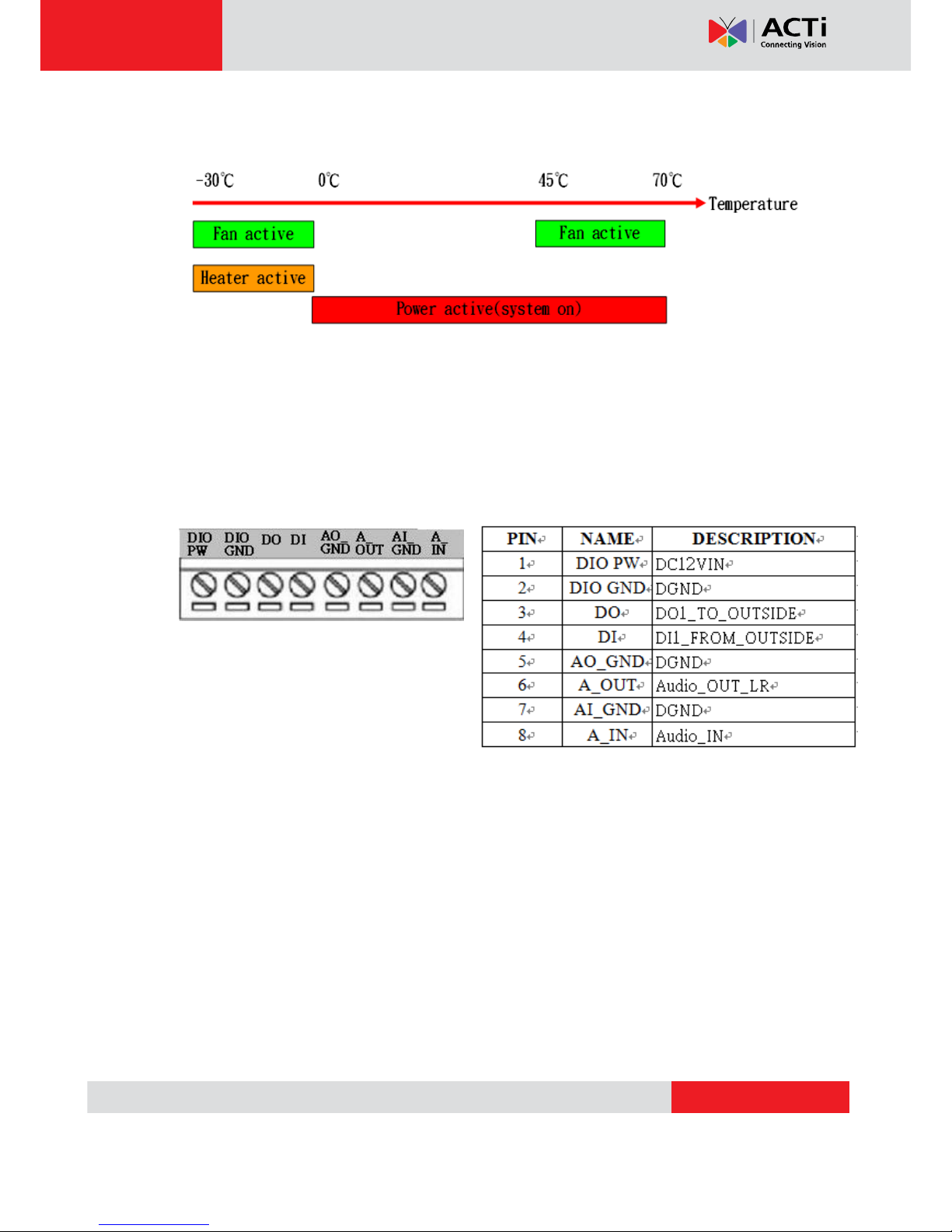

Please note that this is the “Internal Temperature”as measured by the electronics. The external
temperature will be different from the internal temperature in most cases. The temperatures at
which fan and heater turn on and off are shown in the graph below.
www.acti.com
TCM-7811 Hardware User’s Manual
10
Note: PoE powered rugged dome does not have enough power available and cannot
support Heater.
2) Digital Input / Output & Audio Terminal Connector
This IP Camera supports DI/O & Audio input / output via terminal block.
Used in applications like motion detection, event triggering, time lapse recording, alarm
notifications, etc., the I/O terminal connector provides an interface to respective devices.The
Terminal Block wiring diagram is as follows:
This camera provides:
•1 transistor output - For connecting external devices such as relays and LEDs. Connected
devices can be activated by Output buttons on the Live View page or through video management
software.
•1 Digital Input - An alarm input for connecting devices that can toggle between an open and
closed circuit, for example: PIRs, door/window contacts, glass break detectors, etc. The device will
detect the change in digital input and transmit the signal to video surveillance servers.
Terminal Pin Define is described as below:
www.acti.com
TCM-7811 Hardware User’s Manual
11
3) Power Input
Connect the power adaptor here if your power input is DC12V.
4) CDS Sensor
CDS Sensor detects the level of lighting in the environment, and helps the camera decide between
day and night modes.
5) Ethernet Port
The IP device connects to the Ethernet via a standard RJ45 connector. Supporting NWAY, this IP
device can auto detect the speed of local network segment (10Base-T/100Base-TX Ethernet).
Pin Name
Description
Spec
DIO PW
Electrically connected in parallel with the con-
nector for the power supply, this pin provides an
auxiliary connector for mains power to the unit.
This pin can also be used to power auxiliary
equipment, with a maximum current of 100mA.
Voltage: 12V DC,
Max: 1.2W
DIO GND
Ground
DO
(Transistor
Output)
Uses an open-collector NPN transistor with the
emitter connected to the GND pin. If used with an
external relay, a diode must be connected in
parallel with the load, for protection against
transient voltages.
Max load = <100mA
Max voltage = 24V
DC (to the
transistor)
DI
(Digital
Input)
Connect to GND to activate, or leave floating (or
unconnected) to deactivate.
Must not be
exposed to
voltages greater
than 30V DC.
PIN
NAME
DESCRIPTION
1
12V
DC Power Input
2
GND
Ground Pin
www.acti.com
TCM-7811 Hardware User’s Manual
12
6) IR LED
IR LED lights provide sources of infrared illumination during night mode. This ensures that night
time image stays clear even if there’s no visible light.
7) Focus Lever
The focus lever controls the distance to the focal plane.You may fix or free the lever by turning the
screw handle at the top.
8) Zoom Lever
The Zoom lever controls the zoom or level of magnification.You may fix or free the lever by turning
the screw handle at the top.
9) Pan, Tilt and Zoom adjustment screws
This Dome Camera can see in multiple angles.The three screws can fix the respective axis at its
current location. The ring inside the sphere controls the rotation, the knob to the side of the sphere
controls the tilt and the knob at the base of the sphere controls the Pan.
10) Power Button
Press the Power Button and then camera will reboot automatically.
11) Reset Button
Step 1: Press the Reset Button with a sharp tipped object, like the accessory we provide and hold
it, and then press the Power Button.
Step 2: Release Power Button and continue to hold the Reset Button.
Step 3: The red Power LED light will flash on for 3 second first, turn off for about 15 seconds, flash
on for another second and turn off again. By this time the reset to default operation is already
www.acti.com
TCM-7811 Hardware User’s Manual
13
completed. This will take around 20 seconds from power up. You may then release the reset
button. This length of time fluctuates slightly with the environment. The Power LED light will come
back on and stay on after a few more seconds. The unit will start up with factory default settings
automatically.
On (3s) On
1s
Power On
About 20 Seconds
Stay On
Off (about 15s) Off (10~15s)
Restore to Default
Complete
12) Micro SD Card Slot*
Insert your Micro SD card here for local recording on camera.
This IP device is compliant with Micro SDHC 4~32GB class 4/6/10 card.
* Require in firmware version 4.12.09 and up.
www.acti.com
TCM-7811 Hardware User’s Manual
14
The Lens Housing sphere has a cover that can be easily opened in two steps.You can lift the cover
up by the two ears then slide the cover backwards to expose the interior.
www.acti.com
TCM-7811 Hardware User’s Manual
15
2. Installation Procedure
Connect the IP Outdoor Rugged Dome
1) Remove the cover
Remove the dome cover with special hex wrench in the accessory kit.
2) Select cable entrance
There are two conduit holes on this rugged dome. One is at the bottom, while the other is at the
side and covered with a plug. Remove the plug if your cable will go through the one at the side of
the rugged dome
3) Connect cables to connectors
Please follow the instructions in the Physical Description section for how to connect to each
connector.
www.acti.com
TCM-7811 Hardware User’s Manual
16
Mount the IP Outdoor Fixed Dome (Surface)

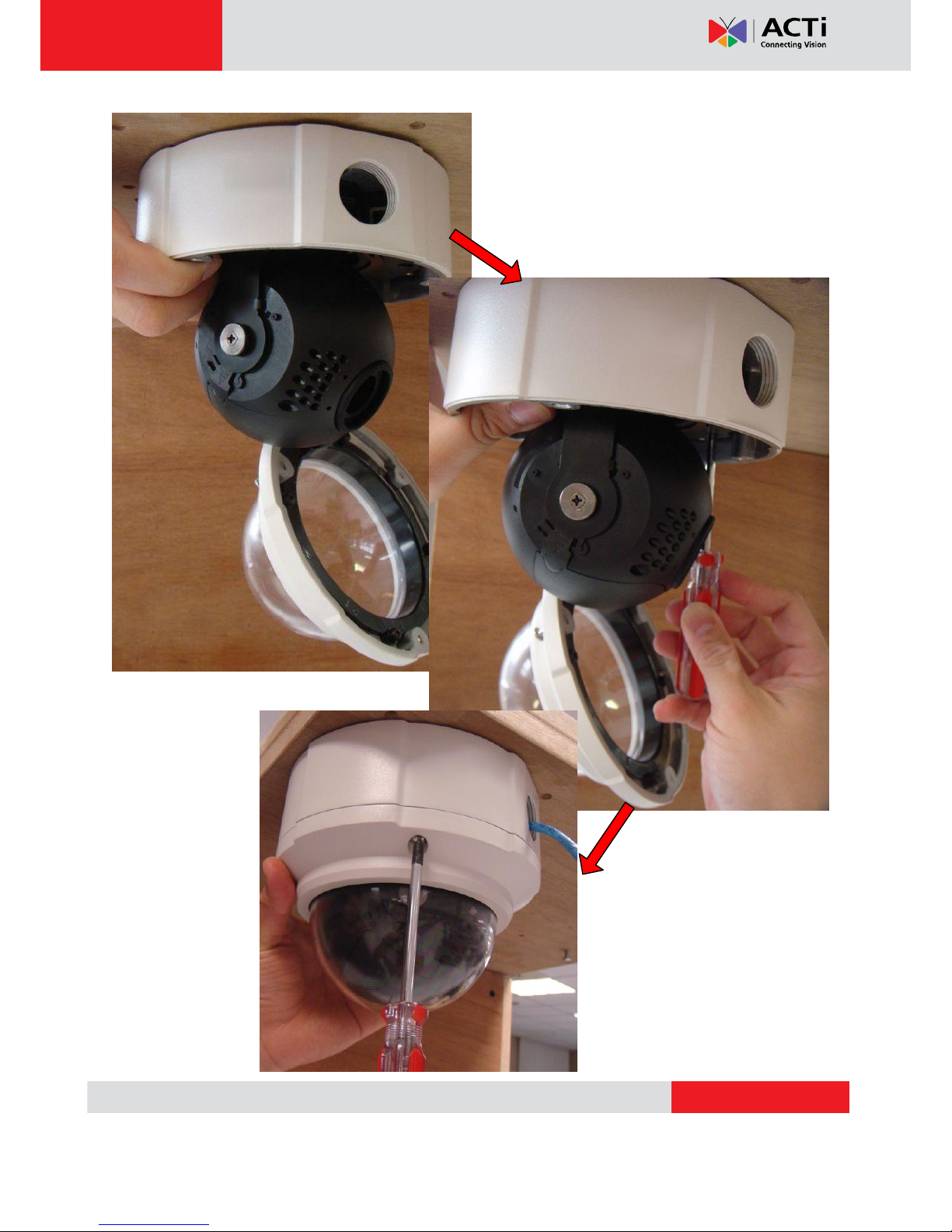

To mount the device to the ceiling, drill three holes that correspond to the three screw holes. Hold
the camera against the ceiling, secure it with the three screws, connect the cables and replace the
dome cover.
www.acti.com
TCM-7811 Hardware User’s Manual
17
www.acti.com
TCM-7811 Hardware User’s Manual
18
Mount the IP Outdoor Fixed Dome (Flush)
www.acti.com
TCM-7811 Hardware User’s Manual
19
Mount the IP Indoor Fixed Dome (Wall)
www.acti.com
TCM-7811 Hardware User’s Manual
20
How to Do the Waterproof Installation
The following installation procedure makes the camera be water-resistant even for the situations
where the camera can easily be flooded by pouring rain.
The important part to focus on during the installation:
The protection of the cabling has to be done by a proper flex
conduit. The size of the flex conduit that matches with the
conduit gland is is 3/4” (trade size), or with actual physical
diameter of 26.441mm.
Have the Ethernet cable inserted through the flex
conduit together with RJ-45 connector.You may also
consider to do the RJ-45 connector crimping after
pushing the cable through the conduit.
Disassemble the conduit gland.
Slide the clamping nut around flex conduit some 10-20 cm
away from the top. Fit the sealing insert (made of
rubber) to the top of the flex conduit.
On the camera side, decide which of the 2 possible holes you are going to use to connect the flex
conduit. There is one hole on the side, and one on the bottom. Whichever you pick, remember to
seal off the other one with the metal patch (included in the camera set).
Other manuals for TCM-7811
1
Table of contents
Other ACTi Security Camera manuals
