Active Vision ACC-P106N-2VSW-W User manual

User Manual
WEATHERPROOF IR
IP CAMERA

2
WARINGS
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS.
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
COPYRIGHT
THE TRADEMARKS MENTIONED IN THE MANUAL ARE LEGALLY REGISTERED
TO THEIR RESPECTIVE COMPANIES.

CONTENT
I
II
III
A.
B.
C.
Preface 4
Product Specifications 4
Product Installation 6
Monitor Setting 6
Hardware Installation 7
IPAssignment 9
D.
IV
V
A.
B.
C.
D.
VI
Install ActiveX control 11
Live Video 13
IP Camera Configuration 15
System 16
Network 20
A/V Setting 30
Event List 34
Network Configuration 37
VII I/O Configuration 38
VIII Factory Default 40
IX Package contents 40
XAppendix I 41
XI Appendix II 42
V1.0_121126

4
I Preface
II
This IP Camera is a Full HD 1080P waterproof IR IP camera. It has the web
server built in. User can view real-time video via IE browser. IP Camera supports
simultaneously H.264, Motion JPEG & MPEG4 video compression and dual
streaming which provides smooth and high video quality. IP66 waterproof
housing can adapt to outdoor environment. With user friendly interface, it is an
easy-to-use IP camera which is designed for security application.
Product Specifications
Main Features:
•Full HD 1080P@30fps Real Time
•2M Mega-Pixel CMOS Sensor
•Digital Wide Dynamic Range
•Shutter Speed adjustable
•Sense Up adjustable
•Day & Night Switch time control manual
•Power over Ethernet
•IP66
•Bracket Management
•H.264/ M-JPEG/ MPEG4 compression
•Micro SD card back-up (Option)
•Support iPhone/Android/Mac
•SDK for Software Integration
•Free Bundle 36ch recording software (IP Camera Recorder)
Hardware
CPU
ARM 9 ,32 bit RISC
RAM
256MB
Flash
16MB
Image sensor
1 / 2.7” Megapixel CMOS sensor
Sensitivity
0.1 Lux @30fps (IR Off)
0.05 Lux @30fps (IR On)
Shutter Time
1 / 5 ~ 1 / 10,000 sec
Lens Type
[email protected]
I/O
DI/DO

5
Power over Ethernet
Yes
Operating Temperature
-10°C ~ 45°C
Dimensions
φ83mm * H180mm
Weight
1000g
IR LEDs (Optional)
LEDs
35 units
IR distance (meter)
25m
Network
Ethernet
10/ 100 Base-T
Network Protocol
HTTP, HTTPS, SNMP, QoS/DSCP,Access list, IEEE
802.1X, RTSP, TCP/IP, UDP, SMTP, FTP, PPPoE, DHCP,
DDNS, NTP, UPnP, 3GPP, SAMBA, Bonjour
System
Video Resolution
1920x1080@30fps, 1280x720@30fps, ,640x480@30fps,
320x240@30fps, 176x144@30fps
Video Adjust
Brightness, Contrast, Hue, Saturation, Sharpness, AGC,
Shutter Speed adjustable, Sense-Up, D-WDR, Flip, Mirror,
Noise reduction, Exposure, Day & Night adjustable
Triple Streaming
Yes
Image Snapshot
Yes
Full Screen Monitoring
Yes
Privacy Mask
Yes, 3 different areas
Compression Format
H.264/ M-JPEG/ MPEG4
Video Bitrates Adjust
CBR, VBR
Motion Detection
Yes, 3 different areas
Triggered Action
Mail, FTP, DO, SAMBA
Security
Password protection, IP address filtering, HTTPS encrypted
data transmission, 802.1X port-based authentication for
network protection, QoS/DSCP
Firmware Upgrade
HTTP mode, can be upgraded remotely
Simultaneous
Connection
Up to 10
Micro SD card management (Option)
Recording Trigger
Motion Detection, IP check, Network break down (wire
only),Schedule, DI
Video Format
AVI, JPEG
Video Playback
Yes
Delete Files
Yes
Web browsing requirement

6
OS
Windows 7, 2000, XP, 2003, Microsoft IE 6.0 or above,
Chrome, Safari, Firefox
Mobile Support
iOS 4.3 or above, Android 1.6 or above.
Hardware Suggested
Intel Dual Core 2.53G,RAM: 1024MB, Graphic card: 128MB
III
A.
Product Installation
Monitor Setting
1. Right-Click on the desktop. Select “Properties”
2. Change color quality to highest (32bit).

7
B. Hardware Installation
1. Connect power adaptor first.
2. Connect IP Camera to PC or network
3. Set up the network configurations according to the network environment. For
further explanation, please refer to chapter VI: “Network Configuration for IP
Camera”.
4. IP Camera Instruction
The Cable and connector is as below. About I/O setting, please refer to
chapter V in User Manual: "I/O Configuration" for detail.
5. This IP camera belongs to external vari-focal lens adjustment camera. Please
adjust “ZOOM” first and “FOCUS” as following picture to complete the
adjustment.
6. PoE (Power over Ethernet) 802.3at, 30.0W PoE Switch is recommended
Power over Ethernet (PoE) is a technology that integrates power into a
standard LAN infrastructure. It enables power to be provided to the network
device, such as an IP phone or a network camera, using the same cable as
that used for network connection. It eliminates the need for power outlets at

8
the camera locations and enables easier application of uninterruptible power
supplies (UPS) to ensure 24 hours a day, 7 days a week operation.

9
C. IPAssignment
1. Use the software, “IP Installer” to assign the IP address of IP Camera. The
software is in the attached CD.
2. There are two languages for the IP installer
a. IPInstallerCht.exe: Chinese version
b. IPInstallerEng.exe: English version
3. There are 3 kinds of IP configuration.
a. Fixed IP (Public IP or Virtual IP)
b. DHCP (Dynamic IP)
c. Dial-up (PPPoE)
4. Execute IP Installer
5. For Windows XP SP2 user, it may popup the following message box. Please
click “Unblock”.
6. IP Installer configuration:

10
7. IP Installer will search all IP Cameras connected on LAN. The user can click
“Search Device” to search again.
8. Click one of the IP Camera listed on the left side. The network configuration
of this IP camera will show on the right side. You may change the “name”
of the IP Camera to your preference (ex: Office, warehouse). Change the
parameter and click “Submit” then click “OK”. It will apply the change and
reboot the Device.
9. Please make sure the subnet of PC IP address and IP CAM IP address are
the same.
The same Subnet:
IP CAM IP address: 192.168.1.200
PC IP address: 192.168.1.100
Different Subnets:
IP CAM IP address: 192.168.2.200
PC IP address: 192.168.1.100
To Change PC IP address:
Control Panel→ Network Connections→ Local Area Connection
Properties→ Internet Protocol (TCP/IP) → Properties
Please make sure your IP Camera and PC have the same Subnet. If not,
please change IP Camera subnet or PC IP subnet accordingly.

11
10. A quick way to access remote monitoring is to left-click the mouse twice on
a selected IP Camera listed on “Device list” of IP Installer. An IE browser will
be opened.
11. Then, please key in the default “user name: admin” and “password: admin”.
D. Install ActiveX control
For the first time to view the camera video via IE, it will ask you to install
the ActiveX component.

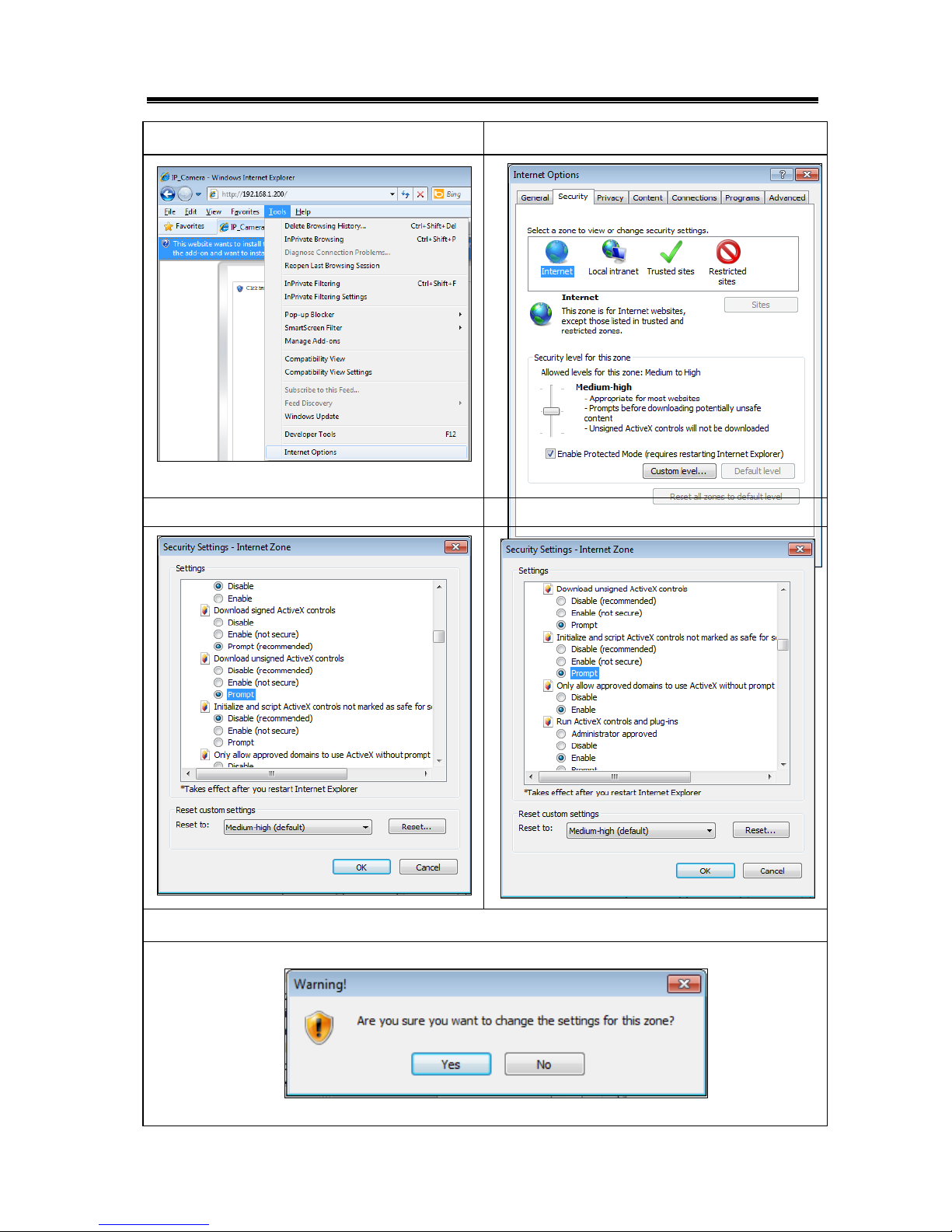

If the installation failed, please check the security setting for the IE browser.
1. IE→ Tools → Internet Options… → Security Tab → Custom Level… →
Security Settings → Download unsigned ActiveX controls→ Select “Enable”
or Prompt.
2. IE → Tools → Internet Options… → Security Tab → Custom Level…
→Initialize and script ActiveX controls not marked as safe → Select “Enable” or
Prompt.

12
1
2
3
4
5
When popup the following dialogue box, click “Yes”.

13
IV Live Video
Start an IE browser, type the IP address of the IP camera in the address field.
It will show the following dialogue box. Key-in the user name and password. The
default user name and password are “admin” and “admin”.
When the IP Camera is connected successfully, it shows the following
program interface.
1. : Get into the administration page

14
2. : Video Snapshot
3. Show system time, video resolution, and video refreshing rate
4. Adjust image, 1/2x, 1x, 2x
5. Select video streaming source (If ”Video Setting” the streaming 2 setting is
closed, this option will not appear here.)
6. Show how many people connect to this IP camera.
7. Tick the Relay out "ON" box to enable the relay output.
Double-click the video to switch to full screen view. Press “Esc” or double-
click the video again back to normal mode.
Right-Click the mouse on the video, it will show a pop-up menu.
1. Snapshot: Save a JPEG picture
2. Record Start: Record the video in the local PC. It will ask you where to save
the video. To stop recording, right-click the mouse again, select “Record
Stop”. The video format is AVI. Use Microsoft Media Player to play the
recorded file.
3. Mute: Turn of the audio. Click again to turn on it.
4. Full Screen: Full-screen mode.
5. ZOOM: Enable zoom-in and zoom-out functions. Select “Enable digital zoom”
option first within the pop-up dialogue box and then drag and drop the bar to
adjust the zoom factors.

15
V. IP Camera Configuration
Click to get into the administration page as below.
Click to back to the live video

16
A. System
1. System Information
a. Server Information: Set up the camera name, select language, and set up
the camera time.
(i)
(ii)
Server Name: This is the Camera name. This name will show on the IP
Installer.
LED Indicator: The LED in the front of camera flickers when processing
data. Turn off the function if you prefer no LED light.
(iii) Select language: There are English, Traditional Chinese, and Simplified
Chinese to select. After changed, it will show the following dialogue box
for the confirmation of changing language.
b. OSD Setting: Select a position where date & time stamp / text showing on
screen.
Moreover, click Text Edit can entry to adjust the OSD contents which
is alpha of text. Finally, click Upgrade button to reserve the setting.

17
c. Server time setting: Select options to set up time - “NTP”, “Synchronize
with PC’s time”, “Manual”, “The date and time remain the same”
2. User Management
IP CAMERA supports three different users, administrator, general user, and
anonymous user.

18
a. Anonymous User Login:
Yes: Allow anonymous login
No: Need user name & password to access this IP camera
b. Add user:
Type the user name and password, then click “Add/Set”.
c. Click “edit” or “delete” in the user list to modify them. The system will ask
you to key in the password in the pop-up window before you edit the user
information.
3. System update:

19
a. To update the firmware online, click “Browse…” to select the firmware.
Then click “Upgrade” to proceed.
b. Reboot system: re-start the IP camera
c. Factory default: delete all the settings in this IP camera.
d. Setting Management: User may download the current setting to PC,
or upgrade from previous saved setting.
(i)
(ii)
Setting download:
Right-click the mouse button on Setting Download → Select “Save
AS…” to save current IP CAM setting in PC → Select saving directory
→ Save
Upgrade from previous setting:
Browse → search previous setting → open → upgrade → Setting
update confirm → click index.html. to return to main page

20
B. Network
1. IP Setting
IP Camera supports DHCP and static IP.
a. IP Assignment
(i)
(ii)
DHCP: Using DHCP, IP CAMERA will get all the network parameters
automatically.
Static IP: Please type in IP address, subnet mask, gateway, and DNS
manually.
b. IPv6 Assignment: IPv6 is a newer numbering system that provides a much
larger address pool than IPv4, which accounts for most of today’s Internet
traffic. You can set up IPv6 manually by key in Address, Gateway, and
DNS, or enable DHCP to assign the IP automatically.
