ACTOR-MATE Crossfire AL48 Series User manual

Introduction
Thank you for selecting Crossfire. Crossfire is a four-channel DMX laser which can be
controlled via a standard DMX controller. It is a lightweight, mini intelligent fixture
and is an ideal product for discos, small clubs, exhibitions and any place that need
visionary effect. Crossfire creates exciting dual beam show with double barrel action
and four operating modes. For safe operation, read this manual before powering or
installing the fixture, follow the safety precautions listed below, and observe all
warnings printed in this manual and on the fixture.
Safety Precautions
 Do not spill liquids in to or on to your unit. If this ever happens, disconnect the main
power immediately. Do not connect this unit to any dimmer pack.
 Always disconnect from main power before making any type of connection.
 Be sure to locate this unit in a place with adequate ventilation at least 15 cm from a
wall, and mount this unit in safe and stable matter.
 To prevent fire or shock hazard, do not expose this unit to a high temperature or
high humidity area. Please unplug unit when not in use.
 Always keep combustible materials away from the fixture.
 This unit is intended for indoor use. Use of this unit outdoors voids all warranties.
 Always refer service to a qualified technician. Never look directly into laser beam.
 Occasional breaks are necessary to prevent breakdowns.
 Caution - Use of controls or adjustments or performance of procedures other
than as specified herein may result in hazardous radiation exposure!
Set Up
Unpacking Crossfire comes with: 1 hanging bracket, 2 clamp levers, 2 washers,
1 power cord and 1 user manual. Unpack carefully and be sure that no damage
has occurred during shipping. If there is anything missing or appear to be
damaged please contact your dealer.
Power Connection Be sure the source voltage in your area matches the required
voltage for your Crossfire before plugging your unit in. Incorrect voltage selection
will detrimentally affect the operation of this product.
DMX Cable Connection Crossfire is a four-channel DMX fixture that can be
operated with universal DMX controller. This unit and DMX controller require a
standard 3-pin XLR connector for data input and data output.
Installation/Mounting Crossfire should be properly mounted by using a suitable
hanging clamp and safety cable. Use in a well-ventilated area. Be sure no
ventilation slots are blocked.

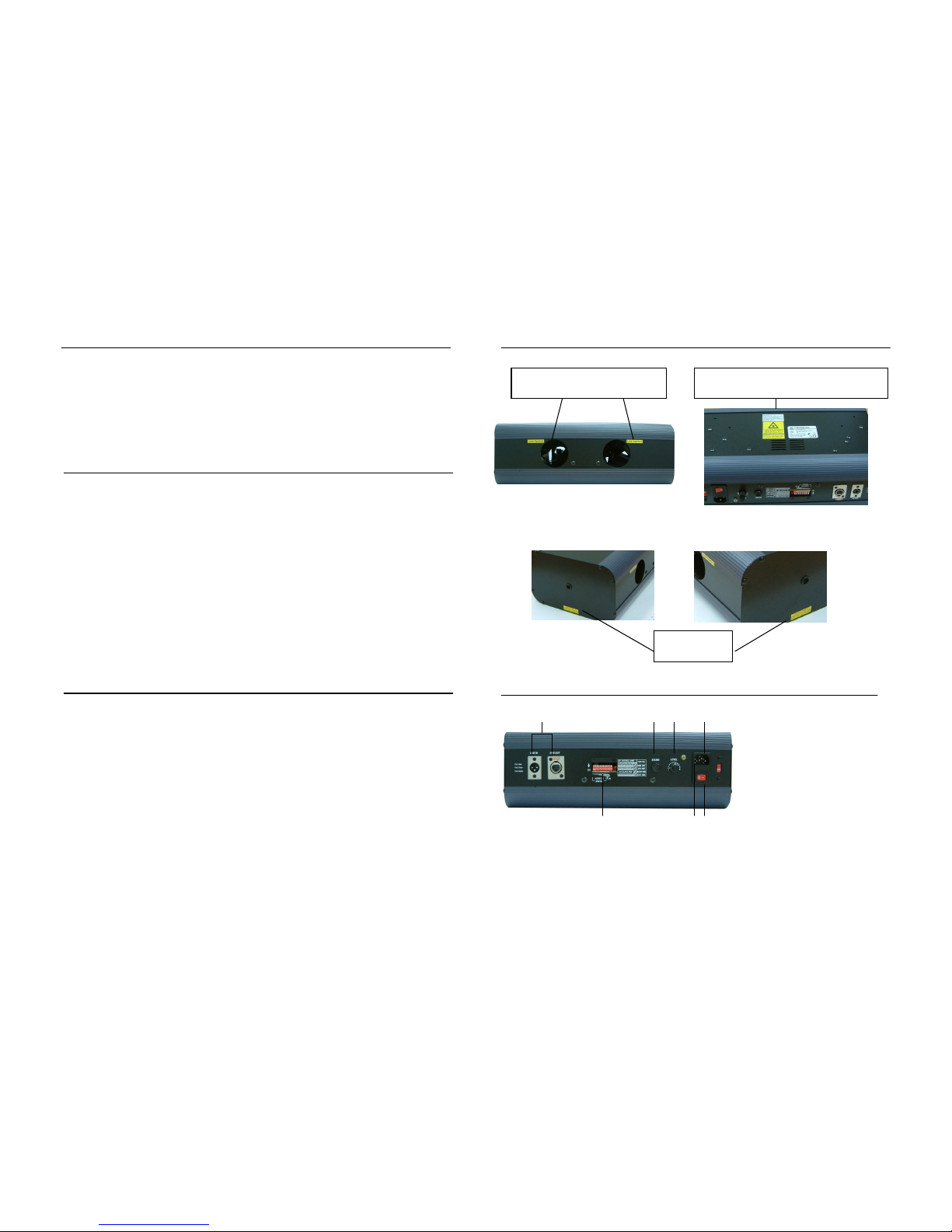

Safety Label Position
Front Panel Bottom Panel
Left and Right Side Panel
Control Panel Introduction
   
 
Certification, identification and warning label
Warning label
Laser aperture & aperture label
 Power Cord Connection
 Fuse
 Power Switch
 Sensitivity Adjustment Knob
 Microphone
 DMX In & Out

DIP Switch Pin

Operating Modes (Cont.)
DMX Signal Levels
Channel 1 Channel 2
Range Lines Selection Range Barrel
252-255 Sound Active
247-251 Auto
226-255
Lines change every 5
seconds
208-225
Lines change every 3
seconds
135-246
Counterclockwise
157-207
Dotted Line 3
122-134 Stopped
105-156 Dotted Line 2
53-104 Dotted Line 1
10-121
Clockwise
1-52
Line
0-3 Off 0-9 Stopped
Operating Modes (Cont.)
DMX Signal Levels
Channel 3 Channel 4
Range Pan No. 1 Range
Pan No. 2
201-255
Sound Active 201-255
Sound Active
200
0
200
0
0°
300°
300°
0°

Fuse Replacement
Always disconnect from main power supply before attempting to replace the fuse
Remove the old fuse from the holder and replace with the exact same type fuse.
Replacement with anything other than the specified part may damage your unit.
Trouble Shooting
 If there is no light from the unit, please check the main power supply and fuse.
 If unit does not respond to DMX, please check the DMX cables are connected
properly and are wired correctly.
 If unit does not response to the music please check the sound-activation
adjustment.
 If problems cannot be solved please contact your dealer for service
Cleaning
Use a soft cloth and normal glass cleaner to clean the outside casing and the
hexagonal reflection mirror. Cleaning frequency depends on the environment in which
the fixture operates. Be sure to dry all parts before plugging the unit back in.
Specifications
Model No. AL48-05R/ 30R/ 50R/ 100R AL38-05G/ 20G/ 30G
Laser power
4.9/ 30/ 50/ 100mW x 2 4.9/ 20/ 30mW
Laser color Red Green
Model No. AL48-5R5G
AL48-50R20G
AL48-100R30G
AL48-200R50G
Laser Power
4.9~200mW Red & 4.9~50mW Green
Laser color Red and Green
Net Weight 6.5kgs
Power AC 100V~120V or 220V~240V 50/60HZ
Classification
4.9mW to 20mW: 3R/ 30mW to 200mW: 3B
Size (mm) L435 × W220 × H135
Fuse 20mm×2A
Material Metal
Beam Divergence
< 1.5 mrad
Op. Temperature
18 ~ 25 ℃
Operating Modes
1. Stand-Alone Operation (Auto, Sound Active Mode)
Auto mode
 The unit runs built-in program to change the laser effects automatically. Set
DIP switch pin 10 to ON, other pins to OFF to run Auto mode
Sound Active mode
 This unit has built-in program that will react to sound and music under Sound
Active mode. Set all DIP switch pins to OFF to run Sound Active mode.
Please adjust “Sensitivity Adjustment Knob” to fine-tune the optimum level of
sound reaction.
2. Master-Slave Operation (Auto, Sound Active Mode)
This mode allows user to link up to 32 units to run the Master-Slave operation.
In the Master-Slave operation one unit will act as the controlling unit and the
others will react to the controlling unit. Daisy chain your units via the standard
XLR microphone cables in the following configuration: ‘Out’ from the first unit to
‘In’ on the second, ‘Out’ from the second to ‘In’ on the third and so on.
Auto mode
 To set the master: Set DIP switch pin 10 and 11 to ON, other pins to OFF.
 To set the slaves: Set pin 1 to ON, other pins to OFF
Sound Active mode
 To set the master: Set DIP switch pin 11 to ON, other pins to OFF.
 To set the slaves: Set pin 1 to ON, other pins to OFF
3. DMX Operation
DMX operation gives the users freedom to create their own programs tailored to
their own individual needs. To run this unit in DMX mode, connect the unit to
any standard DMX controller via XLR connectors. Please consult DMX
controller manual to determine address.
Function Selection Chart
DIP SWITCHES CHART
1
2
3
4
5
6
7
8
9
10
11
12
FUNCTION
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
N/A
N/A
SOUND MODE
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
N/A
N/A
AUTO MODE
SET SOUND / AUTO MODE ON
N/A
MASTER
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
N/A
SLAVE
SET ADDRESS OFF
OFF
N/A
DMX MODE

Crossfire
AL48 Series User Manual
Your Best Mate
in Laser Lighting!
