1Getting started
1.1 Unpacking and assembly
1.1.1 Chassis packaging
The Prosody X box contains the following accessories:
•One IEC 60320 type C13 power cord
•Standard 19 inch rack locating brackets (fitted to chassis)
•Four low profile adhesive feet (fitted to chassis, removable)
The chassis packaging is made from material which can be recycled.
1.1.2 Prosody X location
The chassis must be installed in a restricted access location in accordance with IEC
60950-1: 2005 Clause 1.7.14.
1.1.3 Rack mounting 19 inch equipment
WARNING
THE CHASSIS WEIGHS UP TO 3KG. THE WEIGHT SHOULD BE TAKEN INTO
CONSIDERATION WHEN EQUIPMENT CABINETS AND MOUNTING
HARDWARE ARE PURCHASED AND INSTALLED. CONSULT YOUR
COMPANY HEALTH & SAFETY PROCEDURES AND POLICIES FOR
GUIDANCE ON LIFTING AND HANDLING.
Care must be taken to prevent a hazardous condition due to uneven mechanical
loading.
The unit may also be located on a shelf in a 19 inch cabinet
1.1.4 Free standing
The unit is also suitable for free standing operation, in which case the standard rack
mounting brackets may be removed. In free standing installations care must be taken
to provide adequate strain relief to all cables to prevent damage to the unit if
accidentally moved.
1.1.5 Airflow and cooling
CAUTION
The chassis uses forced air-cooling internally. It is imperative that Prosody X
systems are operated with all covers fitted and that none of the ventilation
holes/slots on the front, or rear of the chassis are obstructed. Installation in a rack
should be such that the airflow required for safe operation is not compromised.
When rack mounted in a closed or multi-unit cabinet, the operating environment of
the cabinet environment may be greater than the room ambient. In this case
consideration should be given to maintaining an operating environment that does not
exceed 40 °C.
5 of 22

Prosody X Installation guide
1.1.6 Power connection
The Prosody X is supplied as an AC powered system. The Prosody X will auto adjust
to the supplied voltage in AC installations (100 to 240 volts AC ± 10% at 50 to 60Hz ±
3Hz). The internal power supply is rated at a maximum of 55W, however the unit is
designed to consume no more than 25W during normal operation (see Appendix D).
Consideration should be given to the connection of the equipment to the supply circuit
and the effect that overloading of the circuits might have on overcurrent protection
and supply wiring. Appropriate consideration of equipment nameplate ratings should
be used when addressing this concern.
1.1.7 Earth connection
Reliable earthing of rack mounted equipment must be maintained. Particular attention
should be given to supply connections other than direct connections to the branch
circuit, such as mains distribution strips that are typically located inside equipment
cabinets. See note below:
NOTE
Read the safety information in before installing any equipment.
1.1.8 Electrostatic discharge precautions
During installation and maintenance, handle all connectors by their plastic casing or
connector shield. Do not touch metal parts within any socket as you plug connectors
in.
Before plugging in any interface cables, ground yourself to dissipate any static charge
you may be carrying.
These precautions will minimise the chance of any ESD damage to the Prosody X.
1.1.9 1U chassis physical details
The Prosody X chassis is designed to fit into 19 inch rack mounting cabinets
commonly found in telecoms switch room environments.
Pin Width Depth Height Weight #
With rack mounts 435mm 210mm 45mm max 3kg
Without rack
mounts 430mm 210mm 45mm max 3kg
# Subject to variation between different system capacities
6 of 22

Prosody X Installation guide

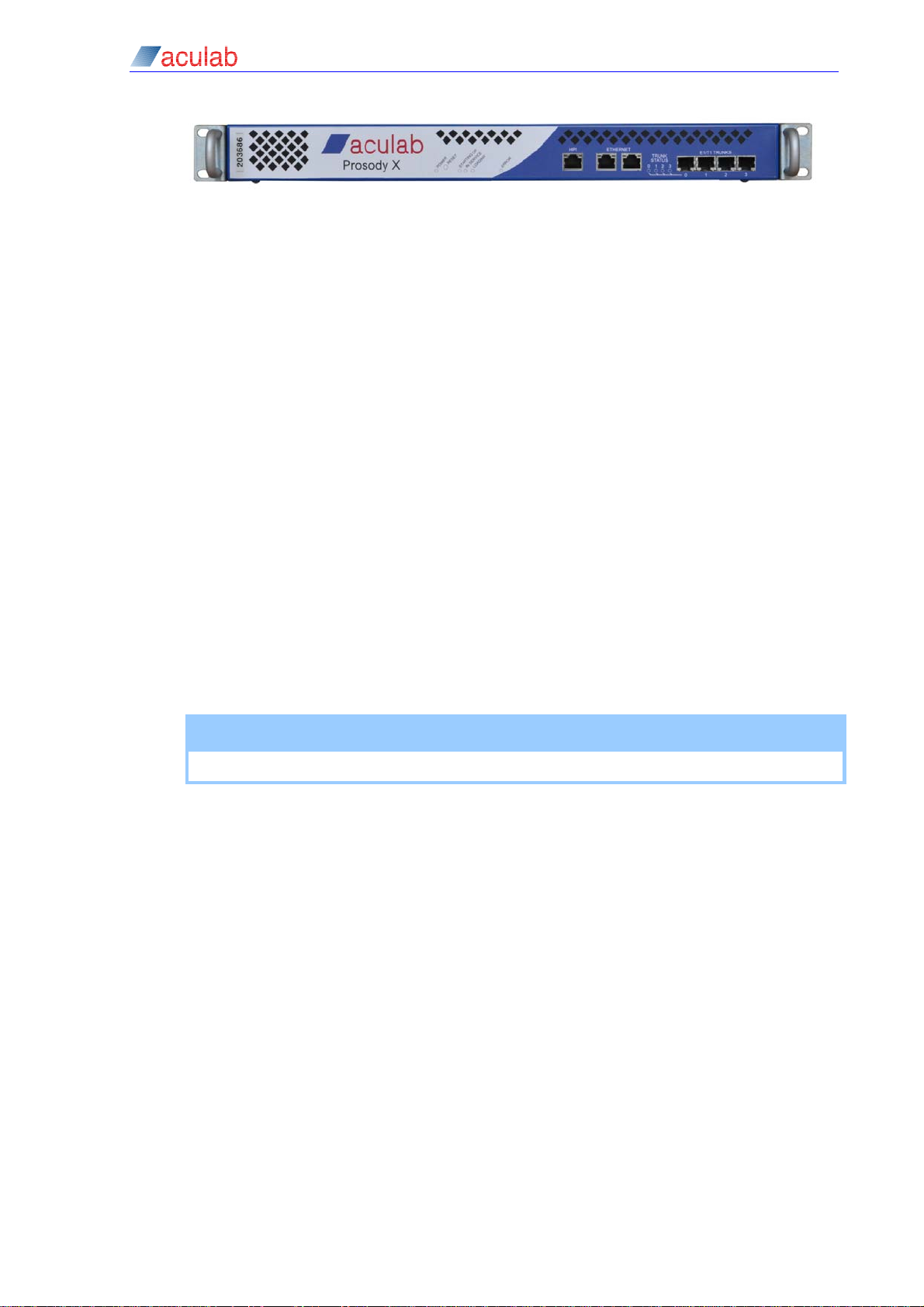

Figure 1-1 1U chassis front layout (4 trunk shown)
The front of the chassis presents a panel with the following:
•A power indicator
•Up to four E1/T1 trunk connectors depending on system capacity
•Two fast Ethernet connectors for Prosody X IP communications.
•One Ethernet to access Hardware platform Interface – For future use
The rear of the chassis provides access to the following interfaces and information:
•AC power inlet fitted with an IEC 60320 type C14 socket
•Rating label
1.2 Powering the Prosody X on
Connect power cord to the Prosody X according to the following procedure:
•Check that the electrical outlet is grounded and it is within the permitted range
shown on the rating label
•Plug the power cord into the AC power inlet socket on the rear of the Prosody X
•Connect the other ends of the power cord into a suitable electrical outlet
•Connect E1/T1 or Ethernet network cables as required. The type of cables and
connectors used depend upon the interface mix contained with the Prosody X
NOTE
The system may take several minutes to initialise following power on.
1.3 Powering the Prosody X off
To completely remove all power from the unit, disconnect the mains cord from the AC
inlet.
It is recommended to maintain a 30 second gap between each power off and power
on cycle.
1.4 E1/T1 trunk numbering
Each Prosody X E1/T1 connector is assigned a unique number. These numbers are
assigned sequentially beginning at zero. The front panel labelling identifies the trunk
numbering.
7 of 22

Prosody X Installation guide
1.5 Ethernet connections
Each Ethernet connection has a unique MAC address and will be assigned an initial
IP address when connected to the network. Please consult the specific application
documentation for information on configuring IP addresses.
The Prosody X IP communication interfaces are designed to connect to full duplex
Ethernet switch equipment, which can sustain the required data throughput with little
or no packet loss. There are two Prosody X IP communication interfaces as this can
offer additional redundancy, if required, in a correctly configured network. Assuming
both interfaces are connected and have valid layer 1 connections, the Prosody X will
default to one interface to carry IP traffic rather than performing load sharing.
Design of a redundant Ethernet network is beyond the scope of this document,
however at a minimum, each Prosody X IP communication interface would connect to
a separate Ethernet switch.
1.6 Cabling
The Prosody X is connected to other network equipment via CAT 5, 5e, 6 or 6e
cables. There are two types of interface and they have different pin assignments.
The pin-out of the RJ45/48 connectors for both E1/T1 and Ethernet connections are
detailed below. For E1/T1 and 10/100 Ethernet connections:
Receive on the Prosody X should be connected to transmit on the network equipment
Transmit on the Prosody X should be connected to receive on the network equipment
Cross-over cables will be required in instances where two connector sockets with the
same signal pinouts are connected together.
NOTE
E1/T1 crossover cables are wired differently to 10/100 Ethernet crossover cables.
NOTE
Shielded cables are recommended in all instances.
Ample strain relief should be fitted when installing all cables, both signal and power.
Any damage caused by inadequate strain relief to cards or power connectors will not
be covered by your warranty.
Both E1/T1 and Ethernet cables may be connected and disconnected while the unit is
active.
Bear in mind that disconnecting an active E1/T1 trunk will cause an alarm condition
both within the Prosody X unit and at the corresponding network end of the cable.
You may wish to check with the network operator if there is a requirement for
advance notification of E1/T1 trunk installation and maintenance.
CAUTION
When making a telephony network connection, to minimize the risk of fire, only
telecommunications line cord of 26 AWG or larger may be used.
8 of 22

Prosody X Installation guide
1.6.1 Cable pinouts
120 Ohm E1 or 100 Ohm T1
The 8-contact RJ45 Plug on the cable between each E1/T1 trunk and the 100 or 120
Ohm network trunk must be wired as follows:
Pin Signal Direction
1 Rx+ input
2 Rx- input
4 Tx+ output
5 Tx- output
10/100Base-T (Prosody X IP communication)
The 8-contact RJ45 Plug on the cable between the card and an 10/100Base-T
network must be wired as follows:
Pin Signal Direction
1 Tx+ output
2 Tx- output
3 Rx+ input
6 Rx- input
Cat 5 cabling is recommended for 10/100Base-T Ethernet connections. All eight wires
are normally populated on off the shelf Ethernet patch cables.
Connector orientation
RJ45 (US RJ48) Plug
Front View
8 7 6 5 4 3 2 1
Figure 1-2 RJ45 pin numbering
Cat 5 cabling is recommended for 120 and 100 Ohm trunk connections.
1.6.2 75 Ohm E1 trunk connection
NOTE
Each E1 trunk in a Prosody X chassis has configurable impedance.
Some legacy E1 PSTN networks require 75 Ohm trunk connection. The default
impedance for E1 trunks in the Prosody X is 120 Ohm. It is important to confirm with
the network operator which impedance the PSTN is using during the installation
process, as a mismatch can lead to signal degradation and erratic equipment
behaviour that is difficult to diagnose later.
The following signalling services may be expected to be configured for 75 Ohm in
legacy switching equipment which provides the following protocols:
•DASS2
•DPNSS
•SS7
•All E1 CAS protocols
9 of 22

Prosody X Installation guide
Each 75 Ohm trunk is normally connected via a pair of coaxial cables with BNC
connectors. A Balun is available to convert between RJ45 and co-axial cabling. The
Balun also converts between 120 and 75 Ohm interfaces, so the system does not
need to be configured for 75 Ohm operation when this type of converter is used.

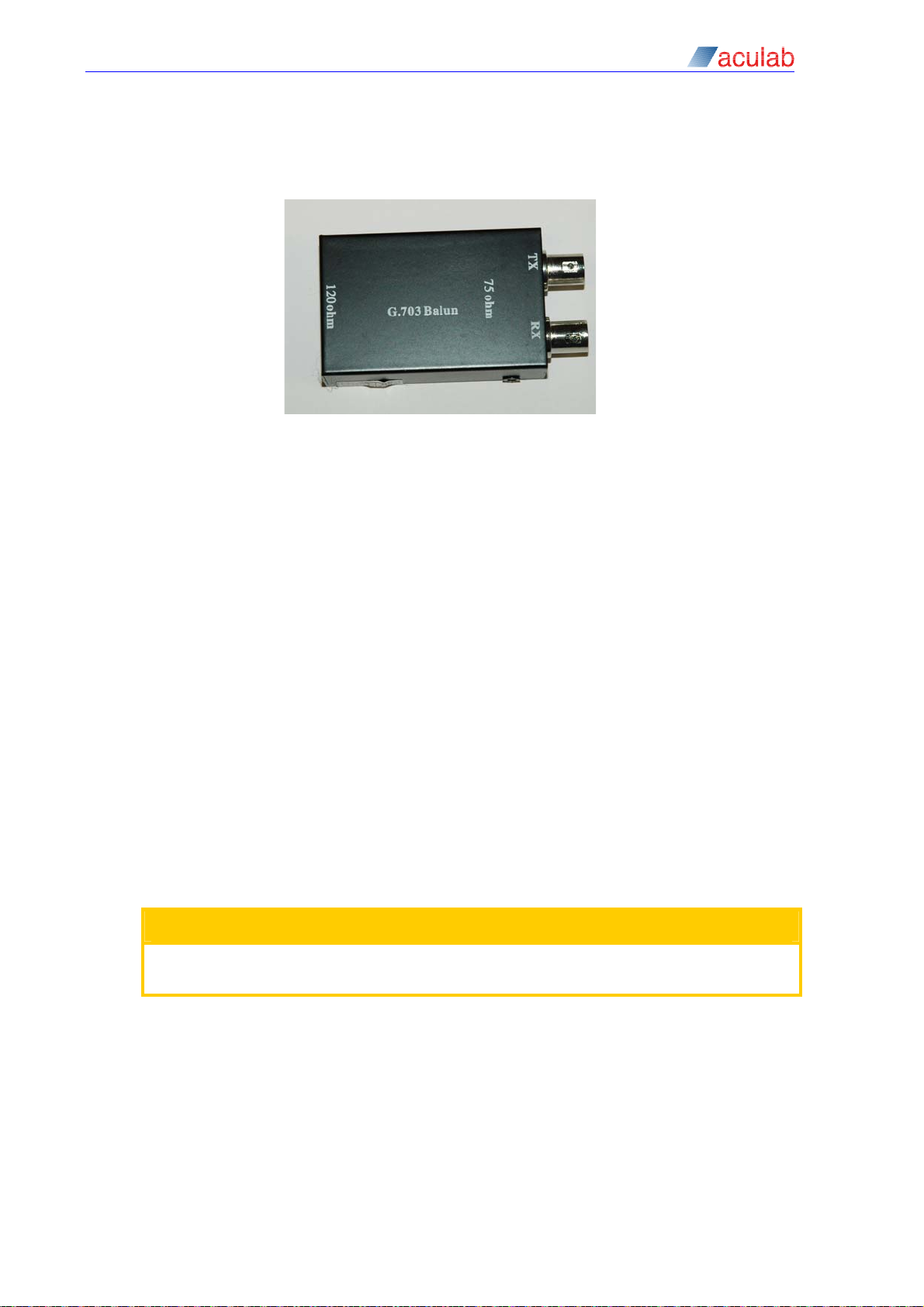

Figure 1-3 75 Ohm E1 Balun
1.6.3 Cable lengths
Cat 5 cabling is designed for an overall span length of 100m. It is recommended that
the length of either a single point to point cable, or the cumulative length of multiple
cables which may be connected via a patch panel does not exceed 100m. For span
lengths approaching the 100m recommended limit it is important to specify and install
high quality cables.
For E1 trunks converted to BNC cabling, it is recommended that overall span length
is limited to 100m maximum and that 75 Ohm cabling and connectors are used. The
75 Ohm adapter should be installed close to the Prosody X RJ45 socket to minimise
impedance mismatch effects.
Span lengths in excess of 100m may continue to operate, in this case the installer
should check that there is adequate margin on signal levels to maintain expected
service levels.
1.7 Ethernet equipment legacy compatibility
The Prosody X IP communication interfaces are designed to operate at Fast Ethernet
(100Base-T) data rates. If connected to network equipment that is not Fast Ethernet
capable, the interface will attempt to negotiate a 10Base-T link speed. In most cases
this will impose an artificially low channel count on VoIP connections that will limit the
Prosody X system capacity.
CAUTION
The Prosody X IP communication interfaces should not be connected directly to
legacy “hub” (half duplex) network equipment.
Modern Ethernet switching equipment operates in a full duplex data mode. It is not
recommended to route Prosody X IP communication interface via a network path
containing a half duplex “hub” as this will reduce system performance.
1.8 System initialisation
The system start-up process will run automatically at power on.
10 of 22

Prosody X Installation guide
1.9 Initial hardware checks
When the Prosody X is turned on, the STARTING UP indicator will turn on and the
unit will go through the boot sequence. Using the AIT/ACT guide, the card can be
configured. Configuring the card is indicated by LOADING. When complete, the IN
SERVICE indicator on the front panel will turn on.
1.10 Multiple ProsodyX configurations
To configure multiple ProsodyX, please refer to the AIT/ACT guide.
1.11 Common set-up problems
1.11.1 System TDM clock not configured
Where one or more E1 or T1 trunks are connected to network equipment, correct
operation depends on TDM clock synchronisation.
A common set-up problem concerns the configuration of the system TDM clock which
is required to synchronise the Prosody X to other E1/T1 equipment. This should be
set to recover the clock from a network source or PSTN, where available. The
recovered clock source will default to E1/T1 trunk 1 and may be re-configured to any
other connected E1/T1 trunk via the ACT or Switch API.
It is not possible to synchronise one Prosody X to multiple network sources that are
not synchronised to each other. An example of this scenario can be two or more
E1/T1 trunks, each connected to a separate carrier network.
1.11.2 Ethernet IP address out of range
All Ethernet end points in a network require a valid and unique IP address. Consult
the network administrator for information on the available range of IP addresses.
11 of 22

Prosody X Installation guide
2Hardware maintenance
2.1 Servicing
There are no user serviceable parts inside the Prosody X chassis. The unit may
optionally be powered off for inspection every year and to remove any dust that
accumulates internally. This should only be performed by qualified technical
personnel.
2.2 Cooling fan failure
The unit relies on forced air cooling to maintain the internal electronics within rated
operating temperatures. The unit has two cooling fans visible at the rear the unit is
designed to continue operating with a single fan failure. It is strongly recommended
that the unit is scheduled for fan replacement in the event of any fan failure. Fan
operation can be checked by accessing the system status page via the application
specific browser interface.
Contact your supplier for advice on fan replacement if the unit is out of warranty.
2.3 Moving an installed Prosody X
A Prosody X should not be moved while operating. If a Prosody X has to be moved,
the power must be disconnected to prevent equipment damage or risk to operator
safety. Please follow the application specific system shutdown procedure prior to
powering down an operating Prosody X.
2.4 Basic fault finding
The following list provides examples of possible reasons for the unit not operating
correctly.
Symptom Possible cause
Unit does not power up Check power cabling and fuses.
E1/T1 trunk non-
operational Check layer 1 information. Possible cable disconnection, network/user protocol configuration or
incorrect TDM clock recovery/synchronisation
configuration.
No Prosody X IP
communication Check cabling and IP address.
12 of 22

Prosody X Installation guide
Appendix A: USA/Canada approval details
This section applies only to E1/T1 trunk interfaces configured for T1 operation.
FCC connection requirements
This equipment complies with Part 68 of the FCC rules and the requirements adopted
by the ACTA. On the exterior of the cabinet of this equipment is a label that contains,
among other information, a product identifier in the format US:AAAEQ##TXXXX. If
requested, this number must be provided to the telephone company.
ACTA Registration Number: US:5TCXDNANCapplianX
Ringer Equivalence Number (REN): NAN
Facility Interface Code (FIC): 04DU9.1SN, 04DU9.BN, 04DU9.DN
& 04DU.1KN
Service Order Code (SOC): 6.0P
USOC Jack Type: RJ48C
A FCC compliant telephone cord and modular plug is provided with this equipment.
This equipment is designed for connection to the telephone network or premises
wiring using a compatible modular jack that is Part 68 compliant. See Installation
Instructions for details.
The REN is used to determine the quantity of devices that may be connected to the
telephone line. Excessive RENs on the telephone line may result in the devices not
ringing in response to an incoming call. Typically, the sum of RENs should not
exceed five (5.0). To be certain of the number of devices that may be connected to a
line (as determined by the total RENs) contact the local telephone company.
If this equipment causes harm to the telephone network, the telephone company will
notify you in advance that temporary discontinuance of service may be required. But
if advance notice isn't practical, the telephone company will notify the customer as
soon as possible. Also, you will be advised of your right to file a complaint with the
FCC if you believe it is necessary.
The telephone company may make changes to its facilities, equipment, operations or
procedures that could affect the operation of the equipment. If this happens the
telephone company will provide advance notice so you can make the necessary
modifications to maintain uninterrupted service.
If trouble is experienced with this equipment, for repair or warranty information,
please contact:
Aculab, Inc,
Customer Service,
100 River Ridge Drive, Suite 101,
Norwood, MA 02062,
Tel: [phone] / Fax: [phone]
There are no user serviceable components on the card. If the equipment is causing
harm to the telephone network, the telephone company may request that you
disconnect the equipment until the problem is resolved.
Connection to party line service is subject to state tariffs. (Contact the state public
utility commission, public service commission or corporation commission for
information.)
13 of 22

Prosody X Installation guide
Systems
Facility Interface Codes (FIC), Service Order Codes (SOC), USOC Jack Codes and
Ringer Equivalence Numbers (REN) are shown in the table below for each trunk
where applicable:
Trunk FIC SOC USOC Jack REN
Trunk 0 – 7 T1 04DU9.1SN 6.0P RJ48C NAN
Trunk 0 – 7 T1 04DU9.BN 6.0P RJ48C NAN
Trunk 0 – 7 T1 04DU9.DN 6.0P RJ48C NAN
Trunk 0 – 7 T1 04DU9.1KN 6.0P RJ48C NAN
UL requirements
This product has been assessed against UL60950-1 and is a listed accessory
component under UL file number E178354.
Approval number USA
Approval type FCC part 68 XD component registration
Approval number US:5TCXDNANCapplianX
Approval holder Aculab plc, Lakeside, Bramley Road, Mount Farm,
Milton Keynes. MK1 1PT, UK
FCC approves the apparatus for connection to public T1 services as specified in the
approval certificate, this appendix, and the 'Installation guide' subject to the conditions
set out in these documents.
14 of 22

Prosody X Installation guide
Appendix B: Approval details for UK and other EU countries
15 of 22

Prosody X Installation guide
Appendix C: Approval details for Australia
Approval types
C-Tick Mark
(EMC Australia) A-Tick Mark (Telecom Australia)
Supplier Identification N4292
Approval Holder Approval Specialists
The current contact details for the Australia office is available from the Aculab
company web site at www.aculab.com.
Approval by the ACA for connection to primary rate ISDN will be held by Approval
Specialists, and subject to the conditions set out in this appendix.
Usage and type
The Prosody X is principally designed for use connected to a 2048 Kbps integrated
services digital network (primary rate ISDN) with TS038 signalling including the New
Zealand Primary Rate ISDN network (not currently covered by approval).
Other types of private circuit use are also appropriate, and other signalling systems
are available or planned.
The Australian approvals are only applicable when the Prosody X is used with Aculab
supplied signalling software appropriate for use in the country covered by the
Approval.
Approved functionality
•Call initiation
•Call clearing
•Call answering
•Application program generated by the user
•Independent Operation of the network interfaces (one or more interfaces
attached to the network)
16 of 22

Prosody X Installation guide
Appendix D: Warranty and support
D.1 Warranty
The standard warranty of 2 years applies to all Prosody X 1U Enterprise components.
All cover is return to supplier.
NOTE
Please contact your supplier for warranty enquiries.
The standard warranty does not cover damage, deterioration or malfunction resulting
from:
•Accident, misuse, neglect, fire, water, lighting, or other acts of nature,
unauthorized product modification, or failure to follow instructions supplied with
the product.
•Repair or attempted repair by anyone not authorized by your supplier.
•Causes external to the product such as electric power fluctuations or failure.
•Normal wear and tear.
•Any other causes which do not relate to a product defect.
D.2 Returns procedure
Under the standard warranty, a faulty Prosody X should be returned to Aculab PLC
by following the Returned Material Authorisation procedure.
D.3 Spare parts and accessories
Please take a note of the serial number on the Prosody X when contacting your
supplier for spare parts, and ensure you mention the parts are for a Prosody X
chassis.
The serial number is normally located at the front of each unit.
Spare and replacement power cords are available from Aculab PLC.
E1 75 Ohm BNC cable adapter kits are available from Aculab PLC
D.4 Contact information
Warranty and support information is provided with your Prosody X. Your warranty and
support terms will include any specific contact details.
D.5 Prosody X technical support
Always have the serial number available prior to contacting technical support.
NOTE
Please contact your supplier for first line technical support enquiries.
General Prosody X information:
www.aculab.com
17 of 22

Prosody X Installation guide
Appendix E: Safety information
E.1 AC Power requirements
The rating plate details the permitted voltage and frequency range for that particular
unit.
CAUTION
Under no circumstance connect the Prosody X to a power source with voltage or
frequency different to that stated. Contact your local supplier for advice if your
power input is different to that shown on the rating label.
The Prosody X can operate with the following AC power inputs:
Power input type AC chassis (Amps)
North America – 115VAC 60Hz 0.6 max, 0.2
continuous
UK and Europe – 230VAC 50Hz 0.3 max, 0.1
continuous
WARNING
THIS EQUIPMENT IS NOT DESIGNED FOR USE WITH AN I.T. POWER
SUPPLY (A POWER DISTRIBUTION SYSTEM THAT HAS NO DIRECT
CONNECTION TO GROUND, AND WHERE THE EXPOSED CONDUCTIVE
PARTS OF THE ELECTRICAL INSTALLATION ARE GROUNDED).
E.2 AC Power cords
The Prosody X is supplied with moulded IEC60320 input power cords. Within the
United Kingdom these will be ASTA (Association of Short Circuit Testing Authorities)
approved power cords with moulded 13A 3 Pin plugs. These should be fused at 5A.
Within Europe these will be moulded 3 Pin plugs with suitable European agency
approval marks. Additionally the cords will be <HAR> marked.
Within North America these will be moulded 3 Pin plugs with UL and CSA type
approval.
The power cords supplied will be terminated suitable for your local requirements. In
cases where no plug is fitted or if a plug needs to be changed, the plug may only be
fitted by a person competent to fit a plug of the type suitable for the required power
outlet. If a power cord needs to be replaced, an appropriately approved power cord
must be used.
E.3 Circuit definition
The Ethernet (Prosody X IP communication and Hardware Platform interface ) and
USB interfaces are Safety Extra Low Voltage (SELV) circuits. SELV circuits are so
designed and protected that under normal conditions the maximum voltage between
any two accessible circuit parts, one of which may be body or ground, does not
exceed 42.4 volts (peak AC) or 60VDC, even in the presence of a single fault.
E1/T1 interfaces are Telecommunication Network Voltage (TNV) circuits operating
within the limits of SELV. The E1/T1 interfaces have transient voltage protection
circuits built in.
18 of 22

Prosody X Installation guide
NOTE
Where equipment is intended to be electrically connected to other equipment,
interconnection circuits shall be selected to provide continued conformance with
the requirements of Clause 2.3 of IEC60950-1 for SELV circuits, and with the
requirements of clause 6 for TNV circuits, after making connections between
equipment.
NOTE
Make sure that the integrity of the SELV system is maintained when connection is
made through any other interface within the system. If in any doubt seek
competent advice.
E.4 Grounding the Prosody X
The Prosody X must be grounded as detailed below:
•Use a grounded 3 connection IEC60320 AC power cable
E.5 Serviceable parts
The Prosody X has no user serviceable parts inside.
E.6 Regulatory marking
The CE Marking has been applied to the Prosody X to demonstrate compliance with
the following European standards:
•EN55022 and EN55024 for electromagnetic compatibility.
•EN60950 for electrical safety.
E.7 USA federal communication commission warnings
This equipment has been tested and found to comply with the limits for a class A
digital device, pursuant to part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates uses and can
radiate radio frequency energy, and if not installed in accordance with the instruction
manual may cause harmful interference to radio communications.
The device complies with part 15 of the rules. Operation is subject to the following
two conditions:
•This device may not cause harmful interference, and
•This device must accept any interference received, including interference that
may cause undesired operation.
No changes or modifications to the Prosody X are allowed without explicit written
permission from Aculab. Any changes or modifications could void the end users
authority to operate the device and invalidate the warranty.
19 of 22

Prosody X Installation guide
Appendix F: Sicherheitshinweise
F.1 Wechselspannungsanforderungen (AC)
Das Typenschild gibt die erlaubte Stromstärke und den Frequenzbereich für dieses
System wieder.
VORSICHT
Schliessen Sie Prosody X unter keinen Umständen an eine andere als die
angegebene Stromquelle mit dem vorgegebenen Frequenzbereich an. Setzen
Sie sich mit einem für ihre Region zuständigen Lieferanten in Verbindung, wenn
Ihre Spannungsversorgung vor Ort nicht der auf dem Typenschild angegebenen
entspricht.
Prosody X kann mit folgenden Eingangsspannungen (AC) betrieben werden:
Power input type AC chassis (Amps)
North America – 115VAC 60Hz 0.6 max, 0.2
continuous
UK and Europe – 230VAC 50Hz 0.3 max, 0.1
continuous
WARNUNG
DIESES GERÄT IST NICHT FÜR DEN EINSATZ MIT EINEM
KALTGERÄTESTECKER VORGESEHEN (EIN
SPANNUNGSVERSORGUNGSSYSTEM, DAS NICHT DIREKT GEERDET IST
und WO DIE EXPONIERTEN, LEITENDEN TEILE DER ELEKTRISCHEN
INSTALLATION GEERDET SIND)
F.2 Wechselspannung Anschluss
Prosody X wird mit IEC60320 eingeformten Netzkabel geliefert. Innerhalb Europas
handelt es sich um dreipolige Stecker mit den passenden European Agency
Prüfzeichen. Zusätzlich sind die Kabel mit <HAR> anerkannten Markierungen
versehen.
Innerhalb Nordamerikas handelt es sich um dreipolige Stecker mit UL und CSA
Typenzulassung.
Die mitgelieferten Netzkabel entsprechen Ihren Bedürfnissen vor Ort. Falls noch kein
Stecker vorhanden ist oder ein Stecker ausgetauscht werden muss, darf der Stecker
nur von jemandem angebracht werden, der dazu autorisiert ist. Wenn ein
Spannungsversorgungs-kabel ausgetauscht werden muss, muss ein
dementsprechend zugelassenes Spannungs-versorgungskabel verwendet werden.
F.3 Definition des Stromkreises.
Die Ethernet-(VoIP-Traffic und Systemadministration) und USB-Anschlüsse sind
Safety Extra Low Voltage (SELV) Schaltungen. SELV-Schaltungen sind so konzipiert
und geschützt, dass unter normalen Bedingungen die maximale Stromstärke
zwischen zwei beliebigen zugänglichen Teilen des Stromkreises, von denen jeweils
einer Masse oder Erde sein kann, 42.4 Volt (Spitzenwert Wechselstrom) oder 60V
DC nicht überschritten wird, auch im Falle eines Fehlers.
20 of 22
