Adcraft ST-240/4 User manual

ST-120/2
ST-120/3
ST-240/4
Steam Table
This manual contains important information regarding your Admiral Craft unit.
Please read this manual thoroughly prior to equipment set-up, operation and
maintenance. Failure to comply with regular maintenance
guidelines outlined in this manual may void the warranty.
MUST READ!!!

2

WARNINGS
Donottouchanyhotsurfaces
Donotplugorunplugunitwithwethands
Donotimmerseunit,cordorpluginliquidatanytime
Unplugcordfromoutletwhennotinuseandbeforecleaning
Donotoperateunattended
Donotusethisunitforanythingotherthanintendeduse
Donotuseoutdoors
Operatetheunitwithlegsprovidedtopreventoverheatingofsurfacesbelow
Donotuseifunithasadamagedcordorplug,intheeventtheappliancemalfunctions,orhasbeendamagedin
anymanner
Keepchildrenandanimalsawayfromunit
Anyincorrectinstallation,alterations,adjustmentsand/orimpropermaintenancecanleadtopropertylossand
injury.Allrepairsshouldbedonebyauthorizedprofessionalsonly
Ensurethatthedesignatedpowersupplyisadequateforcontinualusageandthevoltageiscorrect

ASSEMBLY‐NOTE–Legsandunder‐shelfmustbeassembledbeforesecuringlegstothetable.
StandardAdjustableUnder‐shelf

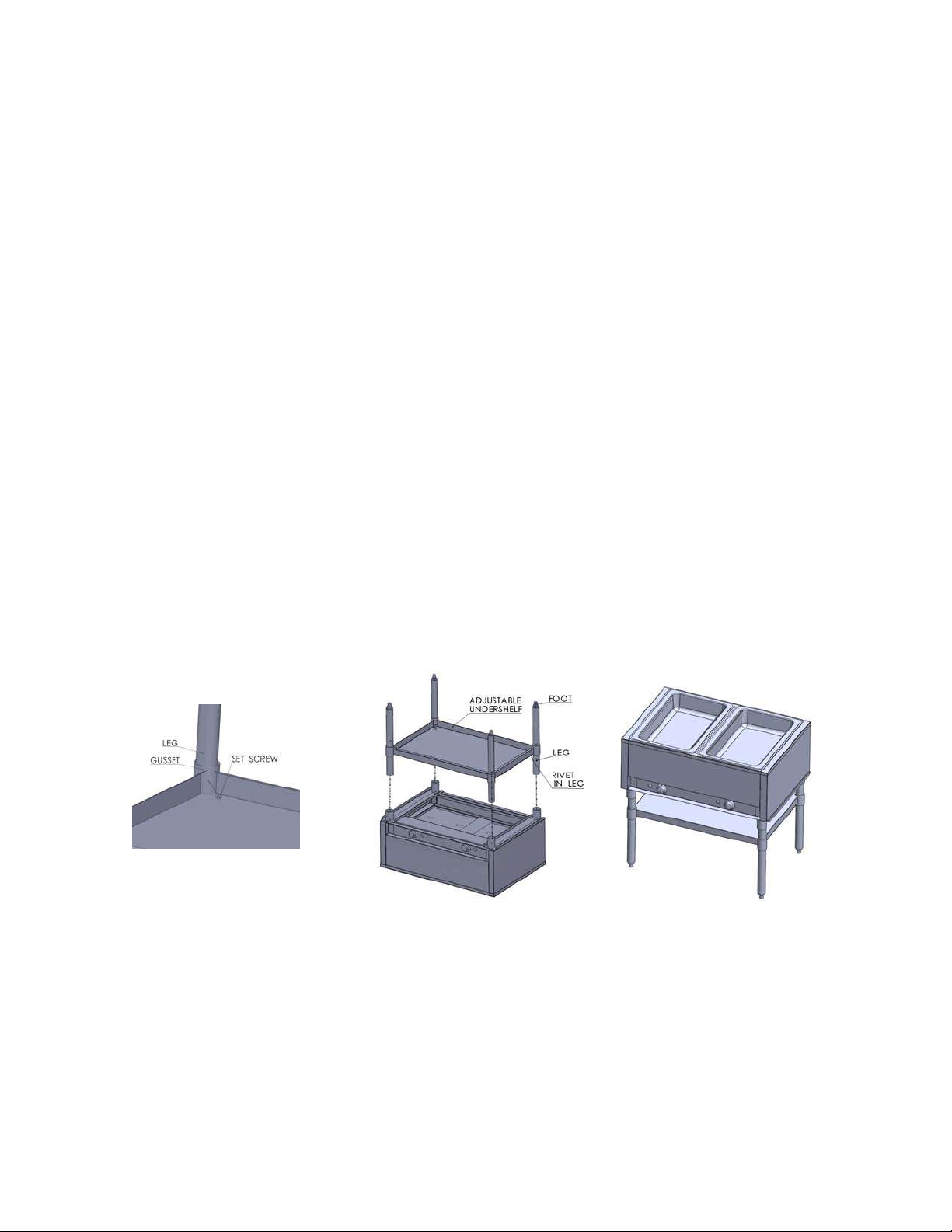

1. Removetheunitfromtheshippingcartonandpackaging.
2. Inspectthecontentstoensurethereisnodamagetotheunit.
3. Resttableonitstopwithgussetsfacingup.(usecardboardorothermaterialtopreventscratchingtop)
4. Installlegsintogussets.Makesuretherivetinlegisclosertogussetthantofootend.
5. Alignunder‐shelfgussetswithlegsandslideunder‐shelfdownlegstodesiredposition.(DONOTforceorbeat
cornersasdamagecouldoccur)
6. Tightensetscrewsinunder‐shelfgussetstosecureunder‐shelfandinstallfeetintolegsusingarubbermallet.
7. Tightensetscrewsingussetstosecurelegstotable.
8. Placetableonbackwithcontrolknobsup.
9. Seeapplicablecuttingboardmountinginstructionsbelow.












StandardCuttingBoard
1. Attachshelfsupportbracketstosupportshelfusingacornnuts,washers,boltsandpredrilledholes.
Note:acornnutsmustbeatthetop
2. Installmachinescrewsintothreadedfastenersonhotfoodtable.DONOTtighten.
3. Alignkeyholesinmountingbracketswithscrewsandmountsupportshelf/bracketassemblytotable.Tighten
screws.
4. Alignholesincuttingboardwithacornnutsandplacecuttingboardontosupportshelf.


3










OPERATION‐NOTE–Thesteamtableisdesignedtobeoperateddry.Ifwetoperationisrequired,aspillagepan(SPIL‐21)
mustbeused.Theunitisintendedforholdinghotfoodforshortperiodsoftime.Covermustbekeptonthefoodtomaintain
temperaturewhennotserving.Thesteamtableisequippedwithvariablecontrolfordifferentselections.

DryOperationwithover
1. Plugunitintoappropriateelectricalpowersupplyreceptacle.
2. Withopeningscovered,setdialonhighestpositionfor45minutestopreheatunit.
3. Duringinitialstart‐up,smokeorodormaybedetected(asmallamount).Thiswilloccurwhenthecoatingonthe
heatingelementburnsoffandshouldstopapproximatelyahalfhourafterstartup.
4. Placeprecookedfood(minimum160F)infoodpans,placeinopeningsandcoverwithlids.(Indicatorlightisthe
setpointforthecontrolknob)
5. Adjusttodesiredsettingforproperfoodtemperature.Thiswillvarywiththetypeoffood,sizeofpansand
individualservingtemperatures.NSFrequiresfoodtobeaminimumof150F.
6. Toincreasetemperature,turnknobtowardhighestsetting.Todecrease,turntowardlowestsetting.
7. Foodpansshouldbecoveredtomaintaintemperaturewhenfoodisnotbeingservedandtopreventfoodfrom
dryingout.

WetOperationwithCover(Spillagepansrequired)
Note–DONOTputhotwaterinheatingwelloronelement
1. Withopeningscovered,setdialathighestsettingfor45minutes.
2. Installspillagepansandspillagepanstobottomoffoodpanswithhotwater(minimumof185F).
3. Placepre‐cookedfood(minimum160F)infoodpans.
4. Placeinspillagepansandcoverfoodpanswithlids.
5. Adjusttodesiredsettingforproperfoodtemperature.NSFrequiresfoodtobeaminimumof150F. 


CLEANING–NOTE:Tomaintaincleanlinessandincreaseservicelife,thesteamtableshouldbecleaneddaily.Donot
immersetheunitinwateroranyotherliquid.Ifliquidenterstheelectricalcompartment,itmaycauseashortcircuitor
electricalshock.
1. Allowunittocompletelycoolbeforecleaning.
2. Disconnectthecordfromtheoutlet.
3. Wipetheinsideandoutsidesurfacesoftheunitwithadampcloth,thenwipedry.
4. Toavoiddamage,donotuseabrasivecleanersorscouringpads.
5. Avoidusingcleanersasthechemicalresiduecoulddamageorcorrodethesurfacesoftheunit.Cleantheunitwith
warmsoapywaterandsoftclothonly.



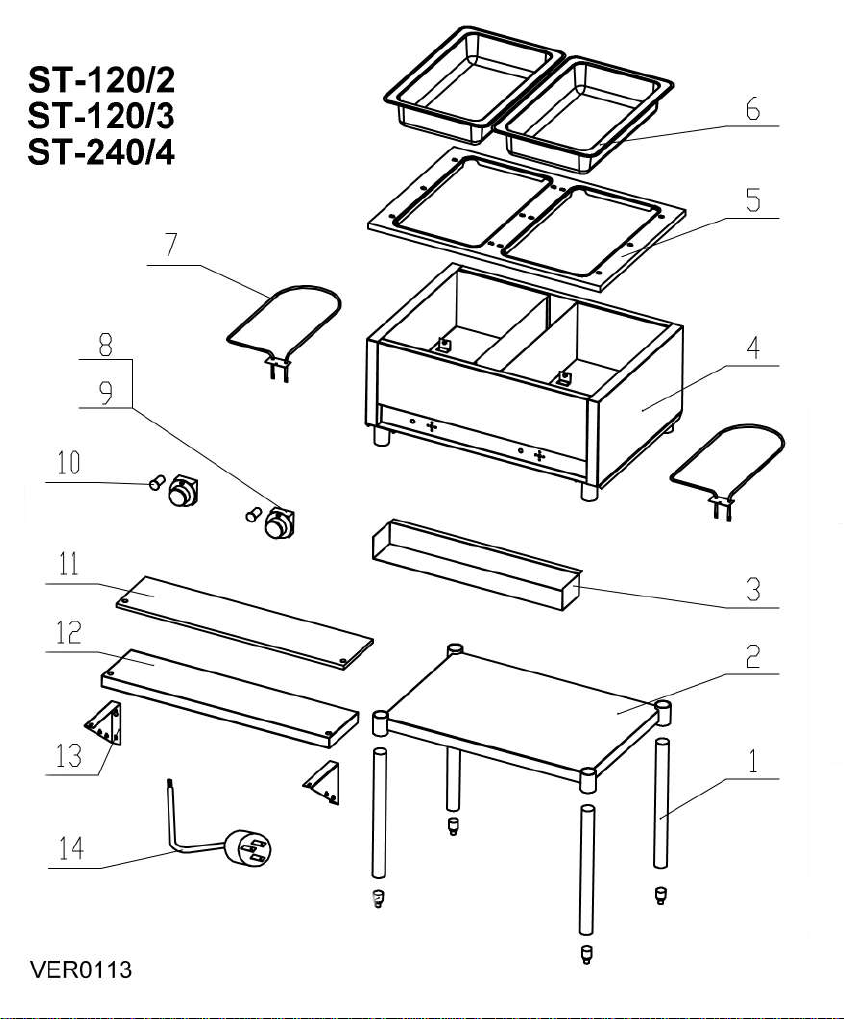

Steam Table - ST-120/2, ST-120/3, ST-240/4
Reference Number Part Number Description U of M
1ST-1 Foot w/Adjustable Bottom EA
2S/S undershelf EA
3Electrical Box EA
4Body EA
5Water Pan Frame EA
6SPIL-21 Water Pan EA
7ST-7 750W Heating Element EA
8ST-8 Thermostat Knob EA
9ST-9 Thermostat EA
10 ST-10 Indicator Light - Red EA
11 ST-11 Poly Cutting Board EA
12 S/S Shelf for Cutting Board EA
13 Bracket for Cutting Board Shelf EA
14 ST-14 Power Cord and Strain Relief EA
VER0113
