Hupfer SPTW-2/EBF User manual

4330025_A1
Operating Instructions
Food transport trolley
SPTW-2/EBF | SPTW-3/EBF | SPTW-2/EBF-S | SPTW-3/EBF-S |
SPTW-2/EBF-K | SPTW-3/EBF-K

Chapter 1Introduction
Page 2 Appliance Information
Food transport trolley
SPTW-2/EBF | SPTW-3/EBF | SPTW-2/EBF-S | SPTW-3/EBF-S | SPTW-2/EBF-K | SPTW-3/EBF-K 4330025_A1
1 Introduction
1.1Appliance Information
Appliance designation Food transport trolley
Appliance type/s SPTW-2/EBF | SPTW-3/EBF | SPTW-2/EBF-S | SPTW-
3/EBF-S | SPTW-2/EBF-K | SPTW-3/EBF-K
Manufacturer HUPFER® Metallwerke GmbH & Co. KG
Dieselstrasse 20
48653 Coesfeld
P.O. Box 1463
D-48634 Coesfeld
'[phone]
6+49 2541 805-111
www.hupfer.de
[e-mail]
Food transport trolley
SPTW-2/EBF | SPTW-3/EBF | SPTW-2/EBF-S | SPTW-3/EBF-S | SPTW-2/EBF-K | SPTW-3/EBF-K
Read these operating instructions thoroughly and attentively to ensure safe operation and avoid any dam-
age!
Ensure that sources of danger and possible faulty operations have been pointed out to the operating staff.
Subject to modifications
The products covered by these operating instructions have been developed taking into consideration the re-
quirements of the market and the latest technology. HUPFER®reserves the right to modify the products and
appertaining technical documentation insofar as the modifications are in the name of technological progress.
The data and weights as well as the description of performance and functions assured in the order confirma-
tion as binding are always decisive.
This manual is a translation of the original edition.
Manual edition
4330025_A1

Introduction Chapter 1
Table of Contents Page 3
Food transport trolley
4330025_A1 SPTW-2/EBF | SPTW-3/EBF | SPTW-2/EBF-S | SPTW-3/EBF-S | SPTW-2/EBF-K | SPTW-3/EBF-K
1.2Table of Contents
1Introduction 2
1.1 Appliance Information 2
1.2 Table of Contents 3
1.3 List of Abbreviations 5
1.4 Definitions of Terms 6
1.5 Orientation Guide 6
1.6 Notes on Use of Manual 7
1.6.1 Notes on the Manual Structure 7
1.6.2 Notes and their Illustrations used in the Chapters 7
2Safety Instructions 8
2.1 Introduction 8
2.2 Warning Symbols Used 8
2.3 Safety Instructions for Appliance Safety 9
2.3.1 Safety Instructions for appliances with sliding lid 10
2.3.2 Safety Instructions for appliances with a hinged lid 10
2.4 Safety Instructions for Transport 10
2.5 Safety Instructions for Cleaning and Care 10
2.6 Safety Instructions for Troubleshooting 11
2.7 Notes on Specific Hazards 11
3Description and Technical Data 12
3.1 Performance Description 12
3.2 Intended Use 12
3.3 Improper Use 13
3.4 Appliance Description 13
3.4.1 Description of food transport trolley 13
3.4.2 View of the appliance food transport trolleys with sliding lid 14
3.4.3 View of the appliance food transport trolleys with hinged lid 14
3.4.4 Appliance Description 15
3.4.5 Equipment and optional accessories 15
3.5 Technical Data 16
3.6 Rating Plate 18
4Transport, Putting into Operation and Decommissioning 19
4.1 Transport 19
4.2 Putting into Operation 19
4.3 Storage and Recycling 20
5Operation 21
5.1 Arrangement and Function of the Operating Elements 21
5.2 Operation 22
5.2.1 Filling bain-marie wells 22
5.2.2 Tempering 22

Chapter 1Introduction
Page 4 Table of Contents
Food transport trolley
SPTW-2/EBF | SPTW-3/EBF | SPTW-2/EBF-S | SPTW-3/EBF-S | SPTW-2/EBF-K | SPTW-3/EBF-K 4330025_A1
5.2.3 Loading 23
5.2.4 Moving 24
5.3 Measures at the End of Operation 25
6Fault Detection and Troubleshooting 26
6.1 Safety Measures 26
6.2 Notes on Troubleshooting 26
6.3 Fault and Action Table 26
7Cleaning and Care 28
7.1 Safety Measures 28
7.2 Hygiene Measures 28
7.3 Cleaning and Care 28
7.4 Special Care Instructions 29
8Spare Parts and Accessories 31
8.1 Introduction 31
8.2 Spare Parts and Accessories List 31

Introduction Chapter 1
List of Abbreviations Page 5
Food transport trolley
4330025_A1 SPTW-2/EBF | SPTW-3/EBF | SPTW-2/EBF-S | SPTW-3/EBF-S | SPTW-2/EBF-K | SPTW-3/EBF-K
1.3List of Abbreviations
Abbreviation Definition
BGRRule of the Professional Association
BGVRegulation of the Professional Association
CE Communauté Européenee
European Community
BGRRule of the Professional Association
DINDeutsches Institut für Normung
German Institute for Standardisation, technical regulations and technical specifications
EC European Community
European Union
EN European Standard
Harmonised standard for the EU market
E/VSpare and wearing part
IP International Protection. The abbreviation IP and a further two-digit index specifythe
protection class of a housing.
The first digit: Protection against ingress of solid foreign objects The second digit: Protection against ingress of
water
0 No protection against contact, no protec-
tion against ingress of solid foreign
objects
0 No protection against ingress of water
1 Protection against contact with any large
surface of the body such as the hand,
protection against ingress of foreign
objects Æ >1.97'' (50 mm)
1 Protection against vertically falling water
drops
2 Protection against contact with fingers,
protection against ingress of foreign
objects Æ>0.5'' (12 mm)
2 Protection against dripping water (at any
angle up to 15° from the vertical)
3 Protection against contact with tools,
thick wires or similar objects of
Æ>0.1'' (2.5 mm), protection against
foreign objects Æ>0.1'' (2.5 mm)
3 Protection against water drips at any
angle up to 60° from the vertical
4 Protection against contact with tools,
thick wires or similar objects of Æ>0.04''
(1 mm), protection against foreign
objects Æ >0.04'' (1 mm)
4 Protection against water splashing from
any direction
5 Protection against contact, protection
against dust deposits inside 5 Protection against water jets (projected bya nozzle) at any angle
6 Complete protection against contact,
protection against ingress of dust 6 Protection against rough sea or strong water jets (flood protection)
7 Protection against ingress of water
during temporary immersion
8 Protection against pressurised water
during continuous immersion
LEDLight Emitting Diode
Light diode

Chapter 1Introduction
Page 6 Definitions of Terms
Food transport trolley
SPTW-2/EBF | SPTW-3/EBF | SPTW-2/EBF-S | SPTW-3/EBF-S | SPTW-2/EBF-K | SPTW-3/EBF-K 4330025_A1
1.4Definitions of Terms
Term Definition
Authorised specialist An authorised specialist is a specialist that has been trained by the manufacturer, an
authorised service dealer or a company assigned by the manufacturer.
Cook&Chill Kitchens "Cook and Chill": Kitchens where warm food after being cooked is chilled as quickly as
possible.
Cook&Serve Kitchens "Cook and Serve": Kitchens where warm food is served immediately after being
cooked or kept warm until it is consumed.
Specialist A specialist is a person who can evaluate work assigned and can individually recog-
nise any possible dangers due to professional training, specialist knowledge and
experience as well as knowledge of the respective guidelines.
Gastronorm Gastronorm is a measurement system applied worldwide, for instance, in food pro-
cessing plants or large-scale kitchens. The use of standardised sizes makes it possi-
ble to exchange food pans. The basic size of the Gastronorm (GN) 1/1 is 20.9x12.8''
(530×325 mm). Items are available in different depths.
H1 Hygienic standard (NSF/USDA) for lubricants that aresuitablefor incidental and
technically unavoidable contact with foodstuffs
Control Compare with certain conditions and/or characteristics such as damage, leaks, filling
levels, heat.
Machine safety The term of machine safety means all the measures used to avert injury to persons.
The basis for this are national as well as EC-wide valid directives and laws for protect-
ing users of technical devices and systems.
Passive layer A non-metallic protective layer on a metallic material that prevents or slows down
material corrosion.
Check Compare withcertain values such as weight, torque, content, temperature.
Qualified person,
qualified staff Qualified personnel are persons who due to their professional training, experience and
instruction as well as their knowledge of the respective standards, guidelines, accident
prevention regulations and operating conditions have been authorised by a person
responsible for system safety to carry out required activities and can recognise and
prevent any possible danger (definition of specialists according to IEC 364).
Schuko® The abbreviation of the German term "Protective contact" that indicates a system of
domestic plugs and sockets equipped with protective earthed contacts used in most of
Europe.
Instructed persons An instructed person is a person who has been instructed on the possible risks result-
ing from improper behaviour when carrying out the assigned task as well as on the
necessary protective equipment and protective measures and trained for this task if
necessary.
1.5Orientation Guide
The front
"The front" means the side where the operating elements are arranged. The operating staff stays at this side
to move the food transport trolley.
The rear
The side named "the rear" means the opposite side of the front side (the front).
The right
The side named "the right" means the side at the right hand side of the front side (the front).
The left
The side named "the left" means the side at the left hand side of the front side (the front).

Introduction Chapter 1
Notes on Use of Manual Page 7
Food transport trolley
4330025_A1 SPTW-2/EBF | SPTW-3/EBF | SPTW-2/EBF-S | SPTW-3/EBF-S | SPTW-2/EBF-K | SPTW-3/EBF-K
1.6Notes on Use of Manual
1.6.1 Notes on the Manual Structure
This manual is structured in functional and task orientated chapters.
1.6.2 Notes and their Illustrations used in the Chapters
The warnings and notes are separated from the other text and particularly marked by corresponding icons.
The icon cannot, however, replace the text of the safety instructions. Therefore, always read thoroughly the
full text of the safety instructions. The warnings and notes are separated in these operating instructions as
follows and categorised by thefollowing danger levels by means of various symbols.
DANGER Brief description of danger
There is an imminent danger to life and limb of the user and / or third parties
when the instructions are not followed precisely or the circumstances de-
scribed are not taken into account.
The type of danger is indicated by a symbol and explained in the accompany-
ing text in more detail. In this example the general sign of danger is used.
WARNING Brief description of danger
There is an indirect danger to life and limb of the user and / or third parties
when the instructions are not followed precisely or the circumstances de-
scribed are not taken into account.
The type of danger is indicated by a symbol and explained in the accompany-
ing text in more detail. In this example the general sign of danger is used.
ATTENTION Brief description of danger
There is a potential risk of injury or damage to property when the instructions
are not followed precisely or the circumstances described are not taken into
account.
The type of danger is indicated by a general sign and explained in the accom-
panying text in more detail. In this example the general sign of danger is used.
NOTE Brief description of additional information
Attention is pointed to special conditions or additional important information on
the respective subject.
INFO Short title
Contains additional information on work assisting features or recommenda-
tions on the respective subject.

Chapter 2Safety Instructions
Page 8 Introduction
Food transport trolley
SPTW-2/EBF | SPTW-3/EBF | SPTW-2/EBF-S | SPTW-3/EBF-S | SPTW-2/EBF-K | SPTW-3/EBF-K 4330025_A1
2 Safety Instructions
2.1Introduction
The chapter on safety instructions describes the risks associated with the appliance in terms of product liabil-
ity (according to the EU Directives).
The safety instructions should warn of hazards and help to avoid damages to persons, the environment and
property. Please make sure that you have read and understood all the safety instructions given in this chap-
ter.
You must comply with the respectively valid national and international Safety at Work Regulations. The
manager is responsible for the valid regulations he/she has to provide. He/shemust acquaint himself/herself
and the operator with the new regulations.
In addition to these operating instructions, comply with the rules on health and safety at work issued by the
Main Association of the industrial Professional Associations, especially with those that concern the handling
of hot items and risks involved (BGR 110 "Protection of health and safety at work in restaurants" and BGR
111 "Protection of health and safety at work in large-scale kitchens").
2.2 Warning Symbols Used
Symbols are used in these operating instructions to point out the dangers that can occur while operating or
cleaning the appliance. In both cases, the symbol provides information on the type and circumstances of
danger.
The following symbols can be used:
General hazardous area
Hazardous electrical voltage
Risk of hand injuries
Risk of crushing
Risk of hot surfaces
Wearhandprotection

Safety Instructions Chapter 2
Safety Instructions for Appliance Safety Page 9
Food transport trolley
4330025_A1 SPTW-2/EBF | SPTW-3/EBF | SPTW-2/EBF-S | SPTW-3/EBF-S | SPTW-2/EBF-K | SPTW-3/EBF-K
2.3Safety Instructions for Appliance Safety
Safe operation of the appliance depends on appropriate and thorough use. Negligent handling of the appli-
ance can lead to danger to life and limb of the user and / or third parties as well as hazards to the appliance
itself and the other operator's property.
The following points are to be observed to ensure the appliance safety:
§The appliance may only be operated as intended, when it is in perfect condition with regards to tech-
nical standards, with awareness of safety and hazards and in accordance with the operating instruc-
tions.
§All the operating and actuating elements must be in a perfect and functionally reliable condition with
regards to technical standards.
§The appliance must be checked for external visible damage and defects whenever it is put into opera-
tion. In case of damages, inform immediately the competent bodies and switch off the food transport
trolley.
§Modifications or retrofits of the equipment are only permitted in consultation with the manufacturer
and on receipt of his written agreement.
§The appliances can only be operated under continuous supervision.
§Move the appliance only with the doors closed. Unless the doors are closed, they can open during
transport and causein damages or lead to injuries.
§The appliance is provided exclusively for manual transport. Transport using any kind of devices is not
permitted. Risk of injury and damage.
§Release both total brakes before commencing transporting. Moving the appliance with the total
brakes locked can damage the chassis.
§Transport should only be undertaken over level floors. Moving the appliance over very uneven floors
and stair steps can damage the chassis.
§Do not stop the food transport trolley by applying the total brakes. The total brakes are designed to be
able to prevent the appliance from unintended moving. Do not stop the appliance on sloping floors.
Secure the appliance against rolling away by applying both total brakes when stopping it.
§When approaching walls and moving round obstacles always pay attention to persons in the way.
Risk of injury.
§When transporting the appliance, always hold both push bars with your hands. Never let go of the ap-
pliance while moving it.
§When transporting the appliance, do not move it faster than a walking pace. Heavily laden appliances
are difficult to brake and steer. If necessary, ask for assistance when transporting the appliance.
§If the food transport trolley tips over due to outside influence or inattention, never catch it manually.
Risk of injury.
§In the case of off-site transport in a vehicle such as a lorry, the appliances should be secured proper-
ly. The total brakes are not sufficient as a transport securing method.
§Before transporting, switch off the appliance, pull out the mains plug and insert it into the holder pro-
vided.
§Never pull the mains plug out of the socket by the connecting lead.
§Never move the appliance by pulling by the connecting lead.
§If the mains plug has come into contact with water it must be dried before inserting it into the socket.
Danger to life.
§Damaged mains plugs or the connecting lead are to be replaced by authorised specialists before the
appliance is used.
§Do not use any extension leads in wet and damp areas.

Chapter 2Safety Instructions
Page 10 Safety Instructions for Transport
Food transport trolley
SPTW-2/EBF | SPTW-3/EBF | SPTW-2/EBF-S | SPTW-3/EBF-S | SPTW-2/EBF-K | SPTW-3/EBF-K 4330025_A1
2.3.1 Safety Instructions for appliances with sliding lid
§Only objects with a firm basemay be transported on the shelves so that they can not lead to injuries
when falling down. These are for example crockery, cutlery and napkins in suitable transport contain-
ers or trays.
§For a better adhesion transported objects have to be protected against falling down on the lid with a
non-slip pad.
§The maximum load of the cover segment is 40 kg. The permitted total weight may not be exceeded.
Avoid point loads, otherwise this can result in deformations in the metal sheet surface.
§It is not allowed to move open containers with hot liquids on it.
§The appliance may only be moved with closed sliding lid.
§Cover the inserted gastronorm containers with lids. If you use smaller gastronorm containers use
separating webs and insert empty gastronorm containers into positions that remain free. The escap-
ing steam can heat the lids up to 100°C.
2.3.2 Safety Instructions for appliances with a hinged lid
§It is not permitted to transport any loads on hinged lids, because transported objects are not protected
against falling down.
§It is not allowed to move open containers with hot liquids on it.
§The appliance may only be moved with closed hinged lid.
§There is a risk of crushing your fingers when opening and locking the cover segments.
§Cover the inserted gastronorm containers with lids. If you use smaller gastronorm containers use
separating webs and insert empty gastronorm containers into positions that remain free. The escap-
ing steam can heat the lids up to 100°C.
2.4 Safety Instructions for Transport
The following points are to be observed when transporting the food transport trolley:
§When loading, use only hoists and load lifting devices approved for the weight of the appliance to be
lifted.
§Only use transport vehicles that are approved for the weight of the food transport trolley.
§In no case put a defective appliance into operation and inform the supplier immediately.
2.5 Safety Instructions for Cleaning and Care
The following points must be observed when carrying out any cleaning and maintenance operations:
§Take the food transport trolley out of operation, switch it off, pull out the mains plug and secure it
against unauthorised reactivation before performing cleaning and care measures.
§For reasons of hygiene the cleaning instructions must be strictly observed.
§Heated appliances must be out of operation and sufficiently cooled before cleaning.
§Do not clean the appliance with steam-jet or high-pressure washers. The appliance must be taken out
of operation and switched off at the mains beforehand in any area where steam-jet or high-pressure
washers are to be used.

Safety Instructions Chapter 2
Safety Instructions for Troubleshooting Page 11
Food transport trolley
4330025_A1 SPTW-2/EBF | SPTW-3/EBF | SPTW-2/EBF-S | SPTW-3/EBF-S | SPTW-2/EBF-K | SPTW-3/EBF-K
2.6Safety Instructions for Troubleshooting
The following points must be observed when carrying out any troubleshooting operations:
§The local applicable Accident Prevention Regulations must be observed.
§Take the food transport trolley out of operation, switch it off, pull out the mains plug and secure it
against unauthorised reactivation before performing maintenance or troubleshooting operations.
When working on the electrical installation, the appliance must be switched off at the mains and se-
cured against reactivation. This work must only be carried out by a certified electrician.
§Observe the valid product safety regulations when handling oils, greases and other chemical sub-
stances.
§Carry out all the checks and inspections of the appliance on a regular basis. Remedy immediately de-
ficiencies, such as loose screw connections, melted or damaged leads.
§Only authorised specialists may perform all repair work.
§Defective components should only be replaced with original parts.
2.7 Notes on Specific Hazards
Electrical energy
§All work on the electrical installations should only be carried out by a certified electrician or by author-
ised specialists under supervision andmonitoring of a certified electrician according to the applicable
electro-technical regulations.
§The appliances on which inspection, maintenance and troubleshooting work is performed must be
disconnected from the power supply and secured against reactivation when the voltage is not re-
quired for this kind of work. This must only be carried out by a certified electrician.

Chapter 3Description and Technical Data
Page 12 Performance Description
Food transport trolley
SPTW-2/EBF | SPTW-3/EBF | SPTW-2/EBF-S | SPTW-3/EBF-S | SPTW-2/EBF-K | SPTW-3/EBF-K 4330025_A1
3 Description and Technical Data
3.1Performance Description
The food transport trolleys hold up prepared meals and keep them warm. Food in gastronorm containers can
be either put into bain-marie wells or gastronorm containers, on grids or into baskets in heated cupboards.
When switched off and with the use of a cold storage plate, the cupboard compartments can also be used for
cold meals and cold side dishes, e.g. salads, bread, cold cuts and desserts. Bain-marie wells and heated
cupboards are thermally insulated from each other.
Mobile food transport trolleys are mainly used to store, transport for short distances and distribute hot meals.
Food transport trolleys can be used everywhere, where the use of tray systems is not efficient and the free
choice of a portion size is a particularly important decision criterion.
The number of persons depends on the number of menu components.
Food transport trolleys are available in different equipment variations. All models are equipped with bain-
marie wells and heated cupboards.
§The food transport trolley SPTW-2/EBF-S and SPTW-3/EBF-S are closed with a two-part sliding lid
above the bain-marie wells.
§The food transport trolley SPTW-2/EBF-K and SPTW-3/EBF-K are equipped with a hinged lid that can
be opened 1/3 to 2/3 to the left and to the right.
3.2 Intended Use
Food transport trolleys are intended for storing hot meals and for keeping meals warm. It is not possible to
heat up cold meals or to cook products which have been introduced in the warm state.
Food transport trolleys are only intended for the transport of meals in gastronorm containers or portioned
meals on grids or in baskets.
It is not permitted to heat dry the bain-marie wells of the appliances with foil heating.
Furthermore, objects with a firm base may be transported on appliances with a closed sliding (SPTW-2/EBF-
S and SPTW-3/EBS-S) that are protected with a non-slip pad against falling. These are for example crock-
ery, cutlery and napkins in suitable transport containers or on trays.
Do not exceed the maximum load limits per cover segment. Avoid point loads, otherwise this can result in
deformations in the metal sheet surface.
The food transport trolleys are only intended for the transport for short distances. When transporting for
longer distances, connect the appliance to a power supply, switchthe heating on and reheat the meals at
regular intervals.
When cooling meals or the components it is necessaryto comply with the respective legal directives onfood
storage (duration and temperature).
The intended use means the predetermined procedures, compliance with theindicated specifications and
use of the delivered or additionally available original accessories.
Any other use of the appliance is considered as unintended use.

Description and Technical Data Chapter 3
Improper Use Page 13
Food transport trolley
4330025_A1 SPTW-2/EBF | SPTW-3/EBF | SPTW-2/EBF-S | SPTW-3/EBF-S | SPTW-2/EBF-K | SPTW-3/EBF-K
3.3Improper Use
It is not permitted to load the food transport trolley with other loads as given.
It is not permitted to use food transport trolleys for cooking food or keeping it warm, for room heating and
drying the crockery.
The maximum duration of transport of hot meals shall in no case be exceeded between two heating stages.
It is not permitted to transport any loads on the appliances with a hinged lid, because transported objects are
not protected against falling down.
Transport of persons is not permitted.
In no casemay people sit or stand on the appliance.
Open containers with hot liquids on it may not be moved.
It is not permitted to heat dry the bain-marie wells.
Any other use, especially loading the food transport trolley with other loads as given, is not permitted.
The manufacturer and suppliers are not liable for any consequential damage resulting from unintended use.
No liability is assumed and no warranty claims can be submitted for damages caused by improper use.
3.4 Appliance Description
3.4.1 Description of food transport trolley

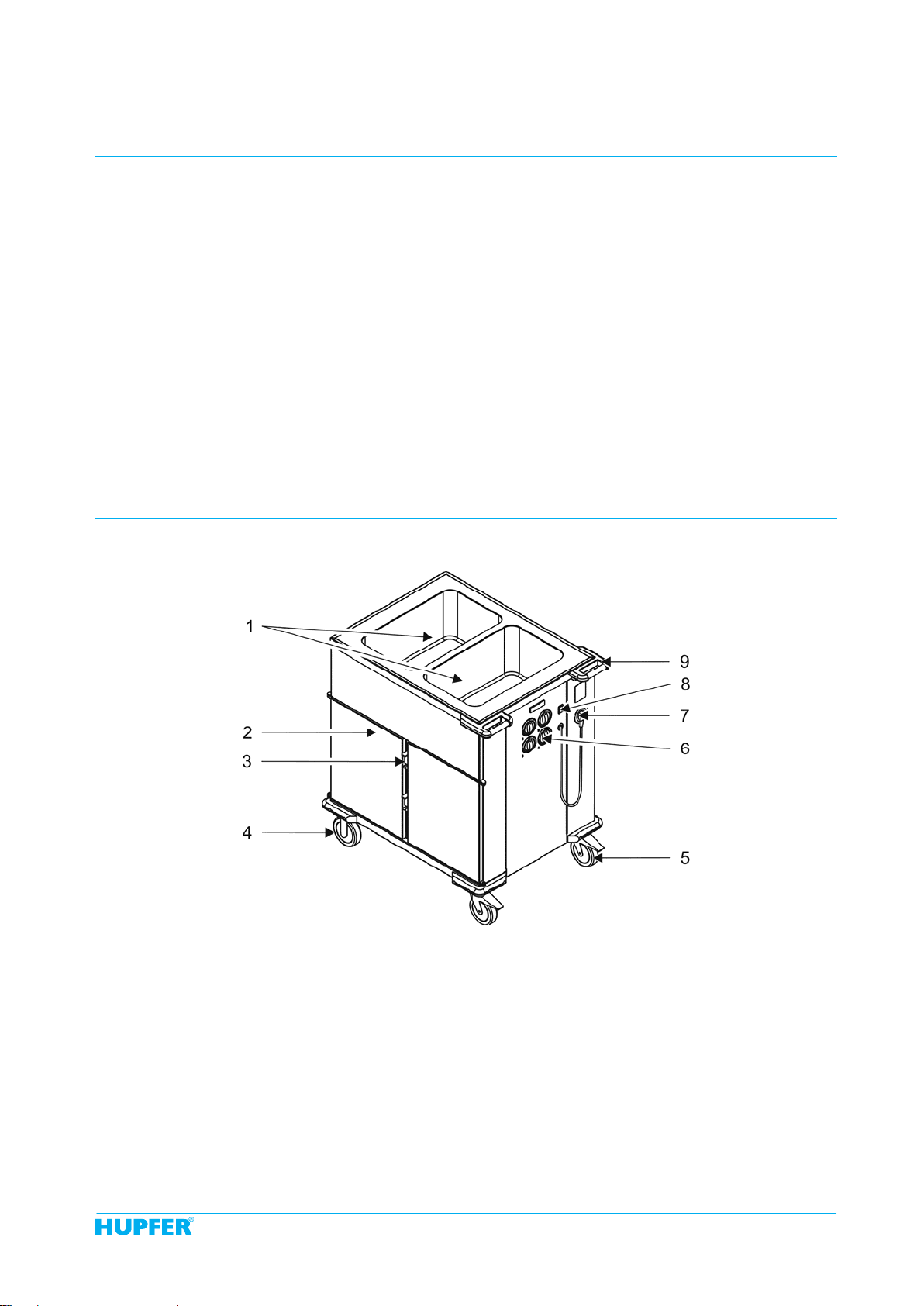

Figure 1 View of the appliance SPTW-2/EBF
1 Bain-marie well 6 Thermostat for setting the temperature*
2 Heated cupboard door 7 Connecting lead with mains plug
3 Door lock 8 On / Off switch
4 Fixed caster 9 Push bars
5 Swivel caster with total brake

Chapter 3Description and Technical Data
Page 14 Appliance Description
Food transport trolley
SPTW-2/EBF | SPTW-3/EBF | SPTW-2/EBF-S | SPTW-3/EBF-S | SPTW-2/EBF-K | SPTW-3/EBF-K 4330025_A1
3.4.2 View of the appliance food transport trolleys with sliding lid
Figure 2 View of the appliance SPTW-2/EBF-S
1 Push bars 6 Swivel caster with total brake
2 Bain-marie wells 7 Corner bumper
3 Heated cupboard door 8 Connecting lead with mains plug
4 Door lock 9 Lever for cover release
5 Fixed caster 10 Peripheral gallery
3.4.3 View of the appliance food transport trolleys with hinged lid
Figure 3 View of the appliance SPTW-2/EBF-K
1 Bain-marie well 7 Thermostat for setting the temperature*
2 1/3 Cover element with perforated plate 8 Connecting lead with mains plug
3 Heated cupboard door 9 On / Off switch
4 Door lock 10 Push bar
5 Fixed caste 11 2/3 Cover element, open
6 Swivel caster with total brake

Description and Technical Data Chapter 3
Appliance Description Page 15
Food transport trolley
4330025_A1 SPTW-2/EBF | SPTW-3/EBF | SPTW-2/EBF-S | SPTW-3/EBF-S | SPTW-2/EBF-K | SPTW-3/EBF-K
3.4.4 Appliance Description
Food transport trolleys are equipped with heated bain-marie wells and heated cupboard compartments. They
hold up prepared meals in Gastronorm containers and keep them warm. There is also the opportunity to use
heated cupboard compartments in combination with a cold storage plate as a cooling compartment. Due to
the thermal insulation of the mobile bain-marie, the bain-marie wells that are placed above and the adjacent
heated cupboards are not affected.
The bain-marie wells are filled with water up to the fill level indicator and warmed up by a foil heater. The
generating water vapour heats up the inserted Gastronorm containers. The heating element and electrical
parts are easy to be accessed and can be dismantled without any problems. The bain-marie wells can be
emptied by the water drain taps after the operation.
The operating temperature for each bain-marie well and each heated cupboard compartment can be chosen
separately. The thermostats are fitted on the front side of the food transport trolley that is used to set the op-
erating temperature continuously between 30°C and 95°C for each bain-marie well, and continuously be-
tween 30°C and 80°C for each cupboard compartment. Thereby the digits on the thermostats help to allocate
to the corresponding bain-marie wells and heated cupboard compartments.
The cover elements of both models with a sliding lid (SPTW-2/EBF-S and SPTW-2/EBF-S) can be opened
back and forth. When closing the covering elements are mechanically locked in the end position. The lever
for cover release can be operated with one hand. To loosen the locking you haveto push down the lever.
The cover elements of the models with a hinged lid (SPTW-2/EBF-K and SPTW-2/EBF-K) can be opened to
the right and left. The smaller 1/3 element with a removable perforated plate is opened to the left and can be
locked with two supports in a 180° position. It can be used for serving plates, filling of soup bowls and to hold
up ladles. The bigger 2/3 element is opened to the right and it is equipped with a condensate collecting
channel on the inner side. When it is opened to an angle of 270° it can be used to hold gastronorm container
lids. It is not possible tolockit in an angle of 180°.
3.4.5 Equipment and optional accessories
The following parts can be applied as optional accessories for the food transport trolley:
§Folding shelf
Folding shelves made of stainless steel are designed to hold up crockery items. They can be fitted ei-
ther on
the lateral side or on the front side of themodels. Only authorised staff may fix the folding shelves to
the appliance. To do this, they need a welding device. It is not permitted to put heavy loads onto fold-
ing shelves. During transport, they must be folded up. The folding shelves can be folded up by lifting
them slightly up and raising them to an angle of 90°. There is a risk of crushing your fingers when
folding up and locking.
§Cold storage plate
The cold storage plates are filled with approximately 4 litres of cooling brine. Nutritionally, plastic
housings and coolant are totally harmless. Dimensions 530 x 325 x 30 mm, total weight 4.5 kg.
During the phase transition from the solid to the liquid state about 70 % of the available cooling power
is released. If only liquid cooling brine is used, the power will be only 30 % of themaximal possible
value.
When freezing, cold storage plates have to be stored horizontally and with sufficient distance to each
other, since otherwise centrally located cold storage plates cannot be cooled sufficiently even after 24
hours. During the freezing process, the cold storage plates bulge due to the volume increase of the
cooling brine. This is a natural process that can be reversed by the heating in the food transport trol-
ley.
It is not useful to cool down the cooling brine below -18°C because too low temperatures slow down
the liquid-to-solid phase transition. The maximal permitted surface temperature of the cold storage
plates is +50°C. Cold storage plates are not suitable for the cleaning in dishwashers.
§Sneeze guard
The sneeze guard serves as a hygienic protection when serving food. In addition, the integrated heat
bridge warms the meals from above and prevents the formation of condensation on thetransparent
sneeze guard.
§Gastronorm containers and bowls of various sizes
§Support bars for wells, length 325 mm, made of stainless steel
§Support bars for wells, length 530 mm, made of stainless steel
§Basket GN 1/1, 530 x 325 x 70 mm, Mesh width 26 mm, stainless steel, plastic-coated

Chapter 3Description and Technical Data
Page 16 Technical Data
Food transport trolley
SPTW-2/EBF | SPTW-3/EBF | SPTW-2/EBF-S | SPTW-3/EBF-S | SPTW-2/EBF-K | SPTW-3/EBF-K 4330025_A1
§Anti-slide mat, Multigrip, plastic, black
§Swivel casters made of stainless steel, Ø = 125, 160 or 200 mm with and without total brakes, plate
attachment
§Fixed caster made of stainless steel, Ø = 125, 160 or 200 mm, plate attachment
The part numbers of the special accessories can be found in the spare parts catalogue and order lists avail-
able online.
3.5 Technical Data
Dim. SPTW-2/EBF SPTW-3/EBF SPTW-2/EBF-S
Width in
(mm) 27.5 (700) 27.5 (700) 31.2 (795)
Depth in
(mm) 36.5 (922) 51.8 (1317) 39.3/68.7 (1000/1745)
Height in
(mm) 38.3 (974) 38.3 (974) 41.7 (1061)
Own weight lbs
(kg) 169.7 (77) 233.6 (106) 224.8 (102)
Payload lbs
(kg) 227 (103) 339.5 (154) 370.3 (168)
Capacity
(in people) 25 50 25
maximum duration of
transport between two
heating stages
min20 20 20
Number of bain-marie
wells 2 3 2
Size of bain-marie wells in
(mm) 20.9 x 12.8 (530 x 325) 20.9 x 12.8 (530 x 325) 20.9 x 12.8 (530 x 325)
Heating of bain-marie
wells Foil heating Foil heating Foil heating
Temperature regulation,
for each well separately continuous continuous continuous
Thermostat setting ˚C
(˚F)30-95 (86-203) 30-95 (86-203) 30-95 (86-203)
Heat insulation ceramic mat ceramic mat ceramic mat
Number of cupboard
compartments 2 3 2
Cupboard inner
dimensions in (mm) 12.8 x 22.04 x 17.2 (327 x 560 x 438) 12.8 x 22.04 x 17.2 (327 x 560 x 438) 12.8 x 22.04 x 17.2 (327 x 560 x 438)
Beads 5 pairs,
distance 75 mm 5 pairs, distance 75 mm 5 pairs, distance 75 mm
Heating of heated cup-
boards Stainless steel tubular
heating element
0.45 kW
Stainless steel tubular
heating element
0.45 kW
Stainless steel tubular
heating element
0.45 kW

Description and Technical Data Chapter 3
Technical Data Page 17
Food transport trolley
4330025_A1 SPTW-2/EBF | SPTW-3/EBF | SPTW-2/EBF-S | SPTW-3/EBF-S | SPTW-2/EBF-K | SPTW-3/EBF-K
Dim. SPTW-2/EBF SPTW-3/EBF SPTW-2/EBF-S
Temperature regulation,
for each compartment
separately
continuous continuous continuous
Thermostat setting ˚C
(˚F)30-80 (86-176) 30-80 (86-176) 30-80 (86-176)
Heat insulation special insulation special insulation special insulation
Power requirement kW 2.33.45 2.3
Protection class IPX5 IPX5 IPX5
Operating and environ-
mental conditions of
casters
˚C
(˚F) -20 to +50 (-4 to 122) -20 to +50 (-4 to 122) -20 to +50 (-4 to 122)
Caster diameter mm 125125125
Dim. SPTW-3/EBF-S SPTW-2/EBF-K SPTW-3/EBF-K
Width in
(mm) 31.2 (795) 27.5/36.85 (700/936) 27.5/36.8 (700/936)
Depth in
(mm) 54.8/99.7 (1393/2533) 36.6 (931) 52.1
(1325)
Height in
(mm) 41.7
(1061) 40.8
(1037) 40.8 (1037)
Own weight lbs
(kg) 306.4 (139) 198.4 (90) 275.5 (125)
Payload lbs
(kg) 266.7 (121) 242.5 (110) 341.7
(155)
Capacity
(in people) 50 25 50
maximum duration of
transport between two
heating stages
min20 20 20
Number of bain-marie
wells 3 2 3
Size of bain-marie wells in
(mm) 20.9 x 12.8 (530 x 325) 20.9 x 12.8 (530 x 325) 20.9 x 12.8 (530 x 325)
Heating of bain-marie
wells Foil heating Foil heating Foil heating
Temperature regulation,
for each well separately continuous continuous continuous
Thermostat setting ˚C
(˚F)30-95 (86-203) 30-95 (86-203) 30-95 (86-203)
Heat insulation ceramic mat ceramic mat ceramic mat
Number of cupboard
compartments 3 2 3
Cupboard inner
dimensions in (mm) 12.87 x 22 x 17.24 (327 x 560 x 438) 12.87 x 22 x 17.24 (327 x 560 x 438) 12.87 x 22 x 17.24 (327 x 560 x 438)

Chapter 3Description and Technical Data
Page 18 Rating Plate
Food transport trolley
SPTW-2/EBF | SPTW-3/EBF | SPTW-2/EBF-S | SPTW-3/EBF-S | SPTW-2/EBF-K | SPTW-3/EBF-K 4330025_A1
Dim. SPTW-3/EBF-S SPTW-2/EBF-K SPTW-3/EBF-K
Beads 5 pairs,
distance 75 mm 5 pairs, distance 75 mm 5 pairs, distance 75 mm
Heating of heated cup-
boards Stainless steel tubular heating element 0.45 kW Stainless steel tubular heating element 0.45 kW Stainless steel tubular heating element 0.45 kW
Temperature regulation,
for each compartment
separately
continuous continuous continuous
Thermostat setting ˚C
(˚F)30-80 (86-176) 30-80 (86-176) 30-80 (86-176)
Heat insulation special insulation special insulation special insulation
Power requirement kW 3.45 2.33.45
Protection class IPX5 IPX5 IPX5
Operating and environ-
mental conditions of
casters
˚C
(˚F) -20 to +50 (-4 to 122) -20 to +50 (-4 to 122) -20 to +50 (-4 to 122)
Caster diameter in
(mm) 125125125
The corresponding test marks can be found on our home page at www.hupfer.de.
3.6 Rating Plate
Figure 4 Rating plate
1 Disposal of old appliances 9 Nominal current
2 Test mark 10 Frequency
3 Protection class 11 Nominal voltage
4 Chilling capacity 12 Payload
5 Refrigerant 13 Own weight
6 Induction frequency 14 Serial number/Order number
7 Current serial number 15 Item and brief description
8 Electric power 16 Manufacturer

Transport, Putting into Operation and Decommissioning Chapter 4
Transport Page 19
Food transport trolley
4330025_A1 SPTW-2/EBF | SPTW-3/EBF | SPTW-2/EBF-S | SPTW-3/EBF-S | SPTW-2/EBF-K | SPTW-3/EBF-K
4 Transport, Putting into Operation and Decommissioning
4.1Transport
ATTENTION Appliance damages caused by improper transport
In the case of off-site transport in a vehicle such as a lorry, the appliances
should be secured properly. The total brakes are not sufficient as a transport
securing method.
If the appliances are not secured properly, there is a risk of damage to proper-
ty and persons caused by squashing.
During transport, secure all the individually standing appliances using corre-
sponding transport securing devices.
The food transport trolley is delivered as an assembled unit, i.e. it is completely assembled including the
heating.
When loading, use only hoists and load lifting devices approved for the weight of thefood transport trolley.
Only thetransport vehicles may be used that are approved for the weight of the appliance.
According to the valid purchase contract, the scope of delivery is specified in the shipping documents at-
tached to the delivery item.
4.2 Putting into Operation
DANGER Hazardous electrical voltage
The electrical voltage may be considerably dangerous to limb and life of per-
sons and lead to injuries.
Before putting the appliance into operation check, whether the power supply
indicated on the rating plate (230V / 50 Hz) corresponds to the local power
supply. Otherwise, do not put the appliance into operation.
Do not use any extension leads in wet areas.
Remove the original packing and check, whether the appliance is complete and undamaged. In no case put
a defective appliance into operation and inform the supplier immediately.
Always place the food transport trolley on firm and level floors when unpacking and operating it. Apply the to-
tal brakes on both swivel casters to secure the appliance against rolling away.
INFO Disposal of packing material
The packing consists of recyclable materials and can be disposed of appro-
priately. Thereby, the different materials are to be separated and disposed in
an environmentally compatible manner. In any case, the local bodies respon-
sible for disposal are to be involved for this purpose
The food transport trolley should be thoroughly cleaned with a soft cloth before putting it into operation for
the first time. Before the appliance is put into operation it must be clean and dry.
The following appliance functions must be checked before putting it into operation:
§the functioning of the total brakes
§the functioning of the operating elements and heating.

Chapter 4Transport, Putting into Operation and Decommissioning
Page 20 Storage and Recycling
Food transport trolley
SPTW-2/EBF | SPTW-3/EBF | SPTW-2/EBF-S | SPTW-3/EBF-S | SPTW-2/EBF-K | SPTW-3/EBF-K 4330025_A1
4.3Storage and Recycling
Temporary storage must take place in a dry and frost-free environment. The food transport trolley must be
kept covered with a suitable covering material to be protected against dust ingress.
The appliance kept in the storage location must be checked for damages and corrosion every 6 months.
NOTE Condensed water formation
Ensure that there is sufficient ventilation and no large temperature fluctuations
in the storage location to avoid condensed water formation.
Before the appliance is taken back into operation it must be clean and dry.
If the food transport trolley is recycled, all operating and auxiliary materialsmust be disposed in an environ-
mentally compatiblemanner. The recyclablematerials must be properly separated and disposed in an envi-
ronmentally compatible manner according to the local Waste Disposal Regulations. In any case, the local
bodies responsible for disposal are to be involved for this purpose. Separate the reusable materials of the
appliance (casters and plastic parts) before disposing or send the appliance to a recycling centre. Dispose
the electronics at corresponding collection centres.
We offer our customersto dispose their waste appliances. Please contact us or one of our distribution part-
ners.
Packaging and packing material can be sent to the recycling centre by indicating the waste disposal contract
number. If you do not have the valid waste disposal contract number, you can ask for it at HUPFER®- Ser-
vice.
