Adexa EMP.150.60.01 User manual

1
REFRIGERATED COUNTERS (FAN COOLING)
Kasap Tip Dik Buzdolapları
CONTENTS
A GENERAL INFORMATION Page 2
A1 PRODUCT DESCRIPTION Page 3
A2 TECHNICAL INFORMATION Page 3
A3 TRANSPORTATION Page 4
A4 UNPACKING Page 4
B INSTALLATION Page 4
C SAFETY INSTRUCTIONS Page 5
D OPERATION Page 6
E CLEANING & MAINTENANCE Page 7
F TROUBLESHOOTING Page 8
G SPARE PART LIST- EXPLODING DRAWING Page 9

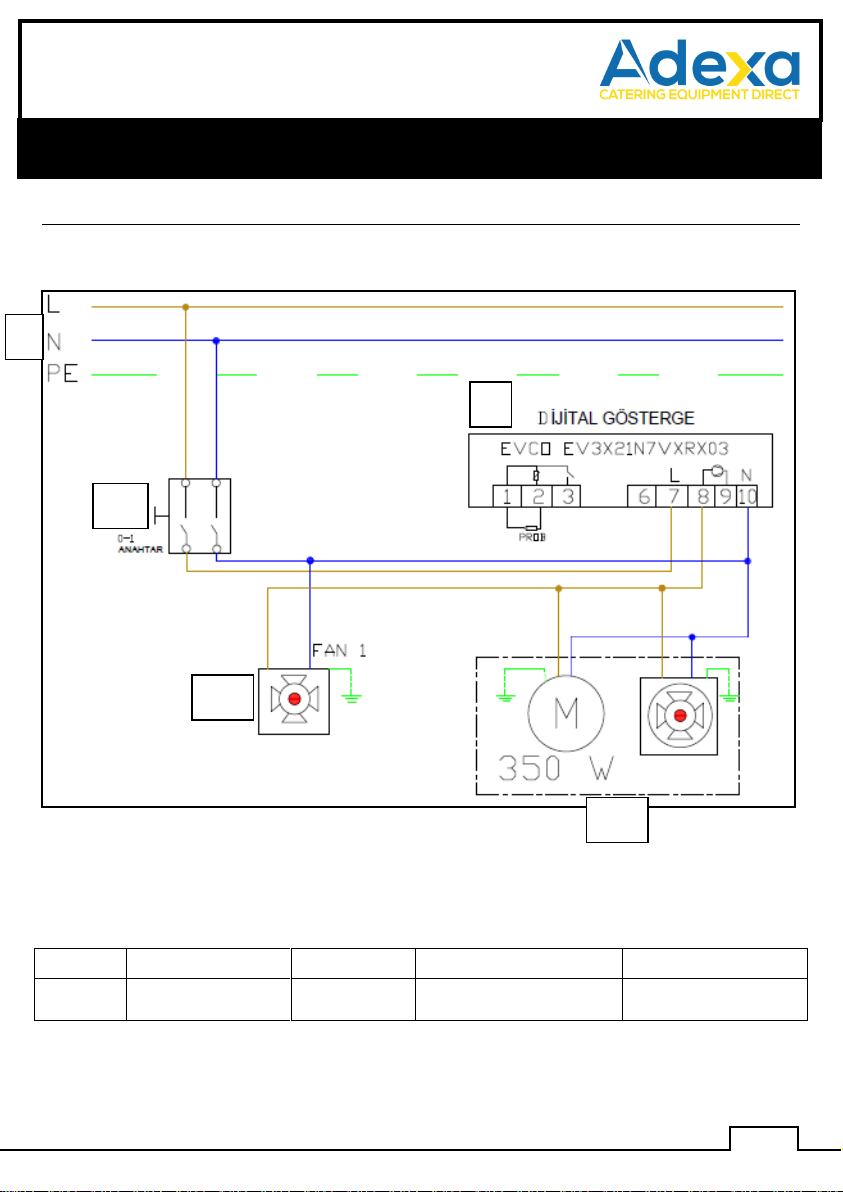

H ELECTRIC CIRCUIT SCHEMA Page 18

2
REFRIGERATED COUNTERS (FAN COOLING)
Kasap Tip Dik Buzdolapları
A GENERAL INFORMATION
Before installing the appliance, read operation and maintenance instructions
carefully.Wrong installation and part changing may damage the product or may cause
injury on people.These are not in our company’s responsibility to damage the
appliance intentionally,negligence,detriments because of disobeying instructions and
regulations,wrong connections.Unauthorized intervention to appliance invalidates the
warranty.
1. This instruction manual should be kept in a safe place for future reference.
2. Installation should be made in accordance with ordinances and security rules of
that country by a qualified service personnel.
3. This appliance has to be used by trained person.
4. Please turn off the appliance immediately in the event of malfunction or failure.The
appliance should be repaired only by authorized service personnel.Please demand
original spare part.

3
REFRIGERATED COUNTERS (FAN COOLING)
Kasap Tip Dik Buzdolapları
A1 PRODUCT DESCRIPTION
*The Professional Refrigerated Counters(Fan Cooling) ,that provides high efficiency has been
designed to be used in industrial kitchen.
Product Code
Dimensions (mm)
Weight (kg)
Packaging
Dimensions (mm)
EMP.150.60.01
1500x600x850
85
1540x630x970
EMP.150.70.01
1500x700x850
95
1540x730x970
EMP.200.60.01
2000x600x850
110
2040x630x970
EMP.200.70.01
2000x700x850
120
2040x730x970
EMP.255.60.01
2550x600x850
135
2600x630x970
EMP.255.70.01
2550x700x850
145
2600x730x970
A2 TECHNICAL INFORMATION
Code
EMP.150.60
.01
EMP.150.
70.01
EMP.200.60
.01
EMP.200.70
.01
EMP.255.60
.01
EMP.255.70
.01
Capacity
(Lt)
250
300
400
500
550
700
Gas type
134A
134A
134A
134A
134A
134A
Gas
weight
(gr)
230
230
230
230
420
420
Power
(KW)
0,25
0,25
0,25
0,25
0,6
0,6
Operating
Voltage
(V)
220-230
220-230
220-230
220-230
220-230
220-230
Cable
(mm²)
3x1,5
3x1,5
3x1,5
3x1,5
3X1,5
3X1,5
Fuse (A)
25
25
25
25
25
25
Operating
Range
(ºC)
+0 / +5
+0 / +5
+0 / +5
+0 / +5
+0/+5
+0/+5
Density
(kg/m³)
40
40
40
40
40
40

4
REFRIGERATED COUNTERS (FAN COOLING)
Kasap Tip Dik Buzdolapları
A3 TRANSPORTATION
*This appliance can not be moved by hand from area to area.It must be moved on pallet with
forklift truck.
A4 UNPACKING
*Please unpack the package according to the security codes and ordinances of current
country and get rid from the pack.Parts which contacts with food are produced by stainless
steel.All plastic parts are marked by material’s symbol.
*Please check that all the parts of appliance had come completely and if they are damaged or
not during the shipping.
B INSTALLATION
*Please place the product to straight and sturdy ground,please take necessary steps against
possibility of overturn.
*Technician who will serve for installation and service for the appliance must be professional
on this subject and must have installation and service licenses by the company.
*Connection to Electric Power Supply must be done by authorized person.
*Please be sure that the voltage connected to appliance must be equal with the voltage which
is on appliance’s label.
This appliance must be connected to an earthed outlet in accordance with safety rules
and standard.
*Appliance’s earthing must be connected to earthing line on panel which is nearest to
electric installation.
*Connection to the main fuse and leak current fuse must be done in accordance with the
current regulations.
*If the 2 appliance will be placed adjacently,there must be at least 2 cm space between
them.The Condensation is prevented.
!

5
REFRIGERATED COUNTERS (FAN COOLING)
Kasap Tip Dik Buzdolapları
C SAFETY INSTRUCTIONS
*Do not use the appliance in insufficient lighted place.
*Do not touch the moving attachments while the appliance operates.
*Do not install the appliance in the presence of flammable or explosive materials.
*Do not operate the appliance when the machine is empty.
*Do not load so less or more than appliance’s capacity.
*Do not attempt to use the appliance without suitable protective equipments.
*Because of any reason if there is a fire or flame flare where the appliance is
used,turn off all gas valves and electric contactor switch quickly and use fire
extinguisher .Never use water to extinguish the fire.
*All the damages because of not having earthing connection will not be on
warranty.
*Prevent the appliance to take sunshine directly.
*Do not place heavy objects on to the appliance.

!
!
!
!
!

!
!
!

6
REFRIGERATED COUNTERS (FAN COOLING)
Kasap Tip Dik Buzdolapları
D OPERATION

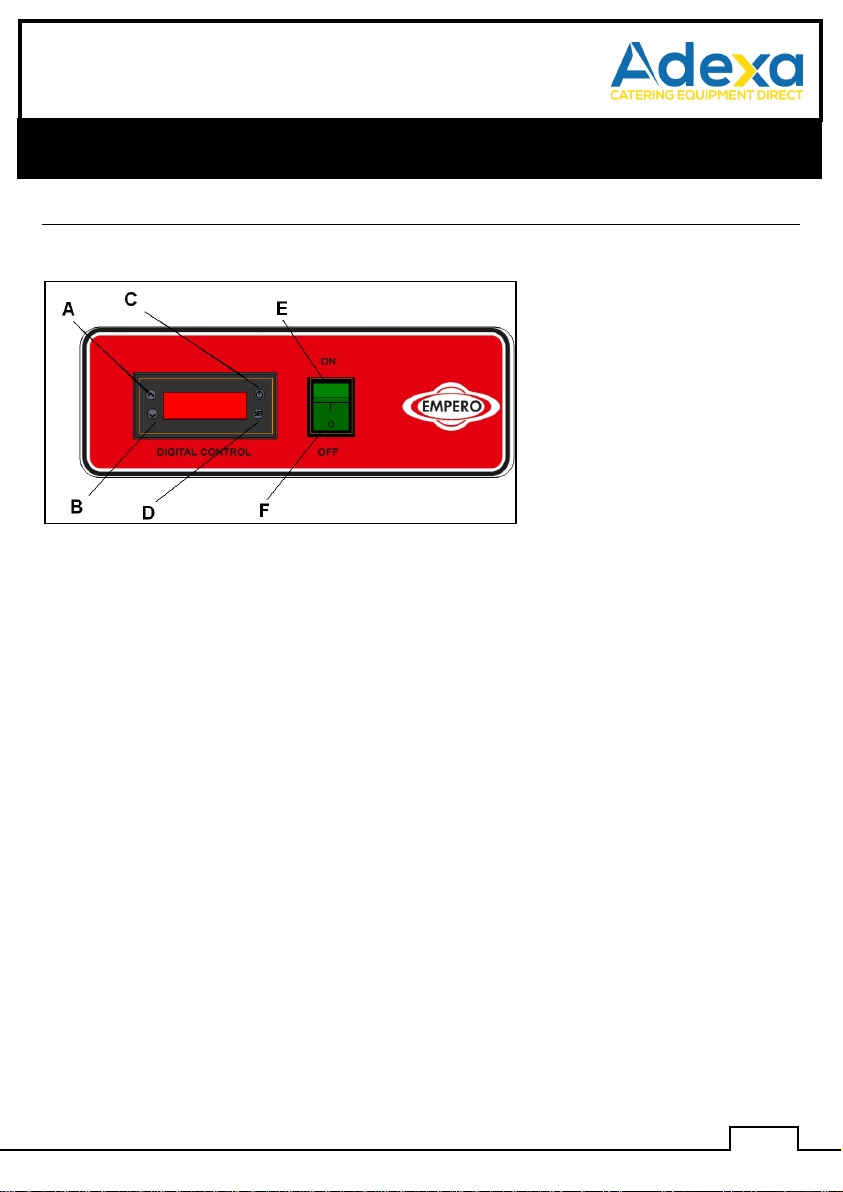

*Control Panel; A: Degree increase
B: Degree reduce
C: Indicator ON/OFF
D: SET approval button
E : ON position
F: OFF position
*Operating;
Clean the inner and outer surface of the appliance with warm cloth before first use.Then
clean with wet cloth and dry.
Plug in the appliance.
Activate ON/OFF button at control panel.
Set the temperature of the appliance with up-down arrows.
Operate the appliance for 12 hours when it is empty. at first use .Meanwhile do not open
the lids.
After inserting the products to the appliance,close the lids.
If the lids are opened often or left opened,these situations can effect the cooling of the
products.
When the appliance is not needed to be used,switch OFF and unplug the appliance.

7
REFRIGERATED COUNTERS (FAN COOLING)
Kasap Tip Dik Buzdolapları
E CLEANING & MAINTENANCE
CLEANING AND MAINTENANCE AFTER EVERY USE
Always turn off the appliance and disconnect from the power supply before cleaning.
Clean the inner surfaces and shelves with moist cloth and then dry after every
evacuation of material.
Clean the control panel with dry cloth.
Pay attention the cleaning materials to be hygienic.
Do not use abrasive cleaning chemicals as these can leave harmful residues.
Do not clean the appliance by spraying water directly ,otherwise electric motor may
get damaged.
PERIODIC CLEANING AND MAINTENANCE
Maintenance should be done by qualified person.
Get the periodic maintenance of the appliance once in every 15 days.
Clean the condenser with a plastic rigid brush.
Clean the fan in periodic times.
Make periodic maintenance of the fire-extinguisher.

8
REFRIGERATED COUNTERS (FAN COOLING)
Kasap Tip Dik Buzdolapları
F TROUBLESHOOTING
THE APPLIANCE DOESN’T OPERATE
1. Check if the appliance is plugged in.
2. Check the electrical connections and
voltage.
3. Check if the fuse is on or off.
THE APPLIANCE IS NOISY
1. Check the motor.
2. If the connection pipes contact with
compressor,remove it.
THE APPLIANCE STOPPED
1. The appliance can stop due to low
voltage.In this situation check the
voltage.
2. If there is any leakage current at electric
connections,the appliance stops.In this
situation call the authorized service.
INNER TEMPERATURE IS TOO HIGH
1. Clean the condenser.
2. Check the air conditioning.
3. If the hot product is inserted,take it off.
4. If the door is opened,close it.
If cooling is not done at suitable quality
If any function of security doesn’t work
Do not use the appliance.
*If these problems are still going on,contact with our authorized services.

9
REFRIGERATED COUNTERS (FAN COOLING)
Kasap Tip Dik Buzdolapları
G SPARE PART LIST- EXPLODING DRAWINGS
EMP.150.60.01 - EMP.150.70.01
,
,

10
REFRIGERATED COUNTERS (FAN COOLING)
Kasap Tip Dik Buzdolapları
,
G SPARE PART LIST- EXPLODING DRAWINGS
NO PRODUCT NAME P. CODE
1 MOTOR REAR COVER SHEET Y.EMP.150.60.01.001-R1
2 COMPRESSOR Y.EMP.150.60.01.002-R1
3 CONDENSER Y.EMP.150.60.01.003-R1
4 FAN WING Y.EMP.150.60.01.004-R1
5 FAN CIRCLE WIRE Y.EMP.150.60.01.005-R1
6 FAN MOTOR Y.EMP.150.60.01.006-R1
7 WATER DRAIN PLASTIC Y.EMP.150.60.01.007-R1
8 RIGHT OUTER SIDE SHEET Y.EMP.150.60.01.008-R1
9 COOLING INSULATION FOAM Y.EMP.150.60.01.009-R1
10 EVAP Y.EMP.150.60.01.010-R1
11 EVAP RADIAL FAN Y.EMP.150.60.01.011-R1
12 MONOBLOCK PLASTIC Y.EMP.150.60.01.012-R1
13 MONOBLOCK GASKET Y.EMP.150.60.01.013-R1
14 DRAIN HOSE Y.EMP.150.60.01.014-R1
15 MONOBLOCK HOLDER CORNER PLASTIC Y.EMP.150.60.01.015-R1
16 FEET Y.EMP.150.60.01.016-R1
17 SHUTTER HINGE Y.EMP.150.60.01.017-R1
18 COVER RIGHT UPPER HINGE KIT Y.EMP.150.60.01.018-R1
19 COVER RIGHT LOWER HINGE KIT Y.EMP.150.60.01.019-R1
20 COVER LEFT UPPER HINGE KIT Y.EMP.150.60.01.020-R1
21 COVER LEFT LOWER HINGE KIT Y.EMP.150.60.01.021-R1
22 SHELF Y.EMP.150.60.01.022-R1
23 CURTAIN SHEET Y.EMP.150.60.01.023-R1
24 BASE FRAME Y.EMP.150.60.01.024-R1
25 SHELF HOLDER Y.EMP.150.60.01.025-R1
26 SHELF FIXING Y.EMP.150.60.01.026-R1
27 LID GASKET Y.EMP.150.60.01.027-R1
28 LID 1 Y.EMP.150.60.01.028-R1
29 LID 2 Y.EMP.150.60.01.029-R1
30 DIGITAL THERMOSTAT Y.EMP.150.60.01.030-R1
31 SHUTTER Y.EMP.150.60.01.031-R1
32 SHUTTER RIGHT UPPER PLASTIC Y.EMP.150.60.01.032-R1
33 SHUTTER LEFT UPPER PLASTIC Y.EMP.150.60.01.033-R1
34 SHUTTER RIGHT LOWER PLASTIC Y.EMP.150.60.01.034-R1
35 SHUTTER LEFT LOWER PLASTIC Y.EMP.150.60.01.035-R1
36 COVER LOWER HAND PLASTIC Y.EMP.150.60.01.036-R1
37 COVER LEFT LOWER PLASTIC Y.EMP.150.60.01.037-R1
38 COVER RIGHT UPPER PLASTIC Y.EMP.150.60.01.038-R1
39 COVER UPPER HAND PLASTIC Y.EMP.150.60.01.039-R1
PRODUCT CODE : EMP.150.60.01

11
REFRIGERATED COUNTERS (FAN COOLING)
Kasap Tip Dik Buzdolapları
G SPARE PART LIST- EXPLODING DRAWINGS
NO PRODUCT NAME P. CODE
1 MOTOR REAR COVER SHEET Y.EMP.150.70.01.001-R1
2 COMPRESSOR Y.EMP.150.70.01.002-R1
3 CONDENSER Y.EMP.150.70.01.003-R1
4 FAN WING Y.EMP.150.70.01.004-R1
5 FAN CIRCLE WIRE Y.EMP.150.70.01.005-R1
6 FAN MOTOR Y.EMP.150.70.01.006-R1
7 WATER DRAIN PLASTIC Y.EMP.150.70.01.007-R1
8 RIGHT OUTER SIDE SHEET Y.EMP.150.70.01.008-R1
9 COOLING INSULATION FOAM Y.EMP.150.70.01.009-R1
10 EVAP Y.EMP.150.70.01.010-R1
11 EVAP RADIAL FAN Y.EMP.150.70.01.011-R1
12 MONOBLOCK PLASTIC Y.EMP.150.70.01.012-R1
13 MONOBLOCK GASKET Y.EMP.150.70.01.013-R1
14 DRAIN HOSE Y.EMP.150.70.01.014-R1
15 MONOBLOCK HOLDER CORNER PLASTIC Y.EMP.150.70.01.015-R1
16 FEET Y.EMP.150.70.01.016-R1
17 SHUTTER HINGE Y.EMP.150.70.01.017-R1
18 COVER RIGHT UPPER HINGE KIT Y.EMP.150.70.01.018-R1
19 COVER RIGHT LOWER HINGE KIT Y.EMP.150.70.01.019-R1
20 COVER LEFT UPPER HINGE KIT Y.EMP.150.70.01.020-R1
21 COVER LEFT LOWER HINGE KIT Y.EMP.150.70.01.021-R1
22 SHELF Y.EMP.150.70.01.022-R1
23 CURTAIN SHEET Y.EMP.150.70.01.023-R1
24 BASE FRAME Y.EMP.150.70.01.024-R1
25 SHELF HOLDER Y.EMP.150.70.01.025-R1
26 SHELF FIXING Y.EMP.150.70.01.026-R1
27 LID GASKET Y.EMP.150.70.01.027-R1
28 LID 1 Y.EMP.150.70.01.028-R1
29 LID 2 Y.EMP.150.70.01.029-R1
30 DIGITAL THERMOSTAT Y.EMP.150.70.01.030-R1
31 SHUTTER Y.EMP.150.70.01.031-R1
32 SHUTTER RIGHT UPPER PLASTIC Y.EMP.150.70.01.032-R1
33 SHUTTER LEFT UPPER PLASTIC Y.EMP.150.70.01.033-R1
34 SHUTTER RIGHT LOWER PLASTIC Y.EMP.150.70.01.034-R1
35 SHUTTER LEFT LOWER PLASTIC Y.EMP.150.70.01.035-R1
36 COVER LOWER HAND PLASTIC Y.EMP.150.70.01.036-R1
37 COVER LEFT LOWER PLASTIC Y.EMP.150.70.01.037-R1
38 COVER RIGHT UPPER PLASTIC Y.EMP.150.70.01.038-R1
39 COVER UPPER HAND PLASTIC Y.EMP.150.70.01.039-R1
PRODUCT CODE : EMP.150.70.01

12
REFRIGERATED COUNTERS (FAN COOLING)
Kasap Tip Dik Buzdolapları
G SPARE PART LIST- EXPLODING DRAWINGS
EMP.200.60.01 - EMP.200.70.01

13
REFRIGERATED COUNTERS (FAN COOLING)
Kasap Tip Dik Buzdolapları
G SPARE PART LIST- EXPLODING DRAWINGS
NO PRODUCT NAME P. CODE
1 MOTOR REAR COVER SHEET Y.EMP.200.60.01.001-R1
2 COMPRESSOR Y.EMP.200.60.01.002-R1
3 CONDENSER Y.EMP.200.60.01.003-R1
4 FAN WING Y.EMP.200.60.01.004-R1
5 FAN CIRCLE WIRE Y.EMP.200.60.01.005-R1
6 FAN MOTOR Y.EMP.200.60.01.006-R1
7 WATER DRAIN PLASTIC Y.EMP.200.60.01.007-R1
8 RIGHT OUTER SIDE SHEET Y.EMP.200.60.01.008-R1
9 COOLING INSULATION FOAM Y.EMP.200.60.01.009-R1
10 EVAP Y.EMP.200.60.01.010-R1
11 EVAP RADIAL FAN Y.EMP.200.60.01.011-R1
12 MONOBLOCK PLASTIC Y.EMP.200.60.01.012-R1
13 MONOBLOCK GASKET Y.EMP.200.60.01.013-R1
14 DRAIN HOSE Y.EMP.200.60.01.014-R1
15 MONOBLOCK HOLDER CORNER PLASTIC Y.EMP.200.60.01.015-R1
16 FEET Y.EMP.200.60.01.016-R1
17 SHUTTER HINGE Y.EMP.200.60.01.017-R1
18 COVER UPPER MIDDLE HINGE KIT Y.EMP.200.60.01.018-R1
19 COVER LOWER MIDDLE HINGE KIT Y.EMP.200.60.01.019-R1
20 COVER LEFT UPPER HINGE KIT Y.EMP.200.60.01.020-R1
21 COVER LEFT LOWER HINGE KIT Y.EMP.200.60.01.021-R1
22 SHELF Y.EMP.200.60.01.022-R1
23 CURTAIN SHEET Y.EMP.200.60.01.023-R1
24 BASE FRAME Y.EMP.200.60.01.024-R1
25 SHELF HOLDER Y.EMP.200.60.01.025-R1
26 SHELF FIXING Y.EMP.200.60.01.026-R1
27 LID GASKET Y.EMP.200.60.01.027-R1
28 LID 1 Y.EMP.200.60.01.028-R1
29 LID 2 Y.EMP.200.60.01.029-R1
30 LID 3 Y.EMP.200.60.01.030-R1
31 DIGITAL THERMOSTAT Y.EMP.200.60.01.031-R1
32 SHUTTER Y.EMP.200.60.01.032-R1
33 SHUTTER RIGHT UPPER PLASTIC Y.EMP.200.60.01.033-R1
34 SHUTTER LEFT UPPER PLASTIC Y.EMP.200.60.01.034-R1
35 SHUTTER RIGHT LOWER PLASTIC Y.EMP.200.60.01.035-R1
36 SHUTTER LEFT LOWER PLASTIC Y.EMP.200.60.01.036-R1
37 COVER LOWER PLASTIC Y.EMP.200.60.01.037-R1
38 COVER LOWER HAND PLASTIC Y.EMP.200.60.01.038-R1
39 COVER TOP PLASTIC Y.EMP.200.60.01.039-R1
40 COVER UPPER HAND PLASTIC Y.EMP.200.60.01.040-R1
PRODUCT CODE : EMP.200.60.01

14
REFRIGERATED COUNTERS (FAN COOLING)
Kasap Tip Dik Buzdolapları
G SPARE PART LIST- EXPLODING DRAWINGS
NO PRODUCT NAME P. CODE
1 MOTOR REAR COVER SHEET Y.EMP.200.70.01.001-R1
2 COMPRESSOR Y.EMP.200.70.01.002-R1
3 CONDENSER Y.EMP.200.70.01.003-R1
4 FAN WING Y.EMP.200.70.01.004-R1
5 FAN CIRCLE WIRE Y.EMP.200.70.01.005-R1
6 FAN MOTOR Y.EMP.200.70.01.006-R1
7 WATER DRAIN PLASTIC Y.EMP.200.70.01.007-R1
8 RIGHT OUTER SIDE SHEET Y.EMP.200.70.01.008-R1
9 COOLING INSULATION FOAM Y.EMP.200.70.01.009-R1
10 EVAP Y.EMP.200.70.01.010-R1
11 EVAP RADIAL FAN Y.EMP.200.70.01.011-R1
12 MONOBLOCK PLASTIC Y.EMP.200.70.01.012-R1
13 MONOBLOCK GASKET Y.EMP.200.70.01.013-R1
14 DRAIN HOSE Y.EMP.200.70.01.014-R1
15 MONOBLOCK HOLDER CORNER PLASTIC Y.EMP.200.70.01.015-R1
16 FEET Y.EMP.200.70.01.016-R1
17 SHUTTER HINGE Y.EMP.200.70.01.017-R1
18 COVER MIDDLE UPPER HINGE KIT Y.EMP.200.70.01.018-R1
19 COVER MIDDLE LOWER HINGE KIT Y.EMP.200.70.01.019-R1
20 COVER LEFT UPPER HINGE KIT Y.EMP.200.70.01.020-R1
21 COVER LEFT LOWER HINGE KIT Y.EMP.200.70.01.021-R1
22 SHELF Y.EMP.200.70.01.022-R1
23 CURTAIN SHEET Y.EMP.200.70.01.023-R1
24 CASE Y.EMP.200.70.01.024-R1
25 SHELF HOLDER Y.EMP.200.70.01.025-R1
26 SHELF FIXING Y.EMP.200.70.01.026-R1
27 LID GASKET Y.EMP.200.70.01.027-R1
28 LID 1 Y.EMP.200.70.01.028-R1
29 LID 2 Y.EMP.200.70.01.029-R1
30 LID 3 Y.EMP.200.70.01.030-R1
31 DIGITAL THERMOSTAT Y.EMP.200.70.01.031-R1
32 SHUTTER Y.EMP.200.70.01.032-R1
33 SHUTTER RIGHT LOWER PLASTIC Y.EMP.200.70.01.033-R1
34 SHUTTER RIGHT LOWER PLASTIC Y.EMP.200.70.01.034-R1
35 SHUTTER RIGHT UPPER PLASTIC Y.EMP.200.70.01.035-R1
36 SHUTTER UPPER HINGE PLASTIC Y.EMP.200.70.01.036-R1
37 COVER UPPER HAND PLASTIC Y.EMP.200.70.01.037-R1
38 COVER UPPER HINGE PLASTIC Y.EMP.200.70.01.038-R1
39 COVER LOWER HINGE PLASTIC Y.EMP.200.70.01.039-R1
40 COVER LOWER HAND PLASTIC Y.EMP.200.70.01.040-R1
PRODUCT CODE : EMP.200.70.01

15
REFRIGERATED COUNTERS (FAN COOLING)
Kasap Tip Dik Buzdolapları
G SPARE PART LIST- EXPLODING DRAWINGS
EMP.255.60.01 - EMP.255.70.01

16
REFRIGERATED COUNTERS (FAN COOLING)
Kasap Tip Dik Buzdolapları
G SPARE PART LIST- EXPLODING DRAWINGS
NO PRODUCT NAME P. CODE
1 MOTOR REAR COVER SHEET Y.EMP.255.60.01.001-R1
2 COMPRESSOR Y.EMP.255.60.01.002-R1
3 CONDENSER Y.EMP.255.60.01.003-R1
4 FAN WING Y.EMP.255.60.01.004-R1
5 FAN CIRCLE WIRE Y.EMP.255.60.01.005-R1
6 FAN MOTOR Y.EMP.255.60.01.006-R1
7 WATER DRAIN PLASTIC Y.EMP.255.60.01.007-R1
8 RIGHT OUTER SIDE SHEET Y.EMP.255.60.01.008-R1
9 COOLING INSULATION FOAM Y.EMP.255.60.01.009-R1
10 EVAP Y.EMP.255.60.01.010-R1
11 EVAP RADIAL FAN Y.EMP.255.60.01.011-R1
12 MONOBLOCK PLASTIC Y.EMP.255.60.01.012-R1
13 MONOBLOCK GASKET Y.EMP.255.60.01.013-R1
14 DRAIN HOSE Y.EMP.255.60.01.014-R1
15 MONOBLOCK HOLDER CORNER PLASTIC Y.EMP.255.60.01.015-R1
16 FEET Y.EMP.255.60.01.016-R1
17 SHUTTER HINGE Y.EMP.255.60.01.017-R1
18 COVER RIGHT UPPER HINGE KIT Y.EMP.255.60.01.018-R1
19 COVER RIGHT LOWER HINGE KIT Y.EMP.255.60.01.019-R1
20 COVER LEFT UPPER HINGE KIT Y.EMP.255.60.01.020-R1
21 COVER LEFT LOWER HINGE KIT Y.EMP.255.60.01.021-R1
22 SHELF Y.EMP.255.60.01.022-R1
23 CURTAIN SHEET Y.EMP.255.60.01.023-R1
24 BASE FRAME Y.EMP.255.60.01.024-R1
25 SHELF HOLDER Y.EMP.255.60.01.025-R1
26 SHELF FIXING Y.EMP.255.60.01.026-R1
27 LID 1 Y.EMP.255.60.01.027-R1
28 LID 2 Y.EMP.255.60.01.028-R1
29 LID 3 Y.EMP.255.60.01.029-R1
30 LID 4 Y.EMP.255.60.01.030-R1
31 DIGITAL THERMOSTAT Y.EMP.255.60.01.031-R1
32 SHUTTER Y.EMP.255.60.01.032-R1
33 SHUTTER LOWER HINGE SIDE PLASTIC Y.EMP.255.60.01.033-R1
34 SHUTTER RIGHT LOWER PLASTIC Y.EMP.255.60.01.034-R1
35 SHUTTER RIGHT UPPER PLASTIC Y.EMP.255.60.01.035-R1
36 SHUTTER UPPER HINGE SIDE PLASTIC Y.EMP.255.60.01.036-R1
37 COVER UPPER HAND SIDE PLASTIC Y.EMP.255.60.01.037-R1
38 COVER UPPER HINGE SIDE PLASTIC Y.EMP.255.60.01.038-R1
39 COVER LOWER HINGE PLASTIC Y.EMP.255.60.01.039-R1
40 COVER LOWER HAND PLASTIC Y.EMP.255.60.01.040-R1
PRODUCT CODE : EMP.255.60.01

17
REFRIGERATED COUNTERS (FAN COOLING)
Kasap Tip Dik Buzdolapları
G SPARE PART LIST- EXPLODING DRAWINGS
NO PRODUCT NAME P. CODE
1 MOTOR REAR COVER SHEET Y.EMP.255.70.01.001-R1
2 COMPRESSOR Y.EMP.255.70.01.002-R1
3 CONDENSER Y.EMP.255.70.01.003-R1
4 FAN WING Y.EMP.255.70.01.004-R1
5 FAN CIRCLE WIRE Y.EMP.255.70.01.005-R1
6 FAN MOTOR Y.EMP.255.70.01.006-R1
7 WATER DRAIN PLASTIC Y.EMP.255.70.01.007-R1
8 RIGHT OUTER SIDE SHEET Y.EMP.255.70.01.008-R1
9 COOLING INSULATION FOAM Y.EMP.255.70.01.009-R1
10 EVAP Y.EMP.255.70.01.010-R1
11 EVAP RADIAL FAN Y.EMP.255.70.01.011-R1
12 MONOBLOCK PLASTIC Y.EMP.255.70.01.012-R1
13 MONOBLOCK GASKET Y.EMP.255.70.01.013-R1
14 DRAIN HOSE Y.EMP.255.70.01.014-R1
15 MONOBLOCK HOLDER CORNER PLASTIC Y.EMP.255.70.01.015-R1
16 FEET Y.EMP.255.70.01.016-R1
17 SHUTTER HINGE Y.EMP.255.70.01.017-R1
18 COVER RIGHT UPPER HINGE KIT Y.EMP.255.70.01.018-R1
19 COVER RIGHT LOWER HINGE KIT Y.EMP.255.70.01.019-R1
20 COVER LEFT UPPER HINGE KIT Y.EMP.255.70.01.020-R1
21 COVER LEFT LOWER HINGE KIT Y.EMP.255.70.01.021-R1
22 SHELF Y.EMP.255.70.01.022-R1
23 CURTAIN SHEET Y.EMP.255.70.01.023-R1
24 BASE FRAME Y.EMP.255.70.01.024-R1
25 SHELF HOLDER Y.EMP.255.70.01.025-R1
26 SHELF FIXING Y.EMP.255.70.01.026-R1
27 LID 1 Y.EMP.255.70.01.027-R1
28 LID 2 Y.EMP.255.70.01.028-R1
29 LID 3 Y.EMP.255.70.01.029-R1
30 LID 4 Y.EMP.255.70.01.030-R1
31 DIGITAL THERMOSTAT Y.EMP.255.70.01.031-R1
32 SHUTTER Y.EMP.255.70.01.032-R1
33 SHUTTER LOWER HINGE SIDE PLASTIC Y.EMP.255.70.01.033-R1
34 SHUTTER RIGHT LOWER PLASTIC Y.EMP.255.70.01.034-R1
35 SHUTTER RIGHT UPPER PLASTIC Y.EMP.255.70.01.035-R1
36 SHUTTER UPPER HINGE SIDE PLASTIC Y.EMP.255.70.01.036-R1
37 COVER UPPER HAND SIDE PLASTIC Y.EMP.255.70.01.037-R1
38 COVER UPPER HINGE SIDE PLASTIC Y.EMP.255.70.01.038-R1
39 COVER LOWER HINGE PLASTIC Y.EMP.255.70.01.039-R1
40 COVER LOWER HAND PLASTIC Y.EMP.255.70.01.040-R1
PRODUCT CODE : EMP.255.70.01

18
REFRIGERATED COUNTERS (FAN COOLING)
Kasap Tip Dik Buzdolapları
H ELECTRIC CIRCUIT SCHEMA
EMP.150.70.01 –EMP.255.70.01
I
A1
T
M1
M2
Terminal
Large lighted 0-1
switch
Digital
Indicator
Compressor and
condenser fan
Refrigerator inner
cooling fan
I
A1
T
M1
M2
