AdirPro 696-02 User manual

Model # 696-02
WIRE REEL CADDY WITH
HANDLE AND TOOL TRAY
Assembly Guide

KIT CONTENTS:
M8 Nut (2)
M10*20 Bolt (x4)
STEP 1: ATTACH HANDLE
●Connect the handle to the frame using the
M10*20 Bolts and Nuts.
Washer (x4)Pin (x8)
M10*40 Bolt (4)
M10 Bolt (x8)
Wheel (x2) M8*15 Bolt (2)
M10*20 Bolt M10 Nut
Handle
Frame
Wheel Pin (x2)

STEP 2: VERTICAL RODS AND CROSS BARS
●Connect the vertical rods to the frame using the M10*40 Bolts and Nuts.
●Attach the cross bars using the Pins and Washers.
M10*40 Bolt M10 Nut
M10*40 Bolt M10 Nut
Washer
Pin
Cross Bar
Vertical Rod

[phone]
(
[e-mail]
*
© 2019 AdirCorp, all rights reserved.
NEED HELP?
adirpro.com
8

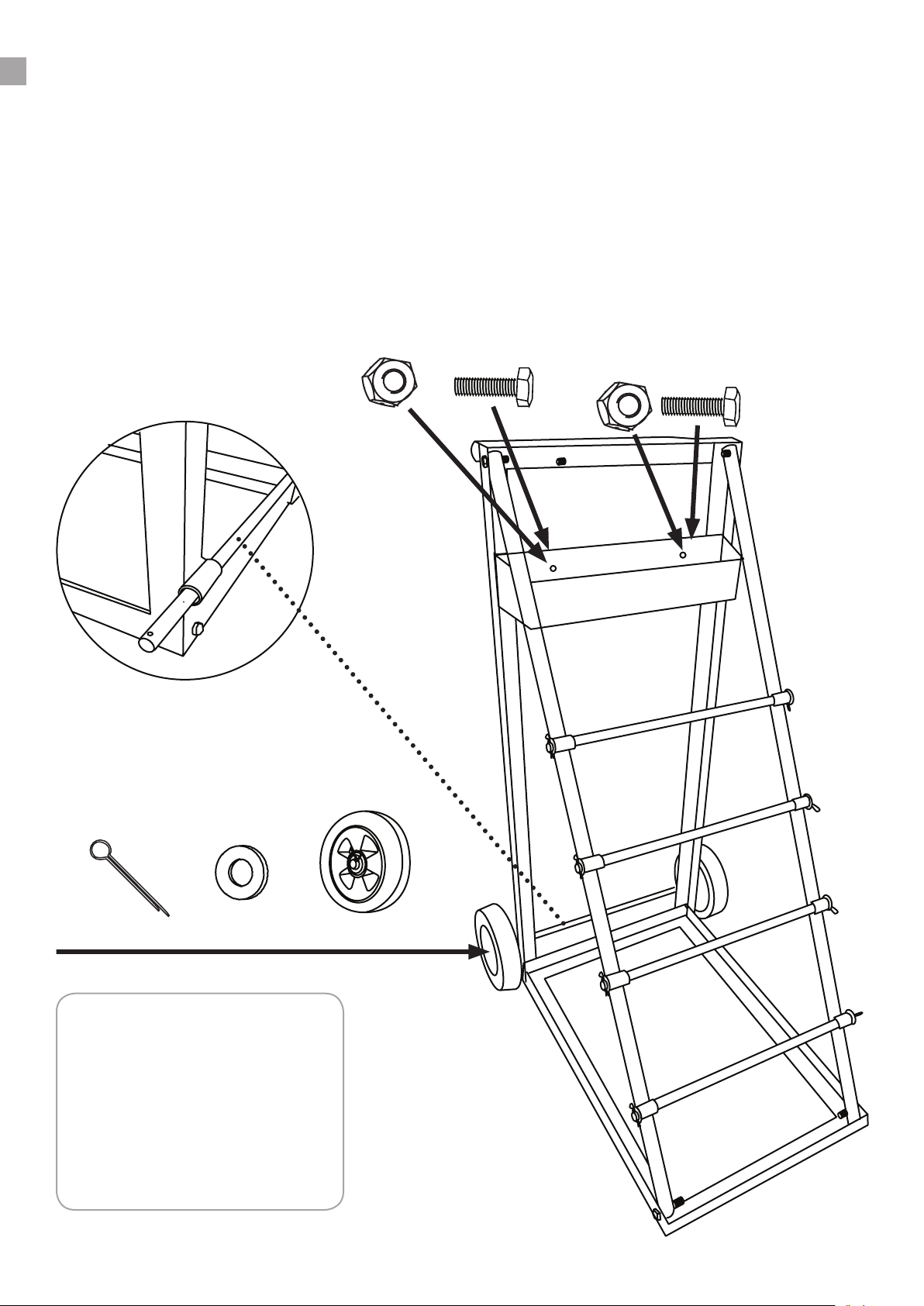

STEP 3: ATTACH WHEELS AND TOOLBOX
●Pass the axle bar through the bottom of the handle in the bottom/back portion of the
assembly from STEP 2.
●Insert Wheels over the left and right side of the axle. Secure the Wheels the Wheel Pins
and Washers.
●Attach the toolbox using the M8*15 Bolts and Nuts.
●Your AdirPro Wire Reel Caddy with Handle and Tool Tray is ready to use.
M8 Nut
M8*15 Bolt
Washer
Wheel Pin Wheel
