Introduction
The ADJ AV6 is the highest resolution pixel display LED panel offering from ADJ Products, LLC. Designed for Indoor use on
installations, broadcast or corporate productions this light weight, easy to handle and transport LED video panel features all the pro-grade
requirements for a high resolution display while also delivering modular rigging and design options. Featuring Black face LED's for high contrast
and at 1,200 nits the brightness level is enough to perform well in high ambient light conditions and the light weight design 23lbs per cabinet
allows you to rig or floor mount the unit easily.
•IP32 Die Cast Case
•Modular rigging / assembly
•Sturdy / Light weight cabinet design
•Neutrik Powercon / Ethercon linking connectors
•Pixel Pitch 6mm
•Brightness 1,200cd/m2 (after calibration)
•Cabinet Size 22.75" x 22.75" x 3" (576mm x 576mm x 75mm)
•Weight 23lbs / 8.15kg
•27,777 Pixels (96 x 96) per panel
•Viewing Angle H140/V140
•Contrast Ratio 1000:1
•LED Type 3-in1 SMD 2121 Black face
•LED Life 50,000hrs
•Processing Depth 14bit
•Refresh Rate 1200hz
•Min. Viewing Distance 20' (6M)
•Operating Temperature -20c to +40c
•Operating Humidity 10- 90%
•Power Supply 100-240v AC, 50.60hz - auto sensing multi-voltage
•Max Power 300w / Avg Power 120W

ADJ Products, LLC
• Los Angeles, Ca USA • Kerkade, Netherlands
3
Warranty Information
MANUFACTURER’S LIMITEDWARRANTY
A. ADJ Products, LLC hereby warrants, to the original purchaser, ADJ Products, LLC products to be free of manufacturing defects in material and workmanship for a prescribed period from
territories. It is the owner’s responsibility to establish the date and place of purchase by acceptable evidence, at the time service is sought.
B. For warranty service you must obtain a Return Authorization number (RA#) before sending back the product- -- please contact ADJ Products, LLC Service Department at 800-322-6337.
Send the product only to the ADJ Products, LLC factory. All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this
warranty, ADJ Products, LLC will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in it’s original package.
No accessories should be shipped with the product. If any accessories are shipped with the product, ADJ Products, LLC shall have no liability whatsoever for loss of or damage to anysuch
accessories, nor for the safe return thereof.
the product; if the product has been repaired or serviced by anyone other than the ADJ Products, LLC factory unless prior written authorization was issued to purchaser by ADJ Products, LLC;
if the product is damaged because not properly maintained as set forth in the instruction manual.
at its expense with new or refurbished parts, and will absorb all expenses for warranty service and repair labor by reason of defects in material or workmanship. The sole responsibility of
ADJ Products, LLC under this warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of ADJ Products, LLC. All products covered by
E. ADJ Products, LLC reserves the right to make changes in design and/or improvements upon its products without any obligation to include these changes in any products theretofore manufactured.
No warranty, whether expressed or implied, is given or made with respect to any accessory supplied with products described above. Except to the extent prohibited by applicable law, all implied
shall be such repair or replacement as is expressly provided above; and under no circumstances shall ADJ Products, LLC be liable for any loss or damage, direct or consequential, arising out of the
use of, or inability to use, this product.
This warranty is the only written warranty applicable to ADJ Products, LLC Products and supersedes all prior warranties and written descriptions of warranty terms and conditions heretofore
published.
MANUFACTURER’S LIMITED WARRANTY PERIODS:
oLighting Products = 1-year (365 days) Limited Warranty (Such as: Special E ect Lighting, Intelligent Lighting, UVlighting, Strobes, Fog Machines, Bubble Machines, Mirror Balls, Par
Cans, Trussing, Lighting Stands etc. excluding LED and lamps)
oLaser Products = 1 Year (365 Days) Limited Warranty (excluding laser diodes which have a 6 month limited warranty)
oL.E.D. Products = 2-year (730 days) Limited Warranty (excluding motors, PCB boards, and power supplies, which have a 1-year (365 day Limited Warranty) batteries which have a
180 day limited warranty). Only the L.E.D.s carry a 2-year warranty (excluding StarTec Series which a carries a 1 Year Limited Warranty) Note: 2 Year Warranty only applies to purchases
with in the United States
oADJ DMX Controllers = 2 Year (730 Days) Limited Warranty (excluding faders and tact switches)
US only

ADJ Products, LLC
• Los Angeles, Ca USA • Kerkade, Netherlands
4
Support Information
ADJ Products, LLC provides a toll free customer support line, to provide set up help and to answer any question should you
encounter problems during your set up or initial operation. You may also visit us on the web at www.adj.com for any comments
Voice [phone]
Fax: [phone]
E-mail: [e-mail]
To purchase parts online visit http://parts.americandj.com
Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself, doing so will void your
manufactures warranty. In the unlikely event your unit may require service please contactADJ.
Please recycle the shipping cartoon when ever possible.

ADJ Products, LLC
• Los Angeles, Ca USA • Kerkade, Netherlands
5

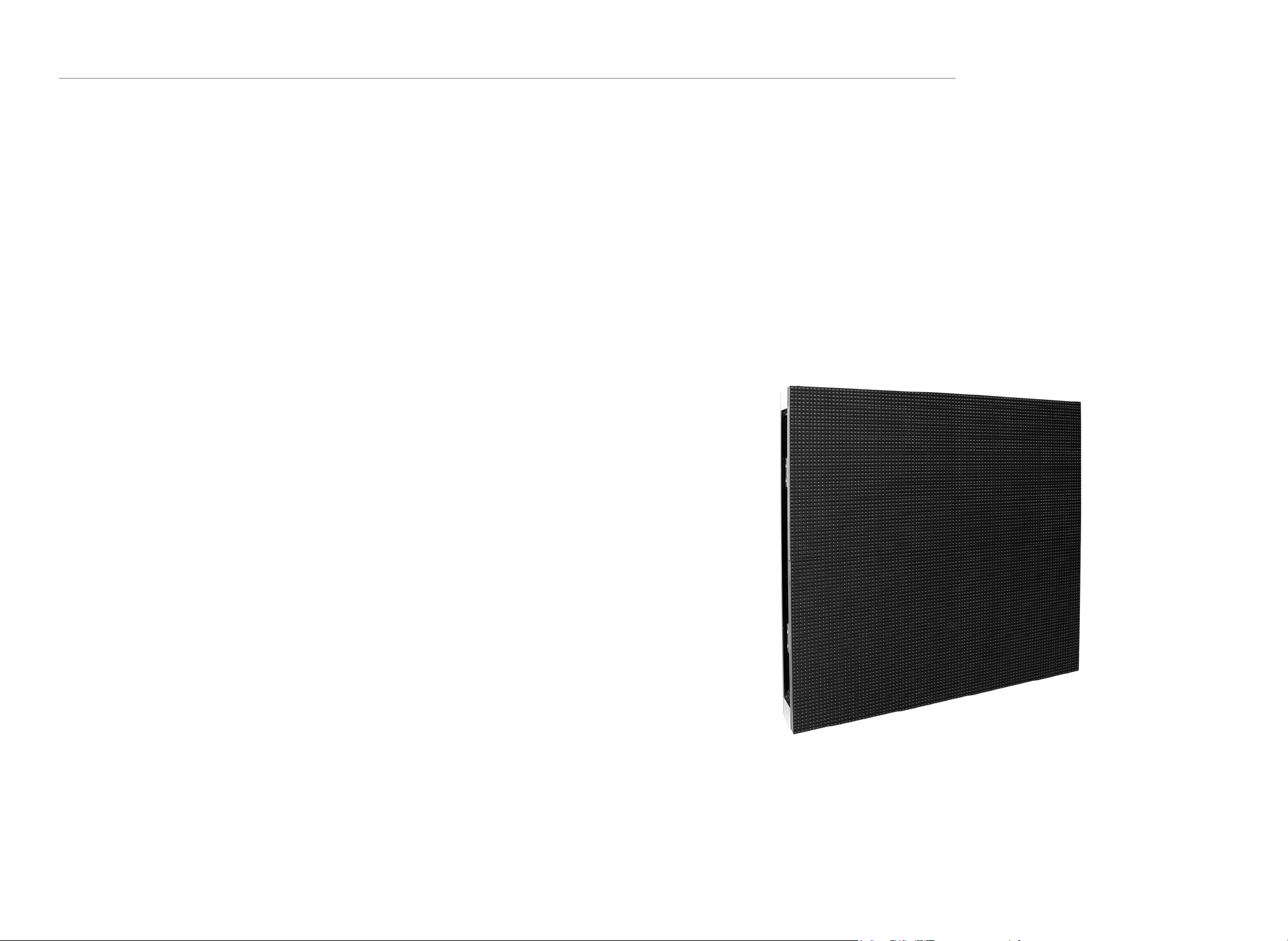

AV6 Panel
AV6 Panel Rear

ADJ Products, LLC
• Los Angeles, Ca USA • Kerkade, Netherlands
6
OPTIONALACCESSORIES
Order Code
1226300032 AV6 LED Panel
1226300033 AV6RB1
1226300034 MCTRL300
1226300049 AV6FC 8pcs Flight Case
1226300048 CAT6 CBL 0,9m
1226300047 CAT6 CBL 1,5m
1226300046 CAT6 CBL 3m
1226300045 CAT6 CBL 4,5m
1226300044 CAT6 CBL 7,5m
1226300043 CAT6 CBL 15m
1226300042 CAT6 CBL 30m
1226300039 CAT6
1226300040 3’ Data Cable, Cabinet to Cabinet, Horizontal and Vertical (NEUTRIK Connectors)
1226300041 5’ Data Cable, Cabinet to Cabinet, Horizontal and Vertical (NEUTRIK Connectors)
1621000061 10’ Data Cable, Cabinet to Cabinet, Horizontal and Vertical (NEUTRIK Connectors)
1621000027 15’ Data Cable, Cabinet to Cabinet, Horizontal and Vertical (NEUTRIK Connectors)
1621000028 25’ Data Cable, Cabinet to Cabinet, Horizontal and Vertical (NEUTRIK Connectors)
1621000029 50’ Data Cable, Cabinet to Cabinet, Horizontal and Vertical (NEUTRIK Connectors)
1621000030
100’ Data Cable, Cabinet to Cabinet, Horizontal and Vertical (NEUTRIK Connectors)
1621000062 25’ First Data Cable, Processor to First Cabinet (Standard Connection)

ADJ Products, LLC • Los Angeles, Ca US A • Kerkade, Netherlands
7
OPTIONALACCESSORIES
Order Code
1239100270 50’ First Data Cable, Processor to First Cabinet (Standard Connection)
1239100269 100’ First Data Cable, Processor to First Cabinet (Standard Connection)
1239100268
25’ First Data Cable, Processor to First Cabinet (NEUTRIK ETHERCON)
1239100267 50’ First Data Cable, Processor to First Cabinet (NEUTRIK ETHERCON)

ADJ Products, LLC • Los Angeles, Ca US A • Kerkade, Netherlands
8

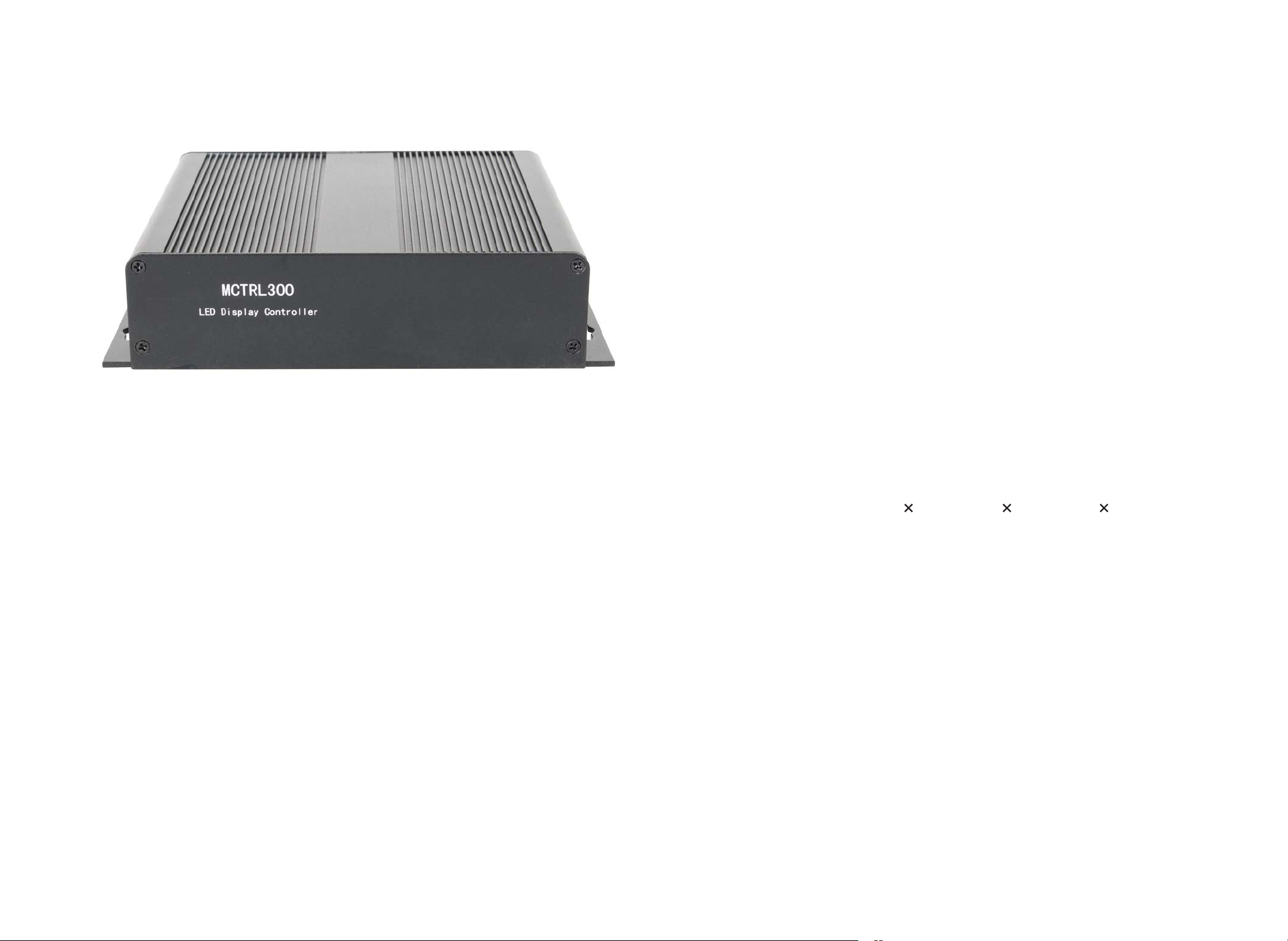

MCTRL300 LED Display Controller
•Control Mode: Synchronous Display with Control PC by DVI
•Inputs: (1) DVI, (1) Audio, (1) USB, (1) Light Sensor
•Outputs: (1) DVI, (4) Ethernet Ports, (4) Fibre Ports, (2) RS232 Ports
(1 in, 1 out), (Includes RS232/USB Converter)
•Support VGA Mode: 1280 x 1024, 1024 x 1200, 1600 x 848,
1920 x 712, 2048 x 668
•100-240vac - 50/60hz Auto Switching Power Supply
•Environment Temp: -20°C (-4°F) ~ 75°D (167°F)
•Environment Humidity: 0% ~ 95%
Nova Pro HD
•Zooming support
•Picture in picture, Two video source support
•Special effects when switching video source
•Genlock support
•User defined EDID support
•Output resolution: 1920 1200, 2048 1152, 2560 960 (Custom
Width & Height are also supported.
•Video input interface: HDMI (1) DVI (1) SDI (1) Display Port (1) VGA
(1) CVBS (1)
•Output interface: (4) Ethernet Ports, (4) fiber Interfaces, (1) DVI, (1)
HDMI monitoring interface

ADJ Products, LLC • Los Angeles, Ca US A • Kerkade, Netherlands
9
Rigging & Installation
Physical installation
•Warning! The safety and suitability of lifting equipment, installation location, anchoring method, mounting hardware and electrical
installation is the responsibility of the installer. All local safety regulations and legal requirements must be observed when installing and
connecting AV6 panels.
•Warning! Installation must be carried out by qualified professionals only.
•Warning! Ensure that any structure used for support as well as all fastening and connecting hardware can hold at least 10 times the weight of all
supported devices and equipment.
Hanging Installation
•A maximum of 20 panels may be suspended from eachother in a curtain. An unlimited number of curtains may be installed alongside each other
(Additional processing may be necessary).
•Check that the structure can bear atleast 10times the weight of all the panels, clamps, cables, auxiliary equipment, etc that it will have to
support.
•Check that the structure will not flex under the weight ofthe panels. Hanging panels from a structure that isnot straight will place a strain on
panels. Damage caused topanels by mechanical stress isnotcovered bythe product warranty.
•Block access under the work area. Working from a stable platform, hang the panel byfastening the rigging clamps oreyebolts or the header
piece to the truss orstructure.
•This product must be installed in accordance with the applicable installation code bya person familiar with the construction and operation of the
product and hazards involved.
•When installing the unit, the trussing or area of installation must be able to hold 10 times the weight without any deformation. When installing the
unit must besecured with a secondary safety attachment, e.g. and appropriate safety cable. Never stand directly below the unit when mounting,
removing, orservicing the unit.
•Overhead mounting requires extensive experience, including calculating working load limits, installation material being used, and periodic safety
inspection ofall installation material andunit. Ifyou lack these qualifications, donot attempt the installation yourself.
•These installation should bechecked bya skilled person once ayear.

ADJ Products, LLC • Los Angeles, Ca US A • Kerkade, Netherlands
10
Panel Header Specifications

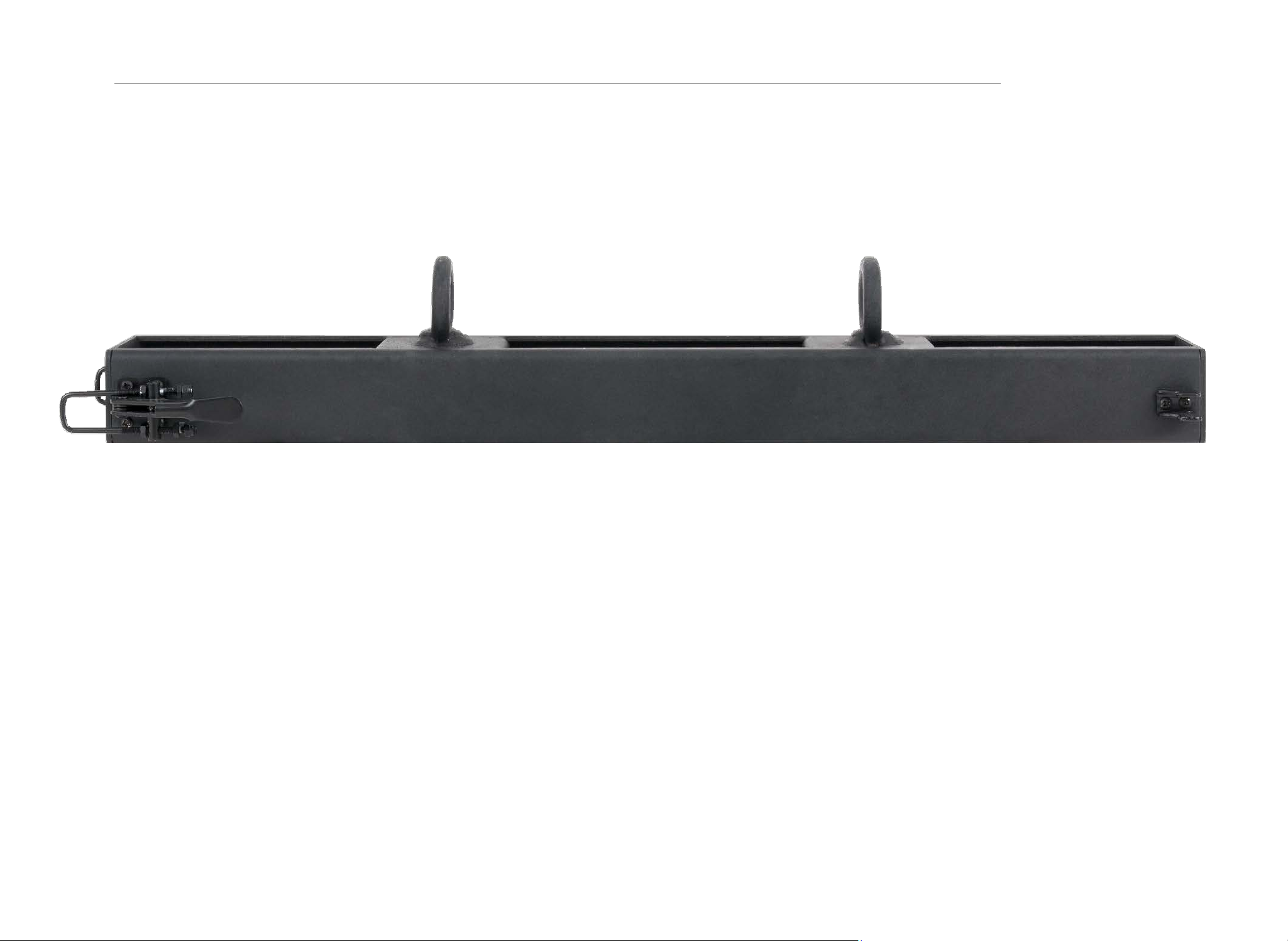

AV6 Single Header Piece.

ADJ Products, LLC • Los
Angeles, Ca US A • Kerkade, Netherlands
11

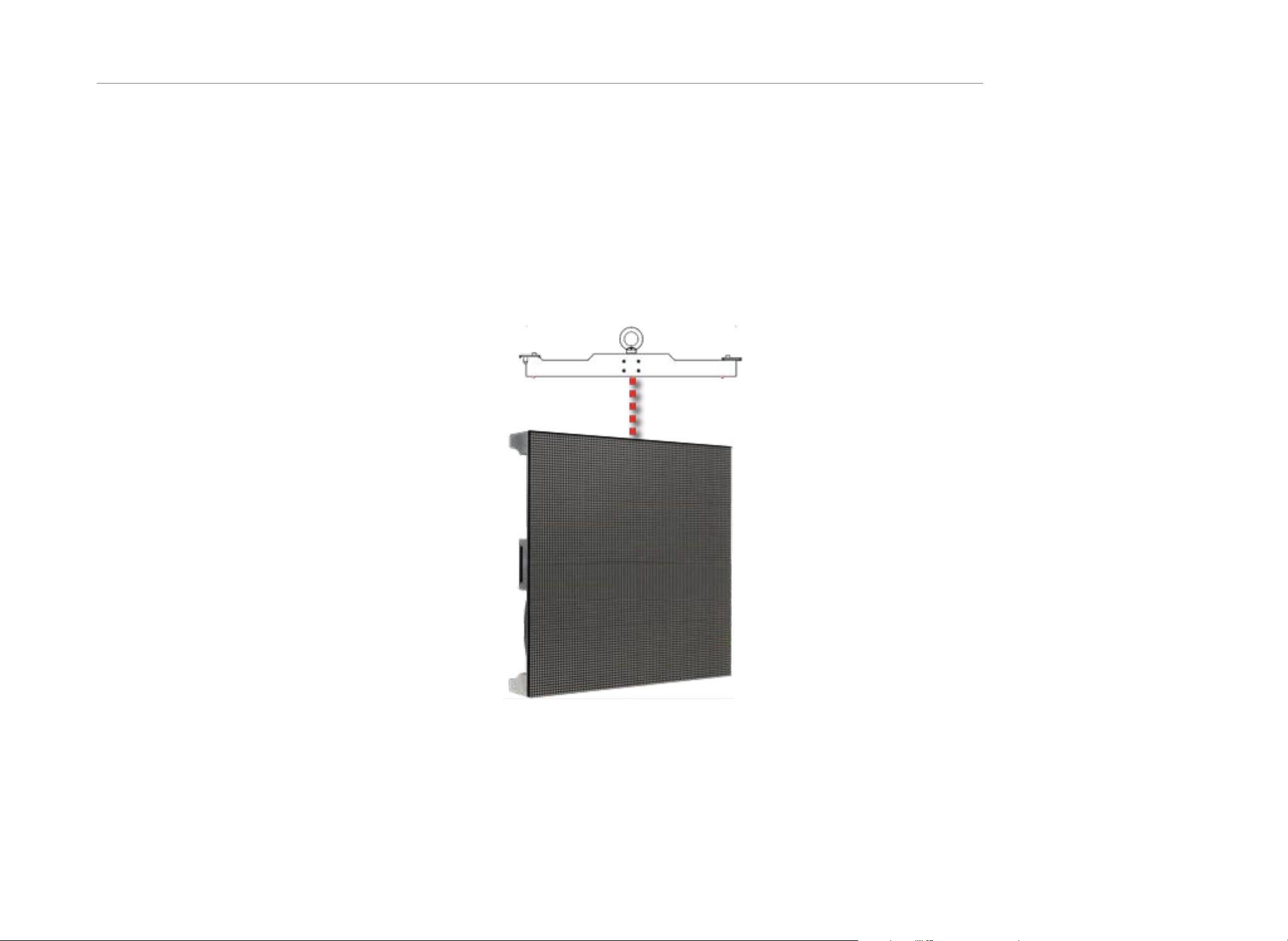

Hanging Installation
The AV6 header piece come in a single option only. The headers connect to the panels just like panels connect to other panels.
The vertical locking pieces should lock twist to lock the panel in place, flush with the header piece. The header piece is then rigged to the truss or
other rigging implement(s).
Single Header Configuration

ADJ Products, LLC • Los Angeles, Ca US A • Kerkade, Netherlands
12
When building a panel array, it is advisable to build the array in one piece, right to left looking at the rear of the screen. This way, the panels can be
easilyand evenlyconfigured toproduce a seamless array.
When adding a horizontal panel, the horizontal locking pins should be retracted. Once the next panel is in place, release the horizontal locking pin
and loosely screw it into place so it is locked with the panel beside it. Only tighten it up once the front of the panels are completely seamless. Note
that fastening the locking pins too tight can warp the screen and prevent a seamless screen.

ADJ Products, LLC • Los Angeles, Ca US A • Kerkade, Netherlands
13
The images below will show how to link and lock the panels together. The linking of panels should only be
done be lighting professionals. If there are questions regarding setting up the panel’s please call customer
support.

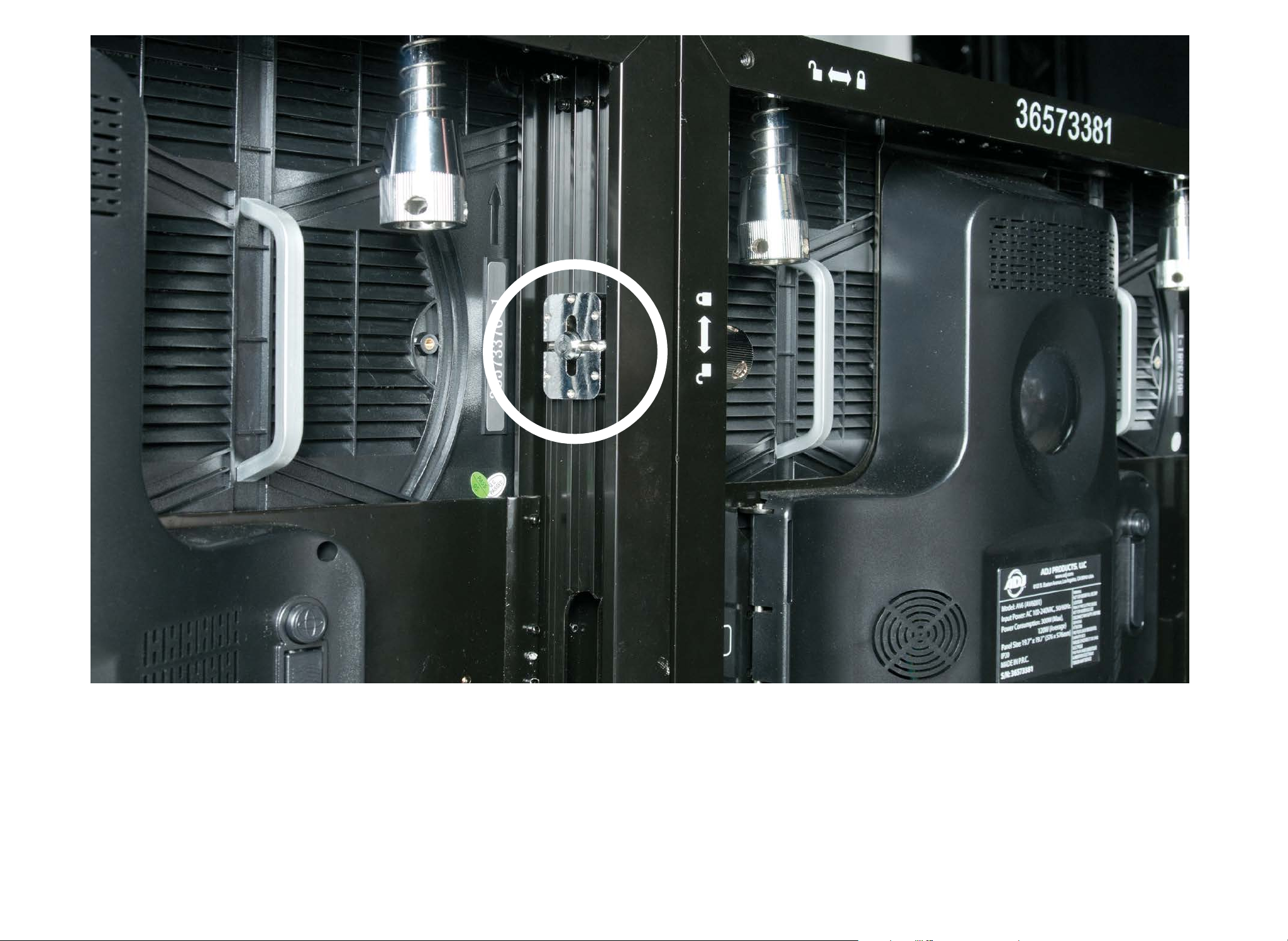

Female locking pin
plate
Male locking pin
Two locking pins are provided at the top of the panel
and two locking pins are provided on the left side.
Place the panels side by side, making sure the male
locking pin hole lines up with the female locking pin
plate located on the other panel.

ADJ Products, LLC • Los Angeles, Ca US A • Kerkade, Netherlands
14
Push the male locking pin through the female locking pin plate located on the next panel. Turn the locking
pin clockwise so that male locking pin settles into the locking pin plate home.

ADJ Products, LLD • Los Angeles, Ca US A • Kerkade, Netherlands
15
Male Locking pin locked into the female locking plate

ADJ Products, LLC • Los Angeles, Ca US A • Kerkade, Netherlands
16
When the male locking pin is resting securely in the locking pin plate, continue to rotate the male locking pin
knob clockwise. The knob will turn independently of the pin, continue to rotate the knob until it is tightened
and will no longer turn.

ADJ Products, LLC • Los Angeles, Ca US A • Kerkade, Netherlands
17
Installing the Software

ADJ Products, LLC • Los Angeles, Ca US A • Kerkade, Netherlands
18
Installing the Software
The Nova Star Control software is used to configure the EPT
VSC unit and as an extension of that, the LED Panels
connected.
It is supplied on CD with your purchased product, and canalso
be downloaded from the support section of the ADJ website -
http://www.adj.com/mctrl-300
Installation is simple, download the file and unzip it from the
folder (if necessary). Double click the .exe file in windows
explorer and follow the onscreen instructions as shownhere.
Note that the control units should NOT be connected to the
control computer prior to installation and the Nova software
shouldbeallowedthroughallfirewalls.
Click “Next” to start the installation.

ADJ Products, LLC • Los Angeles, Ca US A • Kerkade, Netherlands
19
Configuring the Screen
This Chapter will discuss the software setup & configuration steps needed to use the screen.

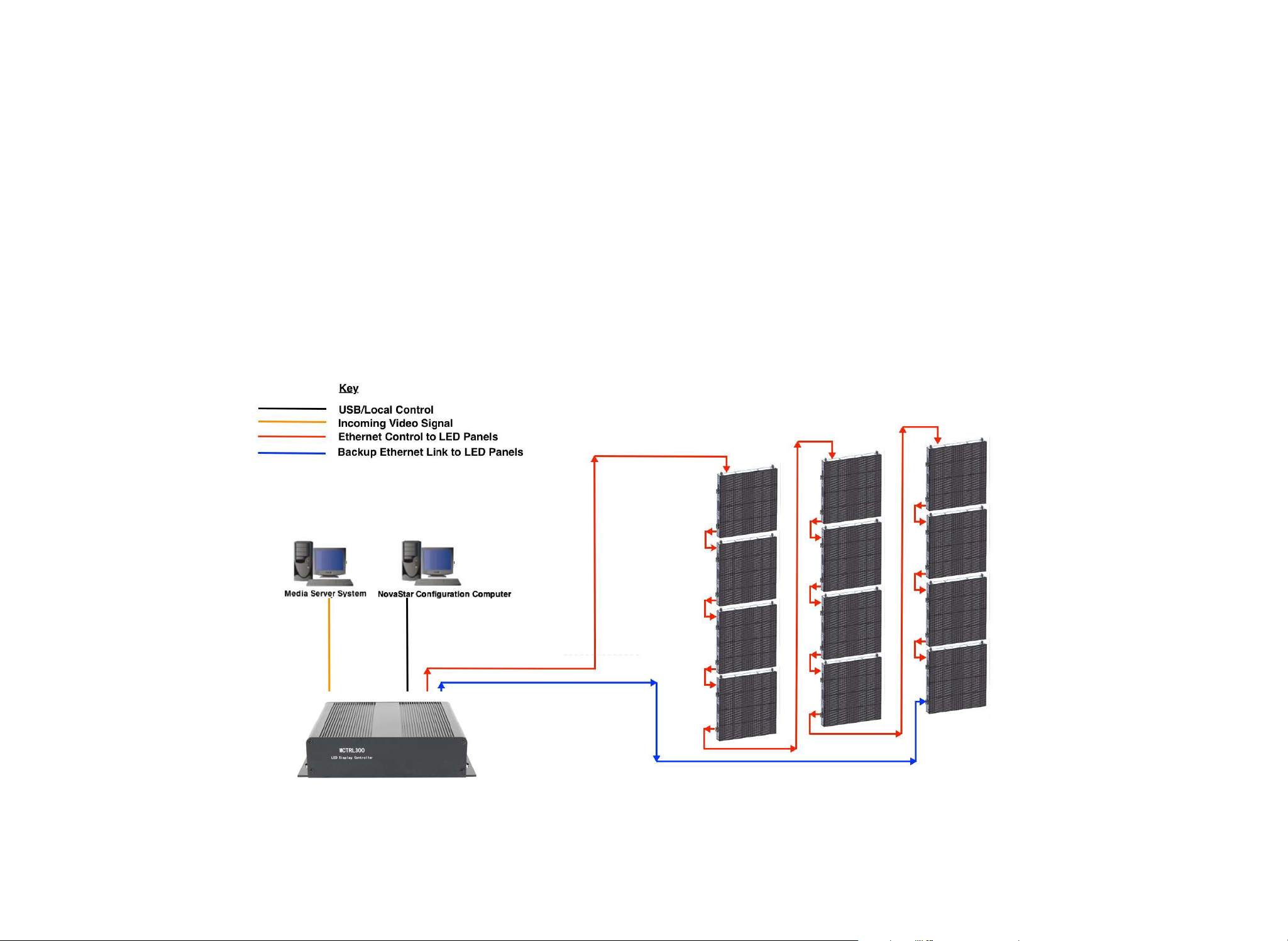

The image below illustrates a typical system setup for the AV6 panels and MCTRL300 processor.
At this point, the screen panels should be connected to the power source and connected to the MCTRL300 via Ethernet cabling as discussed in the
previous chapter.
Note that the amount of one port on the MCTRL300 unit can process imagery for 580,000 pixels. So, one ethernet port can connect up to 53 AV6 panels.
