ADLINK Technology NEON-2000-JT2-X Series User manual

Leading EDGE COMPUTING
NEON-2000-JT2-X Series
AI Smart Camera
User’s Manual
Manual Rev.: 1.0
Revision Date: October 27, 2020
Part No: 50-1Z338-1000

ii Revision History
Leading EDGE COMPUTING
Revision History
Revision Release Date Description of Changes
1.0 2020-10-27 Initial version

Preface iii
NEON-2000-JT2-X
Preface
Copyright © 2020 ADLINK Technology, Inc.
This document contains proprietary information protected by copy-
right. All rights are reserved. No part of this manual may be repro-
duced by any mechanical, electronic, or other means in any form
without prior written permission of the manufacturer.
Disclaimer
The information in this document is subject to change without prior
notice in order to improve reliability, design, and function and does
not represent a commitment on the part of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, spe-
cial, incidental, or consequential damages arising out of the use or
inability to use the product or documentation, even if advised of
the possibility of such damages.
Environmental Responsibility
ADLINK is committed to fulfill its social responsibility to global
environmental preservation through compliance with the Euro-
pean Union's Restriction of Hazardous Substances (RoHS) direc-
tive and Waste Electrical and Electronic Equipment (WEEE)
directive. Environmental protection is a top priority for ADLINK.
We have enforced measures to ensure that our products, manu-
facturing processes, components, and raw materials have as little
impact on the environment as possible. When products are at their
end of life, our customers are encouraged to dispose of them in
accordance with the product disposal and/or recovery programs
prescribed by their nation or company.
Trademarks
Product names mentioned herein are used for identification pur-
poses only and may be trademarks and/or registered trademarks
of their respective companies.

iv Preface
Leading EDGE COMPUTING
Conventions
Take note of the following conventions used throughout this
manual to make sure that users perform certain tasks and
instructions properly.
NOTE:
NOTE:
Additional information, aids, and tips that help users perform
tasks.
CAUTION:
Information to prevent minor physical injury, component dam-
age, data loss, and/or program corruption when trying to com-
plete a task.
ATTENTION: Informations destinées à prévenir les blessures
corporelles mineures, les dommages aux composants, la perte
de données et/ou la corruption de programme lors de l'exécu-
tion d'une tâche.
WARNING:
Information to prevent serious physical injury, component
damage, data loss, and/or program corruption when trying to
complete a specific task.
AVERTISSEMENT: Informations destinées à prévenir les bles-
sures corporelles graves, les dommages aux composants, la
perte de données et/ou la corruption de programme lors de
l'exécution d'une tâche spécifique.

Table of Contents v
NEON-2000-JT2-X
Table of Contents
Revision History...................................................................... ii
Preface.................................................................................... iii
List of Figures....................................................................... vii
List of Tables.......................................................................... ix
1 Introduction ........................................................................ 1
1.1 Overview.............................................................................. 1
1.2 Features............................................................................... 2
1.3 General Specifications......................................................... 3
1.4 Mechanical Dimensions....................................................... 5
1.4.1 Camera Dimensions...................................................5
1.5 Accessories ......................................................................... 6
2 Connectors and I/O............................................................ 7
2.1 Bottom Side I/O and Connector Description........................ 8
2.1.1 DI/O Connector Pin Definitions...................................9
2.1.2 LAN Connector Pin Definitions.................................11
2.2 Top Side LED Indicators.................................................... 12
2.3 Front Side Description ....................................................... 13
3 Getting Started ................................................................. 15
3.1 Mounting the Device.......................................................... 15
3.1.1 DIN Rail Mount.........................................................16
3.2 Digital I/O Connections...................................................... 17
3.3 Attaching a Lens................................................................ 18
3.4 Power and Peripheral Connections ................................... 19
3.5 Image Capture and Inference............................................ 21
3.5.1 Executing the Sample Code.....................................21

vi Table of Contents
Leading EDGE COMPUTING
3.5.2 Inference Concepts and Sample Code.....................24
3.5.3 Image Inference Procedure......................................24
3.6 Using the Basler pylon Utility............................................. 26
3.6.1 Capturing Images in pylon........................................26
3.6.2 Modifying Image Sensor Settings in pylon................29
3.6.3 Using APIs to Modify Image Sensor Settings...........33
4 Software Upgrade............................................................. 35
4.1 System Flash..................................................................... 35
4.1.1 System Flashing Equipment.....................................36
4.1.2 System Flashing Procedure......................................37
Important Safety Instructions............................................... 39
Consignes de Sécurité Importante...................................... 41
Getting Service...................................................................... 43

List of Figures vii
NEON-2000-JT2-X
List of Figures
Figure 2-1: NEON-2000-JT2-X Orientation........................................7
Figure 2-2: Bottom Side I/O and Connectors.....................................8
Figure 2-3: DI/O M12 17-Pin Connector ............................................9
Figure 2-4: LAN Connector..............................................................11
Figure 2-5: Top Side LED Indicators................................................12
Figure 2-6: Front Side Components.................................................13
Figure 3-1: NEON-2000-JT2-X Mounting Holes ..............................15
Figure 3-2: DIN Rail Mount (Separated) ..........................................16
Figure 3-3: DIN Rail Mount (Assembled).........................................16
Figure 3-4: Digital Input Schematic Diagram ...................................17
Figure 3-5: Digital Output Schematic Diagram.................................17
Figure 3-6: Lens Attachment Assembly...........................................18
Figure 3-7: Powered by AC/DC Adapter..........................................19
Figure 3-8: Powered by USB Type-C Hub/Adapter .........................20

viii List of Figures
Leading EDGE COMPUTING
This page is intentionally left blank.

List of Tables ix
NEON-2000-JT2-X
List of Tables
Table 1-1: NEON-2000-JT2-X Model and Sensor Specifications 1
Table 1-2: NEON-2000-JT2-X Starter Kit Contents.....................6
Table 2-1: Bottom Side Connectors and Functions.....................8
Table 2-2: DI/O M12 17-Pin Connector Pin Definitions.............10
Table 2-3: DI/O Connector Specifications .................................10
Table 2-4: LAN Connector Pin Definitions.................................11
Table 2-5: Top Side LED Indicator Behavior.............................12
Table 2-6: Front Side Description..............................................13

xListofTables
Leading EDGE COMPUTING
This page is intentionally left blank.

Introduction 1
NEON-2000-JT2-X
1 Introduction
1.1 Overview

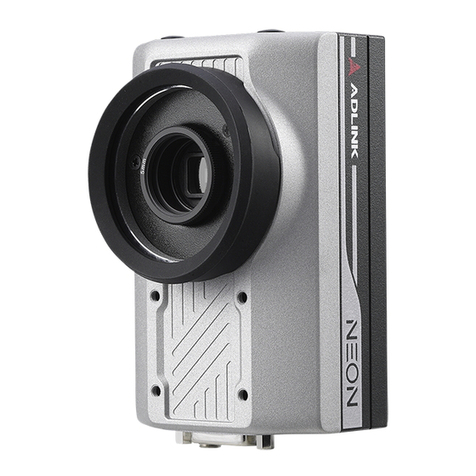

The NEON-2000-JT2-X series is an open camera platform
equipped with an NVIDIA®Jetson™ TX2 module to support a
series of image sensors that provide industrial DI/O and image
capture and inference capabilities. The NEON-2000-JT2-X is
IP67-certified and is designed for deep learning inference and
other vision applications that require a GPU at the edge in harsh
environments. Ubuntu Linux, Jetpack, camera drivers, and utilities
are pre-installed to save effort on integration and prevent compati-
bility issues. The following table lists the current NEON-2000-JT2-
X models and their respective sensor specifications.
Table 1-1: NEON-2000-JT2-X Model and Sensor Specifications
Model Name Image Sensor Specifications Image Sensor Module
NEON-201B-JT2-X 1/3”, 1.2M, Global Shutter,
1280x960, 54fps, Color Basler, DAA1280-54UC-CS
NEON-202B-JT2-X 1/1.8”, 1.9M, Global Shutter,
1600x1200, 60fps, Color Basler, DAA1600-60UC-CS
NEON-203B-JT2-X 1/3.7”, 2M, Rolling Shutter,
1920x1080, 30fps, Color Basler, DAA1920-30UC-CS
NEON-204B-JT2-X 1/2.5”, 5M, Rolling Shutter,
2592x1944, 14fps, Color Basler, DAA2500-14UC-CS

2Introduction
Leading EDGE COMPUTING
1.2 Features
IP67 (Ingress Protection)-certified, suited for harsh environ-
ments
Pre-installed operating system, drivers, and utilities; deep
learning sample code; plug and play
NVIDIA Jetson TX2 and dual-core NVIDIA Denver 2 +
quad-core ARM Cortex-A57, 8GB 128-bit LPDDR4 memory
and integrated 256-core Pascal GPU
USB 3.0 sensor interface compatible with most machine
vision software
IP67 USB Type-C connector supports DC power and Dis-
playPort to reduce cabling
IP67 M12 17-pin connector for DC 24V input, DI/O, and RS-
232
IP67 M12 8-pin connector for Gigabit Ethernet
Highly integrated, compact system for easy deployment

Introduction 3
NEON-2000-JT2-X
1.3 General Specifications
Lens mount: C-mount
Total weight: 900g (with lens protector, without lens)
Operating temperature: 45°C (tested when running
YOLOv4; airflow 0.6 m/s)
Power consumption: <35W
Compute module: NVIDIA Jetson TX2
CPU: ARM Cortex-A57 MPCore (quad-core) and
NVIDIA Denver 2 (dual-core)
GPU: 256-core NVIDIA Pascal GPU
Memory: 8 GB LPDDR4
Storage: 32 GB eMMC (on Jetson TX2 module)
Camera connectors and functions
1x IP67 USB Type-C for power, DisplayPort, and USB
3.0
1x IP67 M12 17-pin connector for DC 24V input, RS-
232, and DI/O
1x IP67 M12 8-pin connector for Gigabit Ethernet
NOTE:
NOTE:
1. When powering from the DC 24V input, the USB Type-
C connector can provide 3W of power to an external
device such as a USB Type-C hub. Devices that require
more than 3W cannot be used.
2. DC power can be supplied from either the USB
Type-C port or the M12 17-pin connector.
3. Use only recommended ADLINK power adapters.

4Introduction
Leading EDGE COMPUTING
NEON-
201B-JT2-X NEON- 202B-JT2-X NEON- 203B-JT2-X NEON- 204B-JT2-X
Compute Module NVIDIA® Jetson™ TX2
Processor ARM Cortex-A57 and NVIDIA Denver 2
Display Output DisplayPort over USB Type-C, 1920x1080 @ 30fps
Image Sensor
Resolution 1280x960 1600x1200 1920x1080 2592x1944
Image Sensor Size 1/3” 1/1.8” 1/3.7” 1/2.5”
Frame Rate (fps) 54 60 30 14
Shutter Global Rolling
Color/Mono Color
Image Sensor
Trigger Mode External trigger (see note below), software trigger, free run
Digital Input 2x DI, includes 1x sensor trigger
Digital Output 2x DO, includes 1x strobe out
RS-232 TXD, RXD, GND
Dimensions/Weight 123 x 122.85 x 79.55mm; 900g
Power Supply DC power over USB Type-C or DC 24V over M12 17-pin
connector
NOTE:
NOTE:
In External Trigger Mode, you can adjust the sensor exposure
time in the Basler pylon utility.

Introduction 5
NEON-2000-JT2-X
1.4 Mechanical Dimensions
This section provides dimensions and related mechanical informa-
tion for the NEON-2000-JT2-X.
1.4.1 Camera Dimensions
Dimensions: mm

6Introduction
Leading EDGE COMPUTING
1.5 Accessories
ADLINK provides all the necessary parts and accessories for the
NEON-2000-JT2-X in the starter kit. You can purchase individual
accessories according to your needs. The following table provides
details about each item.
Table 1-2: NEON-2000-JT2-X Starter Kit Contents
Item Specification/Description Part Number
IP67USBType-C
cable
Type-C (M) to Type-C (M)
interface; 2m
Supports power, Display-
Port, and USB 3.0
30-01335-0000-A0
IP67 Ethernet
cable
M12 A-code 8P (M) to RJ45
(M), 3m
Supports Gigabit Ethernet 30-01336-0000-A0
IP67 DI/O cable
M12 A-code 17P (M) to
DB37P (M), 3m
Supports DC24V, 2x DI/O,
and 1x RS-232
NEON-side: 17P; other side:
37P to DIN-37-01
30-01337-0000-A0
Flash cable
M12 A-code 17P (M) to USB
2.0 Type-A (M)/SWx2
For flashing the Jetson TX2 30-01338-0000-A0
DIN-37D-01
terminal board I/O extension board for use with IP67 DI/O cable 91-14025-1020
Camera lens 8mm f/1.4, 2/3” 92-15731-0010
USB Type-C hub/
adapter For power and I/O connections 92-99090-1010
Lens cover Lens protection; length 58mm 34-90110-0000

Connectors and I/O 7
NEON-2000-JT2-X
2 Connectors and I/O
This chapter includes the locations and descriptions of the
connectors and I/O on the NEON-2000-JT2-X.
Figure 2-1: NEON-2000-JT2-X Orientation
Top Side Top Side
Bottom Side Bottom Side
Front
Side
Back
Side

8 Connectors and I/O
Leading EDGE COMPUTING
2.1 Bottom Side I/O and Connector Description
Figure 2-2: Bottom Side I/O and Connectors
Table 2-1: Bottom Side Connectors and Functions
Item Description
1 IP67 USB Type-C connector for power, DisplayPort, and USB 3.0
2 IP67 M12 17-pin connector for DC 24V input, 2x DI/O, and 1x RS-232
3 IP67 M12 8-pin connector for Gigabit Ethernet
NOTE:
NOTE:
DC power can be supplied from either the USB Type-C port or
the M12 17-pin connector.
1
2 3

Connectors and I/O 9
NEON-2000-JT2-X
2.1.1 DI/O Connector Pin Definitions
Figure 2-3: DI/O M12 17-Pin Connector
Pin Type Description
1 Bi-DIR USB 2.0 D+ (for flashing the TX2)
2 Input DC 24V input
3 Input DC 24V input
4 Input Digital input 0/Trigger input 0 (see Note 1)
5 Output Digital output 0/Strobe output 0 (see Note 2)
6 Output Digital output 1
7-- Reserved
8-- Reserved
9 Input TX2 recovery (for flashing the TX2)
10 Bi-DIR USB 2.0 D- (for flashing the TX2)
11 Input USB 2.0 power (for flashing the TX2)

10 Connectors and I/O
Leading EDGE COMPUTING
Table 2-2: DI/O M12 17-Pin Connector Pin Definitions
Table 2-3: DI/O Connector Specifications
12 -- GND
13 Input Digital input 1
14 Input RS-232 RXD (PC>NEON)
15 Output RS-232 TXD (NEON>PC)
16 Input TX2 reset
17 -- GND
NOTE:
NOTE:
1. Pin 4 (Digital input 0/Trigger input 0) is programmable. When
configured for trigger input, pin 4 is used for hardware trigger-
ing of the image sensor. Connect an external sensor signal to
pin 4 and set the camera to hardware trigger mode to enable
real-time or hardware-triggered image capture.
2. Pin 5 (Digital output 0/Strobe output 0) is programmable.
When configured for strobe output, pin 5 can be connected to
an LED /strobe controller to adjust the timing latency/delay
according to the camera connected to pin 5.
I/O Category Maximum
Throughput Specifications
RS-232 - Baud rate: 9600bps @ 8N1
Digital Input 10 KHz
Common sharing: 1 common for sharing
ground
Input range: 0-5 VDC
High level threshold: 2-5 VDC
Low level threshold: 0-0.8 VDC
Digital Output 10KHz Open-collector
Inputvoltage
range 3.3-30 VDC
Maximum
sink current 100 mA
Pin Type Description
