ServiceBefore Usage How to Use
HITACHI Air Conditioner
Managing System
Central Station DX
Management Software/
Operation Ratio
(PSC-AS2048WXB)
Thank you for choosing HITACHI Air
Conditioner Managing System.
● Please keep this manual in a safe place.
● If you have any questions or concerns,
please contact your local HITACHI dealer
or HITACHI customer service.
Operation Manual

Before Usage
1
Preface
Safety Summary
● Please carefully read this section before installation of the software.
● Contents with "DANGER" shows the certain cases where improper operation WILL result in severe personal
injury or even death. For your safety, please follow this instruction.
● Keep this manual in a safe place for users' reference.
● Contact your distributor or qualied engineer for Installation work. Improper
installation can cause electric shock, re, or unexpected accidents.
● To avoid any electric shock or accident, ask the distributor to have electric work
done by qualied electrician.
Installation and electrical work
● This software applies to normal type of air conditioner and its usage is limited for domestic use only.
● Please do not install this system in following places where installation may cause damage to the adapter.
• Places where oil (including machine oil) mists or stream drift.
• Places where sulde gas form as hot spring drifts.
• Places where ammable gas may be generated or exist.
• Places where high in salt contents surrounding as coast regions.
• Places where atmosphere of acidity and alkalinity humid place.
● In case of using a medical equipment generating electro-magnetic waves, the system should be installed in
an area where free from direct radiation to avoid malfunction.
The surface that is emitting electro-magnetic waves should not directly face the system.
In case of using those equipment and radios generating electro-magnetic waves, this software should
be installed where a location is at least 3 m away from the equipment to avoid any inuence on radiation
propagation in the air.
● The reference pictures printed in this manual are only sample. The display may differ from the actual
window.
[ Symbols Used in This Manual ]
: Immediate hazards which WILL result in severe personal injury or
death.
: Indicates enforcement matters against the general users.
:Indicates prohibited matters.
NOTE: This sign indicates other alert information than DANGER.
NOTICE: Useful information for operation and/or maintenance.

2
Before Usage
In Operation
● Never operate the equipment with wet hands. It will cause electric
shock.
● Immediately turn the power off if the safety equipments (such as
breaker) frequently turns on, or when safe operation can not be
assured.
Earth leakage or over current can trigger electric shock, re, and/or
blowout. Please contact distributor or your dealer.
● Immediately turn the power off if unordinary condition (burnt smell,
etc) occurs. Operation under unordinary condition can cause re, or/
and electric shock. Please contact distributor or your dealer.
● Do not disconnect the adapter from the computer while
operation. Data in the memory can be broken.
Other Important Notice
● Do not convert or change electric wiring. It can cause serious electric
shock or other unexpected accidents.
● Keep the adapter away from water while cleaning. This adapter is
equipped with electrical parts, which water can cause electric shock.
● Please contact the distributor or your dealer for repair. Faulty/poor
maintenance can cause electric shock and/or re.
● Please contact the distributor or your dealer upon removing the adapter.
Improper installation and removal can cause electric shock, re, or
unexpected accidents.
For Repair and Remove

Before Usage
3
How to Read This Manual
System Conguration
• In this chapter are described the characteristics of the adapter.
Calculating Air Conditioner Operation Ratio
• In this chapter are described how to display operation ratio of each month and each data in detail.
Maintenance and Service
• In this chapter are described what are included in our service.
● This manual consists of System Conguration , Calculating Air Conditioner Operation Ratio
and
Maintenance and Service section.

4
Before Usage
Important Notice
● Carefully read Installation Manual (P5414794) and Operation Manual (P5414795) before utilizing the
functionality.
● Accurate calculation may not be available upon device failure or other unexpected conditions. Please discuss
the alternative plan (another calculation method independent from the computer and adapter condition) with
your tenant before utilizing the system.
● Operation ratio can not be calculated when the computer and/or the management software is OFF. Ensure the
computer and Management Software are turned ON. Click "Setup incomplete" button in Setting charge section
before operation.
● Save data for operation ratio and calculation result are generated within 30 minutes after date changes. If the
software is shut down during this period, data can not be saved, which the adapter shall generate save data for
the 2 days in a row on the following day.
● Supported calculation method may vary on adapter types. Refer to Setting Charge 4 Register Calc. Mode
of the installation manual (P5414796) for detail.
● This software supports Tooltip (reminder information). It may appear when the mouse cursor is hovered over
items (group name and block name, etc.) on windows (e.g. Tree View). Please note that tooltip may not
appear on all items and/or displays depending on operating state.
Operation ratio
button
Tree
Data display eld
Charge display switch
button (Not in use)
Data output display
switch button
Setting charge display
switch button
Words/Terms

Before Usage
5
NOTE:
Management computer may not operate properly in standby or hibernation condition.
Go to [Start] - [Control Panel] - [Power Options].
● Go to [Power Options Properties] and set "Never" in System standby tab and System hibernates tab.
● If using laptop, set "Do nothing" in when I press the sleep button on my computer tab.
Other facility units as
lighting (Not included
in software package)
or other controller
(Not included in
software package)
1System Conguration
System Conguration
Management
Software
PSC-AS2048WXB
(CD-ROM)
Computer for
Management
(Not included in
software package)
UPS
(Not included in
software package)
Connect each air
conditioner.
Hub for Ethernet
(Not included in
software package)
H-LINK
(Communication Wire)
Adapter PSC-A128WX
Connect each air
conditioner.
LAN
(Ethernet)
Please carefully follow the
instructions on Installation
and Operation Manual
upon connecting adapter,
PLC, and Ethernet hub.
Adapter PSC-A128WX
(Max. Connectable Q'ty 16)
Power line (monophasic)
AC100-240V 50/60Hz
Power line (monophasic)
AC100-240V 50/60Hz
H-LINK
(Communication Wire)

6
Before Usage
3 Display

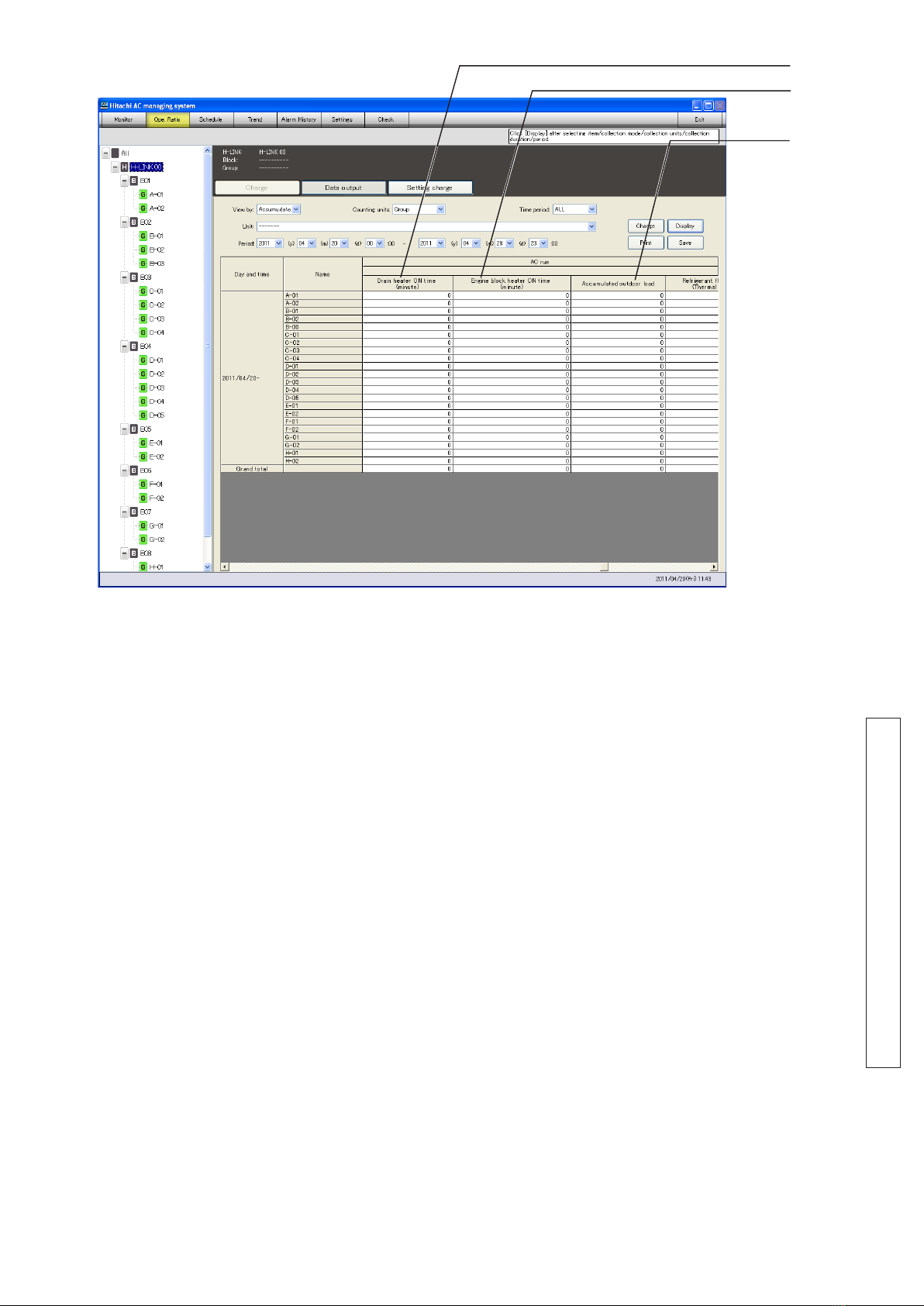

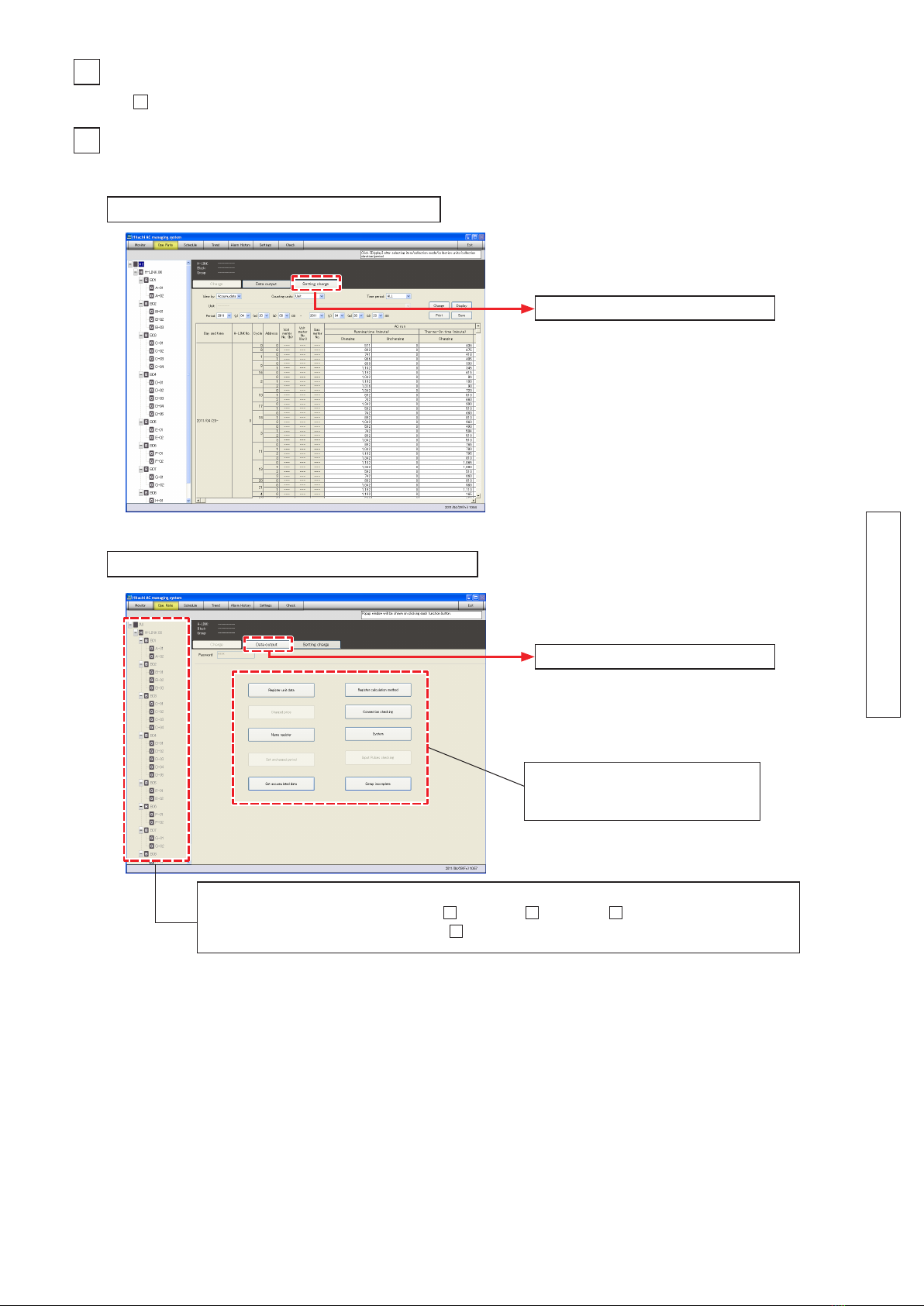

(a) Data Output display and (b) Setting Charge display will be shown in this software.
Tree
Data will be shown by clicking down to H: H-LINK – B: BLOCK – G: GROUP.
Some of the system support display by H: H-LINK only and tree view may not be selected.
Click the button to show display
for registration and/or conrmation
window.
(a) Data Output Display: Shows data in detail.
Switch to (b) Setting Charge Display.
Refer to 1 System Conguration for specication of the device in the system.
2 Device Specication
(b) Setting Charge Display: Shows conguration data.
Switch to (a) Data Output Display.

How to Use
7
Calculating Air Conditioner Operation Ratio
(1) The following data (calculation result) will be stored in "/centralstation/anbun/DriveRatio/Result/yyyymm".
• DAYS_yyyymm.csv: operation ratio of EHP by each day
• UNITS_yyyymmdd.csv: operation ratio of EHP by each air conditioner (for each day)
• DAYS_GHP_yyyy.mm.csv: operation ratio of GHP by each day
• UNITS_GHP_yyyymmdd.csv: operation ratio of GHP by each air conditioner (for each day)
* yyyy, mm and dd indicate year, month and day, respectively.
(2) The following data (calculation result) will be stored in "centralstation/anbun/DriveRatio/Result/yyyymm/dd".
• HOURS_yyyymmdd.csv: operation ratio of EHP by each hour
• UNITS_yyyymmdd_hh.csv: operation ratio of EHP by each air conditioner (for each hour)
• HOURS_GHP_yyyymmdd.csv: operation ratio of GHP by each hour
• UNITS_GHP_yyyymmdd_hh.csv: operation ratio of GHP by each air conditioner (for each hour)
* yyyy, mm, dd and hh indicate year, month, day and hour, respectively.
NOTE:
● Ratio of electricity usage and Gas usage are calculated by either corresponding EHP or GHP.
● The 4 les above will always be generated even if all the cycle adapts either EHP or GHP only.
● Facility units only supports apportionment of electricity. Operation ratio of facility units will be 0%
when applied air conditioner operation ratio calculation.

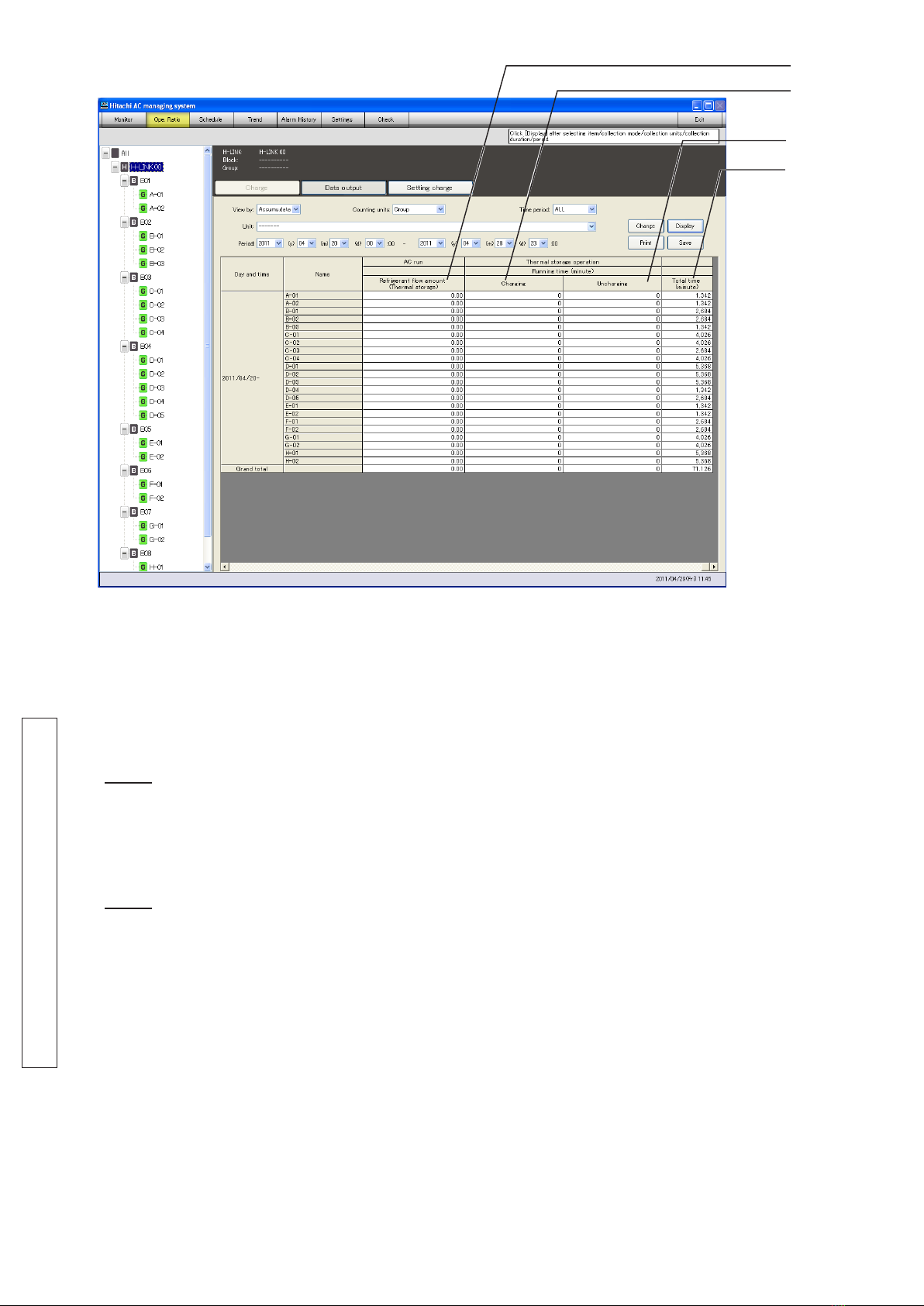

(3) Reference "Operation ratio of EHP by each day" (DAYS_yyyymm.csv)
This is a csv le contains the result of calculation of operation ratio in a day regarding maximum 31 days as
100%.

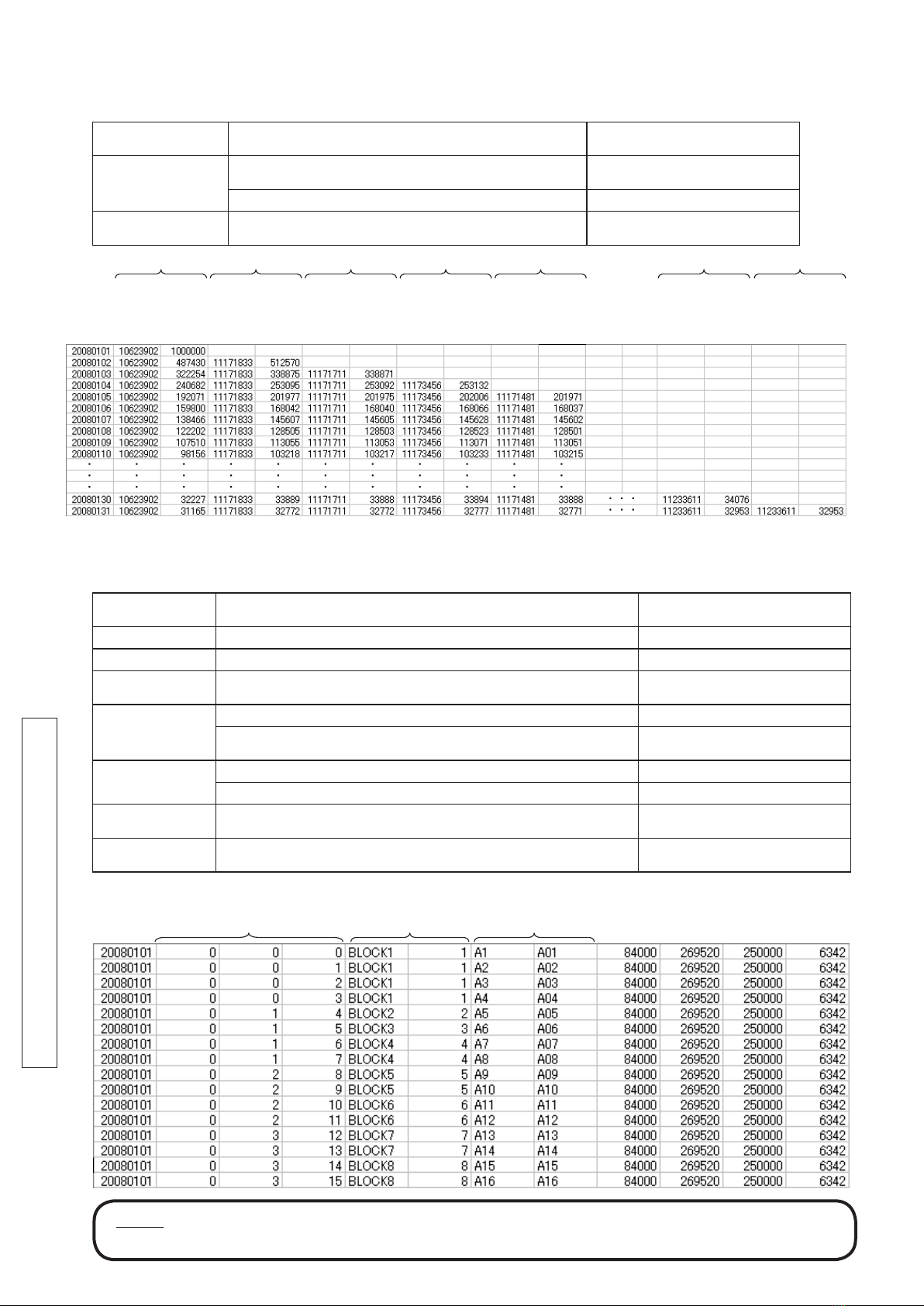

(a) Date YYYY, MM, DD 4 digits for year, 2 digits each for
month and day
(b) Accumulated
load on outdoor
units
In Mode I::= Grand total of thermo on time x capacity of
each indoor unit.
12 digits
In Mode II::= Accumulated electricity for operation for
each outdoor unit.
12 digits
(c) A day/Elapsed
days
Current date / total elapsed days. 7 digits, 100% = 1000000
Result of air conditioner operation ratio calculation will be output to le.

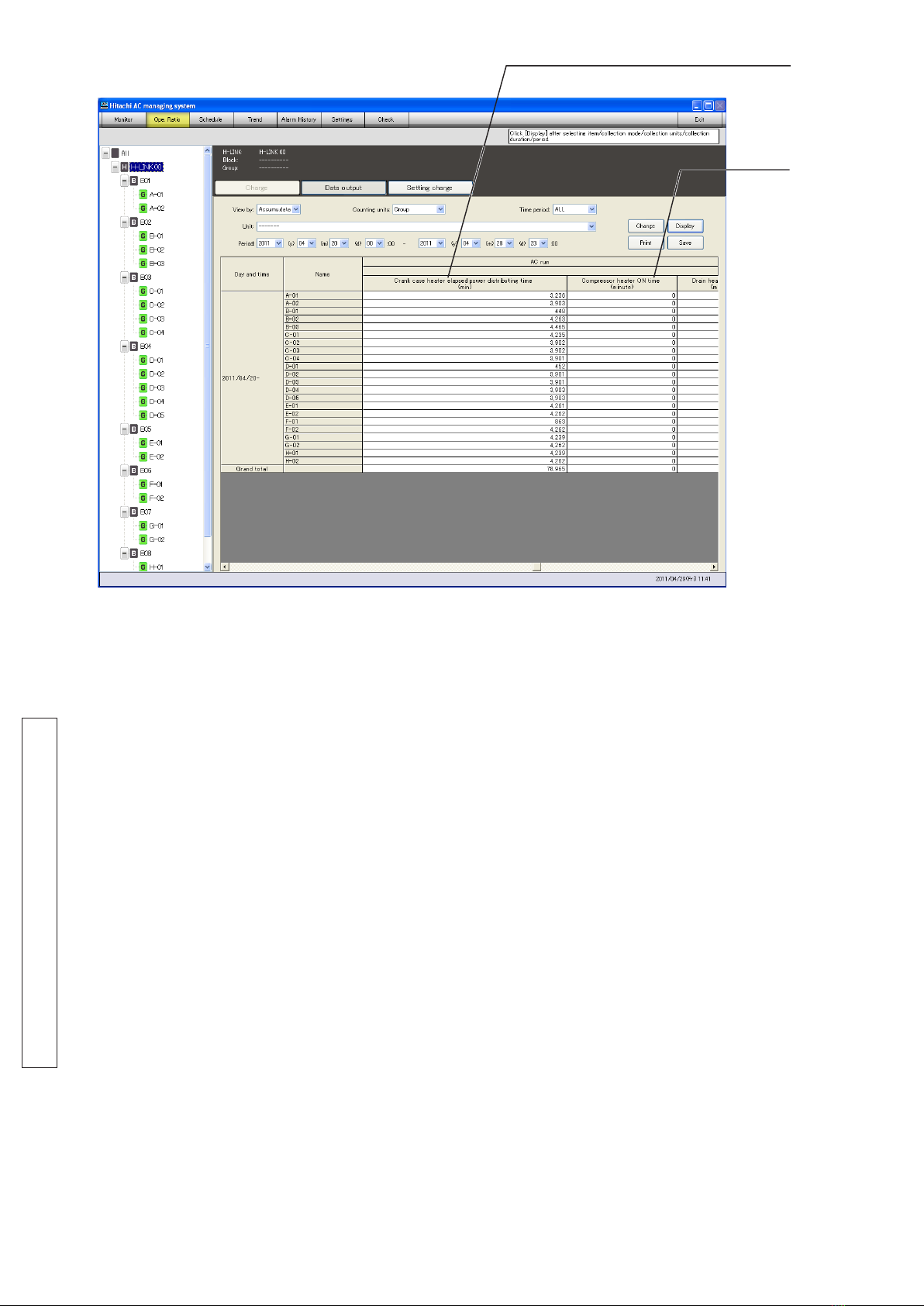

(a)
Date
↓
(b)
Accumulated
load on
outdoor units
↓
(c)
A day/
Elapsed
days
↓
Date 1 Date 2 Date 3 Date 4 Date 5 Date 30 Date 31
1Calculation Result Reference

How to Use
8

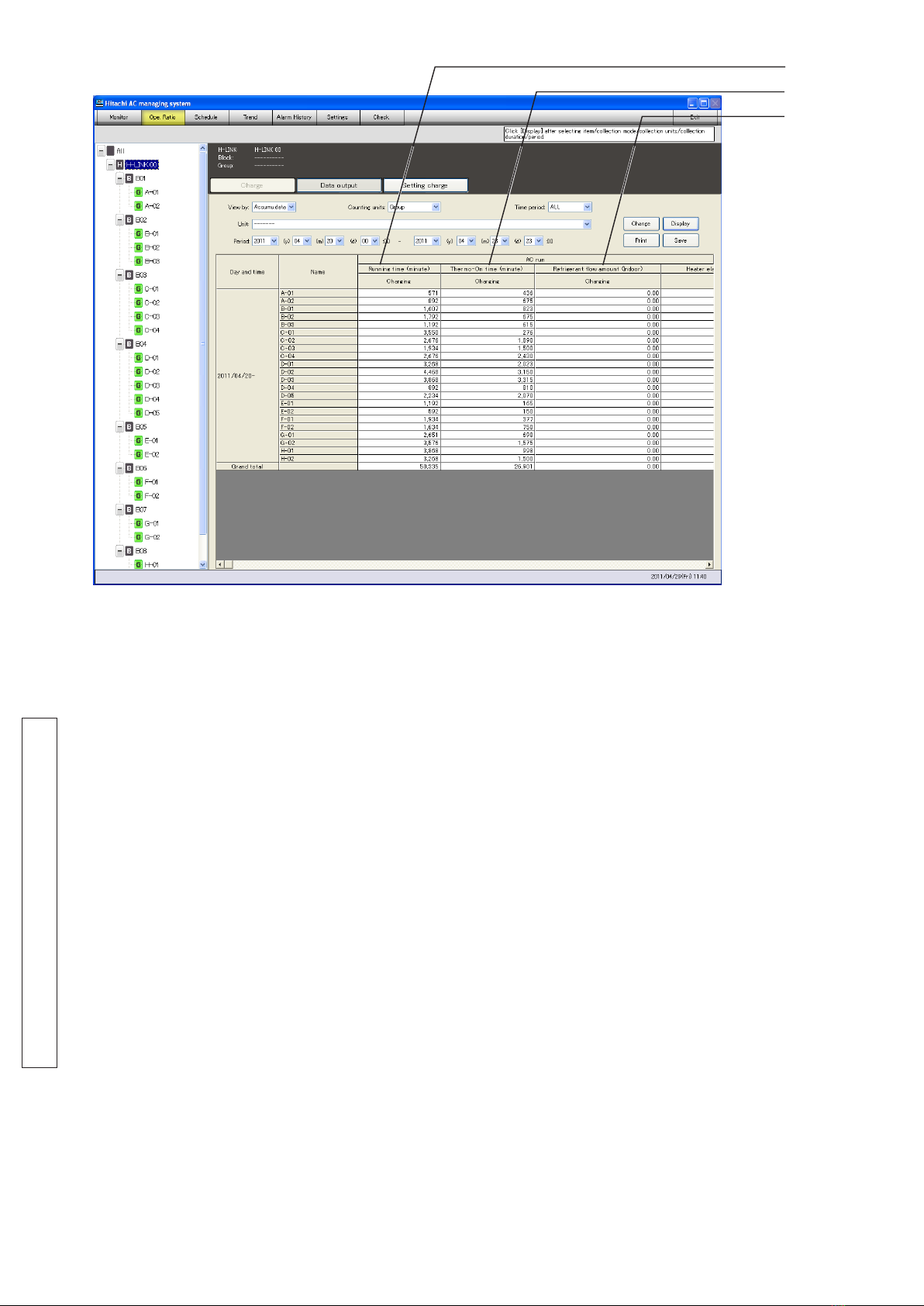

(4) Reference "operation ratio of EHP by each air conditioner (for each day)" UNITS_yyyymmdd.csv:
This is a csv le contains the result of calculation of operation ratio for each indoor unit regarding 1 cycle or all
cycle as 100%.
(g)
IU/1 OU
↓
(b) H-LINK No., REFGN cycle,
Address
(c) Block Name,
Block No.
(d) Group Name,
Group No.
(e)
Load on
indoor units
↓
(f)
Load on
outdoor
units
↓
(h)
IU/All OU
↓
(a) Date YYYY, MM, DD 4 digits for year, 2 digits each for
month and day
(b) Address H-LINK number, REFGN cycle, address 2 digits (In decimal)
(c) Block (No.) Block Name, Block No. 2 digits in decimal for No.
(d) Group (No.) Group Name, Group No. First digit: Alphabet
Last two digits: Decimal
(e) Load on Indoor
units
In Mode I::= Thermo on time x capacity 8 digits
In Mode II::= Accumulated expansion valve aperture x
expansion valve coefcient
8 digits
(f) Load on
Outdoor units
In Mode I::= Thermo ON time in the REFGN cycle x total
capacity
8 digits
In Mode II::= Accumulated operation current 8 digits
(g) Indoor /
1 outdoor
All indoor units within one particular refrigerant cycle
(ratio)
7 digits, 100% = 1000000
(h) Indoor/
All outdoor
1 unit/ All indoor units in all refrigerant cycle (ratio) 7 digits, 100% = 1000000
(a)
Date
↓
NOTE:
● If OU using more than 2 REFGN cycles exists, adopt "(h) IU/ALL OU".

How to Use
9
Day 1 Day 2 Day 3 Day 4 Day 5 Day 30 Day 31
(6) Reference "Operation ratio of GHP by each air conditioner (for each day)" (UNITS_GHP_yyyymm.cddsv)
This is a csv le contains the result of calculation of operation ratio for each indoor unit regarding 1 cycle or all cycle as 100%.
(5) Reference "operation ratio of GHP by each day" DAYS_GHP_yyyy.mm.csv:
This is a csv le contains the result of calculation of operation ratio in a day regarding maximum 31 days as
100%.
(a) Date YYYY, MM, DD 4 digits for year, 2 digits each for
month and day
(b) Accumulated
load on outdoor
units
In Mode I::= Grand total of thermo on time x capacity of
each indoor unit.
12 digits
In Mode II::= Accumulated load on outdoor units 12 digits
(c) An day/ Elapsed
days
Current date / Total elapsed days 7 digits, 100% = 1000000
(a)
Date
↓
(b)
Accumulated
load on
outdoor units
↓
(c)
An day/
Elapsed
days
↓
(a) Date YYYY, MM, DD 4 digits for year, 2 digits each for
month and day
(b) Address H-LINK number, REFGN cycle, address 2 digits (In decimal)
(c) Block (No.) Block Name, Block No. 2 digits in decimal for No.
(d) Group (No.) Group Name, Group No. First digit: Alphabet
Last two digits: Decimal
(e) Load on
Indoor units
In Mode I::= Thermo on time x capacity 8 digits
In Mode II::= Accumulated expansion valve aperture x expansion
valve coefcient
8 digits
(f) Load on
Outdoor units
In Mode I::= Thermo ON time in the REFGN cycle x total capacity 8 digits
In Mode II::= Accumulated operation current 8 digits
(g) Indoor /
1 outdoor
All indoor units within one particular refrigerant cycle (ratio) 7 digits, 100% = 1000000
(h) Indoor/
All outdoor
1 unit/ All indoor units in all refrigerant cycle (ratio) 7 digits, 100% = 1000000
NOTE:
● If OU using more than 2 REFGN cycles exists, adopt "(h) IU/ALL OU".
(g)
IU/1 OU
↓
(b) H-LINK No., REFGN cycle,
Address
(c) Block Name,
Block No.
(d) Group Name,
Group No.
(e)
Load on
indoor units
↓
(f)
Load on
outdoor
units
↓
(h)
IU/All OU
↓
(a)
Date
↓

How to Use
10
(7) Reference "Operation ratio of EHP by an hour" (HOURS_yyyymmdd.csv)
This is a csv le contains the result of calculation of operation ratio in an hour regarding maximum 24 hours as
100%.
(a) Date YYYY, MM, DD 4 digits for year, 2 digits each for
month and day
(b) Accumulated
load on outdoor
units
In Mode I::= Grand total of thermo on time x capacity of
each indoor unit.
12 digits
In Mode II::= Accumulated electricity for operation for
each outdoor unit.
12 digits
(c) An hour/
Elapsed time
Current time /Total elapsed time 7 digits, 100% = 1000000
(a)
Date
↓
(b)
Accumulated
load on
outdoor units
↓
(c)
An hour/
Elapsed
time
↓
0:00 1:00 2:00 3:00 4:00 22:00 23:00

How to Use
11
(8) Reference "Operation ratio of EHP by each air conditioner (for each hour)" UNITS_yyyymmdd_hh.csv:
This is a csv le contains the result of calculation of operation ratio for each indoor unit regarding 1 cycle or all
cycle as 100%.
(g)
IU/1 OU
↓
(b) H-LINK No., REFGN cycle,
Address
(c) Block Name,
Block No.
(d) Group Name,
Group No.
(e)
Load on
indoor units
↓
(f)
Load on
outdoor
units
↓
(h)
IU/All OU
↓
(a) Date YYYY, MM, DD, HH 4 digits for year, 2 digits each for
month, day and hour
(b) Address H-LINK number, REFGN cycle, address 2 digits (In decimal)
(c) Block (No.) Block Name, Block No. 2 digits in decimal for No.
(d) Group (No.) Group Name, Group No. First digit: Alphabet
Last two digits: Decimal
(e) Load on
Indoor units
In Mode I::= Thermo on time x capacity 8 digits
In Mode II::= Accumulated expansion valve aperture x expansion
valve coefcient
8 digits
(f) Load on
Outdoor units
In Mode I::= Thermo ON time in the REFGN cycle x total
capacity
8 digits
In Mode II::= Accumulated operation current 8 digits
(g) Indoor /
1 outdoor
All indoor units within one particular refrigerant cycle (ratio) 7 digits, 100% = 1000000
(h) Indoor/
All outdoor
1 unit/ All indoor units in all refrigerant cycle (ratio) 7 digits, 100% = 1000000
(a)
Date
↓
NOTE:
● If OU using more than 2 REFGN cycles exists, adopt "(h) IU/ALL OU".

How to Use
12
0:00 1:00 2:00 3:00 4:00 22:00 23:00
(10) Reference "Operation ratio of GHP by each air conditioner (per an hour)" (UNITS_GHP_yyyymmdd_hh.csv)
This is a csv le contains the result of calculation of operation ratio for each indoor unit regarding 1 cycle or all cycle as 100%.
(9) Reference "operation ratio of GHP by an hour” (HOURS_GHP_yyyymmdd.csv)
This is a csv le contains the result of calculation of operation ratio in an hour regarding maximum 24 hours as
100%.
(a) Date YYYY, MM, DD 4 digits for year, 2 digits each for
month and day
(b) Accumulated
load on outdoor
units
In Mode I::= Grand total of thermo on time x capacity of
each indoor unit.
12 digits
In Mode II::= Accumulated load on outdoor units 12 digits
(c) An hour/
Elapsed time
Current time / Total elapsed time 7 digits, 100% = 1000000
(a)
Date
↓
(b)
Accumulated
load on
outdoor units
↓
(c)
An hour/
Elapsed
hour
↓
(a) Date YYYY, MM, DD 4 digits for year, 2 digits each for
month, day and time, respectively
(b) Address H-LINK number, REFGN cycle, address 2 digits
(c) Block (No.) Block Name, Block No. 2 digits
(d) Group (No.) Group Name, Group No. First digit: Alphabet
Last two digits: Decimal
(e) Load on
Indoor units
In Mode I::= Thermo on time x capacity 8 digits
In Mode II::= Accumulated expansion valve aperture x expansion
valve coefcient
8 digits
(f) Load on
Outdoor units
In Mode I::= Thermo ON time in the REFGN cycle x total capacity 8 digits
In Mode II::= Accumulated operation current 8 digits
(g) Indoor /
1 outdoor
All indoor units within one particular refrigerant cycle (ratio) 7 digits, 100% = 1000000
(h) Indoor/
All outdoor
1 unit/ All indoor units in all refrigerant cycle (ratio) 7 digits, 100% = 1000000
NOTE:
● If OU using more than 2 REFGN cycles exists, adapt "(h) IU/ALL OU".
(g)
IU/1 OU
↓
(b) H-LINK No., REFGN cycle,
Address
(c) Block Name,
Block No.
(d) Group Name,
Group No.
(e)
Load on
indoor units
↓
(f)
Load on
outdoor
units
↓
(h)
IU/All OU
↓
(a)
Date
↓

How to Use
13
Data output: This window is to show accumulated data in detail.
(1) Display
2Displaying Data
NOTE:
● Default display items are Thermo on time and refrigerant ow amount only. Click [Change] to show/hide
desired items.
● Connect computer to A4 printer (not in package) in order to print. Follow the User manual of the printer for
the conguration.
Click to print the displayed items.
Click to change (hide/show) the dis-
played items.
*Items shown for display, printing,
and CSV le will be changed.
Click to save as a csv le.
Click to show the detailed data of
selecting group or unit.
Choose one from [Hour], [Day], and
[ALL] for "Time Period”.
Units can be specied when His
selected.
Choose desired object to show
the data.
Click to change (hide/show) the dis-
played items.
*"Start Time" species what time of
data shall be the rst entry.
* "Stop Time" species before what
time of data shall be the last entry.
In this eld, the data of selected object
in the tree will be shown.
Choose one from [Unit], [Group], [H-LINK] and [ALL].
* Upper categories than selected in the tree will not be shown.
[Accum. data] xed in "view
by" section.

How to Use
14
(b),(c)
(2) Each displayed items
[View by: Accum. Data]
Default display items are Thermo on time and refrigerant ow amount (IU) only.
To add displayed items, click [Change] button.
(a) Day and Time
Specify the day and time.
This item can not be hidden by [Change] button.
This item will be printed on each printed document.
(b) Name
Name of each unit identier.
If "Unit" is selected in [View by], (c) will be displayed in this column.
This item can not be hidden by [Change] button.
This item will be printed on each printed document.
(c) H-LINK No. Cycle, Address, Volt meter No. (IU), Volt meter No. (OU) and Gas meter.
H-LINK No. Cycle, and Address to identify each unit, and volt meter No. and Gas meter No. connected to the
unit are shown in this column.
If other than "Unit" is selected in [View by], (b) will be shown in this column.
This item can not be hidden by [Change] button.
Volt meter No. (IU), Volt meter No. (OU) and Gas meter No will be described by a combination of
H-LINK – Station Address – INPUT No., each lotted by hyphen.
Gas meter No. will not be shown if no GHP is connected. (The item can not be shown by [Change] button.)
This item will be printed on each printed document.
(d) AC Run
Operation status of the Unit (Accum. data)
(e) Thermal Storage Operation
Thermal storage operation status (Accum.data)
This item will not be shown if no Thermal unit is connected. (The item can be shown by [Change] button.)
(a)
(d)
(e)

How to Use
15
(f) Running time
This item shows elapsed operation time of the indoor unit.
(g) Thermo on time
This item shows elapsed thermo on time of the indoor unit.
(h) REFGN ow amount
This item shows accumulated REFGN ow amount of the indoor unit.
(g)
(f)
(h)

How to Use
16
(i)
(j)
(i) Heater elapsed power distributing time
This item shows elapsed power distributing time of the indoor unit.
(j) Accumulated running current
This item shows accumulated running current of EHP outdoor unit.

How to Use
17
(k)
(m)
(k) Crankcase heater elapsed power distributing time
This item shows elapsed power distributing time of EHP outdoor unit.
(m) Compressor heater on time
This item shows elapsed compressor heater on time of GHP outdoor unit.
This item will not be shown if no GHP is connected. (The item can be shown by [Change] button.)

How to Use
18
(n) Drain heater on time
This item shows elapsed drain heater on time of GHP outdoor unit.
This item will not be shown if no GHP is connected. (The item can be shown by [Change] button.)
(p) Engine block heater on time
This item shows elapsed engine block heater on time of GHP outdoor unit.
This item will not be shown if no GHP is connected. (The item can be shown by [Change] button.)
(q) Accumulated outdoor load
This item shows accumulated engine speed of GHP outdoor unit.
This item will not be shown if no GHP is connected.
(p)
(n)
(q)

How to Use
19
(r) REFGN ow amount (Thermal storage)
This item shows accumulated REFGN ow amount of thermal storage unit.
(s) Charging
If uncharged period is specied in [Setting Charge] - [Uncharged Period], then the total amount data only in
charged period will be shown.
If uncharged period is not specied in [Setting Charge] - [Uncharged Period], then the total amount data of all
day will be shown.
NOTE: “Setting Uncharged Period” is not available on this system.
(t) Uncharging
If uncharged period is specied in [Setting Charge] - [Uncharged Period], then the total amount data only in
uncharged period will be shown.
If uncharged period is not specied in [Setting Charge] - [Uncharged Period], then this item will not be shown.
(The item itself can be shown by [Change] button.)
NOTE: “Setting Uncharged Period” is not available on this system.
(u) Total time
This item shows elapsed accumulating time in total.
(s)
(r)
(t)
(u)
