Baudcom BD-2GPON-OEO User manual

Copyright © 2018 Shanghai Baudcom Communication Device Co.,Ltd. All Rights Reserved. 1 / 18
Model: BD-2GPON-OEO
GPON Repeater User’s Manual
SHANGHAI BAUDCOM COMMUNICATION DEVICE CO.,LTD
Website: http://www.baudcom.com.cn
http://www.e1-converter.com
Email: [e-mail]
Tel: [phone]
Fax: [phone]

Copyright © 2018 Shanghai Baudcom Communication Device Co.,Ltd. All Rights Reserved. 2 / 18
Contents
PREFACE ............................................................................................................................................................ 4
CHAPTER 1 PRODUCT INTRODUCTION................................................................................................... 7
1.1. INTRODUCTION............................................................................................................................................7
CHAPTER 2 BD-2GPON-OEO APPLICATION ........................................................................................... 8
2.2. INCREASE SPLITTING RATIO .........................................................................................................................8
CHAPTER 3 HARDWARE INSTALLATION............................................................................................... 10
3.1. PACKING INSPECTION .....................................................................................................................................10
3.2. JUMPER ......................................................................................................................................................10
3.3. FRONT PANEL CONNECTION DIAGRAM ....................................................................................................10
3.4. DC POWER CORD CONNECTION ..............................................................................................................10
3.5. DEBUGGING INTERFACE .............................................................................................................................11
3.6. MOUNTING (OPTIONAL)...........................................................................................................................11
CHAPTER 4 DESCRIPTION OF LED INDICATOR LIGHTS..................................................................... 13
4.1. FRONT PANEL .................................................................................................................................................13
4.2. INDICATOR STATUS DESCRIPTION .............................................................................................................13
CHAPTER 5 PRODUCT SPECIFICATIONS ................................................................................................ 15
5.1. SPECIFICATION PARAMETERS..........................................................................................................................15
CHAPTER 6 PRECAUTIONS ........................................................................................................................ 17
6.1. PRECAUTIONS .................................................................................................................................................17
6.2. MAINTENANCE OF SINGLE BOARDS ..........................................................................................................17
CHAPTER 7 CONSOLE MANAGEMENT ................................................................................................... 19
7.1. ACCESS TO GPON REPEATER .........................................................................................................................19
7.2. MAIN CONSOLE COMMANDS:.......................................................................................................................20

Copyright © 2018 Shanghai Baudcom Communication Device Co.,Ltd. All Rights Reserved. 3 / 18
Contents of Tables
Table 4-1 Indicator Status Description......................................................................................13
Table 5-1 Specification Parameters..........................................................................................15
Table 6-1 Single Board Maintenance--Troubleshooting...........................................................17
Contents of Figures
Figure 1-1 BD-2GPON-OEO Appearance (DC Power)..............................................................7
Figure 1-2 BD-2GPON-OEO Appearance (AC Power) ..............................................................7
Figure 2-1 Extend Transmission Distance ................................................................................8
Figure 2-2 Increase Splitting Ratio..............................................................................................8
Figure 3-1 Front Panel Connection Diagram............................................................................10
Figure 3-2 DC48V Power Cord.................................................................................................11
Figure 3-3 DC Power Cord Connection Diagram......................................................................11
Figure 3-4 Rack Tray Bracket ...................................................................................................12
Figure 3-5 Install BD-2GPON-OEO on Tray Bracket................................................................12
Figure 3-6 Install Tray Bracket in Cabinet.................................................................................12
Figure 4-1 Front Panel (DC Power) ..........................................................................................13
Figure 4-2 Front Panel (AC Power)...........................................................................................13

GPON Repeater Operation Manual
Preface
Copyright © 2018 Shanghai Baudcom Communication Device Co.,Ltd. All Rights Reserved. 4 / 18
Preface
Overview
Chapter
Description
Preface
It introduces overview, version and scope of application.
Chapter 1 BD-2GPON-OEO Product Introduction
This chapter introduces BD-2GPON-OEO product.
Chapter 2 BD-2GPON-OEO Application
This chapter introduces application scenarios of
BD-2GPON-OEO.
Chapter 3 Hardware Installation
This chapter introduces the installation of BD-2GPON-OEO.
Chapter 4 Description of LED Indicator Lights
This chapter introduces description of BD-2GPON-OEO
indicator lights.
Chapter 5 Product Specifications
This chapter introduces product specifications of
BD-2GPON-OEO.
Chapter 6 Precautions
This chapter introduces precautions for use of
BD-2GPON-OEO.
Product Version
Product Number
Version Number
BD-2GPON-OEO
1.0
Target Readers
This manual is intended for the following engineers:
(1) Network planning engineer
(2) Hardware installation engineer
(3) Test engineer
(4) Field maintenance engineer
(5) System maintenance engineer

GPON Repeater Operation Manual
Preface
Copyright © 2018 Shanghai Baudcom Communication Device Co.,Ltd. All Rights Reserved. 5 / 18
Explanation of Special Symbols
The following symbols may appear in this manual, which respectively represent the following
meanings:
Symbol
Description
Special attention should be paid to the content. If the operation is improper, it
may cause serious injury to the person.
It reminds the matters for attention. Improper operation may cause loss of data
or damage to the device.
It represents the operation or information that requires special attention to
ensure the success of the operation or the normal work of the device.
A skill or a knack which helps to solve a problem and save time.
The necessary supplement and explanation for the description of the text.
Notes contain helpful suggestions or references to material not covered in the
manual.
1. It is not allowed to make modification if the input box or the drop-down box is grayed out.
2. The add, delete, modify and refresh buttons are all on the toolbar.
3. One and only one data in the table must be selected first while doing the modification
operation.
4. At least one data in the table must be selected while doing the deletion operation.
5. The refresh button is used to refresh the table and the form. There are two refresh operations
on the toolbar. When it shows “Refresh Table”on icon, it will refresh the table. When it shows
“Refresh Form”on icon, it will refresh the form.
Change History
Modifying records accumulates a description of each update of the document. The latest version
contains all updates made to previous versions of the document.
Author
Issued Date
Remarks

GPON Repeater Operation Manual
Preface
Copyright © 2018 Shanghai Baudcom Communication Device Co.,Ltd. All Rights Reserved. 6 / 18
Lucy
2019-08-23
First release

GPON Repeater Operation Manual
Chapter 1 Product Introduction
Copyright © 2018 Shanghai Baudcom Communication Device Co.,Ltd. All Rights Reserved. 7 / 18
Chapter 1 Product Introduction
1.1. Introduction
BD-2GPON-OEO is a ITU-T G.984.x & ITU-T G.988 standard-based GPON link amplifier developed
by Baudcom with independent intellectual property rights. It has good compatibility and fully adapts
to the mainstream OLT/ONU in the market. It can extend the coverage of GPON system from the
previous 20km to 50km or even further. GPON can be integrated with the mainstream OLT/ONU
manufacturers in the market, thus forming an efficient and flexible long-distance GPON solution.
BD-2GPON-OEO is an optical power amplifier for GPON lines developed by Baudcom. It uses OEO
mode to amplify and shape the signals, and achieves 3R amplification of the signals.
BD-2GPON-OEO can effectively amplify the optical power of PON lines and extend the transmission
distance of network. It has the features of compact structure and convenient installation. It can be
widely used in various fields such as GPON cell access, GPON fiber-to-the-home and so on.
To realize distance extension function of BD-2GPON-OEO PON link amplifier, the corresponding
logical distance of the OLT ports needs to be set. It can only be amplified within the range of the
logical distance and it does not allow exceeding the logical distance.

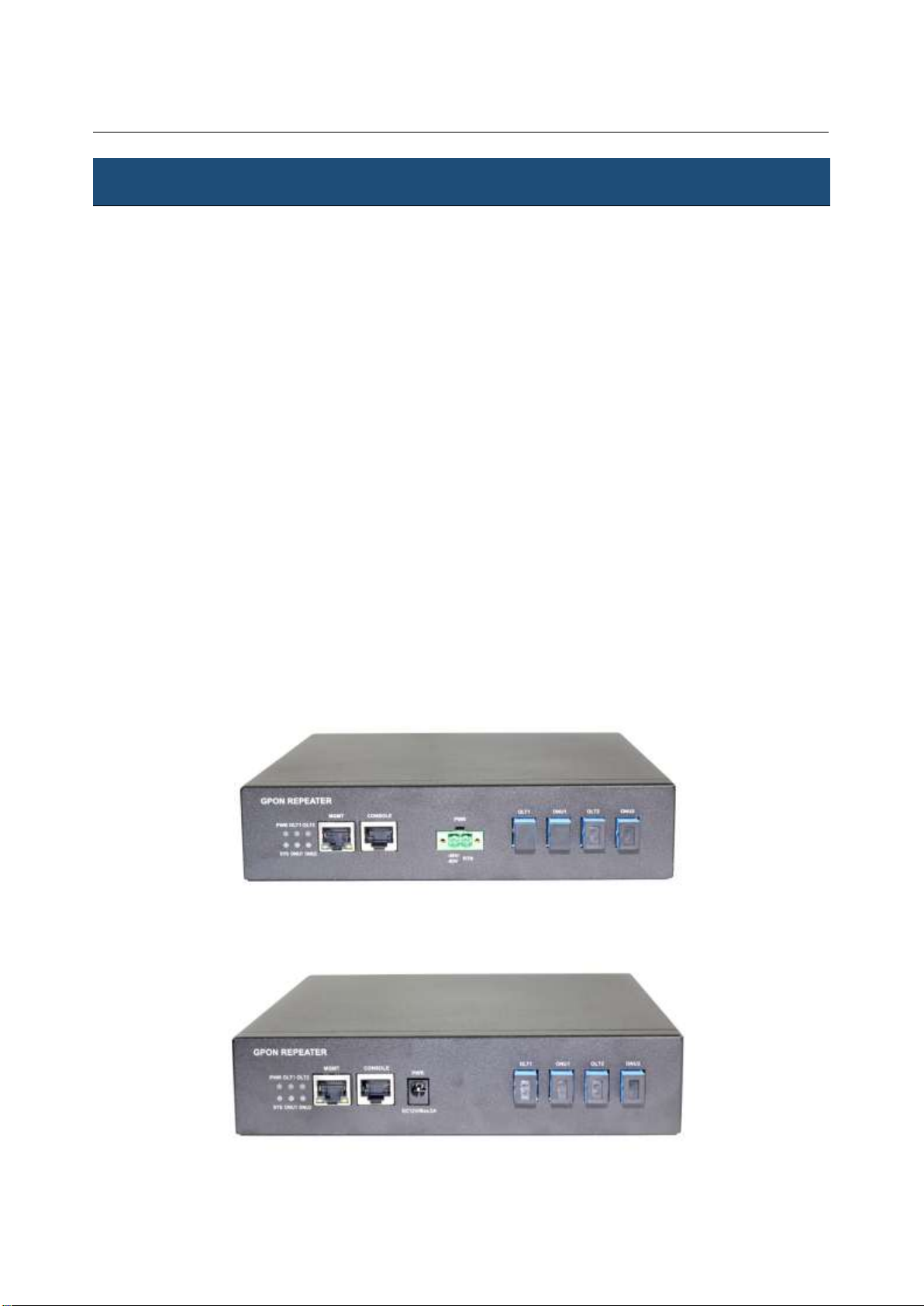

Figure 0-1 BD-2GPON-OEO Appearance (DC Power)
Figure 0-2 BD-2GPON-OEO Appearance (AC Power)

GPON Repeater Operation Manual
Chapter 2 BD-2GPON-OEO Application
Copyright © 2018 Shanghai Baudcom Communication Device Co.,Ltd. All Rights Reserved. 8 / 18
Chapter 2 BD-2GPON-OEO Application

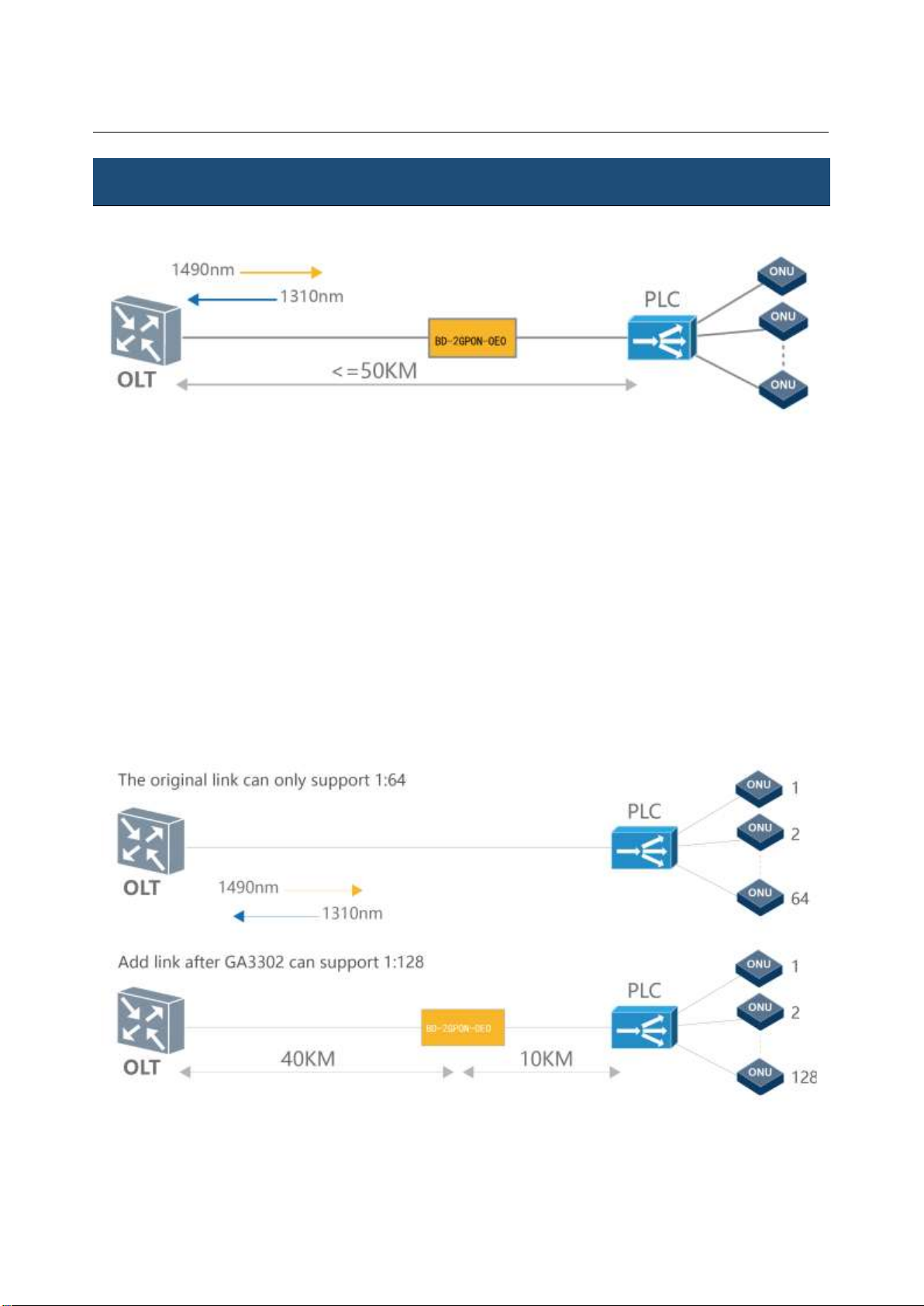

2.1. Extend Transmission Distance
Figure 0-1 Extend Transmission Distance
The original link cannot reach the maximum transmission distance of OLT due to line attenuation and
other reasons. By using BD-2GPON-OEO device, the optical power can be enhanced to support the
transmission distance of 50km.
In theory, BD-2GPON-OEO should be placed before the splitter where the optical power of OLT
reaches its attenuation limit, so as to ensure sufficient optical power after splitting and further to
ensure long-distance transmission of PON network.
2.2. Increase Splitting Ratio
Figure 0-2 Increase Splitting Ratio

GPON Repeater Operation Manual
Chapter 2 BD-2GPON-OEO Application
Copyright © 2018 Shanghai Baudcom Communication Device Co.,Ltd. All Rights Reserved. 9 / 18
The original link can only support a splitting ratio of 1:64 due to splitting attenuation and other
reasons. By using BD-2GPON-OEO device, the optical power can be enhanced and the splitting
ratio can be extended to 1:128.

GPON Repeater Operation Manual
Chapter 3 Hardware Installation
Copyright © 2018 Shanghai Baudcom Communication Device Co.,Ltd. All Rights Reserved. 10 / 18
Chapter 3 Hardware Installation
3.1. Packing Inspection
Before installing BD-2GPON-OEO, please make sure that the following items are contained in the
packing box: a BD-2GPON-OEO amplifier, a DC48V power cord or a 220V to 12V power adapter
and a manual.
3.2. Jumper
Use single mode SC fiber optic jumpers.

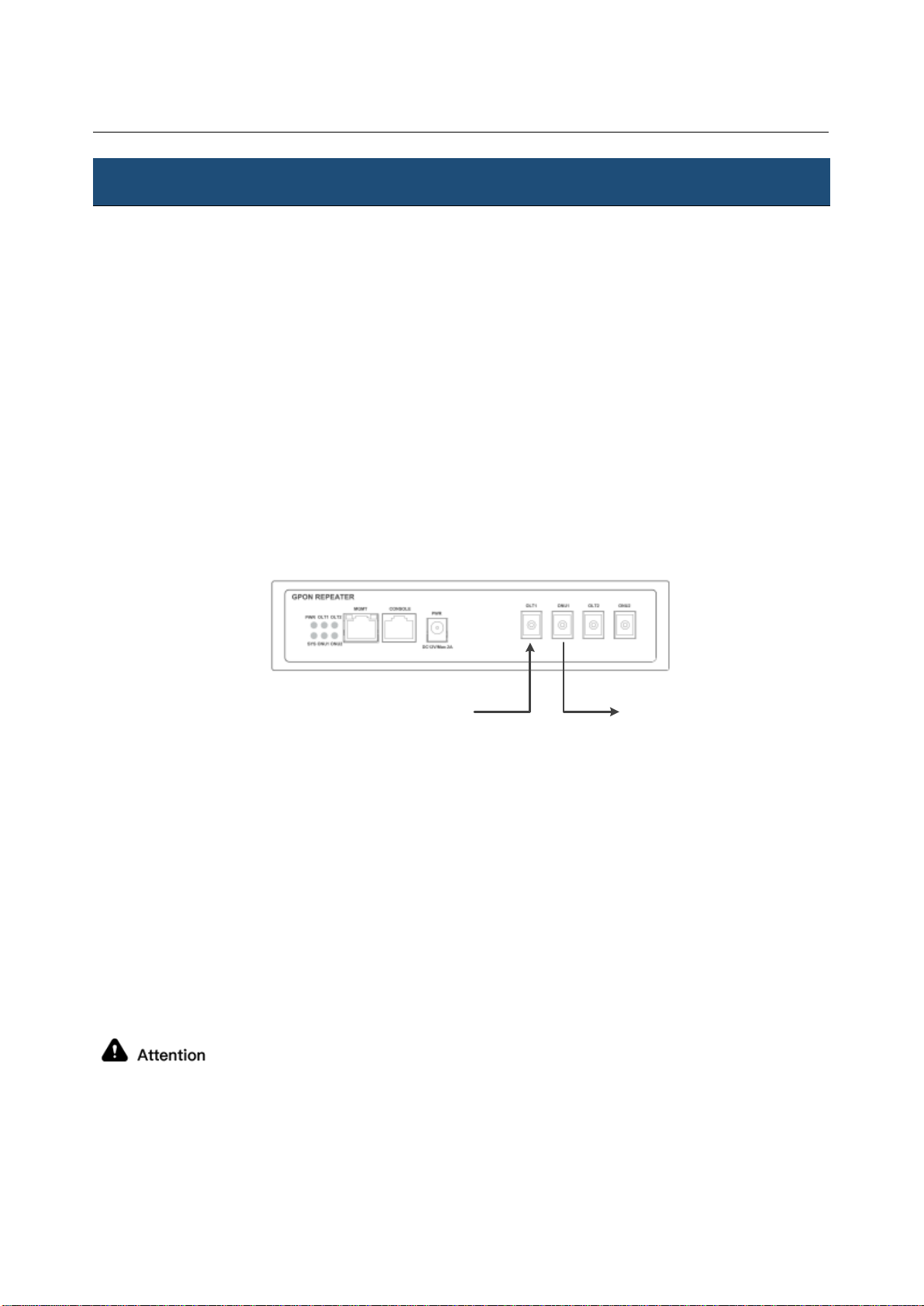

3.3. Front Panel Connection Diagram
Uplink to OLT Connect to ONU
Figure 0-1 Front Panel Connection Diagram
3.4. DC Power Cord Connection
The DC48V power cord is as shown in the figure below. One end is a green phoenix terminal
connector which is used to connect BD-2GPON-OEO device. The other end is two power cable
connectors which are used to connect the DC power supply. As shown in the figure below, the power
cable marked “RTN”is used to connect the DC positive pole and the power cable marked “N48V”is
used to connect the DC negative pole.
Please do not plug the electrified power cord.

GPON Repeater Operation Manual
Chapter 3 Hardware Installation
Copyright © 2018 Shanghai Baudcom Communication Device Co.,Ltd. All Rights Reserved. 11 / 18

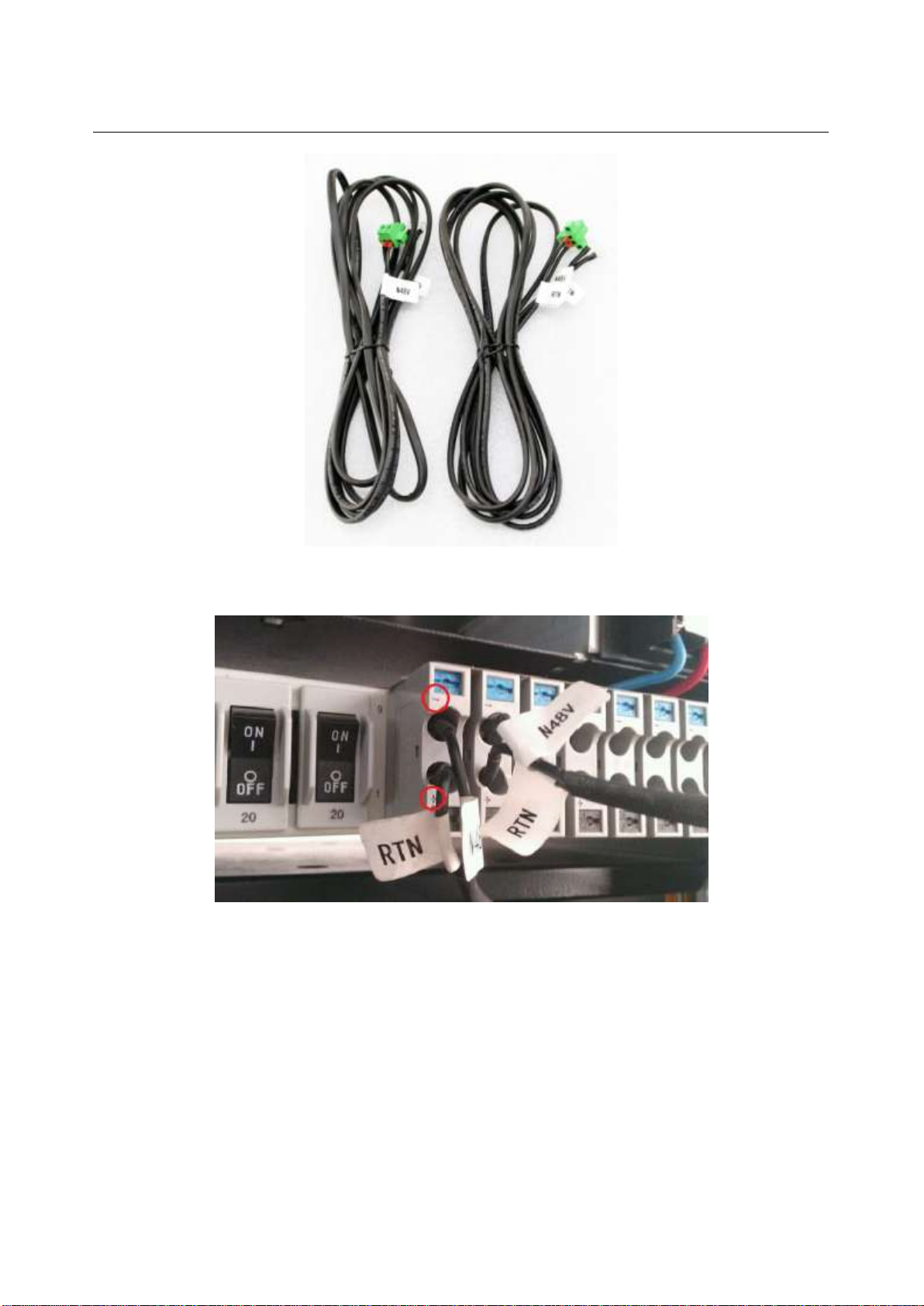

Figure 0-2 DC48V Power Cord
Figure 0-3 DC Power Cord Connection Diagram
3.5. Debugging Interface

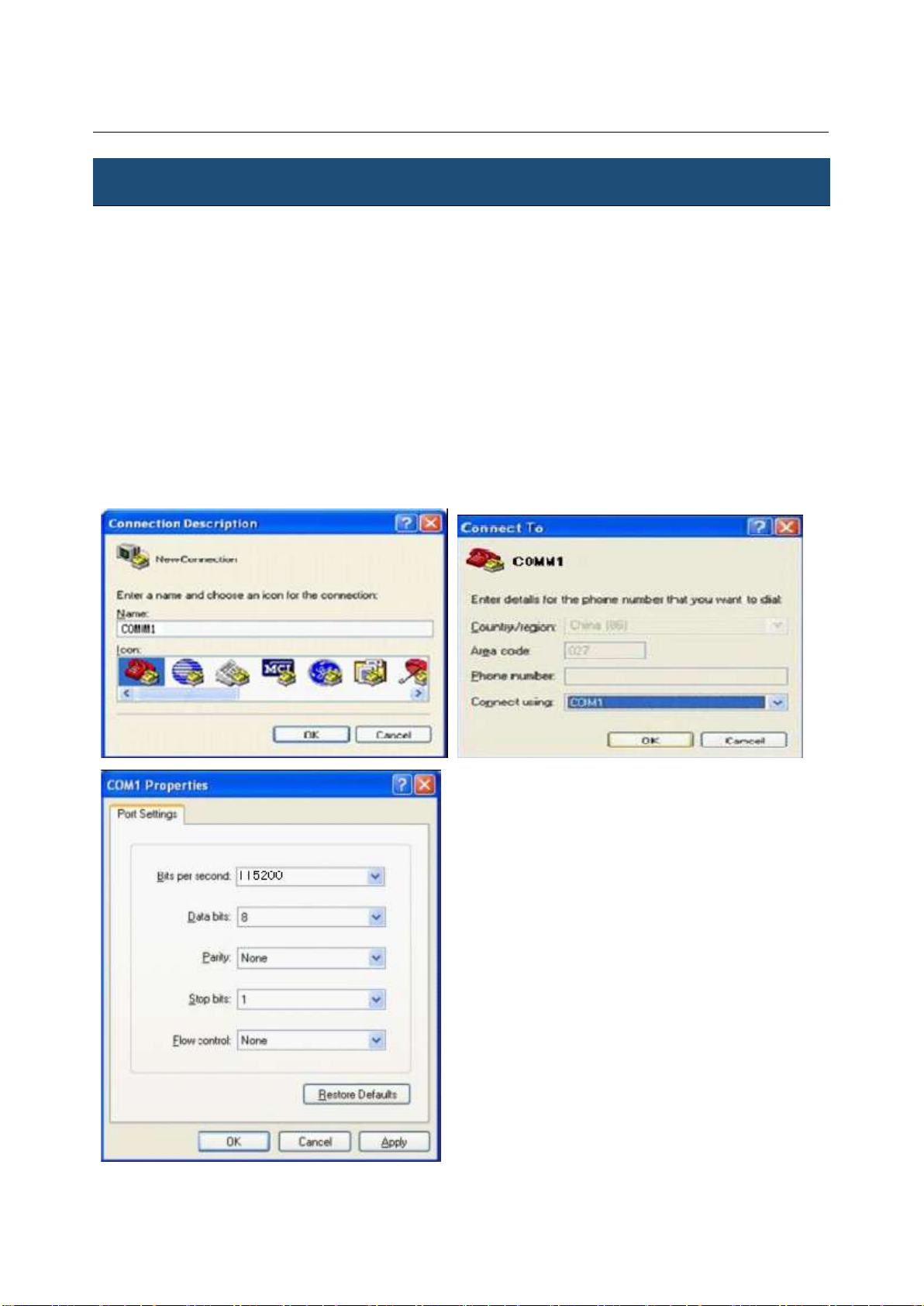

MGMT interface and CONSOLE interface are debugging interfaces for equipment, which are only
used for debugging and maintenance of equipment.
3.6. Mounting (Optional)
For easy installation in 19-inch standard cabinet, 1U tray bracket is an option for BD-2GPON-OEO
equipment, as shown in the figure below. Two devices can be fixed on each tray bracket.

GPON Repeater Operation Manual
Chapter 3 Hardware Installation
Copyright © 2018 Shanghai Baudcom Communication Device Co.,Ltd. All Rights Reserved. 12 / 18
Figure 0-4 Rack Tray Bracket
If the equipment is planned to be installed in a 19-inch cabinet, please choose tray bracket. It is
recommended that BD-2GPON-OEO be fixed on the tray bracket before the equipment is mounting.
As shown in the figure below, two screws are used to fix the BD-2GPON-OEO equipment from the
side to the tray bracket.
Figure 0-5 Install BD-2GPON-OEO on Tray Bracket
Use cabinet screws to fix the tray bracket on the slot of 1U height, as shown in the figure below. Then
complete the mounting of the equipment.
Figure 0-6 Install Tray Bracket in Cabinet

GPON Repeater Operation Manual
Chapter 4 Description of LED Indicator Lights
Copyright © 2018 Shanghai Baudcom Communication Device Co.,Ltd. All Rights Reserved. 13 / 18
Chapter 4 Description of LED Indicator Lights

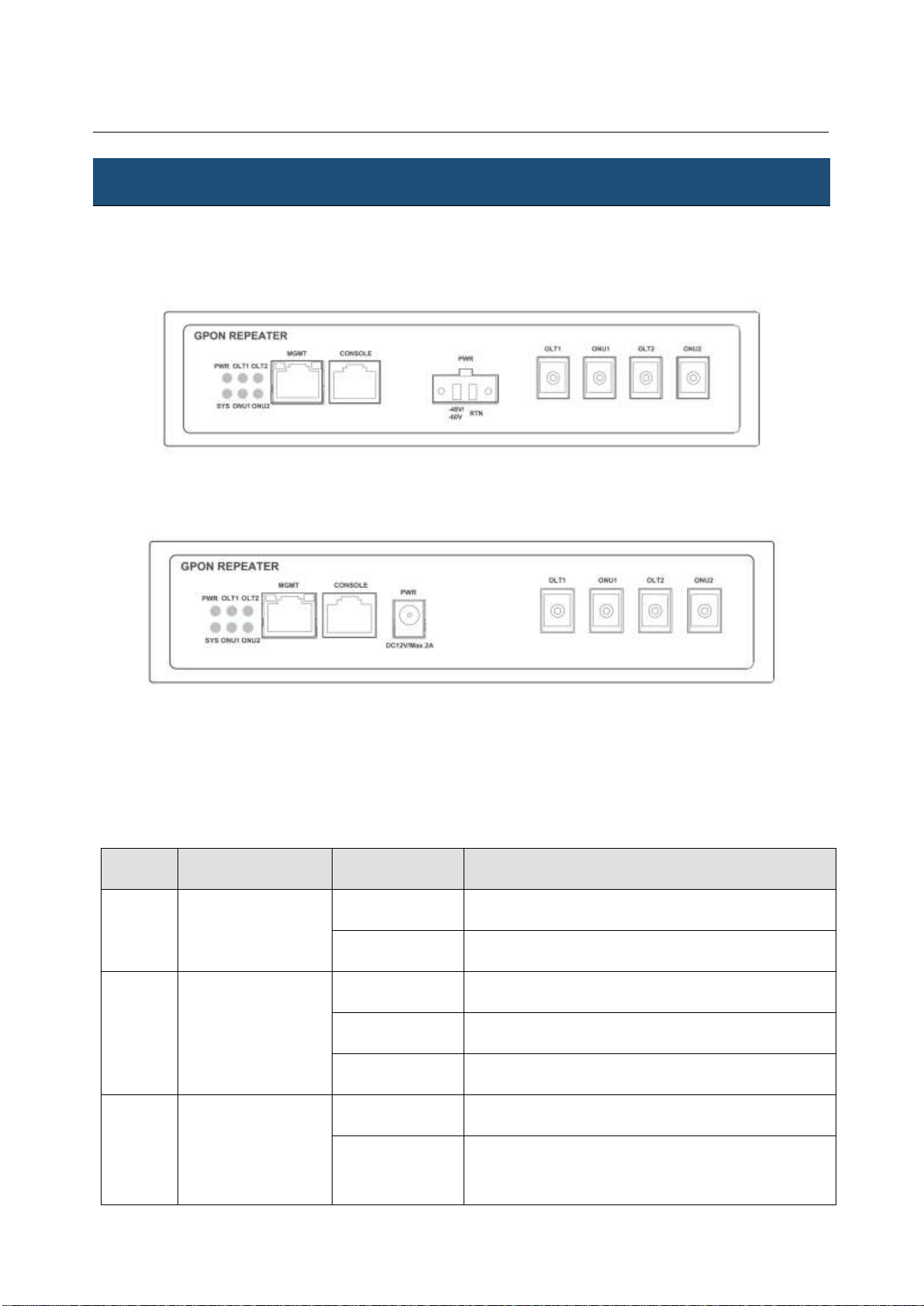

4.1. Front Panel
Figure 0-1 Front Panel (DC Power)
Figure 0-2 Front Panel (AC Power)
4.2. Indicator Status Description
Table 0-1 Indicator Status Description
Item
Meaning
Status
Description
PWR
Power Indicator Light
ON
normal power supply
OFF
Abnormal power supply or the power is not turned on.
SYS
System Indicator
Light
Always Green
The system works normally.
OFF
The device is starting.
Always Red
Warning of device failure or excessive temperature.
OLT1/OL
T2
Port Status Indicator
Light
Always ON
The connection of OLT is normal.
OFF
OLT is not connected or cannot normally receive optical
signals.

GPON Repeater Operation Manual
Chapter 4 Description of LED Indicator Lights
Copyright © 2018 Shanghai Baudcom Communication Device Co.,Ltd. All Rights Reserved. 14 / 18
ONU1/O
NU2
Port Status Indicator
Light
Always ON
ONU is online and registration is successful.
OFF
ONU is not online or ONU is under registration.

GPON Repeater Operation Manual
Chapter 5 Product Specifications
Copyright © 2018 Shanghai Baudcom Communication Device Co.,Ltd. All Rights Reserved. 15 / 18
Chapter 5 Product Specifications
5.1. Specification Parameters
Table 0-1 Specification Parameters
Item
Description
Basic Function
Support Protocol: GPON (ITU-T G.984.x & ITU-T G.988）.
Upstream rate: 1.244G burst signal.
Downstream rate: 2.488G.
It supports dual-channel concatenation.
It supports 1:128 network extension.
It is compatible with OLT and ONU from different manufacturers.
It supports transparent transport of services.
It supports a maximum distance of 50km (which cannot exceed the maximum
logical distance supported by OLT).
It supports power-off bypass (optional).
Interface Module
Single Fiber Bidirectional OLT/ONU Optical Module.
Optical Interface
Receiving sensitivity of OLT interface: -28 /-8 dBm.
Receiving sensitivity of ONU interface: -30 /-12 dBm.
Transmitting optical power of OLT interface: 0-5dBm.
Transmitting optical power of ONU interface: 3-7dBm.
Working Temperature
0℃～50℃
Working Humidity
5%～95%
Storage Temperature
-20℃～85℃
Power Consumption
<15W
Power Supply
DC -38V ~ -72V
DC 12V (External AC 220V power adapter）

GPON Repeater Operation Manual
Chapter 5 Product Specifications
Copyright © 2018 Shanghai Baudcom Communication Device Co.,Ltd. All Rights Reserved. 16 / 18
Dimensions
192mm (W）*240mm (D）*44mm (H）
Weight
1.6kg

GPON Repeater Operation Manual
Chapter 6 Precautions
Copyright © 2018 Shanghai Baudcom Communication Device Co.,Ltd. All Rights Reserved. 17 / 18
Chapter 6 Precautions
6.1. Precautions
The optical fibers of the single board are straight out; please do not look directly at the core of the
optical module, so as to prevent laser from burning eyes.
6.2. Maintenance of Single Boards
Fault Location Method
In case that failure such as business interruption or optical power instability occurs, the following
steps are usually used to locate the fault:
1. Check and adjust the optical fiber connection. If the service returns to normal, the fault will be
solved. If the optical fiber connection is normal, please continue with the next step.
2. Check and adjust the input optical power of the local and the opposite ends of the single board. If
the service returns to normal, the fault will be solved. If the input optical power is normal, please
continue with the next step.
3. Equipment failure, please replace the equipment.
Troubleshooting
Table 0-1 Single Board Maintenance--Troubleshooting
Item
Fault Causes
ONU cannot be
registered.
Cause 1: OLT is not connected with ONU equipment.
Cause 2: The receiving optical power of the optical module exceeds the threshold range
(-8dBm~-27dBm).
Cause 3: The optical interface is not clean.
Cause 4: Business interruption due to inconsistent types of interworking services.
Cause 5: Equipment failure.
Error Code of
Equipment
Cause 1: The receiving optical power is abnormal.
Cause 2: The aging and bending of the tail fibers between and the client and the user leads.

GPON Repeater Operation Manual
Chapter 6 Precautions
Copyright © 2018 Shanghai Baudcom Communication Device Co.,Ltd. All Rights Reserved. 18 / 18
to greater loss.
Cause 3: The equipment temperature is too high.
Cause 4: The optical interface of the equipment is not clean.
Cause 5: Equipment failure.

GPON Repeater Operation Manual
Chapter 6 Precautions
Copyright © 2018 Shanghai Baudcom Communication Device Co.,Ltd. All Rights Reserved. 19 / 18
Chapter 7 Console management
7.1. Access to GPON repeater
You can access to OLT by CLI via console cable or telnet. This charpter introduces how to access to
GPON repeater CLI via console cable.
1. Connect PC to GPON repeater console port by console cable.
2. Run hypeterminal or other simulation tools such as secureCRT and Putty in PC. Set parameters as
follows.
Baudrate: 115200
Data bits: 8
Parity: none
Stop bits: 1
Follow control: none
COM port properties

GPON Repeater Operation Manual
Chapter 6 Precautions
Copyright © 2018 Shanghai Baudcom Communication Device Co.,Ltd. All Rights Reserved. 20 / 18
After truned on the power, there is boot information printing. After startup, press enter and input username
and password to login.
Notice:
The default username and password of CLI both are admin. For example,
Login: admin
Password: admin
7.2. Main Console Commands:
1. get device info //get the device information
2. get onu_module 0 //get the first channal ONU module working status
3. get olt_module 0 //get the first channal OLT module working status
4. get onu_module 1 //get the second channal ONU module working status
5. get olt_module 1 //get the second channal OLT module working status
6. set pn xxxxx //change PN number
7. get alarm info //checking current alarms
8. set bypass-on/off //set the bypass function enable or disable
9. system config factory //restore to defaut setting
10. system config save //save configuration
