ADTRAN 1223445L2 User manual

C A U T I O N
!
SUBJECT TO ELECTROSTATIC DAMAGE
OR DECREASE IN RELIABILITY.
HANDLING PRECAUTIONS REQUIRED.
For more information, refer to the Installation and Maintenance Practice (P/N 61223445L2-5) available online at www.adtran.com.
©2006 ADTRAN, Inc.
All Rights Reserved.
HDSL4
239 H4R
P/N: 1223445L2
CLEI: T1R6U89D_ _

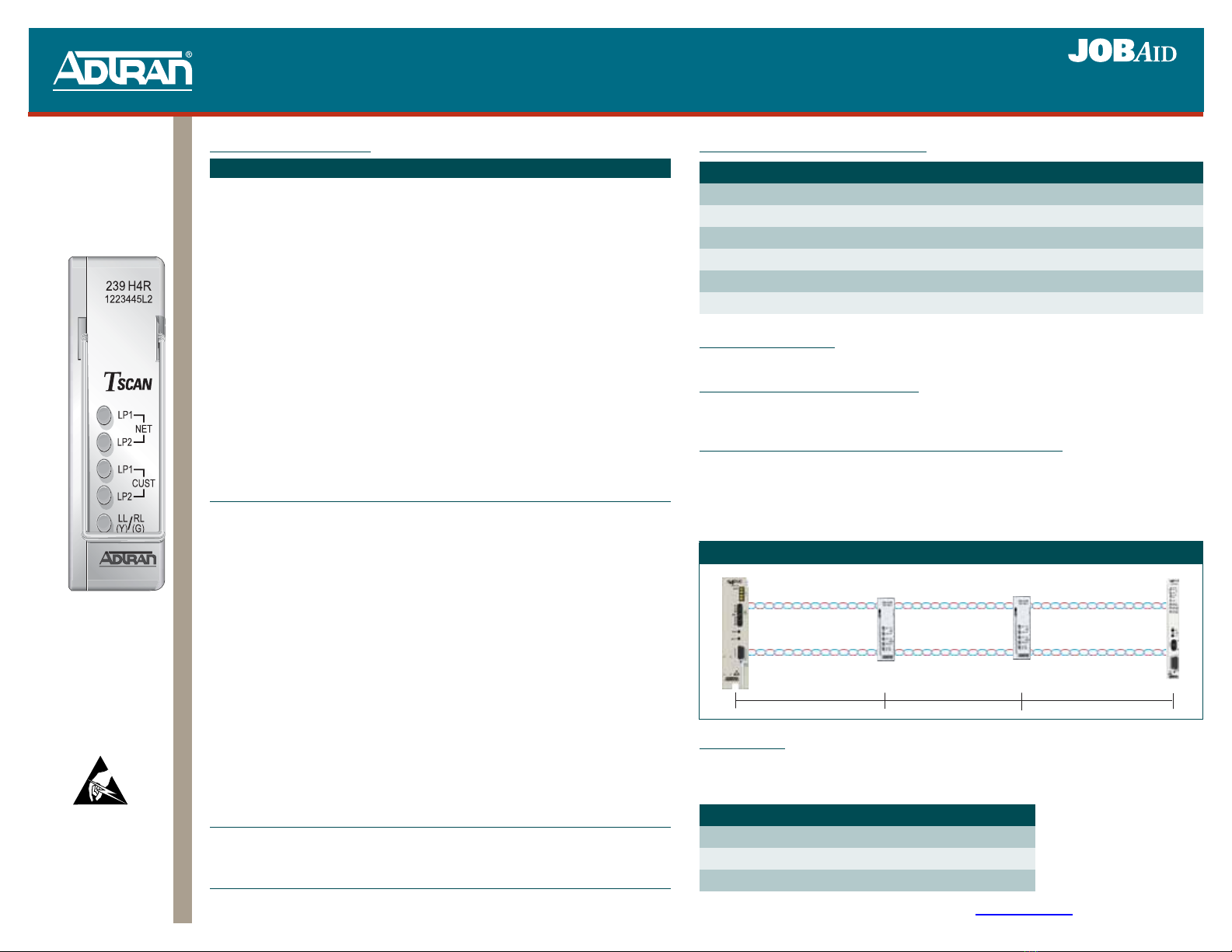

HDSL4 239 H4R Repeater
*61223445L2-22A*
H4R CARD EDGE PIN ASSIGNMENTS
239 H4R RESISTANCE
Tip-to-Ring resistance is approximately 6 Ωfor each pair (with no power applied).
LOOPBACK AND CONTROL CODES
Refer to the Installation and Maintenance Practice of the H4TU-C or H4TU-R used in the
circuit for a list of loopback codes.
HDSL4 LOOP SPECIFICATIONS FOR OPTIMUM OPERATION
NOTE: The H4TU-Cs (P/N 1221401L6, 1221403L6, 1221404L6) support only one
repeater in the HDSL4 circuit.
Refer to the H4TU-C or H4TU-R Installation and Maintenance Practice for loop
parameters, including Attenuation and Resistance Budgets for span powering.
COMPLIANCE
The 239 H4R complies with UL 60950, Third Edition. The 239 H4R is intended for
installation in restricted access locations only. Ensure chassis ground is properly
connected.
Pin Designation Description Pin Designation Description
1GND Ground 7NC No Connect
2NC No Connect 8 T Network Loop 2 Tip
3T1 Customer Loop 1 Tip 9 R Network Loop 2 Ring
4R1 Customer Loop 1 Ring 10 GND Ground
5T1 Network Loop 1 Tip 11 TCustomer Loop 2 Tip
6R1 Network Loop 1 Ring 12 RCustomer Loop 2 Ring
H4TU-C H4R1 H4R2 H4TU-R
Code Input Output
Power Code (PC) C C
Telecommunication Code (TC) X X
Installation Code (IC) A –
1st Segment 2nd Segment 3rd Segment
LED STATUS INDICATORS
Label Indication Description
LP1/LP2
NET
{Off
zSolid Green
4Fast Flashing Green
4Slow Flashing Green
zSolid Yellow
4Flashing Yellow
zSolid Red
4Flashing Red
No span power is present
Synchronized with an Signal-to-Noise Ratio (SNR)
margin greater than the SNR Margin Alarm Threshold
Flashing three times per second indicates attempt to
synchronize with the H4TU-C
Flashing once per second indicates synchronization
with a SNR margin greater than the SNR Margin
Alarm Threshold; attenuation is greater than the user
recommended Loop Attenuation Alarm Threshold
Synchronized with a SNR margin greater than 0 dB,
but less than the SNR Margin Alarm Threshold
Synchronized with a SNR margin greater than 0 dB,
but less than the SNR Margin Alarm Threshold;
attenuation is greater than the Loop Attenuation
Alarm Threshold
Synchronized with a SNR margin of 0 dB
Flashing once per second indicates synchronization
with a SNR margin of 0 dB; attenuation is greater than
the Loop Attenuation Alarm Threshold
LP1/LP2
CUST
{Off
zSolid Green
4Fast Flashing Green
4Slow Flashing Green
zSolid Yellow
4Flashing Yellow
zSolid Red
4Flashing Red
No span power is present
Synchronized with an Signal-to-Noise Ratio (SNR)
margin greater than the SNR Margin Alarm Threshold
Flashing three times per second indicates attempt to
synchronize with the H4TU-R
Flashing once per second indicates synchronization
with a SNR margin greater than the SNR Margin
Alarm Threshold; attenuation is greater than the Loop
Attenuation Alarm Threshold
Synchronized with a SNR margin greater than 0 dB,
but less than the SNR Margin Alarm Threshold
Synchronized with a SNR margin greater than 0 dB,
but less than the SNR Margin Alarm Threshold;
attenuation is greater than the Loop Attenuation
Alarm Threshold
Synchronized with a SNR margin of 0 dB
Flashing once per second indicates synchronization
with a SNR margin of 0 dB; attenuation is greater than
the Loop Attenuation Alarm Threshold
LL/RL zSolid Green
zSolid Yellow
4Flashing Yellow
A loopback is active at the H4R towards the H4TU-R
A loopback is active at the H4R towards the H4TU-C
H4R is armed but not in loopback
61223445L2-22A
0610

PRICING AND AVAILABILITY 800.827.0807
TECH SUPPORT 800.726.8663
RETURN FOR REPAIR 256.963.8722
www.adtran.com
61223445L2-22A
Warranty: ADTRAN will replace or repair this product within the warranty period if it does not meet its published specifications or fails while in service.
Warranty information can be found online at www.adtran.com/warranty.
FEATURES
TScan
The 239 H4R incorporates the TScan™feature, which allows for remote retrieval of circuit diagnostics
and performance of advanced fault location. For more information, refer to the Installation and
Maintenance practice.
Fast Retrain
Fast Retrain is an ADTRAN-proprietary feature that minimizes downtime due to an intermittent
impairment (bad splice, noise burst, etc.).
When such impairments occur after achieving HDSL synchronization, Fast Retrain is invoked to
restore service within 5 to 7 seconds. This short retrain time allows for reduced downtime compared to
the traditional 25 to 30 second retrain duration.
NOTE: For proper functionality, install Fast Retrain capable units on both ends of the circuit. Failure
of a Fast Retrain attempt initiates the traditional (25-30 second) retrain.
Fault Bridging
The Fault Bridging feature minimizes downtime due to intermittent impairments that appear on the
cable pair, for example, from a Ground Fault Interrupt (GFI), short, micro-interruption, bad splice, or
noise burst. This feature allows the DSL transceivers to maintain synchronization during an
interruption, thus avoiding a 25 to 30-second retrain. Depending on the type of impairment,
interruptions up to 200 ms can be bridged.
Bad Splice Detection
The Runtime TScan bad splice detection feature is an ADTRAN-proprietary non-intrusive method for
detection of anomalies (bad splices) in the copper plant. This feature non-intrusively monitors the cable
pair during runtime for the presence of bad splices that can potentially impact service.
Poor cable splices are often undetected by normal testing methods. Often, these splices present no
problem for the data transmission equipment until oxidation with the splice itself causes a rapid
impedance change, which can cause errors, signal margin fluctuation, and retrain of the DSL
transceivers. The splice detection feature is accessed from the Troubleshooting Screen through the craft
access port.
HOUSINGS AND CAPACITIES
Part Number Description CLEI Code Slots Stub
H4R Capacity Recommended Slot
Assignments Material
Above
Ground
Below
Ground
Above
Ground
Below
Ground
1150027L1 239/439 Housing DDMOABA1MA 4Air 4 4 All All Stainless/Polymer
1150027L2 239/439 Housing DDMOBBA1MA 4Gel 4 4 All All Stainless/Polymer
1150057L1 Universal Housing DDMODA01RA 4Air 4 4 All All Stainless Steel
1150057L1 Universal Housing DDMODA01RA 4Gel 4 4 All All Stainless Steel
1150058L1 Universal Housing DDMOEE01RA 8Air 8 8 All All Stainless Steel
1150058L2 Universal Housing DDMOFE01RA 8Gel 8 8 All All Stainless Steel
Manufacturer Description Manufacturer’s Part Number Slots
H4R Capacity Recommended Slot Assignments
Material
Above
Ground
Below
Ground Above Ground Below Ground
ADC®Radiator II SPX-HRXC-30-AG-016GT 16 16 16 All All Stainless Steel
ADC Radiator SPX-HRXC-30-B1 8 8 8 All All Stainless Steel
Circa Telecom®HDSL-12A 760005 12 12 12 All All Stainless Steel
Circa Telecom HDSL-12B 760006 12 12 12 All All Stainless Steel
Arris®/Lucent®/AT&T®Keptel®Inter Link™809 RF809A3-XXX or RF809B3-XXX 12 8 N/A 1, 3, 4, 6
7, 9, 10, 12
N/A Polymer
Arris/Lucent/AT&T Keptel Inter Link 818/819 RF819A1 or RF819A2
RF819B1 or RF819B2
25 12 16 * Chamber 1:
1, 4, 7, 8, 11, 14
Chamber 2:
15, 17, 19, 20, 23, 25
Chamber 1:
1, 3, 5, 7, 8, 10, 12, 14
Chamber 2:
15, 16, 18, 19, 20, 22, 24, 25
Polymer
Arris Keptel Inter Link 819 Family AT819B1U or AT819A1U 12 8 8 2, 3, 5, 6, 8, 9, 11, 12 2, 3, 5, 6, 8, 9, 11, 12 Polymer
Arris/Lucent/AT&T Keptel Inter Link 820 Family RF820AX or RF820BX 2 to 8 Full Full All All Polymer
Charles Industries G21 Series 6212050002xx 25 12 N/A 1,2,4,6,7,8,9,11,13,15,18,24 N/A Stainless Steel
Charles Industries G21 Series 6212040002xx 12 6 N/A 1,3,4,6,8,11 N/A Stainless Steel
* For 16 slot use, the ambient air temperature measured 1 foot away and parallel to the housing should not exceed 115°F (46.1°C).
HDSL4 239 H4R Repeater
