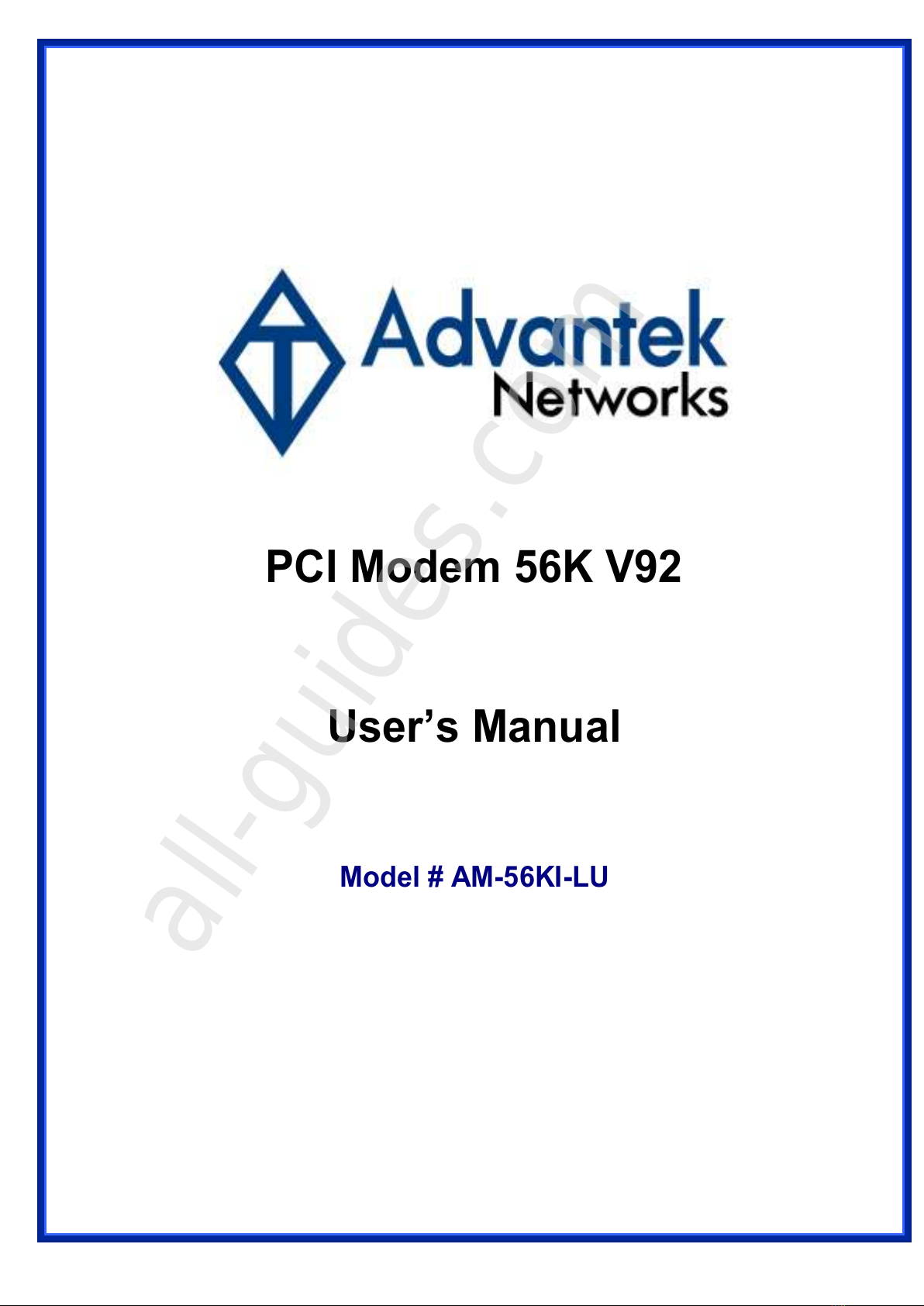

Advantek Networks AM-56KI-LU User manual

PCI Modem 56K V92
User’s Manual
Model # AM-56KI-LU
All manuals and user guides at all-guides.com
all-guides.com

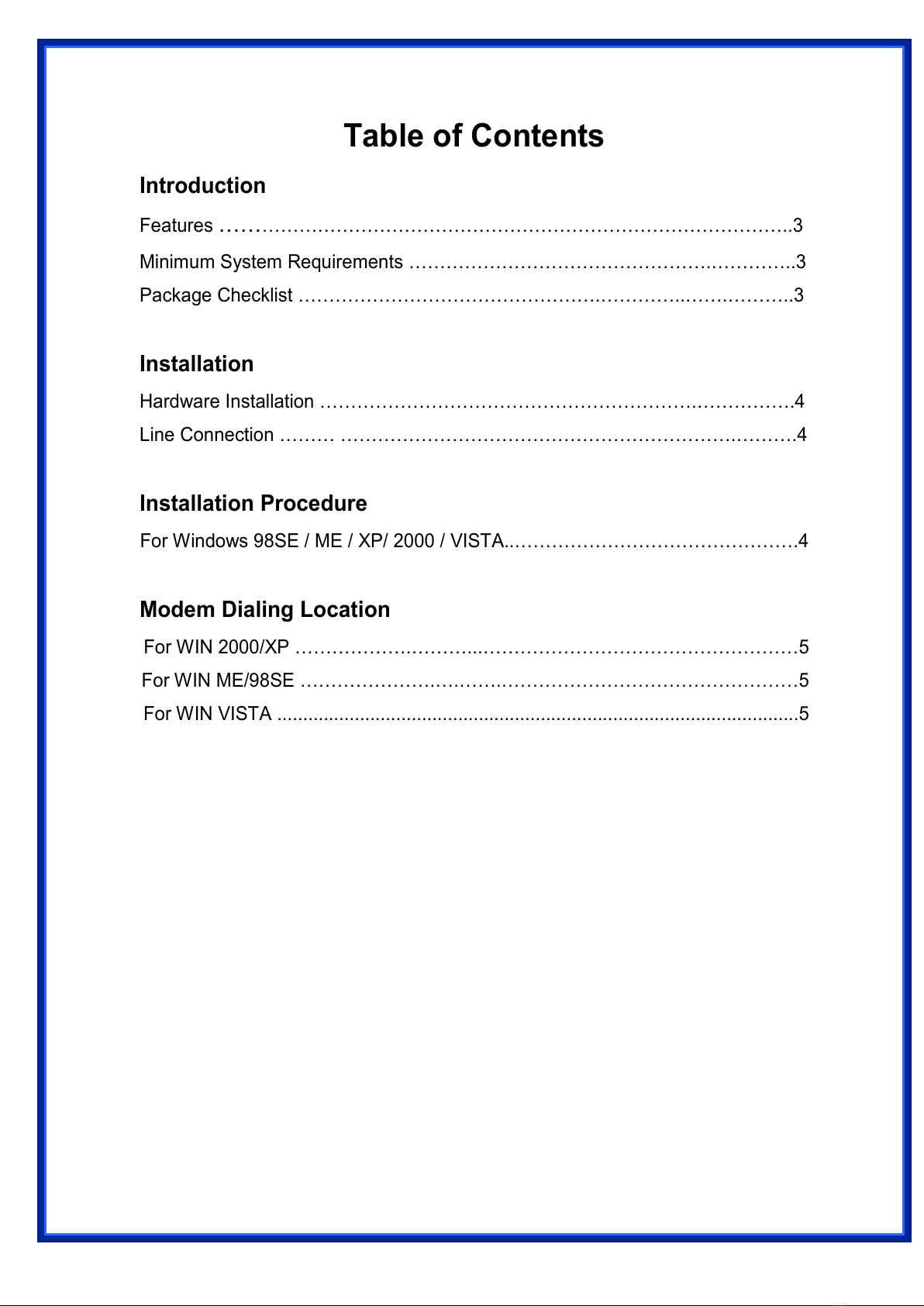

Table of Contents
Introdu tion
Features ………………………………………………………………………………..3
Minimum System Requirements ………………………………………….…………..3
Package Checklist ………………………………………….…………..…….………..3
Installation
Hardware Installation …………………………………………………….…………….
Line Connection ……… ……………………………………………………….……….
Installation Pro edure
For Windows 98SE / ME / XP/ 2000 / VISTA..……………………………………….
Modem Dialing Lo ation
For WIN 2000/XP ……………….………...……………………………………………5
For WIN ME/98SE ………………….….…….…………………………………………5
For WIN VISTA .....................................................................................................5
All manuals and user guides at all-guides.com

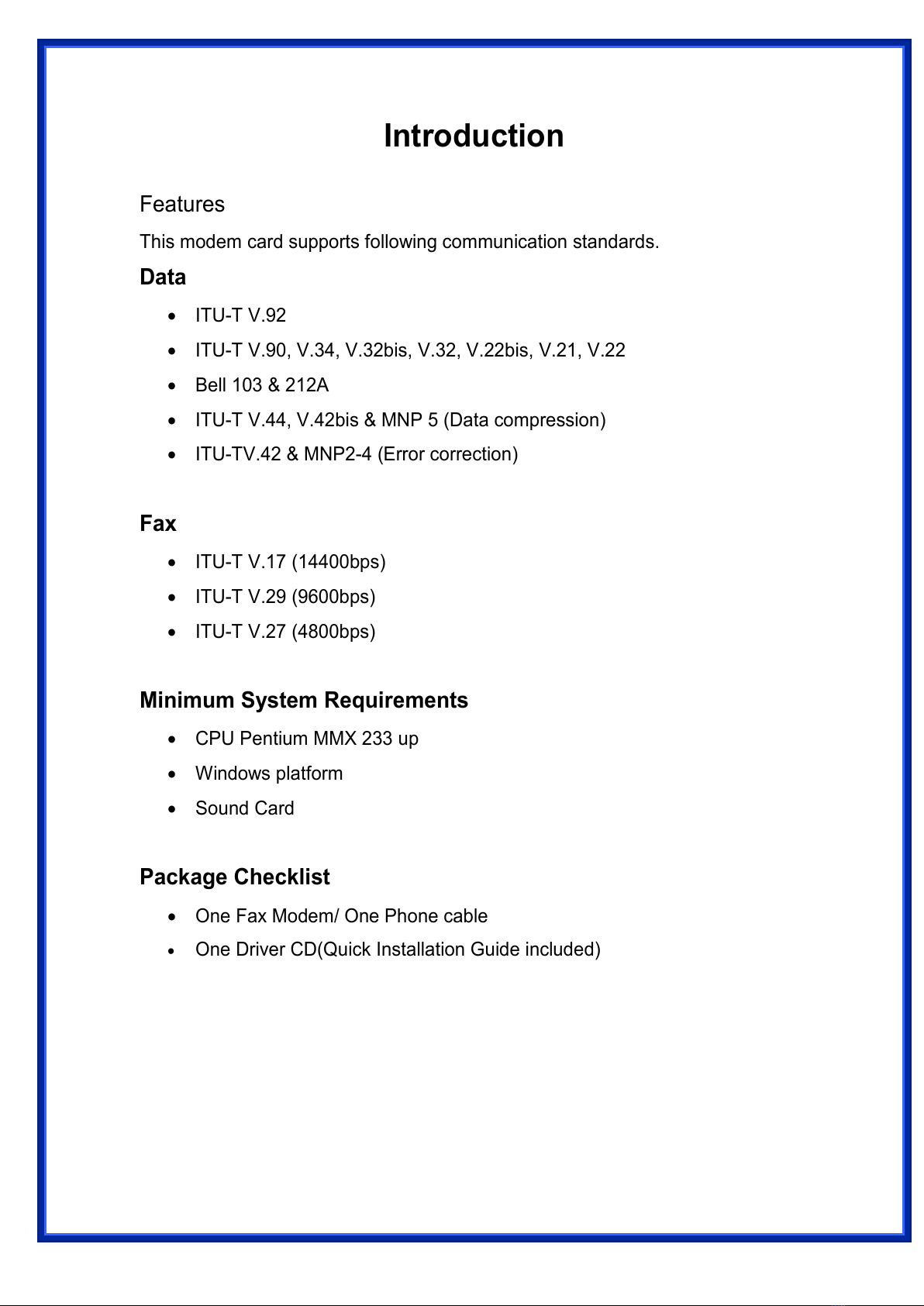

Introdu tion
Features
This modem card supports following communication standards.
Data
• ITU-T V.92
• ITU-T V.90, V.3 , V.32bis, V.32, V.22bis, V.21, V.22
• Bell 103 & 212A
• ITU-T V. , V. 2bis & MNP 5 (Data compression)
• ITU-TV. 2 & MNP2- (Error correction)
Fax
• ITU-T V.17 (1 00bps)
• ITU-T V.29 (9600bps)
• ITU-T V.27 ( 800bps)
Minimum System Requirements
• CPU Pentium MMX 233 up
• Windows platform
• Sound Card
Pa kage Che klist
• One Fax Modem/ One Phone cable
• One Driver CD(Quick Installation Guide included)
All manuals and user guides at all-guides.com

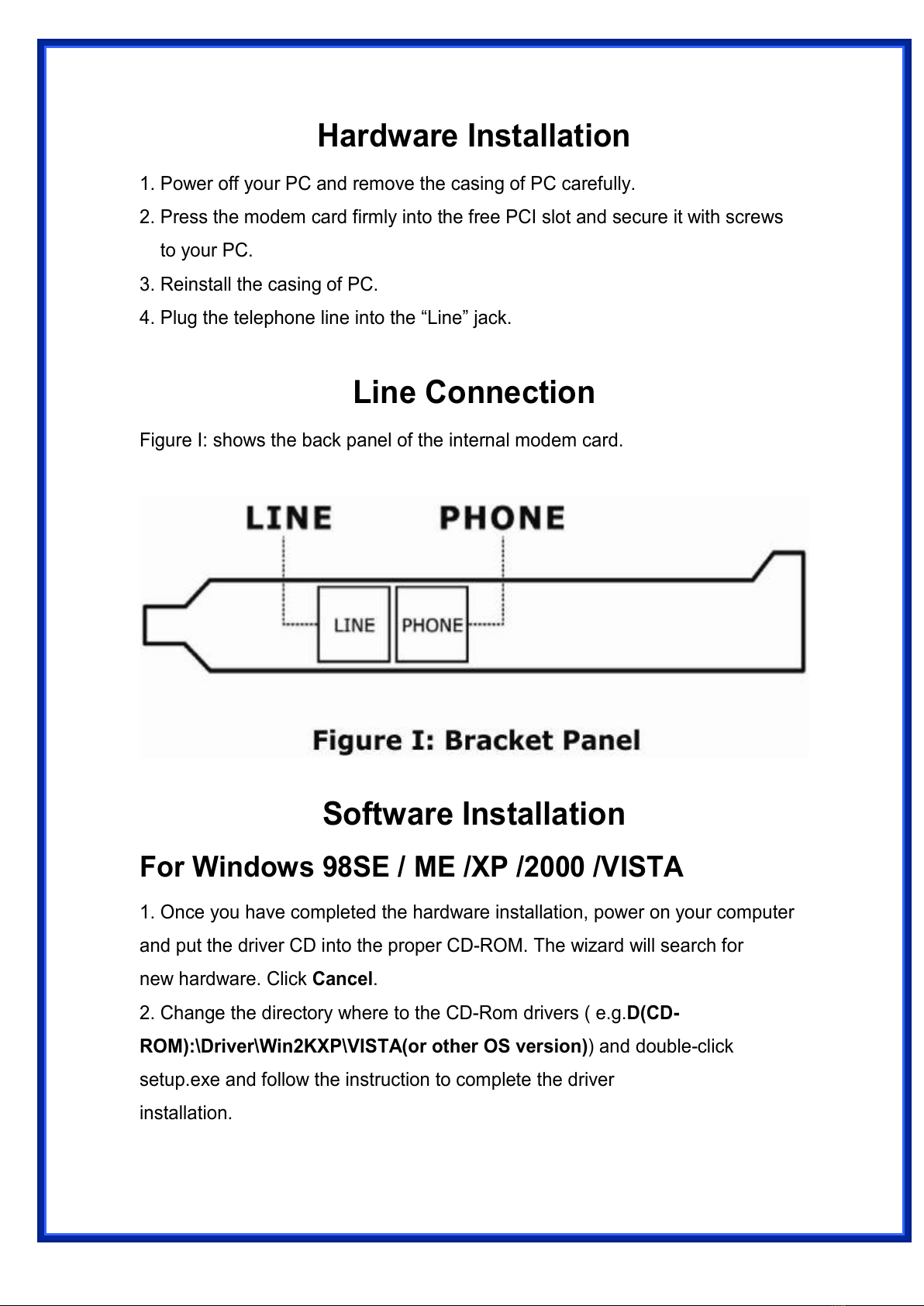

Hardware Installation
1. Power off your PC and remove the casing of PC carefully.
2. Press the modem card firmly into the free PCI slot and secure it with screws
to your PC.
3. Reinstall the casing of PC.
. Plug the telephone line into the “Line” jack.
Line Conne tion
Figure I: shows the back panel of the internal modem card.
Software Installation
For Windows 98SE / ME /XP /2000 /VISTA
1. Once you have completed the hardware installation, power on your computer
and put the driver CD into the proper CD-ROM. The wizard will search for
new hardware. Click Can el.
2. Change the directory where to the CD-Rom drivers ( e.g.D(CD-
ROM):\Driver\Win2KXP\VISTA(or other OS version)) and double-click
setup.exe and follow the instruction to complete the driver
installation.
All manuals and user guides at all-guides.com

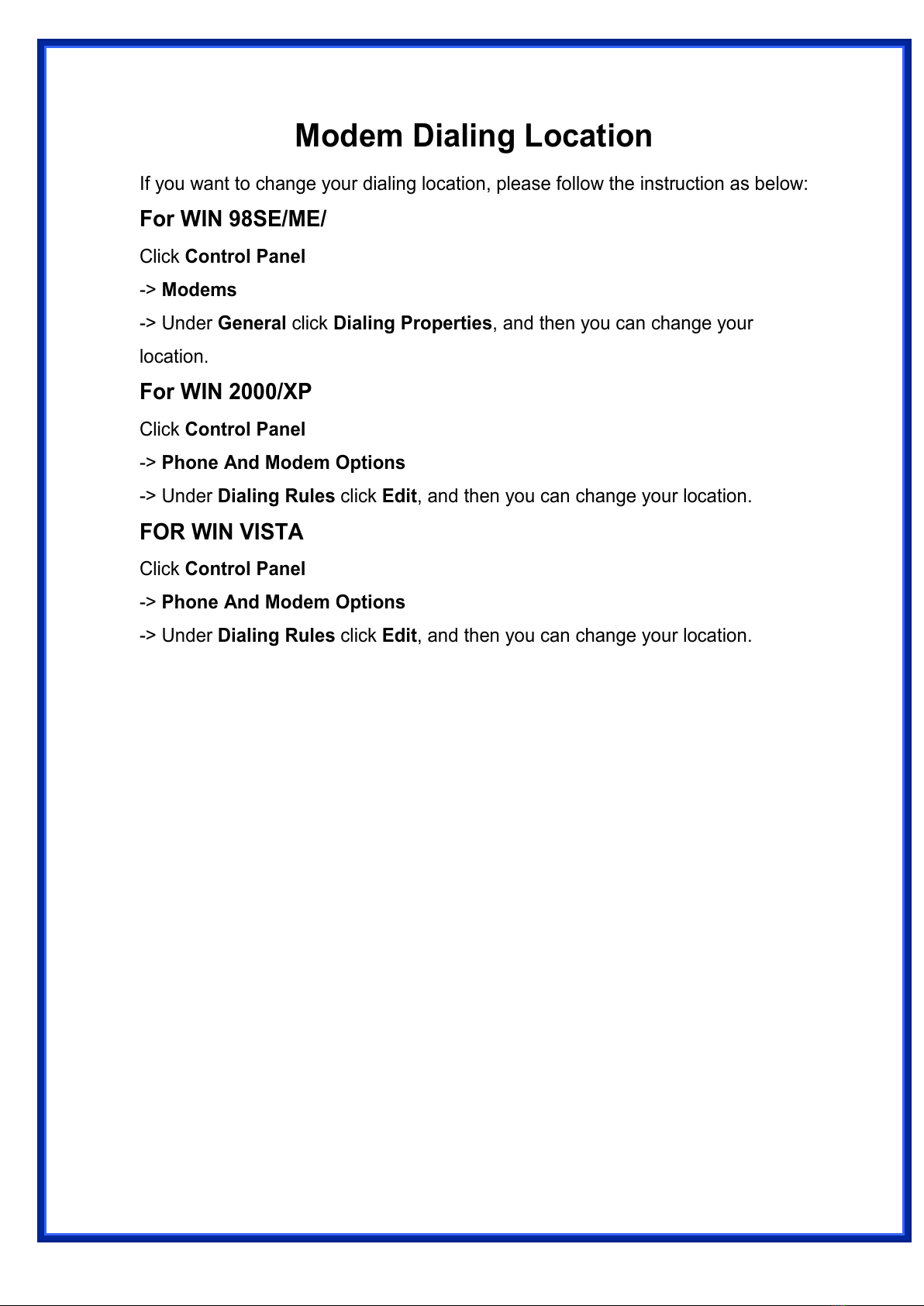

Modem Dialing Lo ation
If you want to change your dialing location, please follow the instruction as below:
For WIN 98SE/ME/
Click Control Panel
-> Modems
-> Under General click Dialing Properties, and then you can change your
location.
For WIN 2000/XP
Click Control Panel
-> Phone And Modem Options
-> Under Dialing Rules click Edit, and then you can change your location.
FOR WIN VISTA
Click Control Panel
-> Phone And Modem Options
-> Under Dialing Rules click Edit, and then you can change your location.
