ADX FIRESTORM H09 User manual

FIRESTORM: H09
GAMING HEADSET
INSTRUCTION MANUAL
AFSH0917

GB Contents
Safety Warnings............................................................................... 6
Unpacking........................................................................................ 9
Product Overview.......................................................................... 10
System Requirements ................................................................... 11
Software Installation..................................................................... 11
User Interface................................................................................. 12
User Interface................................................................................. 13
Speaker Setting ............................................................................. 13
Mic Setting ..................................................................................... 19
Hints and Tips................................................................................. 21
Specications................................................................................. 21
NO Innhold
Instruksjonsmanual ........................................................................ 6
Pakke opp....................................................................................... 23
Produktoversikt............................................................................. 24
Systemkrav..................................................................................... 25
CD-ROM for installasjon av spillprogramvare............................. 25
Brukergrensesnitt.......................................................................... 26
Brukergrensesnitt.......................................................................... 27
Høyttalerinnstilling....................................................................... 27
Mikrofoninnstilling ....................................................................... 33
Råd og tips ..................................................................................... 35
Spesikasjoner .............................................................................. 35

FI Sisältö
Käyttöopas....................................................................................... 7
Pakkauksesta purkaminen ........................................................... 51
Tuotteen yleiskatsaus ................................................................... 52
Järjestelmävaatimukset................................................................ 53
Ohjelmistoasennus........................................................................ 53
Käyttöliittymä................................................................................ 54
Käyttöliittymä................................................................................ 55
Kaiutinasetus ................................................................................. 55
Mikrofoniasetus............................................................................. 61
Vihjeitä ja vinkkejä........................................................................ 63
Tekniset tiedot............................................................................... 63
SE Innehållsförteckning
Instruktionsbok ............................................................................... 7
Packa upp....................................................................................... 37
Produktöversikt............................................................................. 38
Systemkrav..................................................................................... 39
Installation av fast programvara.................................................. 39
Användargränssnitt ...................................................................... 40
Användargränssnitt ...................................................................... 41
Högtalarinställning ....................................................................... 41
Mikrofoninställning ...................................................................... 47
Tips och råd.................................................................................... 49
Specikationer............................................................................... 49

DK Indholdsfortegnelse
Brugervejledning ............................................................................ 8
Udpakning ..................................................................................... 65
Produktoversigt............................................................................. 66
Systemkrav..................................................................................... 67
Soiftwareinstallation..................................................................... 67
Brugergrænseade........................................................................ 68
Brugergrænseade........................................................................ 69
Højttalerindstilling........................................................................ 69
Mikrofonindstilling ....................................................................... 75
Gode råd......................................................................................... 77
Specikationer............................................................................... 77

6
GB Safety Warnings
• For trac safety, do not use earphones while driving or
cycling.
• Listening to loud sounds for prolonged periods of time
may permanently damage your hearing.
• Before putting on earphones, turn the volume
down then put the earphones on and slowly
increase the volume until you reach a comfortable
listening level.
NO Instruksjonsmanual
• For trakksikkerhetens skyld må du ikke bruke
hodetelefonene under kjøring eller sykling.
• Å lytte til høye lyder over lenger perioder kan skade
hørselen din permanent.
• Innen du setter i høretelefonene, påse at volumet
er skrudd ned når du setter på høretelefonene og
øk forsiktig volumet til du når et komfortabelt
lytte-nivå.

7
SE Instruktionsbok
• Av traksäkerhetsskäl ska du inte använda hörlurar när
du kör bil eller cyklar.
• Om man lyssnar på högt ljud under lång tid kan man
skada hörseln permanent.
• Innan du sätter på dig hörlurarna, vrid ner
volymen och sätt sedan på dig hörlurarna och öka
volymen långsamt tills dess att du når en behaglig
nivå.
FI Käyttöopas
• Älä käytä korvakuulokkeita ajaessasi tai pyöräillessäsi
liikenneturvallisuuden takia.
• Kovien äänien kuunteleminen pitkien ajanjaksojen ajan
saattaa vahingoittaa kuuloasi pysyvästi.
• Ennen kuin asetat kuulokkeet paikoilleen, alenna
äänenvoimakkuutta, laita vasta sitten kuulokkeet
korvillesi ja korota äänenvoimakkuutta hitaasti
kunnes saavutat mukavan kuuntelutason.

8
DK Brugervejledning
• Vedrørende traksikkerhed brug ikke høretelefoner
under kørsel eller cykling.
• Hvis du lytter til meget høje lyde i længere tid, kan det
skade din hørelse permanent.
• Før du tager hovedtelefoner på, skrues ned for
lyden, og først derefter tager du hovedtelefonerne
på og skruer langsomt op for lyden, indtil det når
et komfortabelt niveau.

9
GB
Unpacking
Remove all items from the packaging. Retain the
packaging. If you dispose of it please do so according to
local regulations.
The following items are included:
• Main Unit
• Setup Disc x 1
• Instruction Manual
Thank youfor purchasing your new ADX
Gaming Headset.
We recommend that you spend some time reading
this instruction manual in order that you fully
understand all the operational features it oers.
You will also nd some hints and tips to help you
resolve any issues.
Read all the safety instructions carefully before
use and keep this instruction manual for future
reference.

10
GB
Product Overview
Vibration button
Volume control
Microphone

11
GB
Software Installation
1. Insert the provided Setup Disc into the computer’s CD
rom.
2. It will auto run the setup software, otherwise choose
AFSH0917_setup.exe from your CD drive.
3. Follow the installation instruction to complete the
installation.
4. Choose AFSH0917 Conguration.exe from the
desktop to start the software.
System Requirements
Operating Systems: Microsoft® Windows® 7 / 8 / 10
MAC® OS X
Hardware: 1 available USB port
CD rom for gaming software installation
The software is not available for Windows Vista®
& MAC OS.

12
GB
Playback Out In
EQ KS SF
EM VF
VSS SMX
Speakers Out
48 KHz
7.1
Capture
Mic In
Show System Tray Icon :
Application Setting
Speakers
Mic
UI Transparent :
Don’t show start up message :
OK Cancel Apply
User Interface
Choose AFSH0917 Conguration.exe from the desktop to
start the software.
1. Software Information.
2. Setting options.
3. Minimise the software.
4. Exit the software.
5. Enabled feature will be highlighted.
6. Switch between Status and Prole panel.
7. Adjust the volume.
8. Mute or restore the sound.
9. “Show System Tray Icon” option.
10. Adjust UI Transparent level.
11. “Don’t show start up message”option.
12. Save the current setting and exit
13. Cancel setting and exit.
14. Save the current setting.
5
9
10
11
12 13 14
1 2
3 4
6 7 8

13
GB
Open
Volume Control
Window Media Player
Sound Recorder
Multimedi Preperties
Settings
Exit
10:00
1/10/2014
Speakers
Volume Control
Master
8.00 dB
Front
-7.00 dB -7.00
Mic
Volume Control
Sample Rate
Equalizer
Xear Surround Headphone
Xear Audio Brilliant
Xear Dynamic Bass
Xear Smart Volume
Xear Voice Clarity
Xear Surround Max
RL
Playback Out In
EQ DB SMX MV
XHP SVN
AB VC
Speakers Out
48 KHz
7.1
Capture
Mic In

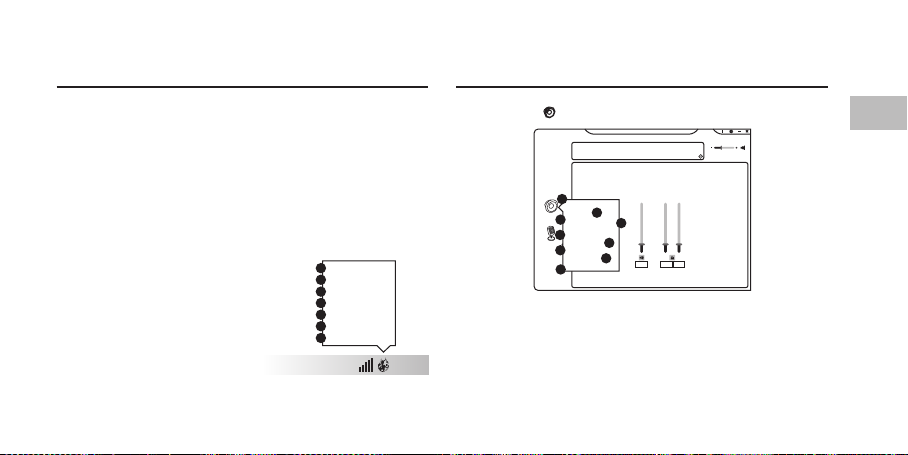

Speaker Setting
Right click on to show a speaker menu.
1. Volume Control
2. Sample Rate
3. Equalizer
4. Surround Headphone
5. Audio Brilliant
6. Dynamic Bass
7. Smart Volume
8. Voice Clarity
9. Surround Max
User Interface
Right click the icon from the system tray will pop up a
menu that links to Windows default software.
1. Open the headset software.
2. Open the default Windows Volume Control.
3. Open the default Windows Media Player.
4. Open the default Windows Sound Recorder.
5. Open the default Windows Multimedia Properties.
6. Open the headset software Settings.
7. Exit the headset software.
1
2
6
5
7
9
8
4
3
1
2
3
4
5
6
7

14
GB
Speakers
Volume Control
Master
8.00 dB
Front
-7.00 dB -7.00
Mic
RL
Playback Out In
EQ DB SMX MV
XHP SVN
AB VC
Speakers Out
48 KHz
7.1
Capture
Mic In

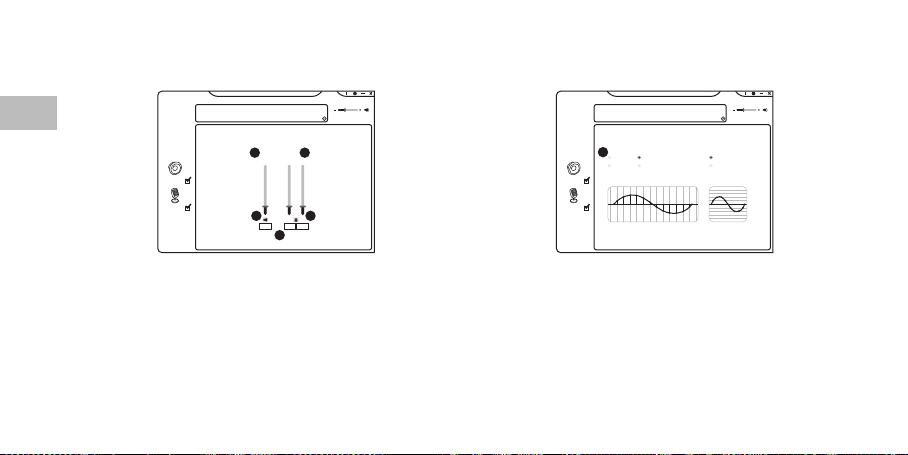

1. Volume Control
1
2
5
4
3
1. Adjust the volume.
2. Mute or restore the
sound.
3. Adjust the left or right
front speaker volume
individually.
4. Lock the left and right
speaker to adjust at once.
5. Range of volume in dB is
between -37.00 and 0.00.
Speakers
Sample Rate
Mic
44.1 KHz 48 KHz
88.2 KHz 96 KHz
16 Bits
24 Bits
Playback Out In
EQ DB SMX MV
XHP SVN
AB VC
Speakers Out
48 KHz
7.1
Capture
Mic In
2. Sample Rate
1. Choose a dierent audio sample rate of your choice.
1

15
GB
Speakers
Xear Surround Headphone
Mic
Enable Xear Surround
Room Size
Playback Out In
EQ DB SMX MV
XHP SVN
AB VC
Speakers Out
48 KHz
7.1
Capture
Mic In
Music mode
Movie mode
4. Surround Headphone3. Equalizer
1. Enable/Disable Equalizer
2. Customise the EQ
setting.
3. Choose a sound eect
mode of your choice.
1. Enable/Disable Surround feature.
2. Choose a Surround mode of your choice.
3. Adjust room size eect.
4. Select saved EQ prole.
5. Input preset name.
6. Save a current EQ setting.
7. Delete a selected setting.
1
2
3
Speakers
Equalizer
Mic
Enable Equalizer
+20dB
-20dB
0 dB
30
Dance
60 120 250 500 1K 2K 4K 8K 16K
SoftRock
Bass
Rap
Rock
Classic
Metal
Live
Opera
Jazz Manual
Treble
Default
*Please input preset name...*
Playback Out In
EQ DB SMX MV
XHP SVN
AB VC
Speakers Out
48 KHz
7.1
Capture
Mic In
1
2
3
5
4
6 7

16
GB
5. Audio Brilliant
Speakers
Mic
Bass Level
5
Cut-off Frequency
200 Hz
Playback Out In
EQ DB SMX MV
XHP SVN
AB VC
Speakers Out
48 KHz
7.1
Capture
Mic In
Xear Dynamic Bass
Enable Xear Dynamic Bass
100 200 300 400
Speakers
Xear Audio Brilliant
Mic
Playback Out In
EQ DB SMX MV
XHP SVN
AB VC
Speakers Out
48 KHz
7.1
Capture
Mic In
Brilliant Level
3
Enable Xear Audio Brilliant
6. Dynamic Bass
1. Enable/Disable Dynamic Bass feature.
2. Adjust the Bass level.
3. Adjust the Cut-o Frequency level.
4. Press to return to default setting.
1. Enable/Disable Audio Brilliant feature.
2. Adjust the Audio Brilliant level.
3. Press to return to default setting.
1
1
2
3
24
4
3

17
GB
Speakers
Xear Voice Clarity
Mic
Enable Xear Voice Clarity
Playback Out In
EQ DB SMX MV
XHP SVN
AB VC
Speakers Out
48 KHz
7.1
Capture
Mic In
Voice Clarity Level
3
Noise Suppression for communication
0 dB
0 5 10 15 20
70
Speakers
Xear Smart Volume
Mic
Enable Xear Smart Volume
Playback Out In
EQ DB SMX MV
XHP SVN
AB VC
Speakers Out
48 KHz
7.1
Capture
Mic In
Volume Level
Mode
8. Voice Clarity7. Smart Volume
1. Enable/Disable Voice Clarity feature.
2. Adjust the Voice Clarity level.
3. Adjust the Noise Cancelling level.
4. Press to return to default setting.
1. Enable/Disable Smart Volume feature.
2. Adjust the Smart Volume level.
3. Choose a Dynamic mode of your choice.
4. Press to return to default setting.
11
2
3
24
4
3

18
GB
9. Surround Max
When Surround Max is enabled, contents being played by
the front left and right virtual speakers will be cloned to all
side and back speakers.
Speakers
Xear Surround Max
Mic
Enable Xear Surround Max
Playback Out In
EQ DB SMX MV
XHP SVN
AB VC
Speakers Out
48 KHz
7.1
Capture
Mic In

19
GB
Speakers
Volume Control
Mic-In
8.00 dB
Monitor
-7.00 dB
Mic
Playback Out In
EQ DB SMX MV
XHP SVN
AB VC
Speakers Out
48 KHz
7.1
Capture
Mic In
Volume Control
Mic-In
8.00 dB
Monitor
-7.00 dB
Playback Out In
EQ DB SMX MV
XHP SVN
AB VC
Speakers Out
48 KHz
7.1
Capture
Mic In
Speakers
Mic
Volume Control
Sample Rate
Xear Magic Voice

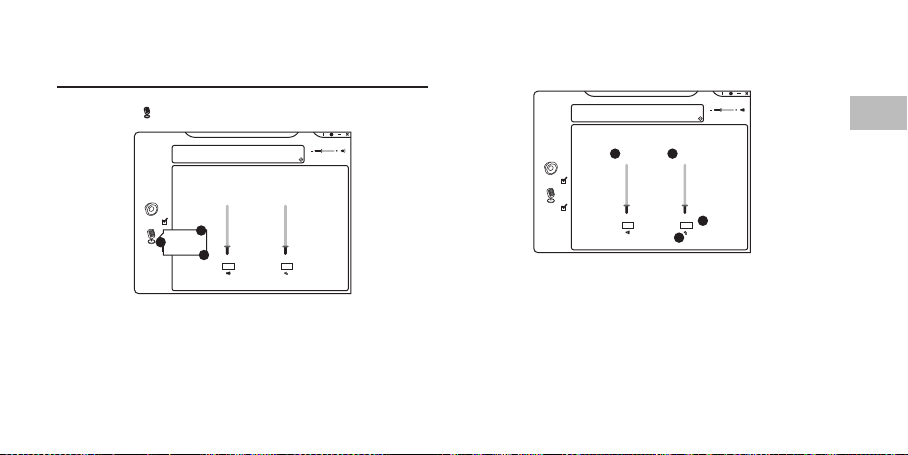

1. Volume Control
Mic Setting
Right click on to show microphone menu.
1. Volume Control
2. Sample Rate
3. Magic Voice
2
3
4
1
1. Adjust the microphone
volume.
2. Listen to your own voice
when using microphone
to speak.
3. Mute or restore the
microphone.
4. Range of volume in dB is
between -37.00 and 0.00.
1
2
3

20
GB
Speakers
Xear Magic Voice
Mic
Magic Voice
Playback Out In
EQ DB SMX MV
XHP SVN
AB VC
Speakers Out
48 KHz
7.1
Capture
Mic In
Speakers
Sample Rate
Mic
44.1 KHz 48 KHz
Playback Out In
EQ DB SMX MV
XHP SVN
AB VC
Speakers Out
48 KHz
7.1
Capture
Mic In
3. Magic Voice
1. Enable/Disable Magic Voice feature.
2. Choose a Magic Voice of your choice.
2. Sample Rate
1. Choose a dierent audio sample rate of your choice.
1
1
2

21
GB
Hints and Tips
Make sure the USB plug is fully plugged into a USB port and
the computer is on or try to use a dierent USB port.
If the software is not working properly, uninstall it and then
reboot the computer. Re-install the software.
Specications
Model AFSH0917
Frequency response Headset: 20Hz - 20kHz
Microphone: 100Hz - 10kHz
Impedance Headset: 32Ω
Microphone: ≤2.2KΩ
Net Weight 406 g
Features and specications are subject to change without
prior notice.
