ADX FIRESTORM H05 User manual

FIRESTORM: H05
VIRTUAL 7.1 GAMING HEADSET
INSTRUCTION MANUAL
AFSH0515

GB Contents
Safety Warnings........................................... 5
Unpacking.................................................... 8
Product Overview........................................ 9
Connections ................................................. 9
Call Remote Functions............................... 10
System Requirements ............................... 11
Software Installation.................................11
User Interface............................................. 12
User Interface............................................. 13
Speaker Setting ......................................... 13
Mic Setting ................................................. 18
Hints and Tips.............................................20
Specications.............................................21
NO Innhold
Instruksjonsmanual .................................... 5
Pakke opp...................................................22
Produktoversikt.........................................23
Tilkoblinger................................................23
Telefonfunksjoner .....................................24
Systemkrav................................................. 25
CD-ROM for installasjon av
spillprogramvare....................................... 25
Brukergrensesnitt...................................... 26
Brukergrensesnitt...................................... 27
Høyttalerinnstilling................................... 27
Mikrofoninnstilling ...................................32
Råd og tips .................................................34
Spesikasjoner .......................................... 35
SE Innehållsförteckning
Instruktionsbok ........................................... 6
Packa upp...................................................36
Produktöversikt......................................... 37
Anslutningar ..............................................37
Fjärrfunktioner för samtal........................ 38
Systemkrav................................................. 39
Installation av fast programvara.............. 39
Användargränssnitt ..................................40
Användargränssnitt ..................................41
Högtalarinställning ...................................41
Mikrofoninställning ..................................46
Tips och råd................................................ 48
Specikationer...........................................49

FI Sisältö
Käyttöopas................................................... 6
Pakkauksesta purkaminen .......................50
Tuotteen yleiskatsaus ............................... 51
Liitännät .....................................................51
Puhelun etätoiminnot...............................52
Järjestelmävaatimukset............................53
Ohjelmistoasennus....................................53
Käyttöliittymä............................................ 54
Käyttöliittymä............................................ 55
Kaiutinasetus .............................................55
Mikrofoniasetus......................................... 60
Vihjeitä ja vinkkejä.................................... 62
Tekniset tiedot........................................... 63
DK Indholdsfortegnelse
Brugervejledning ........................................ 7
Udpakning ................................................. 64
Produktoversigt......................................... 65
Tilslutninger............................................... 65
Fjernfunktioner til opkald ........................66
Systemkrav................................................. 67
Soiftwareinstallation.................................67
Brugergrænseade.................................... 68
Brugergrænseade.................................... 69
Højttalerindstilling.................................... 69
Mikrofonindstilling ...................................74
Gode råd..................................................... 76
Specikationer...........................................77

5
GB Safety Warnings
• For trac safety, do not use earphones while driving or
cycling.
• Listening to loud sounds for prolonged periods of time
may permanently damage your hearing.
• Before putting on earphones, turn the volume
down then put the earphones on and slowly
increase the volume until you reach a comfortable
listening level.
NO Instruksjonsmanual
• For trakksikkerhetens skyld må du ikke bruke
hodetelefonene under kjøring eller sykling.
• Å lytte til høye lyder over lenger perioder kan skade
hørselen din permanent.
• Innen du setter i høretelefonene, påse at volumet
er skrudd ned når du setter på høretelefonene og
øk forsiktig volumet til du når et komfortabelt
lytte-nivå.

6
SE Instruktionsbok
• Av traksäkerhetsskäl ska du inte använda hörlurar när
du kör bil eller cyklar.
• Om man lyssnar på högt ljud under lång tid kan man
skada hörseln permanent.
• Innan du sätter på dig hörlurarna, vrid ner
volymen och sätt sedan på dig hörlurarna och öka
volymen långsamt tills dess att du når en behaglig
nivå.
FI Käyttöopas
• Älä käytä korvakuulokkeita ajaessasi tai pyöräillessäsi
liikenneturvallisuuden takia.
• Kovien äänien kuunteleminen pitkien ajanjaksojen ajan
saattaa vahingoittaa kuuloasi pysyvästi.
• Ennen kuin asetat kuulokkeet paikoilleen, alenna
äänenvoimakkuutta, laita vasta sitten kuulokkeet
korvillesi ja korota äänenvoimakkuutta hitaasti
kunnes saavutat mukavan kuuntelutason.

7
DK Brugervejledning
• Vedrørende traksikkerhed brug ikke høretelefoner
under kørsel eller cykling.
• Hvis du lytter til meget høje lyde i længere tid, kan det
skade din hørelse permanent.
• Før du tager hovedtelefoner på, skrues ned for
lyden, og først derefter tager du hovedtelefonerne
på og skruer langsomt op for lyden, indtil det når
et komfortabelt niveau.

8
GB
Unpacking
Remove all items from the packaging. Retain the
packaging. If you dispose of it please do so according to
local regulations.
The following items are included:
• Main Unit
• USB Virtual 7.1 sound card x 1
• Extension cable 2m x 1
• PC cable connector x 1
• Mobile/Mac® cable connector x 1
• Setup Disc x 1
• Instruction Manual
Thank youfor purchasing your new ADX
Gaming Headset.
We recommend that you spend some time reading
this instruction manual in order that you fully
understand all the operational features it oers.
You will also nd some hints and tips to help you
resolve any issues.
Read all the safety instructions carefully before
use and keep this instruction manual for future
reference.

9
GB
Connections
Moblie Device PS4 Controller
Computer
Mobile/Mac®
cable connector
USB Virtual 7.1 Sound Card
PC cable connector
Product Overview
Headset
Microphone
on/o button
Answer call
button
Volume
control
Microphone

10
GB
Call Remote Functions
To Press the Answer Call Button
Phone Calls
Answer a call Once
End a call Once
Reject a call Hold 2 seconds then release.
• Not all functions are available, depending on
your operating system.
• Long-term exposure to loud music may cause
hearing damage. It is best to avoid extreme
volume when using earphones, especially for
extended periods of time.
• When the microphone is muted, the hand free
function will also disable.

11
GB
Software Installation
1. Insert the provided Setup Disc into the computer’s CD
rom.
2. It will auto run the setup software, otherwise choose
Setup.exe from your CD drive.
3. Follow the installation instruction to complete the
installation.
4. Choose ADX AFSH0515 Gaming Headset.exe from
the desktop to start the software.
System Requirements
Operating Systems: Windows® 7 (32/64 bit)
Windows® 8 (32/64 bit)
Windows® 10 (32/64 bit)
Hardware: 1 available USB port
CD rom for gaming software installation
The software is not available for Windows Vista®
& MAC OS.

12
GB
Playback Out In
EQ KS SF
EM VF
VSS SMX
Speakers Out
44.1 KHz
2
Capture
Mic In
Show System Tray Icon :
Application Setting
Speakers
Mic
UI Transparent :
Don’t show start up message :
OK Cancel Apply

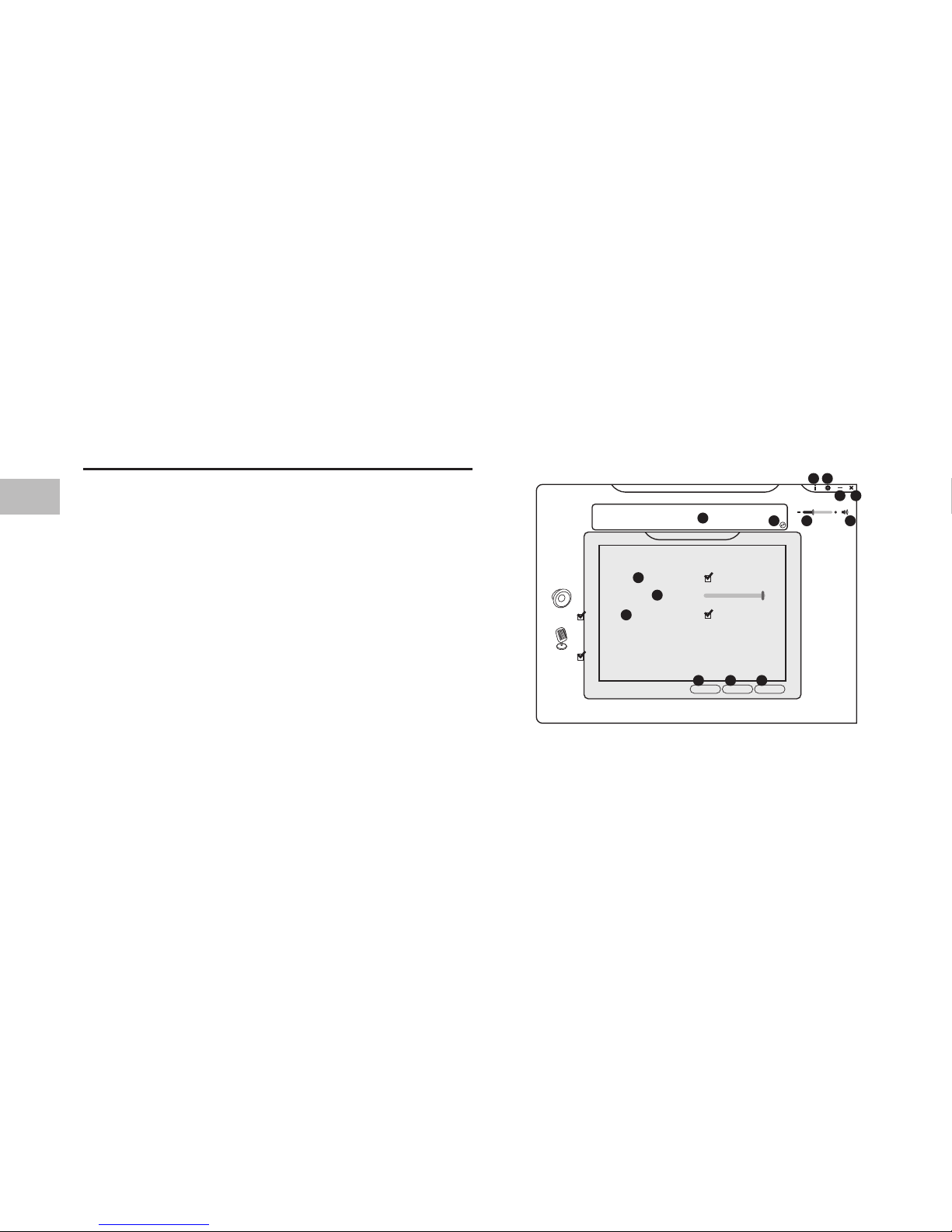

User Interface
Choose ADX AFSH0515 Gaming Headset.exe from the
desktop to start the software.
1. Software Information.
2. Setting options.
3. Minimise the software.
4. Exit the software.
5. Enabled feature will be highlighted.
6. Switch between Status and Prole panel.
7. Adjust the volume.
8. Mute or restore the sound.
9. “Show System Tray Icon”option.
10. Adjust UI Transparent level.
11. “Don’t show start up message”option.
12. Save the current setting and exit
13. Cancel setting and exit.
14. Save the current setting.
5
9
10
11
12 13 14
1 2
3 4
6 7 8

13
GB
Open
Volume Control
Window Media Player
Sound Recorder
Multimedi Preperties
Settings
Exit
10:00
1/10/2014
Playback
Speakers
Out In
EQ KS SF
EM VF
VSS SMX
Speakers Out
44.1 KHz
2
Capture
Mic In
Volume Control
Master
8.00 dB
Front
-7.00 dB -7.00
Mic
Volume Control
Sample Rate
Equalizer
Environment Effects
7.1 Virtual Speaker Shifter
Xear SingFX
Xear Surround Max
RL
Speaker Setting
Right click on to show a speaker menu.
1. Volume Control
2. Sample Rate
3. Equalizer
4. Environment Eects
5. Virtual Speaker Shifter
6. Xear SingFX
7. Xear Surround Max

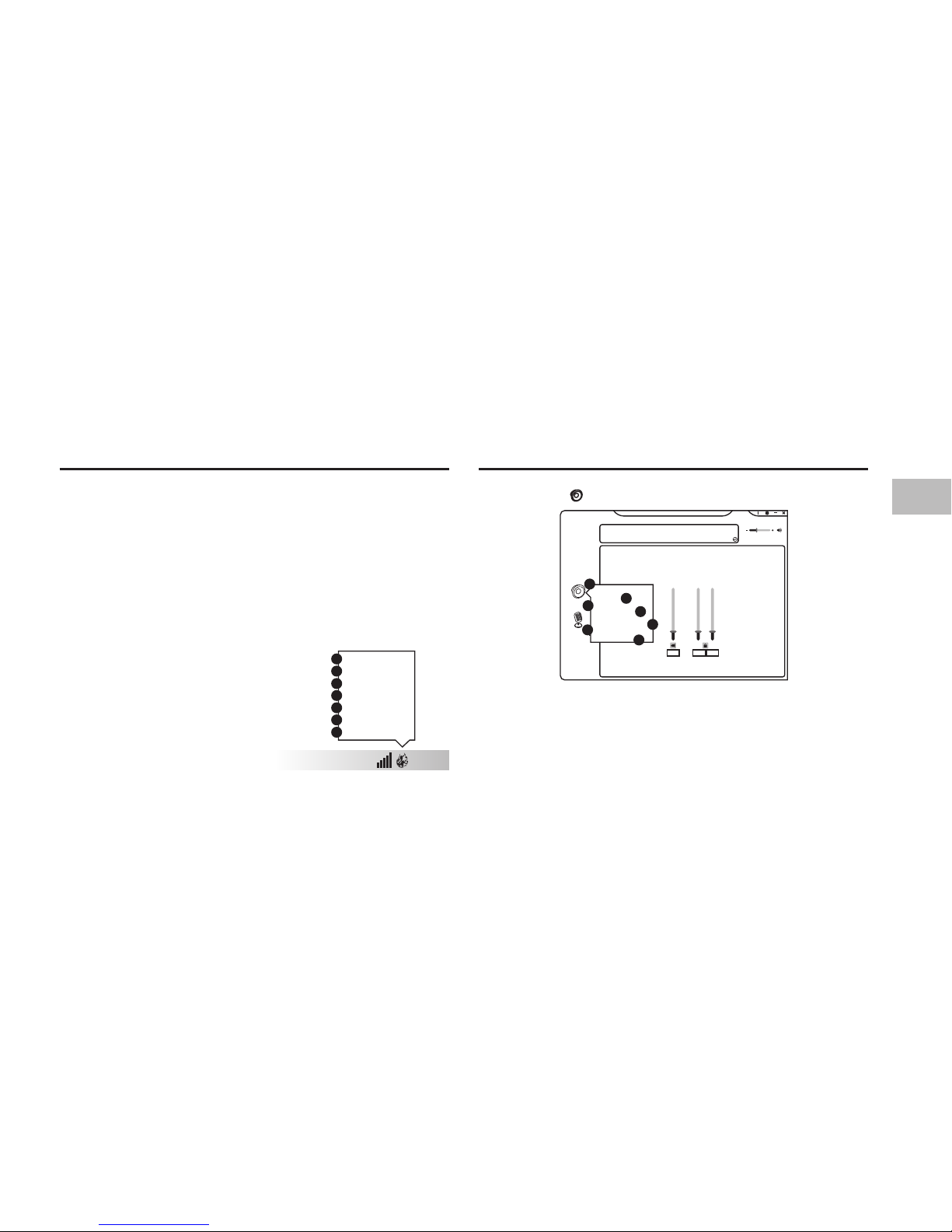

User Interface
Right click the icon from the system tray will pop up a
menu that links to Windows default software.
1. Open the headset software.
2. Open the default Windows Volume Control.
3. Open the default Windows Media Player.
4. Open the default Windows Sound Recorder.
5. Open the default Windows Multimedia Properties.
6. Open the headset software Settings.
7. Exit the headset software.
1
2
5
6
7
4
3
1
2
3
4
5
6
7

14
GB Playback
Speakers
Out In
EQ KS SF
EM VF
VSS SMX
Speakers Out
44.1 KHz
2
Capture
Mic In
Volume Control
Master
8.00 dB
Front
-7.00 dB -7.00
Mic
RL
1. Volume Control
1
2
5
4
3
1. Adjust the volume.
2. Mute or restore the
sound.
3. Adjust the left or right
front speaker volume
individually.
4. Lock the left and right
speaker to adjust at once.
5. Range of volume in dB is
between -37.00 and 0.00.
Playback
Speakers
Out In
EQ KS SF
EM VF
VSS SMX
Speakers Out
44.1 KHz
2
Capture
Mic In
Sample Rate
Mic
44.1 KHz 48 KHz
2. Sample Rate
1. Choose a dierent audio sample rate of your choice.
1

15
GB
Playback
Speakers
Out In
EQ KS SF
EM VF
VSS SMX
Speakers Out
44.1 KHz
2
Capture
Mic In
Environment Effects
Mic
Enable Environment Effects
Environment
Concert Hall
Room Size

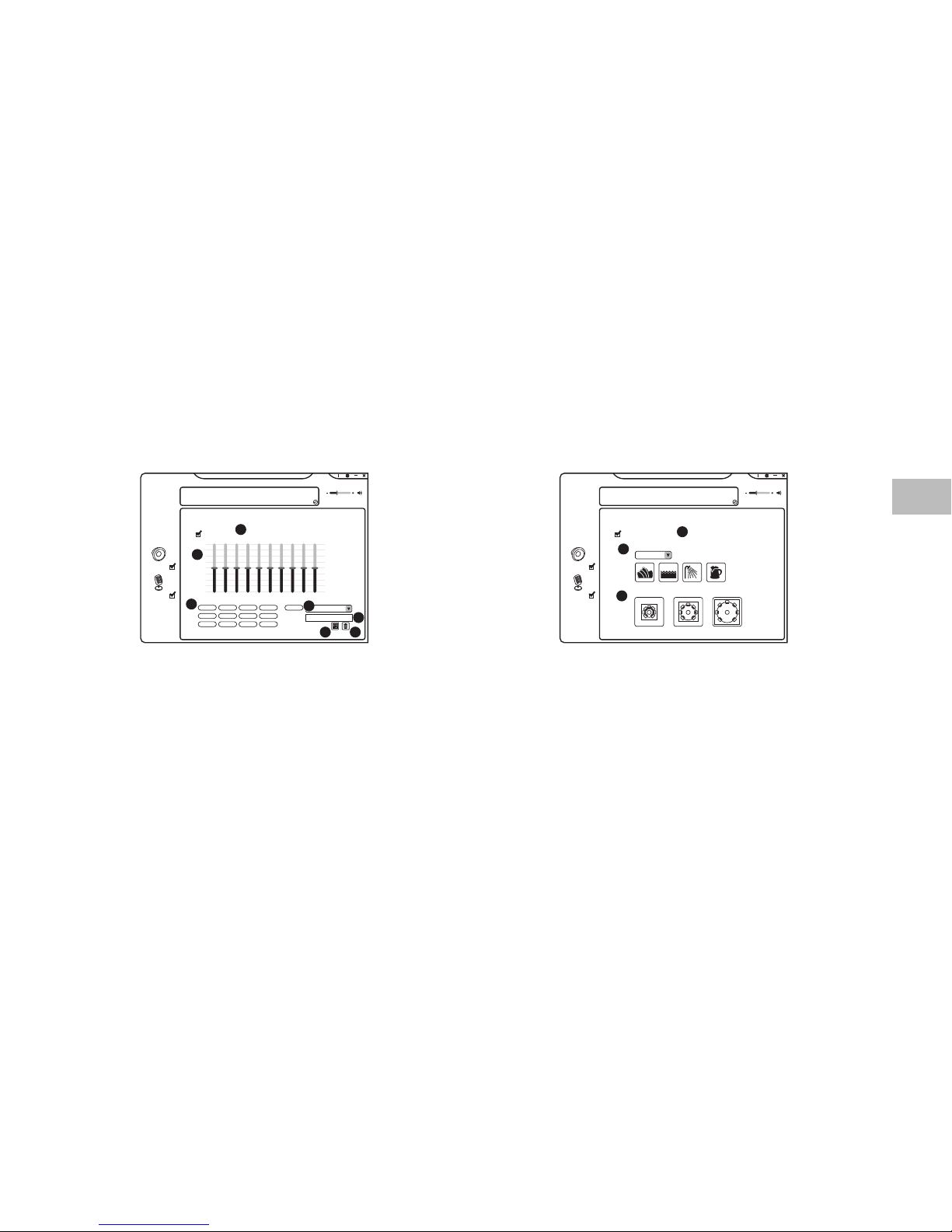

4. Environment Eects3. Equalizer
1. Enable/Disable Equalizer
2. Customise the EQ
setting.
3. Choose a sound eect
mode of your choice.
1. Enable/Disable Environment Eects.
2. Adjust environment eect.
3. Adjust room size eect.
4. Select saved EQ prole.
5. Input preset name.
6. Save a current EQ setting.
7. Delete a selected setting.
1
2
3
Playback
Speakers
Out In
EQ KS SF
EM VF
VSS SMX
Speakers Out
44.1 KHz
2
Capture
Mic In
Equalizer
Mic
Enable Equalizer
+20dB
-20dB
0 dB
30
Dance
60 120 250 500 1K 2K 4K 8K 16K
SoftRock
Bass
Rap
Rock
Classic
Metal
Live
Opera
Jazz Manual
Treble
Default
*Please input preset name...*
1
2
3
5
4
6 7

16
GB
L
Ls
Lb
Rb
Rs
R
CW
Playback
Speakers
Out In
EQ KS SF
EM VF
VSS SMX
Speakers Out
44.1 KHz
2
Capture
Mic In
7.1 Virtual Speaker Shifter
Mic
Enable 7.1 Virtual Speaker Shifter
L -4 dB
R -4 dB
LS -4 dB
RS -4 dB
Lb -4 dB
Rb -4 dB
C -4 dB
W -4 dB
5. Virtual Speaker Shifter
Allows for personal calibration to t for your ears, enabling
you to congure to your perfect individual setting.
1. Enable/Disable Virtual Speaker Shifter.
2. Rotate Clockwise.
3. Rotate Counter Clockwise.
4. Manual Rotate.
5. Manual Shifter.
6. Reset to default hearing.
7. Adjust the speaker hearing position.
8. Adjust dB levelling.
1
2
3
4
5
6
7
8
L: Left speaker
R: Right speaker
Ls: Side Left
Rs: Side Right
Lb: Back Left
Rb: Back Right
c: Centre speaker
w: Woofer

17
GB
Playback
Speakers
Out In
EQ KS SF
EM VF
VSS SMX
Speakers Out
44.1 KHz
2
Capture
Mic In
Xear SingFX
Mic
Enable Key Shifting
Pitch Down Pitch Up
0
Enable Vocal Fading
Voice No Voice
50
6. Xear SingFX 7. Xear Surround Max
1. Enable/Disable Enable Key Shifting feature and adjust
the Pitch level.
2. Enable/Disable Enable Vocal Fading feature and adjust
the voice fading level.
3. Press to return to default setting.
When Xear Surround Max is enabled, contents being
played by the front left and right virtual speakers will be
cloned to all side and back speakers.
Xear Surround Max can be enabled when Speaker Shift
or Real Multi-Channel Output setting is turned on.
1
2
3
Playback
Speakers
Out In
EQ KS SF
EM VF
VSS SMX
Speakers Out
44.1 KHz
2
Capture
Mic In
Xear Surround Max
Mic
Enable Xear Surround Max

18
GB Playback
Speakers
Out In
EQ KS SF
EM VF
VSS SMX
Speakers Out
44.1 KHz
2
Capture
Mic In
Volume Control
Mic-In
8.00 dB
Monitor
-7.00 dB
Mic
Playback Out In
EQ KS SF
EM VF
VSS SMX
Speakers Out
44.1 KHz
2
Capture
Mic In
Volume Control
Mic-In
8.00 dB
Monitor
-7.00 dB
Speakers
Mic
Volume Control
Sample Rate
Xear SingFX
Microphone Boost
1. Volume Control
Mic Setting
Right click on to show microphone menu.
1. Volume Control
2. Sample Rate
3. Xear SingFX
4. Microphone Boost
2
3
4
1
1. Adjust the microphone
volume.
2. Listen to your own voice
when using microphone
to speak.
3. Mute or restore the
microphone.
4. Range of volume in dB is
between -37.00 and 0.00.
1
23
4

19
GB
Playback
Speakers
Out In
EQ KS SF
EM VF
VSS SMX
Speakers Out
44.1 KHz
2
Capture
Mic In
Xear SingFX
Mic
Microphone Echo
DefaultLow High
Magic Voice
Playback
Speakers
Out In
EQ KS SF
EM VF
VSS SMX
Speakers Out
44.1 KHz
2
Capture
Mic In
Sample Rate
Mic
44.1 KHz 48 KHz
3. Xear SingFX
1. Enable/Disable Microphone Echo feature and adjust
the echo level.
2. Press to return to default setting.
3. Choose a Magic Voice of your choice.
2. Sample Rate
1. Choose a dierent audio sample rate of your choice.
1
1
3
2

20
GB
4. Microphone Boost Hints and Tips
Make sure the USB plug is fully plugged into a USB port and
the computer is on or try to use a dierent USB port.
If the software is not working properly, uninstall it and then
reboot the computer. Re-install the software.
1. Enable Microphone Boost to improve the quality of
your audio recordings.
Playback
Speakers
Out In
EQ KS SF
EM VF
VSS SMX
Speakers Out
44.1 KHz
2
Capture
Mic In
Microphone Boost
Mic
Ensble Microphone Boost
1
