Safety instructions
The safety requirements oblige manufacturers to give the following
instructions:
For installation in a kitchen unit, my attached installation instructions
must be noted.
- Should any fractures, cracks, or other defects appear in my
high-grade glass-ceramic oven ceiling, please immediately
stop using my oven.
For your additional safety against any subsequent switch-
on, remove my cooker fuses or switch off the automatic
safety system. Please notify promptly the service centre
covering your area.
- If you use my oven space divider, the heated oven space
divider should only be placed in my oven complete {lower
part with heating element and cover).
- Whenyou use meto prepare your food, my hobs and/orthe oven
door become hot. Therefore keep smail children well away from
me.
- This especially applies when you are grilling or pyrolytically
cleaning my oven {if available).
- Overheated fats and oils rapidly ignite. When using me to pre-
pare food in fat or oil (e.g. chipped potatoes), please remain
nearby.
~ Do not use me to heat your room.
- Take care when connecting electrical appliances to plug sockets
in the cooker vicinity. Connection leads should not come within
reach of hot hobs/cooking zones or get trapped under the hot
oven door.
- To avoid damage to my glass-ceramic surface, you should not
use my cooking area as a storage area.
- Donotplace any hot frying pans or saucepans on the edgeof
the cooking area as this can cause damage.
- Never cover my cooking surface with protective foil. This can
cause damage.
- The glowing red heat of my cooking zones can shine out over the
edge of the marked zone, according to the angle at which you
look at it.
~ My glass-ceramic cooking area (where featured) is extremely
resistant, though not unbreakable. It may be damaged by any
sharp or hard objects falling on to the cooking surface.
Should any fractures, cracks, or other defects appear, | must be
separated from the mains supply by the device required on the
fixed wiring side. Before doing so, please switch my 4 hob
switches to 0.
- Never line my oven floor with aluminium foil and never place any
pan, pot, etc. on my ficor, since the oven enamel will otherwise be
damaged by the heat congestion caused.
For the
installer
For the
user
53

For the
user
54

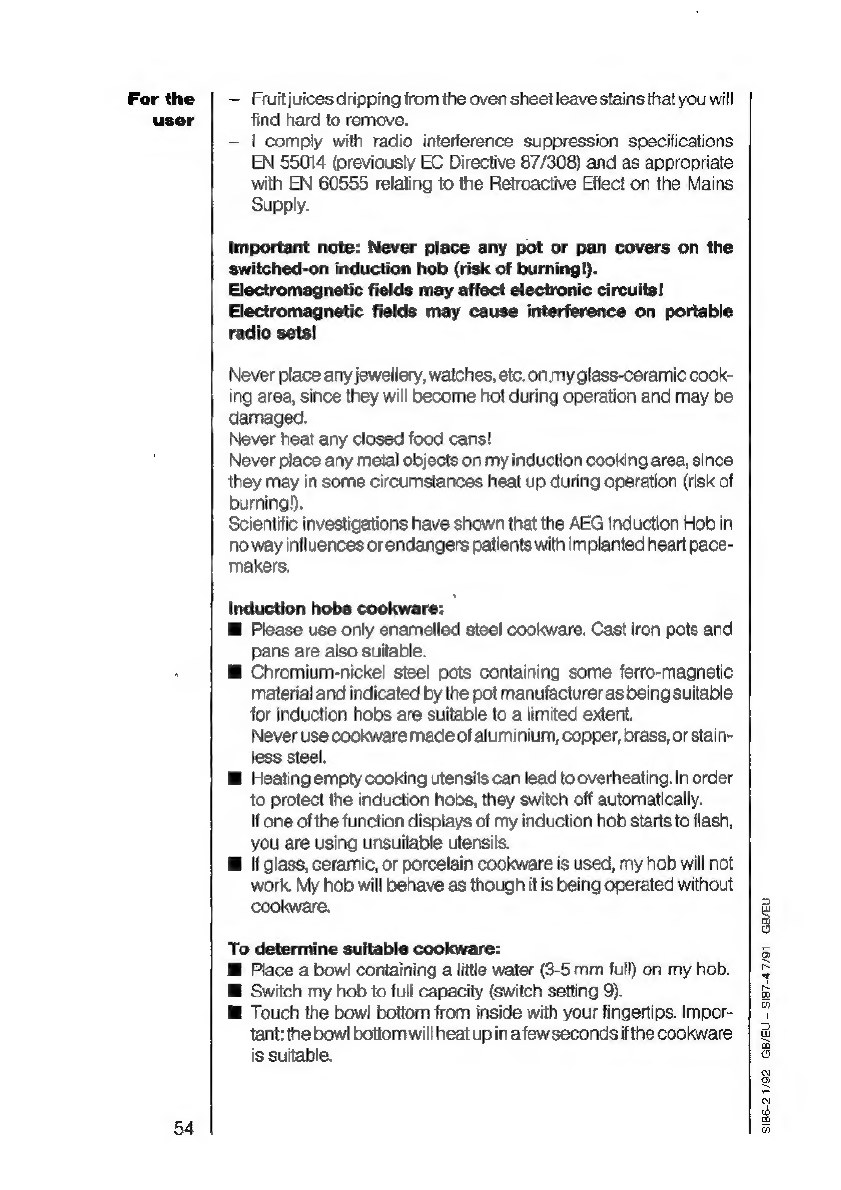

~ Fruitjuices dripping from the oven sheei leave stains that you will
find hard to remove.
- i comply with radio interlerence suppression specifications
EN 55014 (previously EC Directive 87/308) and as appropriate
with EN 60555 relating to the Retroactive Effect on the Mains
Supply.
Important note: Never place any pot or pan covers on the
switched-on induction hob (risk of burning!).
Electromagnetic fields may affect electronic circuits!
Electromagnetic fields may cause interference on portable
radio sets!
Never place any jewellery, watches, etc. on. my glass-ceramic cook-
ing area, since they will become hot during operation and may be
damaged.
Never heat any closed food cans!
Never place any metal objects on my induction cooking area, since
they may in some circumstances heat up during operation (risk of
burning).
Scientific investigations have shown that the AEG Induction Hob in
no way influences or endangers patients with implanted hearl pace-
makers.
Induction hobs cookware:
@ Please use only enamelled steel cookware. Cast iron pots and
pans are also suitable.
@ Chromium-nickel steel pots containing some ferro-magnetic
material and indicated by the pot manufacturer as being suitable
for induction hobs are suitable to a limited extent.
Never use cookware made of aluminium, copper, brass, or stain-
less steel.
@ Heating empty cooking utensils can lead to overheating. In order
to protect the induction hobs, they switch off automatically.
If one of the function displays of my induction hob starts to flash,
you are using unsuitable utensils.
ll If glass, ceramic, or porcelain cookware is used, my hob will not
work. My hob will behave as though it is being operated without
cookware.
To determine suitable cookware:
ll Place a bow coniaining a little water (3-5 mm full) on my hob.
lf Switch my hob to full capacity {switch setting 9).
1 Touch the bow! bottom from inside with your fingertips. Impor-
tant: the bowl bottom wilt heat upin afew seconds ifthe cookware
is suitable.
SIB6-2 1/92 GB/EU-SIB7-47/91 GEYED

SIB7-47/91 GB/EU
if my hob is operated without or with unsuitable cookware, the
function indicator corresponding to that hob will flash.
@ After around 10 minutes, my hob will automatically switch off.
The funciion indicator, however, will continue to flash.
@ To switch me back on, please place my switches first on the
zero position and then to the setting you require.
The hob is again ready to operate. After each use of my hob, how-
ever, you should switch this off with the corresponding switch.
Ifmy hob is used with an empty pan or a panthat has boiled dry,
the function indicator corresponding to that hob will flash. Asig-
nal intermittently sounds. My hob automatically switches off.
To switch the hob back on, turn my hob switch to 0 and then to the
setting you require,
The inlet opening for my ventilation {in the kitchen unit plinth) should
not be covered, Also never insert any objects into this ventilation
opening.
Maintaining my electronic unit:
The air inlet for my electronic system operating in the automatic
induction hobs (arranged in the kitchen unit plinth under the appli-
noe; see also installation instructions) should always be cleaned
whenever an audible tone continuously sounds.
Cleaning:
1 Switch off the appliance fuses or remove the screw-in fuses from
the holder.
1@ Unclip the ventilation grille from the frame in the kitchen unit
plinth.
@ Remove the metal air filter, clean itin washing-up liquid suds, and
insert it on the RH side of my electronic unit (module).
Insert the ventilation grille into the frame in the kitchen unit plinth,
l@ Switch on or re-insert the fuses.
55

Features
56
Appliance description
162.1
A
Retractable switch for oven cooking functions with electronic dis-
play
Retractable switch for oven temperatures with electronic display
Electronic timer with time of day display, short-term alarm, meat
thermometer display, and automatic switch-on/off for the oven
only
Pilot lamp (red) for user protection display
User protection button
Retractable switch for front LH automatic induction hob, with
electronic display and pitot lamp monitoring boost function at
start of cooking
Retractable switch for rear LH automatic hob, with electronic dis-
play and pilot lamp monitoring boost function at start of cooking
Retractable switch for front RH automatic induction hob, with
electronic display and pilot lamp monitoring boost function at
start of cooking
Retractable switch for rear RH automatic hob, with electronic dis-
play and pilot lamp monitoring boost function at start of cooking
Retractable handle for opening my oven door
AuS20-2 1/92 GEL

AUS20-2 1/92 GB/EU
First use
To operate my switches, the retracted switch must be pressed
so that it is released for operation.
My switch (A) can be turned both right and leit from any position.
Further information on this feature is given in the “Hobs” and “Oven”
sections,
You must be a little more careful with my switches (B) for the oven
temperatures and (F, G, H, and I) for the automatic {induction) hobs.
Switch (B) can only be turned as far as a temperature of 280°C and
switches (F, G, H, and |} only to the right (clockwise) to their fullest
extent.
They are reset by turning fo the left.
If one of my hob switches is switched on, the sel data respectively
appear above or beside the switches in the electronic display.
To prevent my switches from becoming soiled, you can also
retract them flush with the front panel when they are switched
on (for child safety).
Operating
the switches
57

Retractable
oven deor
handle
58
To release the handle:
~ Press the button/arrow at the centre of my oven door handle.
- My handle folds down to open my oven door,
— Toclose, press my handle and the button/arrow atthe sametime.
for flush stowage of my handle.
VOt-1 5/01 GBVEL:

UH2-2 6/91 GB/EU

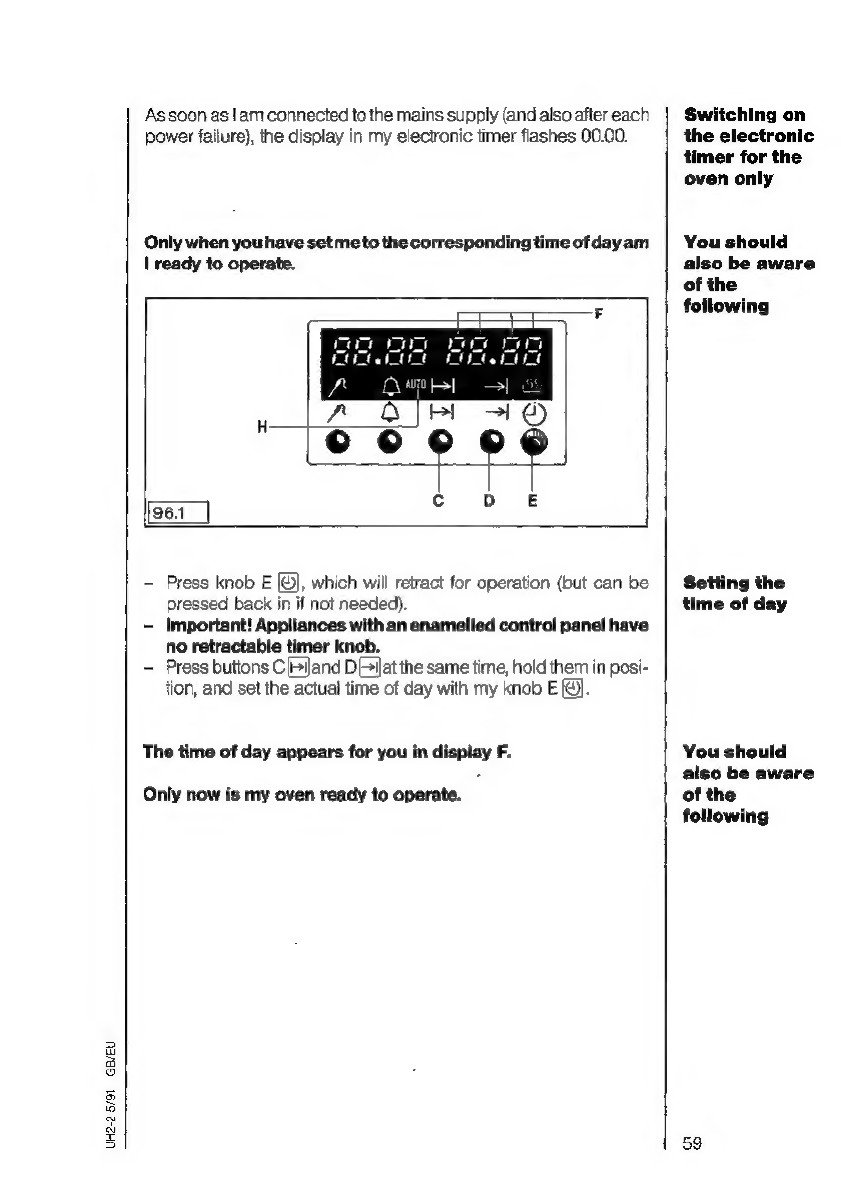

As soon as!am connected to the mains supply (and also after each
power failure), the display in my electronic timer flashes 00.00.
‘Only when you have set me to the corresponding time ofdayam
| ready to operate.
96.1
- Press knob E [©], which will retract for operation (but can be
pressed back in if not needed).
- Important! Appliances with an enamelled control panel have
no retractable timer knob.
- Press buttons C[bJand DG at the same time, hold them in posi-
tion, and set the actual time of day with my knob E (@].
The time of day appears for you in display F.
Only now is my oven ready to operate.
Switching on
the electronic
timer for the
oven only
You should
also be aware
of the
following
Setting the
time of day
You should
also be aware
of the
following
59

Setting the
short-term
alarm {no
switch
function)
You should
also be awa
of the
following
Precleaning
the
oven
60
100.1
— Press button B [4], hold it in position, and set the required time
with my knob E The duration appears in display G.
— The time of day reappears in display F after release of button B.
- To request the remaining time, press my bution B [4]. The
remaining operating time now appears in display G
At the end, an audible tone sounds for around two minutes. You
can prematurely cancel it by pressing button B (4).
Before using my oven for the first time, please clean all accessories
(baking sheet, drip-pan, combination grid, etc.) with warm
washing-up liquid suds. Then switch my heating mode switch tothe
top and bottom heat symbol a and my temperature switch to
250°C and thus operate my empty oven with the door closed if
possible for 1 hour.
The odour occurring is not harmful to the health. To avoid any nuis-
ance, you should ventilate your room well during this time.
When | have cooled down, please also clean my oven with warm
washing-up liquid suds.
UH2-25/01 GB/EU- VBI S/e9 GB/EU

KOB1-29/91 GB/EU

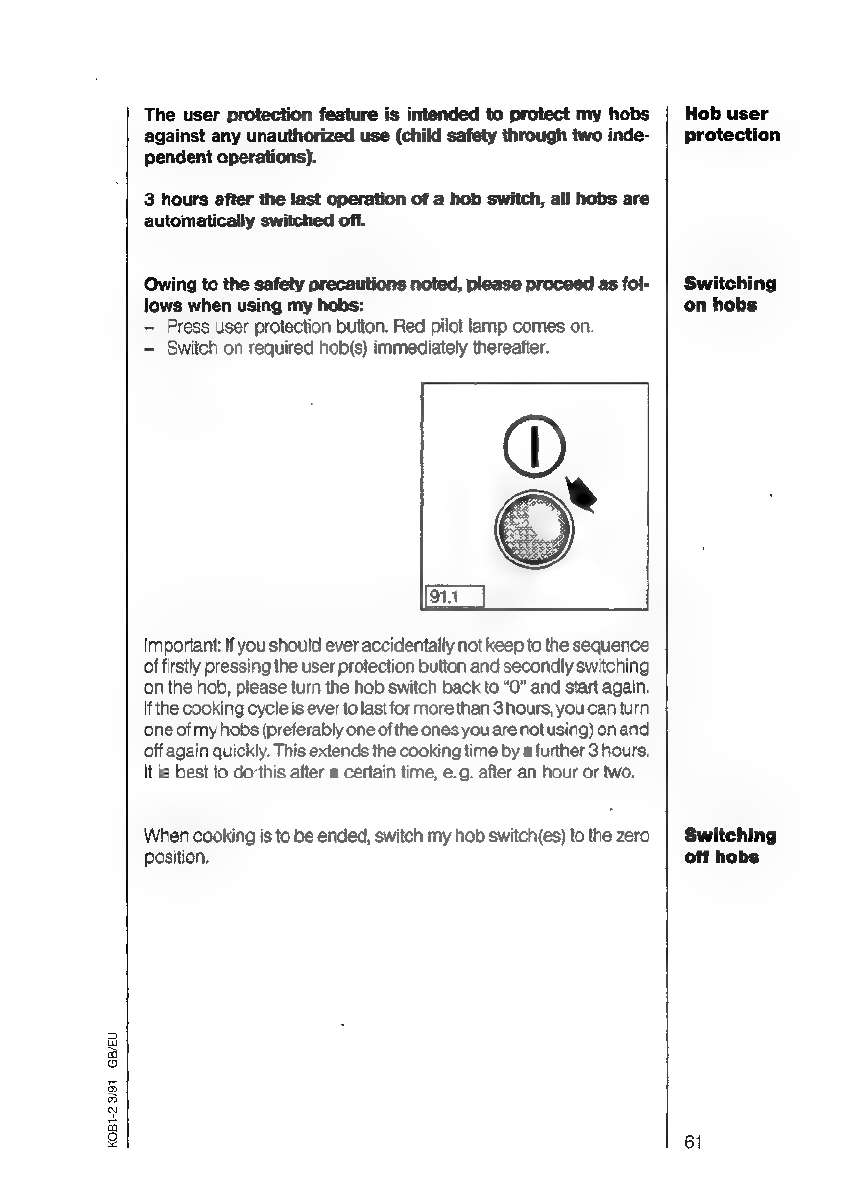

The user protection feature is intended to protect my hobs
against any unauthorized use (child safety through two inde-
pendent operations).
3 hours after the last operation of a hob switch, all hobs are
automatically switched off.
Owing to the safety precautions noted, please proceed as fol-
Jows when using my hobs:
~- Press user protection button. Red pilot lamp comes on.
- Switch on required hob(s) immediately thereafter.
Important: If you should ever accidentally not keep to the sequence
of firstly pressing the user protection button and secondly switching
‘on the hob, please turn the hob switch back to “O” and start again.
Ifthe cooking cycle is ever to last for more than 3 hours, you can turn
one of my hobs (preferably one of the ones you are notusing) onand
off again quickly. This extends the cooking time by a further 3 hours,
It is best to do-this after a certain time, e.g. after an hour or two.
When cooking is to be ended, switch my hob switch{es) to the zero
position,
Hob user
protection
Switching
on hobs
Switching
off hobs
61

Features
Glass-ceramic
hob
62
Hobs

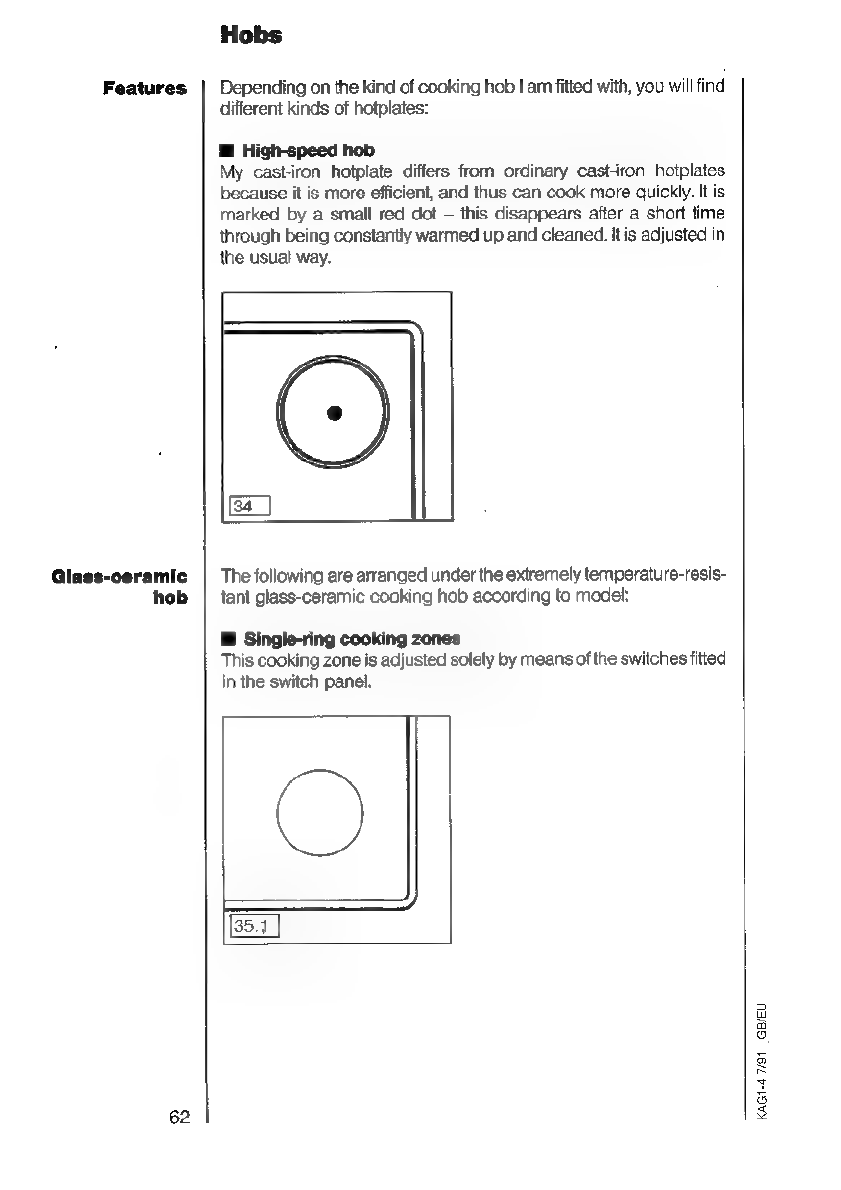

Depending on the kind of cooking hob | am fitted with, you will find
different kinds of hotplates:
@ High-speed hob
My cast-iron hotplate differs from ordinary cast-iron hotplates
because it is more efficient, and thus can cook more quickly. It is
marked by a small red dot — this disappears after a short time
through being constantly warmed up and cleaned. It is adjusted in
the usual way.
em
The following are arranged under the extremely temperature-resis-
tant glass-ceramic cooking hob according to model:
lf Single-ring cooking zones
This cooking zone is adjusted solely by means of the switches fitted
in the switch panel.
KAGt-4 7/91 GB/EU

kAGt-4 7/91 GEVEL
lf Double-ring cooking zones
The second ring ofthe cooking zone can only be turned on when the
relevant switch on the switch panel is also on, The touch-button (6)
in the glass-ceramic hobis pressed lightly and the red control lamp.
comes on. Both heating circuits are adjusted and turned off by the
switch on the switch panel.
@ Frying zone
My heating is arranged in a circle and is controlled by the relevant
switch on the switch panel, while the heating for the roasting zone is
turned on by lightly touching the touch-button {in the giass-
ceramic hob. Both heating circuits are tumed off by means of the
switch in the switch panel.
63

64

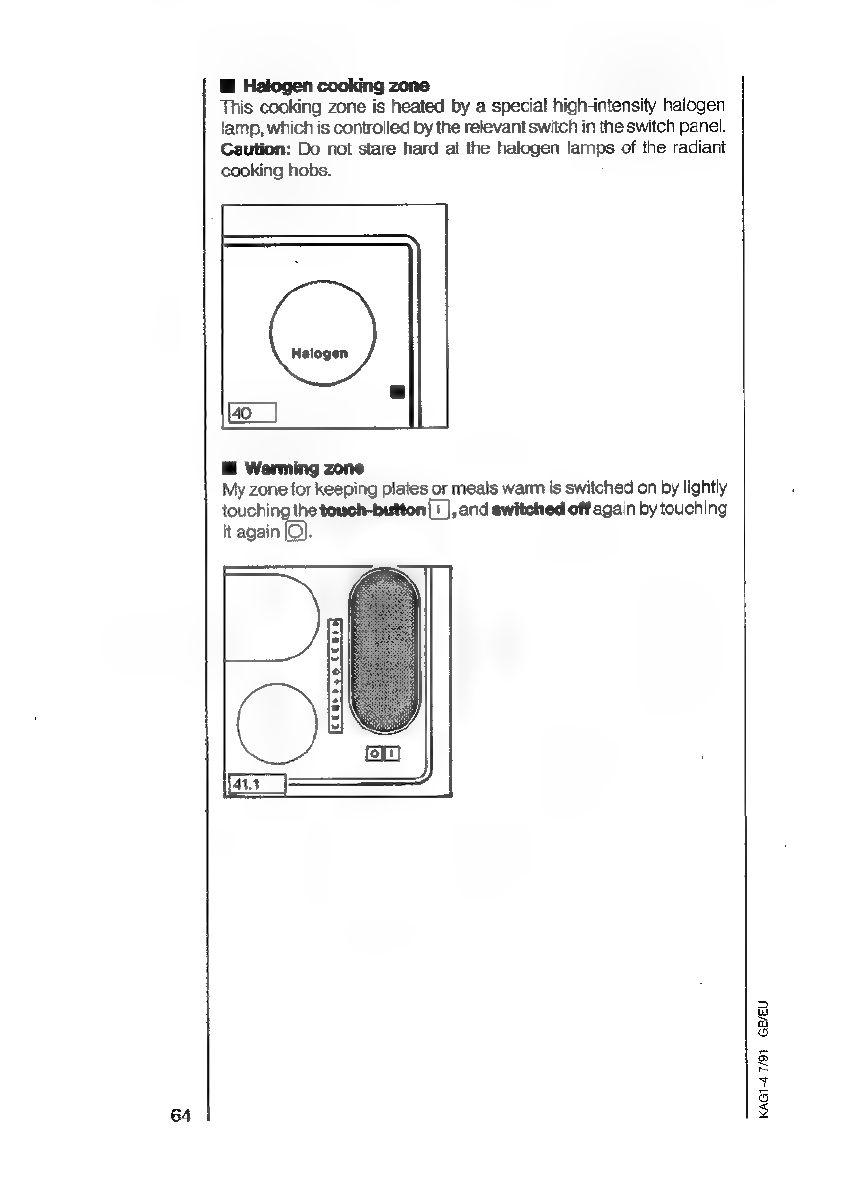

@ Halogen cooking zone
This cooking zone is heated by a special! high-intensity halogen
lamp, which is controlled by the relevant switch in the switch panel.
Caution: Do not stare hard at the halogen lamps of the radiant
cooking hobs.
(40
@ Warming zone
My zone for keeping plates or meals warm is switched on by lightly
touching the touch-button {1 ], and switched off again by touching
it agai Wiel
KAGI-4 7/91 GB/EU

KAGI-4 7/91 GB/EU-KAG22/@9 GB/EU
lf User guidance
For each of my cooking zones there are five symbols with control
lights that show at what setting the various cooking processes can
be done.
The symbols signify:
$35$ Heating up, frying at
high temperature
SL Frying
ww Steaming/Boiling
TeS Parboiling
eS Melting
Please also foliow the table on setting the automatic cooking zones.
@ Residual heat indicator
For each of my glass-ceramic cooking zones there is a control light,
onthe left or the right in the glass-ceramic hob, which lights up ifthe
cooking zone is hot. As soon as the cooking zone cools down the
light goes out.
1@ Escape of steam and fumes from the oven
The fumes from my oven can escape through the openings at the
back of my hob. You will find more details in the section on fume out-
let from the oven.
@ Induction hob
The pot or pan bottom is directly and very rapidly heated by an elec-
tromagnetic alternating field.
65

General
= Cookware
66
The better the pot, the beiter the cooking result.
@ You can tell good cookware by the pot bottom and not by the
material from which the pot is made.
| The bottom should be as thick and flat as possible. Itshould also
not be rough {@s e.g. on cast-iron pots), since scratches arise
when the pot is shifted.
fl Use high-sided pots for dishes requiring plenty of liquid, and
the nothing can boil over.
™@ Prevent enamelled pots or frying pans from boiling dry. Their bot-
toms can be destroyed if this happens and then they scratch the
cooking area when they are shifted. Pots and frying pan bottoms
with sharp edges also have a scouring effect.
1 The pot bottom and the hob must be of equal size. Please make
sure that your cookware stands in the centre of the hob.
My hobs should always be clean, since soiled hobs and cook-
ware bottoms not only damage my glass-ceramic cooking area
(if available), but aiso increase power consumption.
Make good use of the afterheat by switching off the hob just before
cooking ends.
You waste energy and/or cooking takes longer if...
/
You are wasting energy. Cooking is taking jonger.
64
Pot Pot lid Pot bottom Pot ico large
toosmall notclosed uneven (glass-ceramic)
GAt-41/92 GB/EU

KB1-1 8/90 GBVEU-KB3-22/91 GBVEU
After switching on a cooking zone, you will hear me buzz. This is a
feature of my radiant heating system not in any way impair my ope-
ration!
Never place food in aluminium foil or plastic containers on my hot
cooking area, since that will have an extremely detrimental effect on
the glass-ceramic cooking suriace!
You can also use my automatic hobs without the automatic system.
You should then switch me on only as far as setting 9.
When starting to fry, set the switch referring to the hob to 9 until the
fatis hot. Then place the food to be fried in the pan and turnthe switch
back to 6 or higher as necessary.
When starting to boil, setthe switch referring to the hobto 9. To sim-
mer, turn the switch back to 1 to 5 as necessary.
Intermediate settings, e. g. 3. (or * 2 only with electronic indicator),
are at all times possible.
When starting to boil within the 1-8 region {not on setting 9), my
automatic system relieves you of the need to switch over to my sim-
mering region ifyou turn the knob clockwise beyond setting 9 as far
as letter A (the pilot lamp monitoring the boiling-up sequence
comes on - if available) and then setit back to the required simmer-
ing region (1-8).
My automatic system selects for you the boiling-up time at the
start of cooking and then itself switches back the power corre-
sponding to the simmering setting selected.
The automatic system and/or the hob is switched off by iurning to 0.
The follawing table shows you examples of the suitability of switch
settings 1 to 9.
Operating the
cooking zones
- beforehand
- Boiling/
frying on the
automatic heb
Without the
automatic
system
With the
automatic
system
67

Boiling/frying
table for the Switch setting Suitable for
automatic hob
55555, 9 Boiling up Boiling up large quantities of water.
Boiling noodles
7-8 Fast frying Deep fat frying of chipped potatoes.
Fast frying of meat, e.g. goulash.
Fritting of e.g, potatoes.
Frying fillets, steaks
383, 6-7 Slow frying Frying of meai, schnitzels,
wy 34
bes 23
eS 12
0
Creeing
Cordon Bleu, cutlets, pancakes,
meatballs. Making roux. Light frying
of sausages, liver, eggs.
Deep-frying of doughnuts
Cooking large quantities of food,
single-portion meals and soups.
Steaming of potatoes. Making gravy
Steaming of vegetables or stewing
‘of meat. Making rice pudding
Creeing of rice and milk puddings
(stir occasionally) ».
Steaming of small quantities of
potatoes or vegetables.
Heating of ready meals
Omelette, custard, sauce hollandaise.
Keeping food warm. Melting of butter,
chocolate, gelatine
Afterheat, off-position
68
° only with induction hobs
KB3-2 2/91 GB/EU

BVE2-1 4/91 GBVEU- BAW1-22/91 GEVEU
Oven
Before using for the first-time, please note the section describing
precieaning of the oven.
You can operate my oven with either traditiona! top and bottom heat,
hot air, or in two (three) grilling modes, exactly as you wish and
according to your recipe, since | have the practical type of conver-
tible oven. You will find more deiailed instructions under the
methods of preparation and the safety instructions for the user.
My fume outlet in the cooking area (see illustration) can be opened
or closed with the push-button. Please press my push-button only
when the hobs are not operational to exclude the possibility of burn-
ing. Should you operate my push-button when the hobs are hot,
however, we recommend you to use an object such as &. g. a Cook-
ing spoon to open or close.
This enables you to control the humidity in my oven during bak-
ing or roasting and thus save yourself energy or even the need
to add water.
Closed: Push-button released, red edge visible
Open: Push-button pressed
During preheating and during the first third of the time when baking
bread or breadrolls, you can close my fume ouilet to obtain better
rising and browning.
During roasting, you should aiso keep my fume outlet closed, unless
you want to achieve a crispy meat surface, as e. g. during the grilling
‘of poultry.
Piease follow the tables on baking and/or roasting.
General
- Fume
outiet
69
