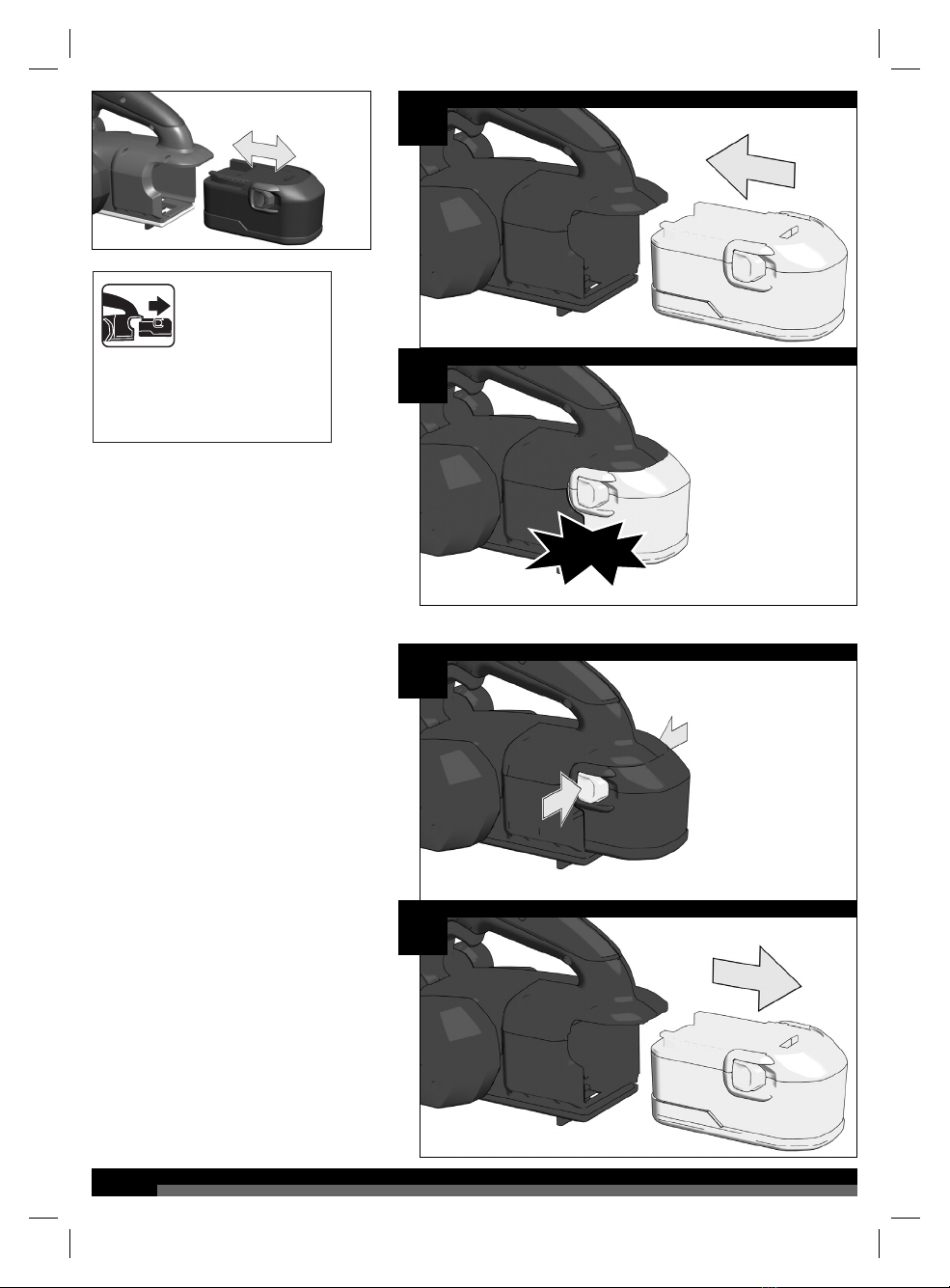

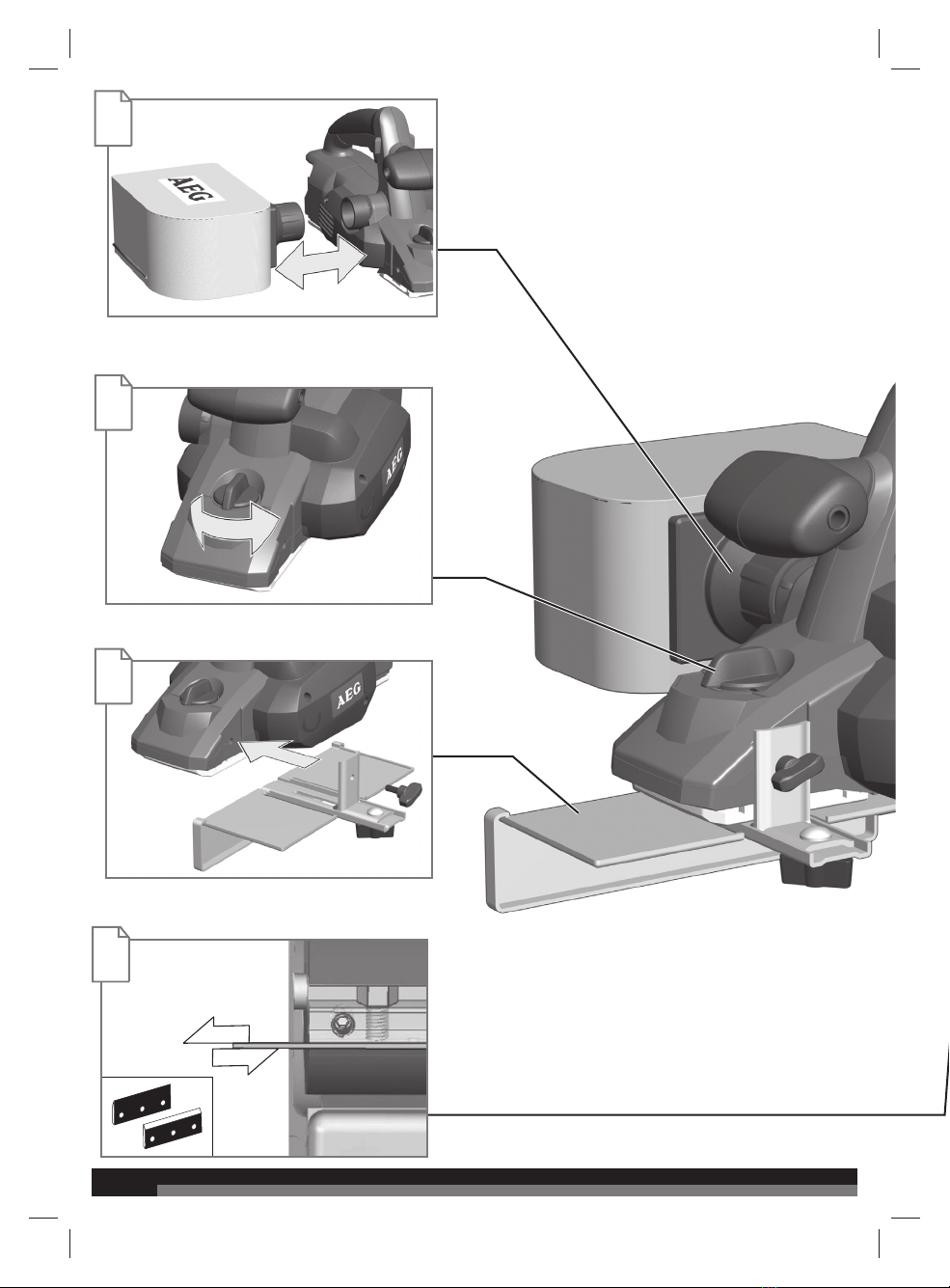

Remove the battery pack
before starting any work on
the machine.
1
2
1
2
click
289 207 - BHO18.indd 6 17.12.2007 12:01:18


289 207 - BHO18.indd 7 17.12.2007 12:01:19

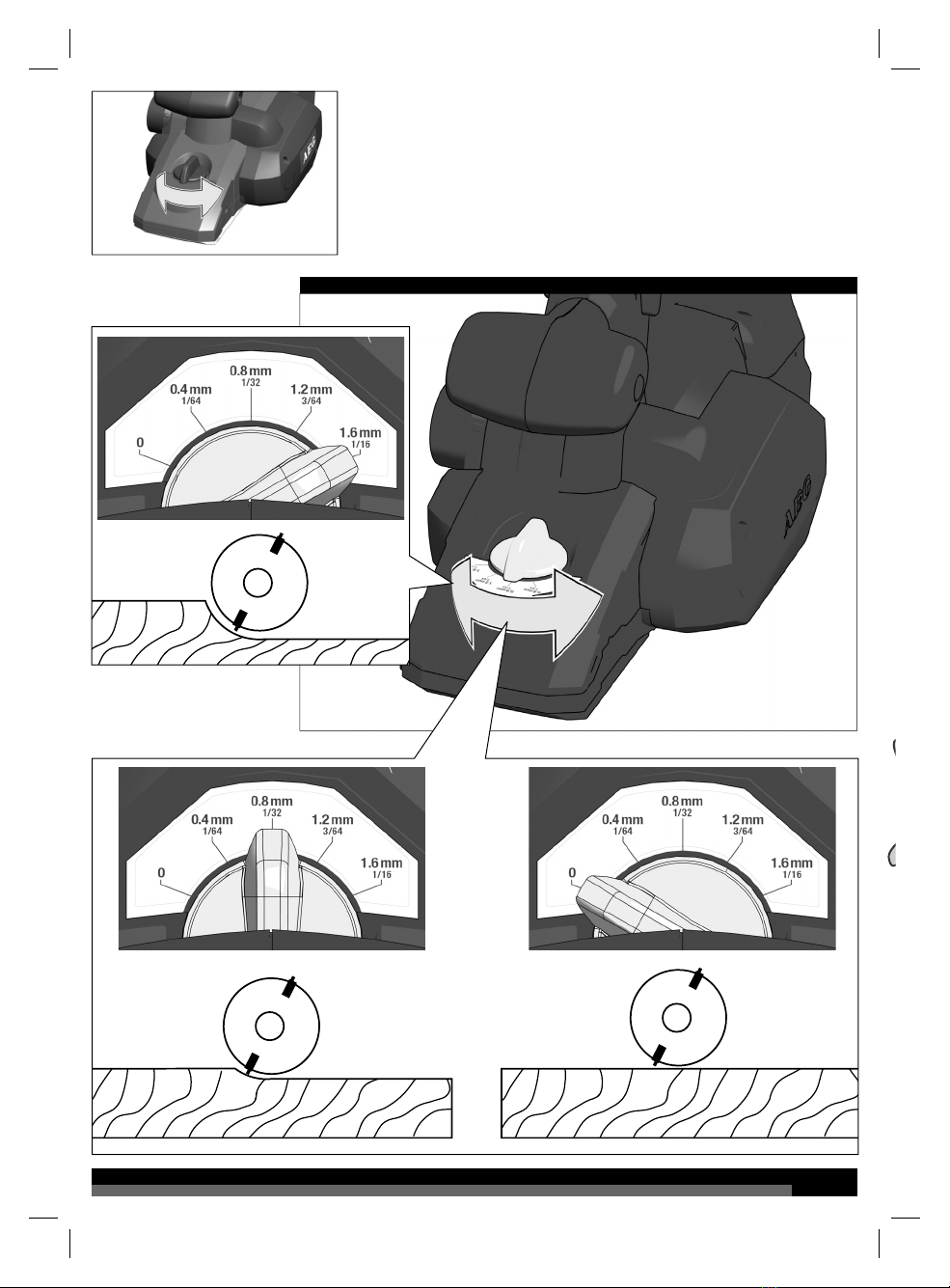

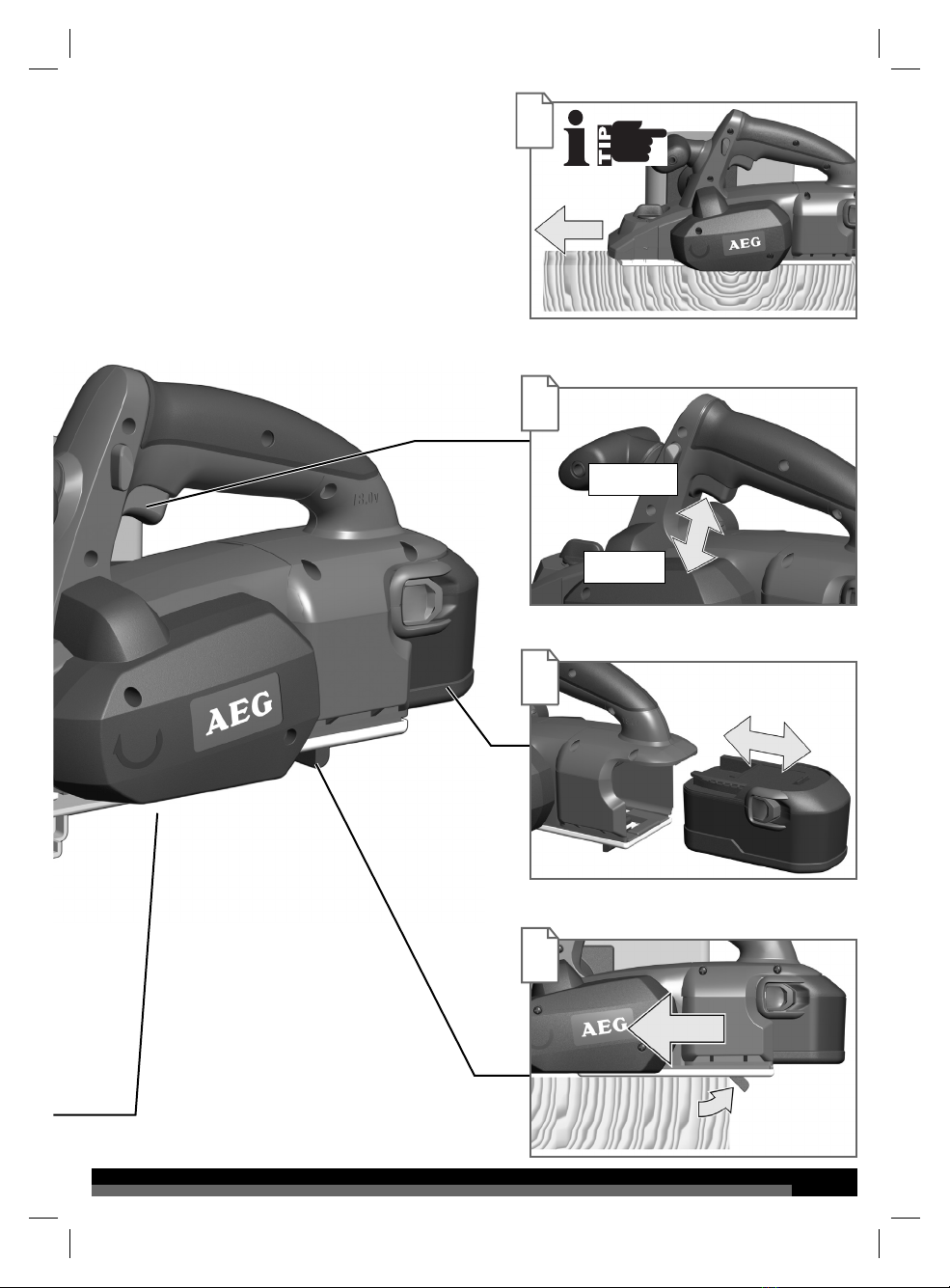

Planing Depth Adjustment


START
STOP
1
2
289 207 - BHO18.indd 8 17.12.2007 12:01:19
Lock off feature

7
3 x3 x
1

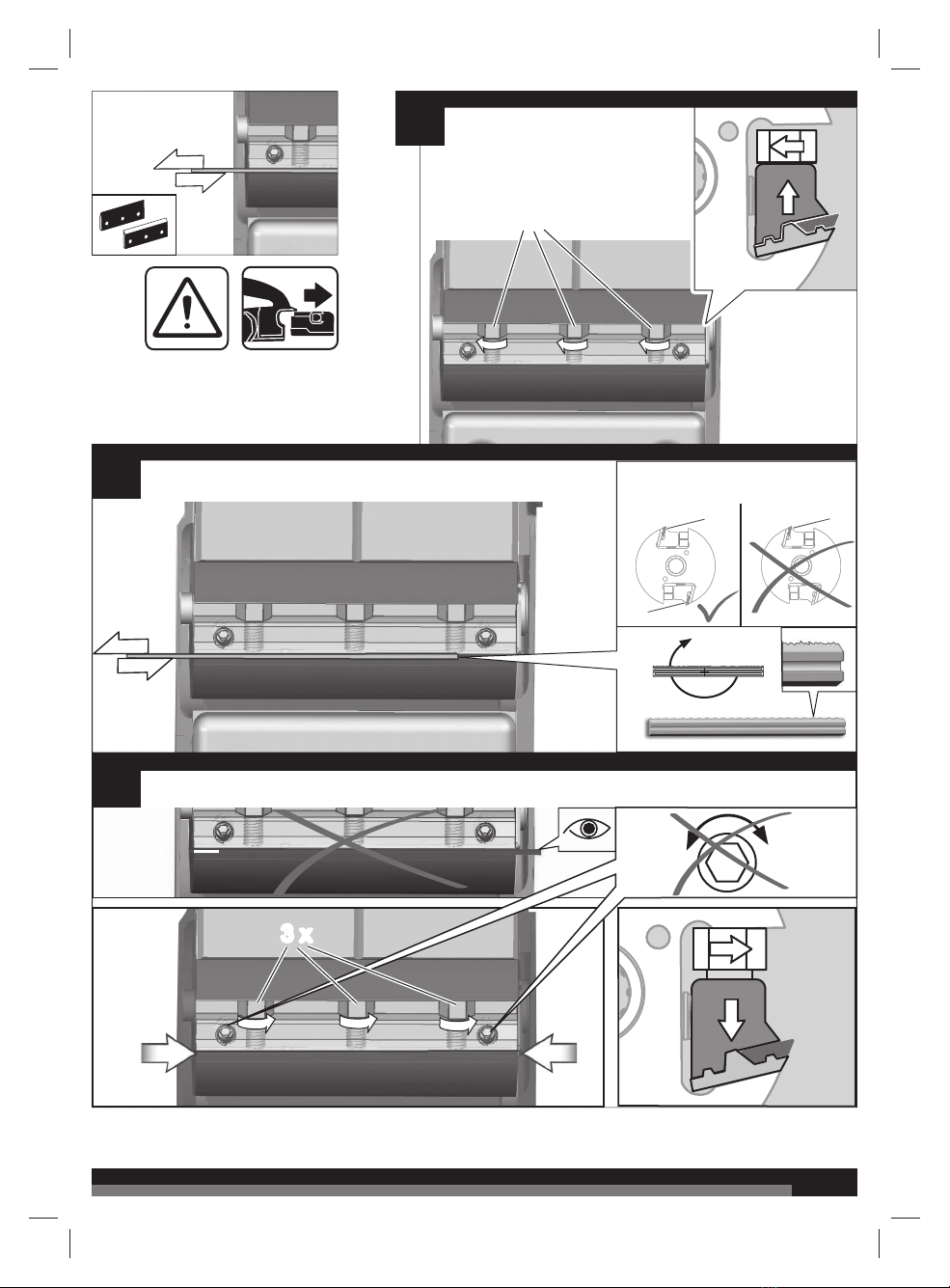

Loosen screws to remove blade.
2
1x 180°
1
2Ensure 2 blades are always
secured.
1
3 x3 x
3Ensure blade is fitted correctly without any overhang.


1
2
289 207 - BHO18.indd 10 17.12.2007 12:01:20


1
2
1
289 207 - BHO18.indd 11 17.12.2007 12:01:20

1

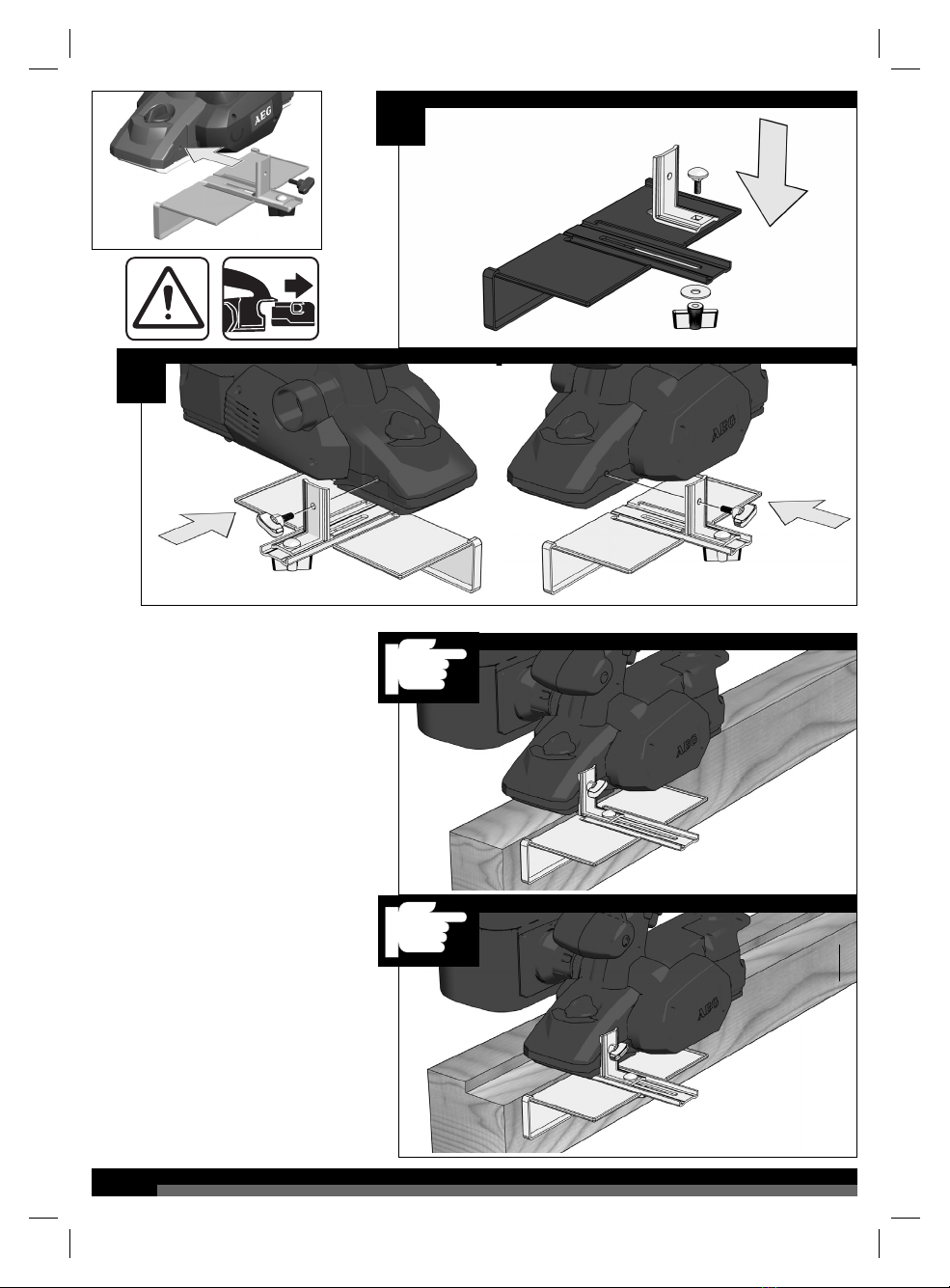

Stand provides protection from accidental
damage to the work piece

11
1
2
3
START

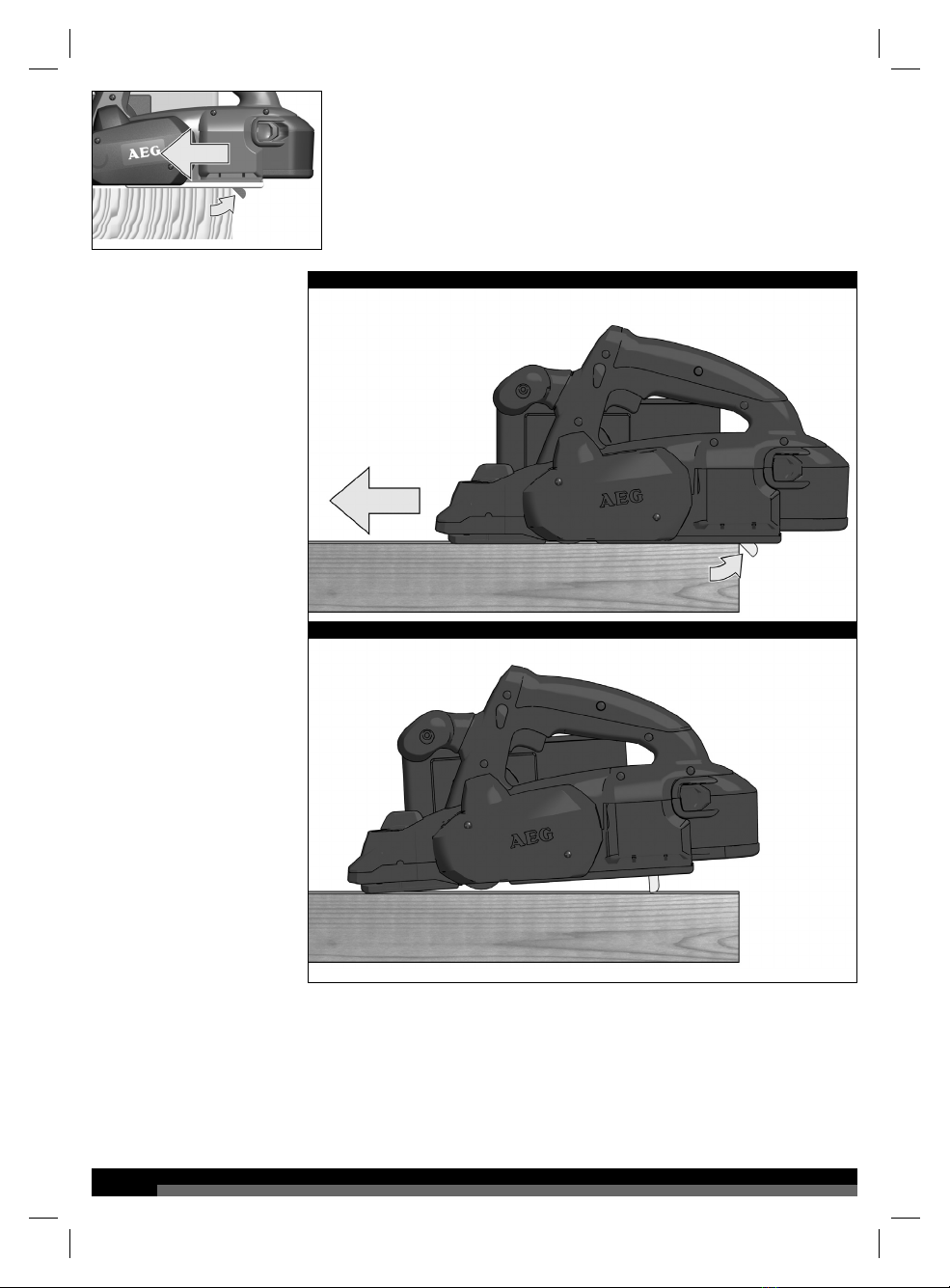

Start planer prior to engaging work
piece.

1
4
5
STOP

1
TECHNICAL DATA
-1
Battery voltage ........................................................................
Planing width ...........................................................................
Planing depth ..........................................................................
Rebate depth...........................................................................
No-load speed .........................................................................
...........................18 V
...........................82 mm
..........................1.6 mm
........................12.5 mm
.....................12000 min
BATTERY AND CHARGER
Compatible battery pack
(not included)
Compatible charger
(not included)
L1815R
L1820R
L1825R
L1830R
L1840R
L1850R
L1860R
BL1218
AL1218G
Use AEG 18V battery and charger only
WARNING! Read all safety warnings and all
instructions, including those given in the accompanying
brochure. Failure to follow the warnings and instructions
may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
SAFETY INSTRUCTIONS
Wait for the cutter to stop before setting the tool down.
An exposed cutter may engage the surface leading to
possible loss of control and serious injury.
Wear ear protectors. Exposure to noise can cause hearing
loss.
Always wear goggles when using the machine. It is
recommended to wear gloves, sturdy non slipping shoes
and apron.
Sawdust and splinters must not be removed while the
machine is running.
Always use the protective shields on the machine.
Only plane with sharp blades and avoid metal (nails,
screws).
Never reach into the danger area of the plane when it is
running.
The dust produced when using this tool may be harmful to
health (e.g. when working oak or beech wood, stones, paint,
which could contain lead or other harmful chemicals). Do
not inhale the dust. Use a dust absorption system and wear
a suitable dust protection mask. Remove deposited dust
thoroughly, e.g. with a vacuum cleaner.
Do not dispose of used battery packs in the household
refuse or by burning them. AEG Distributors offer to retrieve
old batteries to protect our environment.
Do not store the battery pack together with metal objects
(short circuit risk).
Use only System GBS chargers for charging System GBS
battery packs. Do not use battery packs from other systems.
No metal parts must be allowed to enter the battery section
of the charger (short circuit risk).
Never break open battery packs and chargers and store
only in dry rooms. Keep dry at all times.
Battery acid may leak from damaged batteries under
extreme load or extreme temperatures. In case of contact
with battery acid wash it off immediately with soap and
water. In case of eye contact rinse thoroughly for at least 10
minutes and immediately seek medical attention.
SPECIFIED CONDITIONS OF USE
The plane can plane surfaces and rebate, and bevel and
chamfer edges.
Do not use this product in any other way as stated for
normal use.
BATTERIES
New battery packs reach full loading capacity after 4 - 5
chargings and dischargings. Battery packs which have not
been used for some time should be recharged before use.
Temperatures in excess of 50°C (122°F) reduce the
performance of the battery pack. Avoid extended exposure
to heat or sunshine (risk of overheating).
The contacts of chargers and battery packs must be kept
clean.
Use clamps or another practical way to secure and
support the workpiece to a stable platform. Holding the
work by your hand or against the body leaves it unstable and
may lead to loss of control.
ADVICE FOR OPERATION
Never reach into the danger area of the plane when it is
running.
Place the front page of the machine on to the worpiece and
switch on, before the planer blade touches the workpiece
and then guide evenly over the workpiece.
The selv opening swivel guard should be lifted only by the
workpiece or with the lever.
The v-shape notch in the front of the supporting plate
ensures safe chamfering of edges.
When using the grooved planer blades, always use two
blades with a different number of grooves.

14
Do not dispose of electric tools together with
household waste material! In observance of
European Directive 2002/96/EC on waste
electrical and electronic equipment and its
implementation in accordance with national law,
electric tools that have reached the end of their
life must be collected separately and returned to
an environmentally compatible recycling facility.
MAINTENANCE
The ventilation slots of the machine must be kept clear at all
times.
If the shavings discharge is stained with resin, remove it
with a cloth soaked in turpentine substitute.
In order to guarantee constant readiness for operation, the
machine should be checked for worn carbon brushes at one
of the AEG after-sales service agencies.
Use only AEG accessories and spare parts. Should
components need to be replaced which have not been
described, please contact one of our AEG service agents
(see our list of guarantee/service addresses).
If needed, an exploded view of the tool can be ordered.
Please state the Article No. as well as the machine type
printed on the label and order the drawing at your local
service agents or directly at:
SYMBOLS
Please read the instructions carefully before
starting the machine.
Remove the battery pack before starting any
work on the machine.
