AEG A18SRADBL User manual

A18SRADBL
Original instructions

2

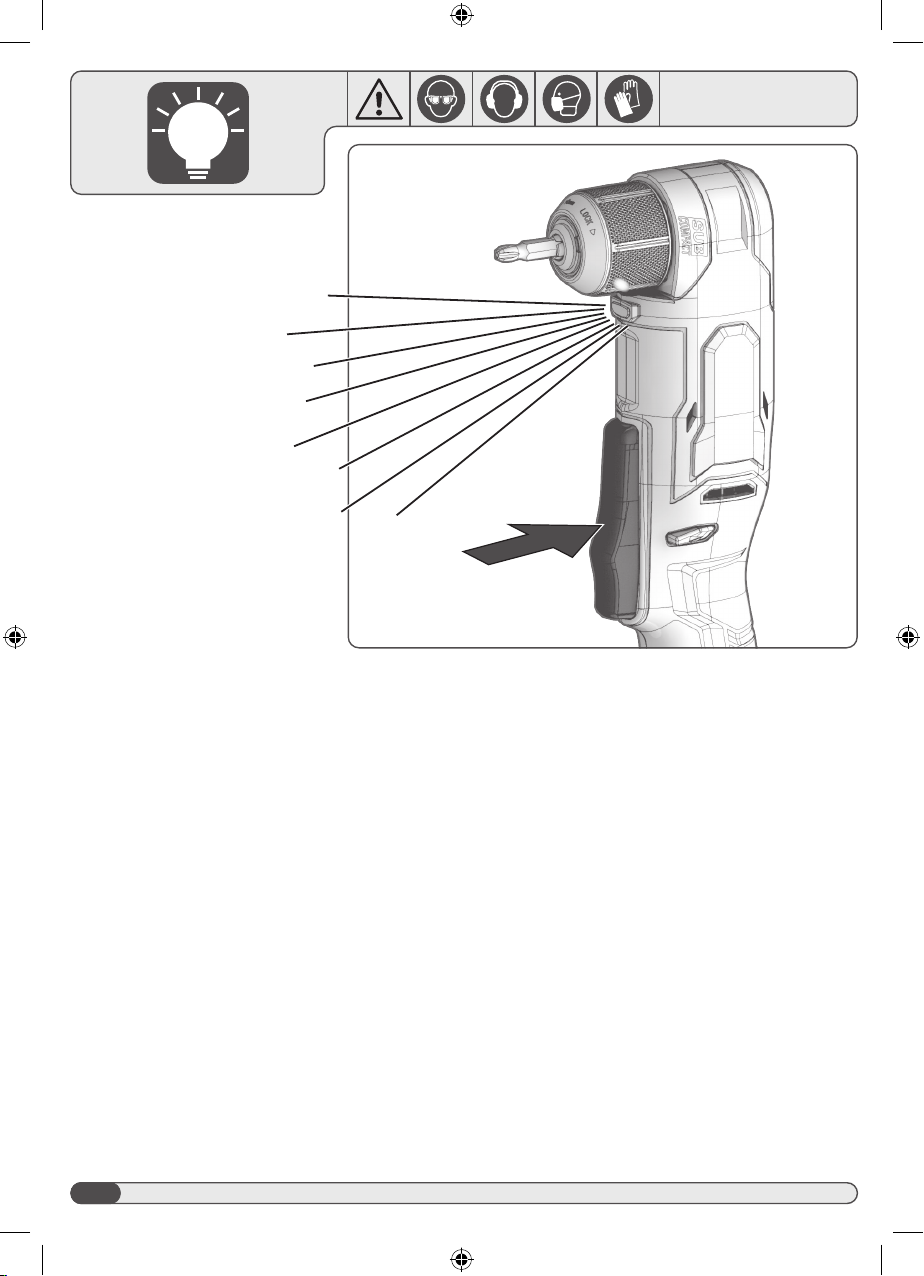

LED light
Gear selector
Direction of rotation
selector
Keyless chuck
Variable speed
switch trigger
Chuck jaws
Handle, insulated
gripping surface

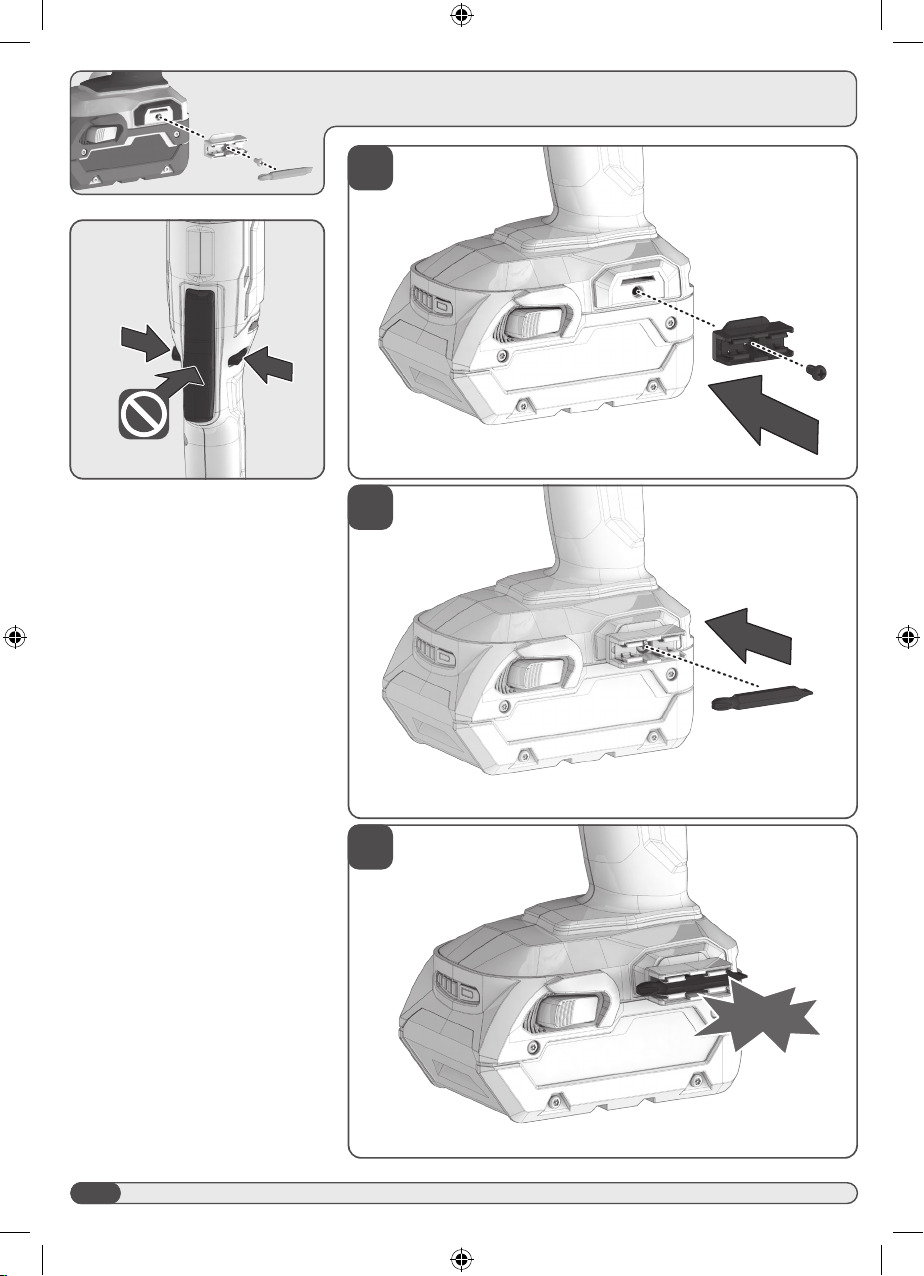

Belt clip / Bit holder
mount screw hole
Belt clip hole
Battery port
Belt clip
Driver bit
Bit holder screw
Bit holder
Bit holder hole
Belt clip screw
Important!
It is essential that you read the instructions in this manual before
assembling, operating and maintaining the product.
Subject to technical modications.

3
LED light
Gear selector
Direction of rotation
selector
Keyless chuck
Variable speed
switch trigger
Chuck jaws
Handle, insulated
gripping surface
Belt clip / Bit holder
mount screw hole
Belt clip hole
Battery port
Belt clip
Driver bit
Bit holder screw
Bit holder
Bit holder hole
Belt clip screw

4

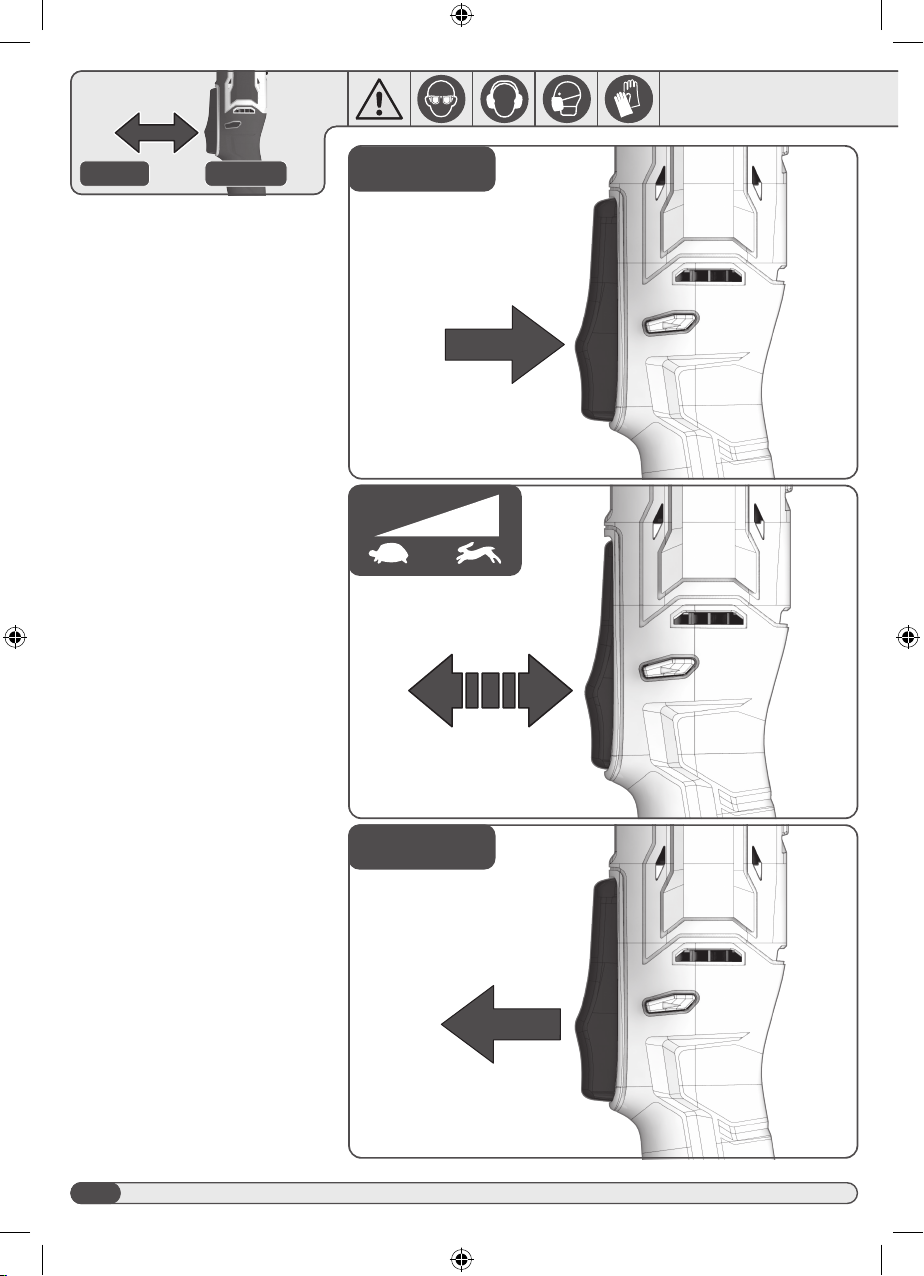

10
START
STOP
6
8
12
13
9
LOW
HIGH
15
14

5
10
START
STOP
6
8
12
13
9
LOW
HIGH
15
14

6
1
2
1
2
click
75-100 %
50-75 %
25-50 %
0-25 %
Remove the battery pack
before starting any work
on the product.

7
1
2
1
2
click
75-100 %
50-75 %
25-50 %
0-25 %

8
2
1
2
1
LOW
HIGH
HIGH
LOW

9
2
1
2
1
LOW
HIGH
HIGH
LOW

10
START
STOP START
STOP

11
START
STOP START
STOP
Handle (insulated gripping surface)

12
LOCK

13
LOCK

14
2
3
1
click

15
2
3
1
click

16
COMPATIBLE BATTERY PACKS (NOT INCLUDED)
L1820R
L1820S
A18FB2
L1825R
L1830R-X5
A18B4
L1840R
A18FB4
L1850R
A18FB5
L1860R
L1860R-X5
L1890R
Use AEG 18V battery and charger only
WARNING! Read all safety warnings, instructions,
illustrations and specications provided with this power tool.
Failure to follow all instructions listed below may result in electric
shock, re and/or serious injury. Save all warnings and instruction
for future reference.
RIGHT ANGLE DRILL SAFETY WARNINGS
Safety instructions for all operations
Hold the power tool by insulated gripping surfaces, when
performing an operation where the cutting accessory or
fasteners may contact hidden wiring. Cutting accessory or
fasteners contacting a “live” wire may make exposed metal parts of
the power tool “live” and could give the operator an electric shock.
Safety instructions when using long drill bits
Never operate at higher speed than the maximum speed rating
of the drill bit. At higher speeds, the bit is likely to bend if allowed
to rotate freely without contacting the workpiece, resulting in
personal injury.
Always start drilling at low speed and with the bit tip in contact
with the workpiece. At higher speeds, the bit is likely to bend if
allowed to rotate freely without contacting the workpiece, resulting in
personal injury.
Apply pressure only in direct line with the bit and do not apply
excessive pressure. Bits can bend causing breakage or loss of
control, resulting in personal injury.
Ambient temperature range for tool during operation is between 0°C
and 40°C.
Ambient temperature range for tool storage is between 0°C and
40°C.
The recommended ambient temperature range for the charging
system during charging is between 10°C and 38°C.
ADDITIONAL SAFETY AND WORKING INSTRUCTIONS
Use protective equipment. Always wear safety glasses when
working with the product. The use of protective clothing is
recommended, such as dust mask, protective gloves, sturdy non-
slip footwear, helmet and ear defenders.
The dust produced when using this product may be harmful to
health. Do not inhale the dust. Wear a suitable dust protection mask.
Do not machine any materials that present a danger to health (e.g.
asbestos).
Do not direct the light beam at persons or animals and do not stare
into the light beam yourself (not even from a distance). Staring into
the light beam may result in serious injury or vision loss.
TECHNICAL DATA A18SRADBL
Type Right angle drill
Drilling capacity in steel 10 mm
Drilling capacity in wood 38 mm
Wood screws (without pre-drilling) 6.5 mm
No-load speed, 1st gear 0-500 min-1
No-load speed, 2nd gear 0-1,900 min-1
Max torque 42.4 Nm
Battery voltage 18 V
Drill chuck range 0.8-10 mm
Weight without battery pack 1.0 kg
Noise/Vibration Information
Measured values determined according to EN 62841
A-weighted sound pressure level (Uncertainty K= 5 dB(A)) LWA = 82.0 dB(A)
A-weighted sound power level (Uncertainty K=5 dB(A)) LpA = 71.0 dB(A)
Wear ear protection.
Total vibration values (vector sum in the three axes) determined according to EN
62841
Drilling into metal ah = 2.5 m/s2
Uncertainty K 1.5 m/s2
WARNING!
The declared vibration total values and the declared noise emission values given in this instruction manual have been measured in
accordance with a standardised test and may be used to compare one tool with another. They may be used for a preliminary assessment of
exposure.
The declared vibration and noise emission values represent the main applications of the tool. However, if the tool is used for di󰀨erent
applications, used with di󰀨erent accessories, or poorly maintained, the vibration and noise emission may di󰀨er. These conditions may
signicantly increase the exposure levels over the total working period.
An estimation of the level of exposure to vibration and noise should take into account the times when the tool is turned o󰀨 or when it is
running idle. These conditions may signicantly reduce the exposure level over the total working period.
Identify additional safety measures to protect the operator from the e󰀨ects of vibration and noise, such as maintaining the tool and the
accessories, keeping the hands warm (in case of vibration), and organising work patterns.

17
The product is not waterproof. Do not submerge in liquid. Failure to
heed this warning could result in serious personal injury.
Switch the product o󰀨 immediately if the accessory stalls! Do
not switch the device on again while the accessory is stalled, as
doing so could trigger a sudden recoil with a high reactive force.
Determine why the accessory stalled and rectify this, paying heed to
the safety instructions.
The possible causes may be:
■it is tilted in the workpiece to be machined
■it has pierced through the material to be machined
■the power product is overloaded
Do not reach into the product while it is running. The accessory may
become hot during use.
WARNING! Danger of burns
■when changing products
■when setting the device down
Chips and splinters must not be removed while the product is
running.
When working in walls ceiling, or oor, take care to avoid electric
cables and gas or waterpipes.
Clamp your workpiece with a clamping device. Unclamped
workpieces can cause severe injury and damage.
Remove the battery pack before starting any work on the product.
Remove battery pack before storing or transporting the product.
Do not dispose of used battery packs in the household refuse or by
burning them. Take them to an appropriate disposal/collection site.
Do not store the battery pack together with metal objects (short
circuit risk).
Use only System AEG chargers for charging System AEG battery
packs. Do not use battery packs from other systems.
Never break open battery packs and chargers and store only in dry
rooms. Keep dry at all times.
Battery acid may leak from damaged batteries under extreme load
or extreme temperatures. In case of contact with battery acid wash
it o󰀨 immediately with soap and water. In case of eye contact rinse
thoroughly for at least 10 minutes and immediately seek medical
attention.
RESIDUAL RISKS
Even when the product is used as prescribed, it is still impossible
to completely eliminate certain residual risk factors. The following
hazards may arise and the operator should pay special attention to
avoid the following:
■Risk of electrocution if electric cables are drilled into
●Always grasp the product by designated handles; do not
touch the drill bits.
■Damage to the respiratory system
●Wear respiratory protection masks containing filters
appropriate to the materials being worked.
●Ensure adequate workplace ventilation.
●Do not eat, drink or smoke in the work area.
■Damage to hearing
●Always wear effective hearing protection and limit exposure
to noise.
■Damage to eyes from flying dust and debris particles
●Always wear suitable eye protection.
■ Injury caused by vibration
●Hold the product by designated handles; limit exposure to
vibration. See “risk reduction”.
RISK REDUCTION
It has been reported that vibrations from handheld products may
contribute to a condition called Raynaud’s Syndrome in certain
individuals. Symptoms may include tingling, numbness and
blanching of the ngers, usually apparent upon exposure to cold.
Hereditary factors, exposure to cold and dampness, diet, smoking
and work practices are all thought to contribute to the development
of these symptoms. There are measures that can be taken by the
operator to possibly reduce the e󰀨ects of vibration:
■Keep your body warm in cold weather. When operating the unit
wear gloves to keep the hands and wrists warm. It is reported
that cold weather is a major factor contributing to Raynaud’s
Syndrome.
■After each period of operation, exercise to increase blood
circulation.
■Take frequent work breaks. Limit the amount of exposure per
day.
If you experience any of the symptoms of this condition, immediately
discontinue use and see your doctor about these symptoms.
WARNING! Injuries may be caused or aggravated by prolonged
use of a product. When using any product for prolonged periods,
ensure you take regular breaks.
SPECIFIED CONDITIONS OF USE
The cordless right angle drill is intended for drilling into various
materials, including wood, metal, and plastics using a drill bit having
a shank diameter of less than 10 mm. The product can be used to
drive and remove screws and bolts using an appropriate bit.
Do not use the product for any other purpose not described above.
BATTERIES
Battery packs which have not been used for some time should be
recharged before use.
Temperatures in excess of 50°C (122°F) reduce the performance of
the battery pack. Avoid extended exposure to heat or sunshine (risk
of overheating).
The contacts of chargers and battery packs must be kept clean.
For an optimum life-time, the battery packs have to be fully charged,
after used.
To obtain the longest possible battery life remove the battery pack
from the charger once it is fully charged.
For battery pack storage longer than 30 days:
• Store the battery pack where the temperature is below 27°C
and away from moisture.
• Store the battery packs in a 30% - 50% charged condition.
• Every six months of storage, charge the pack as normal.
ADDITIONAL BATTERY SAFETY WARNINGS
WARNING! To reduce the risk of re, personal injury, and
product damage due to a short circuit, never immerse your product,
battery pack or charger in uid or allow a uid to ow inside them.
Corrosive or conductive uids, such as seawater, certain industrial
chemicals, and bleach or bleach containing products, etc., can
cause a short circuit.
Ambient temperature range for battery during use is between 0°C
and 40°C.
Ambient temperature range for battery storage is between 0°C and
27°C.
TRANSPORTING LITHIUM BATTERIES
Lithium-ion batteries are subject to the Dangerous Goods
Legislation requirements.
Transportation of those batteries has to be done in accordance with
local, national and international provisions and regulations.
■The user can transport the batteries by road without further
requirements.
■ Commercial transport of Lithium-Ion batteries by third parties is
subject to Dangerous Goods regulations. Transport preparation
and transport are exclusively to be carried out by appropriately.
trained persons and the process has to be accompanied by
corresponding experts.

18
When transporting batteries:
■Ensure that battery contact terminals are protected and
insulated to prevent short circuit.
■Ensure that battery pack is secured against movement within
packaging.
■Do not transport batteries that are cracked or leak.
Check with forwarding company for further advice.
BATTERY PACK PROTECTION
The battery pack has overload protection that protects it from being
overloaded and helps to ensure long life. Under extreme stress the
battery electronics switch o󰀨 the product automatically. To restart,
switch the product o󰀨 and then on again. If the product does not
start up again, the battery pack may have discharged completely. In
this case it must be recharged in the battery charger.
MAINTENANCE
The ventilation slots of the product must be kept clear at all times.
Use only AEG accessories and AEG spare parts. Should
components need to be replaced which have not been described,
please contact one of our AEG service agents (see our list of
guarantee/service addresses).
If needed, an exploded view of the product can be ordered. Please
state the Article No. as well as the product type printed on the label
and order the drawing at your local service agents or directly at:
WARNING! Avoid using solvents when cleaning plastic parts.
Most plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use. Use clean
cloths to remove dirt, dust, oil, grease, etc.
WARNING! Do not at any time let brake uids, gasoline,
petroleum-based products, penetrating oils, etc., come in contact
with plastic parts. Chemicals can damage, weaken or destroy plastic
which could result in serious personal injury.
Techtronic Industries Australia Pty Ltd
PO Box 1065
Mount Waverley VIC 3149
Tel. no. 1300 234 797
Australia
Techtronic Industries N.Z. Limited
PO Box 12-806
Penrose AUCKLAND 1642
Tel. no. 0800 234 797 (0800 AEGPWR)
New Zealand
SYMBOLS
Read the instructions carefully before starting the
product.
CAUTION! WARNING! DANGER!
Remove the battery pack before starting any work on
the product.
Wear eye protection.
Wear ear protectors.
Wear a suitable dust protection mask.
Wear protective gloves.
Accessory - Not included in standard equipment,
available as an accessory.
Do not dispose of electric tools, batteries/rechargeable
batteries together with household waste material.
Electric tools and batteries that have reached the end
of their life must be collected separately and returned
to an environmentally compatible recycling facility.
Check with your local authority or retailer for recycling
advice and collection point.
No-load speed
V
Volts
min-1
Revolutions or reciprocations per minute
Direct current
Regulatory Compliance Mark (RCM). Product meets
applicable regulatory requirements.

Techtronic Industries Australia Pty Ltd
31 Gilby Road, Mount Waverley,
VIC, 3149, Australia
Techtronic Industries N.Z. Limited
Unit C, 70 Business Parade South,
Highbrook, Auckland 2013, New Zealand
www.aegpowertools.com.au
www.aegpowertools.co.nz
AEG is a registered trade mark used under
license from AB Electrolux (publ).
961096808-01A
