AEG A18FIWMTF12 User manual

A18FIWMTF12
Original instructions

2
Important!
It is essential that you read the instructions in this manual before
assembling, operating and maintaining the product.
Subject to technical modications.

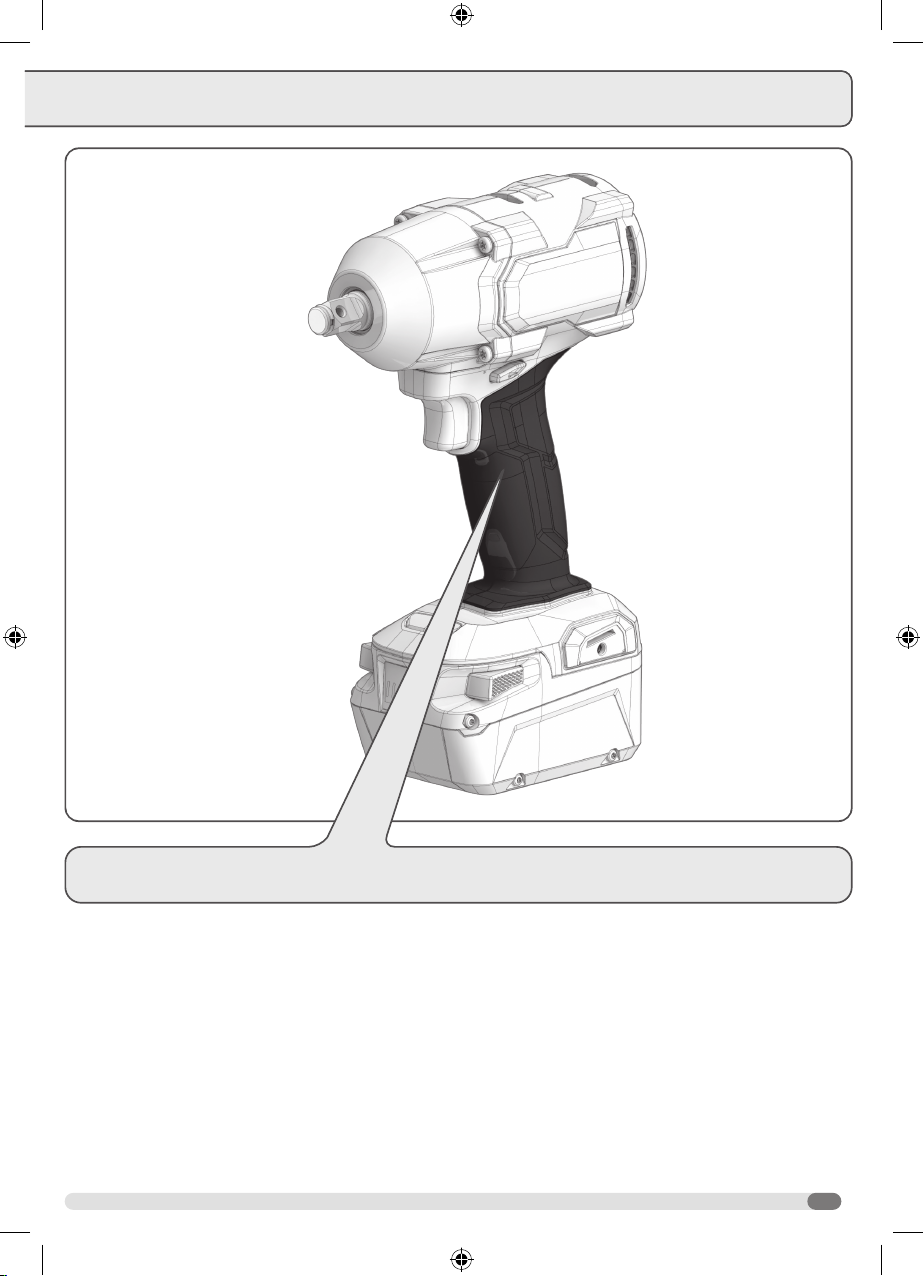

Anvil
Direction of
rotation selector
Variable speed
switch trigger
Handle, insulated
gripping surface
LED light
Belt clip mount
screw hole
Belt clip
Socket
O-ring
Belt clip screw
Pin

3
Anvil
Direction of
rotation selector
Variable speed
switch trigger
Handle, insulated
gripping surface
LED light
Belt clip mount
screw hole
Belt clip
Socket
O-ring
Belt clip screw
Pin

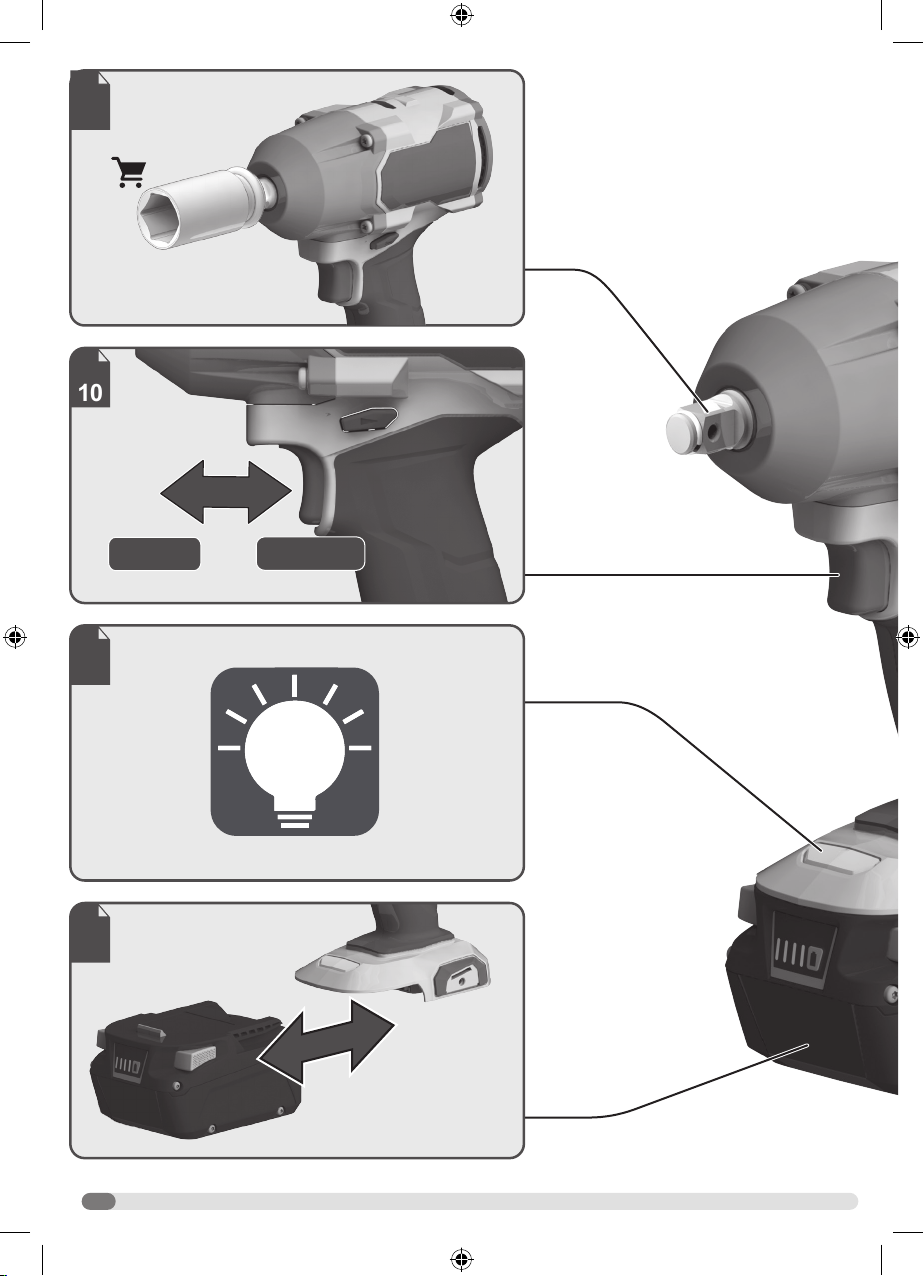

4

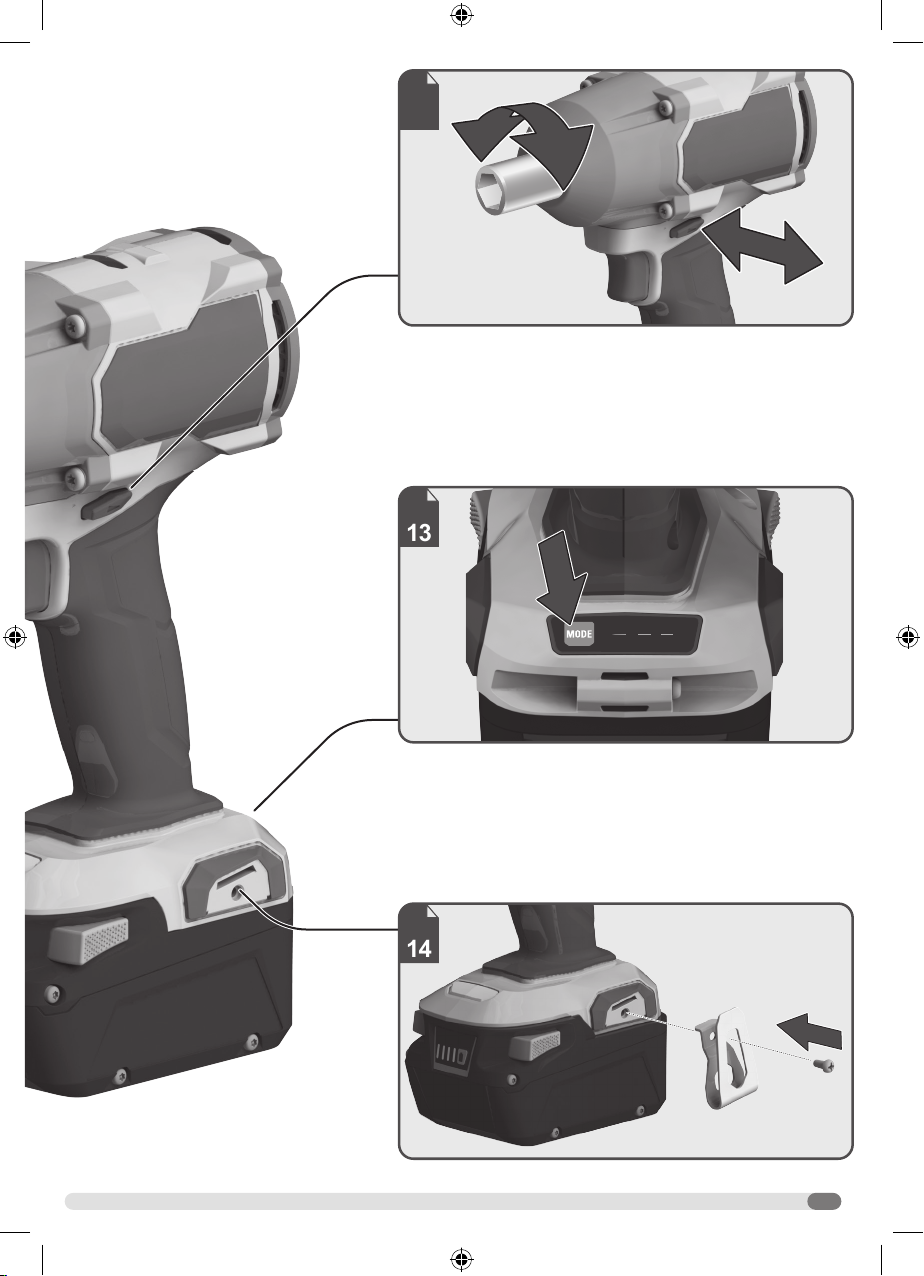

6
14
9
12
10
STOP START
8
13
1 2 3 A

5
6
14
9
12
10
STOP START
8
13
1 2 3 A

6
1
1
1
1
1
2
1
2
click
75-100 %
50-75 %
25-50 %
0-25 %

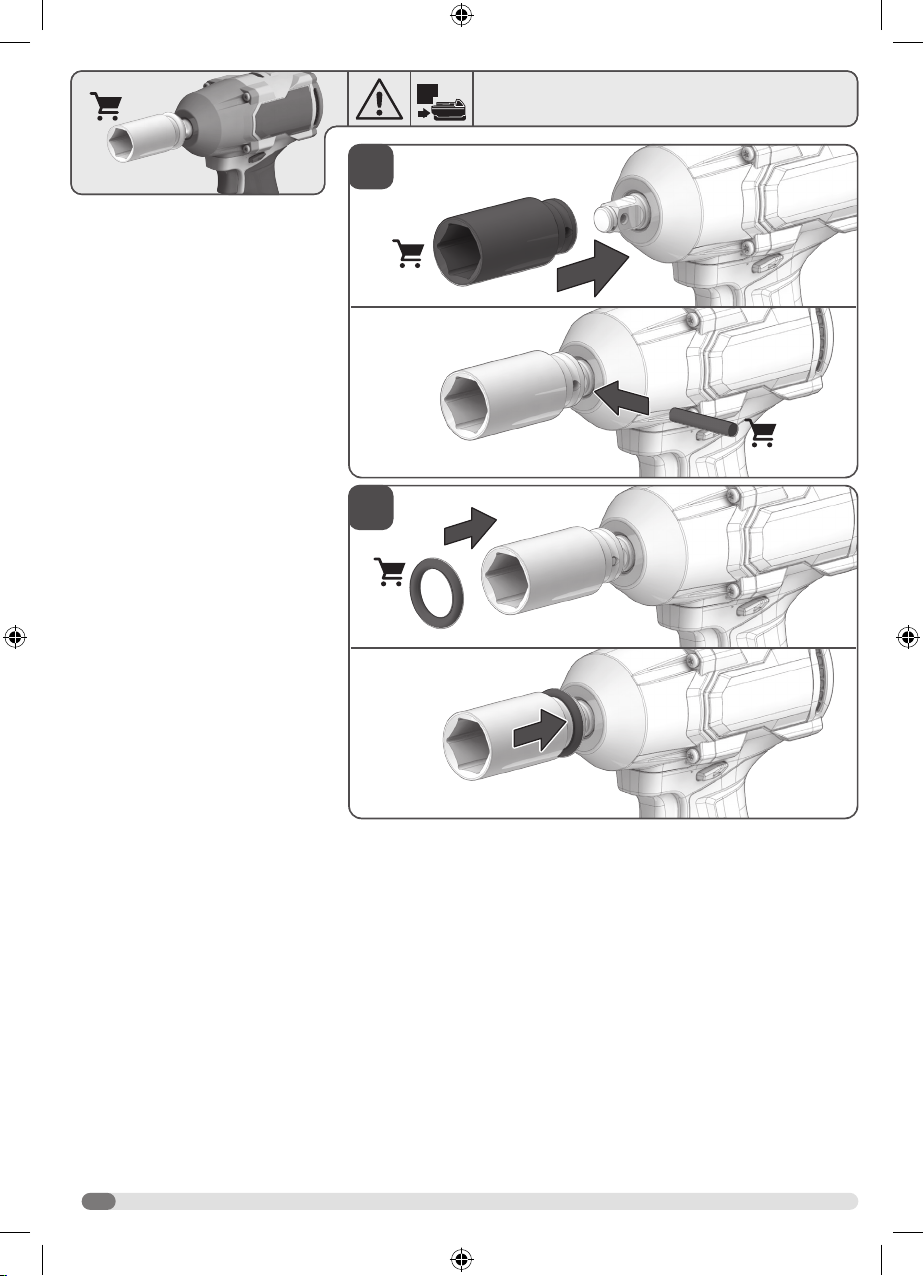

Remove the battery pack
before starting any work
on the product.

7
1
1
1
1
1
2
1
2
click
75-100 %
50-75 %
25-50 %
0-25 %

8
1
1
1
1
LOCK
1
2

9
1
1
1
1
LOCK
1
2

10
1
STOP
START

11
1
STOP
START
Handle (insulated gripping surface)

12
1 2 3 A
1 2 3 A

13
1 2 3 A
1 2 3 A
1 = 0-1400 min-1
2 = 0-2000 min-1
3 = 0-2800 min-1
A = 0-2000 min-1
The “A” function is designed to give the user greater control in application
and reduce damage to the fastener or work surface by automatically shutting
the tool o󰀨 after the tool senses the mechanism impacting for approximately
one second.

14

15
TECHNICAL DATA A18FIWMTF12
Type Cordless impact wrench
No-load speed
Speed 1 0-1400 min-1
Speed 2 0-2000 min-1
Speed 3 0-2800 min-1
A mode 0-2000 min-1
Impact rate (Speed 3) 3800 min-1
Breakaway torque 1100 Nm
Max. fastening torque
Speed 1 260 Nm
Speed 2 350 Nm
Speed 3 850 Nm
A mode
90 Nm
Max. capacities for high tensile bolt M10-M16
Max. capacities for standard bolt M10-M18
Battery voltage 18 V
Weight without battery pack 1.67 kg
Noise Information
Measured values determined according to EN 62841. Typically, the A-weighted noise
levels of the tool are:
Sound pressure level / Uncertainty
Sound power level / Uncertainty
Wear ear protection!
LpA=99.0 dB (A) / KpA=3 dB(A)
LWA=110.0 dB (A) / KWA=3 dB(A)
Vibration Information
Vibration total values (triaxial vector sum) determined according to EN 62841.
Vibration emission value / Uncertainty
Impact tightening of fasteners of the maximum capacity of the tool ah=16.7 m/s2 / K=1.5 m/s2
WARNING!
The declared vibration total values and the declared noise emission values given in this instruction manual have been measured in
accordance with a standardised test and may be used to compare one tool with another. They may be used for a preliminary assessment of
exposure.
The declared vibration and noise emission values represent the main applications of the tool. However, if the tool is used for di󰀨erent
applications, used with di󰀨erent accessories, or poorly maintained, the vibration and noise emission may di󰀨er. These conditions may
signicantly increase the exposure levels over the total working period.
An estimation of the level of exposure to vibration and noise should take into account the times when the tool is turned o󰀨 or when it is
running idle. These conditions may signicantly reduce the exposure level over the total working period.
Identify additional safety measures to protect the operator from the e󰀨ects of vibration and noise, such as maintaining the tool and the
accessories, keeping the hands warm (in case of vibration), and organising work patterns.

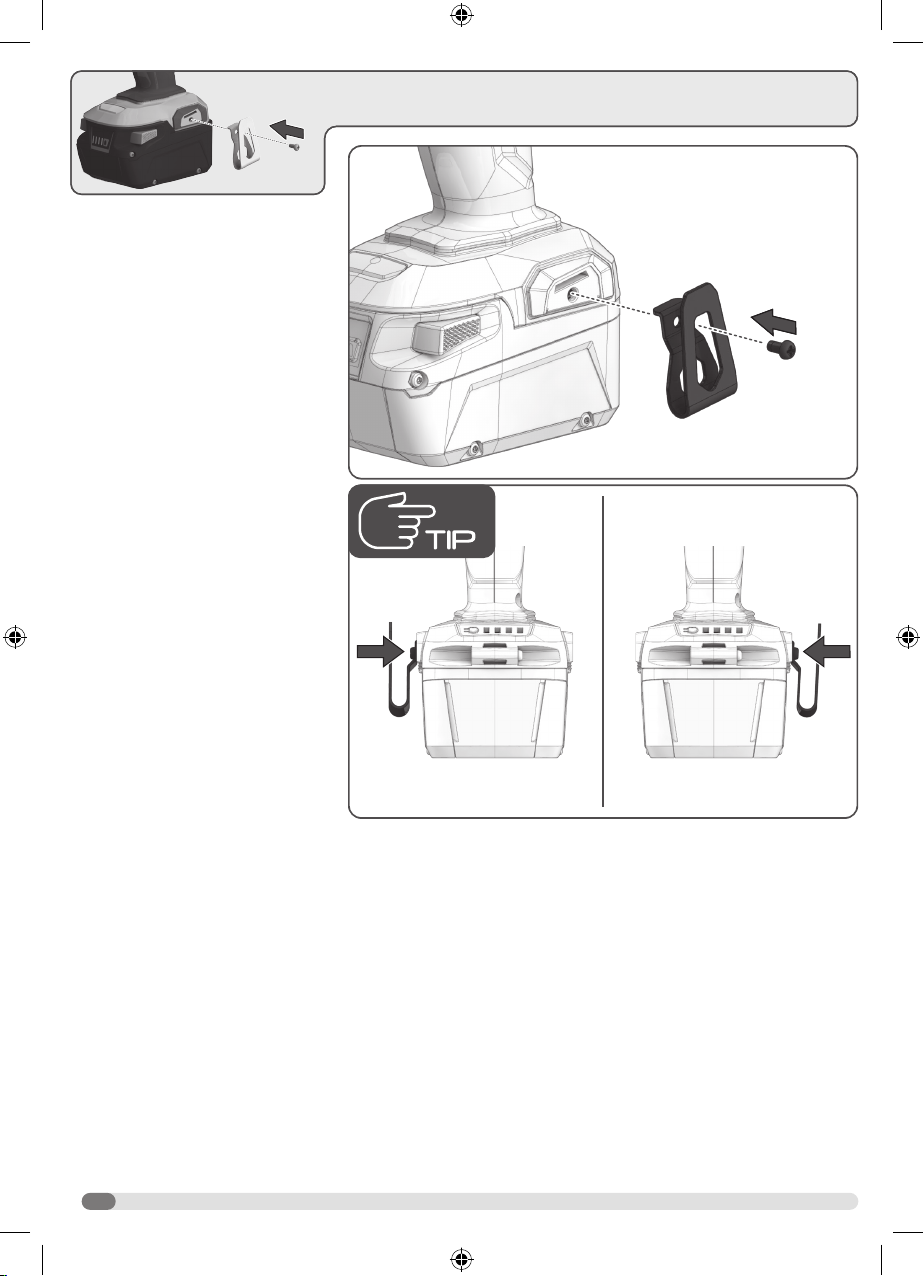

16
COMPATIBLE BATTERY PACKS (NOT INCLUDED)
L1820R
L1820S
A18FB2
L1825R
L1830R-X5
A18B4
L1840R
A18FB4
L1850R
A18FB5
A18OB6
L1860R
L1860R-X5
L1890R
Use AEG 18V battery and charger only
WARNING! Read all safety warnings, instructions,
illustrations and specications provided with this power tool.
Failure to follow all instructions listed below may result in electric
shock, re, and/or serious injury. Save all warnings and instruction
for future reference.
IMPACT WRENCH SAFETY WARNINGS
Hold the power tool by insulated gripping surfaces, when
performing an operation where the fastener may contact hidden
wiring. Fasteners contacting a “live” wire may make exposed metal
parts of the power tool “live” and could give the operator an electric
shock.
ADDITIONAL SAFETY AND WORKING INSTRUCTIONS
Clamp the workpiece with a clamping device. Unclamped
workpieces can cause severe injury and damage.
The product will restart automatically if stalled. Turn o󰀨 the product
immediately if it stalls. Do not turn on the product again while it is
still stalled, as doing so could trigger a sudden recoil with a high
reactive force. Determine why the product stalled and rectify this,
paying heed to the safety instructions.
The dust produced when using the product may be harmful to
health. Do not inhale the dust. Wear a suitable dust protection mask.
Remove the battery pack before starting any work on the product.
SPECIFIED CONDITIONS OF USE
The product is intended for fastening and loosening bolts and nuts.
Do not use the product for any other purpose.
ADDITIONAL BATTERY SAFETY WARNINGS
WARNING! To reduce the risk of re, personal injury, and
product damage due to a short circuit, never immerse your tool,
battery pack, or charger in uid or allow uid to ow inside them.
Corrosive or conductive uids, such as seawater, certain industrial
chemicals, and bleach or bleach containing products, etc., can
cause a short circuit.
Do not dispose of used battery packs in the household refuse or
by burning them. AEG distributors o󰀨er to retrieve old batteries to
protect our environment.
Use only AEG chargers for charging AEG battery packs. Do not use
battery packs from other systems.
Never break open battery packs and chargers, and store them only
in dry rooms. Keep battery packs and chargers dry at all times.
Battery packs that have not been used for some time should be
recharged before use.
Temperatures in excess of 50°C (122°F) reduce the performance of
the battery pack. Avoid extended exposure to heat or sunshine (risk
of overheating).
The contacts of chargers and battery packs must be kept clean.
For an optimum life-time, the battery packs have to be fully charged
after use.
To obtain the longest possible battery life, remove the battery pack
from the charger once it is fully charged.
For battery pack storage longer than 30 days:
• Store the battery pack where the temperature is below 27°C and
away from moisture.
• Store the battery packs in a 30% - 50% charged condition.
• Every six months of storage, charge the pack as normal.
BATTERY PACK PROTECTION
The battery pack has overload protection that protects it from being
overloaded and helps to ensure long life.
Under extreme stress, the battery electronics turn o󰀨 the product
automatically. To restart, turn the product o󰀨 and then on again.
If the product does not start up again, the battery pack may have
discharged completely. Recharge the battery pack.
TRANSPORTING LITHIUM BATTERIES
Lithium-ion batteries are subject to the Dangerous Goods
Legislation requirements.
Transportation of those batteries has to be done in accordance with
local, national, and international provisions and regulations.
• Batteries can be transported by road without further requirement.
• Commercial transport of lithium-ion batteries by third parties is
subject to Dangerous Goods Regulations. Transport preparation
and transport are exclusively to be carried out by appropriately
trained persons and the process has to be accompanied by
corresponding experts.
When transporting batteries:
• Ensure that the battery contact terminals are protected and
insulated to prevent short circuit.
• Ensure that the battery pack is secured against movement within
the packaging.
• Do not transport batteries that are cracked or leaking.
Check with the forwarding company for further advice.
MAINTENANCE
The ventilation slots of the product must be kept clear at all times.
Avoid using solvents when cleaning plastic parts. Most plastics are
susceptible to various types of commercial solvents and may be
damaged by their use. Use clean cloths to remove dirt, carbon dust,
etc.
Use only AEG accessories and AEG spare parts. Should
components need to be replaced which have not been described,
please contact one of our AEG service agents (see our list of
guarantee/service addresses).
If needed, an exploded view of the tool can be ordered. Please state
the Article No. as well as the product type printed on the label and
order the drawing at your local service agents or directly at:
Techtronic Industries Australia Pty Ltd
PO Box 1065
Mount Waverley VIC 3149
Tel. no. 1300 234 797
Australia
Techtronic Industries N.Z. Limited
PO Box 12-806
Penrose AUCKLAND 1642
Tel. no. 0800 234 797(0800 AEGPWR)
New Zealand
SYMBOLS
Read the instructions carefully before starting the
product.
CAUTION! WARNING! DANGER!
Remove the battery pack before starting any work on
the product.
Accessory - Not included in standard equipment,
available as an accessory.
Wear eye protection.

17
Under extreme stress, the battery electronics turn o󰀨 the product
automatically. To restart, turn the product o󰀨 and then on again.
If the product does not start up again, the battery pack may have
discharged completely. Recharge the battery pack.
TRANSPORTING LITHIUM BATTERIES
Lithium-ion batteries are subject to the Dangerous Goods
Legislation requirements.
Transportation of those batteries has to be done in accordance with
local, national, and international provisions and regulations.
• Batteries can be transported by road without further requirement.
• Commercial transport of lithium-ion batteries by third parties is
subject to Dangerous Goods Regulations. Transport preparation
and transport are exclusively to be carried out by appropriately
trained persons and the process has to be accompanied by
corresponding experts.
When transporting batteries:
• Ensure that the battery contact terminals are protected and
insulated to prevent short circuit.
• Ensure that the battery pack is secured against movement within
the packaging.
• Do not transport batteries that are cracked or leaking.
Check with the forwarding company for further advice.
MAINTENANCE
The ventilation slots of the product must be kept clear at all times.
Avoid using solvents when cleaning plastic parts. Most plastics are
susceptible to various types of commercial solvents and may be
damaged by their use. Use clean cloths to remove dirt, carbon dust,
etc.
Use only AEG accessories and AEG spare parts. Should
components need to be replaced which have not been described,
please contact one of our AEG service agents (see our list of
guarantee/service addresses).
If needed, an exploded view of the tool can be ordered. Please state
the Article No. as well as the product type printed on the label and
order the drawing at your local service agents or directly at:
Techtronic Industries Australia Pty Ltd
PO Box 1065
Mount Waverley VIC 3149
Tel. no. 1300 234 797
Australia
Techtronic Industries N.Z. Limited
PO Box 12-806
Penrose AUCKLAND 1642
Tel. no. 0800 234 797(0800 AEGPWR)
New Zealand
SYMBOLS
Read the instructions carefully before starting the
product.
CAUTION! WARNING! DANGER!
Remove the battery pack before starting any work on
the product.
Accessory - Not included in standard equipment,
available as an accessory.
Wear eye protection.
Wear protective gloves.
To reduce the risk of injury or damage, avoid contact
with any hot surface.
Do not dispose of waste batteries, waste electrical and
electronic equipment as unsorted municipal waste.
Waste batteries and waste electrical and electronic
equipment must be collected separately. Waste
batteries, waste accumulators, and light sources have to
be removed from the equipment. Check with your local
authority or retailer for recycling advice and collection
point. According to local regulations, retailers may have
an obligation to take back waste batteries and waste
electrical and electronic equipment free of charge.
Your contribution to the reuse and recycling of waste
batteries and waste electrical and electronic equipment
helps to reduce the demand of raw materials. Waste
batteries, in particular containing lithium, and waste
electrical and electronic equipment contain valuable
and recyclable materials, which can adversely impact
the environment and the human health if not disposed
of in an environmentally compatible manner. Delete
personal data from waste equipment, if any.
No-load speed
V
Volts
Direct current
Regulatory Compliance Mark (RCM). Product meets
applicable regulatory requirements.

(04.22)
961096814-02A
Techtronic Industries Australia Pty Ltd
31 Gilby Road, Mount Waverley,
VIC, 3149, Australia
Techtronic Industries N.Z. Limited
Unit C, 70 Business Parade South,
Highbrook, Auckland 2013, New Zealand
www.aegpowertools.com.au
www.aegpowertools.co.nz
961096877-02A
