AEG KPE742280M User manual

USER
MANUAL
EN User Manual
Oven
KPE742280M

FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you impeccable
performance for many years, with innovative technologies that help make life simpler – features
you might not find on ordinary appliances. Please spend a few minutes reading to get the very
best from it.
Visit our website to:
Get usage advice, brochures, trouble shooter, service and repair information:
www.aeg.com/support
Register your product for better service:
www.registeraeg.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.aeg.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following data
available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
CONTENTS
1. SAFETY INFORMATION............................. 3
1.1 Children and vulnerable people
safety..................................................... 3
1.2 General Safety.................................4
2. SAFETY INSTRUCTIONS........................... 5
2.1 Installation........................................5
2.2 Electrical connection........................6
2.3 Use.................................................. 7
2.4 Care and cleaning............................7
2.5 Pyrolytic cleaning.............................8
2.6 Internal lighting................................ 8
2.7 Service.............................................8
2.8 Disposal........................................... 9
3. PRODUCT DESCRIPTION.......................... 9
3.1 General overview.............................9
3.2 Accessories..................................... 9
4. HOW TO TURN OVEN ON AND OFF....... 10
4.1 Control panel................................. 10
4.2 Display........................................... 11
5. BEFORE FIRST USE.................................12
5.1 Initial Cleaning .............................. 12
5.2 First connection............................. 12
6. DAILY USE................................................ 12
6.1 How to set: Heating functions........ 13
6.2 How to set: Assisted Cooking........ 13
6.3 Heating functions........................... 14
6.4 Notes on: Moist Fan Baking...........16
7. CLOCK FUNCTIONS.................................16
7.1 Clock functions description............ 16
7.2 How to set: Clock functions........... 16
8. HOW TO USE: ACCESSORIES................ 18
8.1 Inserting accessories..................... 18
8.2 Food Sensor.................................. 19
9. ADDITIONAL FUNCTIONS....................... 21
9.1 How to save: Favourites................ 21
9.2 Function lock..................................22
9.3 Automatic switch-off.......................22
2/40

9.4 Cooling fan.....................................22
10. HINTS AND TIPS..................................... 23
10.1 Cooking recommendations.......... 23
10.2 Moist Fan Baking......................... 23
10.3 Moist Fan Baking -
recommended accessories..................24
10.4 Cooking tables for test institutes..24
11. CARE AND CLEANING...........................25
11.1 Notes on cleaning........................ 25
11.2 How to remove: Shelf supports ...25
11.3 How to use: Pyrolytic Cleaning.... 26
11.4 Cleaning Reminder...................... 27
11.5 How to remove and install: Door..27
11.6 How to replace: Lamp..................28
12. TROUBLESHOOTING............................. 29
12.1 What to do if.................................29
12.2 How to manage: Error codes....... 30
12.3 Service data.................................30
13. ENERGY EFFICIENCY............................ 30
13.1 Product Information and Product
Information Sheet*............................... 30
13.2 Energy saving.............................. 31
14. MENU STRUCTURE................................32
14.1 Menu............................................32
14.2 Submenu for: Cleaning................ 32
14.3 Submenu for: Options..................33
14.4 Submenu for: Setup.....................33
14.5 Submenu for: Service.................. 34
15. IT'S EASY!............................................... 34
16. TAKE A SHORTCUT!.............................. 35
17. ENVIRONMENTAL CONCERNS.............36
Subject to change without notice.
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible
for any injuries or damage that are the result of incorrect
installation or usage. Always keep the instructions in a safe
and accessible location for future reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
the use of the appliance in a safe way and understand the
hazards involved. Children of less than 8 years of age and
persons with very extensive and complex disabilities shall
be kept away from the appliance unless continuously
supervised.
•Children should be supervised to ensure that they do not
play with the appliance.
3/40
SAFETY INFORMATION

•Keep all packaging away from children and dispose of it
appropriately.
•WARNING: The appliance and its accessible parts become
hot during use. Keep children and pets away from the
appliance when in use and when cooling down.
•If the appliance has a child safety device, it should be
activated.
•Children shall not carry out cleaning and user maintenance
of the appliance without supervision.
1.2 General Safety
•This appliance is for cooking purposes only.
•This appliance is designed for single household domestic
use in an indoor environment.
•This appliance may be used in, offices, hotel guest rooms,
bed & breakfast guest rooms, farm guest houses and other
similar accommodation where such use does not exceed
(average) domestic usage levels.
•Only a qualified person must install this appliance and
replace the cable.
•Do not use the appliance before installing it in the built-in
structure.
•Disconnect the appliance from the power supply before
carrying out any maintenance.
•If the mains power supply cable is damaged, it must be
replaced by the manufacturer, its Authorised Service Centre
or similarly qualified persons to avoid an electrical hazard.
•WARNING: Ensure that the appliance is switched off before
replacing the lamp to avoid the possibility of electric shock.
•WARNING: The appliance and its accessible parts become
hot during use. Care should be taken to avoid touching
heating elements.
•Always use oven gloves to remove or insert accessories or
ovenware.
4/40
SAFETY INFORMATION

•Use only the food sensor (core temperature sensor)
recommended for this appliance.
•To remove the shelf supports first pull the front of the shelf
support and then the rear end away from the side walls.
Install the shelf supports in the opposite sequence.
•Do not use a steam cleaner to clean the appliance.
•Do not use harsh abrasive cleaners or sharp metal scrapers
to clean the glass door since they can scratch the surface,
which may result in shattering of the glass.
•Before pyrolytic cleaning, remove all accessories and
excessive deposits/spills from the oven cavity.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must install this appliance.
• Remove all the packaging.
• Do not install or use a damaged appliance.
• Follow the installation instructions supplied with the appliance.
• Always take care when moving the appliance as it is heavy. Always use safety gloves and
enclosed footwear.
• Do not pull the appliance by the handle.
• Install the appliance in a safe and suitable place that meets installation requirements.
• Keep the minimum distance from other appliances and units.
• Before mounting the appliance, check if the oven door opens without restraint.
• The appliance is equipped with an electric cooling system. It must be operated with the
electric power supply.
• The built-in unit must meet the stability requirements of DIN 68930.
Cabinet minimum height (Cabinet under the work‐
top minimum height)
444 (460) mm
Cabinet width 560 mm
Cabinet depth 550 (550) mm
Height of the front of the appliance 455 mm
Height of the back of the appliance 440 mm
5/40
SAFETY INSTRUCTIONS

Width of the front of the appliance 595 mm
Width of the back of the appliance 559 mm
Depth of the appliance 567 mm
Built in depth of the appliance 546 mm
Depth with open door 882 mm
Ventilation opening minimum size. Opening placed
on the bottom rear side
560x20 mm
Mains supply cable length. Cable is placed in the
right corner of the back side
1500 mm
Mounting screws 3.5x25 mm
2.2 Electrical connection
WARNING!
Risk of fire and electric shock.
• All electrical connections should be made by a qualified electrician.
• The appliance must be earthed.
• Make sure that the parameters on the rating plate are compatible with the electrical ratings
of the mains power supply.
• Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug and to the mains cable. Should the mains
cable need to be replaced, this must be carried out by our Authorised Service Centre.
• Do not let mains cables touch or come near the appliance door or the niche below the
appliance, especially when it operates or the door is hot.
• The shock protection of live and insulated parts must be fastened in such a way that it
cannot be removed without tools.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure
that there is access to the mains plug after the installation.
• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed
from the holder), earth leakage trips and contactors.
• The electrical installation must have an isolation device which lets you disconnect the
appliance from the mains at all poles. The isolation device must have a contact opening
width of minimum 3 mm.
• Fully close the appliance door before you connect the mains plug to the mains socket.
• This appliance is supplied with a main plug and a main cable.
6/40
SAFETY INSTRUCTIONS

2.3 Use
WARNING!
Risk of injury, burns and electric shock or explosion.
• Do not change the specification of this appliance.
• Make sure that the ventilation openings are not blocked.
• Do not let the appliance stay unattended during operation.
• Deactivate the appliance after each use.
• Be careful when you open the appliance door while the appliance is in operation. Hot air can
release.
• Do not operate the appliance with wet hands or when it has contact with water.
• Do not apply pressure on the open door.
• Do not use the appliance as a work surface or as a storage surface.
• Open the appliance door carefully. The use of ingredients with alcohol can cause a mixture
of alcohol and air.
• Do not let sparks or open flames to come in contact with the appliance when you open the
door.
• Do not put flammable products or items that are wet with flammable products in, near or on
the appliance.
WARNING!
Risk of damage to the appliance.
• To prevent damage or discoloration to the enamel:
– do not put ovenware or other objects in the appliance directly on the bottom.
– do not put aluminium foil directly on the bottom of cavity of the appliance.
– do not put water directly into the hot appliance.
– do not keep moist dishes and food in the appliance after you finish the cooking.
– be careful when you remove or install the accessories.
• Discoloration of the enamel or stainless steel has no effect on the performance of the
appliance.
• Use a deep pan for moist cakes. Fruit juices cause stains that can be permanent.
• Always cook with the appliance door closed.
• If the appliance is installed behind a furniture panel (e.g. a door) make sure the door is never
closed when the appliance operates. Heat and moisture can build up behind a closed
furniture panel and cause subsequent damage to the appliance, the housing unit or the floor.
Do not close the furniture panel until the appliance has cooled down completely after use.
2.4 Care and cleaning
WARNING!
Risk of injury, fire, or damage to the appliance.
• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains
socket.
• Make sure the appliance is cold. There is the risk that the glass panels can break.
• Replace immediately the door glass panels when they are damaged. Contact the Authorised
Service Centre.
• Be careful when you remove the door from the appliance. The door is heavy!
• Clean regularly the appliance to prevent the deterioration of the surface material.
7/40
SAFETY INSTRUCTIONS

• Clean the appliance with a moist soft cloth. Use only neutral detergents. Do not use abrasive
products, abrasive cleaning pads, solvents or metal objects.
• If you use an oven spray, follow the safety instructions on its packaging.
2.5 Pyrolytic cleaning
WARNING!
Risk of Injury / Fires / Chemical Emissions (Fumes) in Pyrolytic Mode.
• Before carrying out a Pyrolitic self-cleaning function or the First Use please remove from the
oven cavity:
– any excess food residues, oil or grease spills / deposits.
– any removable objects (including shelves, side rails etc., provided with the product)
particularly any non-stick pots, pans, trays, utensils etc.
• Read carefully all the instructions for Pyrolytic cleaning.
• Keep children away from the appliance while the Pyrolytic cleaning operates.
The appliance becomes very hot and hot air is released from the front cooling vents.
• Pyrolytic cleaning is a high temperature operation that can release fumes from cooking
residues and construction materials, as such consumers are strongly advised to:
– provide good ventilation during and after each Pyrolytic cleaning.
– provide good ventilation during and after the first use at maximum temperature
operation.
• Unlike all humans, some birds and reptiles can be extremely sensitive to potential fumes
emitted during the cleaning process of all Pyrolytic Ovens.
– Remove any pets (especially birds) from the vicinity of the appliance location during and
after the Pyrolytic cleaning and first use maximum temperature operation to a well
ventilated area.
• Small pets can also be highly sensitive to the localized temperature changes in the vicinity of
all Pyrolytic Ovens when the Pyrolytic self cleaning program is in operation.
• Non-stick surfaces on pots, pans, trays, utensils etc., can be damaged by the high
temperature Pyrolytic cleaning operation of all Pyrolytic Ovens and can be also a source for
low level harmful fumes.
• Fumes released from all Pyrolytic Ovens / Cooking Residues as described are not harmful to
humans, including children, or persons with medical conditions.
2.6 Internal lighting
WARNING!
Risk of electric shock.
• Concerning the lamp(s) inside this product and spare part lamps sold separately: These
lamps are intended to withstand extreme physical conditions in household appliances, such
as temperature, vibration, humidity, or are intended to signal information about the
operational status of the appliance. They are not intended to be used in other applications
and are not suitable for household room illumination.
• This product contains a light source of energy efficiency class G.
• Use only lamps with the same specifications.
2.7 Service
• To repair the appliance contact the Authorised Service Centre.
• Use original spare parts only.
8/40
SAFETY INSTRUCTIONS

2.8 Disposal
WARNING!
Risk of injury or suffocation.
• Contact your municipal authority for information on how to dispose of the appliance.
• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.
• Remove the door catch to prevent children or pets from becoming trapped in the appliance.
3. PRODUCT DESCRIPTION
3.1 General overview
1 2
4
3
5
6
7
8
1
2
3
4

Control panel

Display

Socket for the food sensor

Heating element

Lamp

Fan

Shelf support, removable

Shelf positions
3.2 Accessories
Wire shelf
For cookware, cake tins, roasts.
Baking tray
For cakes and biscuits.
9/40
PRODUCT DESCRIPTION

Grill- / Roasting pan
To bake and roast or as a pan to collect fat.
Food sensor
To measure the temperature inside food.
4. HOW TO TURN OVEN ON AND OFF
4.1 Control panel
1 2 3 4 5 6
1ON / OFF Press and hold to turn the oven on and off.
2Menu Lists the oven functions.
3Favourites Lists the favourite settings.
4Display Shows the current settings of the oven.
5Lamp switch To turn the lamp on and off.
6Fast Heat Up To turn on and off the function: Fast Heat Up.
10/40
HOW TO TURN OVEN ON AND OFF

Press Move
3s
Press and hold
Touch the surface with finger‐
tip.
Slide fingertip over the sur‐
face.
Touch the surface for 3 sec‐
onds.
4.2 Display
STARTSTART
12:3012:30
150°C
After turning on, the display shows the main
screen with the heating function and the default
temperature.
12:34
If you do not use the oven for 2 minutes, the
display goes to standby.
11min
12:3012:30
150°C
STOP
When you cook, the display shows the set
functions and other available options.
150°C
12:30
15min START
85°C
F E CD B
A
Display with key functions set.
A. Time of day
B. START/STOP
C. Temperature
D. Heating functions
E. Timer
F. Food sensor (selected models only)
Display indicators
Basic indicators - to navigate on the display.
11/40
HOW TO TURN OVEN ON AND OFF

To confirm the selection / set‐
ting.
To go one
level back in
the menu.
To undo the
last action.
To turn the options on and
off.

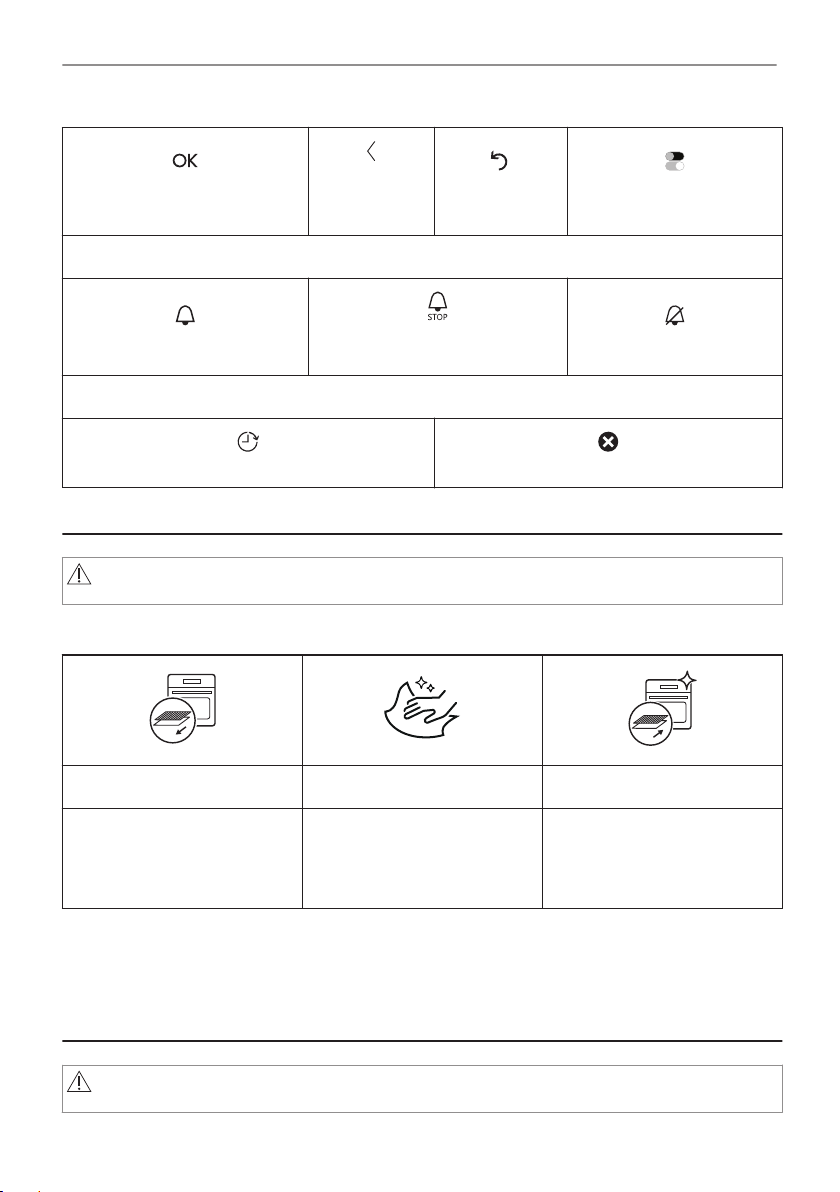

Sound alarm function indicators - when the set time of cooking ends, the signal sounds.
The function is on. The function is on.
Cooking stops automatically. Sound alarm is off.
Timer indicators
To set the function: Delayed start. To cancel the setting.
5. BEFORE FIRST USE
WARNING!
Refer to Safety chapters.
5.1 Initial Cleaning
Step 1 Step 2 Step 3
Remove all accessories and
removable shelf supports from
the oven.
Clean the oven and the ac‐
cessories with a soft cloth,
warm water and a mild deter‐
gent.
Place the accessories and the
removable shelf supports in
the oven.
5.2 First connection
The display shows welcome message after the first connection.
You have to set: Language, Display brightness, Key tones, Buzzer volume, Time of day.
6. DAILY USE
WARNING!
Refer to Safety chapters.
12/40
BEFORE FIRST USE

6.1 How to set: Heating functions
Step 1 Turn on the oven. The display shows the default heating function.
Step 2 Press the symbol of the heating function to enter the submenu.
Step 3 Select the heating function and press: . The display shows: temperature.
Step 4 Set: temperature. Press: .
Step 5 Press: .

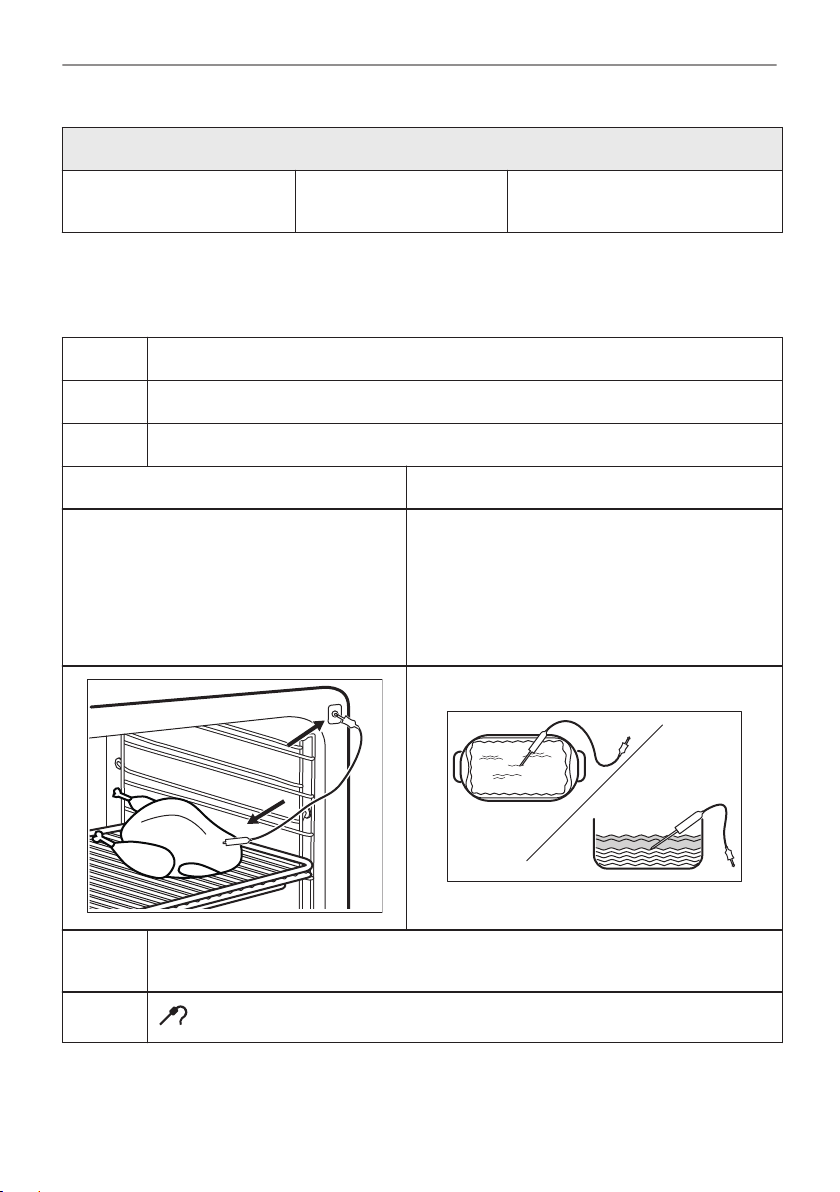

Food Sensor - you can plug the sensor at any time before or during cooking.
- press to turn off the heating function.
Step 6 Turn off the oven.
Take a shortcut!
6.2 How to set: Assisted Cooking
Every dish in this submenu has a recommended function and temperature. You can adjust the
time and the temperature.
For some of the dishes you can also cook with:
• Weight Automatic
• Food Sensor
The degree to which a dish is cooked:
• Rare or Less
• Medium
• Well done or More
Step 1 Turn on the oven.
Step 2 Press: .
Step 3 Press: . Enter: Assisted Cooking.
Step 4 Choose a dish or a food type.
Step 5 Press: .
13/40
DAILY USE

Take a shortcut!
6.3 Heating functions
STANDARD
Heating function Application
Grill
To grill thin pieces of food and to toast bread.
Turbo Grilling
To roast large meat joints or poultry with bones on one shelf position. To
make gratins and to brown.
True Fan Cooking
To bake on up to two shelf positions at the same time and to dry food. Set
the temperature 20 - 40 °C lower than for Conventional Cooking.
Frozen Foods
To make convenience food (e.g., french fries, potato wedges or spring
rolls) crispy.
Conventional
Cooking
To bake and roast food on one shelf position.
Pizza Function
To bake pizza. To make intensive browning and a crispy bottom.
Bottom Heat
To bake cakes with crispy bottom and to preserve food.
14/40
DAILY USE

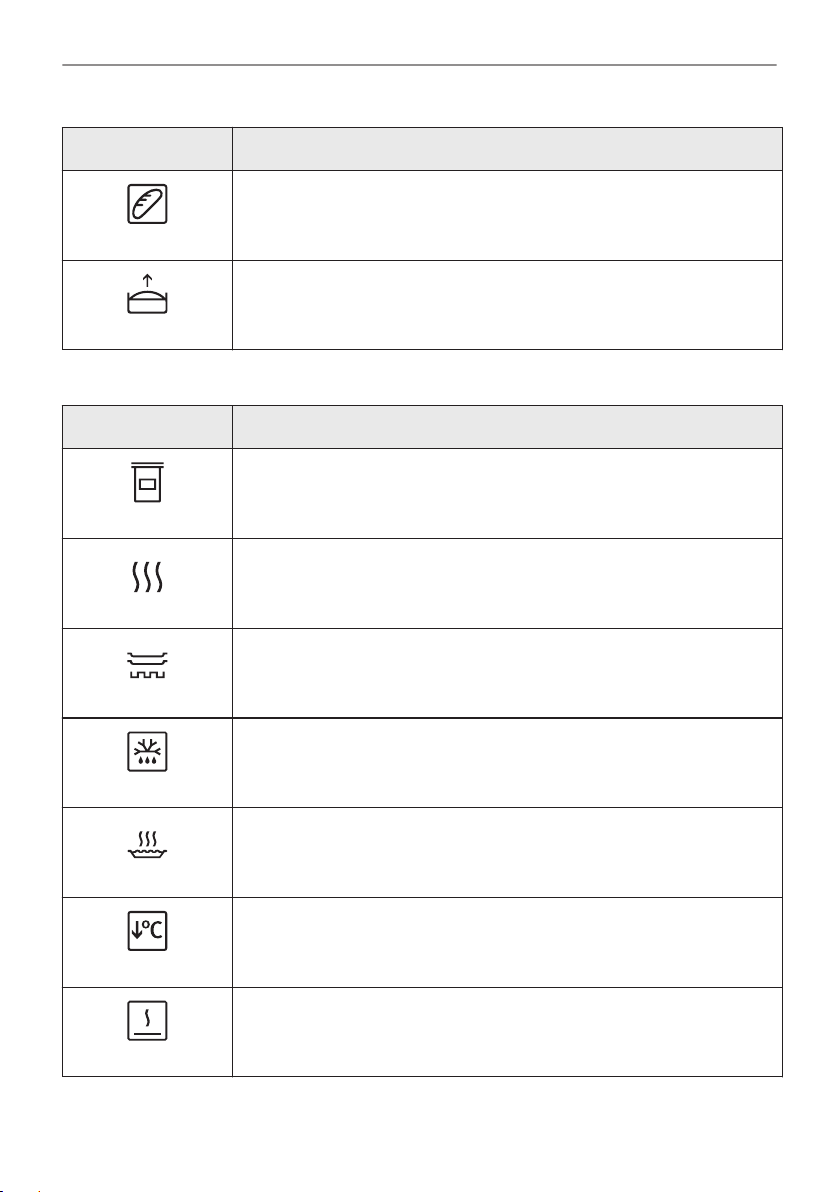

Heating function Application
Bread Baking
Use this function to prepare bread and bread rolls with a very good pro‐
fessional-like result in terms of crispiness, colour and crust gloss.
Dough Proving
To speed up the rising of the yeast dough. It prevents dough surface from
drying and keeps the dough elastic.
SPECIALS
Heating function Application
Preserving
To preserve vegetables (e.g., pickles).
Dehydrating
To dry sliced fruit, vegetables and mushrooms.
Plate Warming
To preheat plates for serving.
Defrost
To defrost food (vegetables and fruit). The defrosting time depends on the
amount and size of the frozen food.
Au Gratin
For dishes such as lasagna or potato gratin. To make gratins and to
brown.
Slow Cooking
To prepare tender, succulent roasts.
Keep Warm
To keep food warm.
15/40
DAILY USE

Heating function Application
Moist Fan Baking
This function is designed to save energy during cooking. When you use
this function, the temperature in the cavity may differ from the set temper‐
ature. The residual heat is used. The heating power may be reduced. For
more information refer to "Daily Use" chapter, Notes on: Moist Fan Bak‐
ing.
6.4 Notes on: Moist Fan Baking
This function was used to comply with the energy efficiency class and ecodesign requirements
according to EU 65/2014 and EU 66/2014. Tests according to EN 60350-1.
The oven door should be closed during cooking so that the function is not interrupted and the
oven operates with the highest energy efficiency possible.
When you use this function the lamp automatically turns off after 30 sec.
For the cooking instructions refer to "Hints and tips" chapter, Moist Fan Baking. For general
energy saving recommendations refer to "Energy Efficiency" chapter, Energy Saving.
7. CLOCK FUNCTIONS
7.1 Clock functions description
Clock function Application
Cooking time To set the length of cooking. Maximum is 23 h 59 min.
End action To set what happens when the timer ends counting.
Delayed start To postpone the start and / or end of cooking.
Time extension To extend cooking time.
Reminder To set a countdown. Maximum is 23 h 59 min. This function has no ef‐
fect on the operation of the oven.
Uptimer Monitors how long the function operates. Uptimer - you can turn it on
and off.
7.2 How to set: Clock functions
How to set the clock
Step 1 Press: Time of day.
16/40
CLOCK FUNCTIONS

How to set the clock
Step 2 Set the time. Press: .
How to set cooking time
Step 1 Choose the heating function and set the temperature.
Step 2 Press: .
Step 3 Set the time. Press: .
Take a shortcut!
How to choose end option
Step 1 Choose the heating function and set the temperature.
Step 2 Press: .
Step 3 Set the cooking time.
Step 4 Press: .
Step 5 Press: End action.
Step 6 Choose the preferred: End action.
Step 7 Press: . Repeat the action until the display shows the main screen.
How to delay start of cooking
Step 1 Set the heating function and the temperature.
Step 2 Press: .
17/40
CLOCK FUNCTIONS

How to delay start of cooking
Step 3 Set the cooking time.
Step 4 Press: .
Step 5 Press: Delayed start.
Step 6 Choose the value.
Step 7 Press: . Repeat the action until the display shows the main screen.
How to extend cooking time
When 10% of cooking time is left and the food seems not to be ready, you can extend cooking
time. You can also change the heating function.
Press +1min to extend the cooking time.
How to change timer settings
Step 1 Press: .
Step 2 Set the timer value.
Step 3 Press: .
You can change the set time during cooking at any time.
8. HOW TO USE: ACCESSORIES
8.1 Inserting accessories
A small indentation at the top increases safety. The indentations are also anti-tip devices. The
high rim around the shelf prevents cookware from slipping of the shelf.
18/40
HOW TO USE: ACCESSORIES

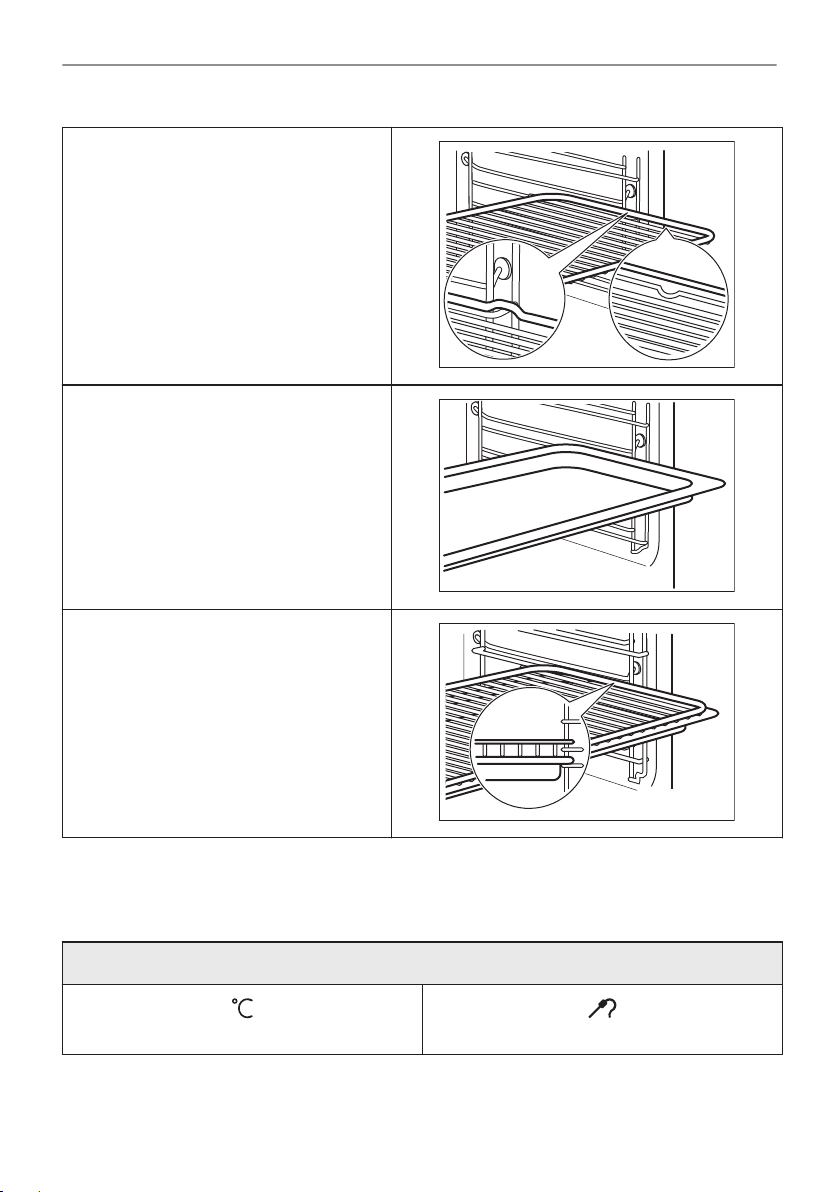

Wire shelf:
Push the shelf between the guide bars of
the shelf support and make sure that the
feet point down.
Baking tray / Deep pan:
Push the tray between the guide bars of
the shelf support.
Wire shelf, Baking tray / Deep pan:
Push the tray between the guide bars of
the shelf support and the wire shelf on the
guide bars above.
8.2 Food Sensor
Food Sensor- measures the temperature inside the food. You can use it with every heating
function.
There are two temperatures to be set:
The oven temperature: minimum 120 °C. The core temperature.
19/40
HOW TO USE: ACCESSORIES

For the best cooking results:
Ingredients should be at
room temperature.
Do not use it for liquid
dishes.
During cooking it must remain in
the dish.
The oven calculates an approximate end of cooking time. It depends on the quantity of food,
the set oven function and the temperature.
How to use: Food Sensor
Step 1 Turn on the oven.
Step 2 Set a heating function and, if necessary, the oven temperature.
Step 3 Insert: Food Sensor.
Meat, poultry and fish Casserole
Insert the tip of Food Sensor into the centre
of meat, fish, in the thickest part if possible.
Make sure that at least 3/4 of Food Sensor is
inside of the dish.
Insert the tip of Food Sensor exactly in the centre
of the casserole. Food Sensor should be stabi‐
lized in one place during baking. Use a solid in‐
gredient to achieve that. Use the rim of the bak‐
ing dish to support the silicone handle of Food
Sensor. The tip of Food Sensor should not touch
the bottom of a baking dish.
Step 4 Plug Food Sensor into the socket at the front of the oven.
The display shows the current temperature of: Food Sensor.
Step 5 - press to set the core temperature of the sensor.
20/40
HOW TO USE: ACCESSORIES
