AEG 2600 D Specification sheet

2600 D
Cooker hood
Operating and Installation Instructions

2
Contents
Safetyinstructions ..................................................... 2
Descriptionofthecookerhood ................................... 3
Usingthecookerhood ............................................... 4
Maintenanceandcleaning.......................................... 6
What to do if .............................................................. 8
ServiceandSpareParts ............................................ 9
CustomerCare........................................................... 9
GuaranteeConditions............................................... 10
Technical data .......................................................... 11
Installation ............................................................... 12
Safety instructions
These warnings are provided in the interest of your safety.Ensure that you
understandthemallbeforeinstallingorusingtheappliance.Yoursafetyisof
paramount importance. If you are unsure about any of these meanings or
warningscontacttheCustomerCaredepartment
Please retain this instruction book for future reference, particularly if the
appliance is sold or left to another person.
Installation and service
● Any electrical installation of the cooker hood must be carried out by a
qualified electrician and the hood itself must be installed by someone
with experience.Installation made by an unqualified person can lead to
lossof function of the cooker hood andpossible damage to person and
and/orproperty.

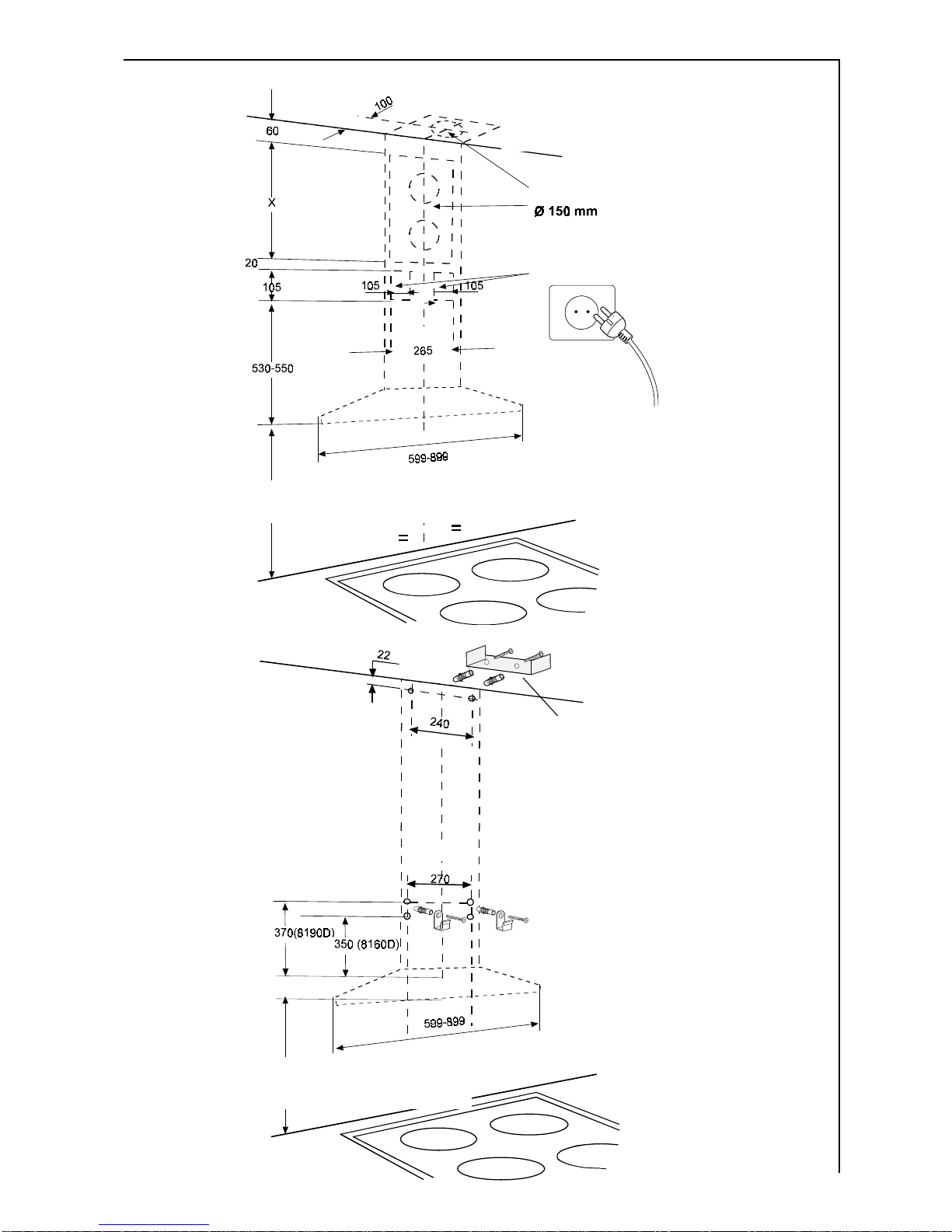

●The cooker hood must be at least 50 cm above electric hobs or electric
ranges, or at least 65 cm above gas burners or gas ranges.
●Ensurethat the power cable isnot damaged during installation.
●The cooker hood is only in stand by mode unless the plug or the fuse is
disconnected.
●Thecooker hood cannot be connected to flues of other appliances that
run on energy sources other than electricity. Please, keep to the
provisionsofofficial directivesregarding fumedischarge.

3
Use of cooker hood
● This appliance is for domestic use only in a normal household.
● Never leave anydeep-frying,meltingfat, paraffin or any other
inflammableliquid unattended onthehob. In the eventoffire:
Immediately switch off the cooker hood and the cooker.Note! Cover
the fire. Never use water.
● Never do any flambé cooking underneath the cooker hood. It can cause
afire. Rememberthatoverheated fatmayspontaneously ignite.Never
leavethefryingpanunattended.
● It is essential that the grease filter is regularly cleaned to help avoid fat
dripping on to the hot zone and causing a fire. Read the section on
“Maintenanceand Cleaning” in theinstructionbook.
Disposal
● Prevent accidents when disposing of your cooker hood. Disconnect the
power plug from the wall socket and cut the power cord at the hood
inlet.Contactyour local authority for information on where to dispose the
cookerhood.

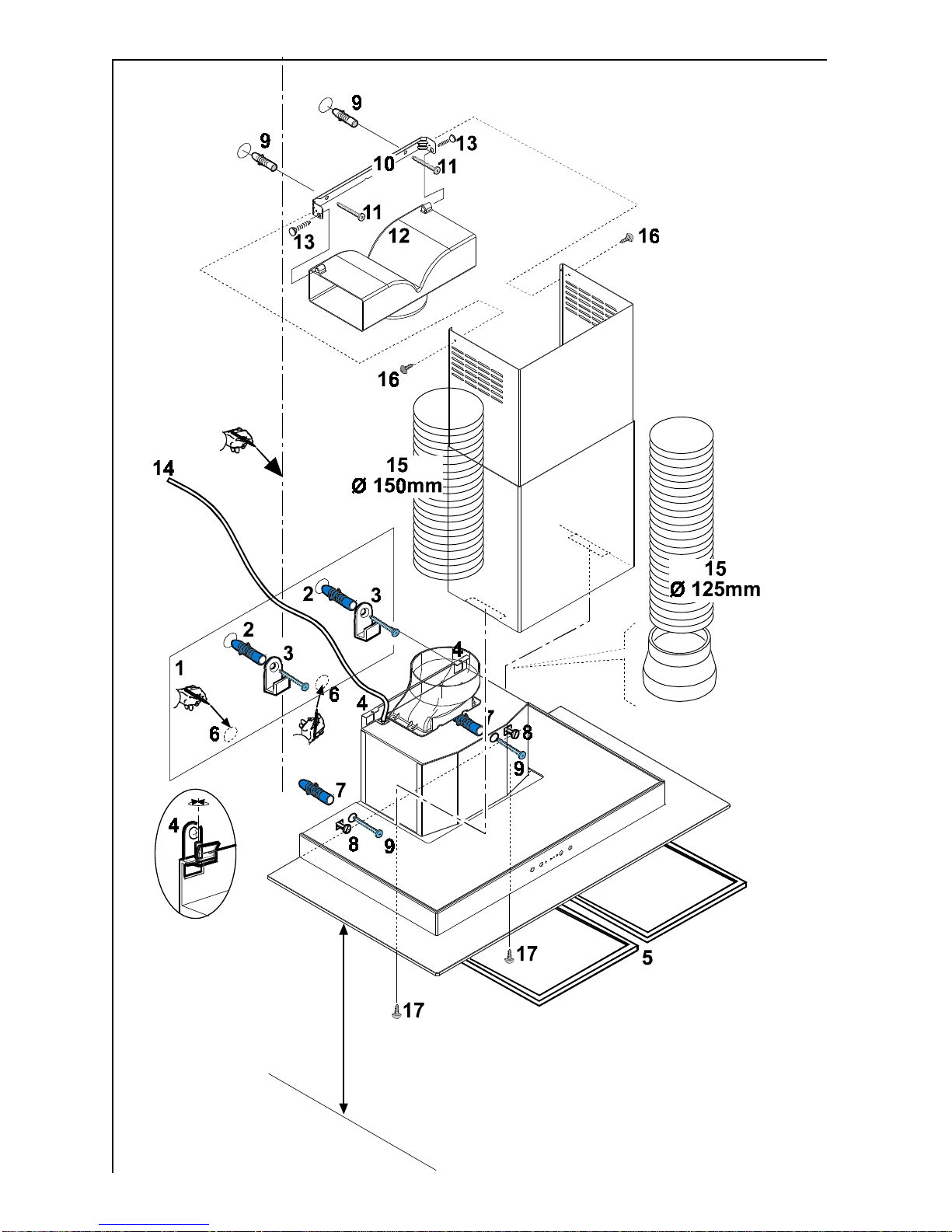

Description of the cooker hood
Accessories
Thefollowing are includedwiththe cooker hood.
●1Adaptor150-125 mm
●2Tube clamps
●1 hood canopy complete with controls, lighting and fan motor.
● 1 telescopic chimney stack formed by: U-shaped upper section and U-
shapedlower section.
●1reduction flange Ø150-125mm.
●1recirculation spigot.
●1 plastic bag containing: 2 wall hooks to fix the canopy hood, 1 wall
bracket to fix the chimney, rawl plugs, screws, and documentation.
Thefollowingcan be orderedfrom yourretailer:
●Carbon, KF8 filter, alternatively KFL 60/80.The carbon filter is to be used
when the hood is connected to the recirculation mode.
Fig. 1
Functions
There are two possible systems:
●Extraction of air to the outside using an
optionalventingkitandevacuation
duct.
●Recirculationusing an optional
carbonfilter.

4
The control panel
Best results are obtained by using a low speed for normal conditions and
highspeedwhenodoursaremoreconcentrated.
Turn the hood on a few minutes before you start cooking then you will get
anunderpressure in the kitchen. It should beleft on after cooking for about
15minutesoruntilallodourshavedisappeared.
Correct ventilation
If the cooker hood is to work correctly there must be an underpressure in
the kitchen. It is important to keep the kitchen windows closed and have a
windowin an adjacentroomopen.
Important to know
Not applicable for recirculation. Great care must be taken if the hood is
used at the same time as a burner or fireplace (e.g. gas, diesel, coal or
wood heaters, water heaters, etc.), as the hood will expel air which is
required by these other appliances.Attend to it by opening a window.The
negativepressure in the room must not exceed 0,04 mbartopreventfumes
being drawn back into the room by the cooker hood.

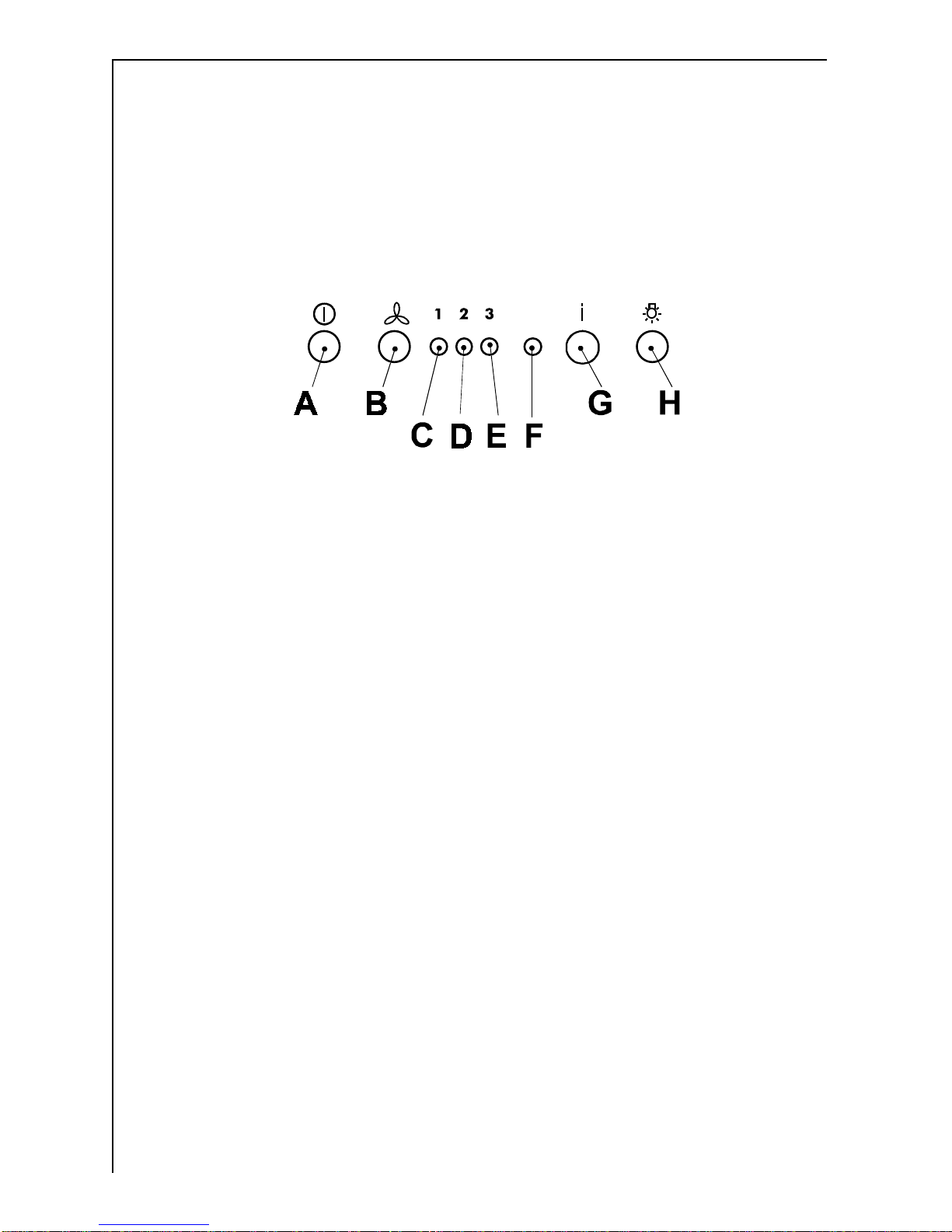

Using the cooker hood
Fig. 2
A- Mainswitch, hood on/off.
B- Start and choice of motor speed 1-2-3-1-2.........
C- Indicatesspeed 1 (LED) and indication of the grease saturation
forthe filter(flashingindicator).
D- Indicatesspeed 2 (LED) and indication of the charcoal saturation
forthe filter(flashingindicator).
E- Indicatesspeed 3 (LED)
F- IndicatesIntensivespeed (LED).
G- Intensivespeed on/off.The Intensivespeedruns for5minutes:
Ifthe hood is on when the Intensive speed is activated, the hood
revertsto previousspeedafter 5 minutes.
Ifthe hood is off when the Intensive speed is activated,thehood
willbe turned off after 5 minutes.
To interrupt the Intensive speed, press button A or B.
H- LightON/OFF

5
LED Indicator lights for verifying the saturation
of filters
This hood is supplied without a charcoal filter. If the hood is to be used
in the recirculation mode with a charcoal filter, the saturation indicator
must be activated as follows:
Depress and hold the A and B buttons simultaneously for 3 seconds.
Initially only the LED indicator signal for the grease filter C is activated,
shortly after the LED indicator for the charcoal filter D will activate, at
this point the saturation detection has been enabled.
To switch off the saturation detection : depress and hold the A and B
buttons for 3 seconds until the LED indicator for the active carbon filter
isflashing.
Led – Indicator for grease filter C
TheLED indicator for the grease filter will flash when itrequires
cleaning.
Followthe maintenance instructions.
Led - indicator for charcoal filter D
TheLED indicator for the charcoal filter illuminates when thefilter
requiresreplacing.
Thisoccurs after about 160workinghours from when theactivecarbon
filter was first put into operation.
Resetting the saturation indicator
Aftercleaning or replacing the filter depress and hold the G andH
buttons again for 3 seconds until the grease filter LED or the charcoal
indicatorLED are no longer flashing.

6
Maintenance and cleaning
Before doing any maintenance work on the hood, disconnect it
from the main supply by disconnecting the plug from the wall
socket or unscrewing the fuse.
Cleaning the hood
Clean the outside of the hood using a damp cloth and a mild detergent.
Neverusecorrosive,abrasiveorflammablecleaningproducts.
Cleaning the grease filters
Clean the filter every month or every
other month according to how much
the hood is used. The cleaner the
filters, the more grease they collect.
Removethe filters by (Fig. 3):
●Pushthe handle towards the rear
ofthe hood.
●Pull the filter down at the front
andremoveitforwards.
The filter is made of aluminium wires
on which the grease collects. Clean
thefilterinhotwaterusingadetergent,
or in a dishwasher. Let the filter dry
before putting it back. Note that a
dishwashermaydiscolourthefilter.
Changing and cleaning the carbon filter
Only applicable for recirculation.The carbon filters absorb smells and
odours.
Unlike other carbon filters, the LONGLIFE carbon filter can be cleaned and
reactivated.Atnormalusethefiltershouldbecleanedeverysecondmonth.
Thebestwaytocleanthefilterisinthedishwasher.Usenormaldetergentand
choosethehighesttemperature(65ºC).Washthefilterseparatelysothatno
foodpartsgetsstuckonthefilterandlatercausesbadodours.Toreactivate
the carbon, the filter should be dried in an oven for 10 minutes with a
temperatureofmaximum100ºC.
TheKFL60/80carbonfiltercannotbereactivated,ithastobechangedafter
6-8months of normaluse.
Fig. 3

7
Changing the light
Disconnectthecookerhoodfromthemainsupplybeforechangingthelight.
To change the light (Fig.6):
●Removethe lamp cover,use ascrewdriver.
●Replace the old bulb with a new one of the same type.
●Remountthe lampcover.
Afterapproximatelythreeyearsofuse,theKF8filtershouldbereplacedwith
a new, as the odour reduction capacity will be reduced.
To remove the filter (Fig.4):
● Remove the grease filters.
● Press the red buttons (A), lower the front of the carbon filter.
●Remove the carbon filter.
●Replace in reverse order.
Fig. 6
Fig. 4
Clean the filters regularly.The grease that collects in the filters
and the duct could ignite if a hot plate is left on (or if overheating
occurs).
AA
Remove the upper glass panel
Theupper glass panel can be removed for cleaning (Fig. 5):
●Removethe grease filters
●Pullthe handle L down
●Removethe glass panel
L
Fig. 5

8
What to do if
Ifyourappliancefailstoworkproperlypleasecarryoutthefollowingchecks.
Symptom Solution
The cooker hood will not start... Check that:
The hood is connected to the
electricity supply.
Check that the fan speed control is
set to 1, 2 or 3.
Thecookerhoodis notworking Chec k that:
effectively.. Thefan speedisset highenough
. for the task.
Thegreasefiltersareclean.
Thekitchenisadequatelyventedto
allowthe entry of fresh air.
If set up for recirculation, check that
the charcoal filter is still effective.
If set up for extraction, check that
the ducting and outlets are not
blocked.
Thecookerhoodhasswitchedoff Thesafetycut-outdevicehasbeen
duringoperation... tripped.
Turnoffthehobandthenwaitforthe
devicetoreset.
Ifthehoodhas beeninstalledbelow
the heights indicated in the
installation instructions the motor
willcut-out frequentlywhich will
damagethehood.
If after all these checks, the problem persists, contact your local Service
ForceCentre,quotingthemodelandserialnumber.
Please note that it will be necessary to provide proof of purchase for any
in-guaranteeservicecalls.
In-guaranteecustomersshouldensurethattheabovecheckshavebeen
made as the engineer will make a charge if the fault is not a mechanical or
electricalbreakdown.

9
Service and spare parts
Inthe event of your appliance requiring service, or if youwishto
purchase spare parts, contact your local AEG Service Force Centre by
telephoning 08705 929 929
Your call will be automatically routed to the Service Centre covering
your post code area.
Forthe address ofyourlocal Service ForceCentreand further informa-
tion about Service Force, please visit the website at
www.serviceforce.co.uk
Please ensure that you have read the section „What to do if....“ as the
engineer will make a charge if the fault is not a mechanical or electrical
breakdowneventheappliance isunder warranty.
Please note that proof of purchase is required for in-guarantee
service calls.
Help us to help you
Pleasedetermine your typeofenquiry before writing ortelephoning.
When you contact us we need to know:
• Your name
• Address and post code
• Telephonenumber
• Clear and concise details of the fault
• Nameand model oftheappliance*
• Enumber*
* This information can be found on the rating plate, which can be seen
whenthe grease filters are removed.
Customer Care
Forgeneral enquiries concerningyourAEG appliances, orforfurther
informationon AEG products, please contact our Customer Care
Departmentat the address below or visit our website atwww.aeg.co.uk
CustomerCareDepartment
AEG Domestic Appliances
55-77HighStreet
Slough
Berkshire
SL11DZ
Tel.: [phone]*
* calls to this number may be recorded for training purposes.

10
Guarantee conditions
GuaranteeConditions
AEGofferthefollowing guaranteetothefirstpurchaserofthisappliance.
1.The guarantee is validfor12months commencing when theappliance
ishanded over to the first retail purchaser, which must be verified by
purchaseinvoice orsimilar documentation.Theguaranteedoes not
covercommercial use.
2.The guarantee covers all parts orcomponents which fail due to faulty
workmanshipor faultymaterials.The guarantee doesnotcover
applianceswhere defects or poorperformanceare due to misuse,
accidentaldamage, neglect, faulty installation, unauthorised
modificationor attempted repair, commercial useorfailure to observe
requirementsand recommendations set out in the instruction book.This
guaranteedoes not cover such parts as light bulbs,removableglass-
ware or plastic.
3. Shouldguaranteerepairsbenecessarythepurchasermust inform the
nearestcustomerserviceoffice (manufacturer`sservice orauthorised
agent). AEG reserves the right to stipulate the place of the repair
(i.e.the customer`s home, place of installation or AEG workshop).
4.The guarantee orfreereplacement includes bothlabourand materials.
5.Repairs carried out underguaranteedo not extend theguarantee
periodfortheappliance. Partsremoved duringguarantee repairs
become the property of AEG.
6.Thepurchaser`sstatutoryrightsarenotaffectedbythisguarantee.
European Guarantee
If you should move to another country within Europe then your guarantee
moves with you to your new home subject to the following qualifications:
- Theguarantee starts from the date you first purchased your product.
- Theguaranteeisforthesameperiodandtothesameextentforlabour
and parts as exist in the new country of use for this brand or range of
products.
- Thisguarantee relates to you an cannot betransferredtoanother user.
- Yournew home iswithintheEuropean Community (EC) or European
FreeTradeArea.
- The product is installed and used in accordance with our instructions
and is only used domestically, i.e. a normal household.
- The product is installed taking into account regulations in your new
country.

11
Technical data
Model 2600 D
Size Height 800-1225mm
Width 898mm
Depth 520mm
Light Max 2X20W
Greasefilter 2 pcs.
Voltage 220-240V
Totalpower 175 W
Fuse Rating 13 Amp
Extra accessories:
CarbonfilterKF8 (LONGLIFE) P-nr.942118609
Carbonfilter KFL60/80 610 899 421
BeforeyoumovepleasecontactyournearestCustomerCareCentre,listed
below,togive them details of your new home.They will then ensure thatthe
localServiceOrganisationisawareofyourmoveandabletolookafteryouand
yourappliances.
France Senlis [phone]
Germany Nürnberg [phone]
Italy Pordenone [phone]
Sweden Stockholm [phone]
UK Slough [phone]

12
Installation
Unpacking
Check that the cookerhood is not damaged.Transportationdamages
should immediatelybe reported to thetransport company.Damages, faults
andmissing partsshould immediately be reported to the retailer.
Dispose carefully of the packaging material so that it is out of the way of
smallchildren.
Position
Thecookerhood should be mounted freely hanging on the wall.The
cooker
hood must be at least 50 cm above electric hobs or electric ranges, or at
least65cm above gas burners or gas ranges.
The cooker hood cannot be connected to flues of other
appliances that run on energy sources other than electricity.
Please,keep to theprovisionsof official directivesregardingfume
discharge.
Electrical connection
The electric outlet should be placed inside the chimney.The hood has a
powercable, 100 cm, with earth connection and the rated voltage is
220 - 240 V.
Connect the hood to the mains supply via a double pole switch
which has 3 mm minimum clearance between the contacts 220-240 V.
ThefollowingisvalidintheUnitedKingdom only:
As the colours of the wires in the mains lead of this appliance may not
correspondwiththecolouredmarkingsidentifyingtheterminalsinyourplug,
proceedasfollows:
- thewire which is coloured green and yellow must be connected to the
terminal in the plug which is marked with the letter E or by the earth
symbol( ), or coloured green or green and yellow;
- the wire which is coloured blue must be connected to the terminal which
is marked with the letter N or coloured black, -
- the wire which is coloured brown must be connected to the terminal
which is marked with the letter L or coloured red.

13
Mounting the cooker hood - Fig. 8
●Position the template (1) on the wall and mark the position, and drill the
holes (2 x Ø8 mm).Mount the two rawl plugs with the hooks (3)
●Hang the hood on the hooks and level it with the adjustment screws (4)
●Removethe grease filters (5)andmark for the twoscrews(6). Remove
the hood and drill the holes (2 x Ø8 mm).
●Insert the rawl plugs (7) and hang the hood on the wall again.Adjust it
horizontally with the screws (8) and secure it with the screws (9)
●Mount the chimney holder (10) with the rawl plugs (9a) and the screws
(11).
Becareful that it is centered over the hood andhorizontallyaligned.
Fitting for ducting (S)
Connect a tube between the hood air outlet and the wall or roof exhaust
channel. Fix it with the tube clamps supplied.
Fitting for recirculation
Mount the recirculation spigot (12) with the two screws (13) supplied.
Mounting the chimney
●Place the chimney and fix it to the top chimney holder with the two
screws(16) supplied.
●Lower the bottom part of the chimney and fasten it to the top of the
hoodwithtwoscrews(17), supplied.
Note that the top part of the chimney can be mounted with the side grids up
or down. For use as a recirculation hood it must be mounted with the grids
upwards.(Fig.7).
Fig. 7

14
Fig. 8
a
a
S

15
Fig. 8a
Exhaust tube
Power outlet
Electric hob 500 mm
Gas hob 650 mm
Charcoal and oil 700 mm
Electric hob 500 mm
Gas hob 650 mm
Charcoal and oil 700 mm
Wall bracket

AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nürnberg
http://www.aeg.hausgeraete.de
© Copyright by AEG LI1LLD Ed. 05/02
