AEG CHDF 6260 Specification sheet

CHDF 6260
DF 6260
Dunstabzugshaube
Afzuigkap
Hotte
Cooker Hood
Montage- und Gebrauchsanweisung
Installatie- en gebruiksaanwijzing
Notice d’utilisation et d’installation
Operating and Installation Instructions

68
Printedonrecycledpaper
AEG - putting words into action

69
Contents
Safety warnings 70
fortheuser 70
fortheinstaller 70
Introduction 72
Extractorversion 72
FilterVersion 72
Description of the Appliance 72
Control Panel 73
Maintenance and care 74
Metalgreasefilter 74
Openthemetalgreasefilter 74
Charcoalfilter 75
Changingthelightbulb(s) 76
Cleaning 77
Special accessories 77
Technical assistance service 77
Guarantee conditions 78
Technical Specifications 80
Mounting accessories included 80
Electrical connection 81
Safetywarningsfortheelectrician 81
Installation 82

70
Safety warnings
for the user
•Alwayscoverlighted elements, to prevent excess heat from
damaging the appliance. In the case of oil, gas and coal fired
cookers it is essential to avoid open flames.
•Also, when frying, keep the deep frying pan on the cooker top/cooker
undercarefulcontrol.
•Thehotoil in the frying panmightignite due to overheating.
•The risk of self-ignition increases when the oil being used is dirty.
•It is extremely important to note that overheating can cause a fire.
•Never carry out any flambécooking under the hood.
•Always disconnect the unit from the power supply before
carrying out any work on the hood, including replacing the
light bulb (take the cartridge fuse out of the fuse holder or switch off
theautomatic circuit breaker).
•It is very important to clean the hood and replace the filter at
the recommended intervals. Failure to do so could cause
grease deposits to build up, resulting in a fire hazard.
•Theapplianceis not intended for use byyoungchildren or infirm
personswithoutsupervision.
•Young children should be supervised to ensure that they do not play
withtheappliance.
•WARNING - Ensure that the appliance is switchedoffbefore
replacing the lamp to avoid the possibility of electric shock.
for the installer
•When used as an extractor unit, the hood must be fitted with a
150mmdiameterhose.
Only for model DF6260: Should there alreadybea pipe of diameter
125 mm that ducts to the outside through the walls or roof, it is
possibletousethe 150/125 mm reduction flange provided. Inthis
case the hood will be slightly more noisy.
•When installing the hood, make sure you respect the following
minimum distance from the top edge of the cooking hob/ring
surfaces:
electric cookers 465 mm
gascookers 650 mm
coal and oil cookers 700 mm min.
•ThenationalStandardonfuel-burningsystemsspecifies a maximum
depression of 0.04 bar in such rooms.

71
•The air outlet must not be connected to chimney flues or combustion
gas ducts. The air outlet must under no circumstances be connected
toventilationductsforroomsinwhichfuel-burningappliancesare
installed.
•Itisadvisabletoapplyforauthorizationfromtherelevantcontrolling
authority when connecting the outlet to an unused chimney flue or
combustion gas duct.
The air outlet installation must comply with the regulations laid down
bytherelevantauthorities.
•When the unit is used in its extractor version, a sufficiently large
ventilationholemustbeprovided,withdimensionsthatare
approximately the same as the outlet hole.
•Nationalandregionalbuildingregulationsimposeanumberof
restrictionsonusinghoodsandfuel-burningappliancesconnectedto
a chimney, such as coal or oil room-heaters and gas fires, in the
sameroom.
•Hoods can only be used safely with appliances connected to a
chimneyif the room and/or flat (air/environment combination) is
ventilatedfrom outside using a suitable ventilation hole approximately
500-600cm2 largeto avoid the possibilityofa depression being
createdduring operation of thehood.
•Ifyouhaveanydoubts, contact the relevant controlling authority or
buildinginspector’s office.
•Since the rule for rooms with fuel burning appliances is “outlet hole of
the same size as the ventilation hole”, a hole of 500-600 cm2, which
is to say a larger hole, could reduce the performance of the extractor
hood.
•If the hood is used in its filtering function, it will operate simply and
safelyin the above conditionswithout the need for any of the
aforementionedmeasures.
•When the hood is used in its extractor function, the following rules
mustbefollowedtoobtain optimal operation:
—short and straight outlet hose
—keep bends in outlet hose to a minimum
—never install the hoses with an acute angle, they must
always follow a gentle curve only
—keep the hose as large as possible (preferably the same diameter
as the outlet hole).
•Failure to observe these basic instructions will drastically reduce the
performanceandincreasethenoiselevelsoftheextractorhood.

72
Introduction
Extractor version
•The hood is supplied as an extractor unit and can also be used with
a filtering function by fitting one charcoal filter (special accessory).
•You will need original AEG charcoal filter KLF 60/80 for this function
(see Special Accessories).
•In this version fumes are extracted to the outside via a hose.
•In order to obtain the best performance the hose should have a
diameter equal to the outlet hole.
Filter Version
•Theair is filteredthrough a charcoalfilter and returned to the kitchen.
•Youwillneed an original AEG KLF60/80 charcoalfilterfor the filtering
function. (See Special Accessories).

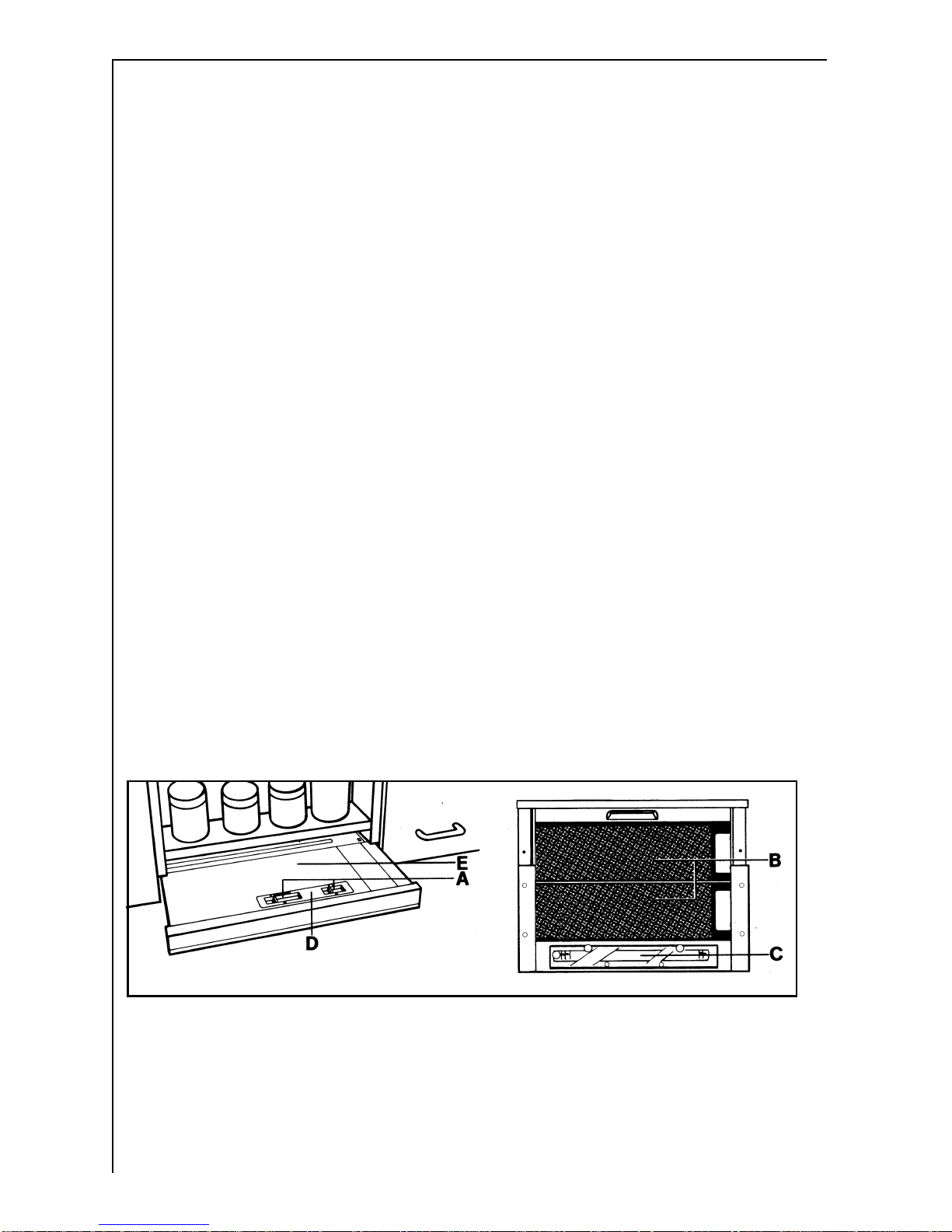

A= Switches (Motor, light)
B= Grease filter
C= Light
D=Controlpanel
E= Vapour catcher (Extractible)
Fig. 1

73
Control Panel
•The switches are arranged on the upper right side of the vapour
catcher. (Fig. 1 - E).
The numbers and symbols have the following meanings (from left to
right):
The blower is controlled by shifting the sliding switch.
The extractor part (vapour catcher) of the hood is used to switch the
blower on and off when the appliance is switched on (Motor).
When the vapour catcher of the appliance is withdrawn (without
preceding disengagement of the hood via the switches), the set fan
output is automatically re-engaged.
If the extractor part is re-inserted without operation of the switches,
first the blower is switched off.
The lighting can be separately switched on and off with the sliding
switch.
Turn the hood on a few minutes before you start cooking then you will
get an underpressure in the kitchen. It should be left on after cooking
for about 15 minutes or until all odours have disappeared.
= Continuouslyvariable
blower control
= Intensivesetting
= LightingOFF
= LightingON
= Lighting

74
Maintenance and care
•The hood must always be disconnected from the electricity
supply before beginning any maintenance work.
Metal grease filter
•The purpose of the grease filters is to aspirate grease particles
which form during cooking and it must always be used, either in the
external evacuation or internal recycling function.
Attention: the metal grease filters must be removed and washed,
either by hand or in the dishwasher, every four weeks.
Open the metal grease filter
•Extract the vapout catcher, remove the rear grease filter pulling the
handle designed for this purpose, then proceed in the same way to
remove the front grease filter. Fig. 2.
Hand washing
•Soak grease filters for about one hour in hot water with a grease-
loosening cleaner, then rinse off thoroughly with hot water. Repeat
the process if necessary. Refit the grease filters when they are dry.
Dishwasher machine
•Place grease filters in dish washer. Select most powerful washing
programme and highest temperature, at least 65°C. Repeat the
process. Refit the grease filters when they are dry.
When washing the metal grease filter in the dishwasher a slight
discoloration of the filter can occur, this does not have any impact
on its performance.
•Clean the inner housing using a hot detergent solution only (never
use caustic detergents, abrasive powders or brushes).
Fig. 2

75
Charcoal filter
•The charcoal filter should only be used if you want to use the hood in
itsfilteringfunction.
•To do this you will need an original AEG charcoal filter (see special
accessories).
•Replacing the charcoal filter
Thecharcoalfilter must normally be replacedatleast once every
year.This filter cannot be washed or regenerated.
Toguaranteeproperabsorptionof odours theworkingvolumeof the
charcoal must be proportionate to the hood air flow. In this case the
highquality of the charcoal will ensure efficient odour removal for
approximately one year, assuming that the hood is used normally.
For this reason you should always use original AEG filters only,
makingsurethey are replaced when necessary.
•Mounting
1. Pull out the vapour catcher (A).
2. Remove first the rear then the front grease filters.
3.Insert the charcoalfilterinto the lugs of the holdingframeabove
using the 2 red clips to retain it below, press the red clips inwards,
and insert the charcoal filter in the holding frame. Fig. 3.
•Dismounting:
1. Press both red lugs upwards (towards the inside of the housing)
andremove thecharcoalfilter downwards.
2. Clean the internal housing only with warm washing-up liquid’suds
(never use any abrasive cleaners, brushes, or scouring agents).
•Always specify the hood model code number and serial number
when ordering replacement filters. This information is shown on the
registration plate located on the inside of the unit.
•Thecharcoal filter can be ordered from the AEG technical assistance
service.
Fig. 3

76
Warning
•Failure to observe the instructions on cleaning the unit and
changing the filters will cause a fire hazard. You are therefore
strongly recommended to follow these instructions.
•The manufacturer declines all responsibility for any damage to the
motor or any fire damage linked to inappropriate maintenance or
failure to observe the above safety recommendations.
Changing the light bulb(s)
•Disconnect the unit from the mains power supply.
•Unlock the lighting cover (D) by twisting the bolts to the left and fold
down the bulb cover. Fig. 4.
Replace the old light bulb(s) with a new light bulb of the same kind.
•Close the bulb cover and relock it by twisting the bolts to the right.
•If the light does not come on, make sure the bulb has been screwed
in correctly before contacting the technical assistance service.
Fig. 4 D

77
Cleaning
•Warning: always disconnect the hood from the mains power supply
before cleaning it.
Never insert pointed objects in the motor’s protective grid.
•Wash the outside surfaces using a delicate detergent solution.
Never use caustic detergents or abrasive brushes or powders.
•Only ever clean the switch panel and filter grille using a damp cloth
and delicate detergents.
•It is extremely important to clean the unit and change the filters at
the recommended intervals. Failure to do so will cause grease
deposits to build up that could constitute a fire hazard.
Special accessories
Charcoalfilter KLF 60/80 E-Nr. 610899 421
Front panel BL3D-w (White) 942 118 603
Front panel BL3D-b (Black) 942 118 604
Front panel BL3D-m (Inox) 942 118 605
Finishing strip 660 012 698
Clips (3x) 660 012 697
Technical assistance service
You are welcome to telephone our technical assistance service (see list
of technical assistance centres) whenever you need information or in
the unlikely event of a fault.
When calling, please be ready to specify:
1. The model code number
2. The serial number (E-Nr.)
3. The manufacturing number (F-Nr.)
This information is shown on the registration plate inside the unit
behind the grease filter.
We reserve the right to change specifications and colours as a result of
our policy of continuing technological development.

78
Guarantee conditions
Guarantee Conditions
AEG offer the following guarantee to the first purchaser of this appliance.
1. The guarantee is valid for 12 months commencing when the appliance
is handed over to the first retail purchaser, which must be verified by
purchase invoice or similar documentation.The guarantee does not
cover commercial use.
2. The guarantee covers all parts or components which fail due to faulty
workmanship or faulty materials. The guarantee does not cover
appliances where defects or poor performance are due to misuse,
accidental damage, neglect, faulty installation, unauthorised
modification or attempted repair, commercial use or failure to observe
requirements and recommendations set out in the instruction
book.This guarantee does not cover such parts as light bulbs,
removable glass-ware or plastic.
3. Should guarantee repairs be necessary the purchaser must inform the
nearest customer service office (manufacturer`s service or authorised
agent). AEG reserves the right to stipulate the place of the repair
(i.e.the customer`s home, place of installation or AEG workshop).
4. The guarantee or free replacement includes both labour and materials.
5. Repairs carried out under guarantee do not extend the guarantee
period for the appliance. Parts removed during guarantee repairs
become the property of AEG.
6. The purchaser`s statutory rights are not affected by this guarantee.
European Guarantee
If you should move to another country within Europe then your guarantee
moves with you to your new home subject to the following qualifications:
- The guarantee starts from the date you first purchased your product.
- The guarantee is for the same period and to the same extent for labour
and parts as exist in the new country of use for this brand or range of
products.
- This guarantee relates to you an cannot be transferred to another user.
- Your new home is within the European Community (EC) or European
Free Trade Area.
- The product is installed and used in accordance with our instructions
and is only used domestically, i.e. a normal household.
- The product is installed taking into account regulations in your new
country.

79
BeforeyoumovepleasecontactyournearestCustomerCareCentre,listed
below,to give them detailsof your new home.Theywill then ensure thatthe
local Service Organisation is aware of your move and able to look after you
and your appliances.
France Senlis [phone]
Germany Nürnberg [phone]
Italy Pordenone [phone]
Sweden Stockholm [phone]
UK Slough [phone]

80
Technical Specifications
Dimensions:
Height x Width x Depth (in cm) 38,7 x 59,9 x 27,5
Maximum absorbed power: 250 W
Motor absorption: 2 x 110 W
Lighting: 2 x 9 W (PL)
Length of the cable: 150 cm
Mounting accessories included
1 Flange Ø150 mm
1reductionflangeØ125-120mm(onlyformodelDF6260)
1Deflector
2 Wood-screws 2,9 x 22 mm
4 Wood-screws 4,5 x 16 mm
2 Metal-screws 3,5 x 9,5
2 Metal-screws 3,5 x 13
1charcoal filter frame

81
Electrical connection
Safety warnings for the electrician
Before connecting the appliance to the power supply, check that the
voltage indicated on the rating plate corresponds to the mains power
supply available. Appliances fitted with a plug can be connected to any
standard power socket within easy access.
Shoulditbenecessarytoprovideafixedconnection,thehoodmustonly
be installed by an electrician authorised by the local electricity board.
When installing, an omnipolar disconnector with a distance of at least 3
mmbetweencontactsmust be provided.
Themanufacturedeclinesallresponsibilityformalfunctionsresultingfrom
failure to comply with the above instructions.
Electrical connection
220-240 V –by means of fixed power cable with plug.
(Fixed connection of the appliance must only be carried out by an au-
thorised electrician.)

82
Installation
Preparing the wall unit - Extractor version
•The hood is supplied as an extractor unit.

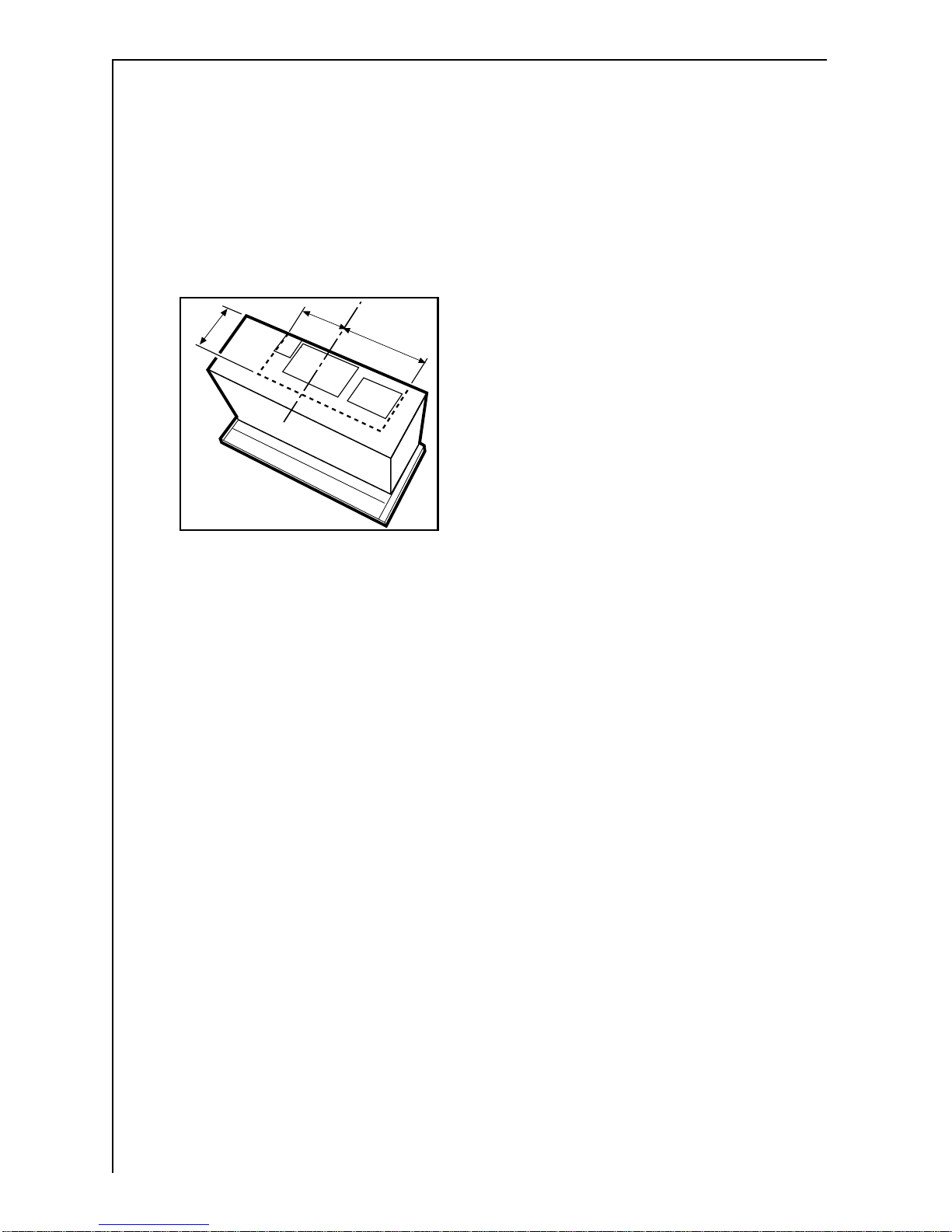

Before installing the hood, drill a hole in the roof of the wall unit
(see item. 5). This hole is to allow passage of the outlet pipe and
the power cable, and to facilitate servicing.
•The wall unit must have a minimum body depth (without door) of
300 mm with recessed light screen and min. 370 mm with flush-
mounted light screen. The unobstructed internal height must be at
least 370 mm.
190
238
172
Fig. 5

83
Outlet hole (extractor-filter version)
•When used as an extractor unit, the hood must be fitted with a
150mmdiameter hose.
Only for model DF6260: Shouldtherealready be a pipe ofdiameter
125 mm that ducts to the outside through the walls or roof, it is
possibletousethe 150/125 mm reduction flange provided. Inthis
case the hood will be slightly more noisy.
Fix the flange on the hood outlet hole, using 2 screws. Fig. 6a.
Filter version only
•Fix the deflector to the flange. Fig. 6b.
Spice rack
•If a spice rack is to be incorporated in front of the hood, a minimum
distance of 5 mm must be provided between the front edge of the
fume extractor hood and the spice rack wall (this air gap being
necessary for air circulation).
•The upper part of the spice rack rear wall should be detachable
(access for exhaust air hose or adjustment of furniture housing).
Fig. 6a Fig. 6b

84
Installing the fume extractor hood in the wall unit - extractor
version (Filter version with charcoal filter)
•Apply the drilling template to the inside wall of the wall unit on the
right and left sides, and mark out and predrill Ø2 mm mounting
holes as well as 2 x Ø6 mm - 5 mm depth holes for the mounting
claws (installation aids).
•Unscrew the ventilation grill mounted on the appliance (1 screw),
apply the exhaust air union prepared to the required exhaust air
diameter, and twist it to the right to its fullest extent (so that it is
retained).
•Fully withdraw the vapour catcher of the hood.
•Important: Detach and insert the grease filters only when the
vapour catcher is fully withdrawn.
Remove the grease filters. First remove the rear and then the front
grease filter.
•For 19 mm side walls, the spacer discs clipped in on the appliance
body must be taken out. Mount the hood with 4 or 6 x Ø4 mm
screws. Fig. 7.
•Insert the hood in the furniture housing and engage both mounting
claws (installation aids) on the right and left sides in the side wall
of the wall unit and firmly hold the hood for further mounting.
Then fix the hood with the 4 or 6 x Ø4 mm screws supplied.
•Refit the grease filters. Push-in the vapour catcher.
Fig. 7

85
•Ifthecupboardisdeeper than 300 mm, cover the gap betweenthe
hood and the wall with a finishing strip (special accessory).
To install it, proceed as follows:
Measure the wall distance and apply the covenng strip over the
necessary width (wall distance plus 5 to 8 mm), kinking the covering
strip at the appropriate notches and tearing off the surplus material
(removing the protective foil).
Then fasten the strip to the bottom part of the hood with three clips
(special accessories). Apply pressure. Fig. 8.
Fitting the charcoal filter for filter version
If the fume extractor hood is installed as a return air appliance (Filter
version-air outlet above the wall unit), thecharcoalfilter (special
accessory) must be fitted before the grease filters are fitted.
Installation sequence:
1. Insert the holding frame for the charcoal filter in the shaft of the hood
with the 2 lugs facing upwards and then clip into the lower holes.
2. Fix the holding frame on the lower part of the housing of the hood
with the 2 screws supplied. Fig. 9.
3.Fitthecharcoalfilter(see paragraph “Charcoalfilter”)
4. Refit the grease filters. Push-in the vapour catcher.
Fig. 8
Fig. 9

86
Removing the hood from the wall unit
If, for technical reasons (extractor version/filter version conversion) the
fume extractor hood has to be removed from the wall unit, proceed as
follows:
•Fully withdraw the vapour catcher and remove the grease filter.
•Loosen the 4 or 6 mounting screws of the hood (wall unit mounting).

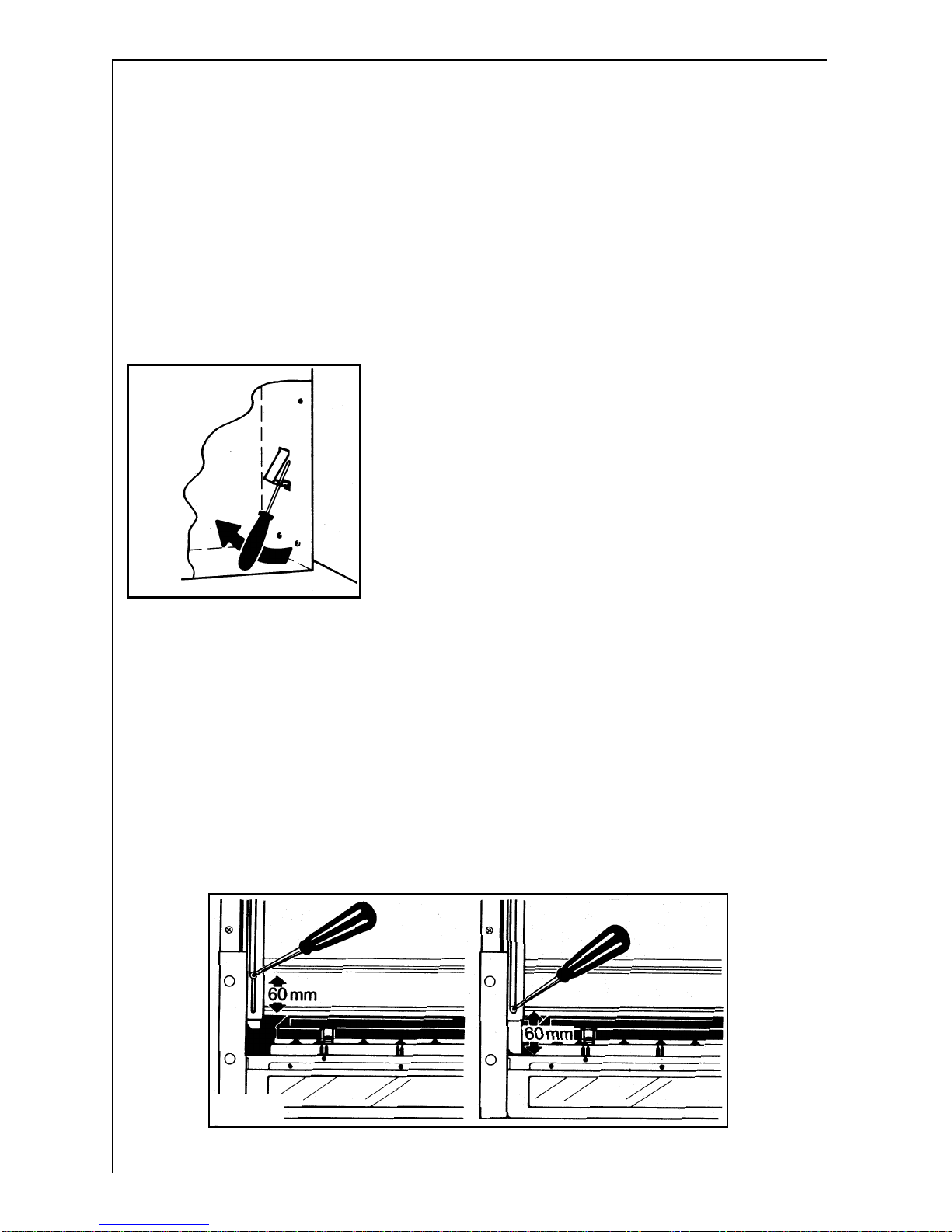

•To loosen both mounting claws (installation aids), place a max 3
mm dia. Phillips screw-driver in the spring opening and
simultaneously press the springs inwards (towards the appliance
housing). Fig. 10.
Important: Hold the hood firmly!
Adjusting the extractor part (E - Fig. 1) - Fig. 11
On wall units with a body depth of 275 mm to 335 mm, the vapour
catcher depth can be adjusted as follows:
•Remove both grease filters.
•Loosen the screws on both end-stop brackets and set the vapour
catcher depth (min. 275 mm, max. 335 mm).
•Refit the screws.
•Refit the grease filters.
Fig. 10
Fig. 11
