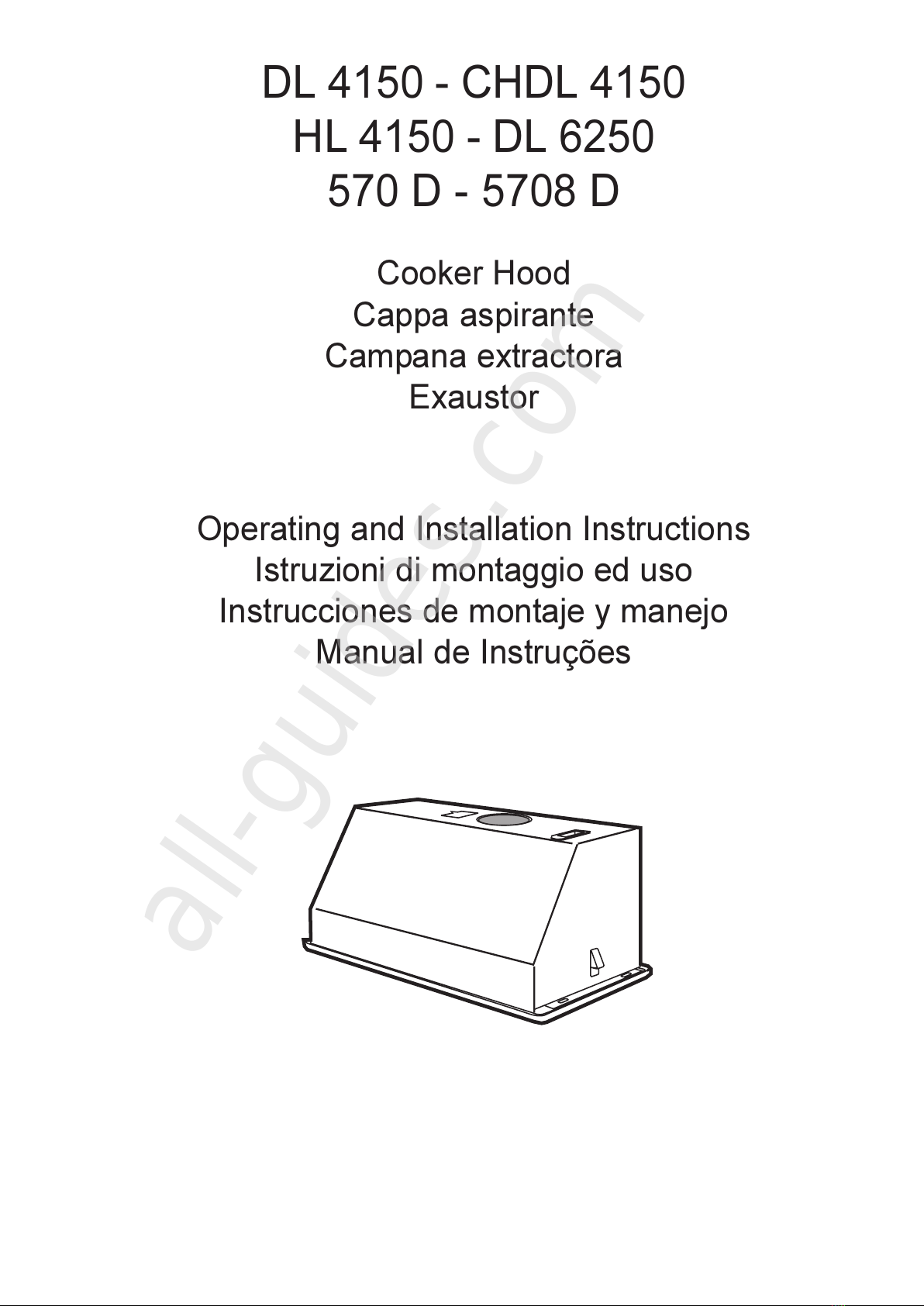

AEG CHDL 4150 User manual

DL 4150 - CHDL 4150
HL 4150 - DL 6250
570 D - 5708 D
Cooker Hood
Cappa aspirante
Campana extractora
Exaustor
Operating and Installation Instructions
Istruzioni di montaggio ed uso
Instrucciones de montaje y manejo
Manual de Instruções
All manuals and user guides at all-guides.com
all-guides.com

2
Contents
Safety warnings 3
For the user 3
For the installer 4
Description of the Appliance 6
Extraction mode 6
Recirculation mode 6
Control Panel 7
Maintenance and care 8
Cleaning the hood 8
Metal grease filter 8
Removing the metal grease filter 8
Charcoal filter 10
Changing the light ul 11
What to do if 12
Special accessories 13
echnical assistance service 13

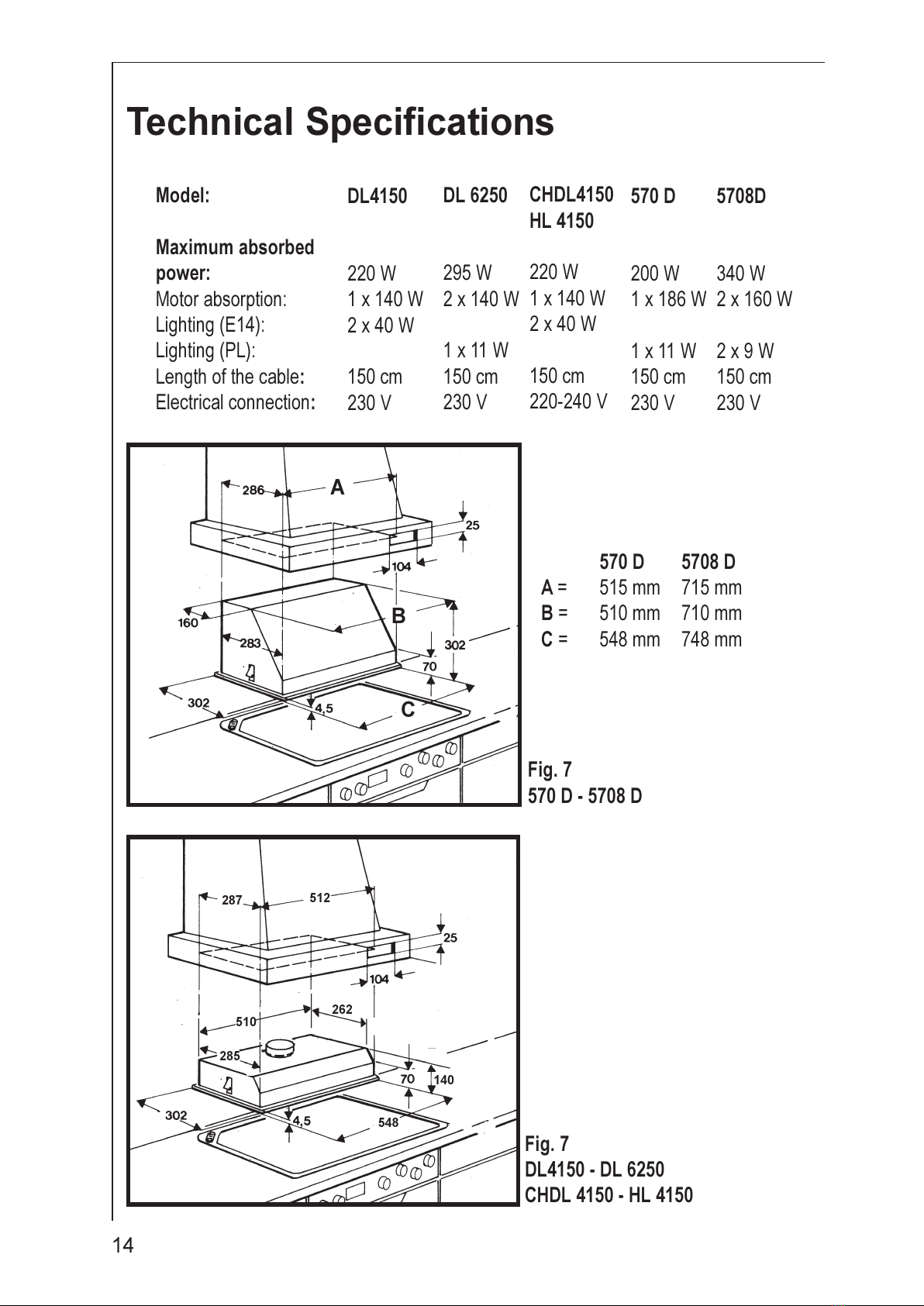

echnical Specifications 14
Electrical connection 15

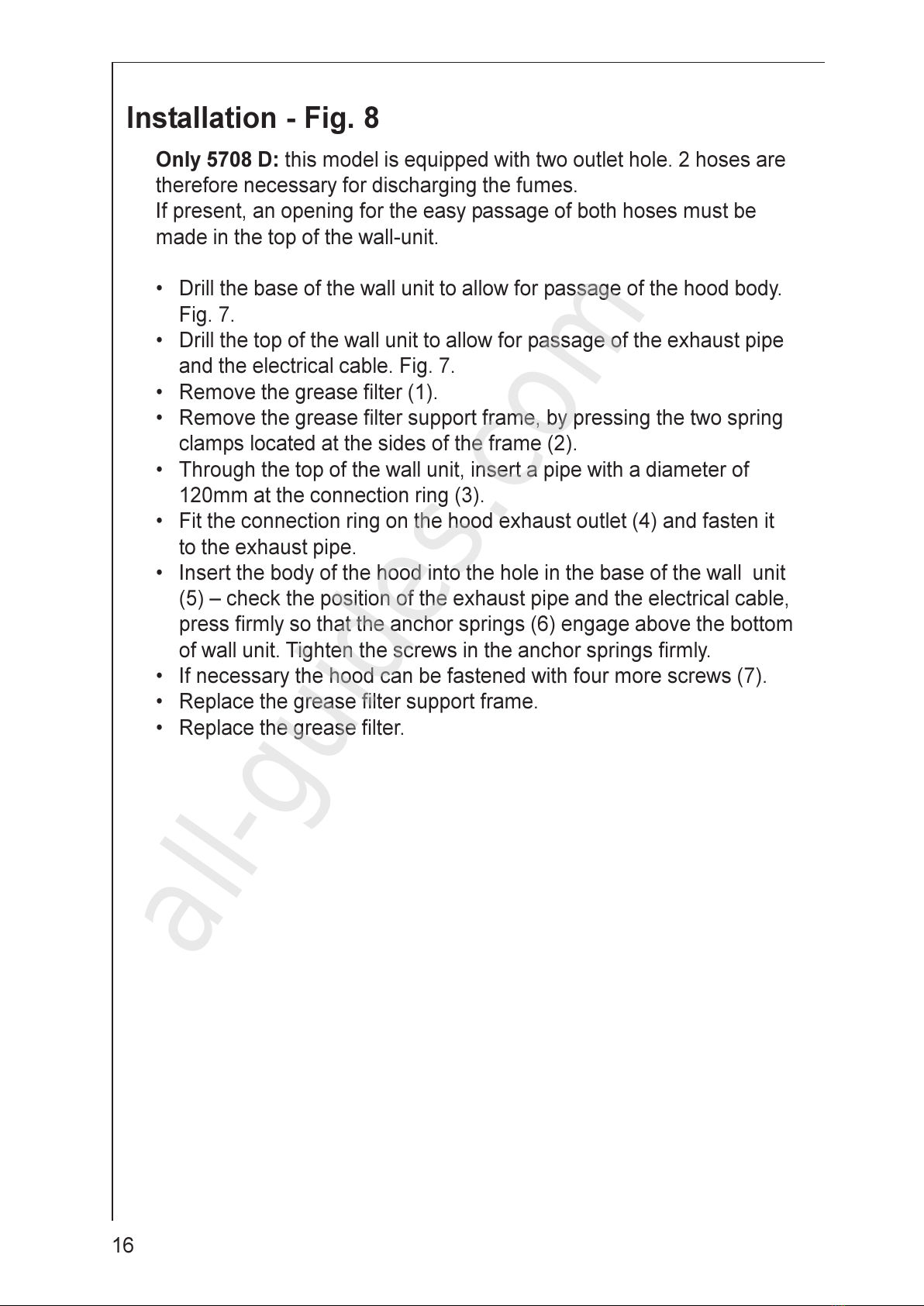

Installation 16

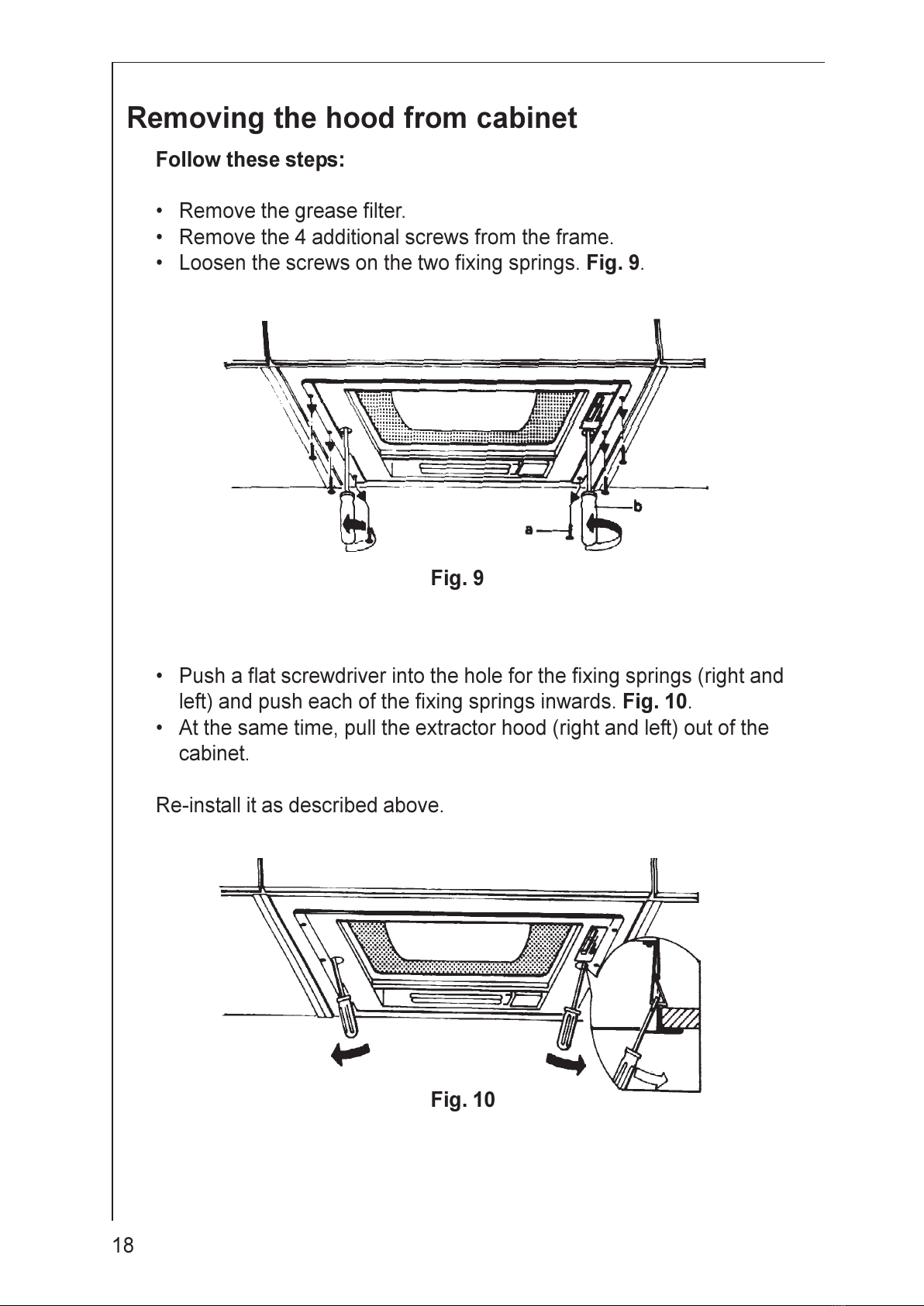

Removing the hood from ca inet 18

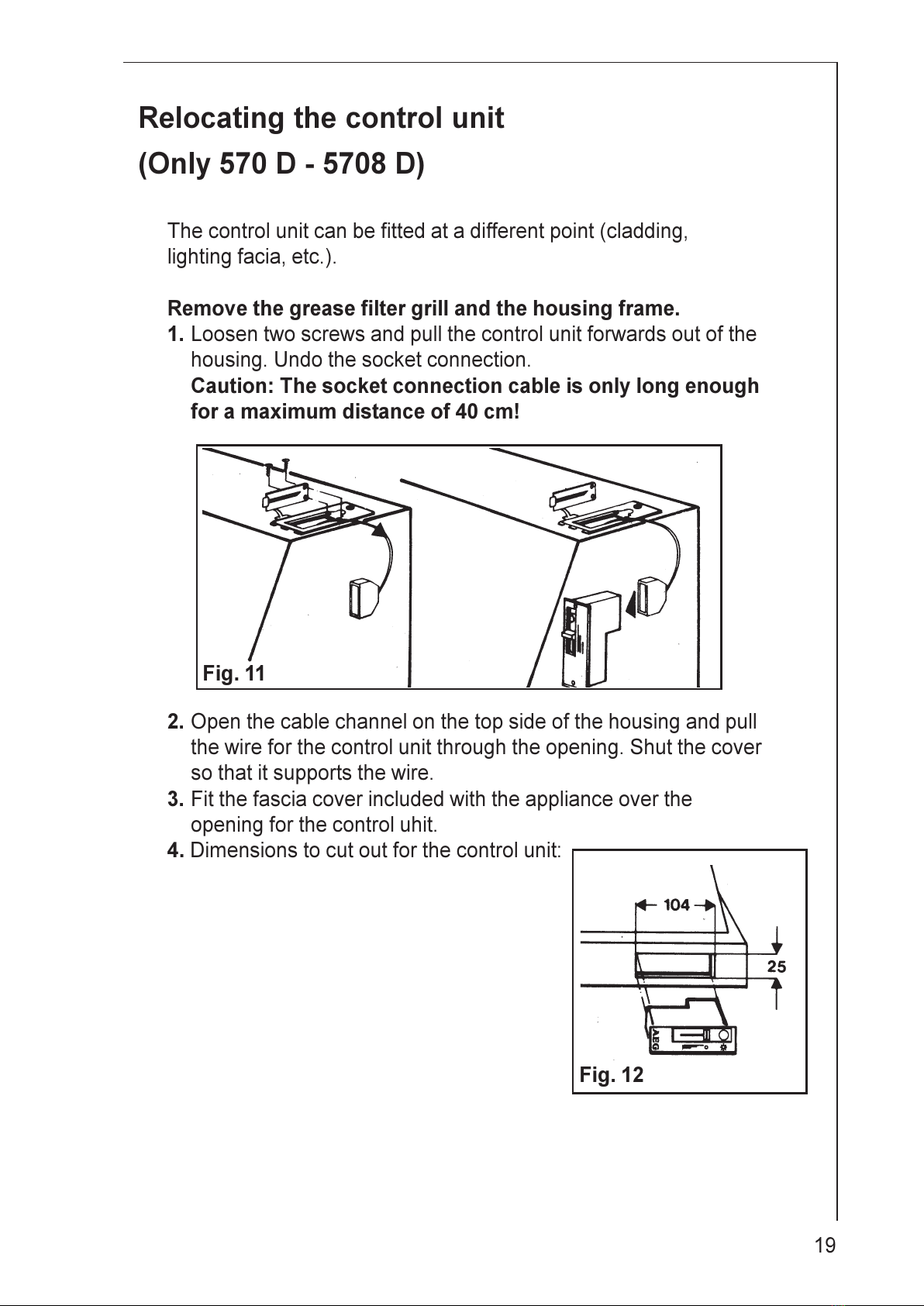

Relocating the control unit (Only 570 D - 5708 D) 19
All manuals and user guides at all-guides.com

3

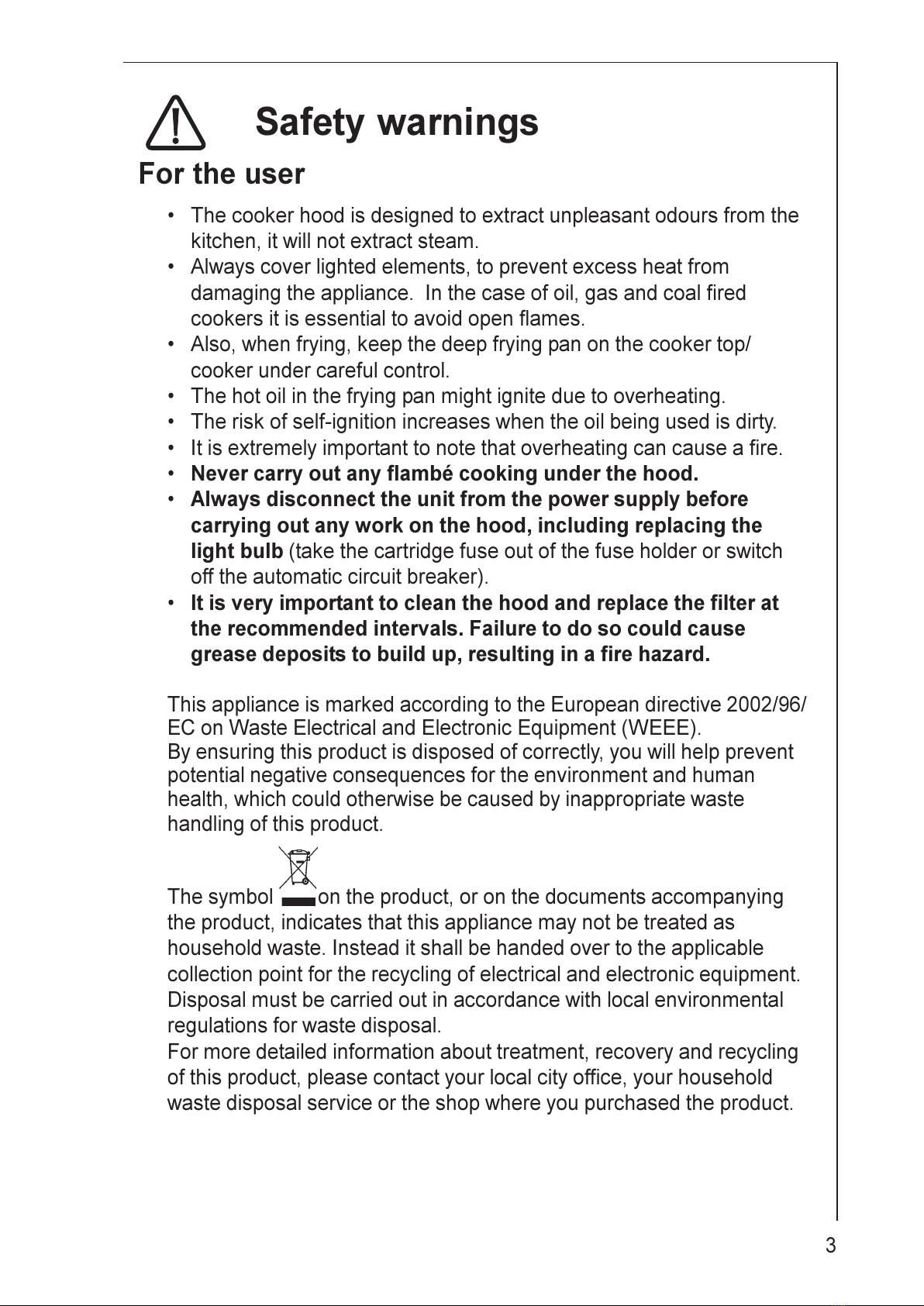

Safety warnings
For the user
 The cooker hood is designed to extract unpleasant odours from the
kitchen, it will not extract steam.
 Always cover lighted elements, to prevent excess heat from
damaging the appliance. In the case of oil, gas and coal fired
cookers it is essential to avoid open flames.
 Also, when frying, keep the deep frying pan on the cooker top/
cooker under careful control.
 The hot oil in the frying pan might ignite due to overheating.
 The risk of self-ignition increases when the oil eing used is dirty.
 It is extremely important to note that overheating can cause a fire.
Never carry out any flambé cooking under the hood.
Always disconnect the unit from the power supply before
carrying out any work on the hood, including replacing the
light bulb (take the cartridge fuse out of the fuse holder or switch
off the automatic circuit reaker).
It is very important to clean the hood and replace the filter at
the recommended intervals. Failure to do so could cause
grease deposits to build up, resulting in a fire hazard.
This appliance is marked according to the European directive 2002/96/
EC on Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent
potential negative consequences for the environment and human
health, which could otherwise e caused y inappropriate waste
handling of this product.
The sym ol on the product, or on the documents accompanying
the product, indicates that this appliance may not e treated as
household waste. Instead it shall e handed over to the applica le
collection point for the recycling of electrical and electronic equipment.
Disposal must e carried out in accordance with local environmental
regulations for waste disposal.
For more detailed information a out treatment, recovery and recycling
of this product, please contact your local city office, your household
waste disposal service or the shop where you purchased the product.
All manuals and user guides at all-guides.com

4
For the installer
 When used as an extractor unit, the hood must e fitted with a hose
having prefera ly the same diameter as the outlet hole.
Only 5708 D: this model is equipped with two outlet hole. 2 hoses
are therefore necessary for discharging the fumes.
When installing the hood, make sure you respect the following
minimum distance from the top edge of the cooking hob/ring
surfaces:
electric cookers 650 mm
models (CH)DL 4150-HL 4150-DL6250 only 600 mm
gas cookers 700 mm
The hood can e installed a ove these heights ut for optimum
performance it should e installed at the distance quoted for the
appropriate heat source.
 The national standard on fuel- urning systems specifies a maxi-
mum depression of 0.04 ar in such rooms.
 The air outlet must not e connected to chimney flues or com us-
tion gas ducts. The air outlet must under no circumstances e
connected to ventilation ducts for rooms in which fuel- urning
appliances are installed.
 The air outlet installation must comply with the regulations laid down
y the relevant authorities.
 When the unit is used in its extractor version, a sufficiently large
ventilation hole must e provided, with dimensions that are
approximately the same as the outlet hole.
 National and regional uilding regulations impose a num er of
restrictions on using hoods and fuel- urning appliances connected
to a chimney, such as coal or oil room-heaters and gas fires, in the
same room.
 Hoods can only e used safely with appliances connected to a
chimney if the room and/or flat (air/environment com ination) is
ventilated from outside using a suita le ventilation hole approxi-
mately 500-600 cm2 large to avoid the possi ility of a depression
eing created during operation of the hood.
 If you have any dou ts, contact the relevant controlling authority or
uilding inspectors office.
 Since the rule for rooms with fuel urning appliances is outlet hole
of the same size as the ventilation hole, a hole of 500-600 cm2,
which is to say a larger hole, could reduce the performance of the
extractor hood.
 If the hood is used in its filtering function, it will operate simply and
safely in the a ove conditions without the need for any of the
All manuals and user guides at all-guides.com

5

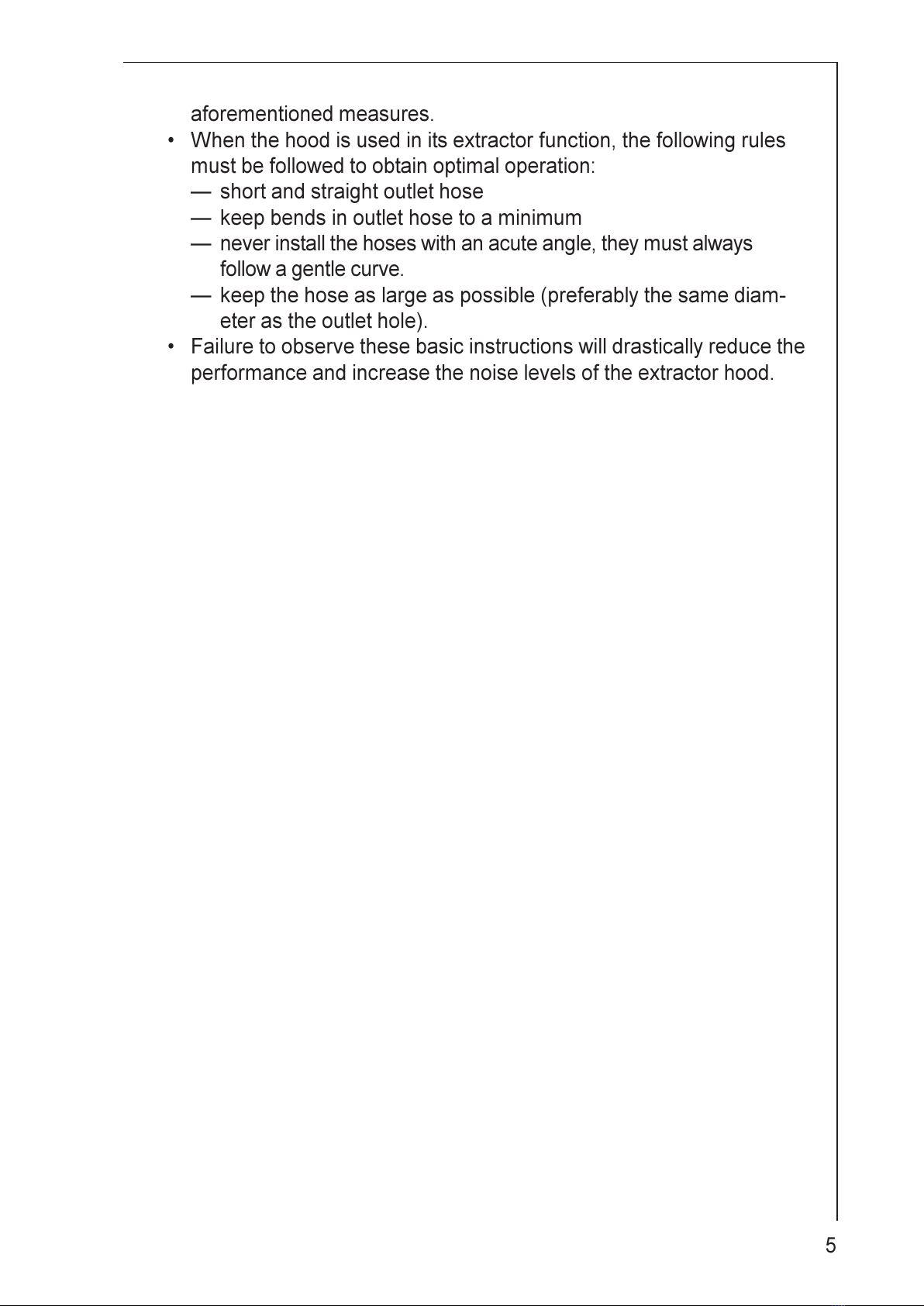

aforementioned measures.
 When the hood is used in its extractor function, the following rules
must e followed to o tain optimal operation:
 short and straight outlet hose
 keep ends in outlet hose to a minimum
 never install the hoses with an acute angle, they must always
follow a gentle curve.
 keep the hose as large as possi le (prefera ly the same diam-
eter as the outlet hole).
 Failure to o serve these asic instructions will drastically reduce the
performance and increase the noise levels of the extractor hood.
All manuals and user guides at all-guides.com

6
Fig. 2
Description of the Appliance
he cooker hood is designed to extract unpleasant odours
from the kitchen, it will not extract steam.
 The hood is supplied as an extractor unit and can also e used with
a recirculation mode y fitting a charcoal filter.
 In some models the charcoal filter is supplied. The hood, therefore,
can e used immediately in the recirculation mode. We advise
removing the charcoal filter to use the hood in the extraction mode.
Extraction mode
 In this mode fumes are extracted to the outside via a hose
connected to the coupling ring. Fig. 1.
 In order to o tain the est performance the hose should have a
diameter equal to the outlet hole.
Only 5708 D: this model is equipped with two outlet hole. 2 hoses
are therefore necessary for discharging the fumes.
Only for model DL 4150-CHDL 4150-HL 4150:
Should there already e an hose of diameter 100 mm that ducts to
the outside through the walls or roof, it is possi le to use the 120/
100 mm adapter. In this case the hood will e slightly noisier.
Filter Version
 The air is filtered through a charcoal filter and
returned to the kitchen. Fig. 2.
 You will need an original charcoal filter for the
filtering function. (See Special Accessories).
Fig. 1
510
710
Coupling ring
Bayonet screw fitting
(Only 570 D (1x) - 5708 D (2x))
All manuals and user guides at all-guides.com
all-guides.com

7
Fig. 3
Light switch
0 = Light OFF
1 = Light ON
Motor switch
0 = Motor OFF
1 = Speed 1 - Slow
2 = Speed 2 -
Medium
3 = Speed 3 - Fast
Light switch
= Light OFF
= Light ON
Motor switch
= Sliding speed control
DL 4150
CHDL 4150
HL 4150
Control Panel
 Best results are o tained y using a low speed for normal
conditions and a high speed when odours are more concentrated.
Turn the hood on a few minutes efore you start cooking, you will
then get an under pressure in the kitchen. The hood should e left
on after cooking for a out 15 minutes or until all the odours have
disappeared.
The switches are located on the right-hand side of the hood.
 the light switch switches the hood lamp on and off
 the motor switch switches the motor on and off, ena ling you to
select one of the three different speeds.
DL 6250
570 D
5708 D
i
Booster 1
(Only 570 D)
Booster 1+2
(Only 5708 D)
All manuals and user guides at all-guides.com

8

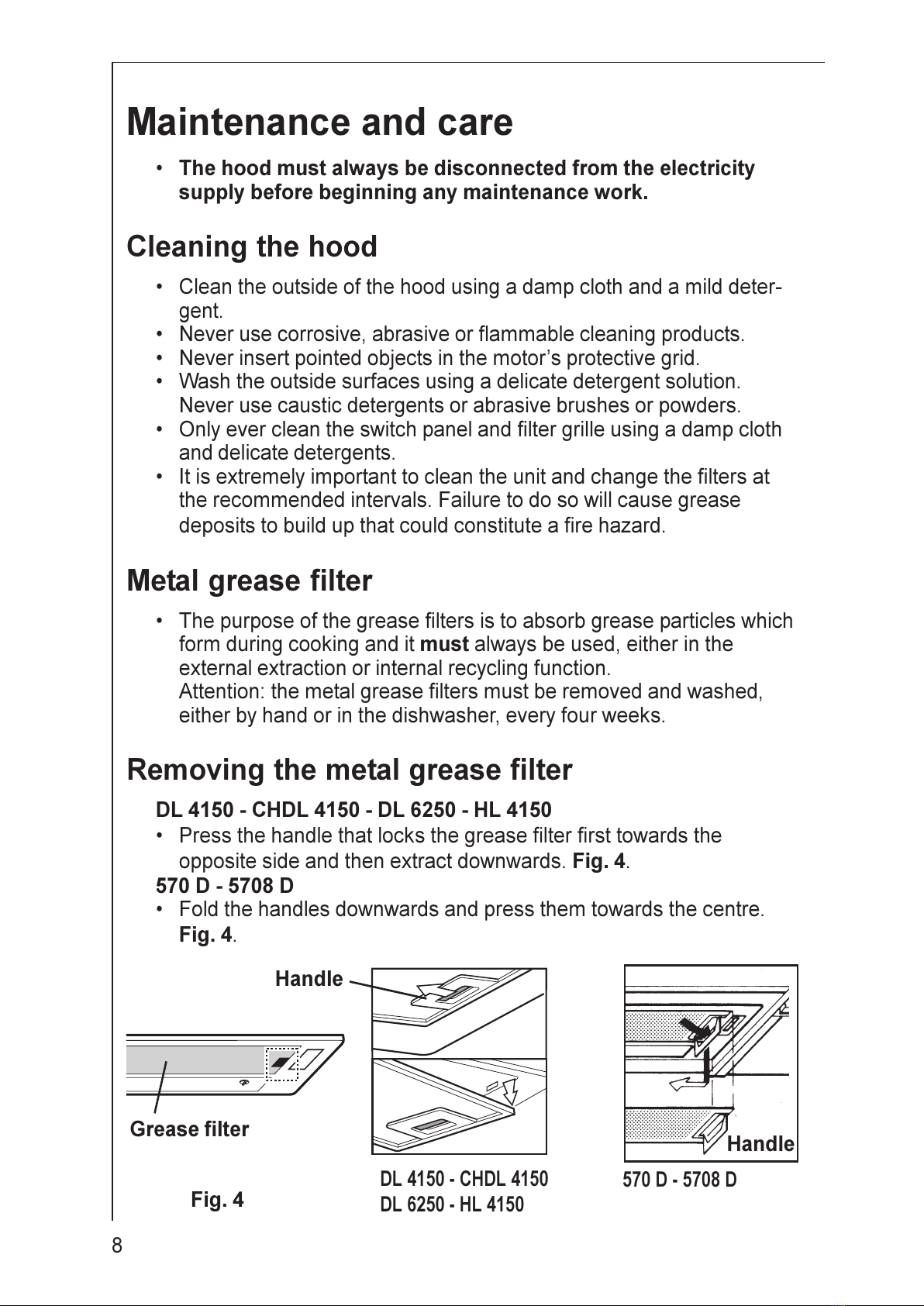

Maintenance and care
he hood must always be disconnected from the electricity
supply before beginning any maintenance work.
Cleaning the hood
 Clean the outside of the hood using a damp cloth and a mild deter-
gent.
 Never use corrosive, a rasive or flamma le cleaning products.
 Never insert pointed o jects in the motors protective grid.
 Wash the outside surfaces using a delicate detergent solution.
Never use caustic detergents or a rasive rushes or powders.
 Only ever clean the switch panel and filter grille using a damp cloth
and delicate detergents.
 It is extremely important to clean the unit and change the filters at
the recommended intervals. Failure to do so will cause grease
deposits to uild up that could constitute a fire hazard.
Metal grease filter
 The purpose of the grease filters is to a sor grease particles which
form during cooking and it must always e used, either in the
external extraction or internal recycling function.
Attention: the metal grease filters must e removed and washed,
either y hand or in the dishwasher, every four weeks.
Removing the metal grease filter
DL 4150 - CHDL 4150 - DL 6250 - HL 4150
 Press the handle that locks the grease filter first towards the
opposite side and then extract downwards. Fig. 4.
570 D - 5708 D
 Fold the handles downwards and press them towards the centre.
Fig. 4.
Fig. 4
Grease filter Handle
DL 4150 - CHDL 4150
DL 6250 - HL 4150
Handle
570 D - 5708 D
All manuals and user guides at all-guides.com

9

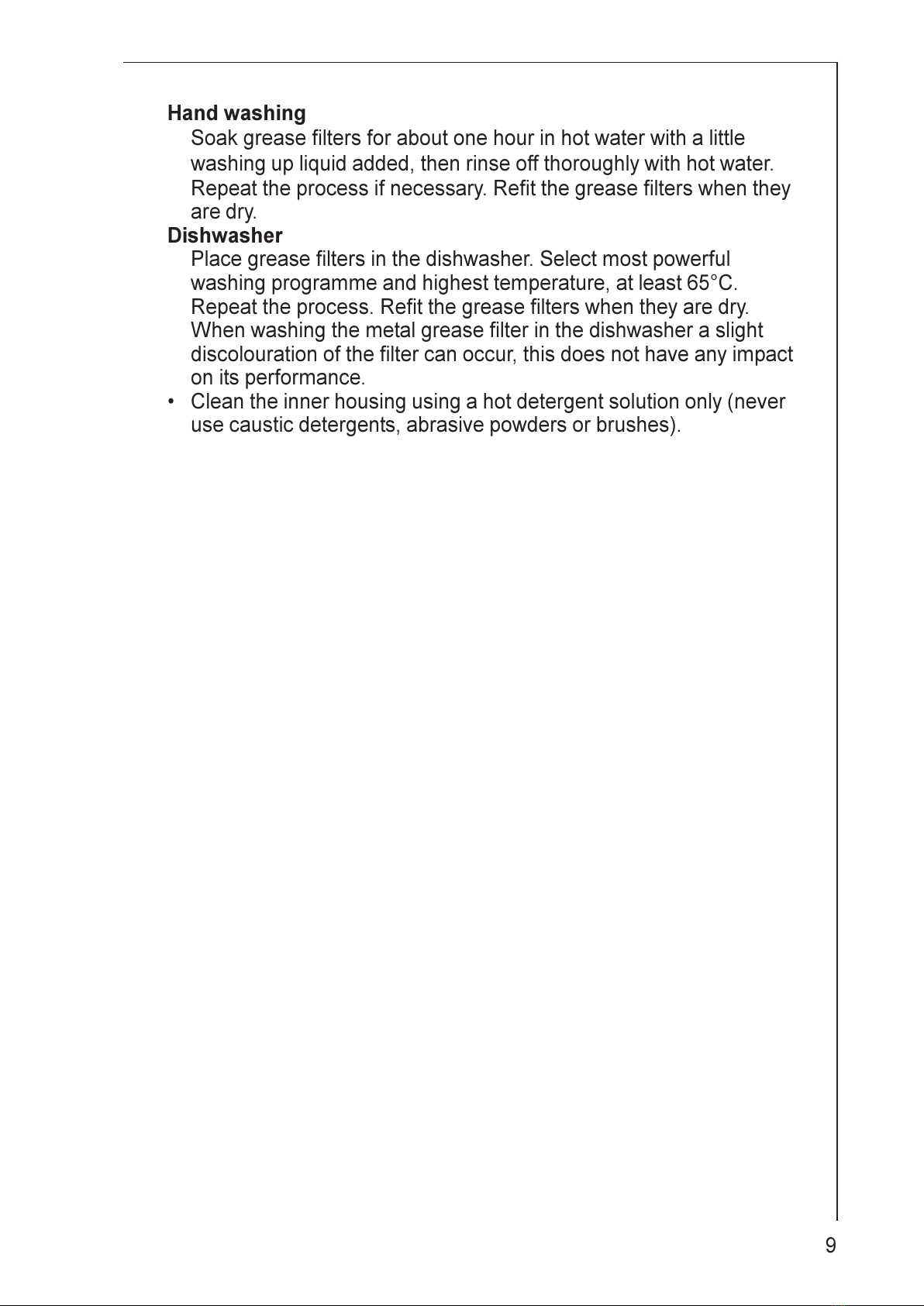

Hand washing
Soak grease filters for a out one hour in hot water with a little
washing up liquid added, then rinse off thoroughly with hot water.
Repeat the process if necessary. Refit the grease filters when they
are dry.
Dishwasher
Place grease filters in the dishwasher. Select most powerful
washing programme and highest temperature, at least 65°C.
Repeat the process. Refit the grease filters when they are dry.
When washing the metal grease filter in the dishwasher a slight
discolouration of the filter can occur, this does not have any impact
on its performance.
 Clean the inner housing using a hot detergent solution only (never
use caustic detergents, a rasive powders or rushes).
All manuals and user guides at all-guides.com

10
Fig. 5
Charcoal filter
 The charcoal filter should only e used if you want to use the hood
in the recirculation function.
 To do this you will need an original charcoal filter (availa le from
your local Service Force Centre).
Replacing the charcoal filter ype 150
Note: this filter is already installed on model 570 D-m9.
This filter cannot e cleaned or reused.
As a general rule, the activated charcoal filter should e changed
once every 4 months.
Cleaning/replacing the charcoal filter ype 150 LONG LIFE
Unlike other charcoal filters, the LONGLIFE charcoal filter can e
cleaned and reactivated. At normal use the filter should e cleaned
every second month (when using the hood 2,5 hours per day, on
avarage). The est way to clean the filter is in the dishwasher. Use
normal detergent and choose the highest temperature (65º C).
Wash the filter separately so that no food parts gets stuck on the
filter and later causes ad odours. To reactivate the charcoal, the
filter should e dried in an oven for 10 minutes with a maximum
temperature of 100ºC.
After approximately three years of use, the charcoal filter should e
replaced with a new, as the odour reduction capacity will e
reduced.
Fitting
Remove the grease filter.
Fit the charcoal filter on the lamp side, press in oth red lugs on the
charcoal filter, and unclip the charcoal filter forwards (towards the
front edge of the appliance).
Refit the grease filter.
o remove proceed in the reverse order.
 Always specify the hood model code num er and serial num er
when ordering replacement filters. This information is shown on the
registration plate located on the inside of the unit.
 The charcoal filter can e ordered from your local Service Force
Centre.
All manuals and user guides at all-guides.com

11
Fig. 6
Warning
 Failure to o serve the instructions on cleaning the unit and
changing the filters will cause a fire hazard. You are therefore
strongly recommended to follow these instructions.
 The manufacturer declines all responsi ility for any damage to the
motor or any fire damage linked to inappropriate maintenance or
failure to o serve the a ove safety recommendations.
Changing the light bulb
 Disconnect the cooker hood from
the main supply.
 Unlock the lamp cover y twisting
the olts to the left and fold down
the ul cover.
 Replace the old ul with a new
one of the same type.
 Close the ul cover and relock it
y twisting the olts to the right.
 If the light does not come on, make
sure the ul has een inserted
correctly efore contacting your
local Service Force Centre.
All manuals and user guides at all-guides.com
all-guides.com

12
What to do if
If your appliance fails to work properly please carry out the following
checks.
Symptom Solution
The cooker hood will not start... Check that:
The hood is connected to
the electricity supply.
Check that a fan speed has
een selected
The cooker hood is not working Check that:
effectively.. The fan speed is set high
enough for the task.
The grease filters are clean.
The kitchen is adequately vented
to allow the entry of fresh air.
If set up for recirculation, check
that the charcoal filter is still
effective.
If set up for extraction, check that
the ducting and outlets are not
locked.
The cooker hood has The safety cut-out device has een
switched off during operation... tripped.
Turn off the ho and then wait for
the device to reset.
If the hood has een installed
elow the heights indicated in the
installation instructions the motor
will cut-out frequently which will
damage the hood.
If after all these checks, the pro lem persists, contact your local
Service Force Centre, quoting the model and serial num er.
Please note that it will e necessary to provide proof of purchase for
any in-guarantee service calls.
In-guarantee customers should ensure that the a ove checks have
een made as the engineer will make a charge if the fault is not a
mechanical or electrical reakdown.
All manuals and user guides at all-guides.com

13
Special accessories
Charcoal filter Type 150 LONG LIFE
Charcoal filter Type 150
Technical assistance service (not for UK
You are welcome to telephone our technical assistance service (see list
of technical assistance centres) whenever you need information or in
the unlikely event of a fault.
When calling, please e ready to specify:
1. he model code number
2. he serial number (E-Nr.)
3. he manufacturing number (F-Nr.)
his information is shown on the registration plate inside the unit
behind the grease filter.
We reserve the right to change specifications and colours as a result of
our policy of continuing technological development.
Service and spare parts for UK
In the event of your appliance requiring service, or if you wish to
purchase spare parts, contact your local AEG Service Force Centre y
telephoning: 08705 929 929
Your call will e automatically routed to the Service Centre covering
your post code area. For the address of your local Service Force
Centre and further information a out Service Force, please visit the
we site at www.serviceforce.co.uk
Please ensure that you have read the section What to do if.... as the
engineer will make a charge if the fault is not a mechanical or electri-
cal reakdown even the appliance is under warranty. Please note that
proof of purchase is required for in-guarantee service calls.
Help us to help you
Please determine your type of enquiry efore writing or telephoning.
When you contact us we need to know:
 Your name  Clear and concise details of the fault
 Address and post code  Name and model of the appliance*
 Telephone num er  E num er*
* This information can e found on the rating plate, which can e seen
when the grease filters are removed.
All manuals and user guides at all-guides.com

14
Technical Specifications
Model:
Maximum absorbed
power:
Motor absorption
Lighting (E14)
Lighting (PL)
Length of the cable:
Electrical connection:
DL4150
220 W
1 x 140 W
2 x 40 W
150 cm
230 V
DL 6250
295 W
2 x 140 W
1 x 11 W
150 cm
230 V
CHDL4150
HL 4150
220 W
1 x 140 W
2 x 40 W
150 cm
220-240 V
570 D
200 W
1 x 186 W
1 x 11 W
150 cm
230 V
5708D
340 W
2 x 160 W
2 x 9 W
150 cm
230 V
570 D 5708 D
A = 515 mm 715 mm
= 510 mm 710 mm
C = 548 mm 748 mm
140
262
512
548
510
Fig. 7
DL4150 - DL 6250
CHDL 4150 - HL 4150
Fig. 7
570 D - 5708 D
285
287
B
A
C
All manuals and user guides at all-guides.com

15
Electrical connection (not for UK)
Safety warnings for the electrician
Before connecting the appliance to the power supply, check that the
voltage indicated on the rating plate corresponds to the mains power
supply availa le. Appliances fitted with a plug can e connected to
any standard power socket within easy access.
Should it e necessary to provide a fixed connection, the hood must
only e installed y an electrician authorised y the local electricity
oard. When installing, an omnipolar disconnector with a distance of
at least 3 mm etween contacts must e provided.
Fixed connection of the appliance must only e carried out y an
authorised electrician.
Electrical connection for UK only
Safety warnings for the electrician
Connect the hood to the mains supply via a dou le pole switch
which has 3 mm minimum separation etween the contacts.
The switch must e accessi le at all times.
The following is valid in the United Kingdom only:
- the wire which is coloured green and yellow must e connected to
the terminal which is marked with the letter E or y the earth sym ol
( ), or coloured green or green and yellow;
- the wire which is coloured lue must e connected to the terminal
which is marked with the letter N or coloured lack, -
- the wire which is coloured rown must e connected to the terminal
which is marked with the letter L or coloured red.
All manuals and user guides at all-guides.com

16
Installation - Fig. 8
Only 5708 D: this model is equipped with two outlet hole. 2 hoses are
therefore necessary for discharging the fumes.
If present, an opening for the easy passage of oth hoses must e
made in the top of the wall-unit.
 Drill the ase of the wall unit to allow for passage of the hood ody.
Fig. 7.
 Drill the top of the wall unit to allow for passage of the exhaust pipe
and the electrical ca le. Fig. 7.
 Remove the grease filter (1).
 Remove the grease filter support frame, y pressing the two spring
clamps located at the sides of the frame (2).
 Through the top of the wall unit, insert a pipe with a diameter of
120mm at the connection ring (3).
 Fit the connection ring on the hood exhaust outlet (4) and fasten it
to the exhaust pipe.
 Insert the ody of the hood into the hole in the ase of the wall unit
(5)  check the position of the exhaust pipe and the electrical ca le,
press firmly so that the anchor springs (6) engage a ove the ottom
of wall unit. Tighten the screws in the anchor springs firmly.
 If necessary the hood can e fastened with four more screws (7).
 Replace the grease filter support frame.
 Replace the grease filter.
All manuals and user guides at all-guides.com
all-guides.com

17
OK! OK!
1
22
3-F
4
5-C
7
66
7
7
7
5-C
Fig. 8
All manuals and user guides at all-guides.com

18
Removing the hood from cabinet
Follow these steps:
 Remove the grease filter.
 Remove the 4 additional screws from the frame.
 Loosen the screws on the two fixing springs. Fig. 9.
 Push a flat screwdriver into the hole for the fixing springs (right and
left) and push each of the fixing springs inwards. Fig. 10.
 At the same time, pull the extractor hood (right and left) out of the
ca inet.
Re-install it as descri ed a ove.
Fig. 9
Fig. 10
All manuals and user guides at all-guides.com

19
Relocating the control unit
(Only 570 D - 5708 D
The control unit can e fitted at a different point (cladding,
lighting facia, etc.).
Remove the grease filter grill and the housing frame.
1. Loosen two screws and pull the control unit forwards out of the
housing. Undo the socket connection.
Caution: he socket connection cable is only long enough
for a maximum distance of 40 cm!
2. Open the ca le channel on the top side of the housing and pull
the wire for the control unit through the opening. Shut the cover
so that it supports the wire.
3. Fit the fascia cover included with the appliance over the
opening for the control uhit.
4. Dimensions to cut out for the control unit:
Fig. 11
Fig. 12
All manuals and user guides at all-guides.com

LI13EJ Ed. 05/05
AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nür berg
http://www.aeg.hausgeraete.de
http://www.aeg.co.uk
© Copyright by AEG
From the Electrolux Group. The world´s No.1 choice.
The Electrolux Group is the world´s largest producer of powered appliances for kitchen,
cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators,
cookers, washing machines,vacuum cleaners, chain saws and lawn mowers are sold each
year to a value of approx. USD 14 billion in more than 150 countries around the world.
All manuals and user guides at all-guides.com
