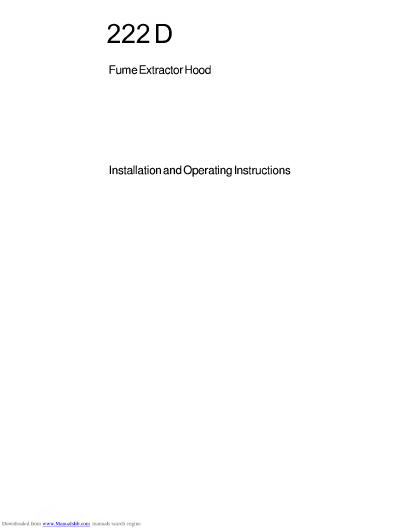

AEG 222 D User manual

222 D
Fume Extractor Hood
Installation and Operating Instructions

Printed on recycled paper.
AEG - putting words into action.

Contents
Introduction 4
Extraction mode 4
Recirculation mode
5
Electrical connections 6
Technical details
7
Installation
8
Safety warnings for kitchen unit installer
8
Wall unit mounting
10
Wall mounting 11
Hood operation 12
Safety warnings for user
13
Maintenance and care
14
Opening the grid
14
Grease filter
14
Carbon filter
15
Changing the light bulb
16
Cleaning
16
Accessories 16
Something not working 17
Service & Spare parts 18

Introduction
Extraction mode
• The hood is supplied as an extractor unit and can also be used with a
filtering function by fitting activated carbon filters (available as an
accessory).
• The unit features two outlet holes, one of which A is located on the
top of the unit while the other B is located on the rear.
• To connect up the hose, you should first fit the bayonet-mounting
flange C (0120 mm) on the outlet required (if using the top outlet,
fix the flange in place using the screw supplied as shown in Fig. 1).
Close off the unused hole using the bayonet fitting caps D.
• Important !To use the back hole B, remove switch F from the
top hole. — Fig 2.

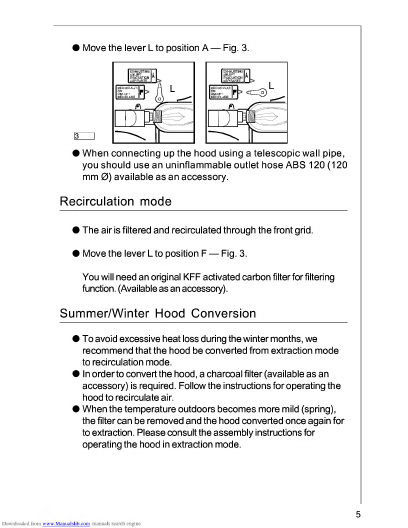

• Move the lever L to position A — Fig. 3.
• When connecting up the hood using a telescopic wall pipe,
you should use an uninflammable outlet hose ABS 120 (120
mm 0) available as an accessory.
Recirculation mode
• The air is filtered and recirculated through the front grid.
• Move the lever L to position F — Fig. 3.
You will need an original KFF activated carbon filter for filtering
function. (Available as an accessory).
Summer/Winter Hood Conversion
• To avoid excessive heat loss during the winter months, we
recommend that the hood be converted from extraction mode
to recirculation mode.
• In order to convert the hood, a charcoal filter (available as an
accessory) is required. Follow the instructions for operating the
hood to recirculate air.
• When the temperature outdoors becomes more mild (spring),
the filter can be removed and the hood converted once again for
to extraction. Please consult the assembly instructions for
operating the hood in extraction mode.
5

Electrical connection
220-240 V - using fixed power supply line with plug.
(The unit should only be connected up by an authorized electrician).
Your appliance must be connected to fixed wiring via the use of a double
pole swiched fused spur outlet with or without pilot lamp.
We strongly recommend the appliance is connected by a qualified
electrician who is a memberof the NICEIC who will comply with the IEE
and any local regulations.
NOTE: the terminology “DOUBLE POLE" means that both the live
andneutralsupplies are swichedanddisconnectedat the same time.
The terminations labelled SUPPLYare forthe connection forthe internal
house wiring and the terminations labelled LOAD are forthe appliance.
IMPORTANT
The wires of the mains lead supplied with this appliance are
coloured in accordance with the following code:
Blue-Neutral
Brown-Live
As the colours of the flexible cord of this appliance may not
correspond with the coloured markings identifying the terminals in
your plug, proceed as follows: The whire which is coloured brown
must be connected to the terminal which is marked with the letter
L or coloured red.
The wire which is coloured blue must be connected to the terminal
which is marked with the letter N or coloured
- - -BLUE BROWN
I (NEUTRAL) (UVE)-

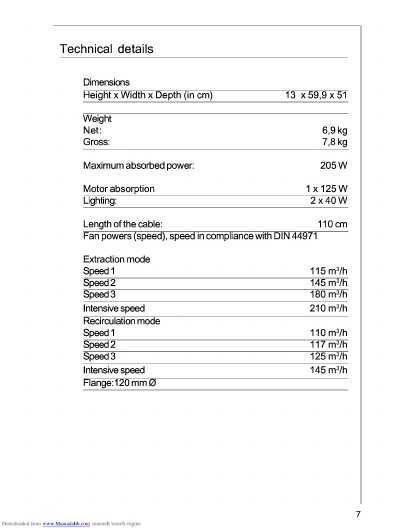

Technical details
Dimensions
Height x Width x Depth (in cm)
13 x 59,9x51
Weight
Net: 6,9 kg
Gross:
7,8 kg
Maximum absorbed power: 205 W
Motor absorption 1 x125W
Lighting: 2 x40 W
Length of the cable:
110 cm
Fan powers (speed), speed in compliance with DIN 44971
Extraction mode
Speed 1
115 m 3 /h
Speed 2
145 rrWh
Speed 3
180 rcvVh
Intensive speed 210 m 3 /h
Recirculation mode
Speed 1
110 m 3 /h
Speed 2 117 rrF/h
Speed 3 125 rrWh
Intensive speed 145 m 3 /h
Flange: 120 mm 0

Installation

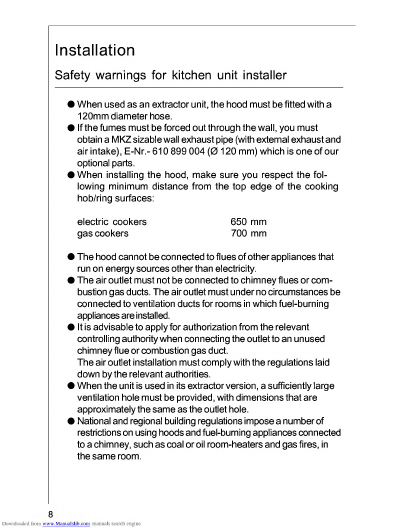

Safety warnings for kitchen unit installer
• When used as an extractor unit, the hood must be fitted with a
120mm diameter hose.
• If the fumes must be forced out through the wall, you must
obtain a MKZ sizable wall exhaust pipe (with external exhaust and
air intake), E-Nr.-610 899 004 (0 120 mm) which is one of our
optional parts.
• When installing the hood, make sure you respect the fol¬
lowing minimum distance from the top edge of the cooking
hob/ring surfaces:
electric cookers 650 mm
gas cookers 700 mm
• The hood cannot be connected to flues of other appliances that
run on energy sources other than electricity.
• The air outlet must not be connected to chimney flues or com¬
bustion gas ducts. The air outlet must under no circumstances be
connected to ventilation ducts for rooms in which fuel-burning
appliances are installed.
• It is advisable to apply for authorization from the relevant
controlling authority when connecting the outlet to an unused
chimney flue or combustion gas duct.
The air outlet installation must comply with the regulations laid
down by the relevant authorities.
• When the unit is used in its extractor version, a sufficiently large
ventilation hole must be provided, with dimensions that are
approximately the same as the outlet hole.
• National and regional building regulations impose a number of
restrictions on using hoods and fuel-burning appliances connected
to a chimney, such as coal or oil room-heaters and gas fires, in
the same room.

• The national decree on fuel-burning systems specifies a maximum
depression of 0.04 bar in such rooms.
• Hoods can only be used safely with appliances connected to a
chimney if the room and/or flat (air/environment combination) is
ventilated from outside using a suitable ventilation hole approxi¬
mately 500-600 cm 2 large to avoid the possibility of a depression
being created during operation of the hood.
If you have any doubts, contact the relevant controlling authority
or building inspector’s office.
• Since the rule for rooms with fuel burning appliances is “outlet
hole of the same size as the ventilation hole”, a hole of 500-600
cm 2 , which is to say a larger hole, could reduce the performance
of the extractor hood.
• If the hood is used in its filtering function, it will operate simply
and safely in the above conditions without the need for any of the
aforementioned measures.
• When the hood is used in its extractor function, the following
rules must be followed to obtain optimal operation:
— short and straight outlet hose
— keep bends in outlet hose to a minimum
— never install the hoses with an acute angle, they must
always follow a gentle curve only
— keep the hose as large as possible (120 mm 0 min.).
• Failure to observe these basic rules will drastically reduce the
performance and increase the noise levels of the extractor hood.

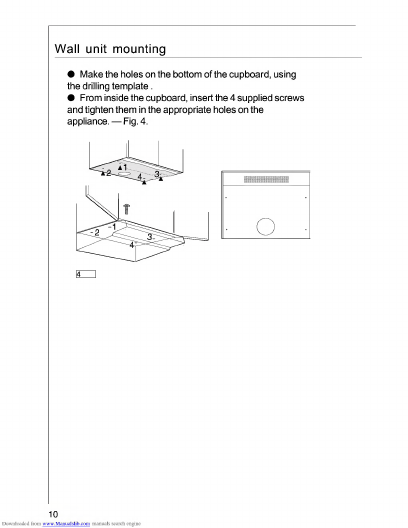

Wall unit mounting
• Make the holes on the bottom of the cupboard, using
the drilling template.
• From inside the cupboard, insert the 4 supplied screws
and tighten them in the appropriate holes on the
appliance. — Fig. 4.
10

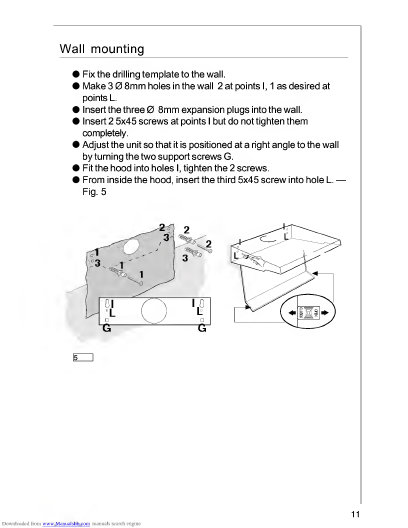

Wall mounting
• Fix the drilling template to the wall.
• Make 3 0 8mm holes in the wall 2 at points 1,1 as desired at
points L.
• Insert the three 0 8mm expansion plugs into the wall.
• Insert 2 5x45 screws at points I but do not tighten them
completely.
• Adjust the unit so that it is positioned at a right angle to the wall
by turning the two support screws G.
• Fit the hood into holes I, tighten the 2 screws.
• From inside the hood, insert the third 5x45 screw into hole L. —
Fig. 5
11

Hood Operation
• The hood is fitted with a variable speed motor. The most
effective use of the hood is obtained by switching it on a few
minutes before you start cooking and leaving it on a for
approximately 15 minutes after you have finished, thus ensuring
all cooking odours are eliminated. The control switches are
located on the unit’s front panel:
• the light switch switches the hood lamp on and off;
• the motor switch switches the extractor motor on and off,
enabling you to select one of the three different speeds.
A O 1 2 3 i
A
Light switch ■
On/Off
adjustable to
O-OFF
I-ON
3 positions
+ intensive
O - OFF
1 - LOW
2- M EDIUM
3- H IGH
i - INTENSIVE
12

Safety warnings for user
• Never leave a cooking hob or ring on without a pot or pan on
top of it, to avoid the possibility of excess heat damaging the
unit. Gas, oil in particular should never be left uncovered.
• Special care should be taken when using deep fat fryers since
the oil in them can overheat and burst into flames.
• The risk of a fat fire increases when using dirty oil.
• It is extremely important to note that overheating can cause a
fire.
• Never carry out any flambe cooking under the hood.
• Always disconnect the unit from the power supply
before carrying out any work on the hood, including
replacing the light bulb (take the cartridge fuse out of the
fuse holder or switch off the automatic circuit breaker).
• It is very important to clean the hood and replace the
filter at the recommended intervals. Failure to do so
could cause grease deposits to build up, causing a fire
hazard.
13

Maintenance and care
• The hood must always be disconnected from the mains
power supply before beginning any maintenance work.
Opening the grid
• Open the latch L and swing the grille downwards.
— Fig. 6.
• To remove the grid, pull it forwards from the right and
• The purpose of the grease filters is to aspirate grease particles which
form during cooking and it must always be used, either in the external
evacuation or internal recyclingfundion.
Important: the metal grease filters must be removed and
washed, either by hand or in the dishwasher, every four weeks.
Hand washing
Soak grease filters for about one hour in hot water with a grease¬
loosening cleaner, then rinse off thoroughly with hot water. Repeat the
process if necessary. Refit the grease filters when it are dry.
Dishwasher machine
Place grease filters in dish washer. Select most powerful washing
programme and highest temperature, at least 65°C. Repeatthe
process. Refit the grease filters when it are dry.
Note: when washing the metal grease filter in the dishwasher a slight
discoloration of the filter can occur, this does not have any impact on its
performance.
• Clean the inner housing using a hot detergent solution only (never use
caustic detergents, abrasive powders or brushes).
14

Removing the filter
Open the grid and remove the stops M to take out the filter. See
Fig. 7.
Carbon filter
• The activated carbon filter should only be used if you want to use
the hood in its filtering function.
• To do this you will need an original AEG activated carbon filter
(see special accessories).
• This filter cannot be cleaned or reused.
• As a general rule, the activated carbon filter should be
changed once every four months.
• Mounting - Fig 8
a. Fit first rearwards on the proper seats.
b. Then fix frontwards the carbon filter using hooks C.
• Dismounting :
Unhook the carbon filter from its housing pushing hooks C.
□
• Always specify the hood model code number and serial number
when ordering replacement filters. This information is shown on
the registration plate located on the inside of the unit.
• The activated carbon filter can be ordered from the AEG Service
Force.
15

Warning
• Failure to observe the instructions on cleaning the unit and
changing the filters will cause a fire hazard. You are therefore
strongly recommended to follow these instructions.
Changing the light bulb
• Disconnect the unit from the mains power supply.
• Remove the grid.
• Replace the old light bulb with a new light bulb (40 W
max.).
• If the light does not come on, make sure the bulb has
been screwed in correctly before contacting the technical
assistance service.
Cleaning
• Warning: always disconnect the hood from the mains power
supply before cleaning it.
Never insert pointed objects in the motor’s protective grid.
• Wash the outside surfaces using a delicate detergent solution.
Never use caustic detergents or abrasive brushes or powders.
• Only ever clean the switch panel and filter grille using a damp
cloth and delicate detergents.
• It is extremely important to clean the unit and change the filters
at the recommended intervals. Failure to do so will cause grease
deposits to build up that could constitute a fire hazard.
Accessories
The following accessoires can be ordered through your retailers.
MKZ telescopic wall pipe outlet hose ABS120,120 mm 0
Synthetic grease filter
Metal grease filter MFF2
Carbon filter KFF
16

What to do if
If your appliance fails to work properly please carry out the following checks.
Symptom Solution
The cooker hood will not start...
Check that:
The hood is connected to the
electricity supply.
Check that the fan speed control is
set to 1,2 or 3.
The cooker hood is not working
effectively..
Chec k that:
The fan speed is set high enough
for the task.
The grease filters are clean.
The kitchen is adequately vented to
allow the entry of fresh air.
If set up for recirculation, check that
the charcoal filter is still effective.
If set up for extraction, check that
the ducting and outlets are not
blocked.
The cooker hood has switched off
during operation...
The safety cut-out device has been
tripped.
Turn off the hob and then wait for the
device to reset.
If the hood has been installed below
the heights indicated in the
installation instructions the motor
will cut-out frequently which will
damage the hood.
If after all these checks, the problem persists, contact your local Service
Force Centre, quoting the model and serial number.
Please note that it will be necessary to provide proof of purchase for any
in-guarantee service calls.
In-guarantee customers should ensure that the above checks have been
made as the engineer will make a charge if the fault is not a mechanical c
electrical breakdown.
17

Service and spare parts
In the event of your appliance requiring service, or if you wish to
purchase spare parts, contact your local AEG Service Force Centre by
telephoning
08705 929 929
Your call will be automatically routed to the Service Centre covering
your post code area.
For the address of your local Service Force Centre and further informa¬
tion about Service Force, please visit the website at
www.serviceforce.co.uk
Please ensure that you have read the section „What to do if....“ as the
engineer will make a charge if the fault is not a mechanical or electrical
breakdown even the appliance is under warranty.
Please note that proof of purchase is required for in-guarantee
service calls.
Help us to help you
Please determine your type of enquiry before writing or telephoning.
When you contact us we need to know:
• Your name
• Address and post code
• Telephone number
• Clear and concise details of the fault
• Name and model of the appliance*
• E number*
• This information can be found on the rating plate, which can be seen
when the grease filters are removed.
Customer Care
For general enquiries concerning your AEG appliances, or for further
information on AEG products, please contact our Customer Care
Department at the address below or visit our website at www.aeg.co.uk
Customer Care Department
AEG Domestic Appliances
55-77 High Street
Slough
Berkshire
SL1 1DZ
Tel.: [phone]*
• calls to this number may be recorded for training purposes.
18

19

AEG Hausgerate GmbH
Postfach 1036
D-90327 Niirnberg
http://www.aeg.hausgeraete.de
© Copyright by AEG LI02GB Ed. 05/02
