AEG 2060 D User manual

2060 D
Cooker hood
Operating and Installation Instructions

2
Contents
Safety warnings 3
FortheUser 3
FortheInstaller 3
Description of the Appliance 5
Extractorversion 5
FilterVersion 5
Control Panel 6
Maintenance and care 8
Cleaningthehood 8
Metalgrease filter 8
Removingthe metalgreasefilter 8
Charcoalfilter 9

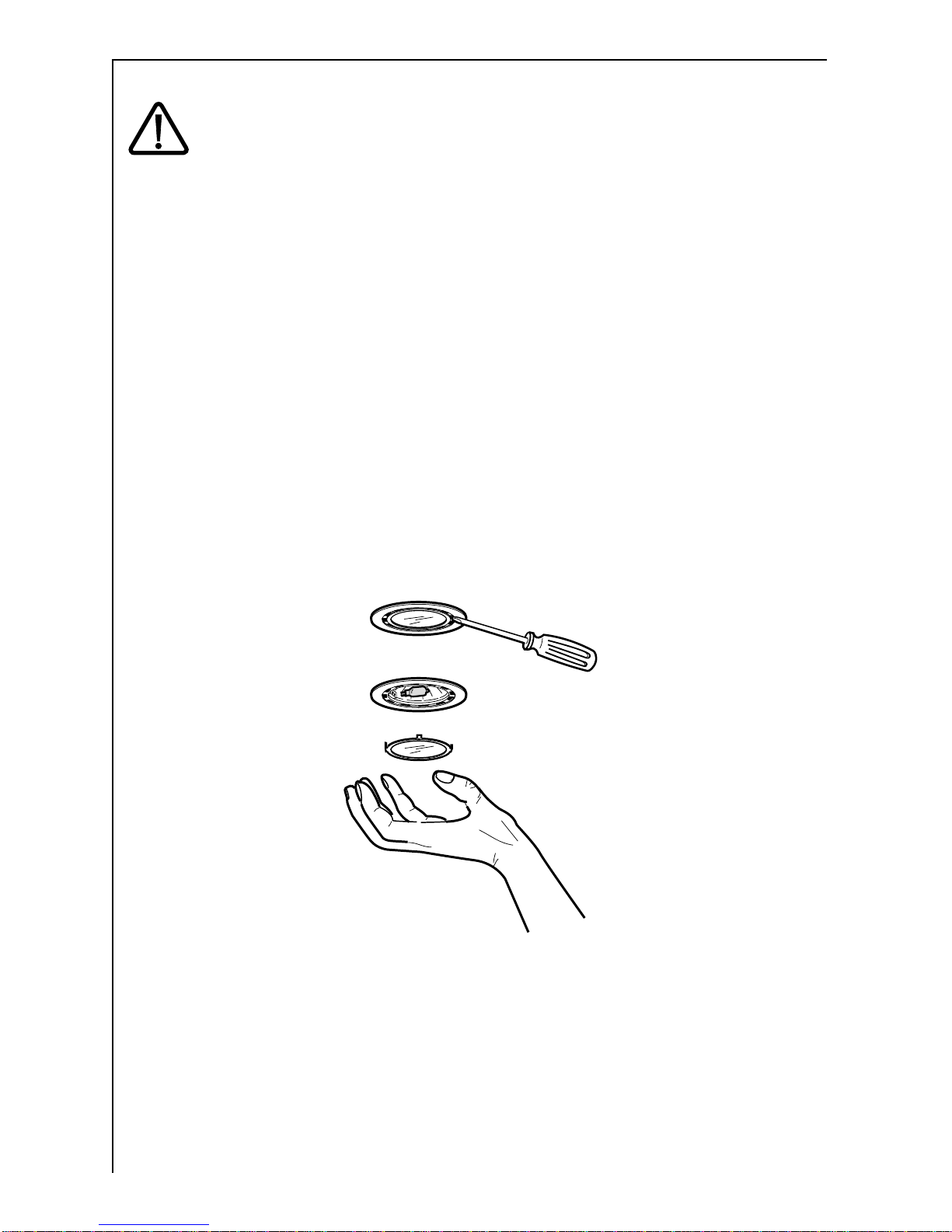

Changingthe light bulb 10
What to do if 11
Service and Spare Parts 12
Guarantee Conditions 13
Technical Specifications 15
Mountingaccessories included 15
Electrical connection 16
Safetywarnings for the electrician 16
Wall unit mounting 17
Printedon recycled paper
AEG - putting words into action

3
Safety warnings
For the User
• Thecookerhoodisdesignedtoextract unpleasant odours from the
kitchen, it will not extract steam.
• Alwayscoverlightedelements,topreventexcessheatfrom
damaging the appliance. In the case of oil, gas and coal fired
cookers it is essential to avoid open flames.
• Also, when frying, keep the deep frying pan on the cooker top/cooker
undercarefulcontrol.
• Thehotoilinthe frying pan might ignite due to overheating.
• The risk of self-ignition increases when the oil being used is dirty.
• It is extremely important to note that overheating can cause a fire.
•Never carry out any flambé cooking under the hood.
•Always disconnect the unit from the power supply before
carrying out any work on the hood, including replacing the
light bulb (take the cartridge fuse out of the fuse holder or switch off
theautomatic circuit breaker).
•It is very important to clean the hood and replace the filter at
the recommended intervals. Failure to do so could cause
grease deposits to build up, resulting in a fire hazard.
For the Installer
• When used as an extractor unit, the hood must be fitted with a
150mmdiameter hose.
• Should there already be a pipe of diameter 125 mm that ducts to the
outside through the walls or roof, it is possible to use the 150/125
mm reduction flange provided. In this case the hood will be slightly
morenoisy.
•When installing the hood, make sure you respect the following
minimum distance from the top edge of the cooking hob/ring
surfaces:
electric cookers 500 mm
gascookers 650 mm
coal and oil cookers 700 mm min.
• Thenational standard on fuel-burning systems specifies a maximum
depression of 0.04 bar in such rooms.
• The air outlet must not be connected to chimney flues or combustion
gas ducts. The air outlet must under no circumstances be connected
toventilation ducts for rooms inwhichfuel-burningappliancesare
installed.

4
• Itis advisable to apply for authorizationfromtherelevantcontrolling
authority when connecting the outlet to an unused chimney flue or
combustion gas duct.
The air outlet installation must comply with the regulations laid down
bythe relevant authorities.
• When the unit is used in its extractor version, a sufficiently large
ventilationhole must be provided, with dimensions thatare
approximately the same as the outlet hole.
• Nationaland regional buildingregulationsimpose a numberof
restrictionson using hoods and fuel-burning appliances connected to
a chimney, such as coal or oil room-heaters and gas fires, in the
sameroom.
• Hoods can only be used safely with appliances connected to a
chimneyif the room and/or flat(air/environmentcombination)is
ventilatedfrom outside using asuitableventilationhole approximately
500-600cm2 largetoavoidthepossibilityofa depression being
createdduring operationofthehood.
• Ifyouhave any doubts, contact the relevant controlling authority or
buildinginspector’s office.
• Since the rule for rooms with fuel burning appliances is “outlet hole of
the same size as the ventilation hole”, a hole of 500-600 cm2, which
is to say a larger hole, could reduce the performance of the extractor
hood.
• If the hood is used in its filtering function, it will operate simply and
safelyin the above conditions without theneedfor any of the
aforementionedmeasures.
• When the hood is used in its extractor function, the following rules
mustbe followed to obtain optimal operation:
— short and straight outlet hose
— keep bends in outlet hose to a minimum
— never install the hoses with an acute angle, they must
always follow a gentle curve only
— keep the hose as large as possible (preferably the same diameter
as the outlet hole).
• Failure to observe these basic instructions will drastically reduce the
performanceand increase the noise levels of theextractorhood.

5
Description of the Appliance
• The hood is supplied as an extractor unit and can also be used with
a filtering function by fitting one charcoal filter.
• You will need an original AEG charcoal filter for this function
(Availablefrom you localAEGServiceForce Centre).

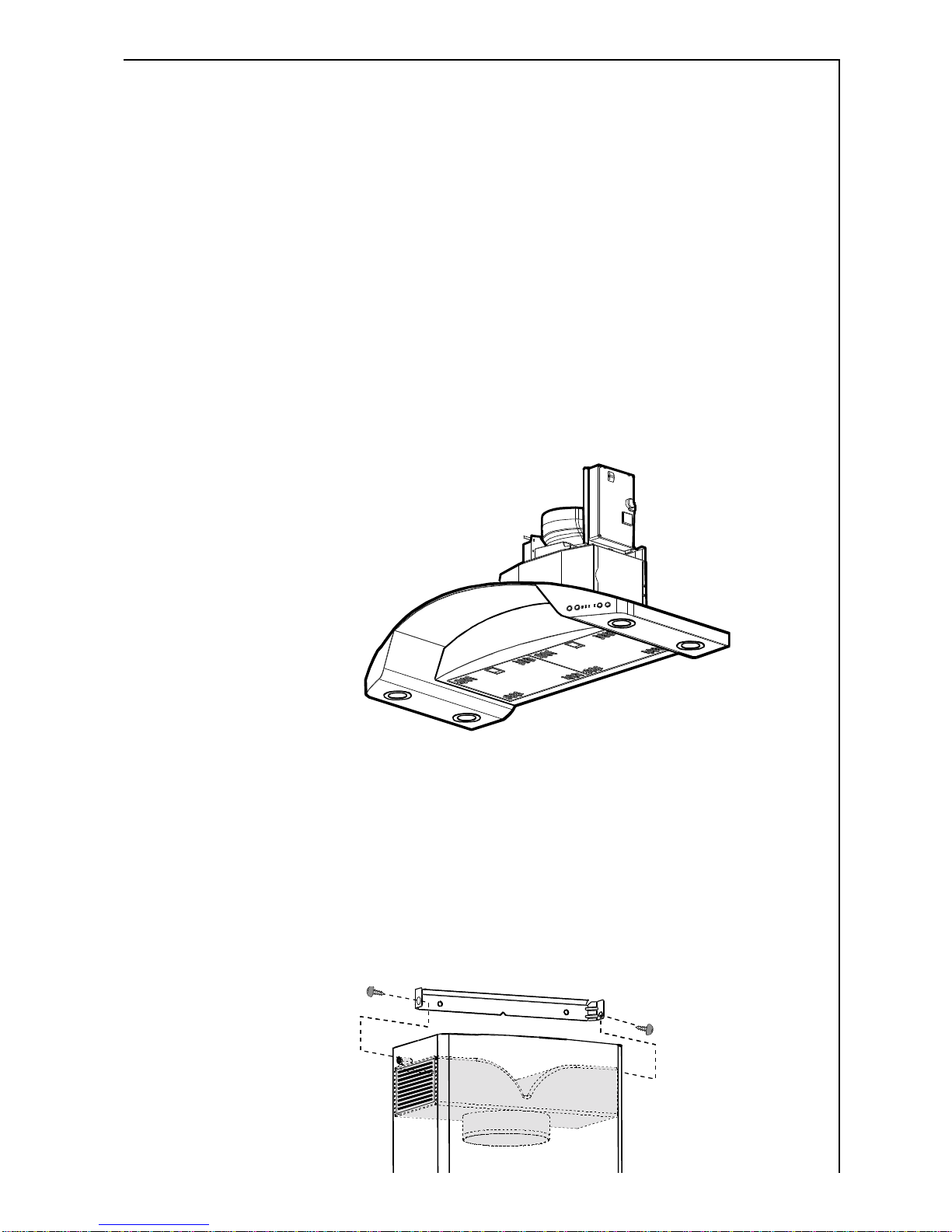

Extractor version
• The air is discharged to the outside through a hose, which must be
fitted to connection flange A. Fig. 1.
• Inorder to obtain the best performance the hose should have a
diameter equal to the outlet hole.
Should there already be a pipe of diameter 125 mm that ducts to the
outside through the walls or roof, it is possible to use the 150/125
mm reduction flange provided. In this case the hood will be slightly
morenoisy.
Fig. 1
Filter Version
• Theair is filtered through a charcoal filterandreturned to the kitchen
through the top grill of the outlet pipe.
• Youwill need an original AEG charcoalfilterforthefilteringfunction.
• Fix the deflector using 2 screws. Fig. 2.
• Optionally, the position of the chimney elements can be changed.
When using the hood in the filter version the chimney must be fixed
at the top, with the air outlet grill at the side.
A
Fig. 2

6
Control Panel
• Best results are obtained by using a low speed for normal conditions
anda high speed when odours aremoreconcentrated.
Turn the hood on a few minutes before you start cooking, you will
then get an under pressure in the kitchen. The hood should be left on
aftercookingforabout15 minutes or until all the odours have
disappeared.Thecontrol switches are located on the unit’s front
panel:
A- Mainswitch,hoodoff.
B- Start and choice of motor speed 1-2-3-1-2.........
C- Indicatesspeed1(LED) and indication of the grease saturation
forthe filter (flashingindicator).
D- Indicatesspeed2(LED)andindicationofthecharcoal
saturationfor the filter (flashingindicator).
E- Indicatesspeed 3
F- IndicatesIntensivespeed(LED).
G- Intensivespeed on/off.TheIntensive speed runsfor5 minutes:
Ifthehoodison when the Intensive speed is activated, the hood
revertsto previous speedafter5minutes.
IfthehoodisoffwhentheIntensivespeedisactivated,thehood
willbeturnedoff after 5 minutes.
To interrupt the Intensive speed, press button A, B or G.
H- LightON/OFF
Should the hood or the controls fail to operate: disconnect the power
supply for at least 5 seconds, then turn the hood back on again.
Correct ventilation
If the cooker hood is to work correctly there must be an under
pressure in the kitchen. It is important to keep the kitchen windows
closedand have a window in an adjacent room open.
Important
This is not applicable for recirculation. Great care must be taken if
the hood is used at the same time as a burner or fireplace (e.g. gas,
diesel, coal or wood heaters, water heaters, etc.), as the hood will
expel air which is required by these other appliances. In this situa-
tion,ensurethatawindowisopen.The negative pressure in the
roommustnotexceed0,04mbarto prevent fumes being drawn back
into the room by the cooker hood.

7
LED Indicator lights for veryfying the
saturation of filters
This hood is supplied without a charcoal filter. If the hood is to be used
in the recirculation mode with a charcoal filter, the saturation indicator
must be activated as follows:
Depress and hold the A and B buttons simultaneously for 3 seconds.
Initially only the LED indicator signal for the grease filter C is activated,
shortly after the LED indicator for the charcoal filter D will activate, at
this point the saturation detection has been enabled.
To switch off the saturation detection : depress and hold the A and B
buttons for 3 seconds until the LED indicator for the active carbon filter
isflashing.
Led – Indicator for grease filter C
TheLEDindicatorforthegreasefilterwillflashwhenitrequires
cleaning.
Followthe maintenance instructions.
Led - indicator for charcoal filter D
TheLEDindicatorforthecharcoalfilterilluminateswhenthefilter
requiresreplacing.
Thisoccurs after about 160 working hoursfromwhentheactive carbon
filter was first put into operation.
Resetting the saturation indicator
Aftercleaning or replacing thefilter depress and holdthe G and H
buttons again for 3 seconds until the grease filter LED or the charcoal
LEDarenolonger flashing.

8
Maintenance and care
•The hood must always be disconnected from the electricity
supply before beginning any maintenance work.
Cleaning the hood
• Clean the outside of the hood using a damp cloth and a mild deter-
gent.
• Neverusecorrosive,abrasive orflammable cleaningproducts.
• Neverinsert pointed objects in the motor’s protective grid.
• Only ever clean the switch panel and filter grille using a damp cloth
andmild detergents.
• It is extremely important to clean the unit and change the filters at
therecommendedintervals.Failuretodosowillcausegrease
deposits to build up that could constitute a fire hazard.
Metal grease filter
• Thepurpose of the greasefilters is to
absorbgrease particles which form
duringcooking and it must always be
used, either in the external ducted or
internalrecycling function.
Attention: the metal grease filters
mustbe removedandwashed,either
byhand or in the dishwasher,every
fourweeks.

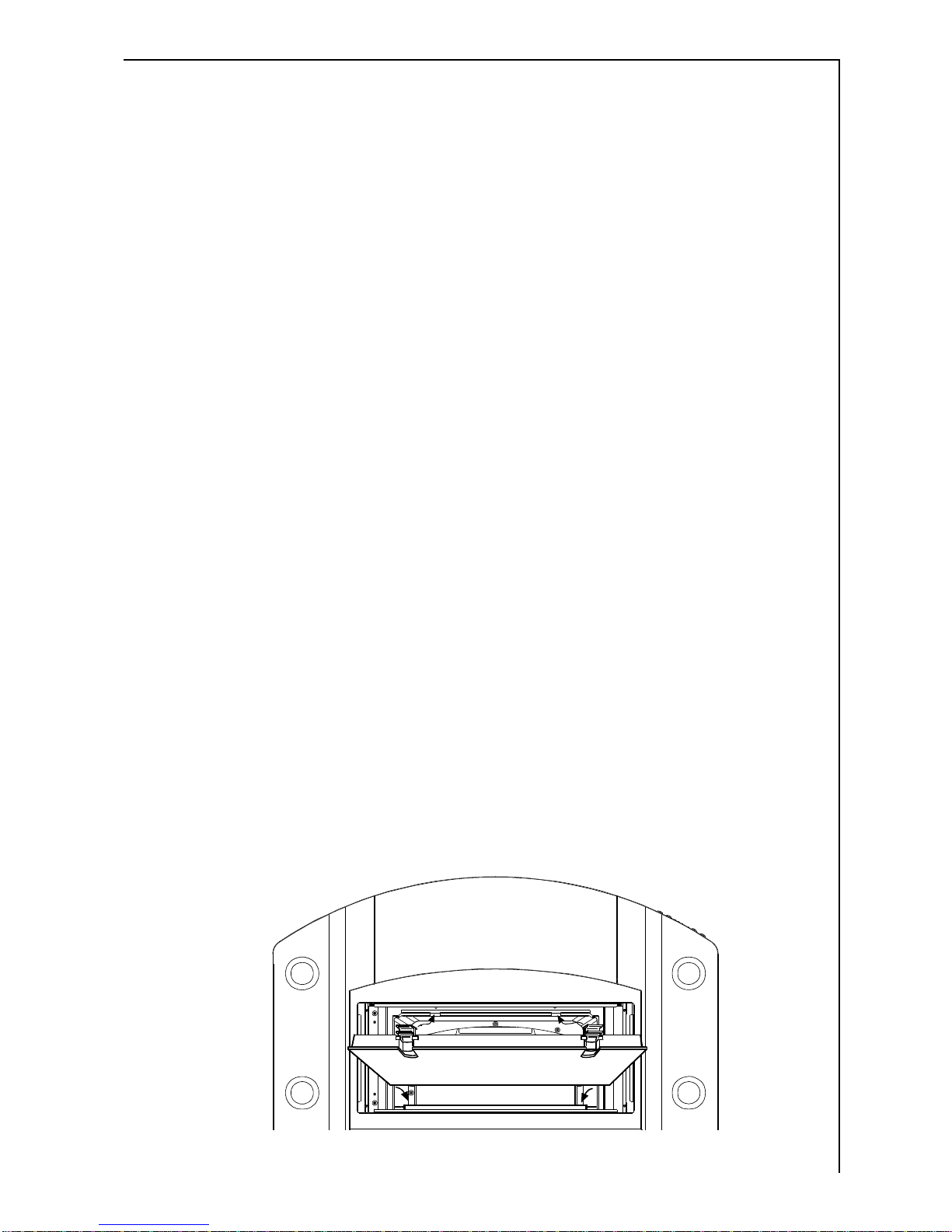

Open the metal grease filter
• Pull the spring-lock and extract the
grease filter. Fig. 3.
Hand washing
Soakgreasefiltersfor about one hour in hot water with a grease-
looseningcleaner,then rinse offthoroughlywithhotwater.Repeat
the process if necessary. Refit the grease filters when they are dry.
Fig. 3

9
Dishwasher
Placegreasefiltersindishwasher.Selectthe most powerful washing
programmeand highest temperature, at least 65°C. Repeat the
process. Refit the grease filters when they are dry.
When washing the metal grease filter in the dishwasher a slight
discolouration of the filter can occur, this does not have any impact
onits performance.
Charcoal filter
• The charcoal filter should only be used if you want to use the hood in
itsfilteringfunction.
• To do this you will need an original AEG charcoal filter.
•Replacing the charcoal filter
Thecharcoalfilterscannotbe cleaned, we recommend that they
shouldbe replaced approximately every three monthsormoreoften if
the hood is used for more than three hours per day.
•Fitting
Fitthecharcoalfilterfirstrearwardonthelongsupportingtongue,
then rotate it to close the motor housing and fix it using its two red
keys A. Fig. 4.
•To remove proceed in the reverse order.
• Alwaysspecifythehoodmodelcodenumberand serial number
whenordering replacement filters. This information isshownonthe
registration plate located on the inside of the unit.
• Thecharcoal filter can be ordered from your local AEG Service Force
Centre.
Fig. 4
AA

10
Warning
• Failuretoobservetheinstructionsoncleaningtheunitandchanging
thefilterscould cause a fire hazard. You are therefore strongly
recommendedto follow these instructions.
• Themanufacturer declines all responsibility for any damage to the
motoror any fire damage linked toinappropriatemaintenanceor
failuretoobservethe abovesafetyrecommendations.
Changing the light bulb
• Disconnect the cooker hood from the mains supply.
• Removethelampcover,useascrewdriverasalever. Fig. 5.
• Replace the old bulb with a new one of the same type.
• Refitthe lampcover.
• If the light does not come on, make sure the bulb has been inserted
incorrectlybeforecontacting your local AEG Service Force Centre.
Fig. 5

11
What to do if
Ifyourappliancefailstoworkproperlypleasecarryoutthefollowingchecks.
Symptom Solution
The cooker hood will not start... Check that:
The hood is connected to the
electricity supply.
Check that the fan speed control is
set to 1, 2 or 3.
Thecooker hoodis notworking Check that:
effectively.. Thefan speed issethigh enough
. for the task.
Thegreasefiltersareclean.
Thekitchenisadequatelyventedto
allowthe entry of freshair.
If set up for recirculation, check that
the charcoal filter is still effective.
If set up for extraction, check that
the ducting and outlets are not
blocked.
Thecookerhoodhasswitchedoff Thesafetycut-outdevicehasbeen
duringoperation... tripped.
Turnoffthehobandthenwaitforthe
devicetoreset.
Ifthehoodhasbeeninstalledbelow
the heights indicated in the
installation instructions the motor
willcut-out frequentlywhichwill
damagethehood.
If after all these checks, the problem persists, contact your local Service
ForceCentre,quotingthemodelandserialnumber.
Please note that it will be necessary to provide proof of purchase for any
in-guaranteeservicecalls.
In-guaranteecustomersshouldensurethattheabovecheckshavebeen
made as the engineer will make a charge if the fault is not a mechanical or
electricalbreakdown.

12
Service and spare parts
Intheeventofyourappliancerequiringservice,orifyouwishto
purchase spare parts, contact your local AEG Service Force Centre by
telephoning 08705 929 929
YourcallwillbeautomaticallyroutedtotheServiceCentrecovering
your post code area.
Forthe address of yourlocalServiceForce Centre and furtherinforma-
tion about Service Force, please visit the website at
www.serviceforce.co.uk
Please ensure that you have read the section „What to do if....“ as the
engineer will make a charge if the fault is not a mechanical or electrical
breakdowneven theappliance isunderwarranty.
Please note that proof of purchase is required for in-guarantee
service calls.
Help us to help you
Pleasedetermine your type of enquirybeforewritingor telephoning.
When you contact us we need to know:
• Yourname
• Address and post code
• Telephonenumber
• Clear and concise details of the fault
• Nameand model of theappliance*
• Enumber*
* This information can be found on the rating plate, which can be seen
whenthegreasefiltersare removed.
Customer Care
Forgeneral enquiries concerning yourAEGappliances,or for further
informationonAEGproducts,pleasecontactourCustomerCare
Departmentattheaddress below or visit our website at
www.aeg.co.uk CustomerCareDepartment
AEG Domestic Appliances
55-77High Street
Slough
Berkshire
SL11DZ
Tel.:[phone]*
* calls to this number may be recorded for training purposes.

13
Guarantee conditions
AEGofferthefollowingguaranteeto thefirstpurchaserofthisappliance.
1.The guarantee is valid for 12 months commencingwhentheappliance
ishandedovertothe first retail purchaser,which must be verified by
purchaseinvoice or similardocumentation.Theguarantee does not
covercommercial use.
2.The guarantee covers all parts or components which fail due to faulty
workmanshipor faulty materials.Theguarantee does not cover
applianceswhere defects or poor performance areduetomisuse,
accidentaldamage, neglect, faulty installation, unauthorised
modificationor attempted repair,commercial use or failure toobserve
requirementsand recommendations set out in theinstructionbook. This
guaranteedoes not cover such parts as light bulbs, removable
glassware or plastic.
3. Shouldguaranteerepairs be necessary the purchaser must inform the
nearestcustomer serviceoffice (manufacturer`s serviceor authorised
agent). AEG reserves the right to stipulate the place of the repair (i.e.
the customer`s home, place of installation or AEG workshop).
4.The guarantee or freereplacementincludesboth labour and materials.
5.Repairs carried out under guarantee donotextendtheguarantee
periodfor theappliance. Partsremovedduring guaranteerepairs
become the property of AEG.
6.Thepurchaser`sstatutory rights are not affected by this guarantee.
European Guarantee
If you should move to another country within Europe then your guarantee
moves with you to your new home subject to the following qualifications:
- Theguaranteestartsfromthedateyoufirstpurchasedyourproduct.
- Theguaranteeisfor the same period and to the same extent forlabour
and parts as exist in the new country of use for this brand or range of
products.
- Thisguarantee relates to you an cannot be transferred to another user.
- Your new home is within the European Community (EC)orEuropean
FreeTradeArea.
- The product is installed and used in accordance with our instructions
and is only used domestically, i.e. a normal household.
- The product is installed taking into account regulations in your new
country.

14
BeforeyoumovepleasecontactyournearestCustomerCareCentre,listed
below,togivethemdetailsofyournewhome. Theywillthenensurethatthe
localServiceOrganisationisawareofyourmoveandabletolookafteryouand
yourappliances.
France Senlis [phone]
Germany Nürnberg [phone]
Italy Pordenone [phone]
Sweden Stockholm [phone]
UK Slough [phone]

15
Technic Details
Models 2060D
Dimensions - extractor ver (in cm):
Height 81-126.5
Width 89,8
Depth 51
Dimensions - filter version (in cm):
Height 81-136
Width 89,8
Depth 51
Maximum absorbed power: 215 W
Motor absorption: 1 x 130 W
Lighting: 4 x 20W
Lengthof the cable:150 cm
Mounting accessories included
6 wall plugs Ø 8 mm
6 wood-screws 5 x 45 mm
2 metal screws 2,9 x 13
4 metal screws 3 x 9
2 hooks
1 chimney support
1 deflector
1 reduction flange Ø 125-120 mm

16
Electrical connection
Safety warnings for the electrician
The electric outlet should be placed inside the chimney.The hood has a
powercable, 150 cm, withearth connection and therated voltage is
220 - 240 V.
Connect the hood to the mains supply via a double pole switch
which has 3 mm minimum separation between the contacts.
This switch must be accessible at all times.
Thefollowing is valid in the United Kingdom only:
- the wire which is coloured green and yellow must be connected to
the terminal which is marked with the letter E or by the earth symbol
( ),or coloured green or green and yellow;
- the wire which is coloured blue must be connected to the terminal
which is marked with the letter N or coloured black, -
- the wire which is coloured brown must be connected to the terminal
which is marked with the letter L or coloured red.

17

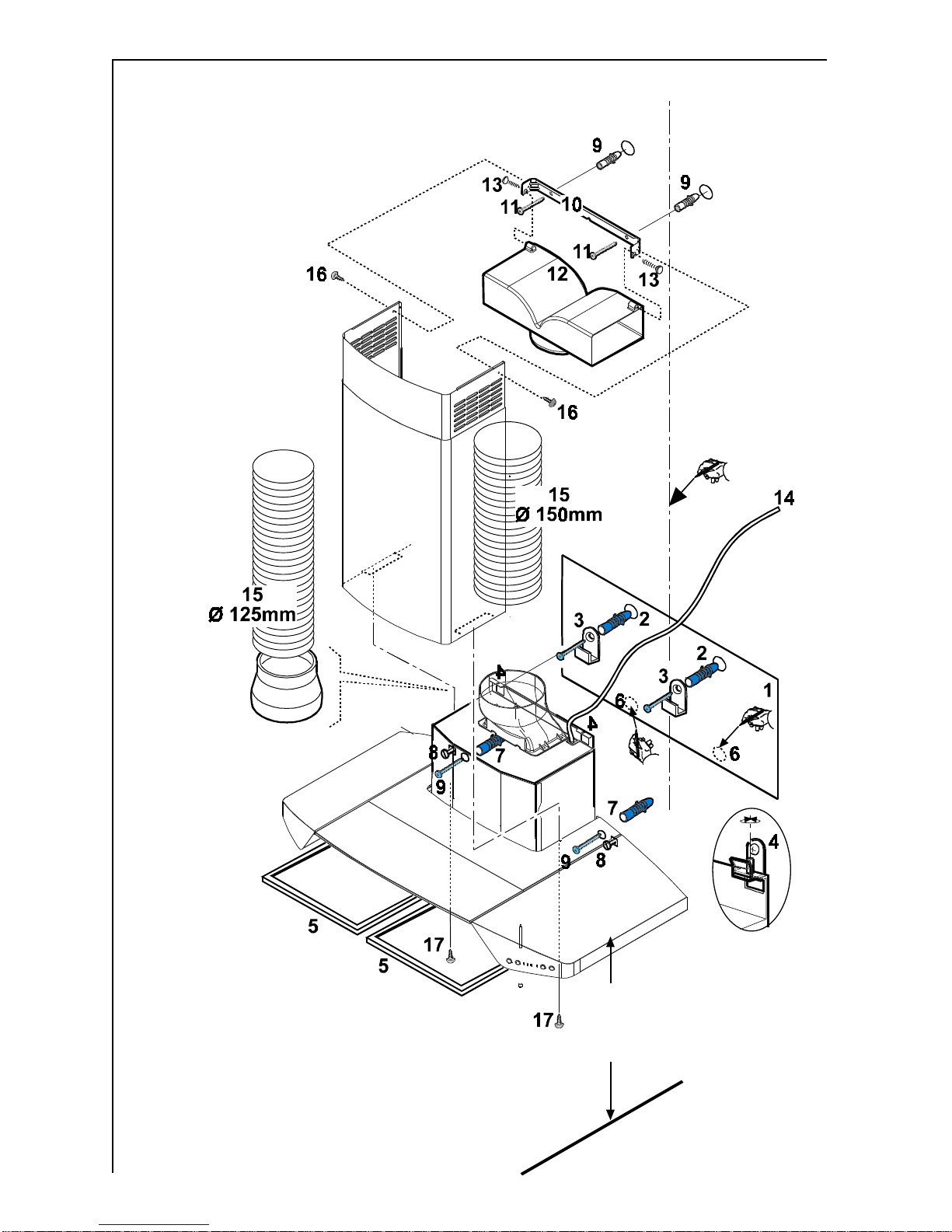

Wall unit mounting - Fig. 6
• Position the template (1) on the wall and mark the position, and drill
(2) the holes (2 x Ø 8 mm).
• Mount the two rawl plugs with the hooks (3).
• Hang the hood on the hooks and level it with the adjustment screws
(4).
• Remove the grease filters (5) and mark for the two screws (6).
Remove the hood and drill the holes (2 x Ø 8 mm).
• Insert the rawl plugs (7) and hang the hood on the wall again. Adjust
it horizontally with the screws (8) and secure it with the screws (9).
• Mount the chimney holder (10) with the rawl plugs (9) and the
screws (11).
Be careful that it is centered over the hood and horizontally aligned.
•Fitting for extractor version (S): Connect a tube between the
hood air outlet and the wall or roof exhaust channel. Note that the
top part of the chimney can be mounted with the side grids up or
down. For use as an extractor version hood it must be mounted with
the grids downwards.
Fitting for filter version (K): Mount the deflector (12) with the two
screws (13) supplied.
• Make electrical connection (14) (see paragraph “Electrical
connection”)
• Place the chimney (15) and fix it to the top chimney holder with the
two screws (16) supplied.
Lower the bottom part of the chimney and fasten it to the top of the
hood with two screws (17), supplied.
Note that the top part of the chimney can be mounted with the side
grids up or down. For use as a recirculation hood it must be
mounted with the grids upwards.

18
Fig. 6
K-S
S
K
Electric hob 500 mm
Gas hob 650 mm
Charcoal and oil 700 mm

19
Exhaust tube
Ø 150mm
Power outlet
Wall bracket
Electric hob 500 mm
Gas hob 650 mm
Charcoal and oil 700 mm
Electric hob 500 mm
Gas hob 650 mm
Charcoal and oil 700 mm

AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nürnberg
http://www.aeg.hausgeraete.de
© Copyright by AEG LI1VFB Ed. 04/02
