AEG 335 D User manual

335 D
Extractor Hood
Installation and Operating Instructions

2
Description of the appliance 3
General details 3
Extractor version 3
Filter version 4
Safety warnings for kitchen unit installer 4
Electrical connections 5
Safety warnings for electrician 5
Safety warnings for user 7
Hood operation 8
Care and Maintenance 9
Grease filter 9
Active carbon filter 10
Cleaning 10
Replacing the lamps 10
Technic details 11
Special Accessories 11
Technical Assistance Service 11
Contents
MADE IN GERMANY
OKO SYSTEMOKO SYSTEM
Printed on recycled paper.
AEG – putting words into action.

3
1) Pull-out panel
2) Grease filter support grid
3) Hob light
4) Fan speed selector
5) Light switch
General details
The hood is supplied as an extractor version, but may also be
used in the recirculating mode by inserting an active carbon filter
(Optional extra).
Exhaust vapours are pushed outwards by means of a pipe.
If the exhaust pipe is in a horizontal position, it must be inclined
upwards at a angle of 10° so as to guarantee better extraction.
To connect the fan hood to the wall box, we recommend the use
of venting hoses E-Nr. 697 000 012 or 647 000 010 (120 mm or
100 mm diameter) which are supplied as optional extras.
Description of the appliance
1
2
3
3
5
4
Extractor
version

4
Exhaust vapours are purified by means of an active carbon filter
(Optional extra) and directed back into the room.
To insert the active carbon filter, remove the grease filter grid.
Fit the active carbon filter by inserting it first into the upper hooks
and then into the lower ones; then lock into position by using the
blocking tabs E(fig. 1).
The AEG original KLF 60/80 active filter carbon is necessary for
the recirculating mode (see paragraph “Special accessories”).
Theairoutletmustnotbeconnectedtochimneyfluesorcombus-
tion gas ducts. The air outlet must under no circumstances be
connected to ventilation ducts for rooms in which fuel-burning
appliances are installed.
It is advisable to apply for authorization from the relevant control-
ling authority when connecting the outlet to an unused chimney
flue or combustion gas duct.
The air outlet installation must comply with the regulations laid
down by the relevant authorities.
When the unit is used as an extractor version, a sufficiently large
ventilation hole must be provided, with dimensions that are
approximately the same as the outlet hole.
National and regional building regulations impose a number of
restrictions on using hoods and fuel-burning appliances con-
nected to a chimney, such as coal or oil room-heaters and gas
fires, in the same room.
The local decree on fuel-burning systems specifies a maximum
depression of 0.04 mbar in such rooms.
Filter version
EE
E
1
Safety
warnings for
kitchen unit
installer

5
Hoods can only be used safely with appliances connected to a
chimney if the room and/or flat (air/environment combination) is
ventilated from outside using a suitable ventilation hole approxi-
mately 500-600 cm2 large to avoid the possibility of a depression
being created during operation of the hood.
If you have any doubts, contact the relevant controlling authority
or building inspector’s office.
Since the rule for rooms with fuel burning appliances is “outlet
hole of the same size as the ventilation hole”, a hole of 500-600
cm2, which is to say a larger hole, could reduce the performance
of the extractor hood.
If the hood is used in its recirculation mode, it will operate simply
and safely in the above conditions without the need for any of the
aforementioned measures.
When the hood is used as an extractor,the following rules must
be followed to obtain optimal operation:
— short and straight outlet hose
— keep bends in outlet hose to a minimum
— never install the hoses with an acute angle, they must always
follow a gentle curve only
— keep the hose as large as possible (100 or 120 mm Ø min.).
Failure to observe these basic rules will drastically reduce the
performance and increase the noise levels of the extractor hood.
Where flexible ducting is fitted the length should be no more
than:
— 3 metres with one 90° bend
— 2 metres with two 90° bends.
Bends of more than 90° will reduce the efficiency of the hood
and reduce the air flow.
Electrical connections
Pleaseensurethatthevoltageandcurrentindicatedontherating
plate agree with the voltage of your electricity supply.
If your appliance has been equipped with a mains lead with a
moulded-on type plug, you must comply with the following
regulations:
The plug moulded on to the lead incorporates a fuse. For
replacement, use a 5 amp BS1362 fuse. Only ASTA approved or
Safety
warnings
for electrician

6
certified fuses should be used. If the fuse cover/carrier is lost, a
replacement cover/carried must be obtained from an electrical
goods retailer. If the socket outlets in your home are not suitable
for the plug fitted to the appliance, then the plug must be cut off
and destroyed for safety reasons, and an appropriate plug fitted.
When wiring the plug ensure that all strands of wire are securely
retained in each terminal. Do not forget to tighten the mains lead
clamp on the plug.
Electrical connections
230 V - using fixed power supply line with plug.
240 V - using fixed power supply line (Great Britain).
Fuse rating 13 amps
(The unit should only be connected up by an authorized electrician).
See rating plate for further information.
It is recommended that the socket for the plug is sited above the
cooker hood or above the overhead cabinet.
This has 2 advantages:
1) The socket is not visible.
2) The appliance can easily be unplugged when necessary.
If a fixed connection is required the cooker hood should be
connected by an electrical installer registered with a competent
electricity company. An isolating device is to be provided on the
fixed wiring side. Switches with a contact opening of more than
3mm apply as isolating devices.
These include-automatic cut-out switches, fuses and contactors
(VDE 0730, s. 7, Part1).The hood is fitted with a variable speed
motor.

7

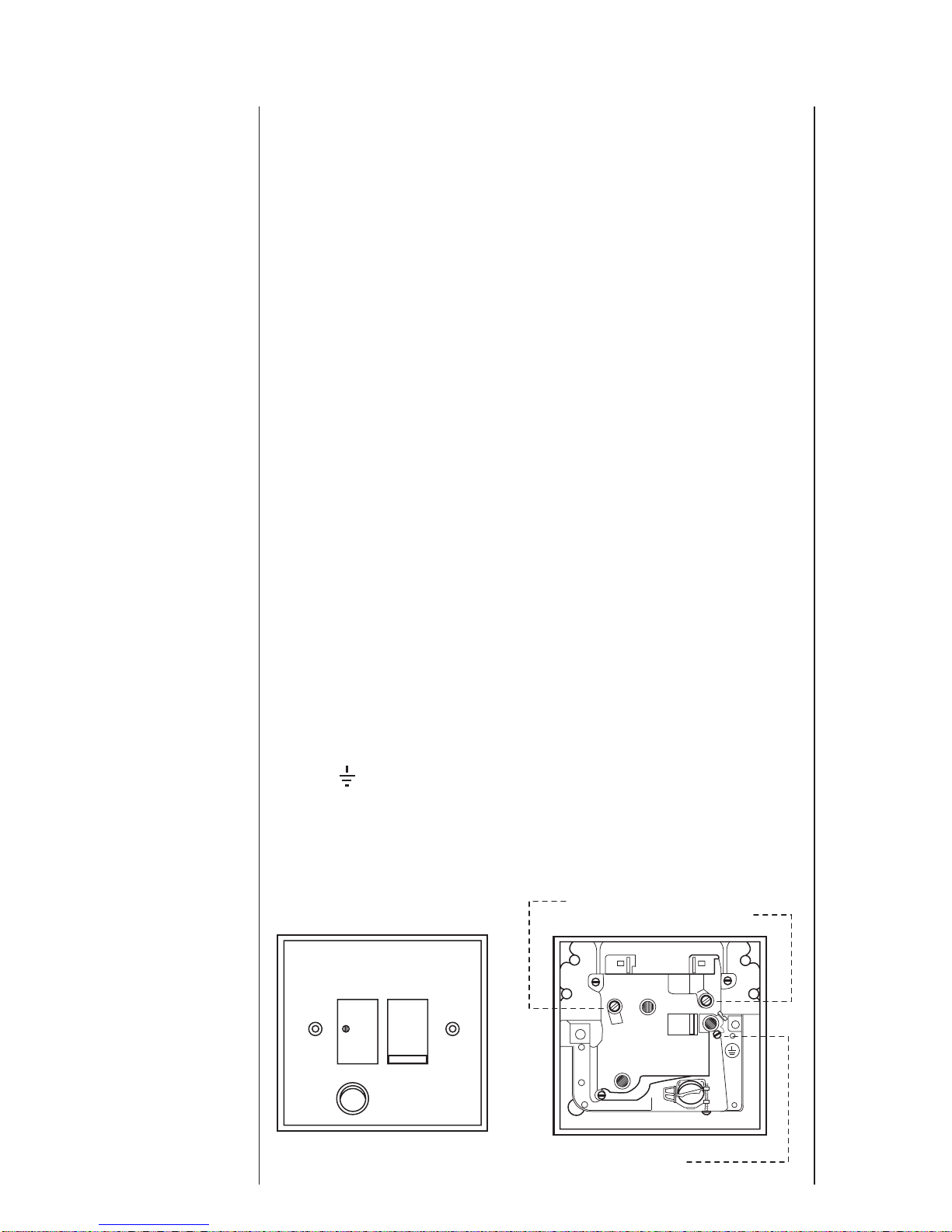

Your appliance must be connected to fixed wiring via the use of
a double pole swiched fused spur outlet with or without pilot
lamp.
We strongly recommend the appliance is connected by a quali-
fied electrician who is a member of the NICEIC who will comply
with the IEE and any local regulations.
NOTE:
The terminology “DOUBLE POLE” means that both the live
and neutral supplies are swiched and disconnected at the
same time.
The terminations labelled SUPPLY are for the connection for
the internal house wiring and the terminations labelled LOAD
are for the appliance.
IMPORTANT
The wires of the mains lead supplied with this appliance are
coloured in accordance with the following code:
Blue-Neutral
Brown-Live
As the colours of the flexible cord of this appliance may not
correspond with the coloured markings identifying the ter-
minals in your plug, proceed as follows:The whire which is
coloured brown must be connected to the terminal which is
marked with the letter L or coloured red.
The wire which is coloured blue must be connected to the
terminal which is marked with the letter N or coloured black.
N
LOAD
L
SUPPLY
L
LOAD
NSUPPLY
DP 13A, 250V
BLUE
(NEUTRAL) BROWN (LIVE)
FUSE ON
Appliances
with 2 wires

8
Your appliance must be connected to fixed wiring via the use of
a double pole swiched fused spur outlet with or without pilot
lamp.
We strongly recommend the appliance is connected by a quali-
fied electrician who is a member of the NICEIC who will comply
with the IEE and any local regulations.
NOTE: The terminology “DOUBLE POLE” means that both
the live and neutral supplies are swiched and disconnected
at the same time.
The terminations labelled SUPPLY are for the connection for
the internal house wiring and the terminations labelled LOAD
are for the appliance.
WARNING:THIS APPLIANCE MUST BE EARTHED
IMPORTANT
Thewires inthismainsleadarecolouredinaccordancewiththe
followingcode: Green/Yellow - Earth
Blue - Neutral
Brown - Live
As the colours of the wires in the mains lead of this appliance
may not correspond with the coloured markings identifying the
terminate in your spur box,proceed as follows:
Thewirewhichis coloured green and yellowmustbe connected
to the terminal which is marked with the letter“E”or by the earth
symbol or coloured green or green and yellow.The wire which
is coloured blue must be connected to the terminal which is
marked with the letter“N”or coloured black.
The wire which is coloured brown must be connected to the
terminal which is marked with the letter“L”or coloured red.
Appliances
with 3 wires
GREEN & YELLOW
(EARTH)
N
LOAD
L
SUPPLY
L
LOAD
N
SUPPLY
DP 13A, 250V
BLUE
(NEUTRAL) BROWN (LIVE)
FUSE ON

9
The most effective use of the hood is obtained by switching it on
a few minutes before you start cooking and leaving it on a for
approximately 15 minutes after you have finished, thus ensuring
all cooking odours are eliminated.
Never leave a cooking hob or ring on without a pot or pan on top
of it, to avoid the possibility of excess heat damaging the unit.
Gas, oil or coal cooker flames in particular should never be left
uncovered.
Specialcareshouldbetakenwhenusingdeepfatfryerssincethe
oil in them can overheat and burst into flames.
The risk of a fat fire increases when using dirty oil.
Itisextremelyimportanttonotethatoverheatingcancauseafire.
Never carry out any flambé cooking under the hood.
Always disconnect the unit from the power supply before
carrying out any work on the hood, including replacing the
light bulb (take thecartridge fuseoutof thefuse holderor switch
off the automatic circuit breaker).
It is very important to clean the hood and the filter at the
recommended intervals. Failure to do so could cause grease
deposits to build up, causing a fire hazard.
Safety
warnings
for user

10

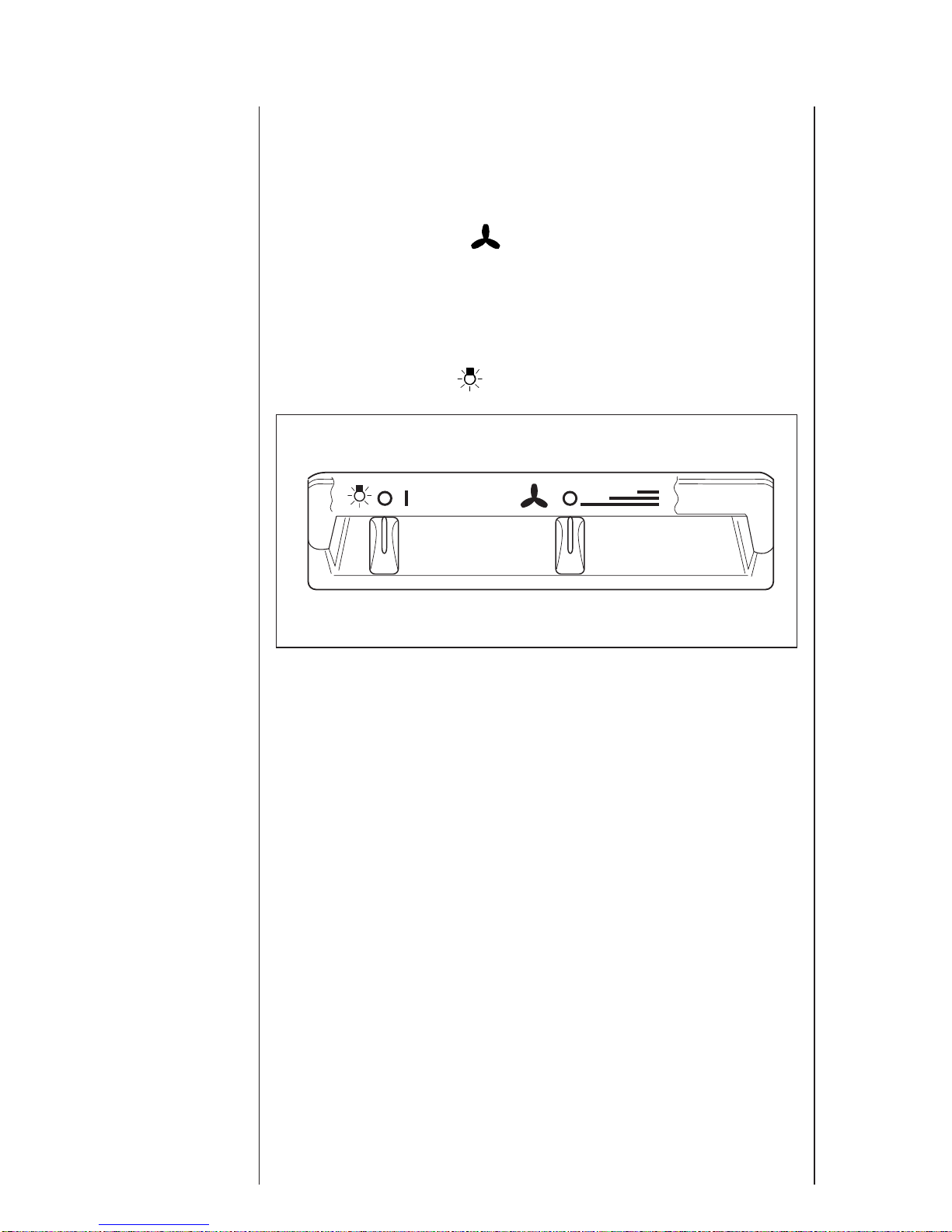

The control panel of the fan hood is on the front of the appliance
(see pag. 3).
Thetwo slideswitchesare forthe variousfanfunctions:oneis for
the fan speed and the other is for the hob light.
The button with the “ ” symbol is used to adjust the fan
speed or intensity. It is advisable to use low speeds when
cooking food that produces an average amount of steam and
odour; the more steam and odour there is, the higher the speed
should be.
The button with the “ ” symbol is for switching on and off the
hob light.
Moreover, the fan hood is equipped with a micro-switch which
can be found under the lower runner of the pull-out panel on the
right hand-side. With this micro-switch, the appliance may be
automatically switched on and off by opening and closing the
pull-out panel, but only if the fan speed has already been set and
the light button is turned to “I”.
Hood operation

11
Always turn off the appliance before carrying out any repair
or maintenance work. For safety reasons, unplug at the wall
socket.
The purpose of the grease filter is to collect grease particles
which form during cooking and it should always be used, either
in the extraction or recirculation mode.
You should take out my grease filters every four weeks and
wash them either in the dishwasher or by hand.
To remove the filter, proceed as follows:
a) remove the grid;
b) take out the dirty filter pushing on the locking devices Z
(figure 2);
c) Wash the filters in the dishwasher or by hand.
Soak grease filters for about one hour in hot water with a grease-
loosening cleaner, then rinse off thoroughly with hot water. Repeat
theprocess ifnecessary.Refit thegrease filterswhen they aredry.
Placegreasefiltersindishwasher.Selectmostpowerfulwashing
programme and highest temperature, at least 65°C. Repeat the
process. Refit the grease filters when they are dry.
Whenever the filters are washed, clean the grid with warm
water and a non-abrasive liquid detergent.
Care and Maintenance
Grease filter
Dishwasher
machine
2
Z
Handwashing

12
Active
carbon filter
Cleaning
Replacing
the lamps
This filter is used when the hood functions for internal recycling.
TheoriginalAEG activecarbonfiltershould beused(seeSpecial
accessories).
It is neither washable nor reusable.
In normal cooking conditions, we recommend that it be replaced
every 4 months.
To replace the active carbon filter, push the locking tabs E
inwards and the filter downwards (see diagram on pag. 4).
When ordering a new active carbon filter, indicate the model
description and fan hood serial number. This information can be
found on the rating plate inside the appliance.
Filters can be ordered at any AEG retailer.
Warning: always disconnect the hood from the mains power
supply before cleaning it.
Never insert pointed objects in the motor’s protective grille.
Wash the outside surfaces using a mild detergent solution.
Never use caustic detergents or abrasive brushes or pow-
ders.
Onlyevercleantheswitchpanelandfiltergrilleusingadamp
cloth and mild detergents.
It is extremely important to clean the unit and change the
filters at the recommended intervals. Failure to do so will
causegreasedepositsto build up that couldconstitute a fire
hazard.
Always turn off the electricity before replacing lamps:
1) Removethe gridinorder tocheck thelampsandreplacethem
if necessary.
2) Unscrew the lamps that do not work and replace them with
40W max lamps (E14).
If the light does not function, check that the lamps are properly
screwed-in before contacting the AEG Service Dept.
Attention
Failure to observe the instructions on cleaning the unit and
changing the filters will cause a fire hazard. You are therefore
strongly recommended to follow these instructions.

13
Weight: 335 D
Net: 10,8 Kg
Maximum connected watt: 230 W
Motor absorption: 150 W
Lighting: 2 x 40 W (E14)
Length of the cable: 165 cm
Extraction rate according to DIN 44971
Min. Max.
Extractor: 147 m3/h 297 m3/h
Recirculating: 97 m3/h 202 m3/h
Special accessories
Wall box (Ø 120 mm) E-Nr. 647 000 016
Wall box (Ø 120 mm) 647 000 020
120 mm outlet hose 647 000 012
100 mm outlet hose 647 000 010
KLF60/80 activated carbon filter 610 899 421
Technical assistance service
Technic details
AEG Domestic Appliances Limited
Head Office:
217 Bath Road
Slough, Berks SL1 4AW
Tel: [phone]
Telefax: 01753 512271
AEG Northern Service Centre:
Unit 20, Haigh Park
Haigh Avenue
Stockport
GL Manchester SK4 1QR
Tel: [phone]
Telefax: 0161 474 1191
Service Appointments
Bristol: 01179 252880
Norfolk: 01603 765515
AEG Scottish Service Centre:
Block 11, Unit 1
Dundyvan Industrial Estate
Coatbridge
Lanarkshire ML5 4AQ
Tel: [phone]
Telefax: 01236 440256
In case of any enquiries and faults, please call AEG After-Sales Service:
When calling please state the following
1. The model number
2. The E-No.
3. The F-No.
The manufacturer reserves the right to make alterations in design and
colour in the interests of technical development without prior notice.

AEG Hausgeräte AG
Postfach 1036
D-90327 Nürnberg
© Copyright by AEG
H 260 287 040 L 509A
