AeroPilates Precision Series Reformer 610 User manual

CAUTION:
Weight on this product should not exceed 350 lbs.
Owner's Manual
This Product is Distributed Exclusively by
2040 N. Alliance, Springeld, MO 65803
Customer Care
1 [phone]
www.staminaproducts.com
Product May Vary Slightly From Pictured. When calling for parts or
service, please specify
the following numbers:
Model#: 55-5610
S/N: _____________
Exercise can present a
health risk. Consult a
physician before beginning
any exercise program with
this equipment. If you feel
faint or dizzy, immediately
discontinue use of this
equipment. Serious bodily
injury can occur if this
equipment is not assembled
and used correctly. Serious
bodily injury can also occur
if all instructions are not
followed. Keep others and
pets away from equipment
when in use. Always make
sure all bolts and nuts are
securely tightened prior to
each use. Follow all safety
instructions in this manual.
!WARNING
STAMINA PRODUCTS
MADE IN CHINA
© 2018 Stamina Products, Inc.
2018, 03
United States and/or
International patents apply
and/or are pending. See
www.staminaproducts.com
for details.

TABLE OF CONTENTS
3
Safety Instructions ...................................... 3
Before You Begin ........................................ 5
Equipment Warning, Caution & Notice Labels ... 6
Hardware Identication Chart .................... 7
Assembly Instructions ................................ 8
Operational Instructions ........................... 12
Storage ....................................................... 16
Maintenance ............................................... 16
Conditioning Guidelines ........................... 17
Warm-Up and Cool-Down ......................... 18
Warranty ..................................................... 19

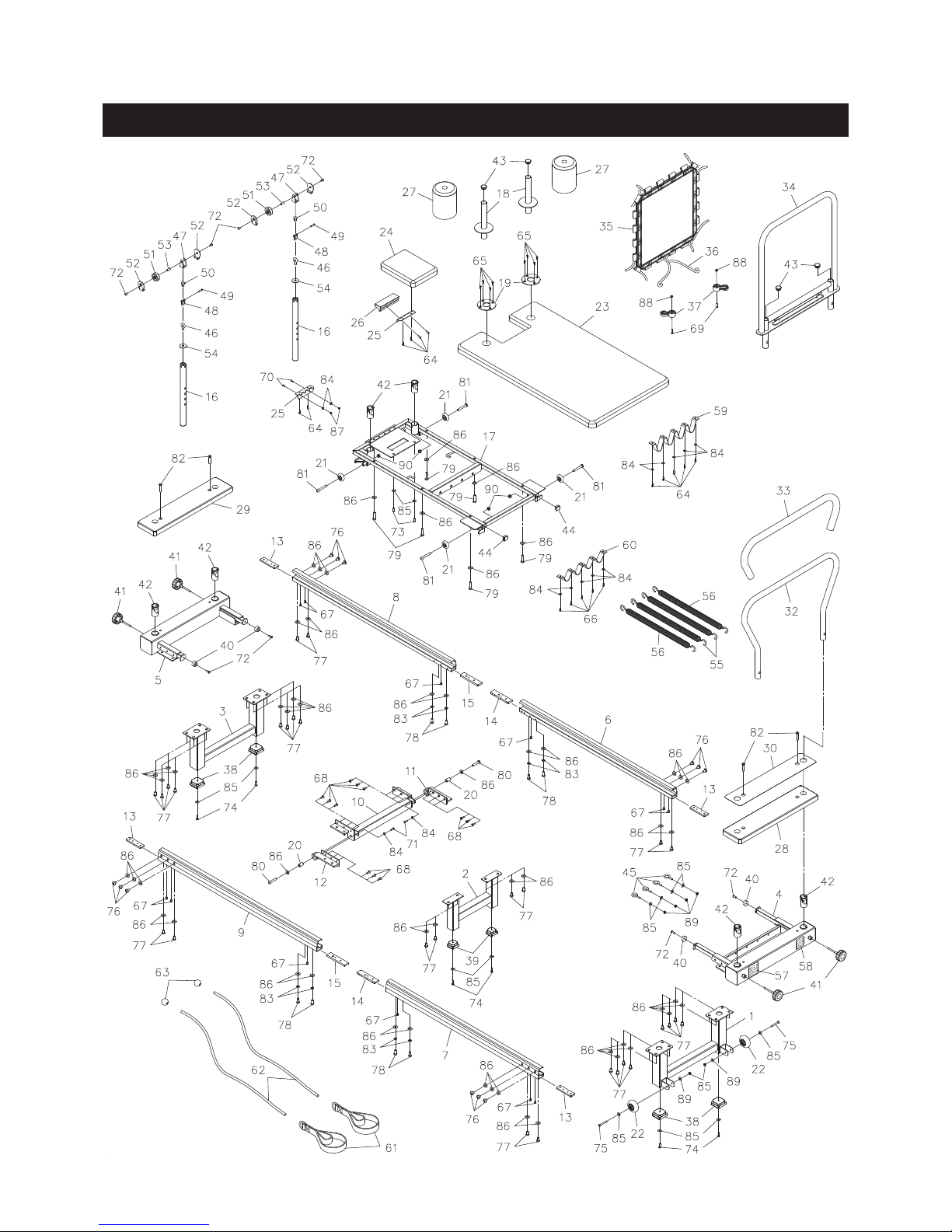

Product Parts Drawing .............................. 20
Parts List .................................................... 21
Fax/Mail Ordering Form ............................ 23
SAFETY INSTRUCTIONS
1. Save these instructions and ensure that other exercisers read this manual prior to using the
AeroPilates® Precision Series Reformer 610 for the rst time.
2. Read all warnings and cautions posted on the AeroPilates® Precision Series Reformer 610.
3. The AeroPilates® Precision Series Reformer 610 should only be used after a thorough review of the
Owner’s Manual. Make sure that it is properly assembled and tightened before use.
4. We recommend that two people be available for assembly of this product.
5. When exercising on this product, do not exercise at an intensity that causes the product itself to move.
This could result in damage to your joints and to the product.
6. Keep children away from the AeroPilates® Precision Series Reformer 610. Do not allow children to
use or play on the AeroPilates® Precision Series Reformer 610. Keep children and pets away from
the AeroPilates® Precision Series Reformer 610 when it is in use.
7. It is recommended that you place this exercise equipment on an equipment mat.
8. Set up and operate the AeroPilates® Precision Series Reformer 610 on a solid level surface. Do not
position the AeroPilates® Precision Series Reformer 610 on loose rugs or uneven surfaces.
9. Make sure that adequate space is available for access to and around the AeroPilates® Precision
Series Reformer 610.
10. Before using, inspect the AeroPilates® Precision Series Reformer 610 for worn or loose
components, and tighten or replace any worn or loose components prior to use.
11. When folding or unfolding the AeroPilates® Precision Series Reformer 610, keep all children away
from the AeroPilates® Precision Series Reformer 610 and make sure your hands are clear of any
folding or pinch point.
12. Consult a physician prior to commencing an exercise program and follow his/her recommendations in
developing your tness program. If at any time during exercise you feel faint, dizzy, or experience pain,
stop and consult your physician.
13. Always choose the workout which best ts your physical strength and exibility level. Know your limits
and train within them. Always use common sense when exercising.
14. Do not wear loose or dangling clothing while using the AeroPilates® Precision Series Reformer 610.
15. Be careful to maintain your balance while using, mounting, dismounting, or assembling the
AeroPilates® Precision Series Reformer 610. Loss of balance may result in a fall and bodily injury.
16. The AeroPilates® Precision Series Reformer 610 should not be used by persons weighing over 350
pounds.
17. The AeroPilates® Precision Series Reformer 610 should be used by only one person at a time.
18. The AeroPilates® Precision Series Reformer 610 is for consumer use only. It is not for use in public
or semipublic facilities.
Cancer and Reproductive Harm www.P65Warnings.ca.gov
Consult your physician before starting this or any exercise program. This is
especially important if you are over the age of 35, have never exercised before,
are pregnant, or su󰀨er from any health problem. This product is for home use
only. Do not use in institutional or commercial applications. Failure to follow all
warnings and instructions could result in serious injury or death.
The Bungee Cord(36) contain natural rubber latex which may cause allergic
reactions.
To reduce the risk of serious injury, read the following Safety Instructions
before using the AeroPilates® Precision Series Reformer 610.
!WARNING
!WARNING
!CAUTION
!WARNING

NEED HELP?
CONTACT US FIRST
1 [phone]
[e-mail]
Hi! From all of us here at Stamina Products, thank you for your purchase. We
know that you have big fitness goals in mind and we are here to help you along.
Call us, email us, or send us a message on Facebook. Be sure to contact us if you
have any questions on your new product. We look forward to hearing from you!
With your body in mind,
Stamina Customer Care
To enact your extended warranty and to help us better
serve you, please go onlineand register your new product.
register.staminaproducts.com
ONLINE
[e-mail]
www.staminaproducts.com
TELEPHONE
1 [phone]
FAX
[phone]
MAIL
Stamina Products, Inc.
ATTN: Customer Care
P.O. Box 1071
Springfield, MO 65801-1071
facebook.com/StaminaProducts
facebook.com/AeroPilates
CUSTOMER CARE HOURS:
Monday-Thursday, 7:30 AM-5:00 PM, Central Time
Friday, 8:00 AM-3:00 PM, Central Time
It is quick and easy to register online, but if you’re a little old school or just need a
reason to raise that little flag on your mailbox, fill out the info on the last page of this
manual and mail it in.

BEFORE YOU BEGIN
5
Front Leg
Foam Pad
Headrest
Rope
Front Brace
Hand/Foot Strap
Foam Sleeve
Wheel
Locking Knob
High Tension Springs
Platform Cushion
Front Right Rail
Front Wooden
Platform
Caution Label
Footbar
THE FOLLOWING TOOLS ARE INCLUDED FOR ASSEMBLY: Allen Wrench (3mm)
Allen Wrench (6mm)
Rear Right Rail
Pulley Riser
Rope
Pulley Set
Pulley Riser
Thank you for choosing the AeroPilates®
Precision Series Reformer 610. We take great
pride in producing this quality product and hope it
will provide many hours of quality exercise to make
you feel better, look better, and enjoy life to its
fullest.
It's a proven fact that a regular exercise
program can improve your physical and mental
health. Too often, our busy lifestyles limit our time
and opportunity to exercise. The AeroPilates®
Precision Series Reformer 610 provides a
convenient and simple method to begin your
journey of getting your body in shape and
achieving a happier and healthier lifestyle.
Before reading further, please review the
drawing below and familiarize yourself with the
parts that are labeled. Locate the serial decal on
the product and write the serial number on the
cover of the manual in the space provided. See
page 5 for an image of the serial decal. Model
number and serial number are required when
calling for assistance.
Read this manual carefully before using the
AeroPilates® Precision Series Reformer 610.
Although Stamina constructs its products with
the nest materials and uses the highest standards
of manufacturing and quality control, there can
sometimes be missing parts or incorrectly sized
parts. If you have any questions or problems
with the parts included with your AeroPilates®
Precision Series Reformer 610, please do not
return the product. Contact us FIRST!
If a part is missing or defective, please go to
staminaproducts.com under the Customer Care
section and order the part needed, or call us toll
free at 1-800-375-7520 (in the U.S.). Our Customer
Care Staff is available to assist you from 7:30
A.M. to 5:00 P.M. (Central Time) Monday through
Thursday and 8:00 A.M. to 3:00 P.M. (Central
Time) on Friday.
Be sure to have the name and model number of
the product available when you contact us.
Serial Decal
Rear Wooden
Platform
Pulley Set
Low Tension Spring
Middle Leg
Low Tension
Spring
Rear Brace
Rear Leg
Cardio Rebounder

6
This chart is provided to help identify the warning, caution, and notice labels on the AeroPilates®
Precision Series Reformer 610.Please take a moment to familiarize yourself with all of the warning,
caution, and notice labels.

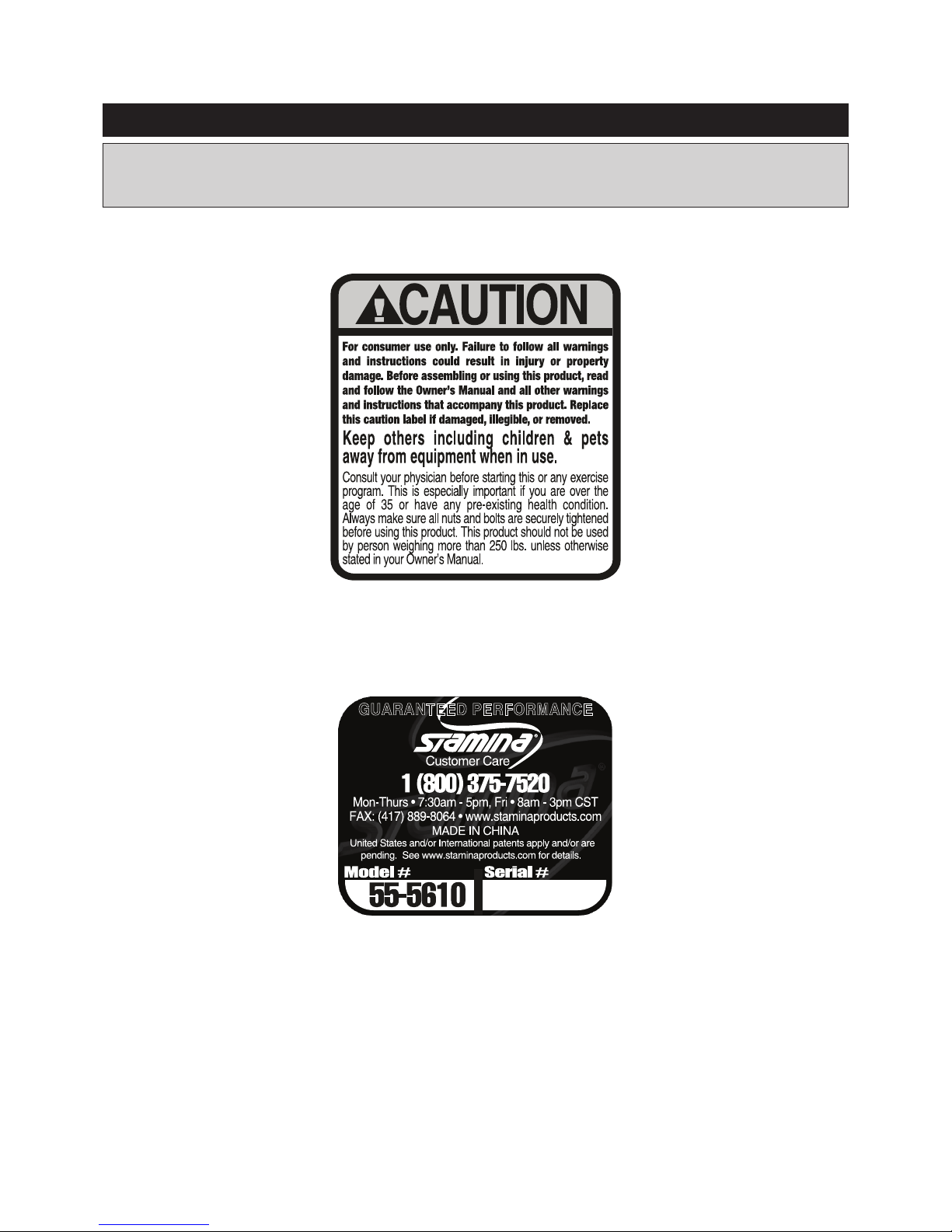

EQUIPMENT WARNING, CAUTION & NOTICE LABELS
CAUTION LABEL(57)
To best serve you, our Customer Care Representatives will
need your serial number. For quick access, write in your
serial number on the cover of the manual.
SERIAL DECAL(58)

Part Number and Description Qty
7
84 Washer (M5) 2
86 Washer (M8) 20
71 Bolt, Button Head (M5 x 0.8 x 15mm) 2
77 Bolt, Button Head (M8 x 1.25 x 15mm) 20
length
length
mm.
in.
INCHES
This chart is provided to help identify the hardware used in the assembly process. Place the washers or
the ends of the bolts or screws on the circles to check for the correct diameter. Use the small scale to
check the length of the bolts and screws.
NOTICE: The length of all bolts and screws, except those with flat
heads, is measured from below the head to the end of the bolt
or screw. Flat head bolts and screws are measured from the
top of the head to the end of the bolt or screw.
After unpacking the unit, open the hardware bag and make sure that you have all the following items.
Some hardware may be already attached to the part.
MILLIMETERS
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150
0 1/2 1 1/2 2 1/2 3 1/2 4 1/2 5 1/2 6
6 8 10 12
3/16" 1/4" 5/16" 3/8" 1/2"
HARDWARE IDENTIFICATION CHART

ASSEMBLY INSTRUCTIONS
8
STEP 1
Remove your AeroPilates® Precision Series Reformer 610 from its packaging, placing the product on
its side. Unfold the MAIN FRAME ASSEMBLY half way as shown in the illustration.
STEP 2
Attach the FRONT LEG(1), the one with WHEELS(22), to the FRONT BRACE(4) with BUTTON HEAD
BOLTS(M8x1.25x15mm)(77) and WASHERS(M8)(86).
STEP 3
Attach the REAR LEG(3) to the REAR BRACE(5) with BUTTON HEAD BOLTS(M8x1.25x15mm)(77)
and WASHERS(M8)(86).
!CAUTION Keep hands clear of the hinge when folding and unfolding the unit.
Place all parts from the box in a cleared area and position them on the oor in front of you. Remove
all packing materials from your area and place them back into the box. Do not dispose of the packing
materials until assembly is completed. Read each step carefully before beginning. If you are missing
a part, please go to staminaproducts.com under the Customer Care section and order the part
needed, e-mail us at customer[email protected], or call us toll free at 1-800-375-7520
(in the U.S.). Our Customer Care Sta󰀨 is available to assist you from 7:30 A.M. to 5:00 P.M. (Central
Time) Monday through Thursday and 8:00 A.M. to 3:00 P.M. (Central Time) on Friday.

ASSEMBLY INSTRUCTIONS
9
STEP 4
Attach the MIDDLE LEG(2) to the MIDDLE BRACE(10) with BUTTON HEAD BOLTS(M8x1.25x15mm)
(77) and WASHERS(M8)(86).
STEP 5
Unfold your AeroPilates® Precision Series Reformer 610 to a flat position by moving the FRONT
BRACE ASSEMBLY(4) away from the REAR BRACE ASSEMBLY(5) in a counterclockwise position
until fully extended. Lower the AeroPilates® Precision Series Reformer 610 so all six legs are at on
the oor. Refer to illustration A. Bolt FRONT RIGHT RAIL(7) and REAR RIGHT RAIL(9) together with
BUTTON HEAD BOLTS(M5x0.8x15mm)(71) and WASHERS(M5)(84). Repeat for left side Rails (6) and
(8).
!CAUTION Keep hands clear of the hinge when folding and unfolding the unit.
A.

ASSEMBLY INSTRUCTIONS
10
STEP 6
Insert the PULLEY RISERS(16) into the mounting holes in the REAR WOODEN PLATFORM(29) and
REAR BRACE(5). Insert the PULLEY RISERS(16) all the way to the bottom. Align the holes in the PULLEY
RISERS(16) with the holes in the REAR BRACE(5) and secure with the LOCKING KNOBS(41).
STEP 7
Insert the FOAM PAD ASSEMBLIES(27) into the holes located on the CARRIAGE CUSHION(23). Place
the HAND/FOOT STRAPS(61) onto the FOAM PAD ASSEMBLIES(27) for storage.

ASSEMBLY INSTRUCTIONS
11
STEP 8
Make sure that the holes in the FOOTBAR(32) are facing toward the end of the AeroPilates® Precision
Series Reformer 610 as shown in the illustration. Insert the FOOTBAR(32) into the mounting holes located
in the FRONT WOODEN PLATFORM(28) and FRONT BRACE(4). Insert the FOOTBAR(32) all the way
to the bottom and lock it in place with the LOCKING KNOBS(41).
NOTE: You can choose to insert the CARDIO REBOUNDER(34) into the FRONT BRACE(4) and lock in
position with the LOCKING KNOBS(41). Refer to the inset drawing.

OPERATIONAL INSTRUCTIONS
12
LOAD ADJUSTMENT
The AeroPilates® Precision Series Reformer 610 has four springs: two HIGH TENSION SPRINGS(55)
identied with yellow bands and two LOW TENSION SPRINGS(56) identied with blue bands. The resistance
of the CARRIAGE(17) can be adjusted by attaching the springs to the EYEHOOKS(45). Springs are easily
changed between exercises for an uninterrupted workout. The workout wall chart recommends how many
and which springs to use for each exercise.
HEADREST ADJUSTMENT
The HEADREST(24) on the CARRIAGE(17) can be positioned at three di󰀨erent angles, 0°, 14°, and 20°.
Simply pivot the ANGLE ADJUSTOR(26) underneath the HEADREST(24).
Zero Degrees
14 Degrees 20 Degrees

OPERATIONAL INSTRUCTIONS
ROPE LENGTH ADJUSTMENT
The ROPE(62) feeds through the PULLEY SET(51), Loop
Aand Loop B, then hook its ball end on the hook on the
underside of the top edge of the CARRIAGE(17).
You can adjust the length between the PULLEY SET(51)
and the HAND/FOOT STRAP(61). Pull the ROPE(62)
from the gap between Loop Aand Loop Band hang the
ROPE(62) onto one of the three hooks.
13
If more length is needed, unhook the ball end of the ROPE(62) from the hook. The ball will stop at Loop B,
making this rope 8 inches longer. You still pull the ROPE(62) from the gap between Loop A and Loop B
and hang the ROPE(62) onto one of the three hooks to adjust the length.
Loop A
Loop B
3
2
1
Hook
Ball
Loop A
Loop B
Hooks
Hook
3
2
1

14
OPERATIONAL INSTRUCTIONS
Ideal hand/foot strap length will vary depending on your height and limb length. To determine your ideal
hand/foot strap length, begin by placing the hand/foot straps over the shoulder rests as shown below. Adjust
the hand/foot straps so they are taut.
Next, lie on the reformer with your hands in the straps with shoulders against the shoulder rests. Reach your
hands toward the ceiling until they are directly over the back edge of the platform as shown in the photo
below. In this position, the platform should be at rest with no tension on the ropes. If there is still tension on
the ropes in this position, lengthen the ropes. If you lose tension before reaching the arm position shown
below, shorten the ropes.
CUSTOMIZING HAND/FOOT STRAP LENGTH

OPERATIONAL INSTRUCTIONS
15
Standard Setting- the top setting
The standard height setting for the reformer pulleys is the top setting. At the top setting, the pull of the ropes
provides the most support and feedback for the body. Place your pulleys at the top setting to most easily
achieve proper form and to engage the core muscles.
Variable settings- lower settings
You can add variety to your routine by using di󰀨erent pulley settings. The lower you set the pulleys, the
less guidance and support you receive from the ropes. By providing less guidance and support, the lower
settings further challenge strength and coordination.
There are four adjustment holes in the PULLEY RISERS(16). Remove the LOCKING KNOBS(41). Adjust
the PULLEY RISERS(16) up or down and lock in desired position with the LOCKING KNOBS(41).
PULLEY HEIGHT ADJUSTMENT

The safety and integrity designed into the AeroPilates® Precision Series Reformer 610 can only be
maintained when the AeroPilates® Precision Series Reformer 610 is regularly examined for damage
and wear. Special attention should be given to the following:
STORAGE
MAINTENANCE
16
1. To store the AeroPilates® Precision Series Reformer 610, simply keep it in a clean dry place.
2. It is recommended that two people be available to move the AeroPilates® Precision Series
Reformer 610.
3. To move the AeroPilates® Precision Series Reformer 610: First, attach one of the TENSION
SPRINGS to the EYEHOOK(45) to prevent the CARRIAGE(17) from moving. Second, grasp the
REAR BRACE(5) and lift the unit from the back. Third, roll the AeroPilates® Precision Series
Reformer 610 on the MOVING WHEELS(22) that are attached to the FRONT LEG(1).
1. It is the sole responsibility of the user/owner to ensure that regular maintenance is reformed.
2. Worn or damaged components must be replaced immediately or the AeroPilates® Precision Series
Reformer 610 removed from service until repair is made.
3. Verify that the CAUTION LABEL(52) is present and legible. Replace the CAUTION LABEL(52) if it is
missing or damaged.
4. Verify that the ROPES(62) are properly installed on the PULLEY SETS(51).
5. Check the condition of the ROPES(62) and replace if they are frayed or worn.
6. Check the condition of the TENSION SPRINGS(55, 56). Replace the springs that are damaged.
7. Check the BUNGEE CORD(36) on the CARDIO REBOUNDER(34) for wear. Replace the CARDIO
REBOUNDER(34) if the BUNGEE CORD(36) is frayed or worn.
8. Check the PLASTIC SNAP HOOKS(37) on the ends of the BUNGEE CORD(36). Replace the CARDIO
REBOUNDER(34) if PLASTIC SNAP HOOKS(37) are damaged or deformed.
9. Check the PULLEY SETS(51) for excessive wear. Replace worn PULLEY SETS(51).
10. Check the HAND/FOOT STRAPS(61) for damage. Replace damaged parts.
11. Check the FOAM SLEEVE(33) and FOAM PADS(27). Replace if damaged or worn.
12. Check the BUMPERS(40) for looseness or damage and replace any damaged parts.
13. Check the PLATFORM CUSHION(23) and replace if it is damaged or worn.
14. Check and clean the ROLLERS(21) and the rolling surfaces on the rails. Clean by wiping with a dry
cloth.
15. Only Stamina Products supplied components should be used to maintain/repair the AeroPilates®
Precision Series Reformer 610.
16. Keep your AeroPilates® Precision Series Reformer 610 clean by wiping with an absorbent cloth after
use.

How you begin your exercise program depends on your physical condition. If you have been inactive for
several years or are severely overweight, start slowly and increase your workout time gradually. Increase
your workout intensity gradually by monitoring your heart rate while you exercise.
Initially you may only be able to exercise within your target zone for a few minutes; however, your aerobic
capacity will improve over the next six to eight weeks. It is important to pace yourself while you exercise
so you don't tire too quickly.
Measure your heart rate periodically during your workout by stopping the
exercise but continuing to move your legs or walk around. Place two or
three ngers on your wrist and take a six second heartbeat count. Multiply
the results by ten to nd your heart rate. For example, if your six second
heartbeat count is 14, your heart rate is 140 beats per minute. A six second
count is used because your heart rate will drop rapidly when you stop
exercising. Adjust the intensity of your exercise until your heart rate is at the
proper level.
wrist pulse
Remember to follow these essentials:
Have your doctor review your training and diet programs.
Begin your training program slowly with realistic goals that have been set by you and your physician.
Warm up before you exercise and cool down after you work out.
Take your pulse periodically during your workout and strive to stay within a range of 60% (lower
intensity) to 90% (higher intensity) of your maximum heart rate zone. Start at the lower intensity, and
build up to higher intensity as you become more aerobically t.
If you feel dizzy or lightheaded you should slow down or stop exercising.
To determine if you are working out at the correct intensity, use a heart rate monitor or use the table
below. For effective aerobic exercise, your heart rate should be maintained at a level between 60%
and 90% of your maximum heart rate. If just starting an exercise program, work out at the low end of
your target heart rate zone. As your aerobic capacity improves, gradually increase the intensity of your
workout by increasing your heart rate.
CONDITIONING GUIDELINES
Target Heart Rate Zone Estimated by Age*
* For cardiorespiratory training benefits, the American College of Sports Medicine recommends
working out within a heart rate range of 55% to 90% of maximum heart rate. To predict the
maximum heart rate, the following formula was used: 220 - Age = predicted maximum heart rate
20 years
25 years
30 years
35 years
40 years
45 years
50 years
55 years
60 years
65 years
70 years
Average Maximum
Heart Rate 100%
Age
110-180 beats per minute
107-175 beats per minute
105-171 beats per minute
102-166 beats per minute
99-162 beats per minute
97-157 beats per minute
94-153 beats per minute
91-148 beats per minute
88-144 beats per minute
85-139 beats per minute
83-135 beats per minute
200 beats per minute
195 beats per minute
190 beats per minute
185 beats per minute
180 beats per minute
175 beats per minute
170 beats per minute
165 beats per minute
160 beats per minute
155 beats per minute
150 beats per minute
Target Heart Rate Zone
(55%-90% of Maximum Heart Rate)
17

WARM-UP and COOL-DOWN
Warm-Up The purpose of warming up is to prepare your body for exercise and to minimize injuries.
Warm up for two to ve minutes before strength training or aerobic exercising. Perform activities that
raise your heart rate and warm the working muscles. Activities may include brisk walking, jogging,
jumping jacks, jump rope, and running in place.
Stretching Stretching while your muscles are warm after a proper warm-up and again after your
strength or aerobic training session is very important. Muscles stretch more easily at these times
because of their elevated temperature, which greatly reduces the risk of injury. Stretches should be held
for 15 to 30 seconds. Do not bounce.
Suggested Stretching Exercises
Remember to always check with your physician before starting any exercise program.
Cool-Down The purpose of cooling down is to return the body to its normal, or near normal, resting
state at the end of each exercise session. A proper cool-down slowly lowers your heart rate and allows
blood to return to the heart. Your cool-down should include the stretches listed above and should be
completed after each strength training session.
Lower Body Stretch
Place feet shoulder-width
apart and lean forward.
Keep this position for 30
seconds using the body as a
natural weight to stretch the
backs of the legs.
DO NOT BOUNCE!
When the pull on the back of
the legs lessens, gradually
try a lower position.
Floor Stretch
While sitting on the oor,
open the legs as wide as
possible. Stretch the upper
body toward the knee on the
right leg by using your arms
to pull your chest to your
thighs. Hold this stretch 10
to 30 seconds.
DO NOT BOUNCE!
Do this stretch 10 times.
Repeat the stretch with the
left leg.
Bent Over Leg Stretch
Stand with feet shoulder-
width apart and lean forward
as illustrated. Using the
arms, gently pull the upper
body towards the right leg.
Let the head hang down.
DO NOT BOUNCE!
Hold the position a minimum
of 10 seconds. Repeat
pulling the upper body to
the left leg. Do this stretch
several times slowly.
Bent Torso Pulls
While sitting on the oor,
have legs apart, one leg
straight and one knee bent.
Pull the chest down to touch
the thigh on the leg that is
bent, and twist at the waist.
Hold this position at least 10
seconds. Repeat 10 times
on each side.
18

LIMITED WARRANTY
MODEL 55-5610
19
WARRANTY
Stamina Products, Inc. (“Stamina”) warrants to the original purchaser that this product will be free from
defects in materials and workmanship that arise under normal use, service, proper assembly and proper
operation in accordance with product warnings/instructions for a period of 90 days on the parts and ve
years on the frame from the date of the original purchase from an authorized retailer. THIS WARRANTY
SHALL NOT APPLY TO ANY PRODUCT WHICH HAS BEEN SUBJECT TO COMMERCIAL USE,
ABUSE, MISUSE, ALTERATION OF ANY KIND OR TO ANY DEFECT OR CHANGE CAUSED BY
IMPROPER ASSEMBLY, REPAIR, REPLACEMENT, SUBSTITUTION OR USE WITH PARTS NOT
PROVIDED BY STAMINA. Commercial use includes use of product in athletic clubs, health clubs, spas,
gyms, and all other public or semipublic facilities whether or not the product’s use is in furtherance of a
prot making enterprise, and all other use which is not for personal purposes.
To implement this limited warranty, send a written notice stating your name, date, and place of purchase
and a brief description of the defect along with your receipt to Stamina Products, Inc. P.O. Box 1071,
Springeld Missouri, USA, 65801-1071, or email us at customer[email protected], or call us
at 1-800-375-7520. If the defect is covered under this limited warranty, you will be requested to return the
product or part to us for free repair or replacement at our option.
NO ACTION FOR BREACH OF THIS LIMITED WARRANTY MAY BE COMMENCED MORE
THAN ONE (1) YEAR AFTER THE DATE THE ALLEGED BREACH WAS OR SHOULD HAVE
BEEN DISCOVERED. NO ACTION FOR BREACH OF ANY IMPLIED WARRANTY (INCLUDING
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) MAY BE COMMENCED
MORE THAN ONE (1) YEAR AFTER DELIVERY OF THE PRODUCT TO THE PURCHASER. These
warranties are not transferable. IF ANY PART OF THE PRODUCT IS NOT IN COMPLIANCE
WITH THIS LIMITED WARRANTY OR ANY IMPLIED WARRANTY, THE REMEDY OF REPAIR OR
REPLACEMENT IS THE EXCLUSIVE REMEDY. If any claim is made under this limited warranty or any
implied warranty, Stamina reserves the right to require the product to be returned for inspection, at the
purchaser’s expense, to Stamina’s premises in Springeld, Missouri. Return of the enclosed warranty
registration card is not required for warranty coverage, but is merely a way of establishing the date and
place of purchase.
Stamina SHALL NOT BE LIABLE FOR THE LOSS OF USE OF ANY PRODUCT, LOSS OF TIME,
INCONVENIENCE, COMMERCIAL LOSS OR ANY OTHER INDIRECT, CONSEQUENTIAL, SPECIAL
OR INCIDENTAL DAMAGES DUE TO BREACH OF THE ABOVE WARRANTY OR ANY IMPLIED
WARRANTY.
THIS LIMITED WARRANTY IS THE ONLY EXPRESS WARRANTY. NO ORAL OR WRITTEN
INFORMATION GIVEN BY STAMINA, ITS AGENTS OR EMPLOYEES, SHALL CREATE A WARRANTY
OR IN ANY WAY INCREASE THE SCOPE OF THIS WARRANTY. This warranty gives you specic legal
rights, and you may also have other legal rights which vary from state to state. ANY OTHER RIGHT
WHICH YOU MAY HAVE, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE, IS LIMITED IN DURATION TO THE DURATION OF THIS
WARRANTY.
The laws in some states a󰀨ect the disclaimer or limitation of implied warranties and consequential and
incidental damages. If any such law is found applicable, the foregoing disclaimers and limitations of and
on implied warranties and consequential and incidental damages shall be deemed to be modied to the
extent necessary to comply with applicable law.

PRODUCT PARTS DRAWING
20
FRONT
BACK
