Aerservice equipments So-20 User manual

SO-20

Rev 00.00

Pag. 1 di 16

USE AND

MAINTENANCE

MANUAL

SO-20

Rev 00.00

Pag. 2 di 16

INDEX

Par

Description

Use and maintenance manual index

INDEX................................................................................................................................2

Use and maintenance manual index......................................................................................2

INTRODUCTION ...............................................................................................................3

Scope of the operating and maintenance manual.................................................................3

Storage of the instruction manual..........................................................................................4

Updating of the Instruction Manual........................................................................................4

Glossary...................................................................................................................................5

Manufacturer’s identification data .........................................................................................6

Machine identification and data plates (if present)...............................................................7

Declarations.............................................................................................................................7

GENERALITIES OF THE MACHINE.................................................................................9

General description of the machine.......................................................................................9

SO-20 technical data...............................................................................................................9

Machine’s components description.......................................................................................9

FIRST START OF THE MACHINE..................................................................................10

Electrical connections ..........................................................................................................10

First start of the machine......................................................................................................10

RISKS CONNECTED WITH USE OF THE MACHINE....................................................11

Residual risks of the ozone generator.................................................................................11

Malfunctions..........................................................................................................................12

Maintenance program...........................................................................................................12

SO-20

Rev 00.00

Pag. 3 di 16

INTRODUCTION

Par

Description

Scope of the operating and maintenance manual

This instruction manual is an integral part of the machine and has the purpose of providing all the necessary

information for the following purposes:

•Raise the awareness of operators as regards safety matters;

•Safe handling of the machine when packaged and unpackaged;

•Correct installation of the machine;

•Thorough knowledge of the machine’s operations and limits;

•Correct use in total safety;

•Correct and safe maintenance;

•Dismantling of the machine in total safety, in compliance with the regulations in force on the health

and safety of workers and the environment.

The people in charge of the company’s departments in which this machine will be installed must,

according to the regulations in force, carefully read the content of this Operating Manual and ensure

that operators and maintenance staff operating and working on the machine read the relevant parts.

The time dedicated to this will be fully rewarded by the correct and safe operation of the machine.

This document is based on the assumption that the systems in which the machine is to be installed are in

compliance with the health and safety at work regulations in force.

The instructions, drawings and documentation contained in this Manual are of a technical confidential nature

and are property of the manufacturer; they may not be reproduced in any way, in part of fully.

If this manual is amended by the manufacturer, the Customer has the responsibility of ensuring that only the

updated versions are available in the points of use.

SO-20

Rev 00.00

Pag. 4 di 16

INTRODUCTION

Par

Description

Storage of the instruction manual

The instruction manual must be kept safely and must be handed over to new owners in case of sale

throughout the lifecycle of the machine.

To help preserve the manual in good condition it must be handled with care and with clean hands, and it

must not be placed on dirty surfaces.

It is forbidden to remove, tear out or arbitrarily modify any parts of the manual.

The manual must be stored in an environment away from humidity and heat, in a position near the machines

to which it refers.

Upon the User’s request the Manufacturer shall supply other copies of the machine’s instruction manual.

INTRODUCTION

Par

Description

Updating of the Instruction Manual

The manufacturer reserves the right to modify the project and improve the machine without informing

customers and without updating the manual already delivered to the User.

If modifications are made to a machine installed at the customer’s premises, in agreement with the

manufacturer, and which entail the amendment of one or more chapters of the manual, the manufacturer

shall send the amended chapters to the holders of the Instruction Manual and its new overall revision.

According to the instructions that will accompany the updated documentation, the User shall replace the old

chapters in the copies held with the new ones, as well as the first page and table of contents with the new

revision level.

The manufacturer shall be responsible for the descriptions in Italian; translations cannot be thoroughly

checked therefore if there is a difference the Italian version must be considered correct; if this should occur

please contact our sales office that shall make the necessary amendments.

SO-20

Rev 00.00

Pag. 5 di 16

INTRODUCTION

Par

Description

Glossary

This paragraph lists some terms which are not commonly used or with a meaning different from the common

one. The meaning of the abbreviations and pictograms used is described below. The abbreviations and

pictograms are used to indicate operator qualifications and state of the machine; they provide, in a quick and

univocal manner, the information necessary for the correct and safe use of the machine.

GLOSSARY (Annex I point. 1.1.1 Dir. 2006/42/EC)

HAZARD

A potential source of injury or damage to health;

DANGER ZONE

Any zone within and/or around machinery in which a person is subject to a risk to his health or safety;

EXPOSED PERSON

Any person wholly or partially in a danger zone;

OPERATOR

The person or persons installing, operating, adjusting, maintaining, cleaning, repairing or moving machinery;

RISK

A combination of the probability and the degree of an injury or damage to health that can arise in a hazardous

situation;

INTENDED USE

The use of machinery in accordance with the information provided in the instructions for use;

REASONABLY FORESEEABLE MISUSE

The use of the machinery in a way not intended in the instructions for use, but which may result from readily

predictable human behaviour.

OTHER DEFINITIONS

STATE OF THE MACHINE

The state of the machine includes operating modes, for example automatic running mode, jog command,

stop, etc., the condition of the safety devices on the machines such as protection devices provided (or not

provided), pressed emergency button, type of isolation from energy sources, etc.

RESIDUAL RISK

Risks that persist despite the adoption of the protective measures included in the design of the machine and

despite the additional protective devices and measures adopted.

SO-20

Rev 00.00

Pag. 6 di 16

GENERAL INFORMATION

Par

Description

Manufacturer’s identification data

MANUFACTURER

Aerservice Equipments S.r.l.

REGISTERED OFFICE –ADMINISTRATIVE OFFICE

Viale dell’industria, 24 Z.I. – 35020 –Legnaro –(PD) –Italy

CONTACTS

Tel. +39 049 641 200

E-mail: [email protected]om

SO-20

Rev 00.00

Pag. 7 di 16

GENERAL INFORMATION

Par

Description

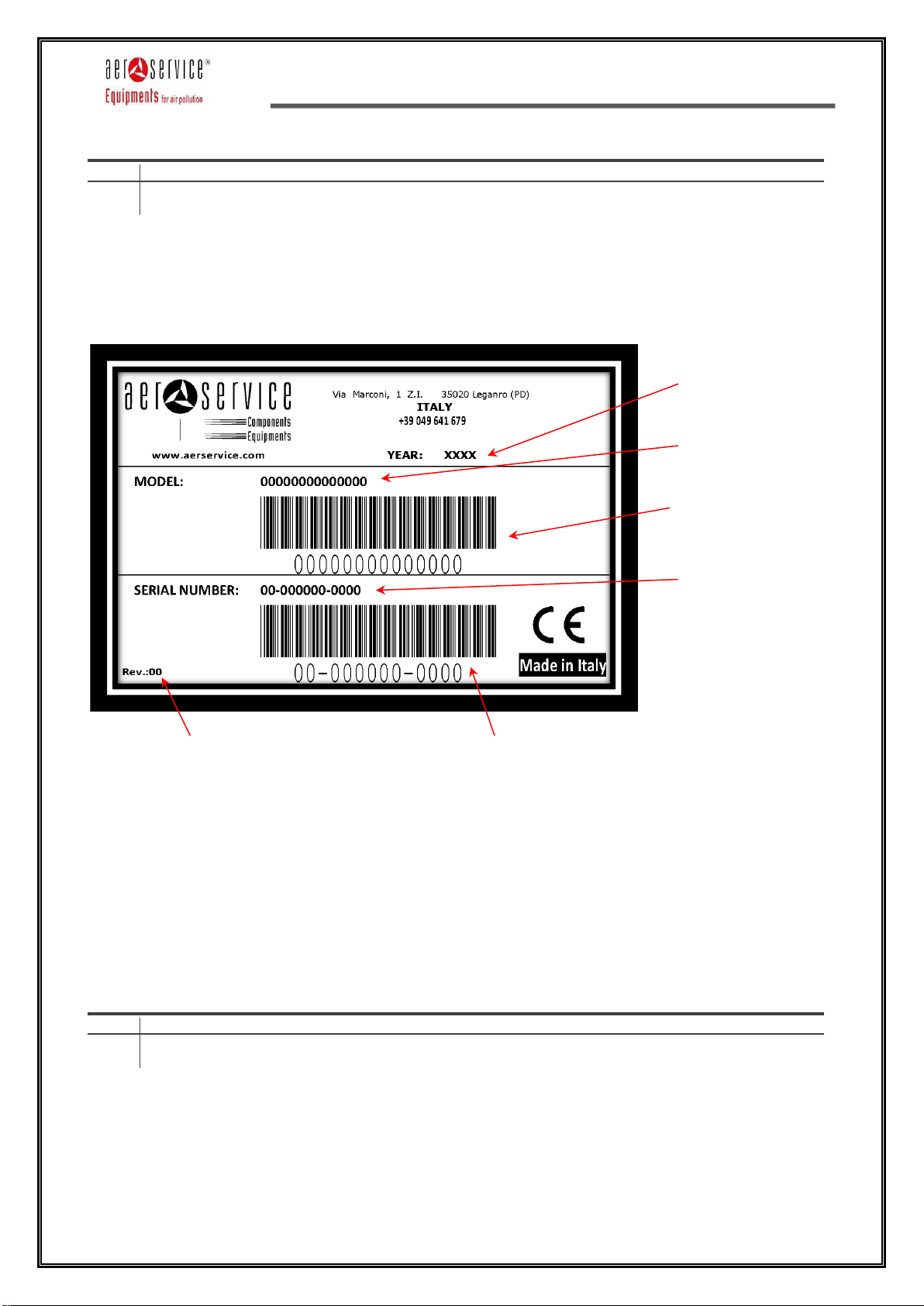

Machine identification and data plates (if present)

Each machine is fitted with a CE plate with indelible identification data. All communications with the

manufacturer or technical assistance centres must refer to the said data.

The position of the plate on the machine may vary.

GENERAL INFORMATION

Par

Description

Declarations

The machine is manufactured in conformity with relevant EC Directives, applicable when the machine is put

on the market.

ANNEX IV Directive 2006/42/EC

The machine does not belong to the category of machines mentioned in Annex IV to directive 2006/42/EC

Year of

manufacture

Article code

Article barcode

Serial number

Barcode serial

number

Label revision

number

SO-20

Rev 00.00

Pag. 8 di 16

CE CONFORMITY DECLARATION

(All. IIA DIR. 2006/42/CE)

THE MANUFACTURER

Aerservice Equipments S.r.l.

Company

Viale dell’industria, 24 Z.I.

35020

Padova

Address

Cap

Provincia

Legnaro

Italia

City

Country

DECLARES THAT THE UNIT

Ozone generator

SO-20

Description

Model

2020

Serial number

Year of production

SO-20

Product name

High-voltage Ozone generator –20 g/h

Use

IS IN COMPLIANCE WITH THE FOLLOWING DIRECTIVES

Directive 2006/42/EC of the European Parliament and Council of 2006, May 17th on machinery and amending directive

95/16/EC.

Directive 2014/30/EC of the European Parliament and Council of 2014, February 26th on the approximation of the laws

of the member States relating to electromagnetic compatibility.

Directive 2014/95/EC of the European Parliament and Council of 2014, February 26thon the approximation of the laws of

Member States relating to electrical equipment designed for use within certain voltage limits.

Directive 2011/65/EU of the European Parliament and Council of 2011, June 8th concerning the restriction of the utilization

of certain substances in the electric and electronic equipments.

AND DECLARES THAT THE TECHNICAL FILE

Has been compiled by the manufacturer and is kept at:

Aerservice Equipments S.r.l. in Viale dell’industria, 24 Z.I. – 35020 –Legnaro –PD –Italia

Place and date of the document The manufacturer

Legnaro,

Marco Gallerino

D.C.: DC N-001/00001

SO-20

Rev 00.00

Pag. 9 di 16

GENERALITIES OF THE MACHINE

Par

Description

General description of the machine

The SO-20 ozone generator is the ideal solution to sanitize and disinfect all work environments, but also cars

and any place where sanitization is needed with a method that gives guaranteed results.

GENERALITIES OF THE MACHINE

Par

Description

SO-20 technical data

Ozone (O3) Generator 230v 20 g/h

Ozone emission: 20g/h

Power consumption: 120w

Input voltage: 230V

Noise level: 62 dBA

Operating range: -20°C/+40°C

Material: stainless steel

Timer: 1h 35’

GENERALITIES OF THE MACHINE

Par

Description

Machine’s components description

HANDLE

DIGITAL TIMER

SWITCH

OZONE GENERATOR

IEC (POLYSNAP LOCK) SOCKET

FOR THE CONNECTION TO THE

ELECTRICAL SUPPLY

SO-20

Rev 00.00

Pag. 10 di 16

FIRST START OF THE MACHINE

Par

Description

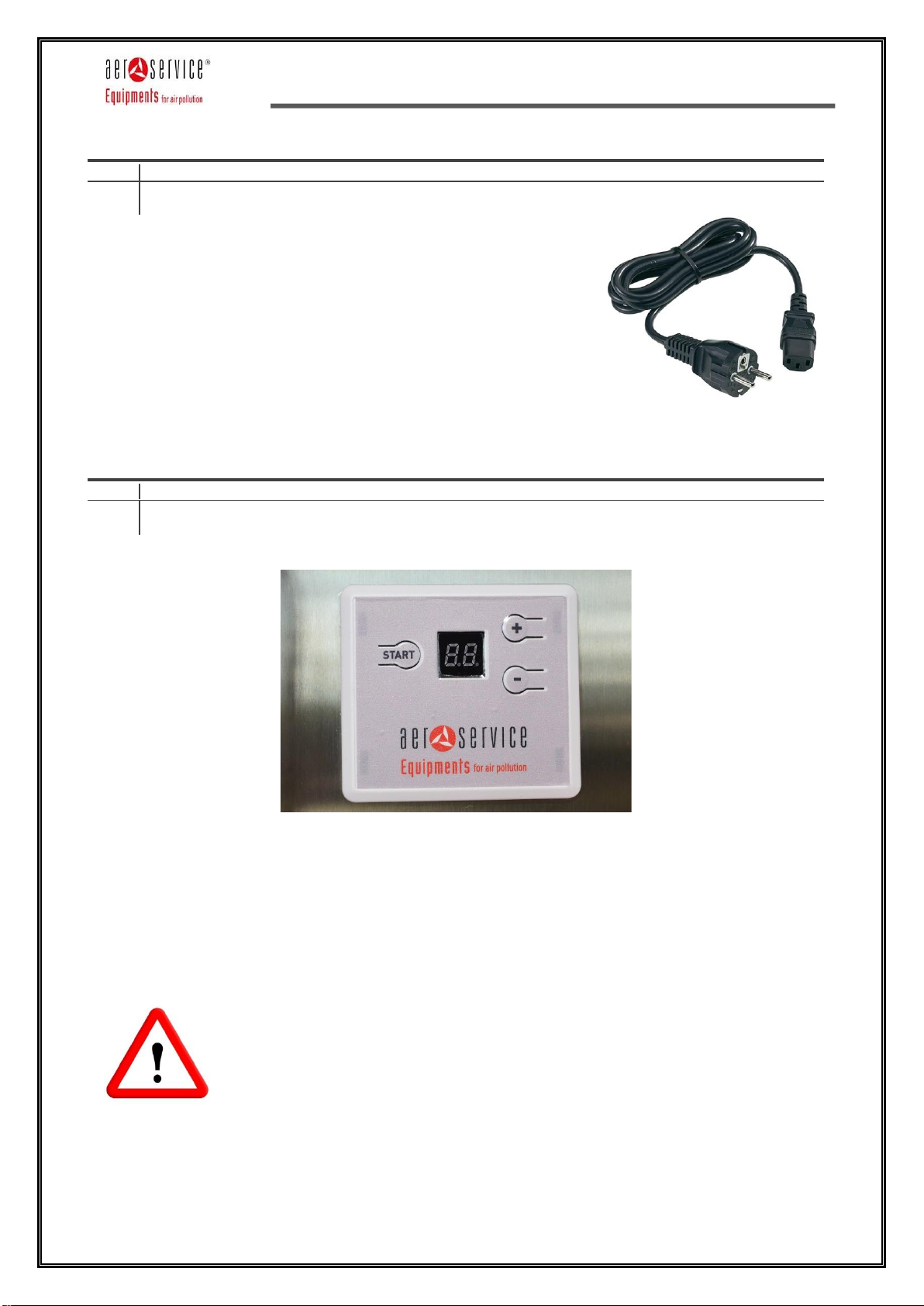

Electrical connections

The mobile sanitizing unit, in whatever version, is supplied with a 2 meters

long cable.

On one side it has a Schuko plug and on the other it has an IEC (polysnap

lock) socket for the connection on the machine.

The cable is provided with a wired plug.

FIRST START OF THE MACHINE

Par

Description

First start of the machine

1. Press the switch on the back of the machine near the power cable and bring it to position “1”;

2. Press the buttons “+” and “-” to set the timer (one minute for m2);

3. Press “start” and leave the room;

4. At the end of the treatment ventilate the room for at least 20 minutes.

DURING THE TREATMENT WITH OZONE, PEOPLE

OR ANIMALS MUST NOT BE PRESENT INSIDE

THE ROOM

SO-20

Rev 00.00

Pag. 11 di 16

RISKS CONNECTED WITH USE OF THE MACHINE

Par

Description

Residual risks of the ozone generator

Human tolerance to ozone

Ozone is a toxic gas, after inhalation it can cause diseases if

inhaled in sufficient quantities.

Humans can endure limited ozone exposure, symptoms such

as dry mouth and throat, cough, headache and chest

constriction and close to lethal limits, when the concentration

of ozone increases, serious problems will follow.

Limits * 0.06 ppm for 8 hours a day, 5 days a week (ppm =

parts per million) * 0.3 ppm for up to 15 minutes. These limits

are a maximum acceptable concentration (CMA), these

concentrations are much higher than the olfactory level at

which ozone can be smelled.

The following diagram provides information on times of

exposure to different concentrations and their influences on

humans.

Ozone toxicology

In higher concentrations, ozone can cause health effects after inhalation.

Symptoms such as mucosal irritations and headaches often follow.

These symptoms can also occur during photochemical smog episodes.

Higher concentrations (> 50 ppm) and long-term exposure (> 30 min) can be fatal. However, staying in a

room with this type of concentration is almost impossible.

The long-term effects of ozone exposure are not fully known, but a reduction in lung capacity and an increase

in lung disease should be considered.

To prevent the above health risks, a maximum amount of ozone has been established for the areas where

ozone is used.

This is the so-called maximum permissible concentration, or CMA value. This value describes the maximum

concentration of a substance to which a human can be exposed for a certain period of time.

For a normal five-day, eight-hours-a-day work week, ozone has a CMA value of 0.06 ppm (parts per million

or mg / L). For 15 minutes, the CMA value is 0.3 ppm.

Ozone can be measured in ppm or ppb (parts per billion or μg / L), according to various principles.

With these measurements, you can monitor the ozone concentration in a system.

When the CMA values are reached near the ozone generator, an alarm is issued.

Ozone has a very characteristic odor, which quickly reveals the violation of the CMA value. The level

at which ozone can be smelled is around 0.02 ppm.

Ozone decomposition

When ozone is produced it decays quickly because it is an unstable compound with a relatively short halving

time.

The halving time of ozone in water is much shorter than in air (see table 1). Ozone decays in drinkable water

(pH: 6-8.5), partially in reactive OH radicals.

Hence, the evaluation of an ozone-based process always involves the reaction of two species: ozone and

OH radicals.

When these OH radicals are dominant particles in the solution, it is called the advanced oxidation process

(POA).

Halving of ozone in OH radicals in natural waters is characterized by an initial rapid decrease of ozone,

followed by a second phase in which ozone decreases by first order kinetics.

SO-20

Rev 00.00

Pag. 12 di 16

Depending on the quality of the water, the halving time of ozone ranges from seconds to hours.

Factors that influence the decomposition of ozone in water are temperature, pH, environment and

concentration of dissolved material and UV light.

The main factors influencing ozone decomposition are discussed below.

Influencing factors:

Temperature: it has an important influence on the halving time of ozone. Table 1

shows the halving time of ozone in air and water. In water the halving time of ozone

is much shorter than in air, in other words ozone decomposes faster in water.

Ozone solubility decreases at higher temperatures and is less stable. On the other

hand, the reaction rate increases with a factor of 2 or 3 every 10°C [5,6]. Mainly the

ozone dissolved in water cannot be applied at a temperature above 40° C, because

at this temperature the halving time of the ozone is very short.

Table 1: halving time of ozone in air and water at different temperatures

MACHINE MAINTENANCE

Par

Description

Malfunctions

If necessary, contact Aerservice Equipments Srl technical office.

MACHINE MAINTENANCE

Par

Description

Maintenance program

ROUTINE CHECKS

TYPE OF CHECK

OR MAINTENANCE

METHOD

CADENCE

CHECK DATE AND MAINTENER NAME

GENERAL CHECK OF

THE CONDITION OF

THE SANITIZER

VISUAL

DAILY

CLEANING

MANUAL

See note A

NOTE A

The cleaning intervals vary according to the type of fluid conveyed and its concentration and also according to the

type of work environment in which it is used. The end user must therefore define a cleaning interval suitable to

always keep the machine perfectly clean; the accumulation of material on the fixed parts must not be more than 5

mm thick.

FAULT TYPE

CAUSE

ACTION

FAILURE TO START

No power supply

Check the connection of the plug and/or

socket

Fuse is burned out

Replace the fuse

Motor is burned out

Control the electrical connections

NO PRODUCTION OF OZONE

Circuit board on the generator is burnt

Replace the ozone generator

SO-20

Rev 00.00

Pag. 13 di 16

SO-20

Rev 00.00

Pag. 14 di 16

SO-20

Rev 00.00

Pag. 15 di 16

SO-20

Rev 00.00

Pag. 16 di 16

Aerservice Equipments S.r.l.

Viale dell’industria, 24 Z.I.

35020 - Legnaro (PD) Italy

Tel. +39 049 641 200

E-mail: [email protected]

equipments.aerservice.com

Table of contents

Other Aerservice Equipments Air Cleaner manuals

Aerservice Equipments

Aerservice Equipments RECAR160 Guide

Aerservice Equipments

Aerservice Equipments RECARM Guide

Popular Air Cleaner manuals by other brands

Winix

Winix PlasmaWave WAC-5000 Operator's manual

Honeywell

Honeywell 17000 - Permanent Pure HEPA QuietCare Air... owner's guide

b-mola

b-mola NCCO1702 Operation manual

Fellowes

Fellowes 9286001 instruction manual

EcoQuest

EcoQuest Fresh Air user manual

Honeywell

Honeywell F52F owner's guide

Instant

Instant AP300 user manual

LEITZ

LEITZ TruSens Z-3000 manual

Sanuvox

Sanuvox SANUVAIR S300 OZD instruction manual

Soehnle

Soehnle AIRFRESH CLEAN 400 user manual

NuvoMed

NuvoMed 357203 instruction manual

Simco

Simco scorpION3 instructions

Winix

Winix T1 user manual

OZOFRESH

OZOFRESH Eclipse Pro instruction manual

Therapure

Therapure TPP540 owner's guide

Dahle

Dahle DA 681 manual

Hunter

Hunter PermaLife 30706 owner's manual

Carrier

Carrier INFINITY 1620 installation instructions

Aerservice Equipments SO-20 User manual

Popular Air Cleaner manuals by other brands
