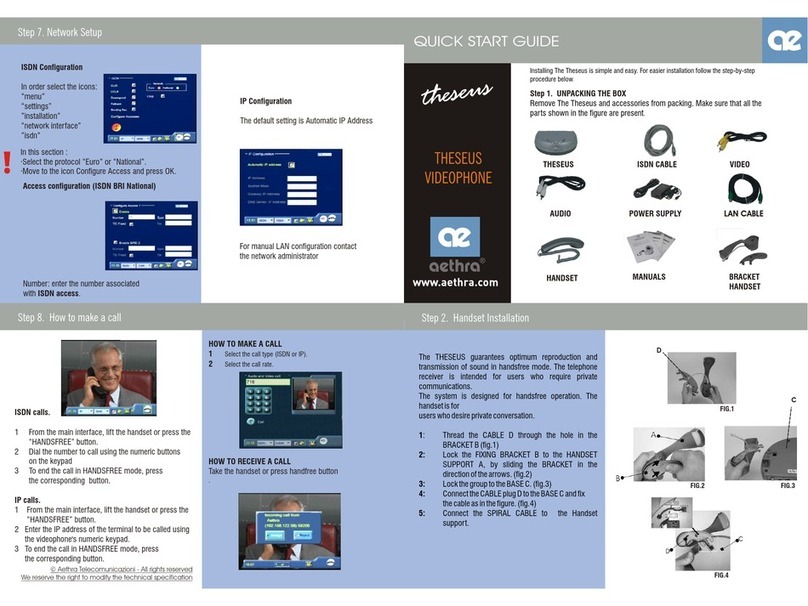

Aethra Theseus User manual

AUDIOCONFERENCING >PERSONAL VIDEO >MEETING ROOMS .VERTICAL APPLICATIONS . MCU & GATEWAY

Elegant

Ultra modern design, rounded profile

Compact

Easily fits into any home or office environment

Affordable

Offers both IP and ISDN connection

capabilities

THESEUS™

Multiple Network Connectivity

Supports both ISDN and IP-based communications standards,

fully conforming to the H.320, H.323 and SIP international standards

with transmission rates up to 768 kbps over IP.

High-Quality Video

Features a high-resolution (960 x 234 pixels) rounded, 5” LCD video

display for private discussions with top-quality images from any

visual angle. A TV screen connection is also provided for applications

requiring larger presentation. For video input, a built-in camera, with

manual focus and automatic white balance, uses a 1/4” CCD sensor

to capture business-quality, 30 fps video.

Excellent Sound Reproduction

Provides large bandwidth and full-duplex hands-free audio with

omnidirectional microphone, echo cancellation and Automatic

Noise Suppression.

Easy to Install and Use

On-screen contextual help and intuitive, non-intimidating graphical

user interface ensure easy installation and use. The simple keypad

and handset, plus address book dialing, make it easy to master right

away, even for the most novice user. All remote diagnostics and

management functions are accessible from web browsers.

Customizable Graphic User Interface

The user is able to choose layouts and colours among various

alternatives.

A stylish entry-level

videophone,

Theseus™provides

affordable

and compact video

telephony with

the benefits of ISDN

and IP-based

videoconferencing together

with excellent

visual and sound quality.

Videophone

Supported Standards

•ITU-T H.320 ISDN

•ITU-T H.323 IP networks

•IETF-SIP (RFC3261) IP networks

• PPPoE

•Video H.261, H.263+, H.264

•Audio G.711, G.728, G.722,

G.722.1

•Data T.120

•LDAP H.350

•MCU compatibility H.243

Transmission

•Bit rate 56 kbps ÷ 128 kbps over ISDN

64 kbps ÷ 768 kbps over IP (H323/SIP)

Video

•Frame rate (Tx/Rx) 30 fps

•Video resolution FCIF 352 x 288 pixels

QCIF 176 x 144 pixels

4CIF 704 x 576 pixels

for still images

(H.261 Annex D)

SIF 352 x 240 pixels

QSIF 176 x 120 pixels

4SIF 704 x 480 pixels

for still images

(H.261 Annex D)

•Remote camera control H.281 (H.320 - H.323)

Audio

Audio Band Bit rate

G.711 300 ÷ 3400 Hz 48/56/64 kbps

G.722 50 ÷ 7000 Hz 48/56/64 kbps

G.722.1 50 ÷ 7000 Hz 24/32 kbps

G.728 50 ÷ 3400 Hz 16 kbps

•Echo cancellation Full-duplex

•Adaptive post filtering

•Automatic Gain Control (AGC)

•Automatic Noise Suppression

Built-in Camera

•Sensor 1/4” CCD

•Format Video composite

•Picture elements 542 x 586 pixels

•Resolution 380 TV line

•Lens f=3.7 mm

• Iris F=2.0

• Focus Manual

•White balance Automatic

•Minimum illumination 0.5 lux

•S/N 52 dB

Built-in Display

•Type Color TFT-LCD

•Size 5”

•Resolution 960 x 234 pixels

Network Interfaces

•ISDN

1BRI 1 RJ-45

• Ethernet

10/100BASE-T full-duplex 1 RJ-45

Audio/Video Interfaces

•Video input CVBS PAL/NTSC (RCA)

•Video output CVBS PAL/NTSC (RCA)

•Audio input Line (RCA)

•Audio output Line (RCA)

Auxiliary Interfaces

•Serial port RS232 (DB9)

Closed Captioning/Text Chat

•T.140 text chat, available from Web

User Interface

•Multilingual on-screen graphic user interface

•User selectable languages:

Italian, English, French, Spanish, German,

Portuguese, Norwegian, Swedish, Russian,

Czechoslovakian, Hungarian, Polish, Finnish,

Simplified Chinese, Traditional Chinese,

Japanese, Korean

•Contextual help

•Diagnostics and management functions

•Call progress monitoring

•Customizable Graphic User Interface

Built-in hands free

•Electric omnidirectional microphone

•Speaker 8 Ohm 1 Watt

Encryption

•AES encryption standard H.233, H.234, H.235

•NIST (National Instute of Standards & Technology) certified

Web Management

All configuration, call, diagnostics and managment

functions are accessible using the following web browsers:

Microsoft®Internet Explorer™, Netscape Navigator™

Remote Diagnostics and Management

Local Web Browser SNMP

Self test Yes Yes Yes

Diagnostics Yes Yes Yes

Configuration Yes Yes Yes

Call Yes Yes

Error tracking Yes Yes Yes

Power Supply

•100-240 Vac 50-60 Hz 0.45 A Max

Dimensions

• THESEUS

Width 26 cm (10.23”)

Height 10 cm (3.3”) closed

23 cm (9’’) open

Depth 19 cm (7.8”)

THESEUS™

Technical Specifications

AETHRA® SpA

via Matteo Ricci, 10

60126 Ancona (Italy)

Telephone +39.071.218981

Fax +39.071.887077

Video 1 +39.071.2189704

Video 2 +39.071.2189701

Aethra, the Aethra logo and Theseus are registered trademarks of Aethra SpA in Italy and in other Countries. All other company and product names may be registered trademarks or trademarks of their respective owners.

All information provided by Aethra SpA in this datasheet is believed to be accurate. Aethra SpA reserves the right to discontinue and change specifications and prices at any time without notice. Copyright © 2007 Aethra SpA -
