Aetina AIE-PX13 User manual

AIE-PX13/AIE-PX23
USER MANUAL
DeviceEdge_AGX Orin Series

AIE-PX13/AIE-PX23 User Manual 1
Document Change History
Version
Date
Description
V1.0
2023/07/24
Initial Release.
V1.1
2023/10/30
Update DS information

AIE-PX13/AIE-PX23 User Manual 2
Disclaimer
The information presented in this document is for informational purposes only and may contain
technical inaccuracies, omissions and typographical errors.
The information contained herein is subject to change and may be rendered inaccurate for many
reasons, including but not limited to product and roadmap changes, component and motherboard
version changes, new model and/or product releases, product differences between differing
manufacturers, software changes, BIOS flashes, firmware upgrades, or the like. Aetina assumes no
obligation to update or otherwise correct or revise this information. However, Aetina reserves the right
to revise this information and to make changes from time to time to the content hereof without
obligation of Aetina to notify any person of such revisions or changes.
Aetina makes no representations or warranties with respect to the contents hereof and assumes no
responsibility for any inaccuracies, errors or omissions that may appear in this information. Aetina
specifically disclaims any implied warranties of merchantability or fitness for any particular
purpose. in no event will Aetina be liable to any person for any direct, indirect, special or other
consequential damages arising from the use of any information contained herein, even if nvidia is
expressly advised of the possibility of such damages.
Copyright Notice
No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any
means without the prior written permission of the original manufacturer. Information provided in this
manual is intended to be accurate and reliable. However, the original manufacturer assumes no
responsibility for its use, or for any infringements upon the rights of third parties that may result from
its use.
The material in this document is for product information only and is subject to change without notice.
While reasonable efforts have been made in the preparation of this document to assure its accuracy,
Aetina assumes no liabilities resulting from errors or omissions in this document, or from the use of
the information contained herein.
Aetina reserves the right to make changes in the product design without notice to its users.
Version 1.0
Copyright©2022 by Aetina, Inc. All rights reserved.
Acknowledgements
All other products’ name or trademarks are properties of their respective owners.
–NVIDIA®, the NVIDIA logo, Jetson™ and Jetson Xavier™ are trademarks of the NVIDIA

AIE-PX13/AIE-PX23 User Manual 3
Corporation
–Intel®, Core™ are trademarks of Intel®, Corporation.
–Microsoft Windows® is a registered trademark of Microsoft Corp
–IBM and VGA are trademarks of International Business Machines Corporation.
–Ubuntu is a registered trademark of Canonical
–ESS is a trademark of ESS Technology, Inc.
All other product names or trademarks are properties of their respective owners. No ownership is
implied or assumed for products, names or trademarks not herein listed by the publisher of this
document. For more information about this and other Aetina products, please visit our web-site at:
http://www.Aetina.com/
Customer Support Overview
Contact your distributor, sales representative, or Aetina's customer service center for technical
support if you need additional assistance. Please have the following information ready before you
call:
–Product name and serial number
–Description of your peripheral attachments
–Description of your software (operating system, version, application software, etc.)
–A complete description of the problem
–The exact wording of any error messages
Visit the Aetina website at https://www.Aetina.com/support-warranty-policy.php where you can find
the latest information about the product.
Contact Information
Aetina Corporation | Headquarters
2F-1, No.237, Sec.1, Datong Rd., Xizhi Dist., New Taipei City 221, TAIWAN
Phone [phone]
Fax [phone]
Mail [email protected]
Worldwide Technical Support
Mail Tech[email protected]m
Product Warranty (2 years)
Aetina warrants to you, the original purchaser, that each of its products will be free from defects in
materials and workmanship for two years from the date of purchase.
This warranty does not apply to any products which have been repaired or altered by persons other
than repair personnel authorized by Aetina, or which have been subject to misuse, abuse, accident
or improper installation. Aetina assumes no liability under the terms of this warranty as a consequence
of such events.

AIE-PX13/AIE-PX23 User Manual 4
Because of Aetina’s high quality-control standards and rigorous testing, most of our customers never
need to use our repair service. If an Aetina product is defective, it will be repaired or replaced at no
charge during the warranty period. For out of warranty repairs, you will be billed according to the cost
of replacement materials, service time and freight. Please consult your dealer for more details.
If you think you have a defective product, follow these steps:
1. Collect all the information about the problem encountered. (For example, CPU speed, Aetina
products used other hardware and software used, etc.) Note anything abnormal and list any
onscreen messages you get when the problem occurs.
2. Call your dealer and describe the problem. Please have your manual, product, and any helpful
information readily available.
3. If your product is diagnosed as defective, obtain an RMA (return merchandise authorization)
number from your dealer. This allows us to process your return more quickly.
4. Carefully pack the defective product, a fully-completed Repair and Replacement
Order Card and a photocopy of the proof of purchase date (such as your sales receipt) in a
shippable container. A product returned without proof of the purchase date is not eligible for
warranty service.
5. Write the RMA number visibly on the outside of the package and ship it prepaid to your dealer.
ESD Warning
This product, like all electronic products, uses the product that can be damaged by electrostatic
discharge (ESD). When handling, care must be taken so that the devices are not damaged. Damage
due to inappropriate handling is not covered by the warranty. The following precautions must be taken:
–Do not open the protective conductive packaging until you have read the following and are at
an approved anti-static workstation.
–If working on a prototyping board, use a soldering iron or station that is marked as ESD-safe.
–Always disconnect the product from the prototyping board when it is being worked on.
–Always discharge yourself by touching a grounded bare metal surface or approved anti-static
mat before picking up an ESD - sensitive electronic component.
–Use an approved anti-static mat to cover your work surface.
Safety Precautions
Please read the following safety instructions carefully. It is advised that you keep this manual for future
references:
1. All cautions and warnings on the equipment should be noted.
2. Make sure the power source matches the power rating of the device.
3. Position the power cord so that people cannot step on it. Do not place anything over the power
cord.
4. For plug-in equipment, the power outlet socket must be located near the equipment and must be

AIE-PX13/AIE-PX23 User Manual 5
easily accessible.
5. Disconnect this equipment from any AC outlet before cleaning. Use a damp cloth. Do not use
liquid or spray detergents for cleaning.
6. Always completely disconnect the power before working on the system’s hardware.
7. Keep this equipment away from humidity.
8. Put this equipment on a reliable surface during installation. Dropping it or letting it fall may cause
damage.
9. The openings on the enclosure are for air convection. Protect the equipment from overheating.
DO NOT COVER THE OPENINGS.
10.Be sure that the room in which you choose to operate your system has adequate air circulation.
Ensure that the chassis cover is secure.
11.The chassis design allows cooling air to circulate effectively. An open chassis permits air leaks,
which may interrupt and redirect the flow of cooling air from internal components.
12.Never pour any liquid into an opening. This may cause fire or electrical shock.
13.If the equipment is not used for a long time, disconnect it from the power source to avoid damage
by transient overvoltage.
14.Never open the equipment. For safety reasons, the equipment should be opened only by qualified
service personnel.
15.If any of the following situations arises, please the contact our service personnel:
–Damaged power cord or plug
–Liquid intrusion to the device
–Exposure to moisture
–Device is not working as expected or in a manner as described in this manual
–The device is dropped or damaged
–vi. Any obvious signs of damage displayed on the device

AIE-PX13/AIE-PX23 User Manual 6
Contents
1. Introduction................................................................................7
1.1 Features ...................................................................................................................7
1.2 Specifications..........................................................................................................8
2. Hardware Information..............................................................10

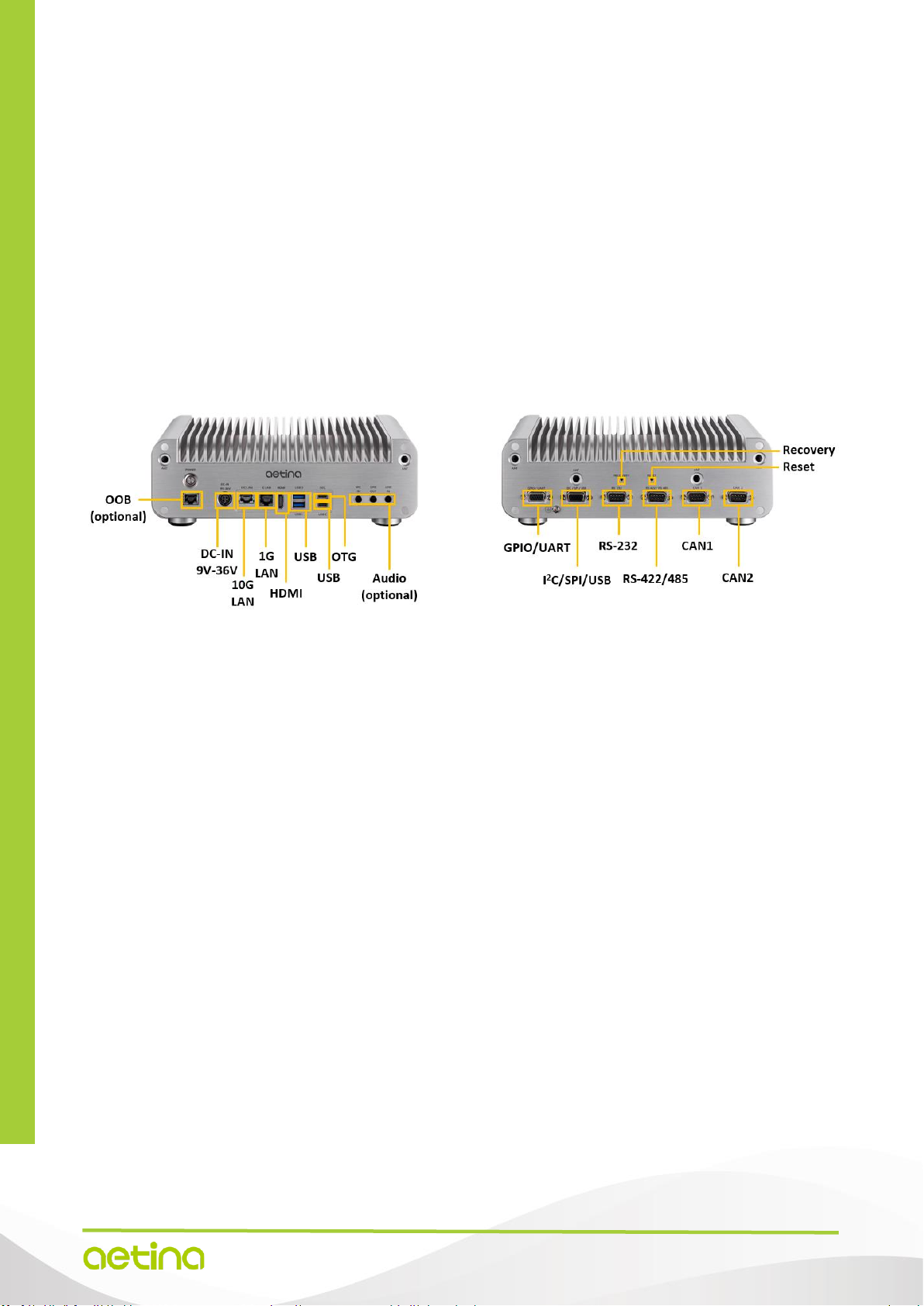

2.1 I/O Interface ...........................................................................................................10
2.2 External Connector Summary.............................................................................10
2.2.1 Connector Interface................................................................................................................10
2.3 Power Consumption .............................................................................................16
2.4 Mechanical Dimensions.......................................................................................17
3. Software Installation ...............................................................18
4. Recovery Mode........................................................................18
5. Initial Setup ..............................................................................19
5.1 Prepare the Materials ...........................................................................................19
5.2 Hardware Connection...........................................................................................19
5.3 Setup Details .........................................................................................................19
6. EdgeEye ...................................................................................20
6.1 Aetina 360 Edge Administration Platform .........................................................20
6.2 Feature ...................................................................................................................21
6.3 System Requirements..........................................................................................21

AIE-PX13/AIE-PX23 User Manual 7
1. Introduction
DeviceEdge AGX Orin series – AIE-PX13/AIE-PX23 is a standard system, supporting for NVIDIA
Jetson AGX Orin. The system is with smart button for one-key recovery function to address critical
system failure and real-time monitoring for status of device through the AIM (Aetina Intelligent
Management).
1.1 Features
⚫Supports NVIDIA Jetson AGX Orin™32GB/64GB module
⚫1 x GbE/1 x 10GbE LAN port
⚫1 x B-Key/1 x E-Key/1 x M-Key slot
⚫Wide Power Voltage Range 9 to 36 VDC
⚫Operating Temperature -25°C ~ +55°C
⚫Supports OOB (out-of-band) powered by Innodisk (optional)

AIE-PX13/AIE-PX23 User Manual 8
1.2 Specifications
◼System configuration
Specification
AIE-KX13
AIE-KX23
Module Compatibility
NVIDIA Jetson AGX Orin 32GB
NVIDIA Jetson AGX Orin 64GB
AI Performance
200 TOPs
275 TOPs
GPU
1792-core NVIDIA Ampere GPU
with56 Tensor Cores
2048-core NVIDIA Ampere GPU
with 64 Tensor Cores
CPU
8-core Arm® Cortex®-A78AE
v8.2 64-bit CPU 2MB L2 + 4MB L3
12-core Arm® Cortex®-A78AE
v8.2 64-bit CPU 3MB L2 + 6MB L3
Memory
32 GB 256-bit LPDDR5 204.8 GB/s
64GB 256-bit LPDDR5 204.8 GB/s
Storage
64GB eMMC 5.1
Display
1 x HDMI 2.0 Type A
Audio
Line-out/Line-in/Mic (optional with daughter board)
LAN
1 x RJ-45 GbE port, 1 x RJ-45 10GbE port
USB
2 x USB 3.2 Gen1 Type A, 1 x USB 2.0 (DB-15),
1 x USB 2.0 Type-C (OTG only), 1 x USB 3.2 Type-C Gen 2
I/O Interfaces
2 x I2C, 1 x SPI, 5 x GPIO, 1 x UART
1 x RS-232, 1 x RS-422 / RS-485 (2-in-1)
2 x CAN 2.0b w/ isolation
1 x microSIM Card Slot
Expansion
1 x M.2 B-Key 3042/3052 (LTE/4G/5G)
1 x M.2 E-Key 2230 (WiFi/BT)
1 x M.2 M-Key 2280 (NVMe)
1 x MicroSD Slot
MISC. Function
1 x Power / Recovery / Reset Button
Power
Input/Connector
DC-IN 9 to 36 VDC / 4-Pin DC Jack Power Connector
Power Consumption
Idle: 5.5 W
Full Loading: 51.08 W
Idle: 5.9 W
Full Loading: 71 W
Idle: Connect with Keyboard, Mouse and HDMI Display
Full Loading: Connect with keyboard, mouse, HDMI display and LAN with CPU
and GPU 100% loading
Dimension (W x D x H)
270 x 195 x 80 mm (10.63 x 7.67 x 3.15 in)

AIE-PX13/AIE-PX23 User Manual 9
Mounting
Wall Mount / Din Rail (optional)
Net Weight
4.4 kg (9.7 lb)
Vibration
1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Shock
10 G, IEC 60068-2-27, half sine, 11 ms duration
Temperature
Operating Temperature: -25°C ~ +55°C (-13° F ~ +131° F) with 0.5 m/s air flow
Storage Temperature: -40°C ~ +85°C (-40° F ~ +185° F)
Humidity
95% @ 40°C (104°F) (non-condensing)

AIE-PX13/AIE-PX23 User Manual 10
2. Hardware Information
2.1 I/O Interface
Figure 2.1 AIE-PX13/AIE-PX23 I/O Interface
2.2 External Connector Summary
Location
External Connector
Description
Front
Power
Power pushbutton
DC IN
Power Connector 9V-36V
10G LAN
10 GbE Port
1G LAN
1 GbE Port
HDMI
HDMI Type-A female connector
USB 1
USB 2
USB3.2 Gen1 Type-A connector
USB3.2 Gen1 Type-A connector
USB C
USB3.2 Gen2 Type-C connector
OTG
OTG Type-C Port
Rear
GPIO/UART
DB15 female connector
I2C/SPI/USB
DB15 female connector
RS-232
DB9 male connector
RS-422/RS-485
DB9 male connector
CAN1
DB9 male connector
CAN2
DB9 male connector
Recovery
Recovery pushbutton
Reset
Reset pushbutton
2.2.1 Connector Interface
◼Power

AIE-PX13/AIE-PX23 User Manual 11
Item
Description
Location
Front
Type
Pushbutton
◼Power input connector
Item
Description
Location
Front
Type
9V to 36V 4-Pin DC Jack
◼10G LAN / 1G LAN
Item
Description
Location
Front
Type
RJ-45 Connector
◼HDMI
Item
Description
Location
Front
Type
HDMI Type-A female connector
◼Dual USB3.2 Gen1 Type-A connector
Item
Description
Location
Front
Type
Type-A USB connector
Pin
Refer to USB Standard

AIE-PX13/AIE-PX23 User Manual 12
◼Dual Type-C connector
Item
Description
Location
Front
Type
Type-C USB connector
Pin
Refer to USB Standard
Notes
OTG: OTG Type-C Port
USB C: USB3.2 Type-C Port
◼I2C / SPI / USB
Item
Description
Location
Rear
Type
DB15 female connector
Pin #
Definition
Pin #
Definition
1
SPI_MOSI
2
SPI_SCK
3
SPI_MISO
4
SPI_CS1
5
SPI_CS0
6
I2C_1_CLK
7
I2C_1_DAT
8
I2C_2_CLK
9
I2C_2_DAT
10
3.3V
11
USB_DM
12
USB_DP
13
5V
14
GND
15
GND
◼GPIO / UART
Item
Description
Location
Rear
Type
DB15 female connector

AIE-PX13/AIE-PX23 User Manual 13
Pin #
Definition
Notes
Pin #
Definition
Notes
1
GPIO_1 (GPIO17 /
PP.04 444)
IN/OUT
2
GPIO_2 (GPIO11 /
PAC.05 491)
IN/OUT
3
GPIO_3 (PWM01 /
PR.00 456)
IN/OUT
4
GPIO_4 (GPIO27
/ PN.01 433)
IN/OUT
5
GPIO_5 (GPIO35 /
PH.00 391)
IN/OUT
6
UART1_TX
7
UART1_RX
8
UATR1_CTS
9
UATR1_RTS
10
3.3V
11
UATR2_RT
12
UATR2_TX
13
5V
14
GND
15
GND
◼RS 422 / RS 485 (2-in-1)
Item
Description
Location
Rear
Type
RS-422/RS-485 (2-in-1)
Notes
Default setting is RS-485 mode (Data-/+)
Pin #
Definition
Pin #
Definition
1
TxD+
2
TxD-
3
RxD-/Data-
4
RxD+/Data+
5
GND
6
NA
7
NA
8
NA
9
NA
NA
◼RS 232
Item
Description
Location
Rear
Type
RS-232

AIE-PX13/AIE-PX23 User Manual 14
Pin #
Definition
Pin #
Definition
1
NA
2
RX
3
TX
4
NA
5
GND
6
NA
7
RTS
8
CTS
9
NA
◼CAN1
Item
Description
Location
Rear
Type
DB9 male connector
Pin #
Definition
Pin #
Definition
1
NA
2
CAL_L
3
GND
4
NA
5
NA
6
NA
7
CAL_H
8
NA
9
NA
◼CAN2
Item
Description
Location
Rear
Type
DB9 male connector
Pin #
Definition
Pin #
Definition
1
NA
2
CAL_L
3
GND
4
NA
5
NA
6
NA
7
CAL_H
8
NA
9
NA

AIE-PX13/AIE-PX23 User Manual 15
◼Reset & Recovery Button
Item
Description
Location
Rear
Type
Pushbutton

AIE-PX13/AIE-PX23 User Manual 16
2.3 Power Consumption
The power consumption shown as below is the theoretical value with AGX Orin module installed on
AIE-PX13.
Specification
Theoretical Maximum System power
Idle
5.5W (Connect with keyboard, mouse, and HDMI display)
Full loading
51.08W (Connect with keyboard, mouse, HDMI display and LAN with CPU and
GPU 100% loading)
The power consumption shown as below is the theoretical value with AGX Orin module installed on
AIE-PX23.
Specification
Theoretical Maximum System power
Idle
5.9W (Connect with keyboard, mouse, and HDMI display)
Full loading
71W (Connect withkeyboard, mouse, HDMI display and LAN with CPU and GPU
100% loading)
Please refer to the following power consumption of individual I/O interface according to your use
case.
Type
Theoretical Maximum System power
USB 3.2 Gen1 Type A (1 port)
4.5 W
USB TypeC
4.5 W
HDMI
0.25 W
M.2 E KEY
2 W
M.2 M KEY
7 W
M.2 B KEY
3 W
CAN Bus
1 W
SD Card
0.72 W
RJ45(PHY)
0.83 W
RJ45(10G)
3.43 W

AIE-PX13/AIE-PX23 User Manual 17
2.4 Mechanical Dimensions
◼System & Mounting Dimensions
Integration assembly drawing for AIE-PX13/AIE-PX23 system.

AIE-PX13/AIE-PX23 User Manual 18
3. Software Installation
Aetina NVIDIA Jetson products have built-in BSP so the users don’t have to install it after getting the
products. Since we develop our own BSP, the users may need to follow the BSP installation SOP to
re-install/upgrade/downgrade the BSP. Please visit the Aetina website or contact with Aetina FAE at
[e-mail] for installation guides, BSPs and technical tips.
4. Recovery Mode
The USB2.0 Type-C (support OTG) port of AIE-PX13/AIE-PX23 can be connected to another host
device (Linux PC running NVIDIA JetpackTM) to run recovery process for re-flashing BSP.
Note: Please backup user personal files before flashing process
Step 1: Connect the OTG USB port to another host device which supplying updated BSP file.
Step 2: Press and hold the Reset button, then press and hold the Recovery button continually.
Step 3: After one second (1 sec.) release the Reset button first, then release the Recovery button.
Step 4: The Orin Nano or NX will show up as a new NVIDIA device on USB list (Terminal console) at
the host device.
Step 5: Running re-flashing BSP process can be executed by the host device now.

AIE-PX13/AIE-PX23 User Manual 19
5. Initial Setup
Before using AIE-PX13/AIE-PX23, please follow the steps below to have initial setup.
5.1 Prepare the Materials
Please prepare the materials list below.
◼A monitor with HDMI and respective cables
◼USB keyboard and mouse
◼Ethernet cable
5.2 Hardware Connection
Here is the AIE-PX13/AIE-PX23 below and for the initial setup, users will need to connect LAN port,
keyboard and mouse via USB interface, HDMI interface, and power connector.
5.3 Setup Details
1. Connect to the monitor while powering off
2. Power on and automatically enter the OS
3. Log in to the Ubuntu OS via credentials below
Username: nvidia
Password: nvidia
For more information on how to use Ubuntu and NVIDIA Jetson modules, please visit Ubuntu and
NVIDIA website.
