AFN AFN7500HD User manual

AFN Atlantic Direct to Home on Eutelsat 9B
AFN7500HD Decoder Settings and Channel Guide
AFN Atlantic DTH on Eutelsat 9B AFN7500HD Decoder Settings Guide (20200715)1
This guide contains the AFN7500HD decoder settings for the Atlantic Direct-to-Home (DTH) service and

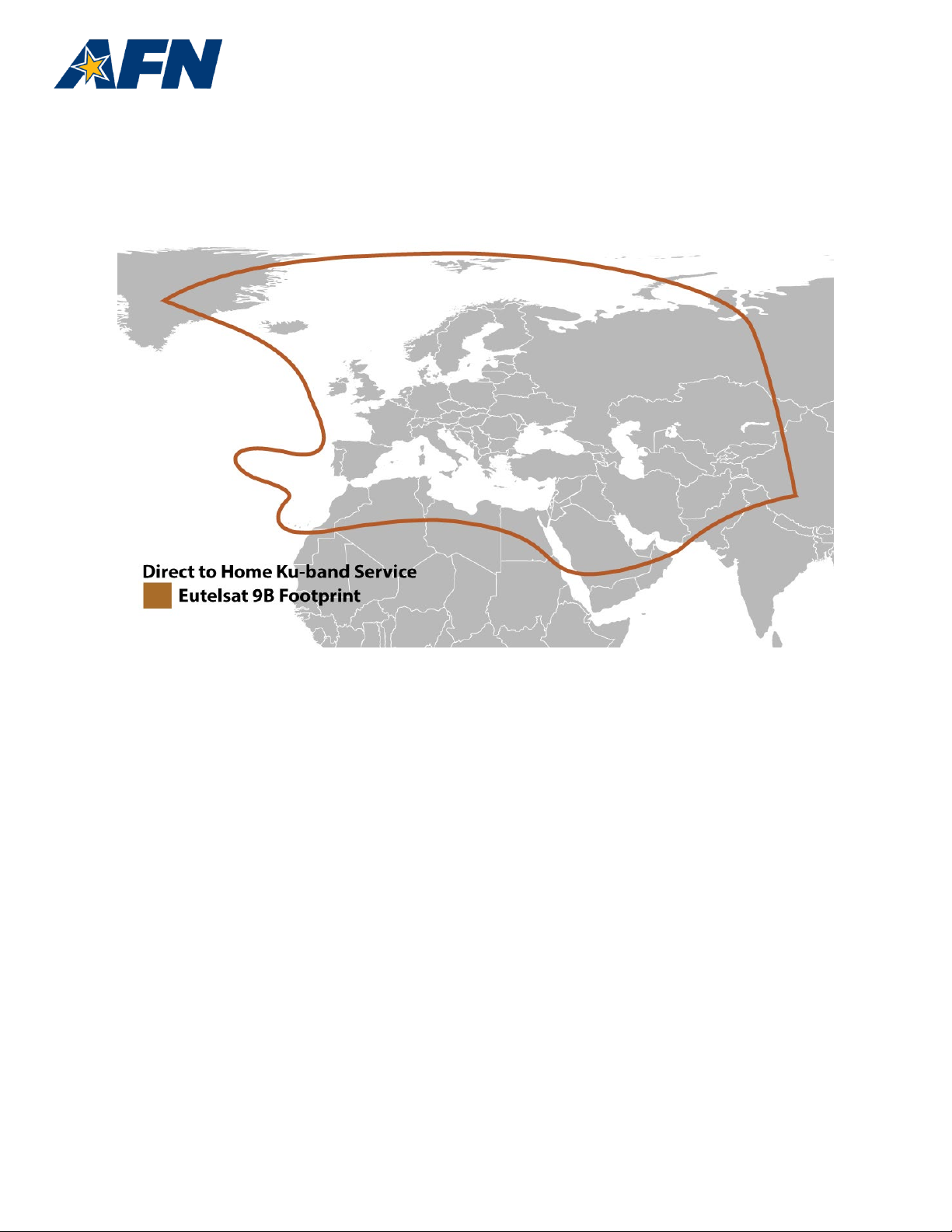

the new AFN Channel Guide. If you use a satellite dish between 60 centimeters and 1.8 meters in
diameter, receive the eight-channel DTH programming service and live within the area identified in the
map below, you need these decoder settings in order to get the AFN HD service. Refer to page two for
the decoder settings for AFN customers in the area below.
Important information about this satellite feed
Satellite Name: Eutelsat 9B
Satellite Orbital Location: 9° East
Transponder: Wide Beam
Band: Ku-band
Satellite Dish Low Noise Blocker (LNB) Technical Specifications
a. Linear HDTV DVB-S2 Compliant LNBF with an operating range between 950-2150 MHz
b. LQ Freq of 9.75 and 10.6
c. 13-18 volt 22 khz LNB for a 60 centimeter to 1.8 meter satellite dish

AFN Atlantic Direct to Home on Eutelsat 9B
AFN7500HD Decoder Settings and Channel Guide
AFN Atlantic DTH on Eutelsat 9B AFN7500HD Decoder Settings Guide (20200715)2

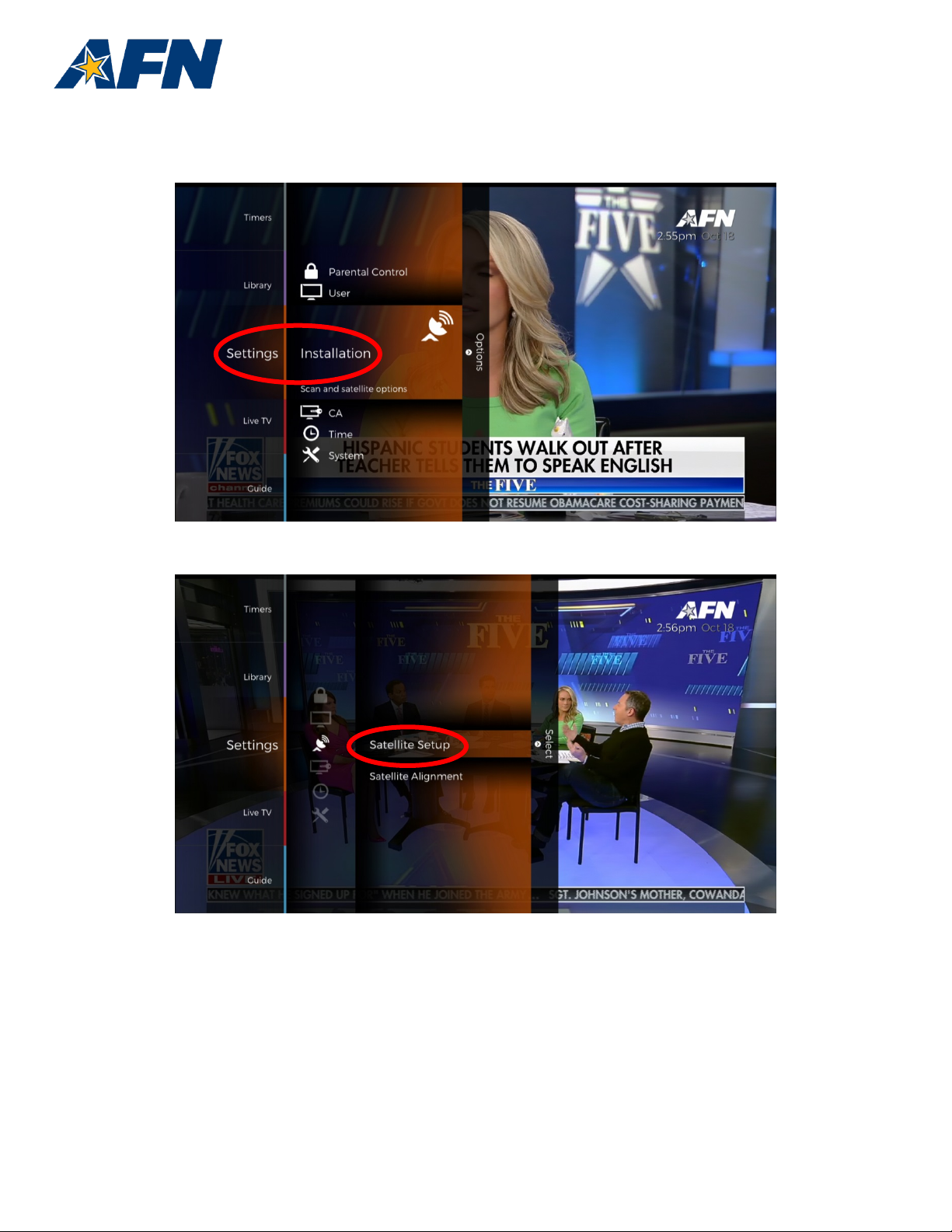

To set up your decoder you must access the decoder settings “Satellite Setup” menu. Using the circular
navigation wheel on your AFN7500HD remote control, access the “Main Menu” and scroll to the
“Settings” menu, then select “Installation” as shown below.
Now select the “Satellite Setup” menu as shown below.
You may be prompted to enter a pin number for the Satellite Setup menu. The default pin is 0000. After
entering the pin you’ll see a warning dialog box designed to alert you that settings changes may affect the
channels you see. Please select “continue” to access the next screen.

AFN Atlantic Direct to Home on Eutelsat 9B
AFN7500HD Decoder Settings and Channel Guide
AFN Atlantic DTH on Eutelsat 9B AFN7500HD Decoder Settings Guide (20200715)3

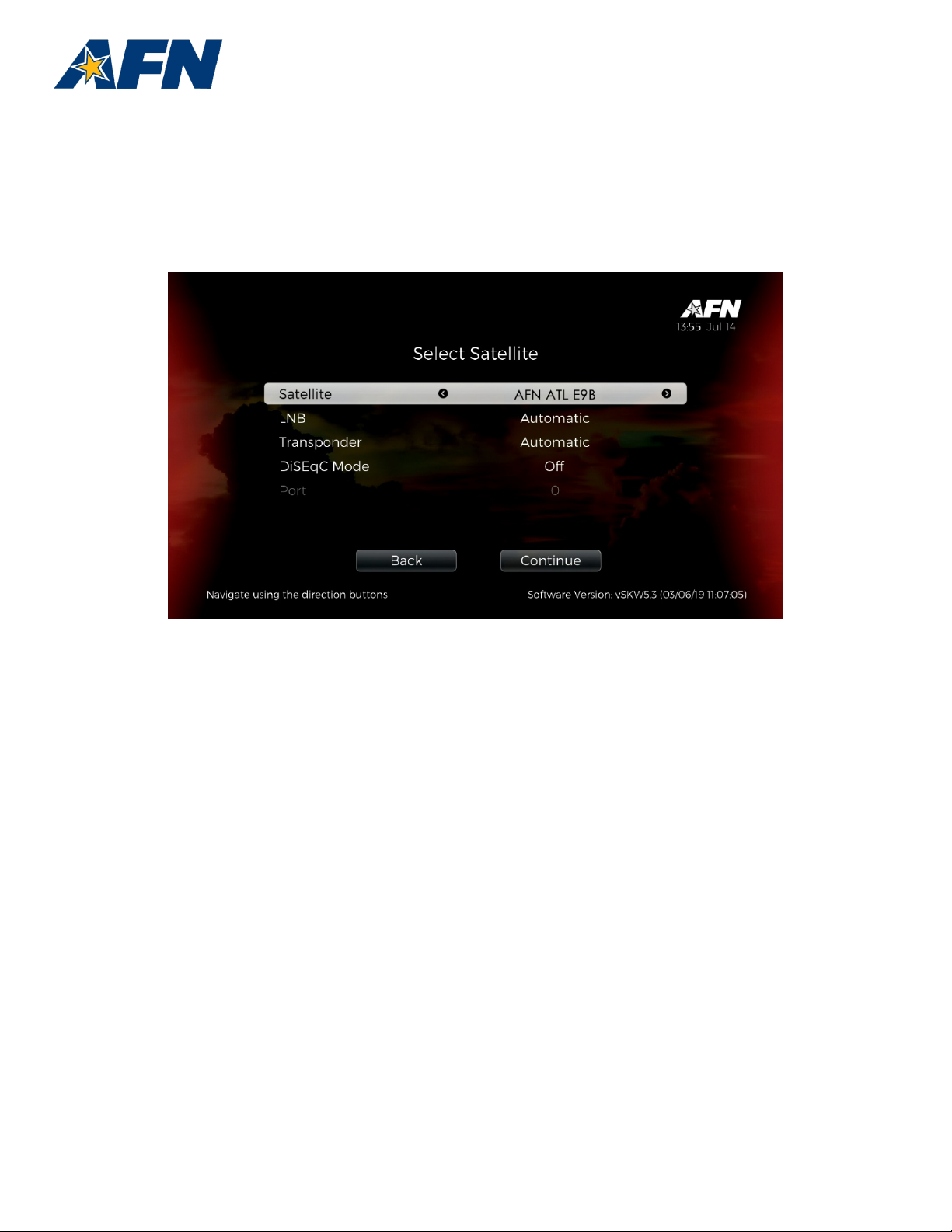

The “Select Satellite” screen (below) gives you the option to load a pre-set satellite configuration for your
area or enter the decoder settings manually. We’ll cover the automatic settings first.
The gray bar, displayed below, highlights the current selection. The left and right arrows on the gray bar
allow you to scroll through the various satellites used by AFN to deliver programming worldwide. Using
the circular navigation wheel on your decoder remote control, select the AFN ATL E9B satellite to load
the settings you need. Once the satellite is selected the transponder information will automatically load
and your decoder should work.
Note: You do not need to adjust the DiSEqC1.1 settings.

AFN Atlantic Direct to Home on Eutelsat 9B
AFN7500HD Decoder Settings and Channel Guide
AFN Atlantic DTH on Eutelsat 9B AFN7500HD Decoder Settings Guide (20200715)4

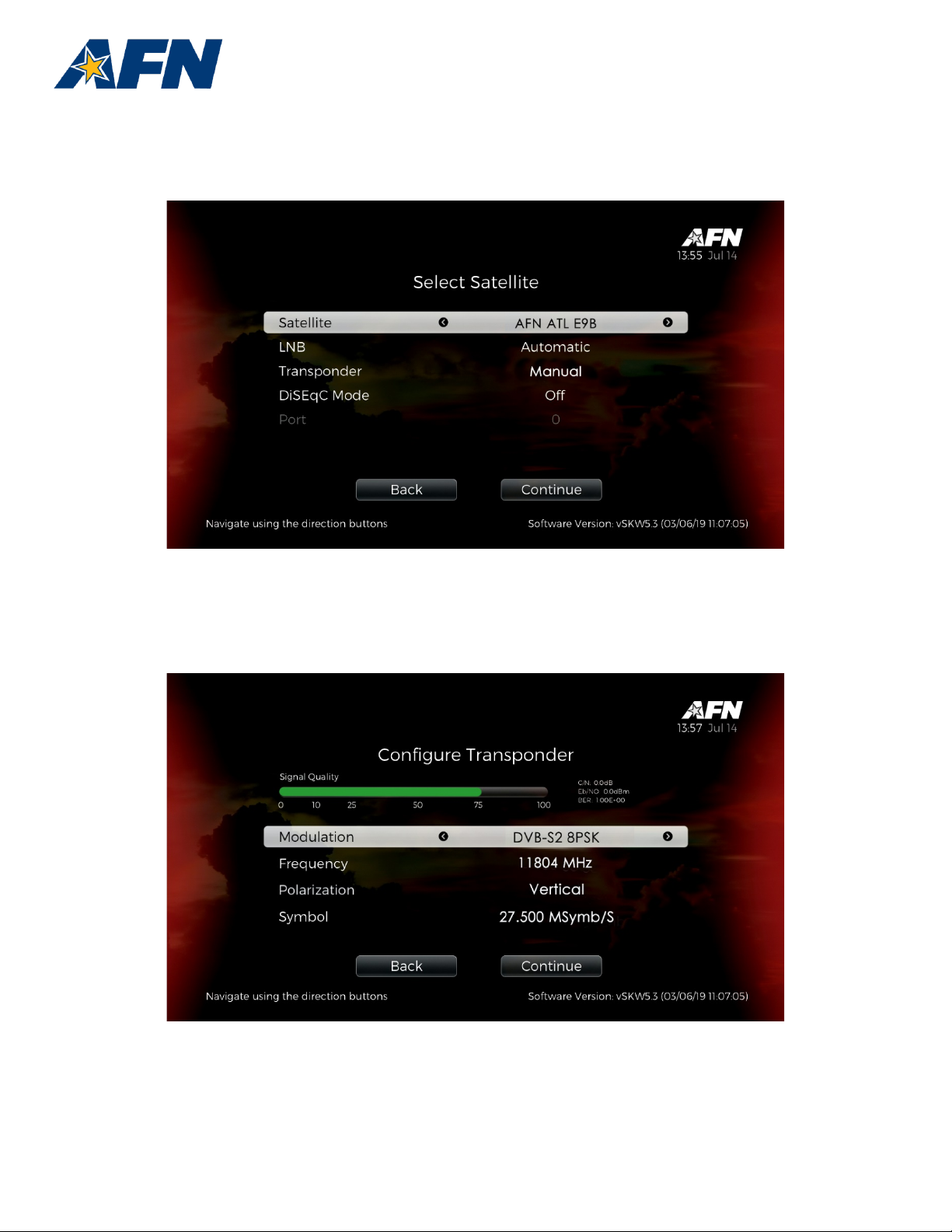

You can also manually enter the decoder settings for your decoder by following the instructions below.
From the “Select Satellite” menu page, use the circular navigation wheel on your AFN7500HD decoder
remote control to select the “Transponder” on the third line down. Change the setting to “Manual” to
access the “Configure Transponder” menu.
The Configure Transponder page is where you enter the four settings you need for this satellite footprint.
Use the circular navigation wheel on your AFN7500HD remote control to cycle through the settings, in the
left column, for Modulation, Frequency, Polarization, and Symbol. Enter the settings as depicted below.
You can use the numeric keypad on your decoder remote control to enter the frequency and symbol
settings.
Select “Continue.”

AFN Atlantic Direct to Home on Eutelsat 9B
AFN7500HD Decoder Settings and Channel Guide
AFN Atlantic DTH on Eutelsat 9B AFN7500HD Decoder Settings Guide (20200715)5
The next screen will show a progress bar.
When configuration is complete, the next screen will show that the decoder is acquiring the AFN services.

AFN Atlantic Direct to Home on Eutelsat 9B
AFN7500HD Decoder Settings and Channel Guide
AFN Atlantic DTH on Eutelsat 9B AFN7500HD Decoder Settings Guide (20200715)6

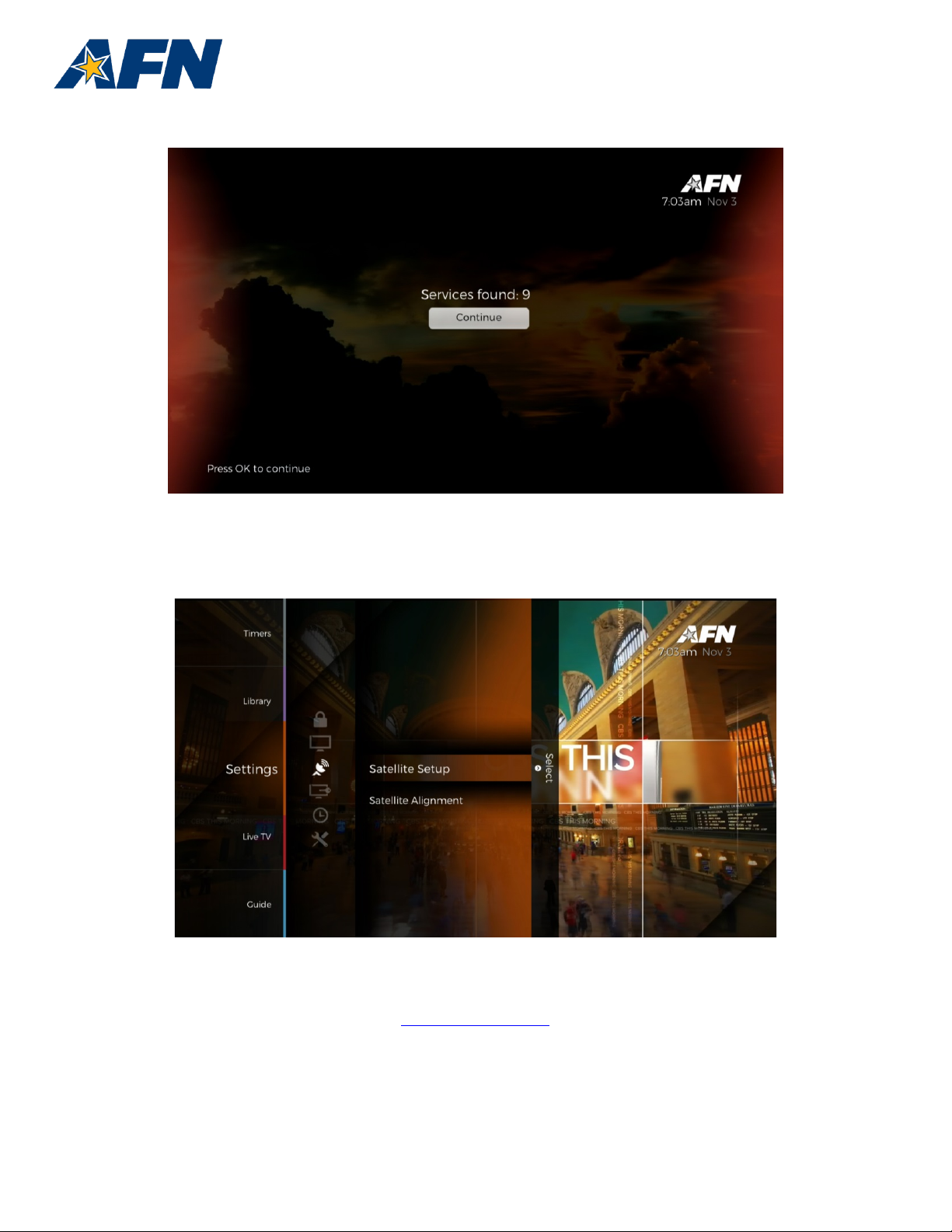

When you see Services found: ## (shown below), press “Continue.”
Note: The number of ‘Services found’ will vary depending upon your location and the specific satellite you
are receiving the signal from.Press OK to continue, and the decoder will return to the Satellite Setup
menu, with the channel image displayed behind the menu.
You can either press Menu twice, or press Exit, and your TV will go to programming … and you’re done!
Problems? Contact our AFN Broadcast Center Technologists at DSN: [phone];
commercial: [phone]; or email: [e-mail].
The next page contains the updated AFN Channel guide for your viewing area.

AFN Atlantic Direct to Home on Eutelsat 9B
AFN7500HD Decoder Settings and Channel Guide
AFN Atlantic DTH on Eutelsat 9B AFN7500HD Decoder Settings Guide (20200715)7
This programming is available to AFN Direct to Home and AFN Satellite Network (SATNET)
customers in Europe, Africa, the Middle East and Western Asia.
AFN Atlantic Channel Guide
TV Services
Audio Services
Channel
Service
Channel
Service
Channel
Service
102 AFN|prime Atlantic 120 AFN Atlantic Eagle 133 Freedom Radio
103 AFN|news 121 AFN The Voice 135 AFN Aviano Eagle
104 AFN|sports 122 AFN Power Talk 136 AFN Bavaria Eagle
105 AFN|prime Pacific 123 AFN Clutch Sports Radio 137 AFN Benelux Eagle
106 AFN|spectrum 124 AFN Fans 138 AFN Incirlik Eagle
107 AFN|sports 2 125 AFN
Hot Adult Contemporary 139 AFN K-town Eagle
108 AFN|family 126 AFN Legacy 140 AFN Naples Eagle
109 AFN|movie 127 AFN Joe FM 141 AFN Rota Eagle
128 AFN Gravity 142 AFN Souda Bay Eagle
129 AFN Country 143 AFN Spangdahlem Eagle
130 NPR International 144 AFN Stuttgart Eagle
401 Decoder Expired1131 AFN Seasonal 145 AFN Vicenza Eagle
402 AFN Test Pattern 132 AFN Contingency 146 AFN Wiesbaden Eagle
147 AFN Bahrain Eagle
1Decoders are force tuned to this channel upon expiration of the annual registration period. Authorized users must update their
decoder registration annually to access AFN programming. If your decoder is force tuned to channel 401 please visit the decoder
registration portal at www.myafn.net and select the “Manage my Decoder” tab.
