AGA ATC2EPWT User manual

Installation
Guide
09/14 EINS 516899
PLEASE READ THESE INSTRUCTIONS BEFORE COMMENCING SITE SURVEY
OR INSTALLING THIS APPLIANCE.
IMPORTANT : SAVE INSTRUCTIONS FOR FUTURE REFERENCE
IMPORTANT : CONSERVER CES INSTRUCTIONS POUR REFERENCE FUTURE
For use in USA/Canada
AGA CITY24

SECTION PAGE
PRODUCT SAFETY 3
GENERAL NOTES 4
HEALTH AND SAFETY 4
GENERAL INSTALLATION REQUIREMENTS 4
REMOVAL FROM PALLET AND RANGE INSTALLATION 5-6
RANGE DIMENSIONS 7
CLEARANCES 8
CONNECTION TO THE POWER SUPPLY 9
POWER CORD ROUTING 10
CONTROL KNOB AND HANDRAIL CONNECTION 11
WIRING DIAGRAM 12
AGA CITY24 CHECKLIST 13
2
CONTENTS

PRODUCT SAFETY
MEANING/DESCRIPTION SIGNIFICATION/DESCRIPTIONSYMBOL
WARNING/CAUTION
An appropriate safety instruction
should be followed or caution to a
potential hazard exists.
AVERTISSEMENT
Une consigne de sécurité
appropriée doivent être suivies ou
garde d’un danger potentiel
exists.
DANGEROUS VOLTAGE
To indicate hazards arising from
dangerous voltages.
TENSION DANGEREUSE
Pour indiquer les dangers
résultant des tensions
dangereuses.
PROTECTIVE EARTH (GROUND)
To identify any terminal which is
intended for connection to an
external conductor for protection
against electric shock in case of a
fault, or the terminal of protective
earth (ground) electrode.
TERRE DE PROTECTION
Pour marquer bornes destin ées à
être raccordées à un conducteur
de protection extérieur contre les
chocs éclectiques en cas de
défaut d’isolement, ou pour
marquer la borne de la terre de
protection.
HEAVY
This product is heavy and
reference should be made to the
safety instructions for provisions
of lifting and moving.
LOURD
Ce produit est lourd et doit être
fait référence auc consignes de
sécurité relatives aux dispositions
de soulever et déplacer.
DISCONNECT MAINS SUPPLY
Disconnect incoming supply
before inspection or maintenance.
APPAREIL À LASER DE
CLASSE 2
Alimentation d’entr ée Débrancher
avant inspection ou d’entretien.
REFER TO MANUAL
Refer to relevant instructions
detailed within the product
manual.
ATTENTION, SURFACE TRÉS
CHAUDE
Reportez-vous aux instructions
applicables, indiquées dans le
manuel du produit.
3

HEALTH AND SAFETY
Consumer Protection
As responsible manufacturers we take care to make sure that our products are designed and constructed to meet the
required safety standards when properly installed and used.
PLEASE READ THE ACCOMPANYING WARRANTY
Any alteration that is not approved by AGA could invalidate the approval of the appliance, operation of the warranty and
could also affect your statutory rights.
4
GENERAL NOTES
NOTE: THESE INSTALLATION INSTRUCTIONS SHOULD BE LEFT WITH THE RANGE AND THE USER TO RETAIN
FOR FUTURE REFERENCE.
GENERAL INSTALLATION REQUIREMENTS
The installation of the range must be in accordance with the relevant requirements of the local Wiring and Building
Regulations. It should be in accordance also with any relevant requirements of the Local Authority.
In your own interest and that of safety to comply with the law, all appliances should be installed by an authorized AGA
distributor in accordance with the relevant regulations.
CAUTION:
THIS UNIT IS HEAVY, PROPER EQUIPMENT AND ADEQUATE
MANPOWER MUST BE USED IN MOVING THE RANGE TO
AVOID DAMAGE TO THE UNIT OR THE FLOOR

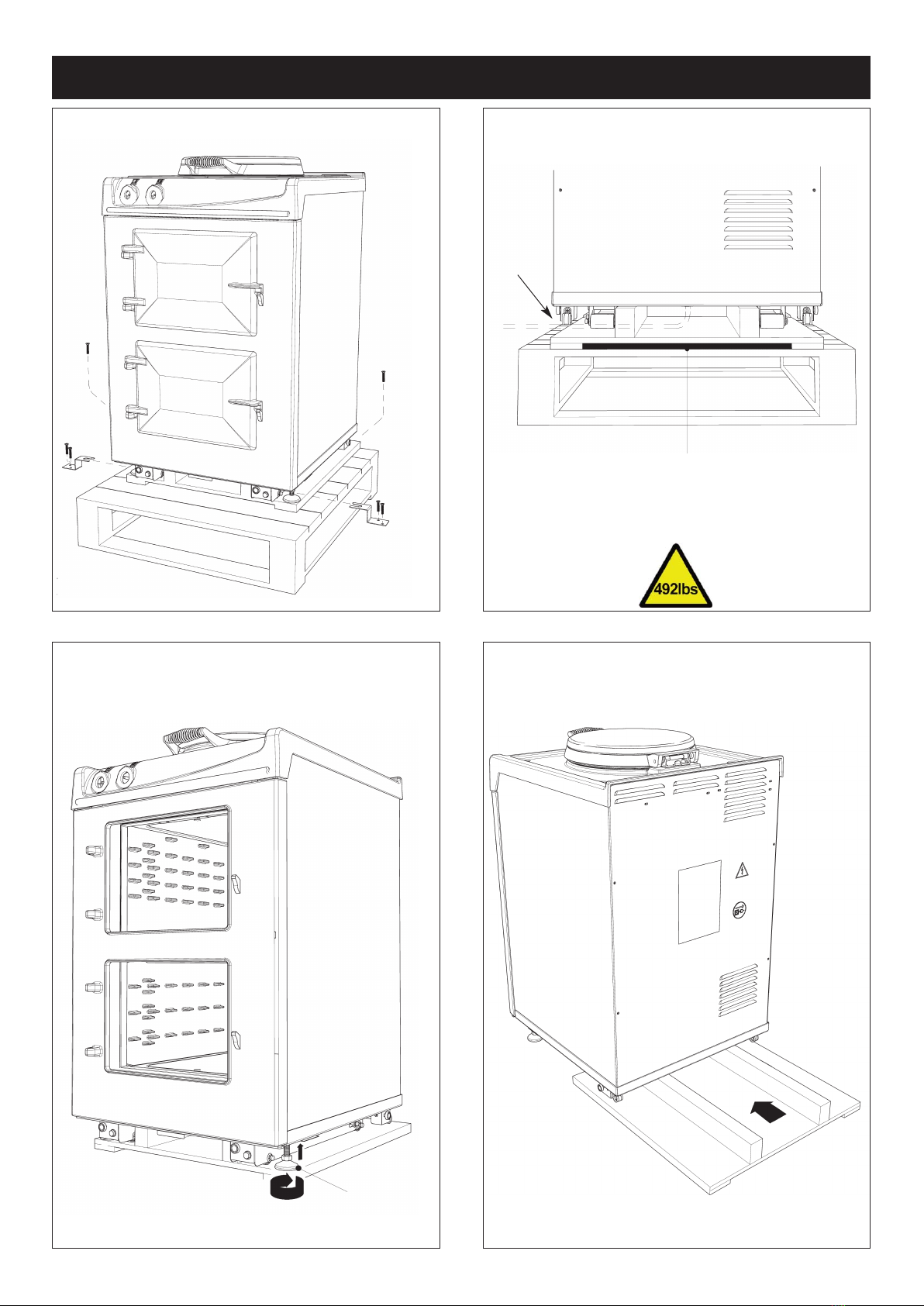

REMOVAL FROM PALLET AND RANGE INSTALLATION
Fig. 1 DESN 516905
Removing of transit brackets - Unscrew 4 screws and
remove brackets, from front and two screws from rear.
Fig. 2 DESN 516891
NOTE: Care must be taken not to trap power cord.
Range to be removed from rear of pallet only.
Recess provided for suitable appliance dolly.
Range to be secured to appliance dolly with
suitable straps (shaded area)
Fig. 3 DESN 516906
Once range is in position in kitchen, remove appliance
dolly and straps. The front stability feet can be raised
with a 12mm open end wrench to allow appliance to be
slid from transit pallet.
STABILITY FOOT
MAINS
CABLE
Fig. 4 DESN 516893
Slide range off transit pallet. Take care not to trap mains
cable.
5

REMOVAL FROM PALLET AND RANGE INSTALLATION

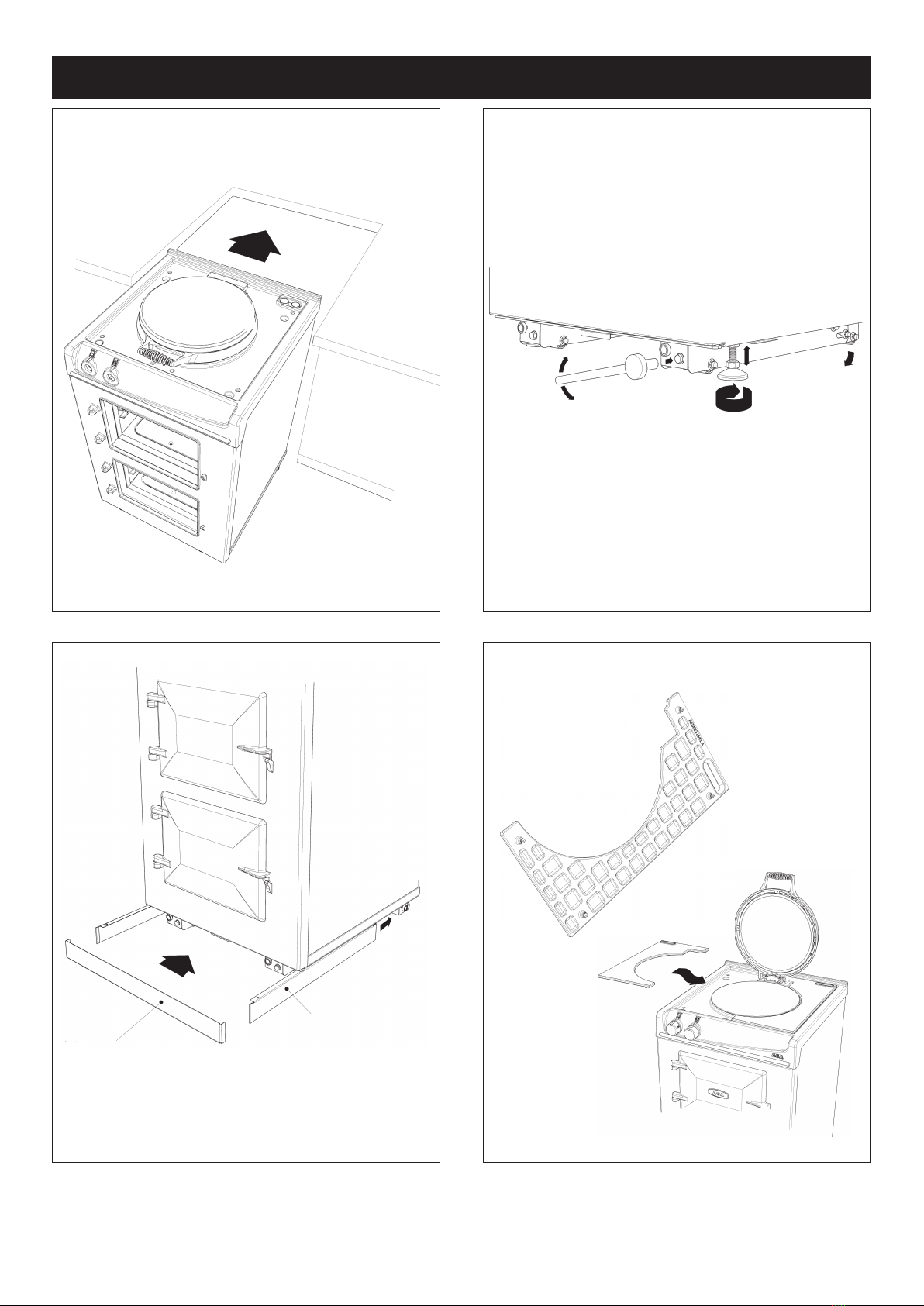

Fig. 5 DESN 516907
Range can now be pushed back on its wheels into
desired position.
NOTE: Care must be taken not to trap mains cable.
Fig. 6 DESN 516895
Levelling of range - Use 13mm socket to adjust wheel
mechanism for FINE adjustment on both sides at rear
of the appliance.
Using a 12mm open end wrench, feet can be adjusted
at front to make FINE adjustments to the front of the
appliance and to provide a brake for the wheels.
Turning the bolt clockwise will lower the wheel thus
increasing height of the range.
Anti-clockwise lifts the wheels and lowers the range.
Fig. 7 DESN 516897
Fitting magnetic plinth
FRONT PLINTH
COVER FITS
OVER SIDE SKIRTS
MAKE SURE SIDE
PLINTH SKIRTS ARE
LOCATED IN FRONT
GUIDE BRACKET
Fig. 8 DESN 516888
Resting Plate Adjustment - Resting plates have
adjuster screw feet for setting of height and to improve
stability.
6
DESN 516917

RANGE DIMENSIONS - AGA CITY24
Fig. 9 DESN 516904
Range Dimensions
When surveying for a range installation the actual clearance required for the ‘body’ of the range should be increased by
1/4” (6mm) beyond the figures quoted above. This allows safe margin to take into account the natural dimensional variations
found in major castings. In particular the width across the range recess could be critical.
APPLIANCE WEIGHT (Excludes Packaging)
Model: AGA CITY24 - 492lbs (223kg)
7

CLEARANCES
The complete range is floor mounted and the space in which the appliance is to be fitted must have the following minimum
dimensions:-
A minimum clearance of 2 3/8” (60mm) is required above the raised insulating cover handle.
Side Clearances
A 1/8” (3mm) gap is required each side between the range top plate and adjoining work surfaces that may be fitted, this is
to allow for the safe removal of the top plate should this be required at a later date.
Where ranges are fitted against side walls a 4 9/16” (116mm) clearance is required on the left hand side for oven doors
access.
If the AGA is to be installed in a brick recess, then the minimum clearance should be increased by at least 1/8” (6mm), to
allow for the walls not being square.
In addition, a minimum clearance of 39 5/8” (1000mm) must be available at the front of the ranges to enable the ranges to
be serviced.
Range Base or Hearth
It is essential that the base or hearth on which the range stands should be level and be capable of supporting the total
weight of the appliance.
The front plinth cover is removable and must not be obstructed by flooring or tiles. If necessary the range must be raised
by the thickness of the tiles to ensure the plinth can be removed, and the range can be rolled out for service.
Tiling
When the range is to stand in a recess or against a wall which is to be tiled, under no circumstances should the tiles overlap
the range top plate, access to remove the top plate must be allowed for servicing at a later date.
8
Since this appliance can be used continuously, please take note of these IMPORTANT instructions.
Combustible Walls
Houses constructed of combustible materials (such as all-timber or stud wall partitions and batoned plasterboarded
walls) require special wall heat protection features.
Non-combustible walls behind a range must be of at least 1/4” (25mm) thick insulation board (Monolux or equivalent), up
to hotplate level.
SPECIAL NOTE: Ensure electric cabling or plastic services do not pass within or on the outside of the wall, behind or
directly above the range. This type of material can age prematurely when exposed to continuous higher
ambient temperature.

9
CONNECTION TO THE POWER SUPPLY
Electric Shock Hazard
Rating Plate is located behind removable plinth, see Fig. 4.
Electrical Grounding is required on this appliance.
DO NOT connect to the electrical supply until the appliance is permanently grounded.
This appliance must be connected to a grounded metallic permanent supply or a grounding
connector should be connected to the grounding terminal or wire lead on the appliance.
Failure to follow these instructions could result in death or serious injury.
This range must be supplied with a 240V, 60Hz power supply and connected to an individual, properly grounded branch
circuit protected by a circuit breaker. At 240V, it has a maximum load of 30 amps. Electric hook-up must be done by a
licensed electrician. This unit must be installed according to regional codes, or in the absence of codes, the National
Electrical Code.
lProduct installation requires a separate (not shared) 240V/40 amp circuit protected by an appropriate branch circuit
supply.
lThe power cord on your range is fitted with a standard four (4) conductor type 14-50P plug (matching receptacle
14-50R).
The method of connection to the mains electricity supply must facilitate complete electrical isolation of the appliance.
The mains connection and isolation should not be positioned above the range and must be positioned within the area
defined in Fig. 11, Page 10.
THIS RANGE MUST BE COMPLETELY ISOLATED FROM THE ELECTRICITY SUPPLY BEFORE SERVICING. THE
RANGE IS DESIGNED FOR THE VOLTAGE STATED ON THE RATING PLATE, WHICH IS SITUATED BEHIND THE
PLINTH COVER.

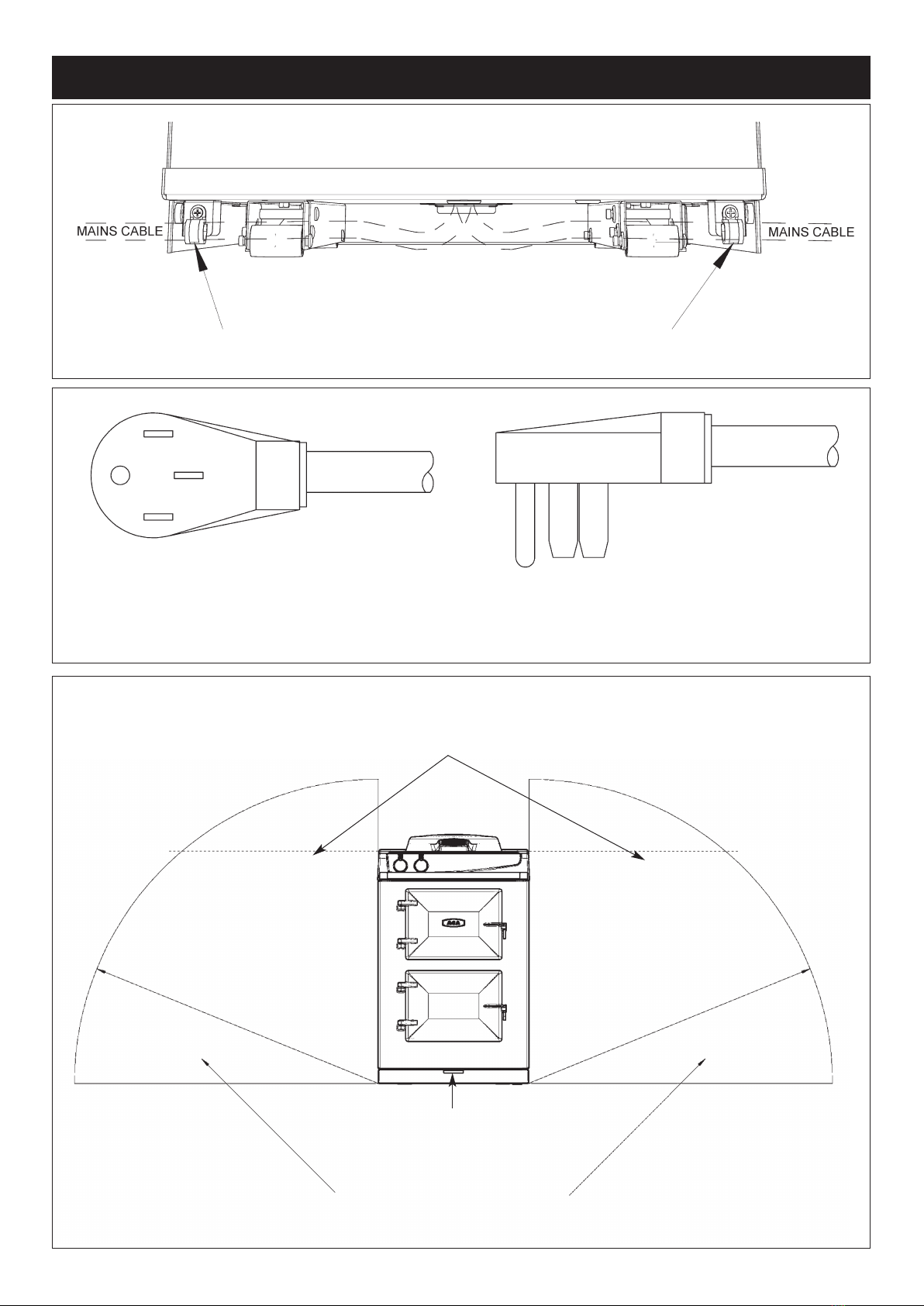

MAINS CABLE ROUTING
Fig. 10 DESN 516918
Fig. 11 DESN 516874
THE MAINS SUPPLY MUST BE WITHIN THE ZONES SHOWN
10
SECURE MAINS CABLE USING ‘P’ CLIPS FOR LEFT HAND OR RIGHT HAND
CABLE MANAGEMENT
WORKTOP
3ft 11” (1.2 metres)
3ft 11” (1.2 metres)
RATING PLATE LOCATED BEHIND PLINTH
Fig. 10A DESN 516919
POWER CORD
50A/250V 12500W RATED FITTED WITH NEMA 14-50P RIGHT ANGLED PLUG
(MATCHING RECEPTACLE 14-50R)
UL OR CSA APPROVED

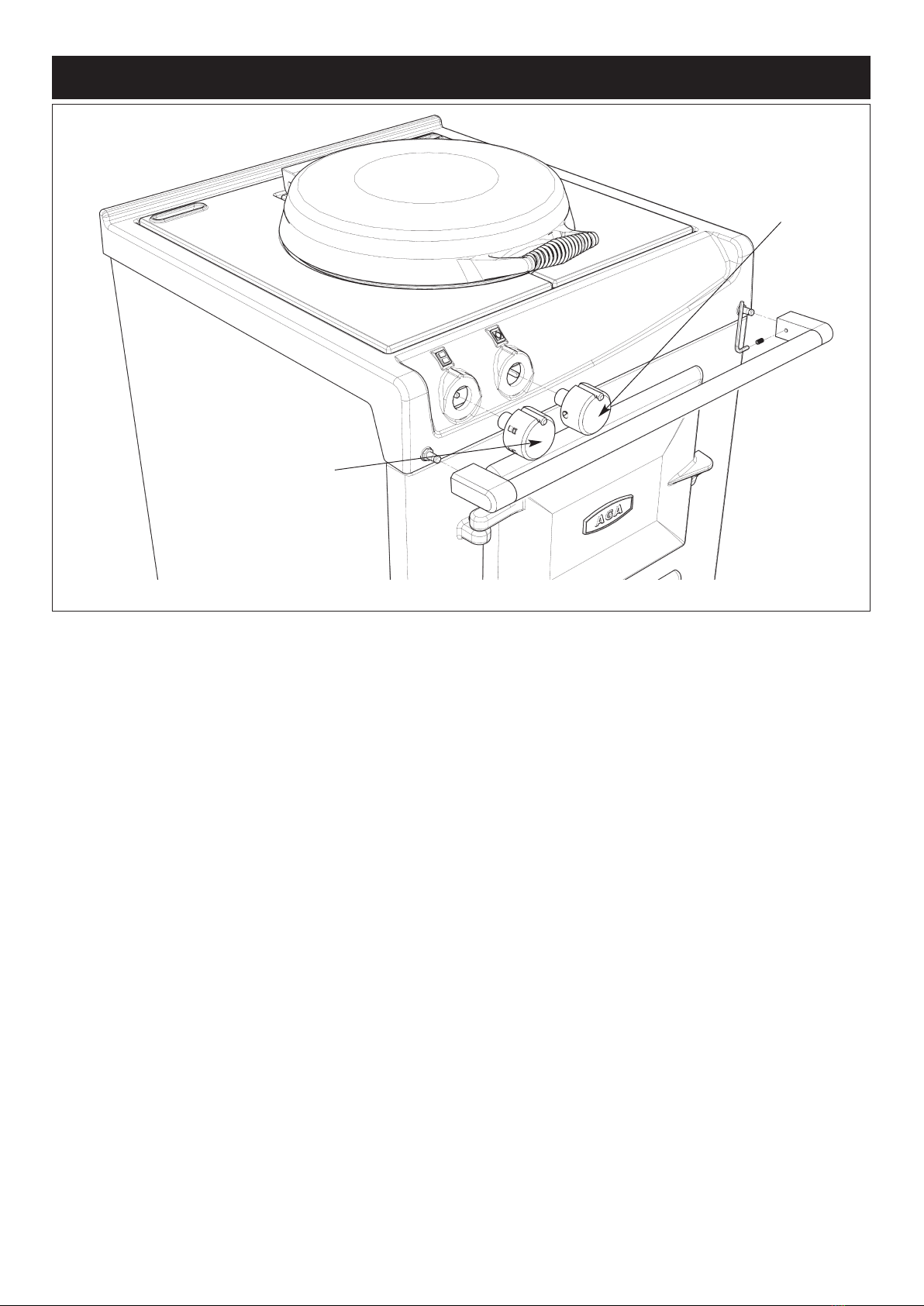

CONTROL KNOB AND HANDRAIL CONNECTION
Fig. 12 DESN 516875
Control Knob Location
Ensure control knobs are located onto spindles correctly, as shown in Fig 12.
Handrail Location - AGA City24 (Traditional)
Locate handrail onto spindle, lock into position with grub screws (located on the inside of the bracket).
11
OVEN CONTROL
KNOB
HOTPLATE CONTROL
KNOB

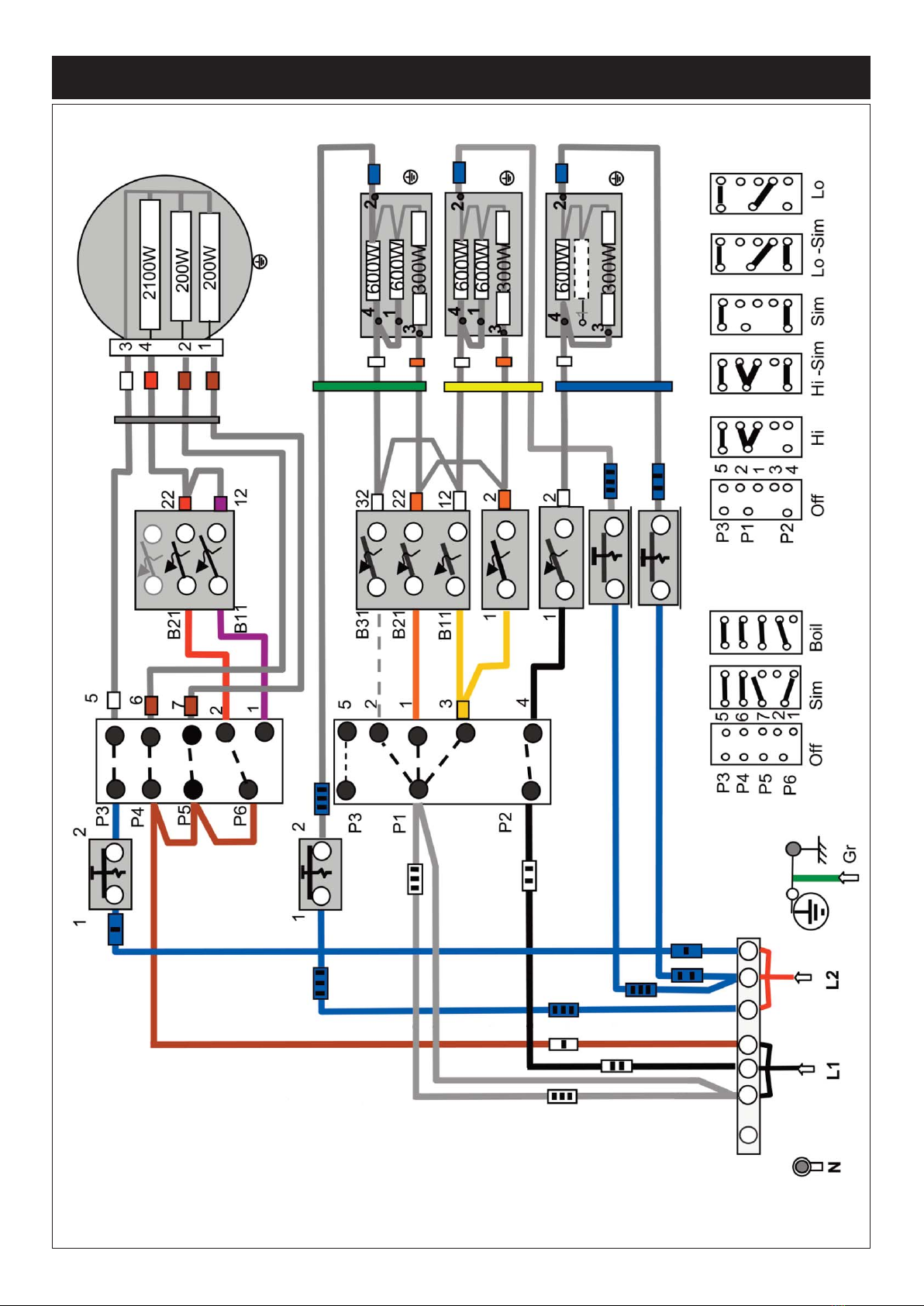

WIRING DIAGRAM
12
Fig. 13

Tick Box
lCheck hotplate lid and setting
lCheck oven door seals, adjust door alignment if necessary.
Slow cook oven rope seals MUST have a gap between the door hinges. The roasting
oven is fitted with a continuous seal.
Ensure all plastic film is removed from the inside of the oven doors.
lTurn on roasting and slow cook oven, set hotplate to simmer. Raise hotplate lid to avoid staining.
lAfter 30 minutes, check hotplate temperatures (approx).
1. Simmerspot (200 - 250°C)
then hotplate to boiling, after 15 minutes check temperature
2. Hotspot (330 - 380°C)
lGuide customer through the Users Instructions of the range, offering best practices on oven
maintenance, energy usage, enamel cleaning (boiled vegetable water staining on enamel etc.)
Engineer’s Signature ........................................................ Date ...........................
AGA CITY24 CHECKLIST
SERIAL No.
13
