AGA 60RDA 115V Installation instructions

Aga 60RDA 115V
Installation
Operation &
Maintenance
Instructions

Welcome
All specifications and product design subject to change without notice.
Such revisions do not entitle the buyer to corresponding changes, improvements,
additions, replacements or compensation for previously purchased products.
2
Remove Packaging
Your refrigerator has been packed for shipment with all
parts that could be damaged by movement securely
fastened. Before using, be sure all packing materials and
tape have been removed.
Important
Keep your carton packaging until your refrigerator has
been thoroughly inspected and found to be in good
condition. If there is damage, the packaging will be needed
as proof of damage in transit.
Installation
Select Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Cabinet Clearance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Grounding Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Features
Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Gastronorm System . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Drawer Organizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Care and Cleaning of Your Unit
Care of Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Normal Responsibilities of Owner . . . . . . . . . . . . . . .6
Troubleshooting
Troubleshooting Chart . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Diagnostic LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Obtaining Service
Before Calling for Service . . . . . . . . . . . . . . . . . . . . . . . .8
How to Obtain Service . . . . . . . . . . . . . . . . . . . . . . . . . .8
Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Installation
All specifications and product design subject to change without notice.
Such revisions do not entitle the buyer to corresponding changes, improvements,
additions, replacements or compensation for previously purchased products.
3
Select Location
The proper location will ensure peak performance of
your drawer refrigerator. Choose a location away from
heat and out of direct sunlight. Best performance will be
maintained when installed within the following
parameters:

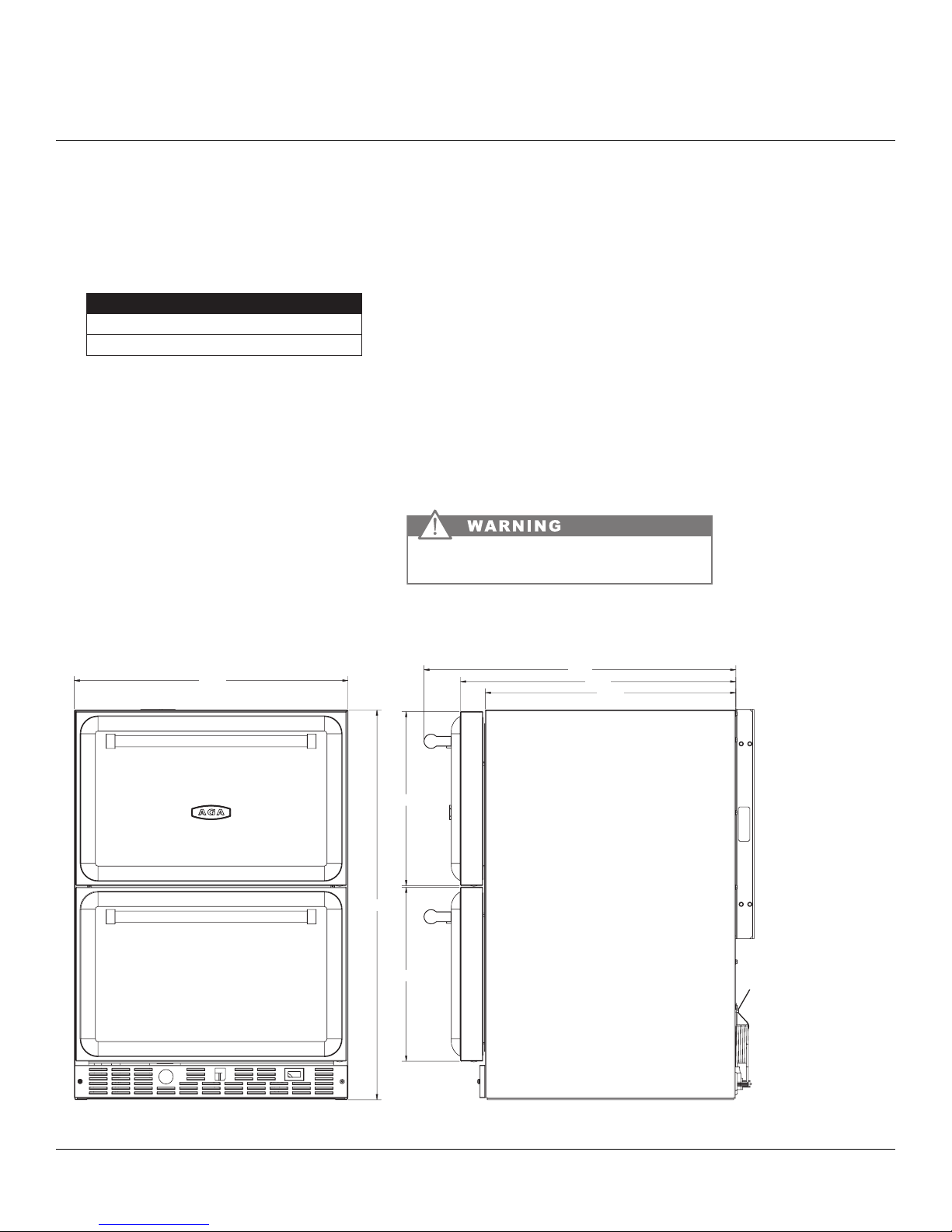

Cabinet Clearance
Ventilation is required for the bottom front section of the
unit where the grille is located. Keep this area open and
clear of any obstructions. Adjacent cabinets and countertop
can be installed on top, back and sides of the unit as long as
grille and drawer access remain unobstructed. An opening
of 24" is required between cabinets with a depth of 24”.
Adjacent cabinets and countertop can be installed on top,
back and sides of the unit as long as the grille and drawer
access remain unobstructed. Ventilation is required for the
bottom front section of the unit where the grille is located.
Keep this area open and clear of any obstructions.
Make certain that the leveling legs supplied with the
drawer refrigerator are installed according to the
instructions. Leveling adjustments can be made by raising
or lowering the glides on the bottom of the unit.
15.13
15.13
21.86
24.03
27.22
23.88
34
Ideal Ambient Temperature Range*
built-in
freestanding
55-80°F
55-90°F
* Drawer Refrigerator will not perform correctly in ambient temperatures less than 55°F.
DISCONNECT POWER SOURCE BEFORE ADJUSTING
LEVELING LEGS

Important Safety Issue
A cabinet “anti-tip” device is mounted to the back of your
drawer refrigerator. If your installation is a built-in
undercounter application, you do not need to apply this
feature. If your installation is a free-standing application
with no counter top directly above the top of the drawer
refrigerator, you must apply this feature to prevent the unit
from tipping forward when the drawers are pulled out. The
“anti-tip” device is attached at the back of each cabinet.
Please see installation instructions supplied with the “anti-
tip” device.
Electrical Connection
Use nominal 115 volt, 60 cycle AC only. DO NOT USE AN
EXTENSION CORD

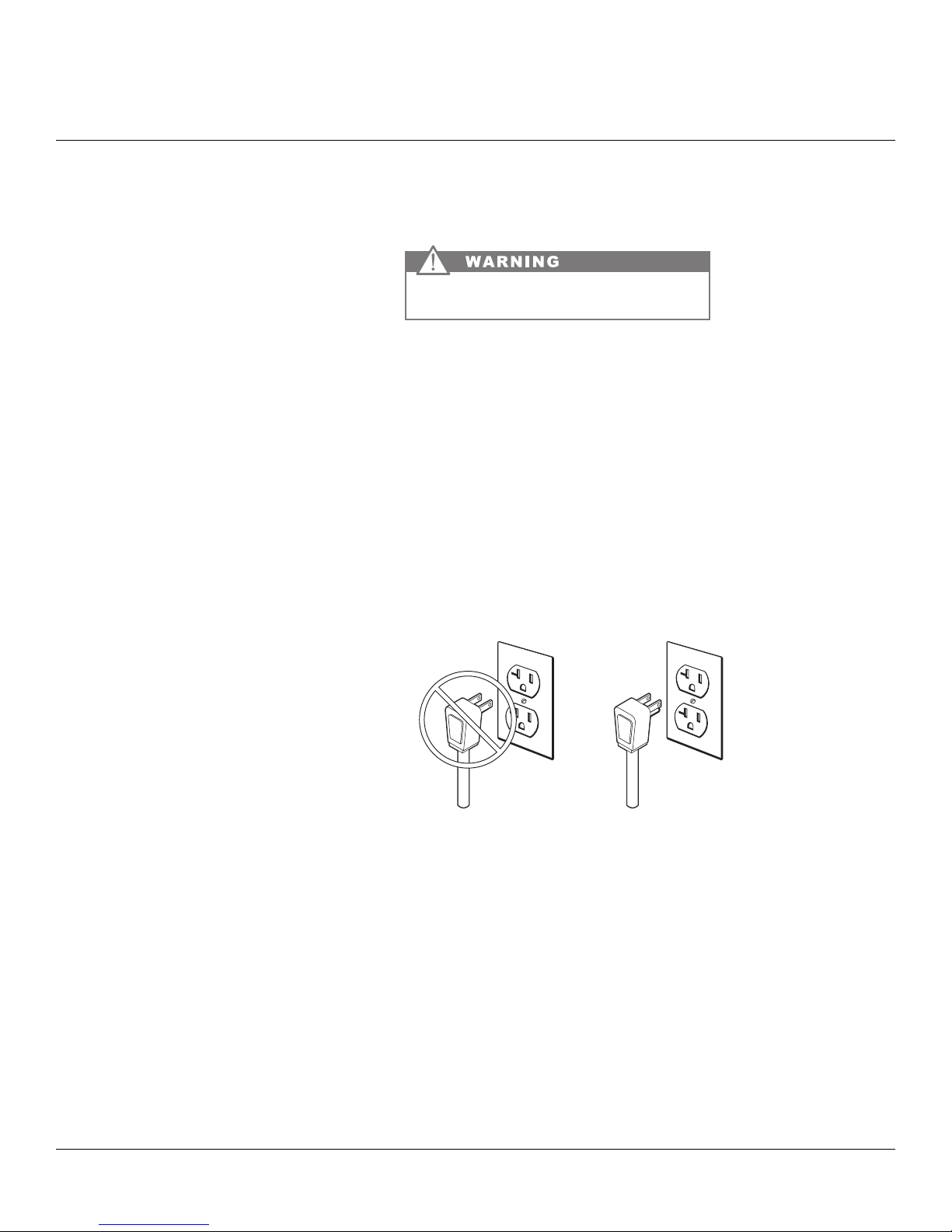

Grounding Method
This product is factory equipped with a power supply cord
that has a three-pronged grounded plug. It must be
plugged into a mating grounding type receptacle in
accordance with the National Electrical Code and
applicable local codes and ordinances. If the circuit does
not have a grounding type receptacle, it is the
responsibility and obligation of the customer to exchange
the existing receptacle in accordance with the National
Electrical Code and applicable local codes and ordinances.
The third ground prong should not, under any
circumstances, be cut or removed. All U.L. listed
refrigerated products are equipped with this type of plug.
Installation
All specifications and product design subject to change without notice.
Such revisions do not entitle the buyer to corresponding changes, improvements,
additions, replacements or compensation for previously purchased products.
4
THIS UNIT SHOULD NOT, UNDER ANY
CIRCUMSTANCES, BE UNGROUNDED.

Features
All specifications and product design subject to change without notice.
Such revisions do not entitle the buyer to corresponding changes, improvements,
additions, replacements or compensation for previously purchased products.
5
Control Panel
The temperature of your drawer unit ranges from 32°F to
47°F (0°C to 8°C). The temperature can be adjusted using
the control panel located on the inside of the top drawer.
To change the temperature setting, press the warmer or
cooler pads until the display shows the desired
temperature. After a few seconds the display will return to
the actual temperature of the unit. An empty unit will
stabilize in six to eight hours.
Your drawer refrigerator’s control leaves the factory preset
to display its temperature in degrees Fahrenheit. To change
the display to show Celsius temperatures, simply press the
warmer and colder key pads simultaneously. The display
will change within a few seconds.
The on/off key pad stops and starts the cooling of the unit.
This can be used when your drawer refrigerator will not be
used for extended periods of time. The LED light will
continue to operate when the drawers are opened as long
as the unit is connected to a power source.
At time of initial start up the control panel display will
show “OR” for “Out of Range” until the unit reaches the
desired temperature. At any time the unit’s interior
temperature reaches 9 degrees below or above its setpoint
this code will also be displayed.
TEMPERATURE CONTROL
WARMER
COOLER
ON
OFF
Gastronorm Container Systems
For additional convenience, optional Gastronorm food
storage containers can be purchased from your dealer.
These stainless steel containers can be used to easily access
smaller food items and are dishwasher safe. For further
information call or vistit your Aga dealer.
Drawer Organizer
The Drawer Organizer is designed to be fully adjustable to
compensate for bottles and other items of different sizes.
The drawer Organizer can be adjusted left and right, up
and down by turning the knob counter clockwise.

Care and Cleaning of Your Drawer Refrigerator
All specifications and product design subject to change without notice.
Such revisions do not entitle the buyer to corresponding changes, improvements,
additions, replacements or compensation for previously purchased products.
6
Condenser
The condenser tubing inside the cabinet does not require
frequent cleaning; however, satisfactory cooling depends
on adequate ventilation over the coils. Be sure that nothing
obstructs the required air flow openings in front of the
cabinet. At least once or twice a year brush or vacuum lint
and dirt from the grille. Also at least once or twice a year
brush or vacuum lint and dirt from the condenser for
efficient performance by unscrewing the grille on the
bottom front of the cabinet.
Interior
Clean the drawer gaskets as well as inside the drawers with
mild soap and water. Do not use an abrasive powder,
solvent, polish cleaner or undiluted detergent.
Cabinet
The painted cabinet can be washed with mild soap and
water and thoroughly rinsed with clear water. Never use
abrasive scouring powders.
Interior
Wash interior compartments with mild soap and water. Do
not use an abrasive powder, solvent, polish cleaner or
undiluted detergent.
Door Gasket
The vinyl gasket may be cleaned with mild soap and water,
a baking soda solution or a mild scouring powder.
Care of Unit
1. Avoid leaning on the drawer fronts, you may bend the
door hinge or tip the unit.
2. Exercise caution when sweeping, vacuuming, or
mopping near the front of the unit. Damage to the
grille can occur.
3. Periodic cleaning of the inside of the unit. (See Care
and Cleaning of Your Drawer Refrigerator section).
4. Periodic checking and/or cleaning of the front grille
and condenser coils as needed.
Normal Responsibilities of the Owner
• All freight charges
• Damage sustained in transit
• Mileage charge(s) for service calls
• Proper installation including installation of leveling legs.
• Leveling of unit.
• Alterations to original equipment
• Cleaning and normal maintenance outlined in this
manual.
Help Prevent Tragedies
Each year, children die because they climb inside a
discarded refrigeration product, get trapped inside and
suffocate. Take precautions to prevent such tragedies by
removing the door, taping or chaining it shut before
discarding.

Troubleshooting
All specifications and product design subject to change without notice.
Such revisions do not entitle the buyer to corresponding changes, improvements,
additions, replacements or compensation for previously purchased products.
Possible Cause
• Unit interior needs cleaned.
• Unit not level.
• Unit not level.
•Weakfloor.
• LED light burned out.
• No power at outlet.
• Control Panel turned “OFF”.
• Line Cord not plugged into power source.
• House fuse blown.
• Prolonged door openings.
• Control Panel set too cold.
• Condenser needs cleaning.
• Too many door openings.
• Prolonged door openings.
• Hot, humid weather increases
condensation.
• Hot, humid weather increases
condensation.
• Control improperly set.
• Control improperly set.
• Faulty thermometer.
Correction
• Clean inside of unit. See “Care and Cleaning” pg. 7.
• Adjust leveling legs. See leveling leg instructions.
• Adjust leveling legs. See leveling leg instructions.
• Rebuild floor or move to a different location.
• Replace LED light.
• Test outlet with lamp.
• Turn unit on with on/off pad on Control Panel.
• Plug unit into power source.
•Resethousefuse.
• Reduce number and/or duration of door openings.
• Raise temperature of unit via Control Panel.
• Clean condenser. See “Care of Unit” pg 7.
• Reduce number and/or duration of door openings.
• Reduce number and/or duration of door openings.
• As humidity decreases, moisture will disappear.
• Move unit to cooler location.
• As humidity decreases, moisture will disappear.
• Move unit to cooler location.
• Reset to slightly warmer temperature.
• Reset control to desired temperature.
• Recheck with second thermometer.
Problem
Odor in cabinet
Noisy operation
Unit vibrates
Interior light not working
Appliance will not run.
Appliance runs too long.
Moisture collects inside of unit.
Moisture collects on outside surface
of the unit.
Interior too hot/too cold
Diagnostic LED
In the back in the grille there is a diagnostic/status LED. This led
is used to help diagnosis any problems with the unit and to tell
its status.
LED Status
Not on
Continuously on
1 Blink and pause
2 Blink and pause
3 Blink and pause
Code/Problem
Unit does not have power
Unit is "ON" and operating correctly
For shorted or open thermistor
Disconnected Display Board
Compressor is locked out
7

Obtaining Service
All specifications and product design subject to change without notice.
Such revisions do not entitle the buyer to corresponding changes, improvements,
additions, replacements or compensation for previously purchased products.
Before Calling for Service
Before calling for service, check the following items:
• Make sure unit is plugged into outlet.
• Check the outlet for power. Test outlet with lamp to
make certain outlet has power.
• Make sure drawer refrigerator is “ON”. Display will
show.
• Make certain unit is level from front to back and side
to side.
• Use troubleshooting guide, page 8 for other
diagnosis.
If you are not able to correct the problem, contact your
dealer or the manufacturer. Be sure to have the model
number and the serial number handy before you call. The
model and the serial number are located somewhere on
your drawer refrigerator.
How to Obtain Service
Your drawer refrigerator requires little service because the
best and most up-to-date materials, equipment and quality
control methods are employed throughout the
manufacturing process.
If trouble occurs during normal operation, read “Things to
remember” section first and, if necessary, check the
troubleshooting guide. If service becomes necessary:
1. Contact the dealer where your appliance was
purchased or the manufacturer for the name of the
nearest authorized service representative. The
service representative will have full authority to
make any repairs deemed necessary.
2. If you are in an area where there is no service
representative, write or call the manufacturer
directly. We will make recommendations as to the
proper procedure for correction. Service work and
replacement parts, if required, will be provided as
covered by your limited warranty.
3. In all correspondence regarding service, be sure to
give the model number, serial number and proof of
purchase.
4. Try to have information or description of the nature
of the problem, how long the unit has been
running, the room temperature and any additional
information that may be helpful in quickly solving
the problem.
Every new drawer refrigerator that leaves the factory contains
this Owner's Guide. Keep this Owner's Guide in a safe place for
convenient reference.
For Your Records
SEND IN YOUR WARRANTY RECORD CARD
IMMEDIATELY AFTER TAKING DELIVERY OF YOUR
DRAWER REFRIGERATOR.
Date of Purchase
Dealer’s Name
Dealer’s Address
Dealer’s city Dealer’s State Zip
Appliance Serial Number
Model Number
Date Warranty Card Mailed (within 10 days of purchase)
8

Warranty Information
All specifications and product design subject to change without notice.
Such revisions do not entitle the buyer to corresponding changes, improvements,
additions, replacements or compensation for previously purchased products.
Household Refrigeration Products Limited Warranty
Entire Product - Limited One Year Parts and Labor Warranty. Aga Ranges
warrants that it will supply all necessary parts and labor to repair or replace
in the end user's home or office, any component which proves to be
defective in materials or workmanship, subject to the condition and
exclusions stated below, for period of one year from date of purchase by
the end user.
Additional Second Through Fifth Year Limited Parts Only Warranty
During the four years following expiration of the One Year Limited
Warranty, Aga Ranges will supply replacement parts for the hermetically
sealed refrigeration system which consists of the compressor, condenser,
drier, connecting tubing and the evaporator that are proven to be
defective due to workmanship or materials subject to the conditions and
exclusions below.
The above warranties do not cover:
- Shipping costs of replacement parts or returned defective parts.
- Customer education or instructions on how to use the
refrigerator/freezer.
- Any content loss due to product failure. - Removal or installation.
Nor do the above warranties cover failure of this product or its
components due to:
- Transportation or subsequent damages.
- Use commercially or use other than normal household or office.
- Improper installation, misuse, abuse, accident or alteration, use on wiring
not confirming to electrical codes, low voltage, failure to provide necessary
maintenance, or other unreasonable use.
- Parts or service not supplied or designated by Aga Ranges.
The above warranties also do not apply if:
- The original Bill of Sale, deliver date or serial number cannot be verified.
- Defective parts are not returned for inspection if so requested by Aga
Ranges.
- The refrigeration equipment is not in the possession of the original end
use purchaser.
THE WARRANTIES SET FORTH HEREIN ARE THE ONLY WARRANTIES
EXTENDED BY AGA RANGES. ANY IMPLIED WARRANTIES, INCLUDING
THE IMPLIED WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE
DURATION OF THESE EXPRESS WARRANTIES. IN NO EVENT SHALL
AGA RANGES BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL
DAMAGES OR EXPENSES RESULTING FROM BREACH OF THESE OR
ANY OTHER WARRANTIES, WHETHER EXPRESSED OR IMPLIED.
Some states do not allow the exclusion or limitation of consequential
damages or limitations on how long an implied warranty lasts, so the
above exclusion or limitation may not apply to you. This warranty gives
you specific legal rights, and you may also have other rights which may
vary from state to state.
No person, firm or corporation is authorized to make any other warranty
or assume any other obligation for Aga Ranges. These warranties apply
only to products used in any of the fifty states of the United States and the
District of Columbia.
To obtain performance of this warranty, report any defects to:
Aga Ranges/Refrigeration Products Division
(Warranty Administration)
P.O. Box 997
Richmond, Indiana
47375
USA
1.800.243.1624
IN NO EVENT SHALL THE COMPANY BE LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES INCLUDING, BUT NOT LIMITED TO,
CONTENT LOSS.
Some states do not allow limitations on length of time implied warranty
may last, so the above limitations may not apply to you.
This warranty gives you specific legal rights. You may also have other rights
which very from state to state.
9

Notes
All specifications and product design subject to change without notice.
Such revisions do not entitle the buyer to corresponding changes, improvements,
additions, replacements or compensation for previously purchased products.
10

All specifications and product design subject to change without notice.
Such revisions do not entitle the buyer to corresponding changes, improvements,
additions, replacements or compensation for previously purchased products.
11

41009530 rev A
P.O. Box 997 • Richmond, Indiana • 47375 • USA • 1.800.243.1624
Aga Ranges/Refrigeration Products Division
