AGC // Mirox MNGE & 4Green –Installation Guide –Version 3.0 –June 2018
MIROX MNGE & 4GREEN
INSTALLATION GUIDE
VERSION 3.0 –JUNE 2018

1
AGC // Mirox MNGE & 4Green –Installation Guide –Version 3.0 –June 2018
This version of the guide replaces and cancels all previous versions.
Please check www.agc-yourglass.com regularly for any updates.

2
AGC // Mirox MNGE & 4Green –Installation Guide –Version 3.0 –June 2018
W A R N I N G
Carefully read this manual before cutting and installing Mirox MNGE & 4Green products!
Mirox MNGE and Mirox 4Green are coated glass products for use in interior applications
only. They cannot be used in double glazing units or laminated (with PVB), not even on the
inner side of the glazing unit. The plastifiers in the PVB would have a negative effect on the
paint coating.
For safety applications, Mirox MNGE and Mirox 4Green products are available with a safety
backing film applied to the painted side of the glass (SAFE+).
All Mirox MNGE and Mirox 4Green products can be used in damp environments (kitchens,
bathrooms, etc.) but should never be immersed in water. In damp environments AGC
recommends applying a SAFE+ safety backing film.
The thickness of Mirox MNGE and Mirox 4Green products must be defined in accordance
with the size and shape of each panel. AGC recommends 6 mm thickness for wall cladding
(panels > 1 m²). For very large panels, thicker glass may be required.
Do not install Mirox on walls that are not entirely clean, dry and pre-treated with a primer in
case of porous surfaces. The glass must also be clean. It must not be wet or immersed in
water during handling or setting.
Ensure that the paint coating on the rear of the mirror has not been scratched during the
cutting and assembly process.
Always use adhesives/tapes recommended by AGC and follow exactly the instructions
provided by the adhesive manufacturer (particularly regarding the quantities of adhesive to be
used per m²). The user/customer shall take sole responsibility for using any other adhesive not
validated by AGC. When bonding Mirox MNGE or Mirox 4Green SAFE+ glass with an
adhesive, it is mandatory to pre-treat the safety backing film with a primer. For gluing without
primer, please contact your silicone supplier.
Care should be taken when using adhesives on Matelac Silver glass, as stains made on
the matt surface cannot be properly removed afterwards.
The use of safety gloves and appropriate personal protection is highly recommended
during all operations involving the handling and setting of the glass.
Important Preliminary Instructions

3
AGC // Mirox MNGE & 4Green –Installation Guide –Version 3.0 –June 2018
CONTENTS
1. INTRODUCTION.........................................................................................................4
2. SAFE+ SAFETY BACKING FILM FOR MIROX ..........................................................4
3. INSTALLATION GUIDE ..............................................................................................5
3.1. Tips ..........................................................................................................................5
3.2. Cutting Mirox............................................................................................................6
3.2.1 General recommendations.....................................................................................6
3.2.2 Cutting advice.........................................................................................................6
3.3. Fitting mirrors ...........................................................................................................7
3.3.1. Bonding method....................................................................................................8
3.3.2. Mechanical fitting.................................................................................................11
4. CLEANING GUIDE....................................................................................................12
4.1 Cleaning recommendations.....................................................................................12
4.2 Cleaning Mirox MNGE and Mirox 4Green...............................................................12
4.3 Cleaning Matelac Silver...........................................................................................12

4
AGC // Mirox MNGE & 4Green –Installation Guide –Version 3.0 –June 2018
1. INTRODUCTION
This guide has been produced for glaziers. It describes AGC Glass Europe’s recommended
methods for fitting Mirox MNGE and Mirox 4Green mirrors and provides cleaning tips.
Fitting a mirror is a delicate procedure. Correct installation is critical to ensuring:
the safety of end users by preventing breakage;
It should be noted that Mirox MNGE and Mirox 4Green SAFE+ provide optimal safety
protection.
the quality of the mirror, by protecting the paint;
an undistorted reflected image.
The contents of this guide reflect our knowledge and experience at the time of publication.
Customers and glass fitters can contact AGC Glass Europe’s Technical Advisory Services (TAS) at
any time for further assistance, if required. Naturally, the glass fitter is entirely responsible for the
installation of the glass and compatibility between the different materials used. AGC Glass Europe
accepts liability for the product it supplies in accordance with its general terms and conditions of
sale.
2. SAFE+ SAFETY BACKING FILM FOR MIROX
Mirox MNGE and Mirox 4Green mirrors are also available in safety versions, with a SAFE+ plastic
film applied to the painted side of the mirror. The film has three functions:
1) If the glass breaks, the splinters and shards stick to the film, thereby preventing injury and
damage.
2) It protects the paint from scratching.
3) It protects the paint in damp environments.
SAFE+ safety backing films comply with European safety standard EN12600.
SAFE+ is a PET (polyethylene terephthalate) material.
When bonding SAFE+ mirrors in wall covering applications, adhesives or double-sided adhesive
tape must be used. A table of recommended brands can be found on pages 9 and 10.

5
AGC // Mirox MNGE & 4Green –Installation Guide –Version 3.0 –June 2018
3. INSTALLATION GUIDE
3.1. Tips
To prevent a loss of quality owing to deterioration of the metal layers, the protective varnish or
image distortion, the following instructions should be followed:
When mounting mirrors, always apply the double-sided tape and glue or silicone in vertical
strips or dots taking care to ensure that air can circulate between the back of the mirror
and the substrate. Always comply with the recommended quantity of adhesive to be used
per m2stipulated by the adhesive manufacturer. Never use horizontal strips.
The mirror should be mounted on a clean, dry surface and any contact with walls that
could be affected by humidity should be avoided.
Pre-treat porous surfaces with a primer.
Non-metal spacers should be used at the bottom edge of the mirror and at the back of
the mirror to ensure that air can circulate vertically between the back of the mirror and
the substrate. This is especially recommended when the mirrors are mounted in very moist
areas such as bathrooms, gyms, etc.
The supporting surface must be perfectly flat in order to avoid deformation of the mirror
and the image.
Surfaces which are not flat should be evened out or non-metal spacers should be used to
compensate for uneven surfaces.
Care must be taken not to scratch the back of the mirror because this could cause
oxidation (black or brown traces seen on the reflective side).

6
AGC // Mirox MNGE & 4Green –Installation Guide –Version 3.0 –June 2018
3.2. Cutting Mirox
3.2.1 General recommendations
Special cuts are sometimes required to avoid ‘obstacles’ on walls such as electrical sockets and
water/air outlet pipes.
Large glass panels: Ask your glazier to do the necessary cutting in the workshop.
Small tile formats: The cutting can be done by your tiler.
The use of safety gloves and appropriate footwear is highly recommended.
Measuring
Regardless of the format of the glass, whether large panels or tile-size, precise measurements must
be taken. Near pipes and sockets, the diameter of the cut glass should be 1cm larger than the
original measurement.
Recommended thickness
The thickness of the Mirox product must be defined on the basis of the size and shape of each
panel. AGC recommends 6mm thickness for wall cladding (panels larger than 1 m²). For very large
panels, thicker glass may be required.
Tools
Before starting, read the manufacturer’s instructions on how to use the different cutting tools.
Work on a stable cutting table with a felt cutting mat.
Ensure that the cutting table will not scratch the glass.
To prevent injury, lightly sand the edges of the cut glass.
To prevent the glass from breaking, do not press too heavily on it when fitting around holes.
3.2.2 Cutting advice
AGC advises using the following cutting wheels to properly cut glass with a SAFE+ film through
the film side: www.agc-store.com

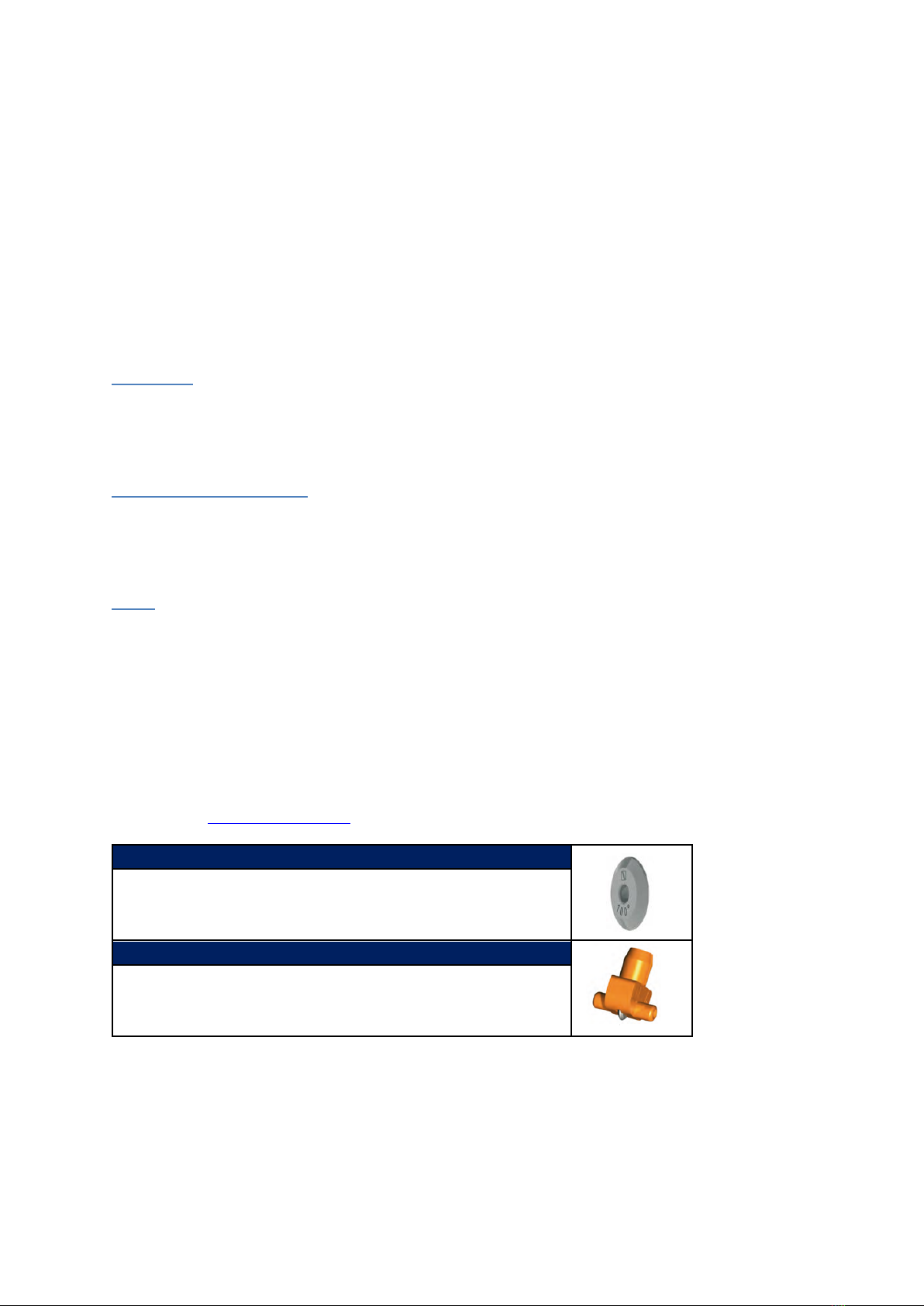

Cutting wheel Angle (°) Thickness (mm)
B0 03A100M
100
3-4
B0 03A110M
110
4-5
B0 03A115M
115
5-6
Cutting wheel including plastic holder
B0 416A100M
100
3-4
B0 416A110M
110
4-5
B0 416A115M
115
5-6
When starting, cut slowly and build up pressure until you achieve a good cut.
Use ACECUT 5503 cutting oil or equivalent.
Correct cutting settings can differ from one cutting installation to another and can be tested by
cutting test strips 100mm wide and at least 1m long. It should be possible to break the cut strips
by hand.

7
AGC // Mirox MNGE & 4Green –Installation Guide –Version 3.0 –June 2018
The cutting wheels listed above can also be used to cut non-painted glass without a SAFE+
film.
AGC provides this information for advisory purposes. The user/customer is solely
responsible for using this advice.
3.3. Fitting mirrors
There are two main ways of fitting Mirox MNGE and Mirox 4Green mirrors:
The bonding method, using:
silicone
adhesive tape
The mechanical method, using screws, metal clips or fixing the glass directly into a frame.

8
AGC // Mirox MNGE & 4Green –Installation Guide –Version 3.0 –June 2018
3.3.1. Bonding method
a) General recommendations
If you opt for the bonding method, you should use the adhesive best suited to your type of mirror
(with or without SAFE+ safety backing film) and the level of safety required due to the size of the
glass. You should use (non-metal) blocks to support the mirror until the glue has completely set.
When using silicone, AGC recommends also using double-sided adhesive tape to hold the glass in
place while the silicone dries.
Under the trade name FIX-IN, AGC has developed its own range of high-performance, easy-to-use
adhesive products for the professional installation of Mirox products, including SAFE+ versions.
Based on a formula developed exclusively for AGC, the perfect compatibility between FIX-IN
components prevents corrosive damage to both the reflective silver layer and the paint on the back
of AGC Mirox.
FIX-IN is more than a standard set of adhesive components. It is a system ensuring a professional
finish and it is supported by a 5-year warranty*.
AGC has identified other adhesives compatible with AGC glass products.** Please refer to the
instructions and warranties supplied by the adhesive manufacturers.
(*) Against silver layer corrosion, paint peeling or cracking.
(**) See list below.
b) Glue and silicone
Silicone can be used with Mirox MNGE and Mirox 4Green, including the SAFE+ version.
Always refer to the adhesive manufacturer’s instructions about compatibility with the
substrate. When using silicone, AGC recommends also using double-sided adhesive tape to
hold the glass in place while the silicone dries.
Apply the glue or silicone in vertical strips or dots taking care to ensure that air can
circulate between the back of the mirror and the surface. Apply regular pressure over the
entire surface of the mirror, ensuring that the reflected image is not distorted. Never apply
horizontal strips of adhesive.
The amount of glue or silicone to be applied depends mainly on the type of glue or silicone
used and the weight of the mirror. The table below shows the weight per m² for different
mirror thicknesses.
The glue or silicone manufacturer will provide information on the drying time for the type of silicone
used (this varies from one brand to another) and on the quantity required depending on the weight
of the mirror.
Thickness of mirror
Weight of mirror / m²
3 mm
7.5 kg
4 mm
10 kg
5 mm
12.5 kg
6 mm
15 kg
8 mm
20 kg

9
AGC // Mirox MNGE & 4Green –Installation Guide –Version 3.0 –June 2018
Compatibility of different families of glues and adhesives*
Type of glue/silicone
Mirox MNGE &
4Green
Mirox MNGE & 4Green SAFE+
Alcoxy silicones
YES
YES
Oxime silicones
YES
YES
MS polymers
YES
YES
Rubber silicones
NO
NO
Acetic acid silicones
NO
NO
Polyurethane-based
NO
NO
Hot melt
YES
NO
(*) This table only provides general recommendations for each group of glues or adhesives. This does not
necessarily mean that all adhesives belonging to each group are suitable. For specific use, refer to the tables below
listing Recommended brands of adhesives and Compatible brands of adhesives.
When bonding Mirox MNGE and Mirox 4Green SAFE+ mirrors, the safety backing film must be pre-
treated with a surface activator or primer. See the list of recommended and compatible brands in
the summary table on pages 9 and 10.
Care should be taken when using silicone on Matelac Silver glass as stains made on the matt
surface cannot be properly removed afterwards.
c) Adhesive tape
Mirox MNGE and Mirox 4Green can also be bonded using adhesive tape (see recommended and
compatible brands on pages 9 and 10).
RECOMMENDATIONS FOR USE
Always use plenty of adhesive and follow the manufacturer’s instructions. The amount of adhesive
tape required will depend on the type of tape being used and the weight of the Mirox mirror.
AGC Glass Europe recommends using ten 10 mm x 100 mm strips per kg of mirror and to apply
several smaller pieces rather than one single length (as indicated above).
Compatibility of different families of adhesive tape*
Type of adhesive tape
Mirox MNGE &
4Green
Mirox MNGE & 4Green
SAFE+
Acrylic
YES
NO
Modified acrylic
YES
NO
Rubber
YES
YES
(*) This table only provides general recommendations for each group of glues or adhesives. This does not
necessarily mean that all adhesives belonging to each group are suitable. For specific use, refer to the tables below
listing Recommended brands of adhesives and Compatible brands of adhesives.
Adhesive tape
Adhesive tape

10
AGC // Mirox MNGE & 4Green –Installation Guide –Version 3.0 –June 2018
d) Recommended brands of adhesives
Type
Brand & manufacturer
Mirox
MNGE &
4Green
Mirox MNGE &
4Green SAFE+
Glue /
silicone
Alcoxy
FIX-IN SL (AGC)
YES
YES
+ surface activator
FIX-IN SA (AGC)
Tape
Rubber
FIX-IN AT (AGC)
YES
YES
+ surface activator
FIX-IN SA (AGC)
e) Compatible brands of adhesives
Type
Brand & manufacturer
Mirox
MNGE/4Green
& 3G
Mirox
MNGE/4Green
SAFE+
Glue /
silicone
Alcoxy
Ottocoll S16 (Otto-Chemie)
YES
NO
DC 817 (Dow Corning)
YES
YES
+ R40 cleaner +
primer 1200 OS or
primer C
(Dow Corning)
Oxime
Parasilico AM 85-1
(DL Chemicals)
YES
YES
+ Parasilico
Cleaner +
Detaprimer 435.10
(DL Chemicals)
Silirub 2 (Soudal)
YES
NO
MS Polymer
Fix All Classic (Soudal)
YES
NO
Zwaluw Hybrifix Super 7
(Den Braven Sealants)
YES
NO
Paracol Miroseal MS
(DL Chemicals)
YES
NO
MS Super Adhesive (Fratelli
Zucchini)
NO
YES
+ primer M51
(Fratelli Zucchini)
Type
Brand & manufacturer
Mirox
MNGE &
4Green
Mirox MNGE &
4Green SAFE+
Acrylic
4632 (3M)
YES
NO
4032 (3M)
YES
NO
VITOMOUNT 125 SS-100
(VITO Irmen)
YES
NO

11
AGC // Mirox MNGE & 4Green –Installation Guide –Version 3.0 –June 2018
Tape
Modified
acrylic
4952 (3M)
YES
NO
Rubber
MACmount M1702 (MACtac)
YES
YES
FM 7600 (Avery Dennison)
YES
YES
3.3.2. Mechanical fitting
a) Framing
If using a frame to fit your mirror, you should:
use blocks and spacers to prevent contact with the frame;
avoid contact between the Mirox mirror and hard or brittle substances such as metals
and porcelains.
b) Using metal clips or screws
If using metal clips and/or screws to fit your mirror, you should:
insert a foam spacer between the clip and the glass;
avoid contact between the Mirox mirror and hard or brittle substances such as metals
and porcelains.

12
AGC // Mirox MNGE & 4Green –Installation Guide –Version 3.0 –June 2018
4. CLEANING GUIDE
4.1 Cleaning recommendations
Glass can get dirty, especially during the construction of a building.
Corrosive contamination must be avoided at all times, especially from plaster, mortar, concrete and
cement slurry, all of which are alkaline and therefore capable of corroding the glass surface. Any
such impurities must be washed off the glass immediately. Rinse with plenty of clean water to avoid
scratching the surface. Use a soft clean sponge, cloth or chamois. Do not try to remove impurities
while the glass is dry. Never use sharp objects, such as scrapers, to clean the glass.
To protect the glass during construction, AGC Glass Europe recommends covering installed glass
with sheets of plastic film.
The other teams working on the project should also be informed about handling the glass properly.
4.2 Cleaning Mirox MNGE and Mirox 4Green
When cleaning the mirror, the edges must always be dried quickly and thoroughly.
Mirox MNGE and Mirox 4Green mirrors can be cleaned with clean water.
IMPORTANT: Never use ammonia-based products or abrasive products (such as anti-
limescale products) to clean Mirox MNGE and Mirox4Green.
Detergents with pH < 2 or pH > 12 must never be used.
4.3 Cleaning Matelac Silver
The acid-etched surface of Matelac Silver is rougher than the untreated surface of Mirox mirrors.
Dirt and other substances adhere better to the rough surface. Nevertheless it can be cleaned with
clean water and neutral commercial detergents for normal day-to-day maintenance. However,
special care must be taken when installing Matelac Silver since dirt and other substances adhere to
it.
Note: Silicone, cement slurry and similar materials cannot be removed from the surface of Matelac
Silver without leaving some residue.
