AGCO Glencoe FC3800 Series User manual

Glencoe®
MODEL FC3800 SERIES
FIELD CULTIVATOR
OPERATOR’S
MANUAL
F-315-0401
04/01

MODEL FC3800 SERIES
FIELD CULTIVATOR
OPERATOR’S MANUAL
PURCHASED FROM: DATE //
ADDRESS:
PHONE NO.: SERIAL NO.:

TABLE OF CONTENTS
SECTION DESCRIPTION PAGE NO.
1INTRODUCTION 1-1
2STANDARD SPECIFICATIONS 2-1
3ASSEMBLY INSTRUCTIONS 3-1
3-1 FRAME ASSEMBLY ..................................3-5
3-2 WING AND EXTENSION INSTALLATION...................3-5
3-3 ROCKSHAFT INSTALLATION ...........................3-5
3-4 HYDRAULIC INSTALLATION............................3-7
3-5 SMV BRACKET INSTALLATION ........................3-28
3-6 SHANK INSTALLATION...............................3-29
3-7 PULL HITCH INSTALLATION (SMALL FRAME MODELS) .....3-30
3-8 PULL HITCH INSTALLATION (LARGE FRAME MODELS) .....3-31
3-9 LEVELING ASSEMBLY INSTALLATION...................3-32
3-10 WARNING LIGHTS INSTALLATION ......................3-33
3-11 WING SUPPORT BRACKET INSTALLATION ...............3-34
3-12 HARROW INSTALLATION .............................3-38
4OPERATION AND MAINTENANCE 4-1
4-1 TRACTOR PREPARATION .............................4-2
4-2 FIELD CULTIVATOR PREPARATION......................4-2
4-3 ATTACHING TO THE TRACTOR .........................4-2
4-4 FIELD OPERATION ...................................4-2
4-5 HARROWS .........................................4-4
4-6 WHEEL BEARING MAINTENANCE .......................4-5
4-7 HYDRAULIC MAINTENANCE............................4-6
4-8 TRANSPORT........................................4-6
4-9 LUBRICATION.......................................4-8
4-10 STORAGE .........................................4-8
5TROUBLESHOOTING GUIDE 5-1

SAFETY PRECAUTIONS
THIS IS THE SAFETY ALERT SYMBOL. IT IS USED TO ALERT YOU
TO POTENTIAL INJURY HAZARDS. OBEY ALL SAFETY MESSAGES
THAT FOLLOW THIS SYMBOL TO AVOID POSSIBLE INJURY OR
DEATH.
DANGER DANGER INDICATES AN IMMINENTLY HAZARDOUS SITUATION
WHICH, IF NOT AVOIDED, WILL RESULT IN DEATH OR SERIOUS IN-
JURY.
WARNING WARNING INDICATES A POTENTIALLY HAZARDOUS SITUATION
WHICH, IF NOT AVOIDED, COULD RESULT IN DEATH OR SERIOUS
INJURY.
CAUTION CAUTION INDICATES A POTENTIALLY HAZARDOUS SITUATION
WHICH, IF NOT AVOIDED, MAY RESULT IN MINOR OR MODERATE
INJURY.
CAUTION CAUTION USED WITHOUT THE SAFETY ALERT SYMBOL INDICATES
A POTENTIALLY HAZARDOUS SITUATION WHICH, IF NOT AVOIDED,
MAY RESULT IN PROPERTY DAMAGE.
ii

1INTRODUCTION
The Glencoe FC3800 Series Field Cultivator is a quality product designed to give years of trouble free
performance. By following each section of this manual, your system will perform as designed for you and
your operation.
SECTION 1 gives basic instructions on the use of this manual.
SECTION 2 gives product specifications. These specifications supply lengths and measures for your
equipment. A Standard Bolt Torque Table is provided to give guidelines for bolt torques
to be used when servicing this product.
SECTION 3 contains assembly instructions for your FC3800 Series Field Cultivator. When these
procedures are correctly followed, your equipment should provide you years of trouble-
free operation and service.
SECTION 4 instructs how to operate your equipment before using it, and describes adjustments
needed. It also gives practical advice for the care and maintenance of your Glencoe
equipment. Drawings in this section locate adjustment points on the equipment.
SECTION 5 is a troubleshooting guide to aid in diagnosing and solving problems with the equip-
ment.
PARTS LIST is a separate manual showing the various assemblies, subassemblies, and systems.
Refer to that manual when ordering Glencoe replacement parts. Order parts from your
Glencoe dealer.
WARRANTY The Warranty Registration form is included with the product documents. Fill it out and
mail it within 15 days of purchase. The Warranty is printed inside the front cover.
NOTE: IMPROPER ASSEMBLY, MODIFICATION, OR MAINTENANCE OF YOUR
Glencoe EQUIPMENT CAN VOID YOUR WARRANTY.
1-1

2STANDARD SPECIFICATIONS
MODEL
NO. CATALOG NO. NO. OF SHANKS CUT WIDTH TRANS. WIDTH TRANS. HEIGHT FRAME SIZE
FC3800-19 71512373 39 19’-6” 14’-5" 8’-5” 12’-0"
FC3800-21 71512374 43 21’-6” 14’-5" 9’-5” 12’-0"
FC3800-24 71512375 49 24’-6" 14’-5" 10’-11" 12’-0"
FC3800-27 71512376 55 27’-6" 14’-5" 12’-5" 12’-0"
FC3800-29 71512377 59 29’-6” 14’-5" 13’-5” 12’-0"
FC3800-32 71512378 65 32’-6” 14’-5" 14’-11” 12’-0"
FC3800-33 71512417 67 33’-6" 14’-10" 11’-0" 12’-0"
FC3800-35 71512418 71 35’-6” 14’-10" 13’-6” 12’-0"
FC3800-38 71512419 77 38’-6” 14’-10" 13’-6” 12’-0"
FC3800-41 71512420 85 42’-6” 14’-10" 13’-6” 12’-0"
FC3800-44 71512421 91 45’-6” 14’-10" 13’-6” 12’-0"
FC3800-33 71512379 67 33’-6” 18’-5” 13’-5” 15’-0"
FC3800-34 71512422 69 34’-6” 18’-10” 11’-0" 15’-0"
FC3800-36 71512380 73 36’-6” 18’-5” 14’-11” 15’-0"
FC3800-37 71512423 75 37’-6” 18’-10” 11’-0" 15’-0"
FC3800-39 71512424 79 39’-6” 18’-10” 13’-6” 15’-0"
FC3800-42 71512425 85 42’-6” 18’-10” 13’-6” 15’-0"
FC3800-45 71512426 91 46’-6” 18’-10” 13’-6” 15’-0"
FC3800-48 71512427 99 49’-6” 18’-10” 13’-6” 15’-0"
FC3800-51 71512428 103 51’-6” 18’-10” 14’-6” 15’-0"
FC3800-54 71512429 109 54’-6” 18’-10” 14’-6” 15’-0"
2-1

2-2
GENERAL TORQUE SPECIFICATIONS (REV. 4/97)
THIS CHART PROVIDES TIGHTENING TORQUES FOR GENERAL PURPOSE APPLICATIONS WHEN SPECIAL TORQUES ARE NOT SPECIFIED
ON PROCESS OR DRAWING.
ASSEMBLY TORQUES APPLY TO PLATED NUTS AND CAPSCREWS ASSEMBLED WITHOUT SUPPLEMENTAL LUBRICATION (AS RECEIVED
CONDITION). THEY DO NOT APPLY IF SPECIAL GRAPHITE MOLY-DISULFIDE OR OTHER EXTREME PRESSURE LUBRICANTS ARE USED.
WHEN FASTENERS ARE DRY (SOLVENT CLEANED), ADD 33% TO AS RECEIVED CONDITION TORQUE.
BOLT HEAD IDENTIFICATION MARKS INDICATE GRADE AND MAY VARY FROM MANUFACTURER TO MANUFACTURER.
THICK NUTS MUST BE USED ON GRADE 8 CAPSCREWS.
USE VALUE IN [ ] IF USING PREVAILING TORQUE NUTS.
TORQUE IS SPECIFIED IN FOOT POUNDS
UNC
Size SAE Grade
2
SAE
Grade
5
SAE
Grade
8
UNF
Size SAE Grade
2
SAE
Grade
5
SAE
Grade
8
1/4-20 4[5] 6[7] 9[11] 1/4-28 5[6] 7[9] 10 [12]
5/16-18 8[10] 13 [16] 18 [22] 5/16-24 9[11] 14 [17] 20 [25]
3/8-16 15 [19] 23 [29] 35 [43] 3/8-24 17 [21] 25 [31] 35 [44]
7/16-14 24 [30] 35 [43] 55 [62] 7/16-20 27 [34] 40 [50] 60 [75]
1/2-13 35 [43] 55 [62] 80 [100] 1/2-20 40 [50] 65 [81] 90 [112]
9/16-12 55 [62] 80 [100] 110 [137] 9/16-18 60 [75] 90 [112] 130 [162]
5/8-11 75 [94] 110 [137] 170 [212] 5/8-18 85 [106] 130 [162] 180 [225]
3/4-10 130 [162] 200 [250] 280 [350] 3/4-16 150 [188] 220 [275] 320 [400]
7/8-9 125 [156] 320 [400] 460 [575] 7/8-14 140 [175] 360 [450] 500 [625]
1-8 190 [237] 408 [506] 680 [850] 1-14 210 [263] 540 [675] 760 [950]
1-1/8-7 270 [337] 600 [750] 960 [1200] 1-1/8-12 300 [375] 660 [825] 1080 [1350]
1-1/4-7 380 [475] 840 [1050] 1426 [1782] 1-1/4-12 420 [525] 920 [1150] 1500 [1875]
1-3/8-6 490 [612] 110 [1375] 1780 [2225] 1-3/8-12 560 [700] 1260 [1575] 2010 [2512]
1/1-2-6 650 [812] 1460 [1825] 2360 [2950] 1/1-2-12 730 [912] 1640 [2050] 2660 [3325]
METRIC
COARSE THREAD METRIC CLASS 10.9 FASTENERS AND CLASS 10.0 NUTS AND THROUGH HARDENED FLAT WASHERS, PHOSPHATE
COATED, ROCKWELL “C” 38-45.
USE VALUE IN [ ] IF USING PREVAILING TORQUE NUTS.
Nominal
Thread
Diameter
mm
Standard Torque Nominal
Thread
Diameter
mm
Standard Torque
Newton-
Meters Foot- Pounds Newton- Meters Foot- Pounds
610 [14] 7[10] 20 385 [450] 290 [335]
716 [22] 12 [16] 24 670 [775] 500 [625]
823 [32] 17 [24] 27 980 [1105] 730 [825]
10 46 [60] 34 [47] 30 1330 [1470] 990 [1090]
12 80 [101] 60 [75] 33 1790 [1950] 1340 [1450]
14 125 [155] 90 [115] 36 2325 [2515] 1730 [1870]
16 200 [240] 150 [180] 39 3010 [3210] 2240 [2380]
18 275 [330] 205 [245]
Table 2-1General Torque Specifications

2-3
HYDRAULIC FITTING TORQUE SPECIFICATIONS
37oJIC, ORS, & ORB (REV. 10/97)
THIS CHART PROVIDES TIGHTENING TORQUES FOR HYDRAULIC FITTING APPLICATIONS WHEN SPECIAL TORQUES ARE NOT SPECIFIED
ON PROCESS OR DRAWING.
ASSEMBLY TORQUES APPLY TO PLATED CARBON STEEL AND STAINLESS STEEL FITTINGS ASSEMBLED WITHO UT SUPPLEMENTAL
LUBRICATION (AS RECEIVED CONDITION). THEY DO NOT APPLY IF SPECIAL GRAPHITE MOLY-DISULFIDE OR OTHER EXTREME PRESSURE
LUBRICANTS ARE USED.
BRASS FITTINGS AND ADAPTERS - 65% OF THE TORQUE VALUE FOR STEEL. STAINLESS STEEL, ALUMINUM AND MONEL - THREADS ARE
TO BE LUBRICATED.
TORQUE IS SPECIFIED IN FOOT POUNDS
PARKER BRAND FITTINGS
Dash
Size 37 Degree JIC O-Ring (ORS) O-Ring Boss (ORB)
-4 11-13 15-17 13-15
-5 14-16 —21-23
-6 20-22 34-36 25-29
-8 43-47 58-62 40-44
-10 55-65 100-110 57.5-62.5
-12 80-90 134-146 75-85
-16 115-125 202-218 109-121
-20 160-180 248-272 213-237
-24 185-215 303-327 238-262
-32 250-290 —310-340
HYDRAULIC FITTING TORQUE SPECIFICATIONS
37oJIC, ORS & ORB (REV. 10/97)
THIS CHART PROVIDES TIGHTENING TORQUES FOR HYDRAULIC FITTING APPLICATIONS WHEN SPECIAL TORQUES ARE NOT SPECIFIED
ON PROCESS OR DRAWING.
ASSEMBLY TORQUES APPLY TO PLATED CARBON STEEL AND STAINLESS STEEL FITTINGS ASSEMBLED WITHO UT SUPPLEMENTAL
LUBRICATION (AS RECEIVED CONDITION). THEY DO NOT APPLY IF SPECIAL GRAPHITE MOLY-DISULFIDE OR OTHER EXTREME PRESSURE
LUBRICANTS ARE USED.
BRASS FITTINGS AND ADAPTERS - 65% OF THE TORQUE VALUE FOR STEEL.
TORQUE IS SPECIFIED IN FOOT POUNDS.
AEROQUIP BRAND FITTINGS
Dash
Size 37 Degree JIC O-Ring (ORS) O-Ring Boss (ORB)
-4 11-12 10-12 14-16
-5 15-16 —18-20
-6 18-20 18-20 24-26
-8 38-42 32-35 50-60
-10 57-62 46-50 72-80
-12 79-87 65-70 125-135
-14 — — 160-180
-16 108-113 92-100 200-220
-20 127-133 125-140 210-280
-24 158-167 150-165 270-360
-32 245-258 — —
Table 2-2Hydraulic Fitting Torque Specifications

NOTES:
2-4

3ASSEMBLY INSTRUCTIONS
It is very important that your new FC3800 Se-
ries Field Cultivator be properly assembled, ad-
justed and lubricated before use. Illustrations in
this section show proper assembly procedures. Re-
move paint from grease fittings. Replace any
grease fittings that are damaged or missing. Be
sure to return screws, clips, etc., to their original lo-
cations.
To insure alignment of assemblies, leave the
nuts loose until completion of final assembly.
Use lock washers or flat washers as specified.
Spread all cotter pins.
After completion of final assembly, tighten all
nuts evenly to prevent misalignment, distortion or
binding. Tighten all screws and nuts to the recom-
mended torques shown in Tables 2-1and 2-2.
WARNING
DO NOT ATTEMPT TO LIFT HEAVY
PARTS (SUCH AS THE FRAME, ROCK
SHAFT, AND PULL HITCH) MANU-
ALLY. USE A HOIST OR A FORK LIFT
TO MOVE THESE PARTS INTO POSI-
TION.
DANGER
TO PREVENT ACCIDENTAL LOWER-
ING:
1. ALL HYDRAULICALLY ELEVATED
EQUIPMENT MUST BE LOCKED OUT
USING THE CYLINDER LOCKOUTS:
2. LOWER EQUIPMENT TO THE
GROUND WHILE SERVICING OR
WHEN IT IS IDLE.
FAILURE TO TAKE MEASURES TO
PREVENT ACCIDENTAL LOWERING
MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH.
CAUTION
BE SURE DEPTH STOPS ARE EQUAL
LENGTHS ON ALL CYLINDERS. USING
UNEQUAL DEPTH STOP LENGTHS
CAN CAUSE PERMANENT EQUIP-
MENT DAMAGE.
CAUTION
BE SURE TO BLEED THE HYDRAULIC
SYSTEM OF ALL AIR IN LINES AFTER
INSTALLATION. FAILURE TO BLEED
THE SYSTEM OF ALL AIR CAN RE-
SULT IN PERMANENT EQUIPMENT
DAMAGE.
3-1

3-2

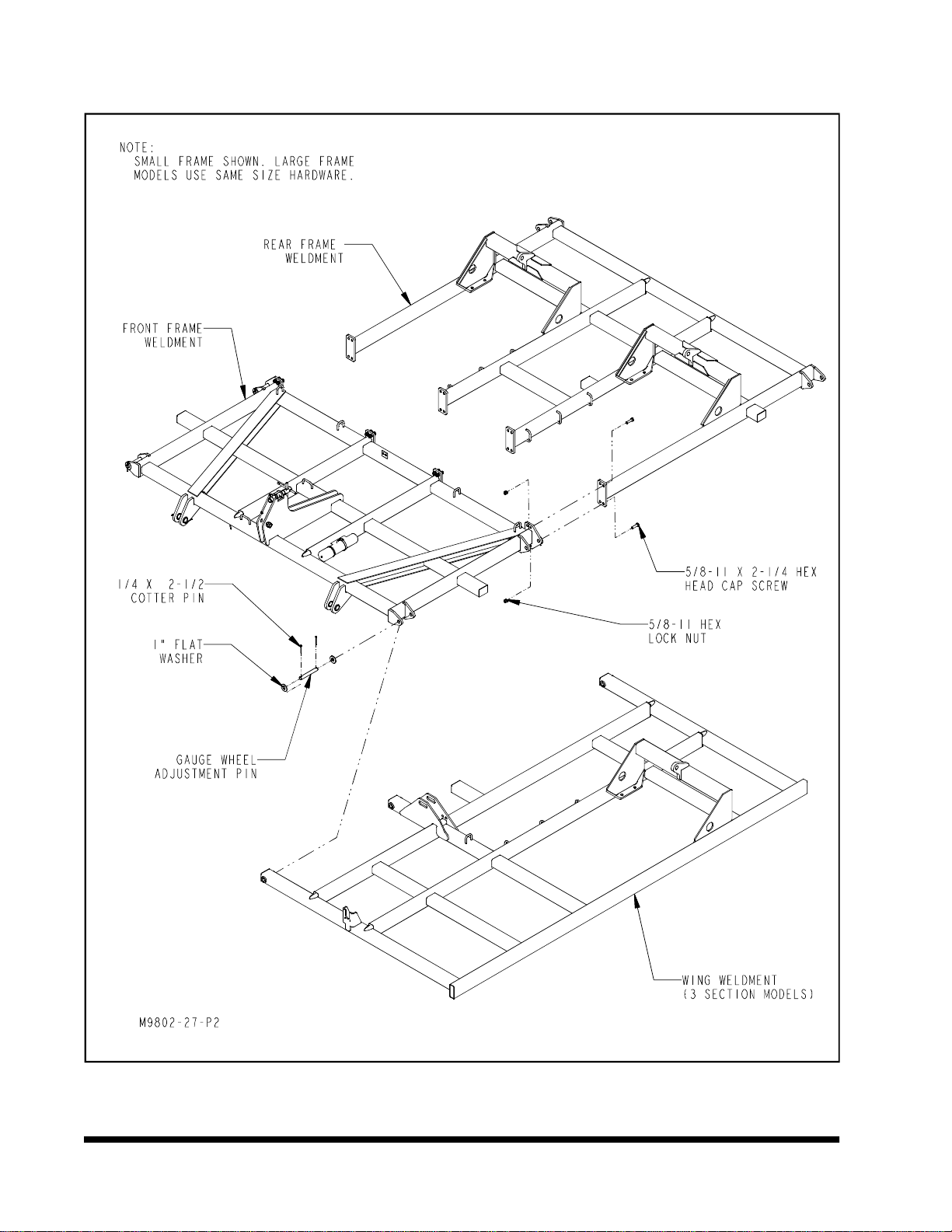

Figure 3-1Frame Assembly

3-3
Figure 3-2Wing and Extension Assembly

3-4
Figure 3-3Wing Assembly (FC3800-51 & FC3800-54 Models)
Figure 3-4Depth Adjust Rod to Wing Installation

3-1 FRAME ASSEMBLY
IMPORTANT
READ ALL SAFETY PRECAUTIONS AT THE
FRONT OF THE SECTION BEFORE ATTEMPT-
ING ANY OF THE FOLLOWING PROCEDURES.
3-1.1 Place frame halves on stands approxi-
mately 36" high.
3-1.2 Bolt frame halves together using 5/8-11 X
2-1/4 screws and lock nuts (See Figure 3-1).
WARNING
DO NOT ATTEMPT TO LIFT HEAVY
PARTS (SUCH AS THE FRAME, ROCK
SHAFT, AND PULL HITCH) MANU-
ALLY. USE A HOIST OR A FORK LIFT
TO MOVE THESE PARTS INTO POSI-
TION.
3-2 WING AND EXTENSION INSTALLATION
WARNING
DO NOT ATTEMPT TO LIFT HEAVY
PARTS (SUCH AS THE FRAME, ROCK
SHAFT, AND PULL HITCH) MANU-
ALLY. USE A HOIST OR A FORK LIFT
TO MOVE THESE PARTS INTO POSI-
TION.
3-2.1 On FC3800-51 and FC3800-54 models,
bolt inner wing halves together using 5/8-11
x 2-1/4 hex head cap screws and hex lock
nuts (See Figure 3-3).
3-2.2 On all models, install wings using pins,
washers and cotter pins provided. (See Fig-
ure 3-1).
3-2.3 Slide nylatron depth adjust bushing into
frame bracket on wing. Bolt bushing into
place using 1/4-20 x 2 hex head cap screws
and hex lock nuts. Insert threaded depth ad-
just rod weldment into bushing and screw
into depth adjustment rod to desired depth.
(See Figure 3-4).
3-2.4 On FC3800-21, FC3800-27, FC3800-32,
FC3800-44, FC3800-36, and FC3800-48
models, extensions are attached to the frame
180ofrom where they should be installed.
Loosen hex lock nuts and remove u-bolts.
Flip the wing extension over to the outside of
the outer frame and install wing extensions
on wings using same u-bolts and hex lock
nuts (See Figure 3-2).
3-2.5 For FC3800-44 and FC3800-48 models, in-
stall 5” extension to outer wing plate with
5/8-11 x 2-1/4 hex head cap screws and hex
lock nuts (See Figure 3-2).
3-2.6 On 5-section models, install outer wings
using pins, washers and cotter pins provided.
(See Figure 3-2).
3-3 ROCKSHAFT INSTALLATION
3-3.1 All rockshafts and hubs come already as-
sembled from the factory.
3-3.2 Mount tires on the wheels and install on
hubs.
3-3.3 For FC3800-35, FC3800-34, and FC3800-
37 models, a manual adjust gauge wheel
must be installed on the outer wings. Attach
spindle assembly with tube and rigid gauge
wheel clamp to outer wing frame using u-
bolts and hex lock nuts (See Figure 3-5).
3-3.4 Recommended tires:
Frame and wings (3 & 5 section small
frame models up through FC3800-35):
9.5L X 15 8 ply recommended
11L x 15 10 ply
Frame (5 section large frame models
and small frame models FC3800-38,
FC3800-41, and FC3800-44):
11L x 15 18 ply
Wings (5-section large frame models):
9.5L X 15 8 ply
3-5

3-6
Figure 3-5Manual Adjust Gauge Wheel Installation
Figure 3-6Master and Slave Cylinder Installation

3-4 HYDRAULIC INSTALLATION
3-4.1 Set the depth adjustment to a medium
depth (insure that all are set to the same
depth).
3-4.2 Install the master cylinders with the base
end on the lift cylinder anchor bracket of the
frame and the rod end on the arms of the
rockshaft. (See Figure 3-6).
3-4.3 Install the slave cylinders with the base
end on the lift cylinder anchor bracket of the
wings and the rod end on the arms of the
rockshaft. (See Figure 3-6).
3-4.4 For narrow frame models:
a. Install the front and rear fold cylinder brack-
ets to the frame with eight 5/8-11 X 6 hex
head cap screws and hex lock nuts (See Fig-
ure 3-7).
b. Attach front and rear fold cylinder brackets
and cylinder anchor bar together with four 1-8
X 4 hex head cap screws and hex lock nuts.
On models using a 4 x 24 hydraulic cylinder,
a bushing is provided to put in the large hole
to take up slack around the 1” hex head cap
screw and the cylinder pins to the small end
of the cylinder anchor bar. For models using a
5 x 24 hydraulic cylinder, no bushing is
needed and the cylinder pins to the large end
of the cylinder anchor bar (See Figure 3-7).
3-4.5 For wide frame models:
a. Connect a right hand and left hand inner
fold cylinder bracket and cylinder anchor bar
together with two 1-8 X 4 hex head cap
screws and hex lock nuts. On models using a
4 x 24 hydraulic cylinder, a bushing is pro-
vided to put in the large hole to take up slack
around the 1” hex head cap screw and the
cylinder pins to the small end of the cylinder
anchor bar. For models using a 5 x 24 hy-
draulic cylinder, no bushing is needed and the
cylinder pins to the large end of the cylinder
anchor bar (See Figure 3-8).
b. Repeat Step 3-4.5a. for other fold cylinder
brackets and cylinder anchor bar.
c. Attach each fold cylinder bracket assembly
to the frame using six 5/8-11 x 6 hex head
cap screws and hex lock nuts.
IMPORTANT
BE SURE TO LEAVE THE NUTS LOOSE UNTIL
CONNECTING TUBE HAS BEEN INSTALLED
AND ENTIRE FOLD CYLINDER BRACKET AS-
SEMBLY IS CENTERED ON FRAME.
d. Install fold cylinder connecting tube between
right hand and left hand fold cylinder bracket
assemblies with 3/4-10 x 6-1/2 hex head cap
screws and hex lock nuts (See Figure 3-8).
3-4.6 On 5-section models, install fold cylinder
stops with hose clamps onto rod end of inner
wing fold cylinders (See Figures 3-10 -
3-22). CAUTION
NEGLECTING TO INSTALL FOLD CYL-
INDER STOPS COULD RESULT IN
DAMAGE TO FOLD CYLINDERS AND
WINGS.
3-4.7 Install base end of fold cylinders to cylinder
anchor bar on frame with ports up (See Fig-
ures 3-7and 3-8).Pin rod end of cylinder to
bracket on wings using extended pin, wash-
ers and cotter pins (See Figures 3-9- 3-22).
3-4.8 On 3-section models, install a 90oO-ring
elbow with restrictor in each port of the fold
cylinders (See Figure 3-9).
3-4.9 On 5-section models, install a 90oO-ring
elbow with restrictor in each port of the outer
fold cylinders. Install a 90oadapter with re-
strictor in each port of the inner fold cylinders
(See Figures 3-10 - 3-22).
3-4.10 Install an O-ring elbow in each port of the
lift cylinders (See Figures 3-9- 3-22).
3-4.11 Install fittings in the manifold per Figures
3-9- 3-22.
3-4.12 Install hoses per Figures 3-9- 3-22.
3-7

3-8
Figure 3-7Fold Cylinder Bracket for Narrow Frame Models

3-9
Figure 3-8Fold Cylinder Bracket for Wide Frame Models

3-10
Figure 3-9Hydraulic Installation (3 section models)
