Introduction
Welcome to the world of AgfaPhoto scanners – the ultimate in computer imaging.
Your new scanner will improve the professionalism of your day-to-day computing tasks
by allowing you to input images and electronic text into your computer system.
Like all of our products, your new scanner is thoroughly tested and backed by our
reputation for unsurpassed dependability and customer satisfaction.
Thank you for choosing us as your scanner supplier. We hope you will continue to
turn to us for additional quality products as your computing needs and interests grow.
How to Use This Guide
This User’s Guide provides instructions and illustrations on how to install and
operate your scanner. This guide assumes the user is familiar with Microsoft Windows
XP, 2000 and Vista. If this is not the case, we suggest you learn more about Microsoft
Windows by referring to your Microsoft Windows manual before using your scanner.
The Introduction section of this manual describes the box contents and minimum
computer requirements to use this scanner. Before you start installing your scanner,
check the box contents to make sure all parts are included. If any items are damaged
or missing, please contact the vendor where you purchased your scanner or our
customer service directly.
Chapter I describes how to install scanner’s software and connect the scanner to
your computer. Note: The scanner connects to your computer through the Universal
Serial Bus (USB). If your computer does not support USB technology, you will need to
purchase a USB interface card to add USB capabilities to your computer, or buy and
install USB connectors if your motherboard has USB capabilities. This guide assumes
that your computer is USB-ready and has a free USB port.
Chapter II describes how to use, maintain and clean your scanner.
Appendix A contains technical support information that can help you solve simple
problems. Before calling for help, please read through Appendix A: Troubleshooting.
Appendix B contains the Specifications of the scanner you purchased.
C
Co on nv ve en nt ti io on ns s o of f T Th hi is s G Gu ui id de e
Bold — Important note or first use of an important term in a chapter.
“XXX”— Represents commands or contents on your computer screen.

2
A
A N No ot te e a ab bo ou ut t I Ic co on ns s
This guide uses the following icons to point out information that deserves special
attention.
Danger
A procedure that must be followed carefully to prevent injury, or
accidents.
Caution
Information that, if not followed, may result in data loss or
damage to the product.
Attention
Instructions that are important to remember and may prevent
mistakes.
Safety Precautions
Before using this device, please read the following important information to
eliminate or reduce any possibility of causing damage and personal injury.
1. Moisture condensation may occur inside this device and cause malfunction at
these conditions:
•when this device is moved directly from a cold to a warm location;
•after a cold room is heated;
•when this device is placed in a damp room.
To avoid the moisture condensation, you are recommended to follow the
procedure:
i. Seal this device in a plastic bag for it to adapt to room conditions.
ii. Wait for 1-2 hours before removing this device from the bag.
2. Do use the USB cable provided with the scanner. Use of other cable may lead to
malfunction.
3. Avoid using the scanner in a dusty environment. Dust particles and other foreign
objects may damage the unit. If you will not use the scanner for some time, please
place it in the travel pouch.
4. Do not subject the scanner to excessive vibration. It may damage the internal
components.
5. Unplug this device if you don’t need to use for a certain period of time, such as,
during night or long weekend, to avoid any risks of causing fire.

3
6. Do not attempt to disassemble the scanner. There is danger of an electrical shock
and opening your scanner will void your warranty.
System Requirements1
Windows/Intel Compatible Personal Computer
Pentium CPU or above
CD-ROM Drive
64 MB RAM (128 MB Recommended)
400 MB Free Hard Disk Space (450 MB Recommended)
USB Port
Microsoft Windows 2000 Professional/ XP/ Vista compatible
NOTE: Windows NT 4.0 does not support Universal Serial Bus (USB) connectivity.
Video card that supports 16-bit color or greater
1Higher requirements might be needed when scanning or editing a large quantity of image data.
The system requirements here are only a guideline, as in general the better the computer
(motherboard, processor, hard disk, RAM, video graphic card), the better the results.

4
Box Contents2

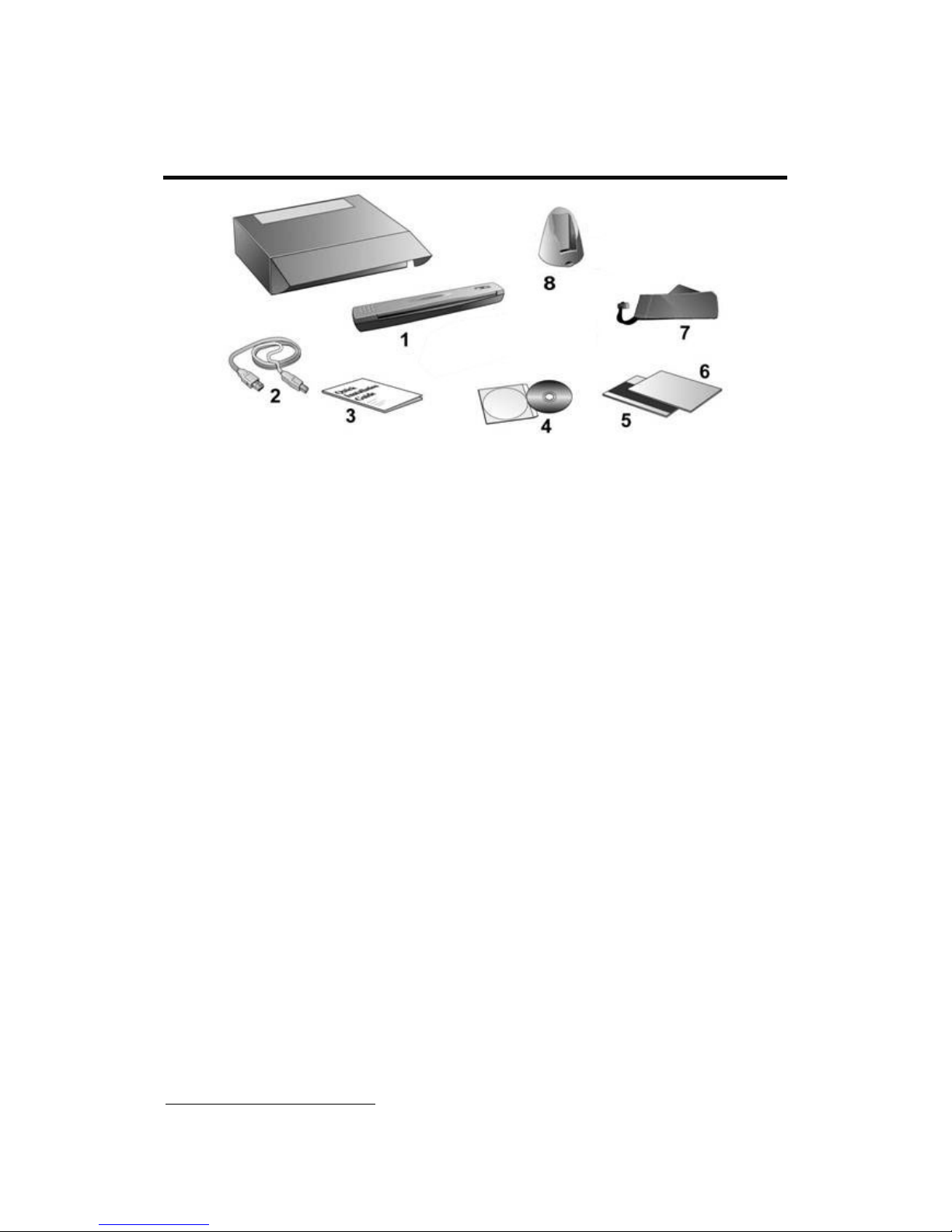

1. Scanner
2. USB Cable
3. Quick Guide
4. Setup / Application CD-ROM
5. Calibration Sheet
6. Cleaning paper
7. Travel Pouch
8. Base Stand (also serves as a Cable Container)
2Save the box and packing materials in case you need to transport this scanner in the future.
The product packaging can be recycled.

5
The Scanner’s Features
1. USB port: It connects the scanner to a USB port on your computer by the included
USB cable.
2. Alignment arrow: Always align the edges of your documents to this arrow sign.
3. Page feed slot: Feed the document into the scanner from this direction. You can
feel the document being grabbed by the scanner.
4. SCAN button: Press this button to start scanning and processing an assigned
task: saving the scanned image(s) to your hard disk, sending to E-mail program,
printer or other image editing software.
5. LED indicator: It indicates the scanner’s current status.
6. CUSTOM button: Press this button to convert your document into text file.
Product Information
Please fill in the following information for your own records. You will need it when
you contact your dealer or our service center in the future.
Serial Number: 
(Located at the bottom of the scanner)
Date of Purchase:  -  - 

6
Chapter I. Installing the Scanner
Before installing your scanner, please verify that you have all of the proper
components. A list of the package contents is provided in the Box Contents section of
this guide.
Software Installation Requirements
Your scanner comes with the image-editing software, OCR software, document
management software, the scanner’s driver, and the DigiScan software. All of these
software applications use approximately 400 megabytes of hard disk space after they
are installed into your computer. To ensure ample room for the installation, as well as
for scanning and saving images, a minimum of 450 megabytes of hard disk space is
recommended.
The USB scanner can only operate under the Windows 2000 Professional/ XP/
Vista operating system.
Attention
Please do not use multiple USB scanners in Windows XP
simultaneously! For more information, please refer to the following
URL...http://www.microsoft.com
Hardware Requirements

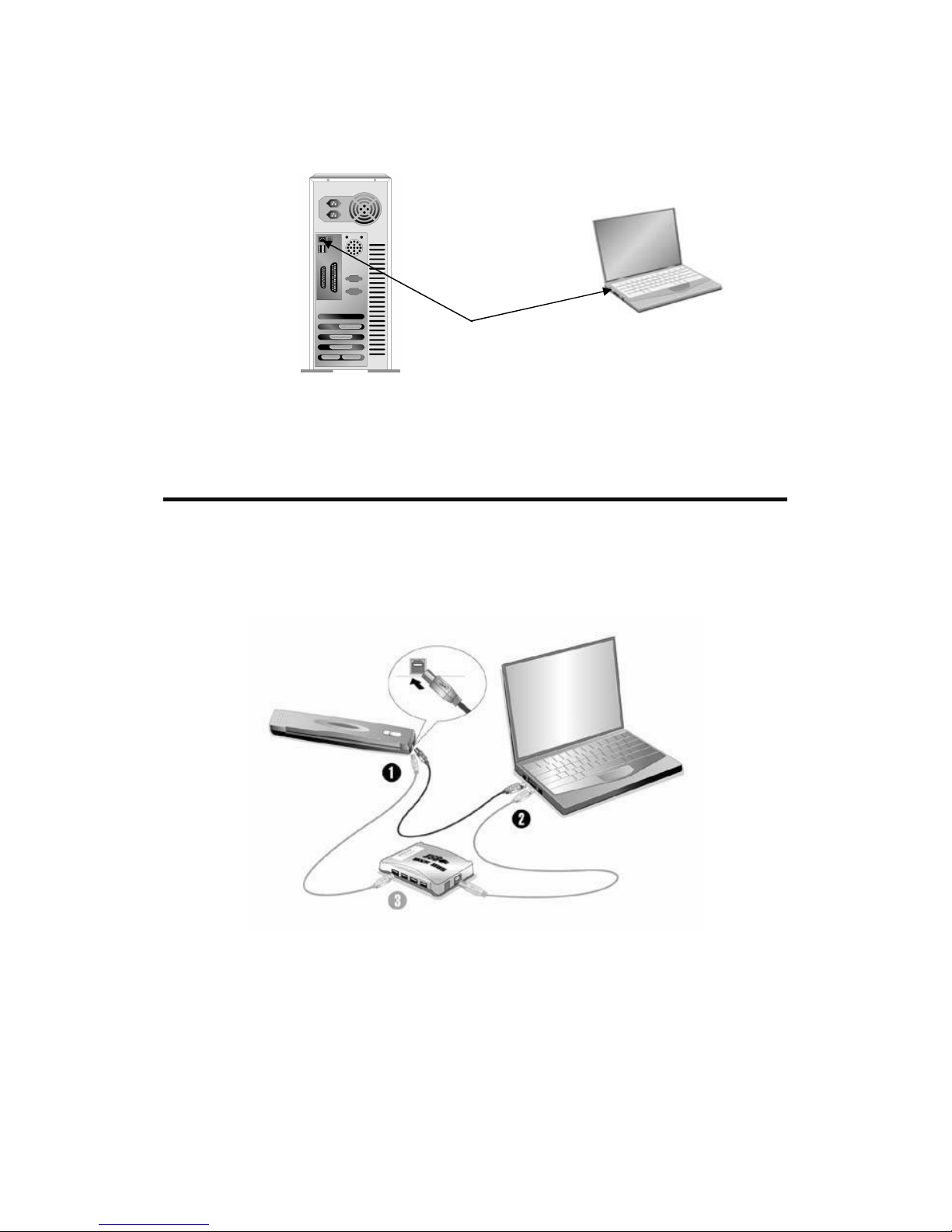

This scanner connects to your computer through the Universal Serial Bus (USB),
which supports hot Plug and Play. To determine whether your computer is USB-
capable, you must check the rear of your PC to locate a USB jack that looks the same
as the one pictured below. Note that on some computers, the USB port at the rear of
the computer may be occupied and additional ports may be found on the monitor or
keyboard. If you are having trouble in locating the USB port on your computer, please
refer to the hardware manual that came with your computer.

7
Upon examination, you should find one or two rectangular USB ports, which
usually appear as shown below.
If you don’t find such USB ports on your computer, then you need to purchase a
certified USB interface card to add USB capabilities to your computer.
Installing and Setting up the Scanner
Please follow the step-by-step procedures described below to install the
AgfaPhoto scanner.
S
St te ep p 1 1. . C Co on nn ne ec ct ti in ng g t th he e S Sc ca an nn ne er r t to o Y Yo ou ur r C Co om mp pu ut te er r
1. Plug the square end of the included USB cable to the USB port of the scanner.
2. Plug the rectangular end of the USB cable to the USB port on the back of your
computer.
Note: If there is another USB device connected to the computer, connect the
scanner to an available USB port.
USB Connector(s)
