AGI Retro Rocket User manual
Read this manual before using product. Failure to
follow instructions and safety precautions can
result in serious injury, death, or property
damage. Keep manual for future reference.
Part Number: RNF-2666 R0
Revised: June 2023
Original Instructions
Retro Rocket
Aeration System
Installation Manual
This manual applies to:
GRS–7004 / GRS-7006
2 RNF-2666 R0
RETRO ROCKET – AERATION SYSTEM
RETRO ROCKET – AERATION SYSTEM
RNF-2666 R0 3
CONTENTS
1. Introduction ............................................................................................................................................ 4
2. Safety....................................................................................................................................................... 5
2.1 Safety Alert Symbol and Signal Words...................................................................................... 5
2.2 General Safety Information....................................................................................................... 5
2.3 Personal Protective Equipment................................................................................................. 5
2.4 Safety Equipment ...................................................................................................................... 6
3. Installation .............................................................................................................................................. 7
3.1 Installation Safety...................................................................................................................... 7
3.2 Check Shipment......................................................................................................................... 7
3.3 Required Tools........................................................................................................................... 7
3.4 Location Requirements ............................................................................................................. 7
3.5 Methods of Installation ............................................................................................................. 8
3.5.1 Hopper Bins with Small Access Opening ................................................................... 8
3.5.2 Hopper Bins with Large Access Opening ................................................................. 10
3.6 Attach the Weatherstripping on the Panels ........................................................................... 11
3.7 Unfold the Retro Rocket ......................................................................................................... 13
3.8 Attach the Retro Rocket.......................................................................................................... 15
3.9 Attach the Air Inlet.................................................................................................................. 15
3.10 Attach the Duct Elbow .......................................................................................................... 16
4. Specifications ........................................................................................................................................ 18
5. Appendix ............................................................................................................................................... 19
6. Warranty ............................................................................................................................................... 21
4 RNF-2666 R0
1. Introduction
Before assembling, please read this manual. Familiarize yourself with the process and the necessary
precautions for efficient and safe assembly of this AGI Retro Rocket.
Everyone present at the assembly site is required to be familiar with all safety precautions.
Keep this manual available for frequent reference and review it with new personnel. Call your local
distributor or dealer if you need assistance or additional information.
General Description
The AGI Retro Rocket is an excellent addition to any new or existing hopper bottom bin that does not
presently include an aeration system. It can allow you to harvest in damp conditions, maintain stored
grain in peak condition, and reduce the likelihood of mould growth and insect infestations.
Key features of AGI Retro Rocket:
• Fits through existing bin openings that are at least 19” square, 22” diameter, or 18.5” x 16” oval
openings
• Reduces grain drying time and increase fan efficiency by directing air into the core of the bin.
• Unique folding design allows it to be installed through an opening much smaller than itself.
• Inserts through smaller openings that are at least 16” round or 12” square by removing four bolts
and inserting the rocket in sections.
• Can be assembled and unfolded into working position once inside the bin.
With proper care during and after installation, your aeration system will provide you with many years
of trouble-free service.
Intended Use
The rocket is intended for use as listed below and described throughout this manual. Use in any other
way is considered contrary to the intended use and is not covered by the warranty.
The Retro Rocket may be safely used with grains of all types, do not use with fertilizer.
1. INTRODUCTION RETRO ROCKET – AERATION SYSTEM
RNF-2666 R0 5
2. Safety
2.1. Safety Alert Symbol and Signal Words
This safety alert symbol indicates important safety messages in this manual. When you see
this symbol, be alert to the possibility of injury or death, carefully read the message that
follows, and inform others.
Signal Words: Note the use of the signal words DANGER,WARNING,CAUTION, and NOTICE with the safety
messages. The appropriate signal word for each message has been selected using the definitions below as a
guideline.
Indicates an imminently hazardous situation that, if not avoided, will result in serious injury or
death.
Indicates a hazardous situation that, if not avoided, could result in serious injury or death.
Indicates a hazardous situation that, if not avoided, may result in minor or moderate injury.
Indicates a potentially hazardous situation that, if not avoided, may result in property damage.
2.2. General Safety Information
Read and understand all safety instructions, safety decals, and manuals and follow them when assembling the
equipment.
• Only experienced personnel who are familiar with this type of assembly and
installation should perform this work. Untrained assemblers/installers expose
themselves and bystanders to possible serious injury or death.
• Do not modify the rocket in any way or deviate from the instructions in this manual without written
permission from the manufacturer. Unauthorized modification or methods may impair the function and/or
safety. Any unauthorized modification will void the warranty.
• Follow a health and safety program for your worksite. Contact your local occupational health and safety
organization for information.
• Contact your local representative or AGI if you need assistance or additional information.
• Always follow applicable local codes and regulations.
2.3. Personal Protective Equipment
The following Personal Protective Equipment (PPE) should be worn when assembling the equipment.
Work Gloves
• Wear work gloves to protect your hands from sharp and rough edges.
RETRO ROCKET – AERATION SYSTEM 2. SAFETY
6 RNF-2666 R0
Safety Glasses
• Wear safety glasses at all times to protect eyes from debris.
Steel-Toe Boots
• Wear steel-toe boots to protect feet from falling debris.
Hard Hat
• Wear a hard hat to help protect your head.
2.4. Safety Equipment
The following safety equipment should be kept on site.
Fire Extinguisher
• Provide a fire extinguisher for use in case of an accident. Store in a highly visible and
accessible place.
First-Aid Kit
• Have a properly-stocked first-aid kit available for use should the need arise, and
know how to use it.
2. SAFETY RETRO ROCKET – AERATION SYSTEM
RNF-2666 R0 7
3. Installation
Before continuing, ensure you have completely read and understood this manual’s
Safety section, in addition to the safety information in the section(s) below.
3.1. Installation Safety
• Do not take chances with safety. The components can be large, heavy, and hard to handle.
Always use the proper tools, rated lifting equipment, and lifting points for the job.
• Always have two or more people installing the rocket.
• Make sure you have sufficient lighting for the work area.
• Tighten all fasteners according to their specifications. Do not replace or substitute bolts,
nuts, or other hardware that is of lesser quality than the hardware supplied by the
manufacturer.
3.2. Check Shipment
Inspect the rocket and accessories on receipt to ensure that all items have arrived and that none are damaged.
A packing list is included in every crate for reference.
Report missing or damaged parts immediately to ensure that proper credit is received from AGI or your
distributor/dealer, and to ensure that any missing parts can be shipped quickly to avoid holding up the
installation.
Important
Do not use damaged components.
3.3. Required Tools
• SAE wrench and rachet set (3/8”, 7/16”, 1/2”, 9/16”,
1–1/8”)
• Level
• Electric drill with drill bits (3/16”, 7/16”, 13/32”) • Tin snips
• Marker • Silicone
• Torch or grinder with cutting wheel • Winching device with minimum load rating of 700
lbs
• Impact driver or drill with 3/8” driver bit
3.4. Location Requirements
All models of the AGI Retro Rocket are designed to be installed in the center of hopper-bottom bins with the
rocket center aligned with the center of hopper cone. To ensure structural integrity and proper airflow, the bin
must be level and the rocket installed completely vertical.
RETRO ROCKET – AERATION SYSTEM 3. INSTALLATION
8 RNF-2666 R0
AGI Retro Rocket are not to be used on hopper slopes more than 40° from the horizontal. For
hoppers with slopes steeper than 40°, consult AGI before installation.
3.5. Methods of Installation
The two installation methods are covered in the following sections. The correct method to use depends on the
opening size of the bin. Review both methods and confirm which will work best for your application. Also note
that with the right lifting equipment, the Retro Rocket could also be inserted into the bin through the filler cap
or inspection hatch.
To prevent equipment damage:
• Check the bin manual to ensure bin roof is capable of holding at least 700 lbs concentrated
load from the filler cap.
• If the bin roof is not capable of holding at least 700 lbs, use lifting apparatus rated to
withstand the intended load.
3.5.1 Hopper Bins with Small Access Opening
Required minimum opening:
• Square: 16” to 18.5”
• Round: 16” to 22”
1. Lay the rocket with the louvered side facing down.
2. Remove the banding around the rocket.
3. Remove the bolts from the hinges located between the 2nd and 3rd panels.
4. Remove the bolts from the hinges located between the 4th and 5th panels.
5. Winch the panels 1 and 2 off together and place inside the bin through the bin opening.
6. Lay the panels on the hopper cone with the side with hinge facing upward and leg pointing downward.
7. Winch the panels 3 and 4 off together and place inside the bin through the bin opening.
8. Align the hinge holes of panels 2 and 3 and place the hinge bolts back in place.
9. Winch the panels 5 and 6 off together and place inside the bin through the bin opening.
10. Align the hinge holes of panels 4 and 5 and replace the hinge bolts.
3. INSTALLATION RETRO ROCKET – AERATION SYSTEM
10 RNF-2666 R0
3.5.2 Hopper Bins with Large Access Opening
Required minimum opening:
• Square: 18.5”
• Round: 22”
• Oval or rectangle: 16” x 19”
1. Attach a lifting cable onto the lugs located on the 2nd and 5th panels.
2. Position the folded up rocket into the opening of the hopper cone.
3. Winch and guide the rocket through the bin opening.
4. Remove the banding around the rocket.

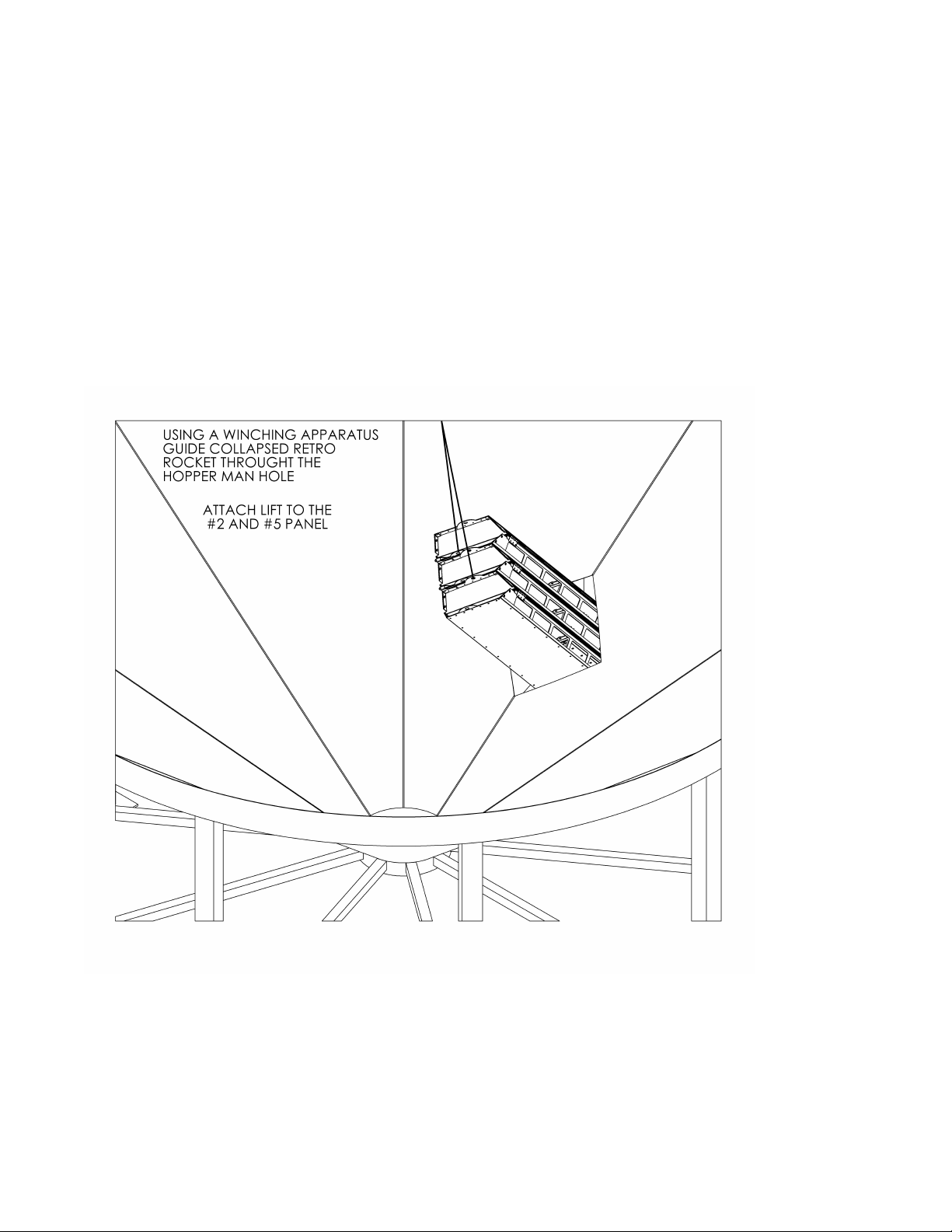

Figure 3. Panels through the Bin Opening
3. INSTALLATION RETRO ROCKET – AERATION SYSTEM
RNF-2666 R0 11

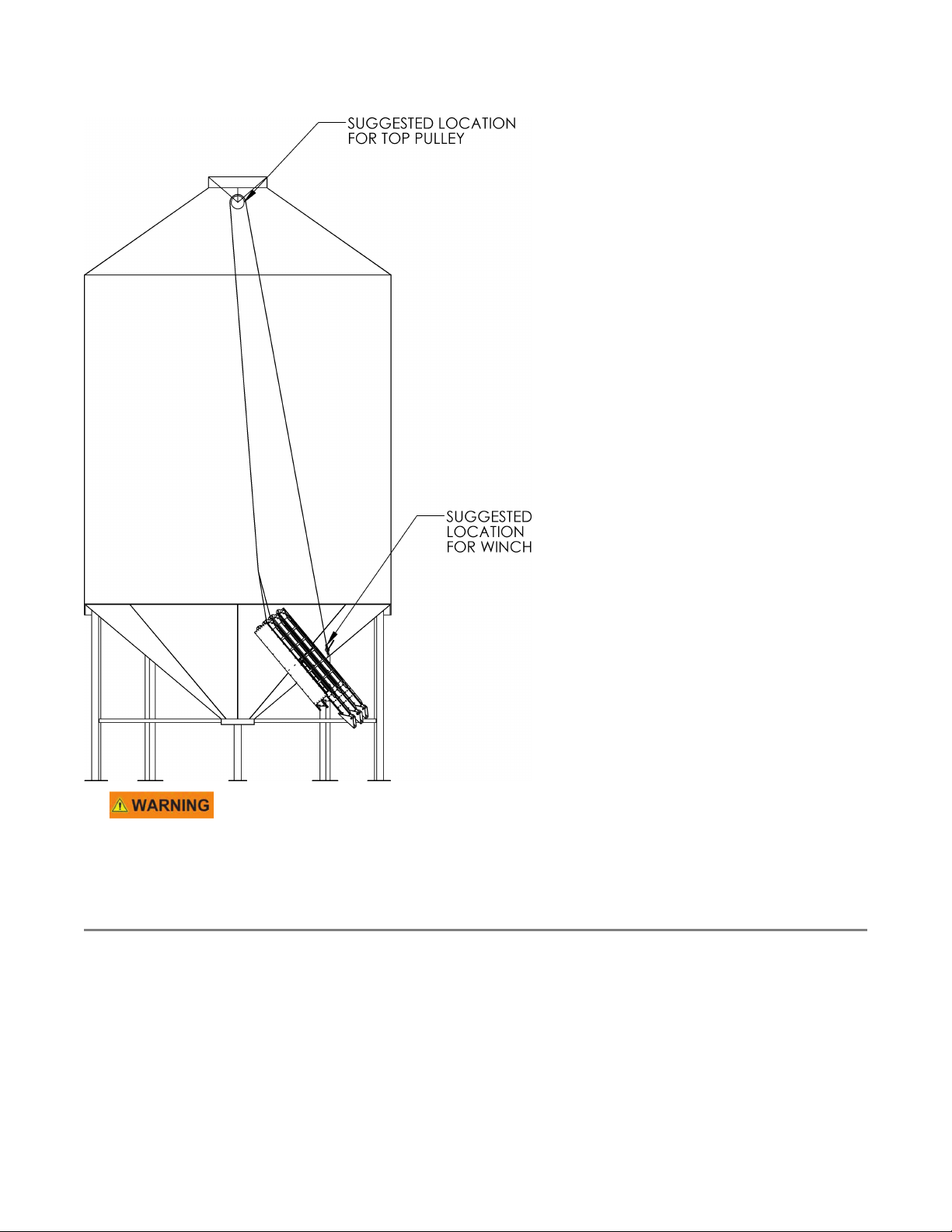

Figure 4. Lifting Panels inside the Bin
To prevent personal injury or damage to equipment:
• Do not drop the panels
• Use a winching device with minimum load rating of 700lbs
3.6. Attach the Weatherstripping on the Panels
Note
Weatherstripping can be applied prior to lifting rocket into the bin. If this is done, care must be taken
not to damage weatherstripping during the lifting process. Visual inspection of the weatherstripping is
advised after the rocket is in the bin.
1. Cut the provided weatherstripping to length.
2. Attach the weatherstripping as shown in the following figures.
RETRO ROCKET – AERATION SYSTEM 3. INSTALLATION
RNF-2666 R0 13

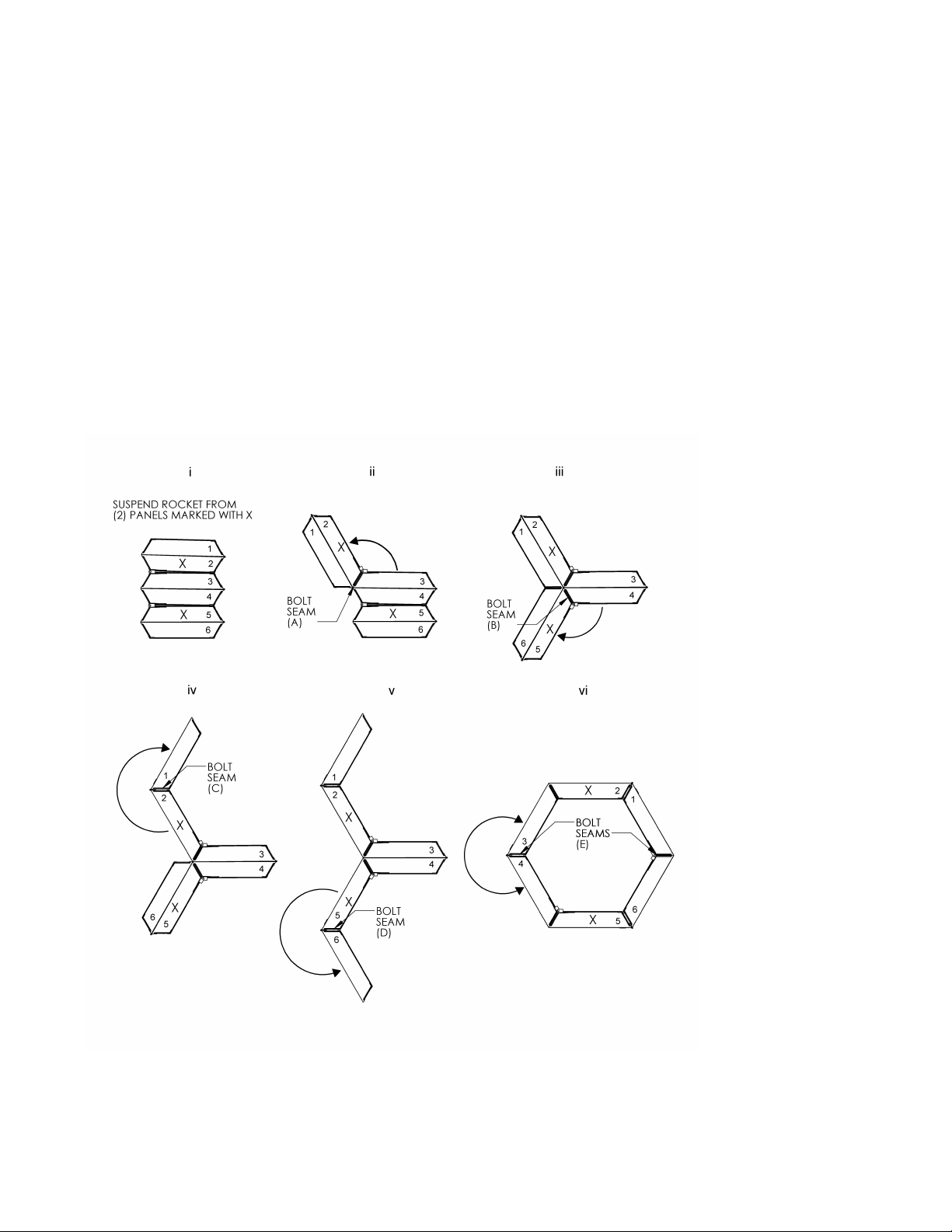

3.7. Unfold the Retro Rocket
Below is a suggested sequence to unfold the rocket.
Pinching Hazard
• Hold swinging sections firmly to prevent loss of grip and to prevent panels closing together
too quickly.
• Do not place fingers in between panels that hinge together.
1. If not still attached, connect a lifting cable onto the lugs located on the 2nd and 5th panels.
Note
Sections can be fastened together with a clamp, wire or other means to prevent panels from
swinging outward during lifting.
2. Winch the rocket with a lifting device until it is 30” to 36” off the bottom of the hopper cone.
Figure 7. Suspended Panels inside the Bin
Note
For Step 3 on page 13 to Step 13 on page 14:
• use punch to help align holes when needed
• install hardware hand tight only to allow adjustment
3. Swing the panels 1 and 2 together until the edge surfaces of panels 2 and 3 are in contact. See Figure 8.
RETRO ROCKET – AERATION SYSTEM 3. INSTALLATION
14 RNF-2666 R0
4. Insert a 5/16” x 1” bolt through the top flanges (A) of panels 2 and 3.
5. Swing the panels 5 and 6 together until the edge surfaces of panels 4 and 5 are in contact.
6. Insert a 5/16” x 1” bolt through the top flanges (B) of panels 4 and 5.
7. Unfold panel 1 until its edge is resting on panel 2.
8. Insert a 5/16” x 1” bolt through the top flanges (C) of panels 1 and 2.
9. Unfold panel 6 until its edge is resting on panel 5.
10. Insert a 5/16” x 1” bolt through the top flanges (D) of panels 5 and 6.
11. Connect the top flanges between panels 3 and 4 and panels 1 and 6.
12. Connect all the remaining top flanges using 5/16” x 1” bolts.
13. Fasten all 3/8” x 1” bolts through leg halves.
14. Tighten all top flange and leg bolts.
Figure 8. Unfolding the Panels
3. INSTALLATION RETRO ROCKET – AERATION SYSTEM
RNF-2666 R0 15
3.8. Attach the Retro Rocket
1. Orient the inlet opening towards the desired fan location.
2. Lower the rocket assembly while ensuring that it is centered over the discharge at the bottom cone and
aligned vertically.
Note
Vertical alignment is critical to structural integrity of the rocket. Use level or plumb bob on all sides
to check alignment.
3. Mark the bolt holes of the rocket feet on the hopper.
4. Lift the rocket up and drill hole the locations with a 13/32” drill bit.
5. Lower the rocket down onto the hopper and loosely install 3/8” x 1–1/4” bolts at the two feet opposite the
inlet.
Note
Leave the bolts for the foot closest to the inlet opening until the straight duct is attached.
3.9. Attach the Air Inlet
1. Insert the top flange of the air inlet under the louvered sheet while the side flanges are resting along the
sides of the rocket inlet opening.
2. Loosely install 1/4” x 3/4” bolts on both sides and bottom of the air inlet.
3. Fasten the air inlet at top using four #14 x 3/4” tek screws.
4. Tighten bolts at the sides and bottom of the air inlet.
5. Insert the straight duct to the air inlet.
Note
With the winch cable still attached and 1–2’ of slack in the cable, tip the rocket back until the
straight duct can be slid into the air inlet opening. Once the straight duct is in place, lower the
rocket back to a vertical position.
Pinching hazard
When lowering rocket, keep hands and body clear of air inlet and rocket foot.
6. Mark the outer edge of the straight duct on the hopper cone.
7. Remove the straight duct by tipping the rocket back again.
8. Check the size of the inlet opening outline before cutting. The hole should not be less than 8–7/8” x 13–7/8”
and not more than 9” x 14”.
9. Cut the inlet opening using torch or cutting wheel.
Note
Cut inside the marked line to keep the opening as clean as possible.
Grain Dust Explosion Hazard
When cutting air inlet opening, keep work area free of dust and debris.
10. Reinstall the straight duct into the air inlet. The straight duct should now fit through the cut hole. If not,
enlarge hole as required.
RETRO ROCKET – AERATION SYSTEM 3. INSTALLATION
16 RNF-2666 R0
11. Ensure the straight duct is aligned with the cut hole.
12. Attach the straight duct to the air inlet using twelve #14 x 1” sheet metal screws (four on sides, two on top
and bottom).
13. Trim off any protruding portion of the straight duct outside the exterior hopper wall.
14. Loosely fasten the last bolt in the rocket foot by the inlet.
15. Check the vertical alignment of the rocket, adjust as required.
16. Tighten the bolts on the rocket’s feet.
3.10. Attach the Duct Elbow
1. Place the angle iron frame over the elbow on the uncapped (short) side of the elbow with the flat side of
frame facing the opening.
2. Insert the duct elbow through the cut hole and into the straight duct until there is an overlap of at least
1–1/2”. Hold the elbow at this position.
Note
Ensure straight duct and duct elbow (short end) are aligned and the long end of the elbow is parallel
to the ground.
3. Move the elbow angle frame up until it is flush with the hopper cone.
4. Mark the locations of the bolt holes:
• 12 holes through the elbow angle frame and hopper cone
• 8 holes though the elbow angle frame and duct elbow
5. Remove the duct elbow and angle frame.
6. Pre-drill the marked holes with 3/16” drill bit and drill out using a 7/16” drill bit.
7. Attach the elbow angle frame to the duct elbow using eight 3/8” x 1–1/4” bolts and 3/8” nuts.
8. Insert the assembled duct elbow and elbow angle frame into the hopper cone opening.
9. Secure the elbow angle frame to the hopper cone using twelve 3/8” x 1–1/4” bolts and 3/8” nuts.
10. Attach the duct elbow to the straight duct using twelve #14 x 1” sheet metal screws. Use four screws on
each side and two screws on the top and bottom of the duct.
3. INSTALLATION RETRO ROCKET – AERATION SYSTEM
RNF-2666 R0 19
5. Appendix
5.1. Aeration System Parts List
GRS-7004
Item Part Number Description Quantity
1Call for Parts 4’ Rocket body 1
2 RZF-7294 9” x 14” Inlet 1
3 RZA-7232 15–1/8” Rectangular Duct 1
4 RGA-5032 9” x 14” Elbow Angle Frame 1
5 RZA-7230 9” x 14” Elbow Assembly (includes Weather Cap) 1
6 GGA-8618 9” x 14” Weather Cap 1
7 RBF-2362 Foot, Retro Rocket 3
8 RNF-7295 Hardware Bag, Retro Rocket 1
RETRO ROCKET – AERATION SYSTEM 5. APPENDIX
20 RNF-2666 R0
GRS-7006
Item Part Number Description Quantity
1Call for Parts 6’ Rocket body 1
2 RZF-7294 9” x 14” Inlet 1
3 RZA-7232 15–1/8” Rectangular Duct 1
4 RGA-5032 9” x 14” Elbow Angle Frame 1
5 RZA-7230 9” x 14” Elbow Assembly (includes Weather Cap) 1
6 GGA-8618 9” x 14” Weather Cap 1
7 RBF-2362 Foot, Retro Rocket 3
8 RNF-7295 Hardware Bag, Retro Rocket 1
5. APPENDIX RETRO ROCKET – AERATION SYSTEM
This manual suits for next models
2
Table of contents
Other AGI Lawn And Garden Equipment manuals
