Agria 3600 Series Quick guide

Translation of the original Operating In-
structions
Two-wheel tractor
agria 3600
Petrol engine: Honda
3600 075; 3600 325
Before commissioning please read the operating in-
structions and note the safety and warning information!
Operating Instructions No. 998466GB 04.18

2 agria 3600
Nameplate
Please enter here:
Machine art. no.: .............................................................
ID/machine no.: ..............................................................
Engine type: ...................................................................
Engine no.: .....................................................................
Date of purchase: ...........................................................
For nameplate see page 4, Fig. A/16
Petrol engine: For engine no. see page 75, fig. C/6
Please provide this information for each spare parts order,
to prevent errors in delivery.
Only use genuine Agria spare parts!
The technical data, illustrations and dimensions provided in
these operating instructions are non-binding. No claims may
be derived from them. We reserve the right to make im-
provements without amending this manual.
Scope of delivery
(please check):
•Two-wheel tractor, base machine
•Steering bar
•Switching rods
•Wheel flanges, only 3600 (2+2)
•Oil dipstick
•Tool kit
•Original Operating Instructions
•Original engine operating instructions
•Machine identity card
(in envelope on outside of box)
Please complete the machine identity card and re-
turn it to Agria-Werke.

Two-wheel tractor agria 3600 3
Symbols
Warning symbol, refer-
ence to danger point
Attention
Important information
Fuel
Choke
Engine
Engine start
Engine stop
Engine speed
Engine oil level
Air filter
Clutch
Wheel drive
forward
reverse
Fast
Slow
Transmission oil level
PTO shaft
Closed (locked)
Open (unlocked)
Visual inspection
Attachment point for re-
covery, lashing, towing
Wear protective gloves
Wear safety shoes
Fan cooling
Oil lubrication point
Grease lubrication point
Maintenance interval
Before each start-up
After each cleaning (in
particularly with a high-
pressure cleaner)
Annually
See separate engine op-
erating instructions
-agria-Service -= contact your agria
service centre

4 agria 3600
Designation of parts

Two-wheel tractor agria 3600 5
Fig. A
1 Fuel tank
2 Fuel tank cap
3 Toolbox
4 Lower bar
5 Handlebars
6 Latch for lateral and swivel
movements of the steering bar
7 Plug
8 Coupling jaw
9 Lynch pin
10 Latch for implement attachment
11 Reverse locking pin
12 Implement connection with
integrated PTO shaft
13 Ballast carrier and engine safe-
ty bar
14 Engine
15 Gearbox oil filler opening and
dipstick
16 Nameplate
(Ident/machine no.)
(right, in driving direction)
17 Single-wheel brake
18 Wheel flange
19 Transmission oil drain plug
Fig. B
1 Safety lever
2 Notch lever for steering bar
height adjustment
3 Speed control lever
4 Engine stop switch
5 Manual clutch lever
6 Shifting rod for PTO shaft with
rear implement attachment
Gear shifting rod with front im-
plement attachment
7 Gear shifting rod with rear im-
plement attachment
Shifting rod for PTO shaft with
front implement attachment
8 Overdrive shifting rod
9 Stop pawl for wheel switching
10 Hand lever for single-wheel
brake left with rear implement
attachment
Hand lever for single-wheel
brake right with front imple-
ment attachment
11 Hand lever for single-wheel
brake right with rear implement
attachment
Hand lever for single-wheel
brake left with front implement
attachment
12 Latch for lateral and swivel
movements of the steering bar

6 Two-wheel tractor agria 3600
Contents
Nameplate....................................................................................................2
Scope of delivery..........................................................................................2
Symbols...............................................................................................3
Designation of parts...........................................................................4
Unpacking and assembly instructions.............................................8
Version 3600 (2+2): Rigid hexagonal wheel shaft........................................9
Version 3600 (3+2): Steering brake............................................................10
1Safety Instructions ......................................................................11
Intended use...............................................................................................11
2Technical Data .............................................................................18
Machine......................................................................................................18
Petrol engine..............................................................................................21
3Devices and Operating Elements...............................................22
Engine........................................................................................................22
Speed regulating lever................................................................................23
Safety circuit...............................................................................................23
Clutch.........................................................................................................24
Engine stop switch......................................................................................24
Gearbox......................................................................................................25
Steering bar................................................................................................29
Swivel the steering bar through 180°..........................................................30
Driving wheels............................................................................................ 33
Installing and removing implements ........................................................... 36
Attachment points.......................................................................................39
4Commissioning and Operation ..................................................40
Commissioning...........................................................................................40
Before starting the engine .......................................................................... 42
Danger zone...............................................................................................44
Starting the petrol engine ...........................................................................45
Stopping the petrol engine..........................................................................46
Working ...................................................................................................... 47
Working on slopes......................................................................................49
Safety instructions for handling ..................................................................51
5Maintenance and Repair .............................................................52

Two-wheel tractor agria 3600 7
Petrol engine..............................................................................................53
Machine......................................................................................................57
Labels.........................................................................................................60
General.......................................................................................................62
Cleaning.....................................................................................................62
Storage.......................................................................................................63
6Troubleshooting and Remedies.................................................64
Petrol engine..............................................................................................64
Machine......................................................................................................66
7Decommissioning / Disposal......................................................67
Inspection and Maintenance Overview...........................................69
Electric diagram of petrol engine....................................................71
Lubrication plan................................................................................72
Paints, Wear parts.............................................................................73
Declaration of Conformity................................................................74
Designation of parts Fig. C..............................................................75

8 Two-wheel tractor agria 3600
Unpacking and assembly instructions
Unpacking
Open the top lid of the cardboard box. Cut the
cardboard box at all four edges, and fold down
the cardboard walls.
Packaging should be recycled in an environmen-
tally friendly manner.
Assembly
Although handlebars with lower bar and base
engin
e are not assembled, they are connected
with each other via the Bowden cable.
Unpack both modules. Rotate the steering bar
through 180° (put it in two-
wheel tractor position)
and install it into the steering tower:
Unscrew grub screw (3) and hexagonal nut
(locknut) until you can insert the steering bar (1)
into the steering tower (2).
Insert the steering bar.
Route the Bowden cable
s as shown in the figure
in accordance with the version 3600 (2+2) or
(3+2) (the Bowden cables for the clutch at the
left in driving direction).
Take note of the bar turning lock (5).
Screw in the grub screw until you can feel a
slight resistance. Turn the grub screw back by
1/4 revolution and lock it with the hexagonal nut.
•Swivelling the steering bar must be easy.
Install the shifting rods. Insert the shifting rods
for gear and PTO shifting into the joint elements
at the shift levers at the gear side, a
nd secure
them with cotter pins .
Check the Bowden cables to ensure that they
are neither kinked nor pinched.
Install the front ballast at the engine safety bar.

Two-wheel tractor agria 3600 9
The engine is filled with gear oil when it is deliv-
ered. To prevent oil from leaking during the
transport, a
plug is installed instead of the oil
dipstick. Replace the plug with the oil dipstick.
See figure.
The machine tyres are not contained in the cardboard box. They are
delivered separately. Combine only tyres that are approved in the Agria sales
list.
Version 3600 (2+2): Rigid hexagonal wheel shaft
•Installing the driving wheels:
- 4.00-8: Install the driving wheels with wheel bolts and washers to the wheel flang-
es. Slip them on the hexagonal wheel shaft such that the arrow-shaped tyre pattern
points in the driving direction. Insert the lynch pin through the wheel hub and shaft
bore, and close the lynch pin.
- 4.00-10: Screw the wheel adapter flanges on the driving wheels. Install the driving
wheels with the wheel bolts and washers on the wheel flanges. Slip them on the
hexagonal wheel shaft such that the arrow-shaped tyre pattern points in the driving
direction. Insert the lynch pin through the wheel hub and shaft bore, and close the
lynch pins.

10 Two-wheel tractor agria 3600

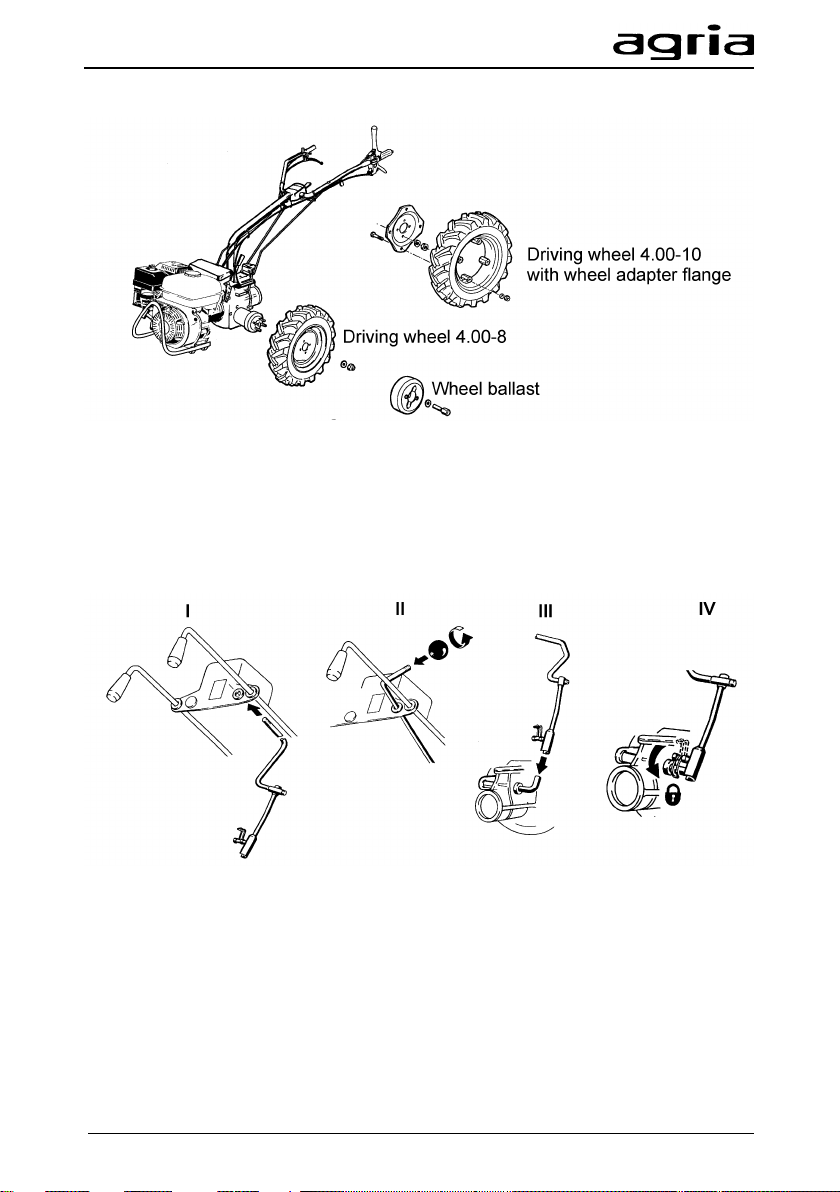

Version 3600 (3+2): Steering brake
•Installing the driving wheels:
- 4.00-8: Install the driving wheels with the wheel nuts and washers on the wheel
flanges such that the arrow-shaped tyre pattern points in the driving direction.
- 4.00-10: Screw the wheel adapter flanges on the driving wheels. Next, install the
driving wheels with the wheel nuts and washers on the wheel flanges such that the
arrow-shaped tyre pattern points in the driving direction.
•Installing the overdrive shifting rod:
Insert the shifting rod from below into the shifting rod guide (I). Screw on the handle
ball (II), plug the shifting rod on the gearshift lever (III) and secure it with a lynch pin
(IV).
Performing initial startup. See page 40.

1
Safety Instructions
Two-wheel tractor agria 3600 11
1 Safety Instructions
Before commissioning, please read the
operating instructions and note:
Warning
symbol
This symbol has been used throughout
these operating instructions to highlight
all sections relevant to your safety. Also
pass on all safety instructions to other
users.
Intended use
The machine meets the current state of
the art and complies with the applicable
safety regulations at the time of market-
ing within the context of the approved
use. In terms of design it was not possi-
ble to eliminate either the foreseeable
misuse or the remaining risk without
limiting the functionality in accordance
with the regulations.
The agria 3600 two-wheel tractor is
a manually guided, self-propelled, sin-
gle-axle machine which can pull imple-
ments that are approved in the Agria
sales list. Utilization for soil cultivation,
winter service, sweeping, mowing grass
and meadows (intended use).
Any other use is considered to be con-
trary to the intended purpose. The man-
ufacturer is not liable for any damages
resulting from such use and the risk is
entirely the user's own.
Intended use also includes observance
of the operating, servicing and mainte-
nance conditions stipulated by the man-
ufacturer.
Unauthorized changes to the machine,
especially to the safety equipment, may
lead to increased levels of danger, which
would rule out any manufacturer liability
for resulting damage.
When using the machine on public roads
– and when being transported – the
national road traffic regulations of the
relevant country must be complied with
(marking, lighting, etc.).
ATTENTION: Never use the machine on
public roads with a trailer. The approval
requirements are not fulfilled.
A trailer for operation with the two-wheel
tractor is not included in the Agria sales
program. An expertise to obtain an indi-
vidual homologation (to German §21
StVZO) for the two-wheel tractor is not
available from the manufacturer.
Any unauthorized combination of the
two-wheel tractor with a trailer excludes
any liability of Agria.
The machine is intended to be used in
commercial and in private applications.
The machine must be operated as di-
rected in the operating instructions.
Other operators must given instruction if
required.
Any improper use or execution of activi-
ties at the machine not described in
these instructions constitutes unauthor-
ized misuse and is not within the statuto-
ry limits for liability of the manufacturer.
Improper use of the machine can en-
danger people and may result in dam-
age to the machine or other property of
the operator. It can also impair the func-
tionality of the machine.
Reasonable foreseeable misuse
Foreseeable misuse and improper han-
dling include inter alia:
•Removal or manipulation of protec-
tive and safety devices
•Use of non-approved add-on devic-
es
•Failure to observe maintenance
intervals
•Omitting measurements and tests
for the early detection of damage
•Failure to replace wearing parts

1
Safety Instructions
12 Two-wheel tractor agria 3600
•Incorrectly executed maintenance or
repair work
•Improper use.
•Working with defective electrical or
mechanical devices
•Transport and manoeuvring move-
ments with add-on devices switched
on
General safety and accident
prevention regulations
Basic rule:
Please observe the relevant accident
prevention regulations as well as the
generally recognized rules pertaining to
safety, occupational health and traffic
laws.
The use of public transportation routes is
subject to the Road Traffic Act in its
latest version.
Please check the traffic and operating
safety of the machine before each com-
missioning!
The machine may only be used, ser-
viced and repaired by persons who are
familiar with it and have been instructed
in the hazards involved.
Persons under the age of 16 must not
operate the machine!
Only work with good visibility and in
good lighting conditions.
Operator clothing must fit tightly. Wear
safety shoes!
The affixed warning and information
signs provide important information for
safe operation; please observe them for
your own safety!
The engine must be switched off for
transport on motor vehicles or trailers
outside the working area.
Be careful with rotating tools - keep a
safe distance!
Be careful with coasting tools. Before
you start working on them, wait until they
have come to a complete stop!
There is a risk of crushing and shearing
on power-operated parts!
Riding on the implement during opera-
tion is not permitted.
Driving behaviour, steering – and possi-
bly – braking capability and tipping be-
haviour are influenced by attached or
suspended devices and loads. Therefore
ensure adequate steering and braking
capability.
Match the operating speed to the condi-
tions.
Do not adjust the setting of the engine
speed governor. A high speed increases
the risk of accidents.
Working area and danger zone
The working area is the entire area to be
worked on. The user is responsible for
third parties in the working area.
Staying in the danger zone of the ma-
chine is not permitted (see page 44).
Check the work area before starting and
moving. Pay special attention to children
and animals.
Foreign objects are to be removed from
the area to be worked on prior to starting
work. Look out for additional foreign
objects while working and remove these
promptly.
For operation in enclosed areas, ensure
that a safety distance is kept from edges
to prevent damage to tools.
Operation and protective de-
vices
Before you start work
Familiarize yourself with the equipment
and operating elements and their func-
tions. Above all, learn how to turn the
engine off quickly and safely in an
emergency!

1
Safety Instructions
Two-wheel tractor agria 3600 13
Ensure that all protective devices are
mounted and properly adjusted!
If no add-on device is attached, the PTO
shaft must be switched off and covered
with the protective cap.
Suitable shoes must be worn depending
on the type of ground surface (vegeta-
tion, humidity ...), so that the operator
does not slip or fall.
Startup
Do not start the engine in closed rooms,
the exhaust fumes contain carbon mon-
oxide, which is very toxic if inhaled!
Before starting the engine, set all operat-
ing elements to neutral or idle position.
Do not step in front of the machine or
the add-on device to start the engine.
Do not use assist-starting liquids when
using electrical assist-starting devices
(jumper cable). Danger of explosion!
Operation
Never leave the operator's position at
the steering bar while working.
Never adjust operator bars while work is
in progress – risk of accident!
For all work with the device, especially
when turning, the machine operator
must maintain the distance from the
device shown by the bars.
Riding on the implement during opera-
tion or in transport is not permitted.
In the event of any clogging to the work
equipment or add-on device, the engine
must be stopped and the work equip-
ment or add-on device must be cleaned
with appropriate tools. There may be
tension in the drive train as a result of
the blockage, which is why you should
resolve the blockage carefully.
In the event of any damage to the ma-
chine or the add-on device, shut down
the engine immediately and have the
damage repaired.
In the event of any malfunctions to the
steering, stop and park the machine
immediately. Have the fault resolved
without delay.
If there is a risk of skidding down on
sloping terrain, then the machine must
be held by an attendant using a bar or a
rope. The attendant must be located
above the machine at a safe distance
from the work equipment.
Work across the slope along contour
lines if possible. If possible, turn the
machine in uphill direction.
The two-wheel tractor agria 3600 is not
equipped with a parking brake. To park
the machine on a slope, put it in 1st
gear.
Finishing work
Never leave the machine unsupervised
while the engine is running.
Switch the engine off before leaving the
machine. Then close the fuel tap(s) (if
present).
Protect the machine against unauthor-
ized use. In ignition key models, remove
the ignition key; otherwise, remove the
spark plug connector.
Implements
Attach an implement only when engine
and implement drive are switched off.
Prior to attaching and starting the im-
plement, read and observe the operating
instructions of the implement.
Use adequate tools and wear gloves to
replace implements and parts thereof.
Put the supporting equipment to the
proper position and ensure stability
when you attach or remove an imple-
ment.
Secure machine and implements against
rolling away (parking brake - if installed,
wheel chocks).
There is a risk of injuries when you at-
tach an implement. Take special care.

1
Safety Instructions
14 Two-wheel tractor agria 3600
Attach an implement in accordance with
the regulations and only at the specified
fixtures.
Always switch off the working tools dur-
ing a transport ride or when you drive to
adjacent working areas.
Secure machine and implement against
unauthorized use and rolling away when
you leave it. If necessary, install
transport or safety equipment, and put it
in protective position.
Hoeing equipment
When hoeing or tilling difficult soil (stony,
hard), there can be jerky movements of
the machine to the front and upwards.
Be particularly careful.
Ensure that the hoeing spur is properly
adjusted for hoeing.
Adjust the protective roofs for the hoeing
working depth such that only the parts of
the hoeing tools are not covered that
penetrate the soil.
Mowing equipment
When handled improperly, the sharp
edges of the mower knives can cause
significant injuries. Always wear protec-
tive gloves when you work on the
knives.
Ensure that the screwing movements
are away from the cutting edges when
you replace a knife and loosen or secure
the knife driver.
Wear protective goggles and protective
gloves when you grind the knives.
Ballast
Always attach ballast properly at the
attachment points provided.
Maintenance and cleaning
Only trained specialist personnel, who
can carry out professional maintenance
and repair, may carry out this work.
Do not carry out maintenance and clean-
ing with the engine running.
When working on the engine always
remove the ignition key (if present) and
also the spark plug connector in the
case of petrol engines.
Protective devices and tools that are
subject to wear and tear must be regu-
larly inspected and replaced if neces-
sary!
Damaged cutting tools must be re-
placed!
When replacing cutting tools use suita-
ble tools and protective gloves.
Do not carry out repair work such as
welding, grinding, drilling, etc. on struc-
tural, safety-relevant parts (such as
steering bar, tractor hitches, etc.)!
Keep the machine and attachments
clean, to avoid the risk of fire.
Regularly check nuts and bolts for tight-
ness and retighten if necessary.
After maintenance and cleaning, ensure
that the protective devices are re-
installed and properly adjusted!
Only use genuine Agria spare parts.
Carry out a functional and safety test
after completing the work.
Storage
Never store the machine in rooms with
open heating.
Do not park the machine in closed
rooms with fuel left in the tank. Fuel
vapours are hazardous.
Engine, fuel and oil
Do not run the engine in a closed room.
There is a high risk of poisoning! There-
fore always replace damaged exhaust
parts.

1
Safety Instructions
Two-wheel tractor agria 3600 15
Handle hot engine components with
caution!
The silencer and other engine parts get
very hot when the engine is running and
are still hot directly after the engine is
switched off. Keep a sufficient distance
from hot surfaces and keep children
away from the running engine.
Caution is needed when handling fuel.
These is an increased risk of fire. Never
handle fuel near open flames, ignitable
sparks or hot engine parts.
Do not refuel in closed rooms. No smok-
ing when refuelling!
Refuel only with the engine switched off
and cooled down.
Do not spill fuel. Use a suitable filling
device.
If you spilled fuel, push the machine
away from the spilled liquid before you
start the engine.
Make sure fuel is of the specified quality.
Store fuel in approved containers only.
Drain fuel only outdoors and into suita-
ble containers.
In the interests of safety, replace the fuel
tank cap and other tank caps if dam-
aged.
Store anti-corrosion agents and stabi-
lizer fluids out of the reach of children. If
sickness and vomiting occur, consult a
doctor immediately. In the event of con-
tact with the eyes rinse immediately with
plenty of water. Avoid inhaling vapours.
Read and observe enclosed instructions!
Before disposing of opened and seem-
ingly empty pressurized tins make sure
they are completely empty. Empty them
in a well-ventilated area safe from
sparks and flames. Dispose of tins as
hazardous waste if necessary.
When working with oil, fuel and grease
wear suitable protective gloves and use
skin protection agents if necessary.
Be careful when draining hot oil, danger
of burns.
Make sure the oil used is of the specified
quality. Store in approved containers
only.
Dispose of oil, fuel, grease and filters
separately and properly.
Tyres and tyre pressure
When you work on the wheels ensure
that the machine is parked securely and
is secured against rolling away.
Only skilled specialists are allowed to
repair tyres, using suitable installation
tools.
Check the tyre pressure at regular inter-
vals. There is a risk of explosion from
excessive tyre pressure.
Observe the required tyre pressure
when you use ballast.
During each service work, tighten the
drive wheel bolts and nuts and check the
tightening torque.
Electrical system
Persons with cardiac pacemakers are
not allowed to touch the energized parts
of the ignition system as long as the
engine is running.

1
Safety Instructions
16 Two-wheel tractor agria 3600
Description of the warning, prohibition and mandatory signs
Prior to starting up the machine, read and observe the operat-
ing instructions and safety instructions.
Prior to starting cleaning, maintenance or repair work, switch
off the engine and pull the sparking-plug connector.
Caution - risk of fire
- Refuel only with the engine switched off and cooled down.
- No naked flame.
The engine exhausts contain poisonous gas
- Keep your distance.
Never run the engine in a closed room.
Handle hot engine components with caution!
Keep sufficient distance to hot surfaces.
Keep a safe distance to the mower knives when the engine is
running!
Be careful of catapulted parts, particularly on stony ground.
Keep a safe distance when the engine is running.
Remove foreign objects from the working area.
Keep a safe distance from the hoeing tools when the engine is
running!
Never work without protective devices! Prior to starting move
the protective devices to protective position.
Do not touch any moving machine parts. Wait until they are at
a complete standstill.
When working with the machine wear individual hearing pro-
tection.
Wear safety shoes.
Check the engine oil level at least every 8 operating hours.

Two-wheel tractor agria 3600 17

2
Technical Data
18 Two-wheel tractor agria 3600
2 Technical Data
Machine
Engine: ........................................................................................................... Honda
Clutch: ...................................................................................... Dry multidisc clutch
Gearbox: .......................................................................... Toothed manual gearbox
Version 3600 (2+2): ................................................... 2 forward and 2 reverse gears
Version 3600 (3+2): ................................................... 3 forward and 2 reverse gears
Wheel shifting and single-wheel brake at both sides
Driving speeds [km/h]:
Tyres
Rear-mounted attachment Front-mounted at-
tachment
Gear Gear
1st 2nd 3rd
only with
(3+2)
1st 2nd
4.00-8 forward 1.3 2.4 7.0 2.1 3.9
4.00-8 reverse 2.1 3.9 1.3 2.4
4.00-10 forward 1.5 2.7 7.8 2.5 4.1
4.00-10 reverse 2.5 4.1 1.5 2.7
Gear oil: .......................................................... Oil filling volume approximately 1.5 l
Gear oil SAE 90 – API - GL5 (e.g. BP Energear Hypo)
PTO shaft: .................................................. 1028 min-1, at engine speed 3600 min-1
gear-independent (integrated in connecting flange)
Sense of rotation: Clockwise, looking on the PTO shaft
Same with forward and reverse drive
Internal splines Ø 20 mm
Equipment connection: ........................................................................... Ø 47 mm
Steering bar: ......................................... Height and lateral adjustment without tools
Swivelling through 180° for front implement attachment
Weights:
Version 3600 (2+2) ...................... empty weight with driving wheels 4.00-8: 63.0 kg
Version 3600 (3+2) ...................... empty weight with driving wheels 4.00-8: 74.0 kg

2
Technical Data
Two-wheel tractor agria 3600 19
Tyres:................................................... 4.00-8 (field profile) or 4.00-10 (field profile)
Tyre pressure:............................................................................................. 1.2 bars
Wheel track
Version 3600 (2+2):.......................................................................................... [mm]
4.00-8.......................................................................................................... 300 - 600
4.00-10........................................................................................................ 320 - 620
Track plan
Version 3600 (3+2):.......................................................................................... [mm]

2
Technical Data
20 Two-wheel tractor agria 3600
Dimensions (mm):
Dimension Version
3600 (2+2) 3600 (3+2)
A 605 605
A11170/1250 1170/1250
B 4.00-8 400-700 460-560
4.00-10 420-720 420-610
C 800-1000 800-1000
C1760-1010 760-1010
D 1650 1650
D11715 1715
E 790 790
E1540 540
F 560 560
F1755 755
Sound values
Sound-pressure level at the ear of the operator..to EN ISO 3744 and EN ISO 11201
with hoeing equipment (3601 311) ........................................................LpA = 83,0 dB
with rotary tiller (3656 521) ....................................................................LpA = 96,0 dB
with sweeping machine (2294 171) ......................................................LpA = 96,0 dB
Vibration acceleration values
at the handlebar handle
to ISO 5349 at 85 % of the nominal engine speed with activated tool
with hoeing equipment (3601 311) .............................................................ahw = m/s2
with rotary tiller (3656 521) .........................................................................ahw =m/s2
with sweeping machine (2294 171) ...........................................................ahw = m/s2
